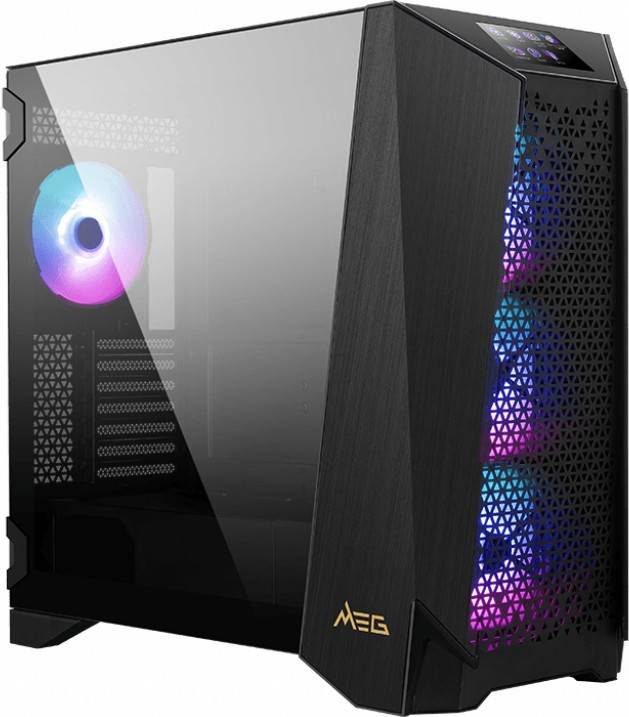

MSI MEG PROSPECT 700R / Mid tower / extended ATX / windowed side panel (tempered glass) / no power supply (ATX) / USB/Audio/Mic | 306-7G15R21-W57
Please sign in so that we can notify you about a reply
Product Features
- The revelation of legend
The MEG series is revealed as a legend that represents the ultimate elegance in gaming. With the determination of transcending current gaming products, the flagship models push the limits of what an extreme gaming series can be. Embellished with a large area of multifaceted triangles and featuring the craftsmanship of sculpted diamond-cut lines and polished surfaces that emulates magnificent temperament, this case is born as a work of art. - Gaming intelligence
Gaming intelligence is dedicated to providing many unique and useful features to improve the gamer's experience. - Modular design
The side of the MEG PROSPECT 700 series is fully modular, allowing users to change it accordingly to their needs. Three different plates can be selected for E-ATX motherboard installation, side fans installation, or a cable cover. - Vertical GPU mount
The MEG PROSPECT 700 series comes with a one piece high strength vertical GPU bracket as an accessory that allows you to mount your graphics card vertically. - Cable routing
It is simply and fast to build an adept system with major cables neatly routed through a channel. - Magnetic dust filter
The dust filters on the top, front, side and bottom vents keeping dust from falling inside while being easily removed for cleaning. - Potential for cooling
To provide the most supreme cooling to a system component, it can support up to two 360 mm radiators and three 140 mm fans. - Optimized airflow
The MEG PROSPECT 700 series is optimized to provide generous and effective airflow for system cooling with vents built throughout the system, The MEG PROSPECT 700 series comes with four 140 mm fans and can mount up to ten 120 mm fans. - USB 3.2 Gen 2x2 Type-C
Synergize the MEG PROSPECT 700 series with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C port for high-speed data transmission.
Special Features
- Can install up to 10x system fans, providing ventilation and stable performance to the whole system
- Built-in ARGB fans with striking lighting and vivid lighting effects
- Designed in partner with EK, the MEG PROSPECT 700R can fit an EK distribution plate inside
- The 4.3" touch panel can display a wide range of system information and graphics
- Synergize with a compatible MSI motherboard through bridging with a USB 3.2 Gen 2x2 Type-C (20Gbps) port for high-speed data transmission
- Vertical GPU bracket as an accessory that allows you to mount your graphics card vertically
- It can support up to two 360 mm radiators and three 140 mm fans
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | ATX, microATX, Extended ATX, ITX |
| Max Supported Dimensions | 30.5 cm x 31 cm |
| Internal Bays Qty | 4 |
| Product Material | Metal |
| Cooling System | Front: 140 mm fan x 3 / ARGB fan, 3 x 120/140 mm fan supported or 120/140/240/280/360 mm radiator supported ¦ Rear: 140 mm fan x 1 / ARGB fan, 1 x 120/140 mm fan supported or 1 x 120/140 mm radiator supported ¦ Top: fan mount / 3 x 120/140 mm fan or 120/140/240/280/360mm radiator supported ¦ Side: fan mount / 3 x 120 mm or 1 x 120/240/360 mm radiator supported |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 400 mm |
| Power Supply Max Length | 220 mm |
| System Cabinet Features | Bottom magnetic dust filter, front magnetic dust filter, top magnetic dust filter, MSI RGB Mystic Light Sync, side magnetic dust filter, EK distribution plate Support, touch panel |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 2 (total) / 2 (free) x internal - 2.5" |
| Expansion Slots | 7 |
| Interfaces | 1 x USB-C 3.2 Gen 2x2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x microphone ¦ 1 x headphones |
| Miscellaneous | Miscellaneous |
| Included Accessories | Vertical GPU mount |
| Power | Power |
| Power Device | No power supply |
| Specification Compliance | ATX |
| Dimensions & Weight | Dimensions & Weight |
| Width | 25.7 cm |
| Depth | 58.5 cm |
| Height | 53.7 cm |
| Weight | 15.95 kg |
Features - MSI - 306-7G15R21-W57
More Details
Product Code
04:417209
EAN Code
4719072945848
Manufacturer
MSI
