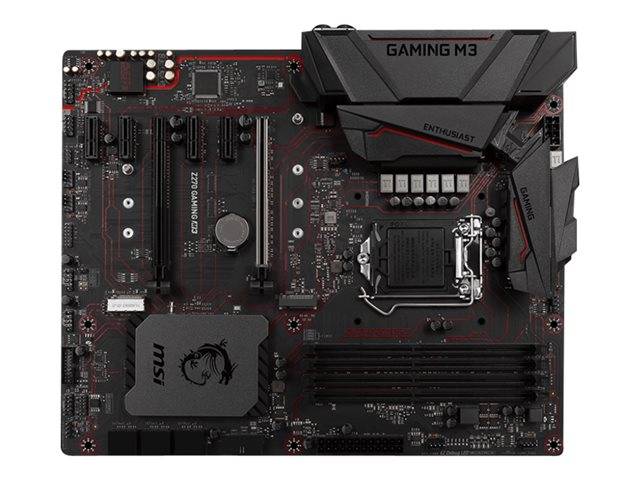

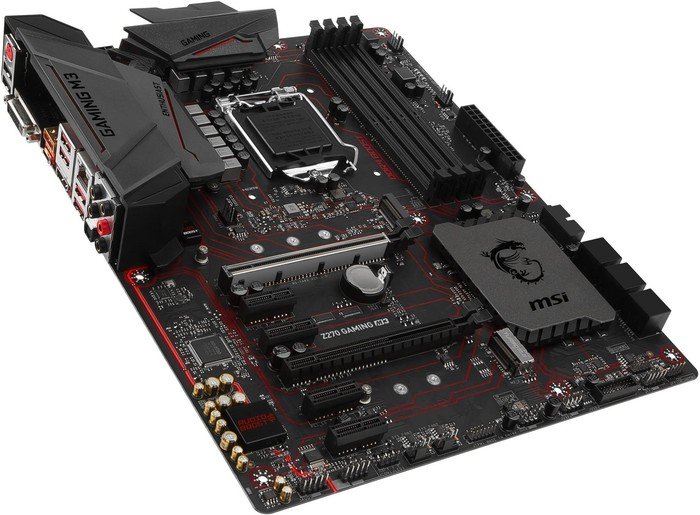

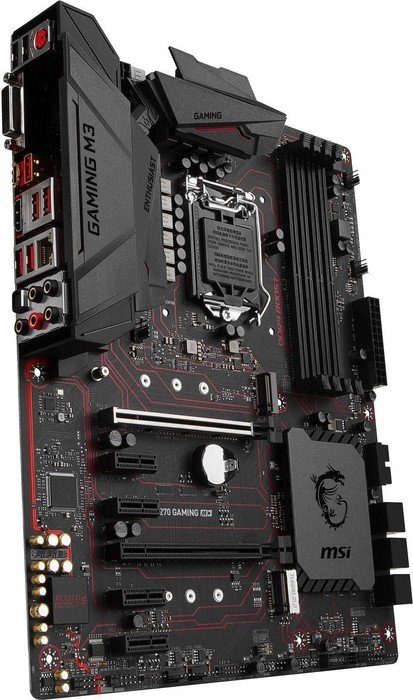

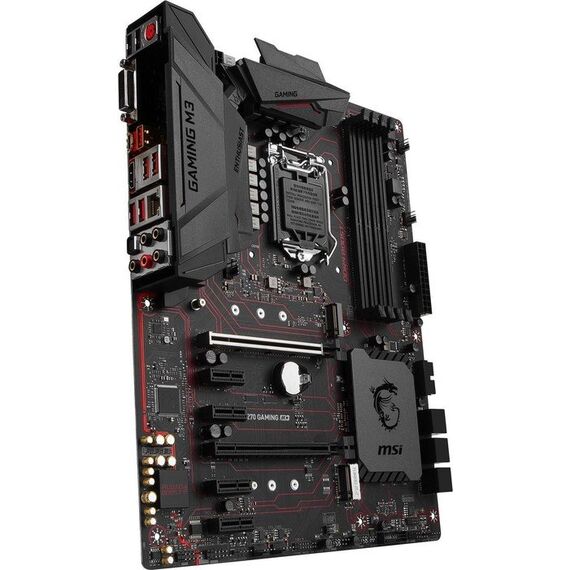

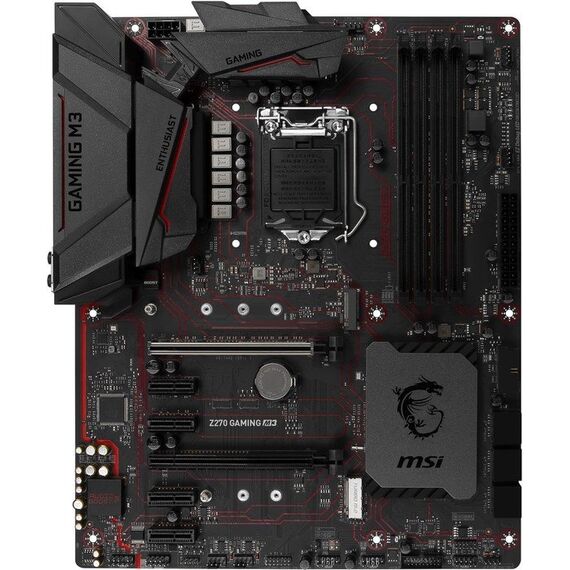

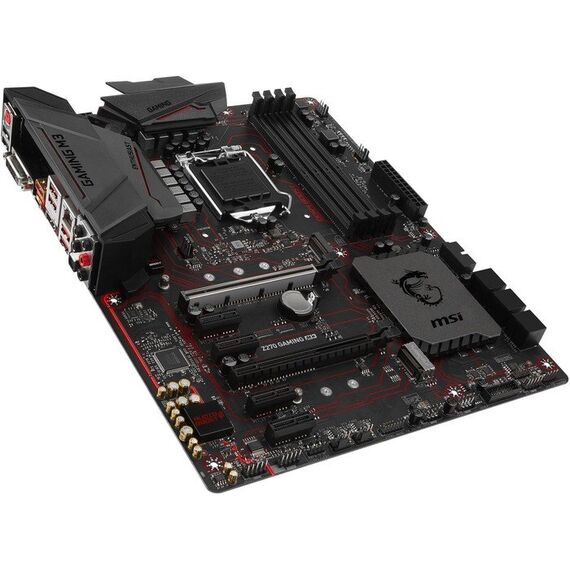

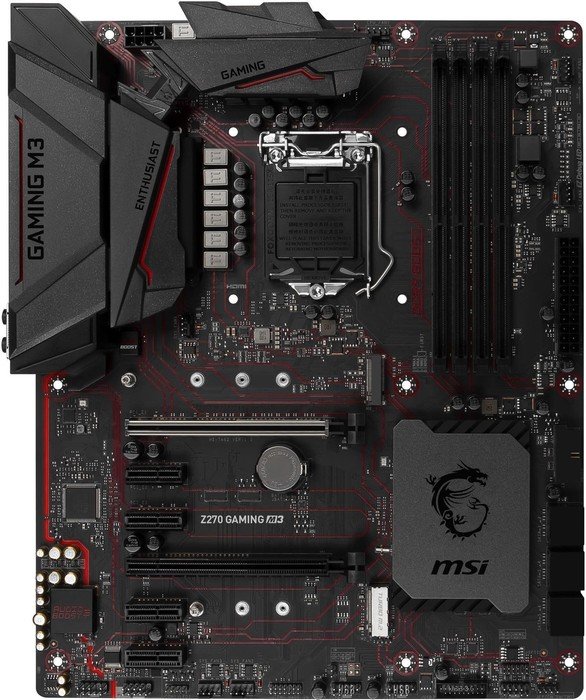

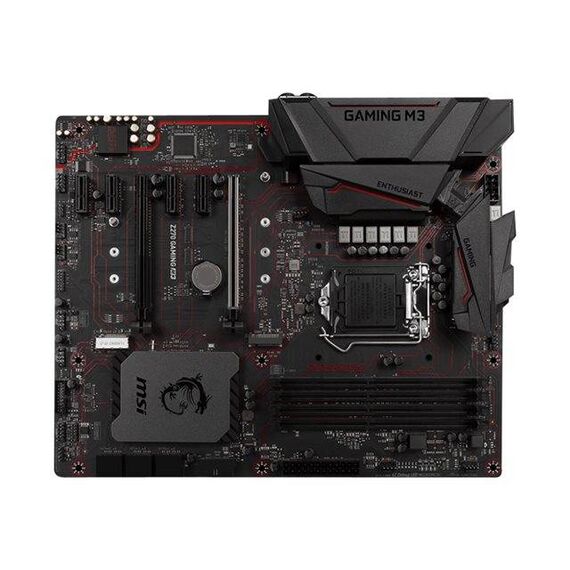

MSI Z270 GAMING M3 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A62-001R
MSI Z270 GAMING M3 / Motherboard / ATX / LGA1151 Socket / Z270 / USB 3.1 Gen1, USB-C Gen2, USB 3.1 Gen2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A62-001R
Description Customize and set up your own color scheme with RGB mystic light. Select any of the colors from the palette using your smartphone or the MSI gaming App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!Cooling your PC is essential for reliable performance. It includes enough fan headers with full control to allow you to cool your system any way you want.Outsmart and outperform your opponents in-game using an array of unique MSI gaming tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills. Special Features
Product features
|
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel Z270 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2600 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.) |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1220 |
Compliant Standards | High Definition Audio |
Network Controller | Killer Gaming E2500 |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x4 mode) ¦ 4 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
RAID Features | Intel Smart Response Technology |

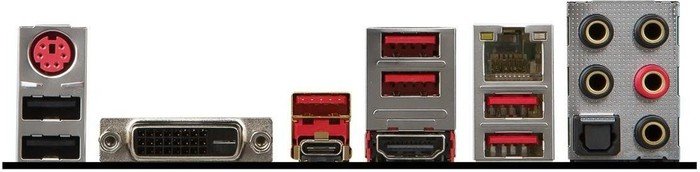

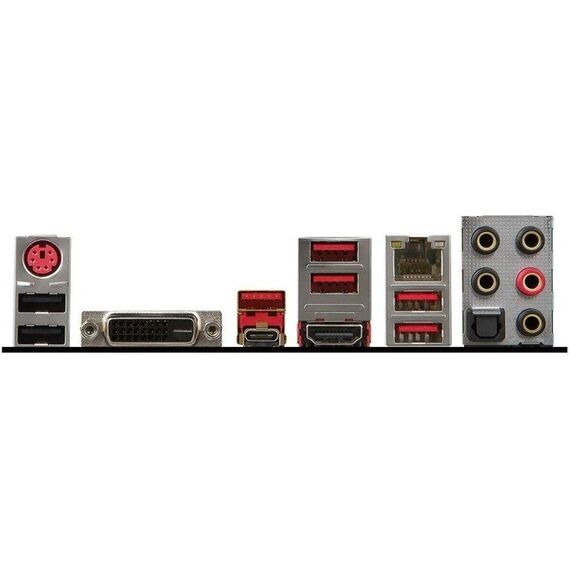

Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DVI-D ¦ 1 x USB 3.1 Gen2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK |
Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | Intel Extreme Memory Profile (XMP) support, AMD CrossFireX technology support, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, MSI Military Class V, LAN Protect, Intel Optane Memory Ready, MSI Audio Boost 4, Nahimic 2 Sound Technology |
Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z, MSI X-BOOST |
Width | 30.4 cm |
Depth | 24.3 cm |
Package Type | Retail |
Service & Support | Limited warranty - 3 years |
