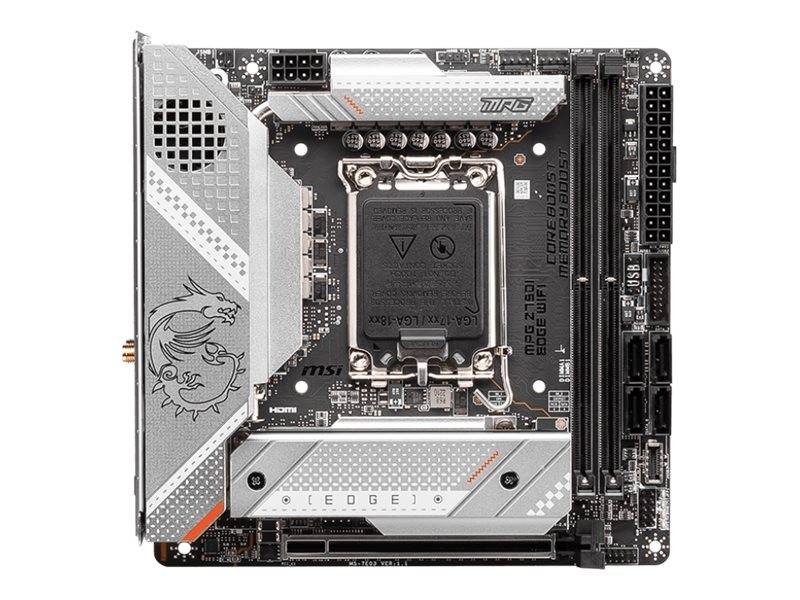

MSI MPG Z790I Edge WiFi / Motherboard / mini ITX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7E03-001R
Please sign in so that we can notify you about a reply
Product Features
- Optimized for water cooling
Designed to support the more popular all-in-one and customized water-cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit. - DIRECT 10+1+1 phases power design
Unleash and sustain the maximum performance with a robust VRM design built with a total of direct 10+1+1 digital power phases. Combining Core Boost and 105A Smart Power Stage, MPG Z790I EDGE WIFI is ready for the challenge of high-end processors. - Optimized PCB solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. - DDR5 memory with SMT slot
A huge step of DDR performance enhancement with the DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MPG Z790I EDGE WIFI is ready to deliver the world class memory performance. - Easy overclocking with XMP profile
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability. - Extend your RGB experience with ease
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. - High-bandwidth and low-latency network
MSI's premium network solution provides incredible data transfer speed for demanding users.
Special Features
- Supports 13th/12th Gen Intel Core/Pentium/Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, up to 8000+ (OC) MHz
- Lightning fast game experience - PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Enhanced power design - direct 10+1+1 phases power, Core Boost, Memory Boost
- Premium thermal solution - enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7 W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E solution - upgraded network solution for professional and multimedia use, delivers a secure, stable and fast network connection
- Audio Boost 5 - reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB - 12-layer PCB made by server grade level material
- Pre-installed I/O Shield - better EMI protection and more convenience for installation
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ÃÂæ 2 x DIMM 288-pin ÃÂæ 1 x PCIe 5.0 x16 ÃÂæ 2 x M.2 socket (2280 M.2 Key M slot) ÃÂæ 1 x M.2 socket (2280 M.2 Key M slot) ÃÂæ 1 x M.2 socket (Key E) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ÃÂæ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ÃÂæ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x HDMI ÃÂæ 1 x DisplayPort ÃÂæ 4 x USB 3.2 Gen 1 ÃÂæ 2 x USB 3.2 Gen 2 ÃÂæ 1 x USB-C 3.2 Gen2x2 ÃÂæ 1 x LAN (2.5Gigabit Ethernet) ÃÂæ 1 x audio line-out - mini-jack ÃÂæ 1 x microphone - mini-jack ÃÂæ 1 x audio line-in - mini-jack ÃÂæ 2 x aerial |
| Internal Interfaces | 2 x USB 2.0 - header ÃÂæ 2 x USB 3.2 Gen 1 - header ÃÂæ 1 x USB-C 3.2 Gen 2x2 - header ÃÂæ 1 x audio - header ÃÂæ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| Hardware Features | Clear CMOS Button, Debug LED, MSI Mystic Light, MSI Steel Armor, M.2 Shield FROZR, Water Pump Header, pre-mounted I/O shield, 12 Layer PCB, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Frozr Heatsink Design, MSI Audio Boost 5, Surface Mount Technology (SMT), 105A Smart Power Stage, 10+1+1 Phase Power Design, MSI Memory Boost |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rainbow RGB LED extension cable, USB drive, Wi-Fi aerial, cable stickers, M.2 screw package |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | WEEE, FIPS, FISMA, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4 |
| Width | 17 cm |
| Depth | 17 cm |
Features - MSI - 7E03-001R
CPU Socket
- Socket 1700
More Details
Product Code
04:415169
EAN Code
4711377011747
Manufacturer
MSI
