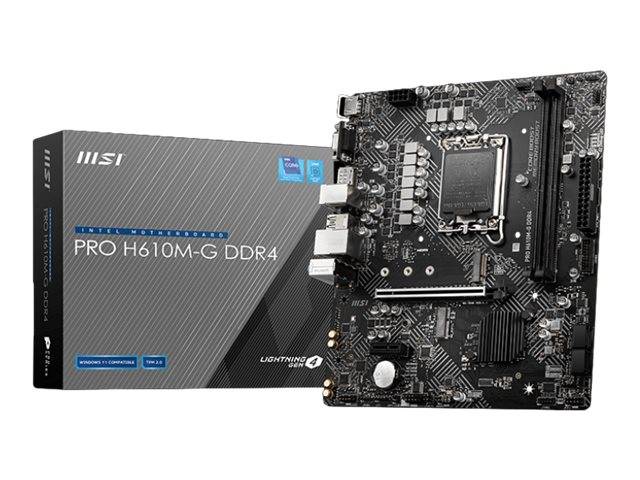

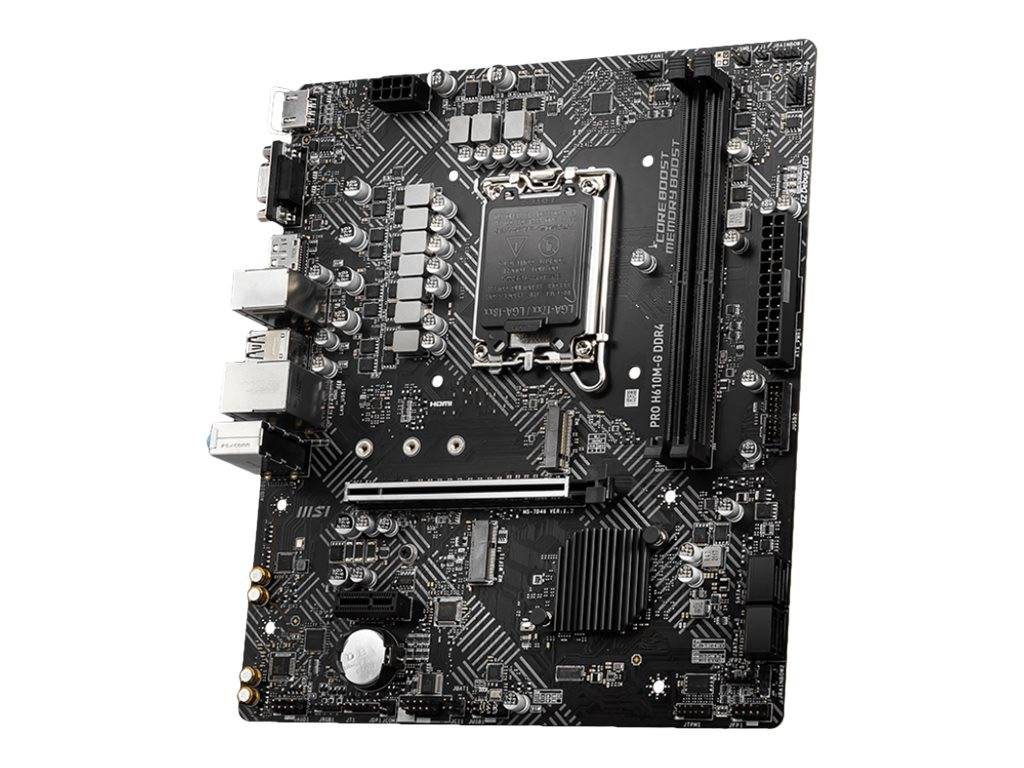

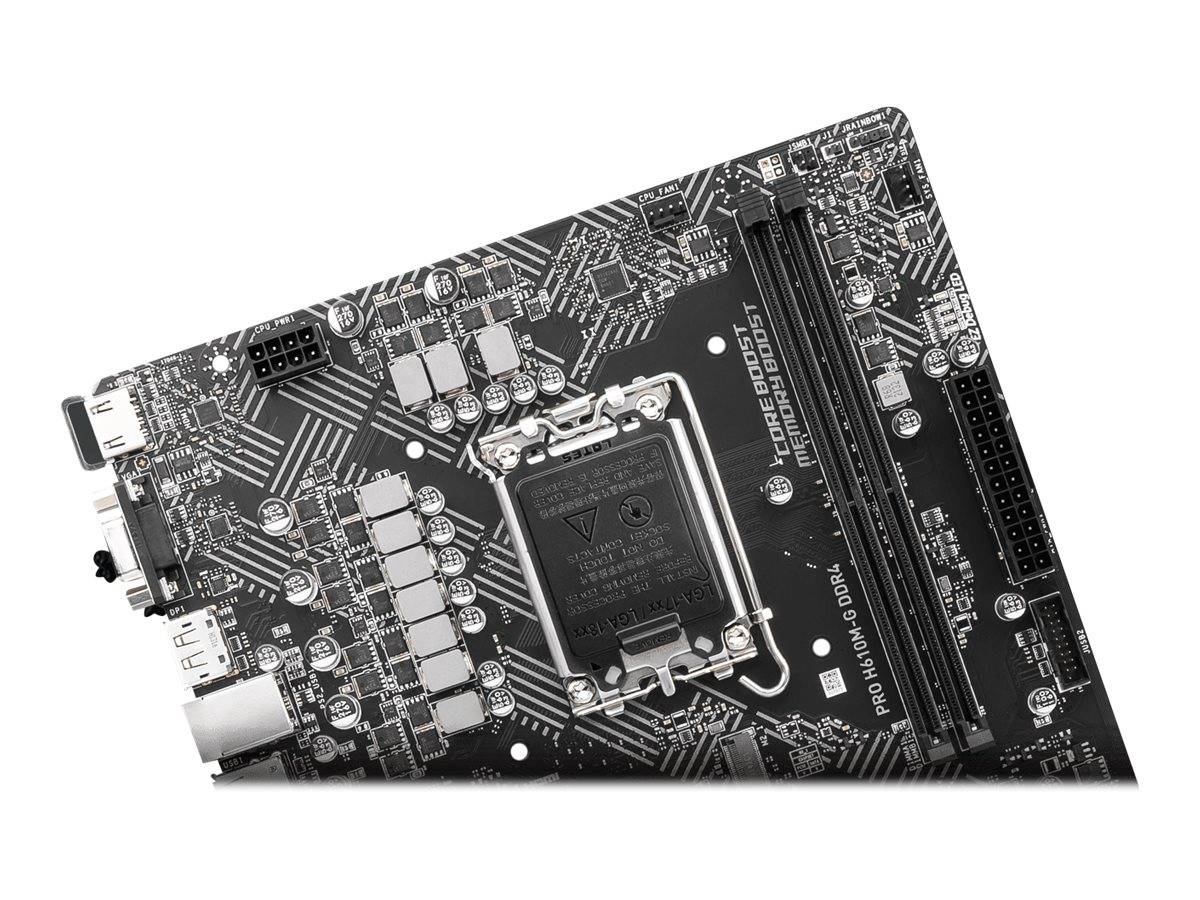

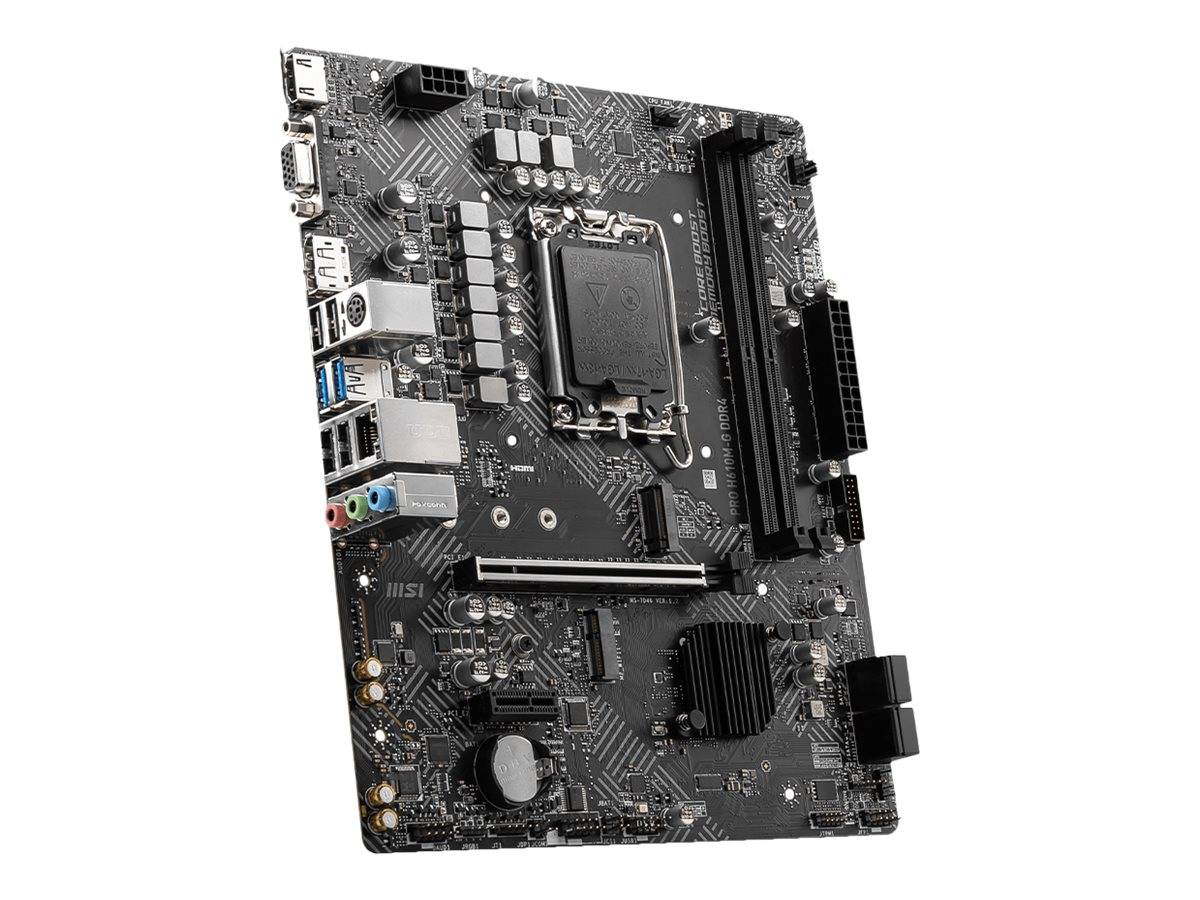

MSI PRO H610M-G DDR4 / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D46-009R
Please sign in so that we can notify you about a reply
Product Features
- FROZR AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. - Fully controllable in BIOS and software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. - Low latency gaming LAN powered by Intel
Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays. - Optimize network for lower latency
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. - Lightning Gen 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. - Extreme stability & compatibility testing
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. The memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. - Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Special Features
- FROZR AI Cooling
- Fully controllable in BIOS and software
- Low latency gaming LAN powered by Intel
- Optimize network for lower latency
- Lightning Gen 4 PCI-E
- Extreme stability & compatibility testing
- Core Boost
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel H610 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892/ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (for wireless module) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, Debug LED, MSI Steel Armor, Double ESD Protection, MSI Core Boost |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate, case badge, M.2 clip |
| Cables Included | 2 x Serial ATA cable |
| Width | 23.6 cm |
| Depth | 20.2 cm |
Features - MSI - 7D46-009R
CPU Socket
- Socket 1700
More Details
Product Code
04:400354
EAN Code
4719072925024
Manufacturer
MSI
