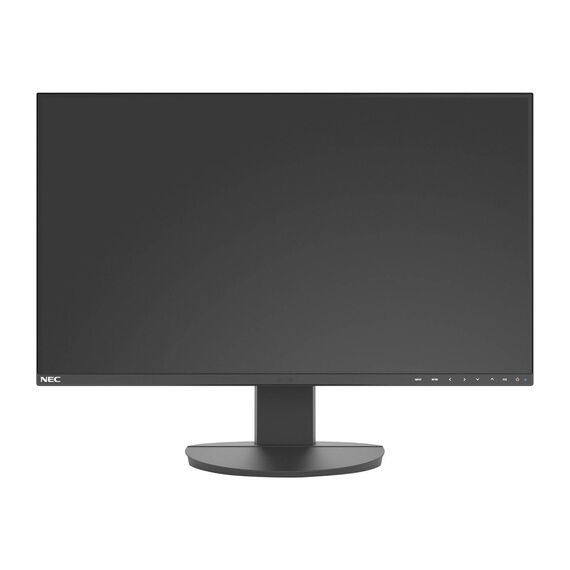

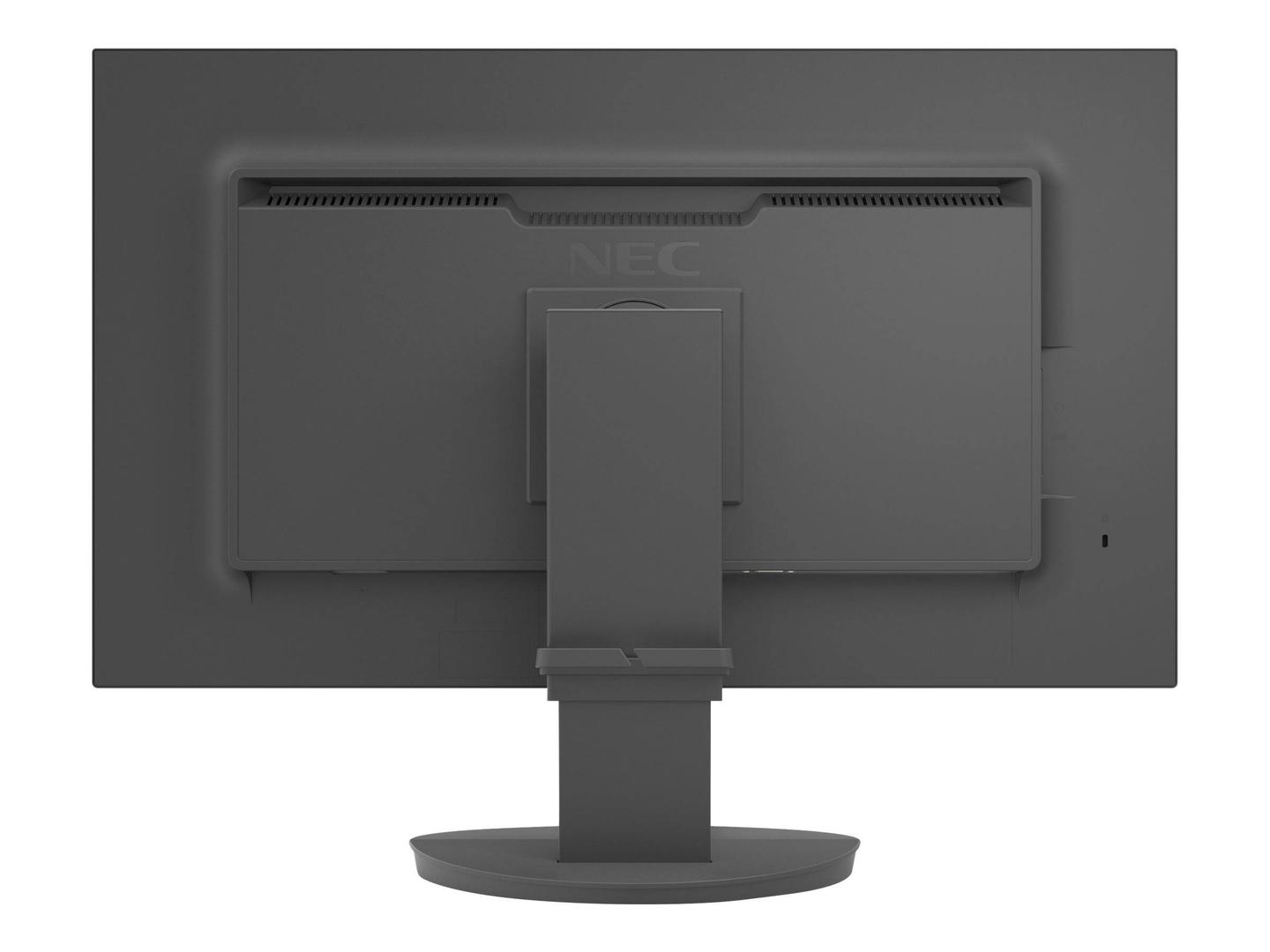

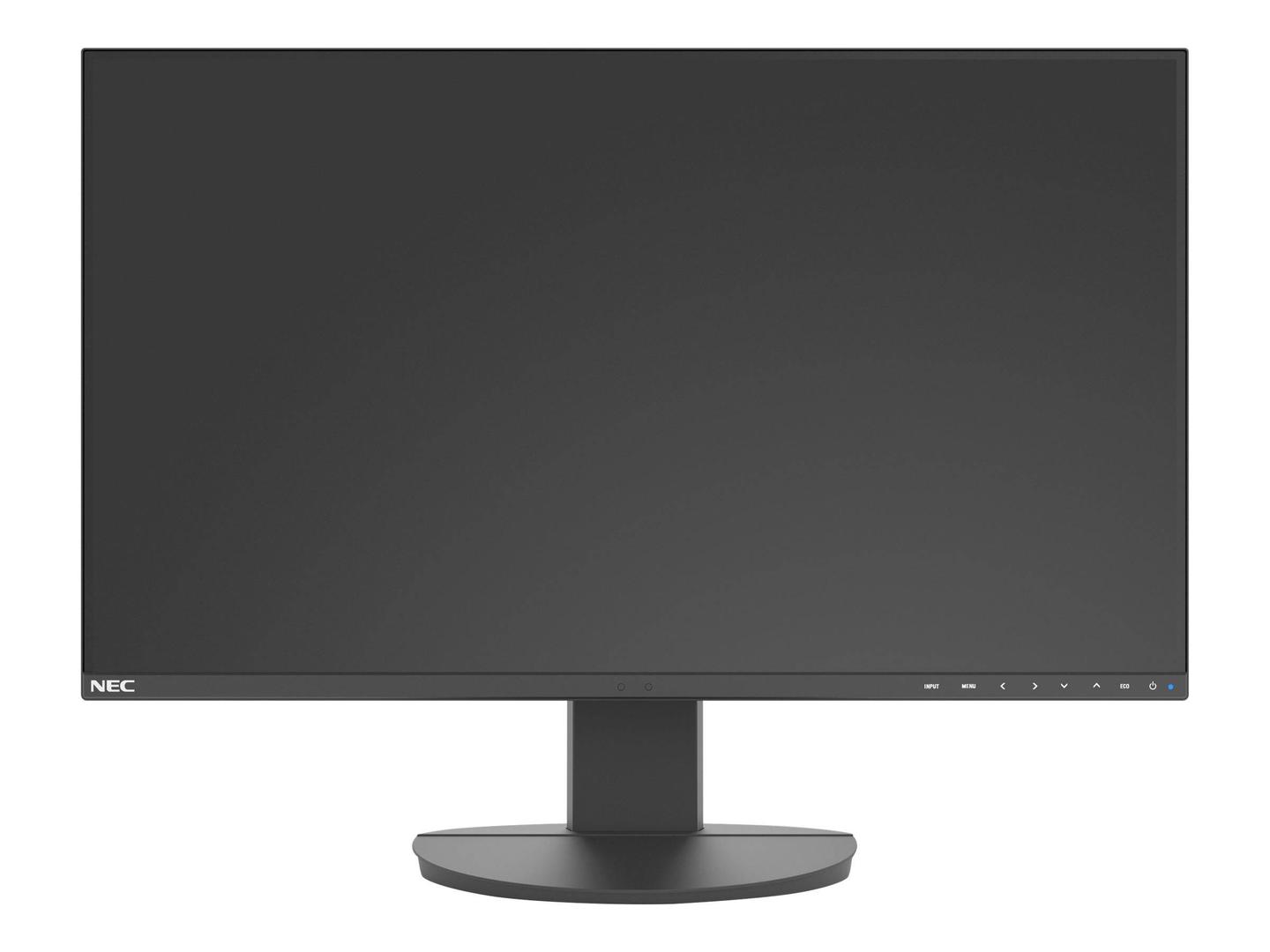

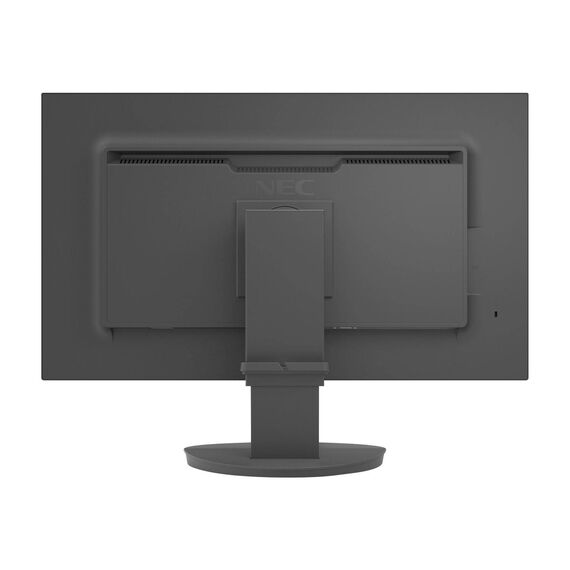

NEC MultiSync EA242F / LED monitor / 23.8" / 1920 x 1080 Full HD (1080p) @ 60 Hz / IPS / 250 cd/m² / 1000:1 / 5 ms / HDMI, VGA, DisplayPort, USB-C / speakers / black | 60005032
Please sign in so that we can notify you about a reply
Product Features
- In-demand display size
The popular display with Full HD resolution is the perfect size for busy office workspaces. - Future-proof flexibility
Wide connectivity provides high-level flexibility with DP, HDMI, USB Type C, USB A and audio output. - Clutter-free workspace
Powerful USB Type-C connectivity manages video, audio, power and USB via a single cable - Easy multi-screen set-up
Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed - Maximum attention to health and well-being
The outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free.
Special Features
- In-demand display size
- Future-proof flexibility
- Clutter-free workspace
- Easy multi-screen set-up
- Maximum attention to health and well-being
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class D |
| Diagonal Size | 23.8" |
| Built-in Devices | USB 3.1 hub |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.275 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 / 5000:1 (dynamic) |
| Colour Support | 16.7 million colours (6-bit) |
| Colour Gamut | 101.6% sRGB, 72% NTSC |
| Response Time | 5 ms (grey-to-grey) |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 31.5 - 83 kHz |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Backlight Technology | WLED |
| Features | Ambient light sensor, Eco-Mode, Auto Brightness Control, Dynamic Visual Mode, ControlSync, On-screen Digital Controls, OSD lock, integrated cable management, Carbon Footprint Meter, Human Sensor, Flicker Free technology, Non-Touch-Auto-Adjustment (NTAA), DICOM Simulation, Low Blue Light technology, 72% NTSC colour gamut |
| Colour | Black |
| Dimensions (WxDxH) | 53.77 cm x 25 cm x 33.66 cm - with stand |
| Weight | 7 kg |
| Audio | Audio |
| Type | Speakers - stereo |
| Output Power / Channel | 1 Watt |
| Connectivity | Connectivity |
| Interfaces | DisplayPort ¦ DisplayPort output ¦ HDMI ¦ USB-C ¦ 3 x USB 3.1 downstream (Type A) ¦ USB 3.1 upstream (Type B) ¦ VGA |
| Mechanical | Mechanical |

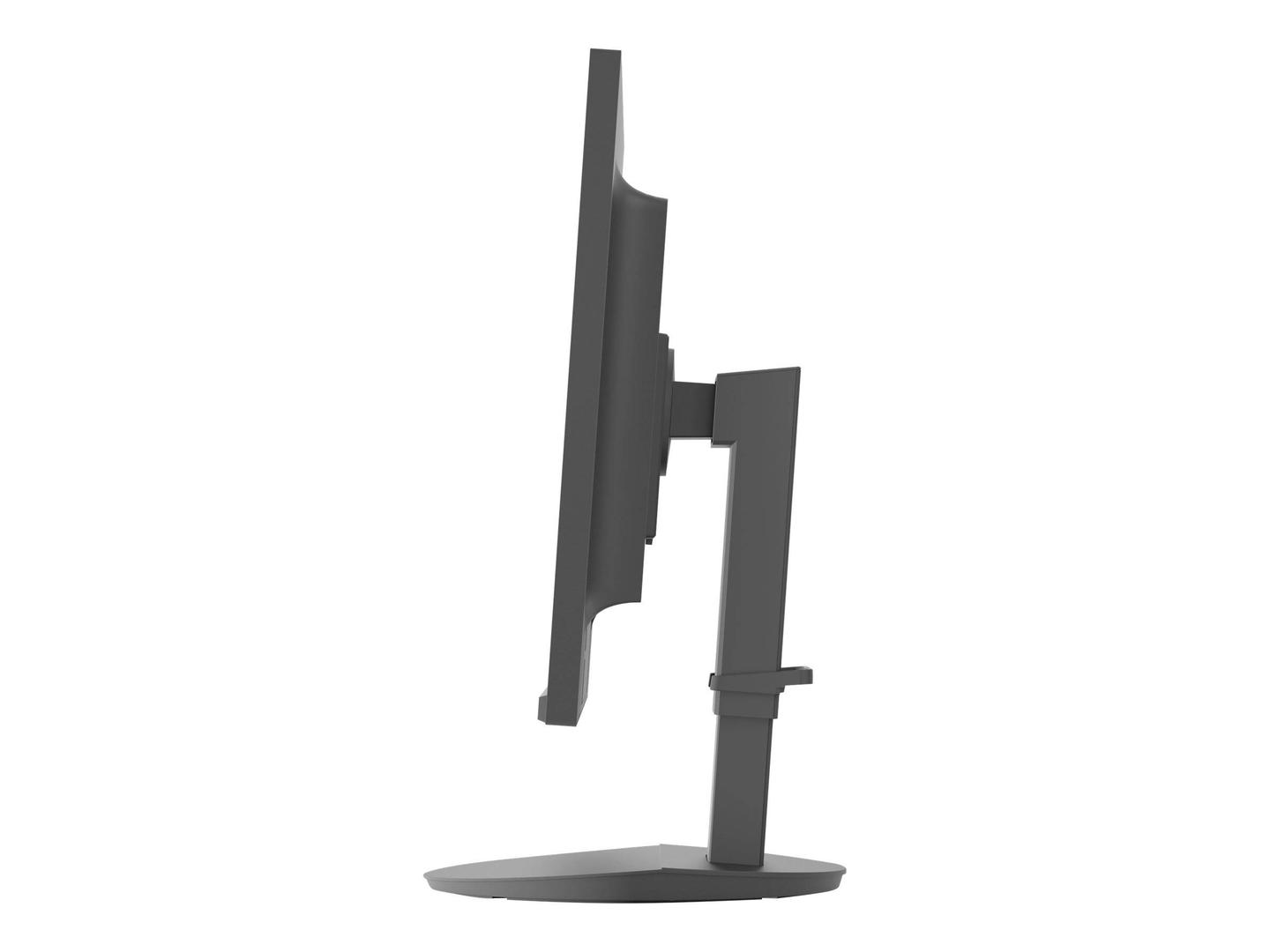

| Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
| Tilt Angle | -5/+35 |
| Swivel Angle | 340 |
| Rotation Angle | 90 |
| Height Adjustment | 150 mm |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | Security lock slot (cable lock sold separately), integrated cable management |
| Cables Included | 1 x ControlSync cable ¦ 1 x DisplayPort cable ¦ 1 x USB cable ¦ 1 x USB-C cable |
| Compliant Standards | Plug and Play, CSA, UL, TUV GS, cUL, DDC-2Bi, TUV Ergo, PSB, DDC/CI, RoHS, WEEE, ERP, EAC, DisplayPort 1.2, ISO 9241-307 Class 1, HDCP 1.4, VESA DDC 2 B |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Input Voltage | AC 120/230 V |
| Power Consumption (On mode) | 13.2 W |
| Power Consumption SDR (On mode) | 13.2 kWh/1000h |
| Power Consumption (Typical) | 21 Watt |
| Power Consumption Stand by | 0.3 Watt |
| Sustainability Information | Sustainability Information |
| TCO Certified | TCO Certified Displays 8, TCO Certified Edge Displays |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 20 - 80% |
Features - NEC - 60005032
Resolution
1920 x XXXX
More Details
Product Code
CA66456
EAN Code
5028695120426
Manufacturer
NEC
