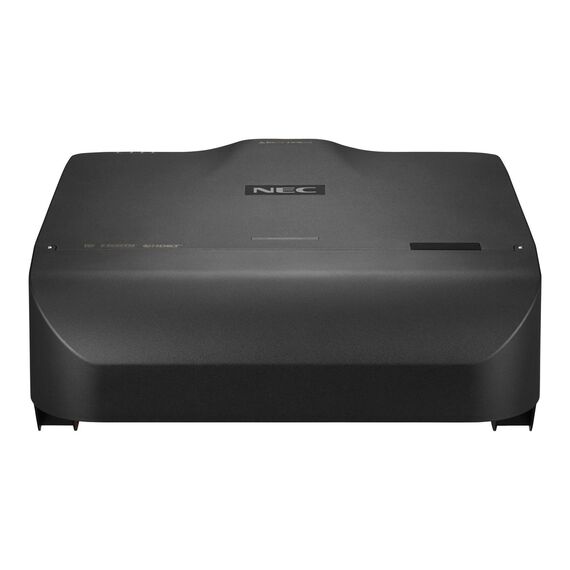

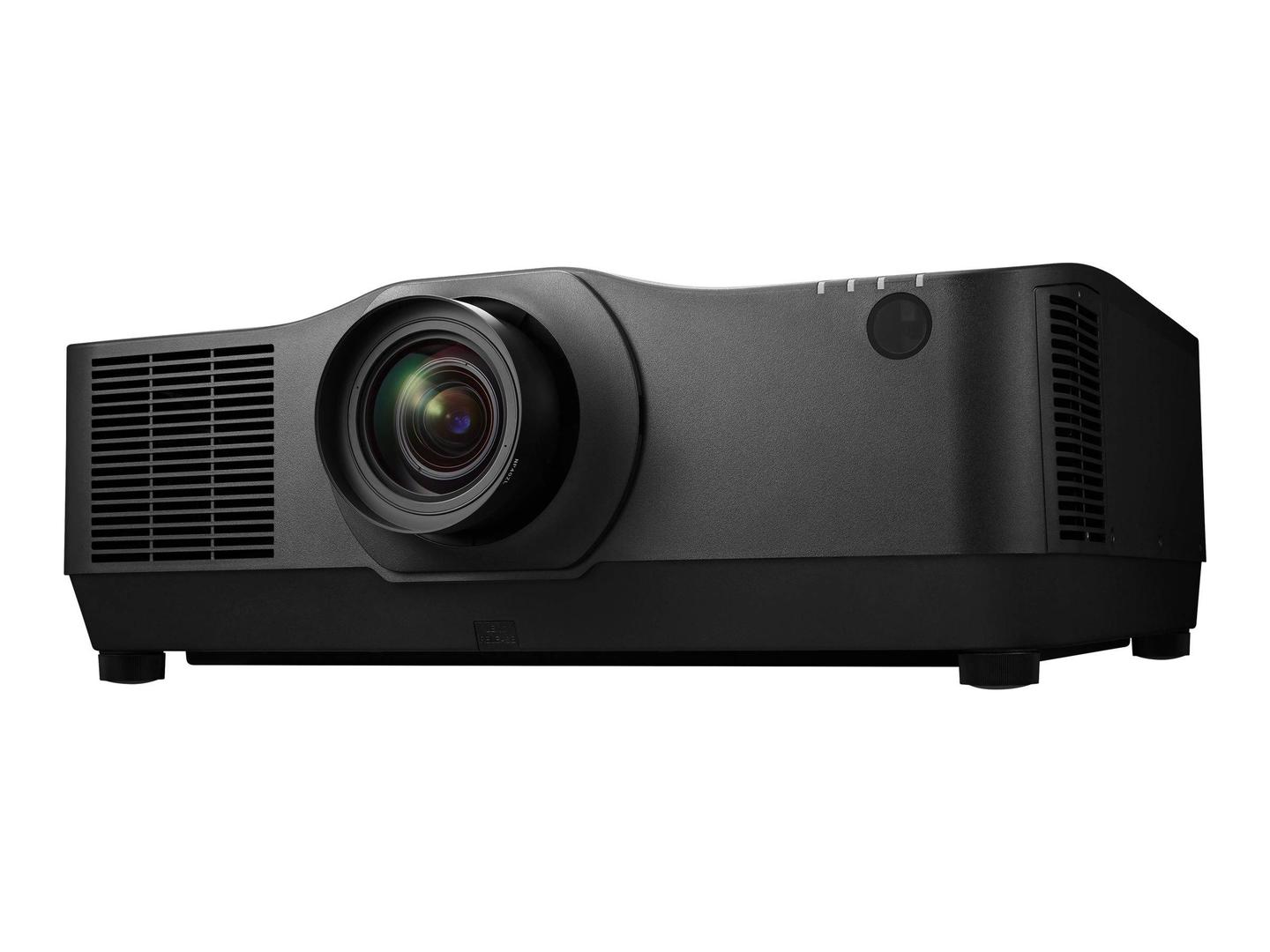

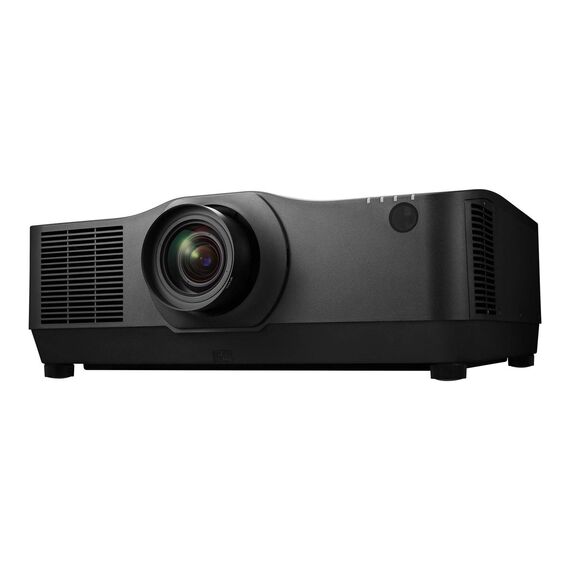

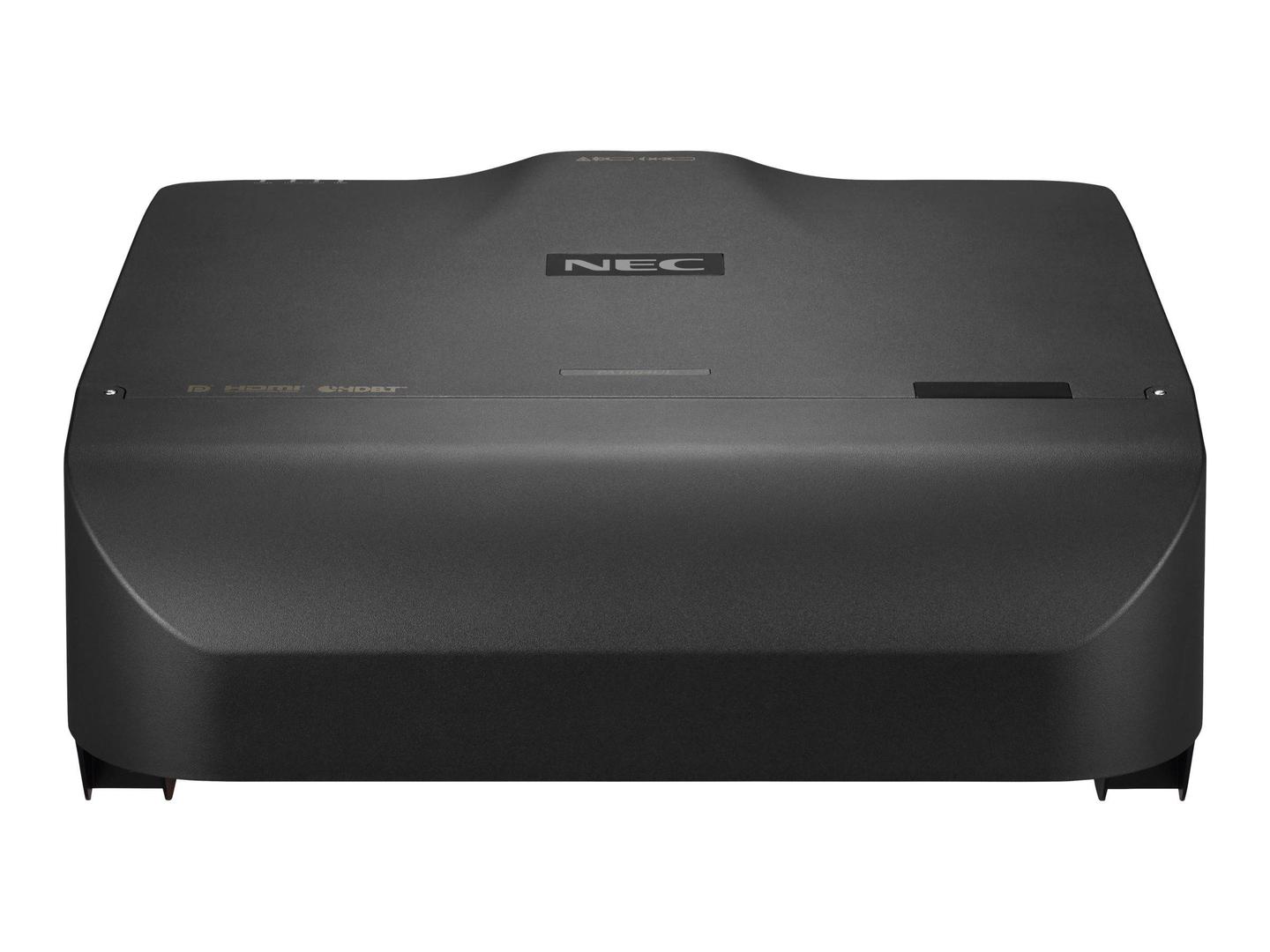

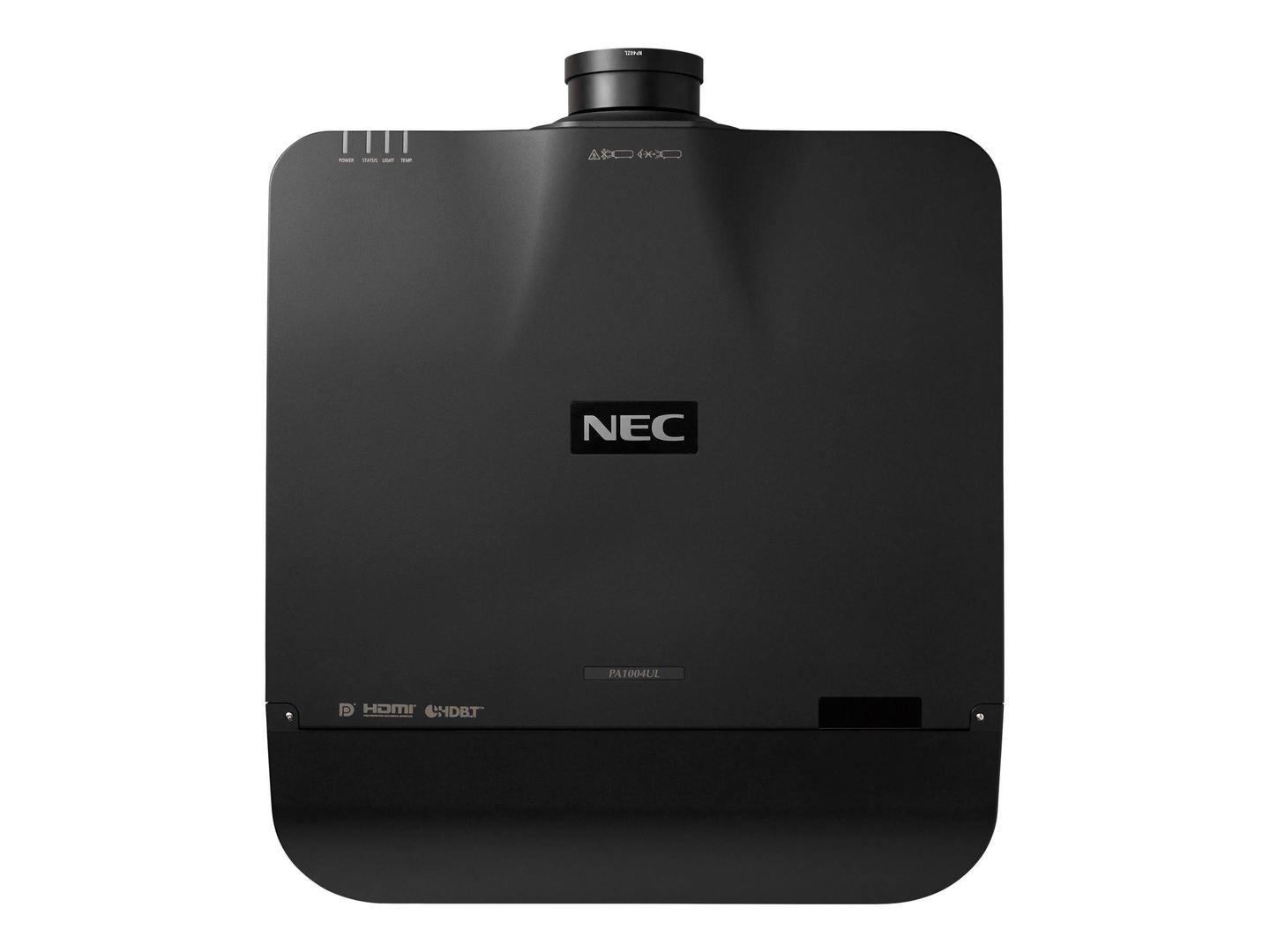

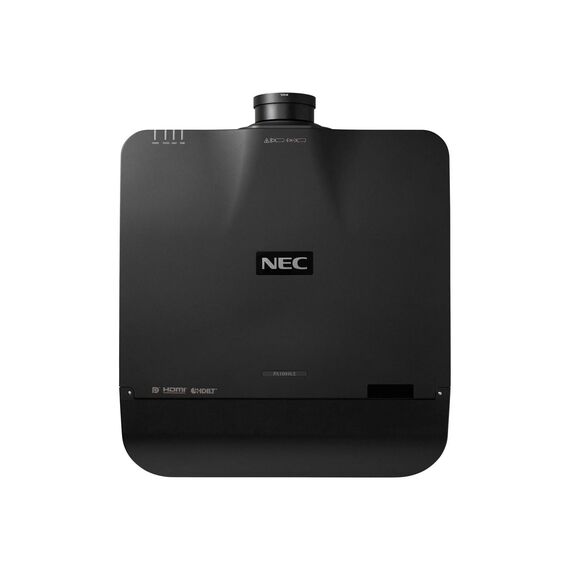

NEC PA1004UL / 3LCD projector / 3D / 10000 ANSI lumens / WUXGA (1920 x 1200) / 16:10 / 1080p / zoom lens / LAN / white / with NP41ZL lens | 40001458
Please sign in so that we can notify you about a reply
Product Features
- No lamp replacement
Up to 20,000 h maintenance free operation possible due to Laser Light Source. - No filter service required
A completely sealed optical laser LCD engine allows a filter-free design. Brilliant color brightness is maintained and servicing costs need no longer feature in your budget. - Super Silent operation
Sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise. - Impress with vivid color & contrast
Brilliant white and wide color space with high dynamic contrast supporting HDR10 standard via HDMI interface. - Incredible visualization capabilities
Impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
Special Features
- No lamp replacement
- No filter service required
- Super Silent operation
- Impress with vivid color & contrast
- Incredible visualization capabilities
Product Specification
| Device Type | 3LCD projector - 1080p |
| 3D Capable | Yes (3D glasses sold separately) |
| Networking | Ethernet |
| Enclosure Colour | White |
| Bundled with | NP41ZL lens |
| Projector | Projector |
| Brightness | 10000 ANSI lumens |
| Contrast Ratio | 3000000:1 (dynamic) |
| Image Size | 127 cm - 1270 cm |
| Projection Distance | 0.7 m - 50.9 m |
| Throw Ratio | 1.3 - 3.02:1 |
| Resolution | WUXGA - WUXGA (1920 x 1200) (native) / 4096 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Max Sync Rate (V x H) | 120 Hz x 153 kHz |
| Bulb type | Laser |
| Bulb life cycle | Up to 20000 hour(s) |
| Controls & Adjustments | Input select, keystone correction, aspect control |
| Features | Picture in picture, 3D Reform technology, freeze frame, Edge blending, wall colour correction, picture by picture, 3LCD Technology, Hollywood Quality Video (HQV), Crestron RoomView, DICOM Simulation Mode, Direct Power Off, Active 3D projection capability, built-in test pattern, Geometric Correction, Eco Mode, Cinema Quality Picture (CQP) Processing, Multi-Screen compensation mode, Virtual Remote, High Altitude Mode, portrait mode, Free Tilt, High Dynamic Range (HDR), picture on picture, AMX Beacon |
| Lens | Lens |
| Type | Zoom lens |
| Lens Aperture | F/1.7-2.0 |
| Zoom Type | Powered |
| Zoom Factor | 2.3x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -40 / +40 |
| Horizontal Keystone Correction | -40 / +40 |
| Lens Shift Direction | Horizontal, vertical |
| Vertical Lens Shift | 10% / 50% |
| Horizontal Lens Shift | 20% / 20% |
| Video Input | Video Input |
| Video Interfaces | VGA, HDMI, DisplayPort, HDBaseT |
| Video Modes | 1080/24p, 1080/60i, 480/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 1080/30p, 1080/25p, 576/50i, 480/50i |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x DisplayPort input - 20 pin DisplayPort ¦ 1 x HDBaseT input - RJ-45 ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 2 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 input - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x 3D Sync out - 3 PIN mini-DIN ¦ 1 x remote control input - mini-phone stereo 3.5 mm ¦ 1 x HDBaseT output - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wireless remote control |
| Compliant Standards | RoHS, ERP, EAC |
| Power | Power |
| Power Source | AC |
| Voltage Required | AC 100 - 240 V (50 - 60 Hz) |
| Power Consumption Operational | 725 Watt |
| Power Consumption Stand by | 0.8 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 59.9 cm |
| Depth | 49 cm |
| Height | 20.8 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - lamp - 3 years / 10000 hours |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Sound Emission | 35 dB |
| Sound Emission (Economic Mode) | 32 dB |
Features - NEC - 40001458
More Details
Product Code
3969890
EAN Code
5028695614291
Manufacturer
NEC
