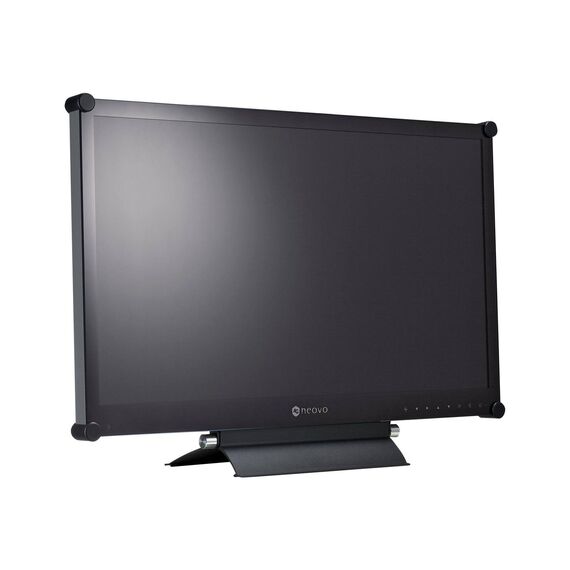

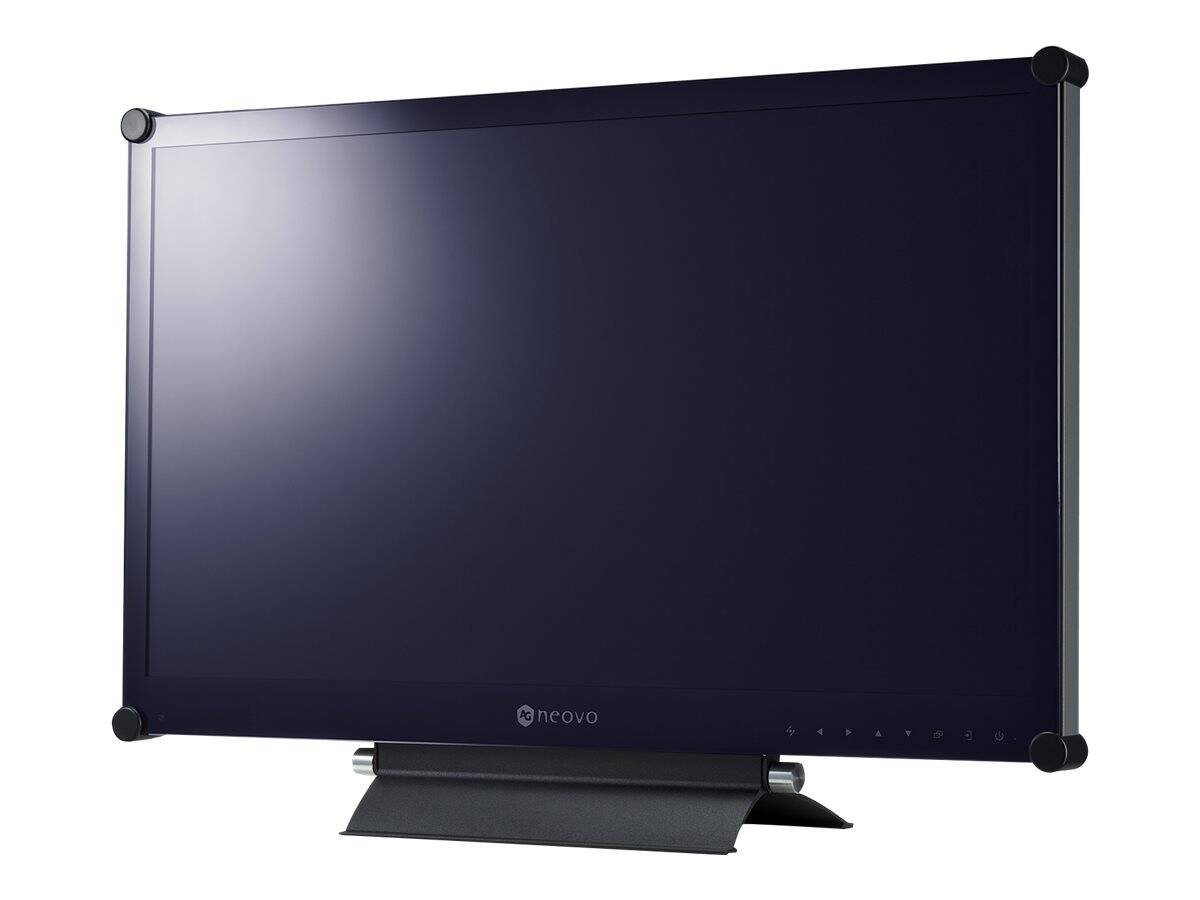

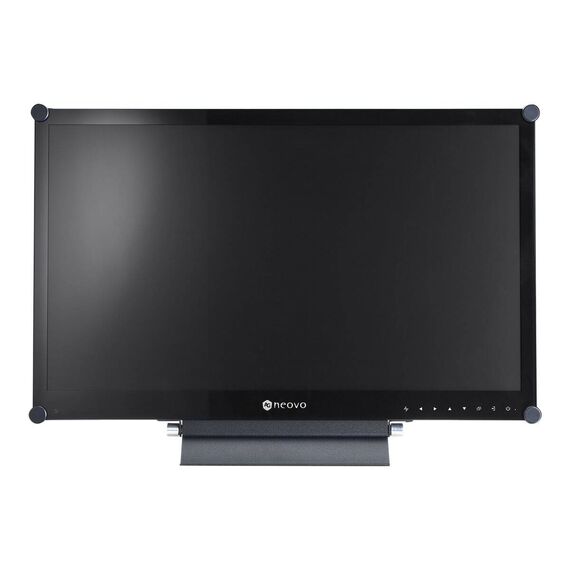

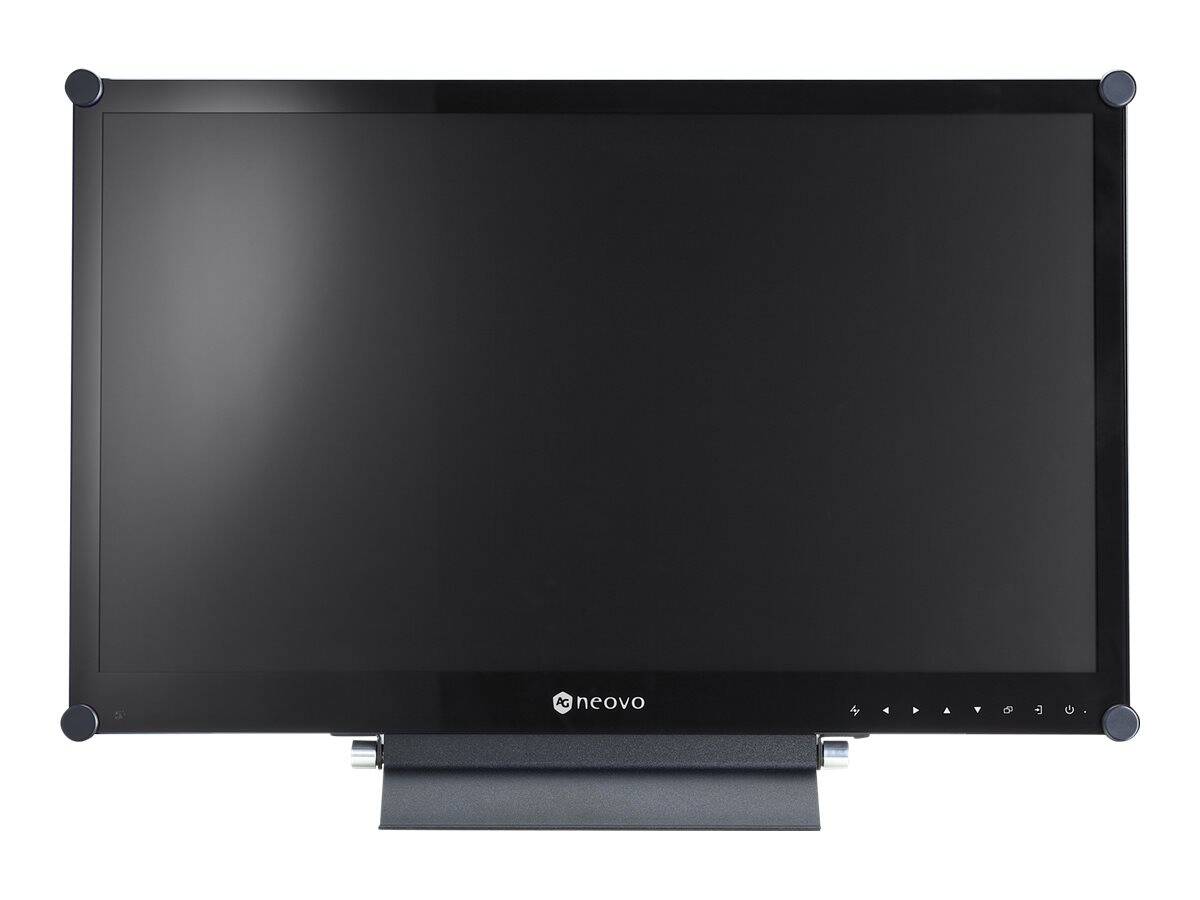

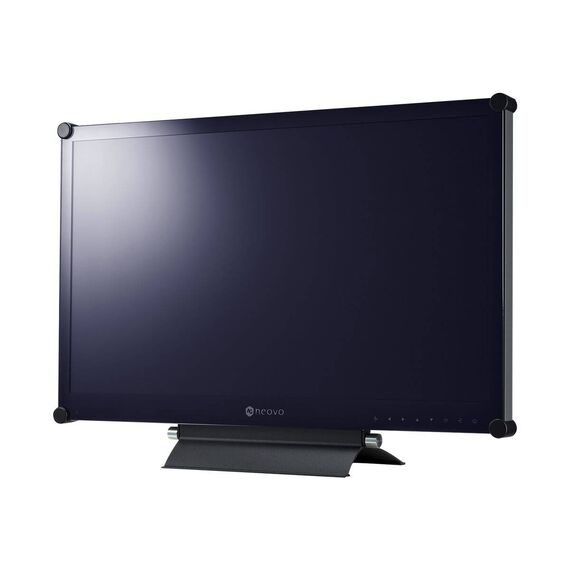

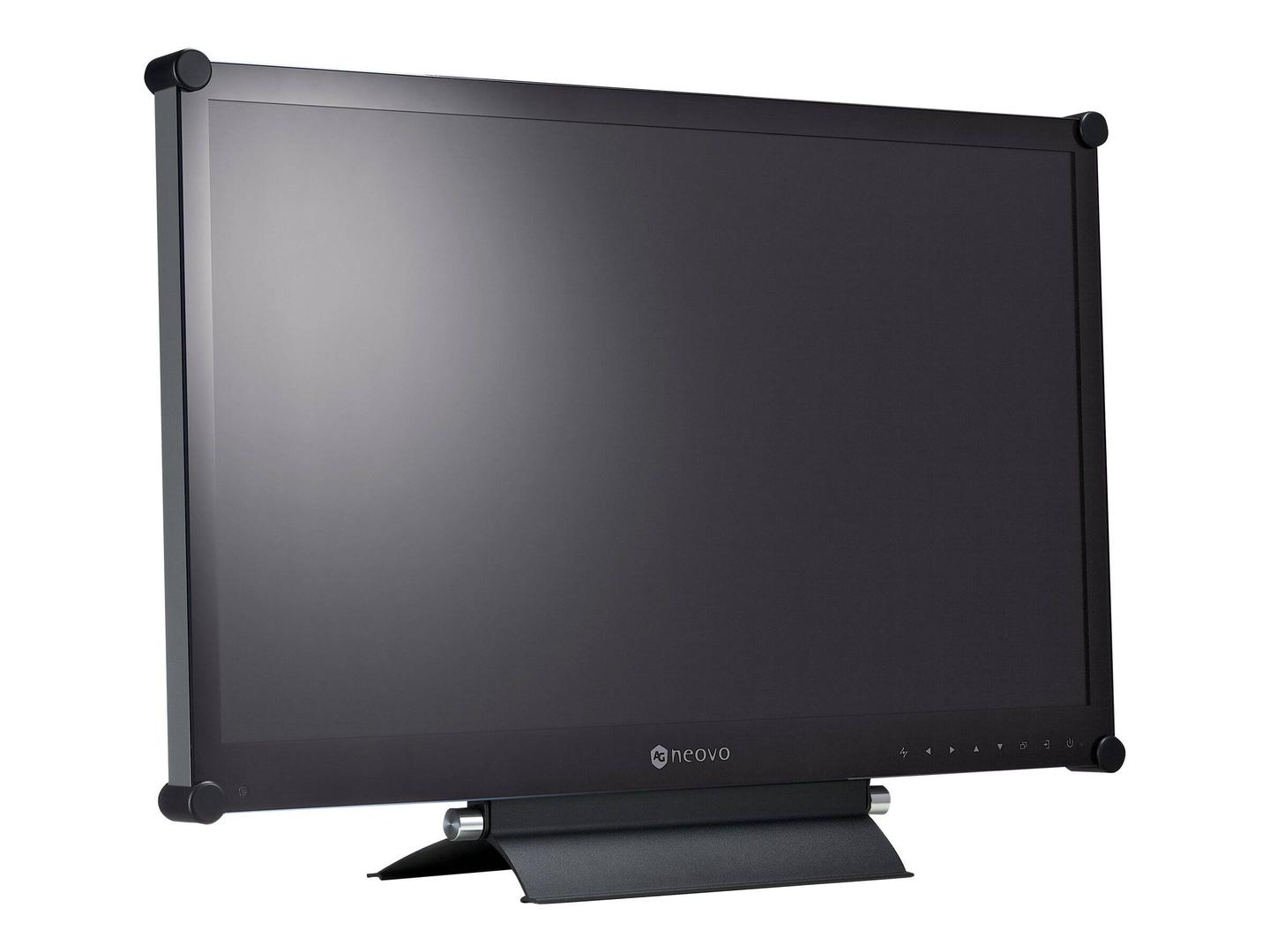

Neovo HX-24G - HX-Series LCD display - colour - 24" - High Definition | HX4GB011E0100
Please sign in so that we can notify you about a reply
Product Features
- Uninterrupted transmission
The HX-24G has been designed for broadcasting as well as surveillance applications, which supports multiple SDI video signals up to 3G-SDI to ensure all video formats can be broadcast uninterruptedly. Its high-quality SDI input and loop through SDI output make it easy to connect other gear without the need for a splitter. - Unbeatable image clarity
Built with cutting-edge super-resolution technology, the HX-24G can upscale images at a higher and more detailed resolution for better clarity. The AG Neovo specialized image settings enhance color, brightness, sharpness and contrast ratio, allowing the HX-24G to improve the light, shadows and color balance of videos. - Industry-leading reliability
The HX-24G is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo's Anti-Burn-in technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV Optical Glass not only protect the HX-24G from damage but also keep maintenance easy.
Special Fetures
- Uninterrupted transmission
- Unbeatable image clarity
- Industry-leading reliability
Product Specification
| Type | LCD display |
| Width | 56.24 cm |
| Depth | 5.62 cm |
| Height | 35.26 cm |
| Weight | 7.3 kg |
| CCTV | |
| Equipment Category | CCTV monitors |
| Supported Video Signals | Composite video, VGA, DVI, HDMI, DisplayPort, 3G-SDI |
| Audio Support | Yes |
| Studio & Field Monitors | |
| Recommended Use | Studio control room, surveillance system |
| Colour Support | Colour |
| Display Size | 24" |
| Viewable Area | 23.6" |
| Native Resolution | 1920 x 1080 |
| LCD Technology | TFT active matrix |
| High Definition Monitor | Yes |
| Image Brightness | 300 cd/m² |
| Built-in Speakers | 2 speakers |
| Features | Freeze function, LED backlight, NeoV Optical Glass, Anti-Burn-in technology, EcoSmart Sensor |
| Power | |

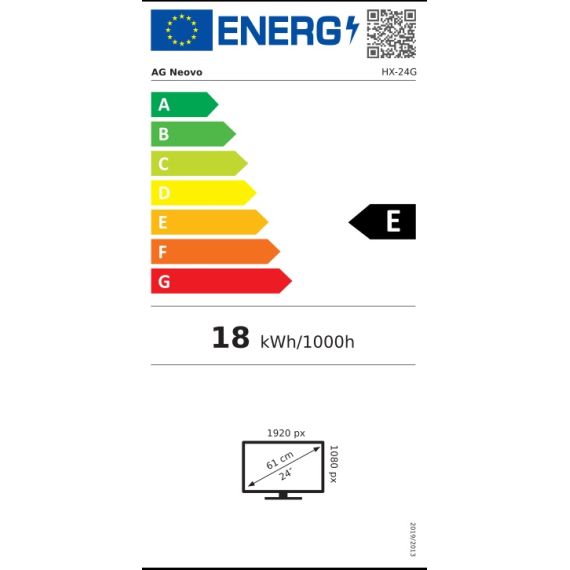

| Power Consumption | 25 Watt |
| Low Voltage Power | DC 12 V |
| Kit Content | |
| Kit Content | (1) x power adapter ¦ (1) x VGA cable ¦ (1) x audio cable |
| Terminals | |

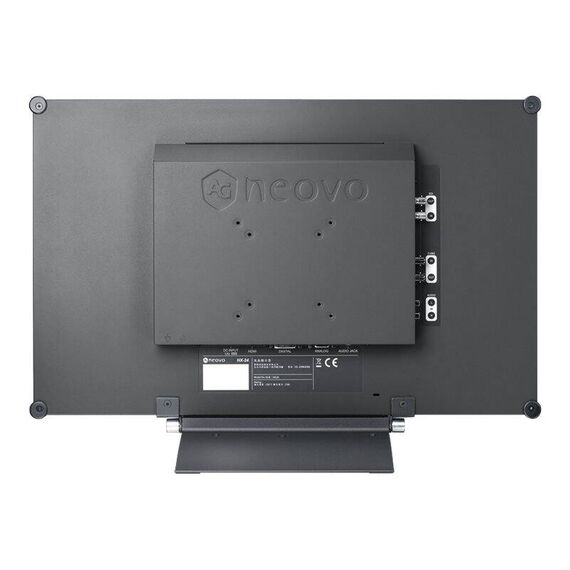

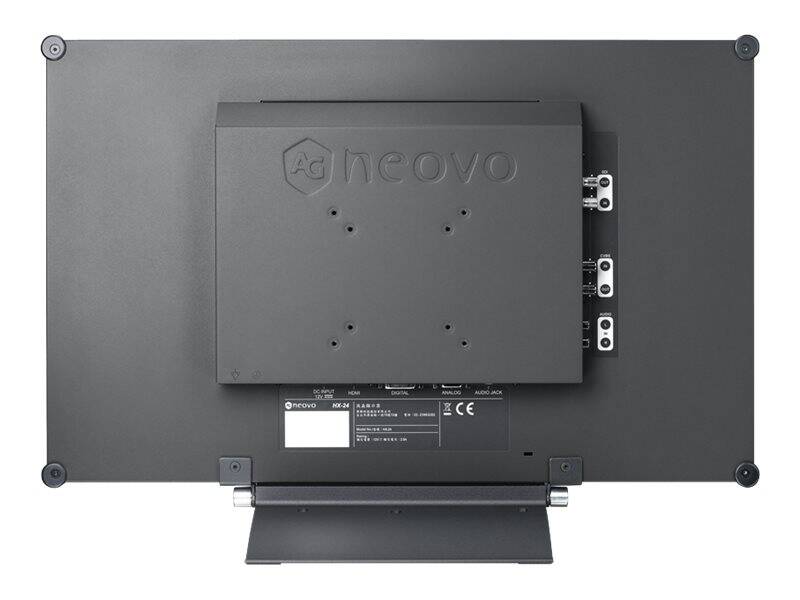

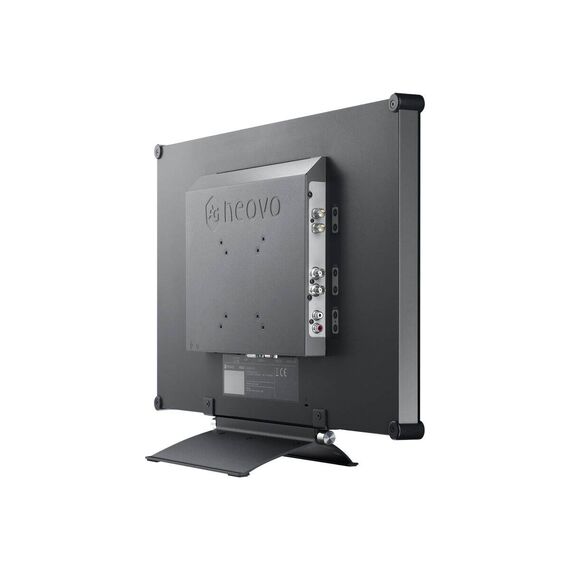

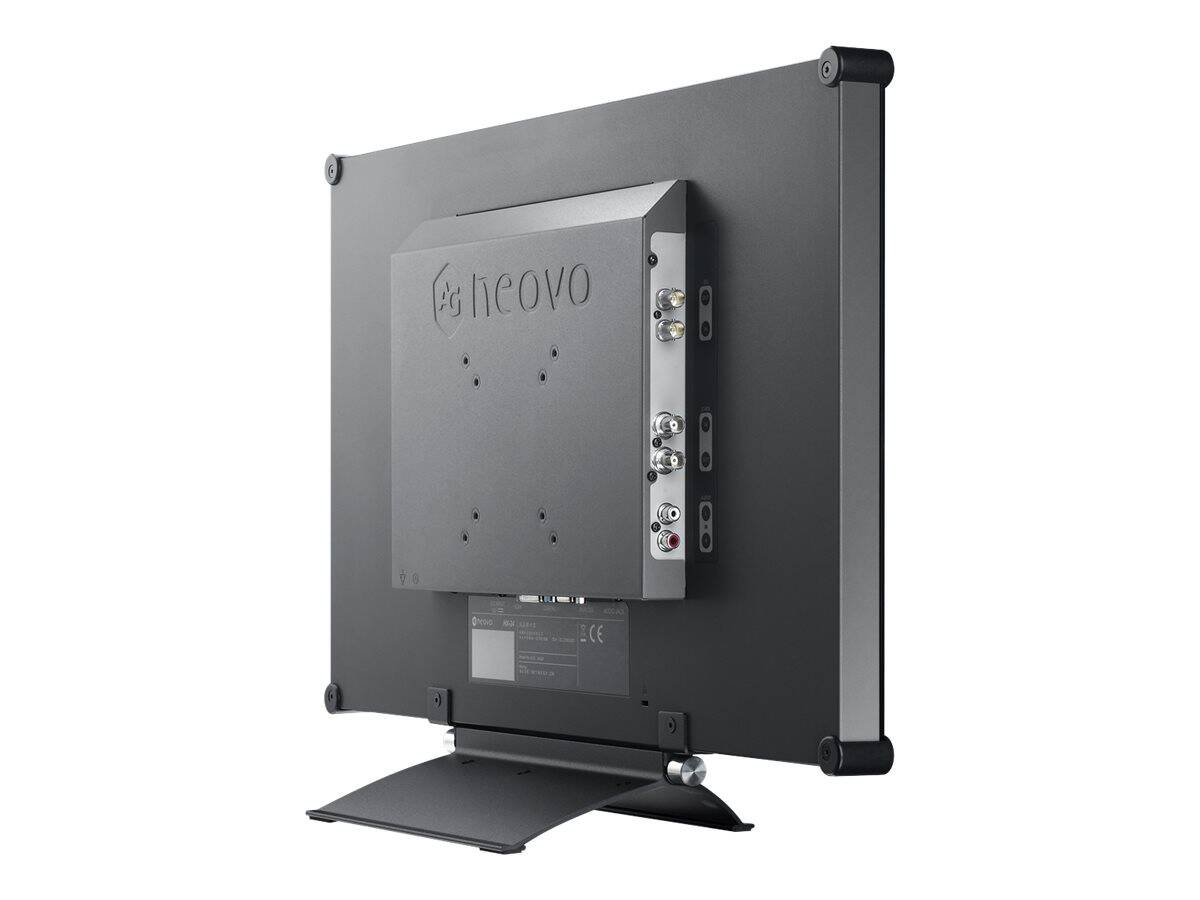

| Terminals | (1) x DVI-D - 24+1 pin digital DVI ¦ (1) x VGA input - 15 pin HD D-Sub (HD-15) ¦ (1) x composite video input - BNC - with loop through ¦ (1) x 3G HD-SDI input - BNC - with loop through ¦ (1) x DisplayPort input - 20 pin DisplayPort ¦ (1) x HDMI input - 19 pin HDMI Type A ¦ (1) x audio line-in - mini-phone stereo 3.5 mm ¦ (1) x audio line-in - RCA x 2 ¦ (1) x serial - sub-mini phone 2.5 mm - RS-232 ¦ (1) x USB 2.0 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 67.2 cm |
| Shipping Depth | 24.9 cm |
| Shipping Height | 51.7 cm |
| Shipping Weight | 11.2 kg |
Features - AG neovo - HX4GB011E0100
More Details
Product Code
CB15138
EAN Code
4710739595949
Manufacturer
AG neovo
