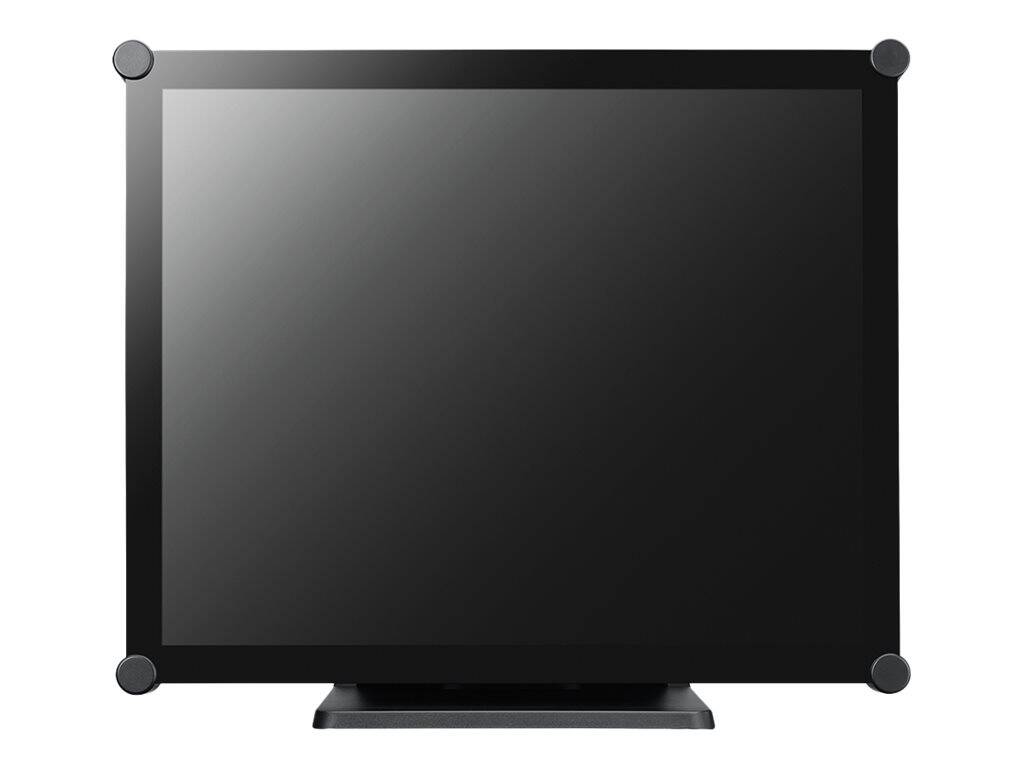

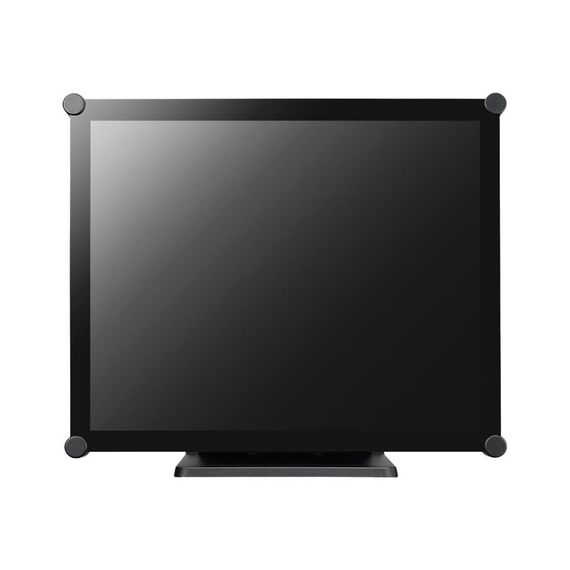

Neovo TX-1902 / TX-Series / LED monitor / 19" / touchscreen / 1280 x 1024 SXGA / TN / 250 cd/m² / 1000:1 / 3 ms / HDMI, VGA, DisplayPort | TX-1902
TX-1902
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Premium PCAP multi touch screen
Based on PCAP touch screen technology, the TX-1902 touch screen monitor can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch responses. These seamless touch senses are identical to those used in smartphones and tablets. - IP65 dust and water protection
The TX-1902 front IP65 touch screen monitor is designed to protect against dust and liquid spills. This makes the TX-1902 a durable touch monitor ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations. - Consistent form factor design
Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design. - Durable and scratch resistant touch screen
For 24/7 operations in public settings, the TX-1902 uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity. - Versatile connectivity
The TX-1902 has both analog (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
Special Features
- Premium PCAP multi touch screen
- IP65 dust and water protection
- Consistent form factor design
- Durable and scratch resistant touch screen
- Versatile connectivity
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class D |
| Diagonal Size | 19" |
| Panel Type | TN |
| Native Resolution | SXGA 1280 x 1024 |
| Pixel Pitch | 0.294 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Response Time | 3 ms |
| Vertical Refresh Rate | 50 - 75 Hz |
| Horizontal Refresh Rate | 31 - 80 KHz |
| Horizontal Viewing Angle | 170 |
| Vertical Viewing Angle | 160 |
| Screen Coating | 3H Hard Coating, 7H Hard Coating, anti-glare (25%) |
| Backlight Technology | LED backlight |
| Features | Scratch-resistant, Projected Capacitive Touch (P-CAP) technology, metal casing, dust resistant, water resistant, 85% light transmission |
| Dimensions (WxDxH) | 42.7 cm x 21.42 cm x 37.46 cm - with stand |
| Weight | 6.5 kg |
| Input | Input |
| Type | Touch-screen - touchscreen |
| Movement Detection Technology | Projected capacitive |
| Connectivity | Connectivity |
| Interfaces | HDMI ¦ VGA ¦ DisplayPort ¦ (RJ-11) ¦ USB (Type B) |
| Mechanical | Mechanical |
| Display Position Adjustments | Tilt |
| Tilt Angle | -5/+90 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Features | Security lock slot (cable lock sold separately) |
| Cables Included | 1 x VGA cable ¦ 1 x HDMI cable ¦ 1 x USB cable |
| Compliant Standards | VESA FPMPMI, RoHS, WEEE, REACH, IP65, LVD, EAC |
| Security Slot Type | Kensington security slot |
| Power | Power |
| Input Voltage | DC 12 V |
| Power Consumption (On mode) | 12 W |
| Power Consumption SDR (On mode) | 12 kWh/1000h |
| Power Consumption Stand by | 0.8 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows CE, Microsoft Windows XP Embedded, Android 2.3 or later, Microsoft Windows 2000/XP/Vista/7/8/10, Apple MacOS X 10.10 - 10.14 |
| Dimensions & Weight | Dimensions & Weight |
| Dimensions & Weight Details | With stand - width: 42.7 cm - depth: 21.42 cm - height: 37.46 cm - weight: 6.5 kg ¦ Without stand - width: 42.7 cm - depth: 4.88 cm - height: 35.5 cm - weight: 4.5 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 50 cm |
| Shipping Depth | 30 cm |
| Shipping Height | 46 cm |
| Shipping Weight | 8.3 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
