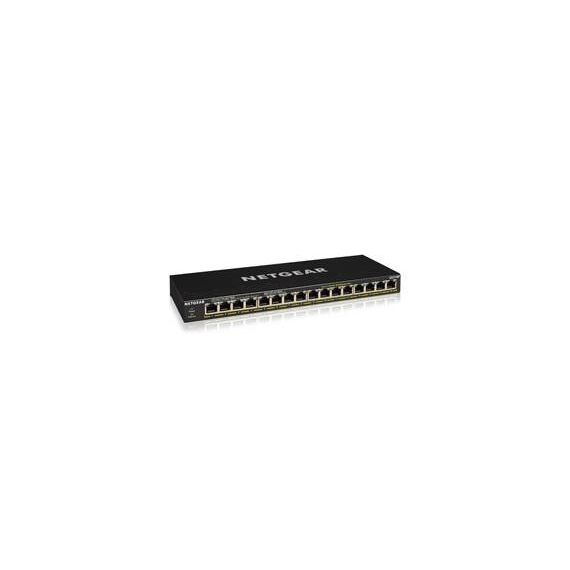

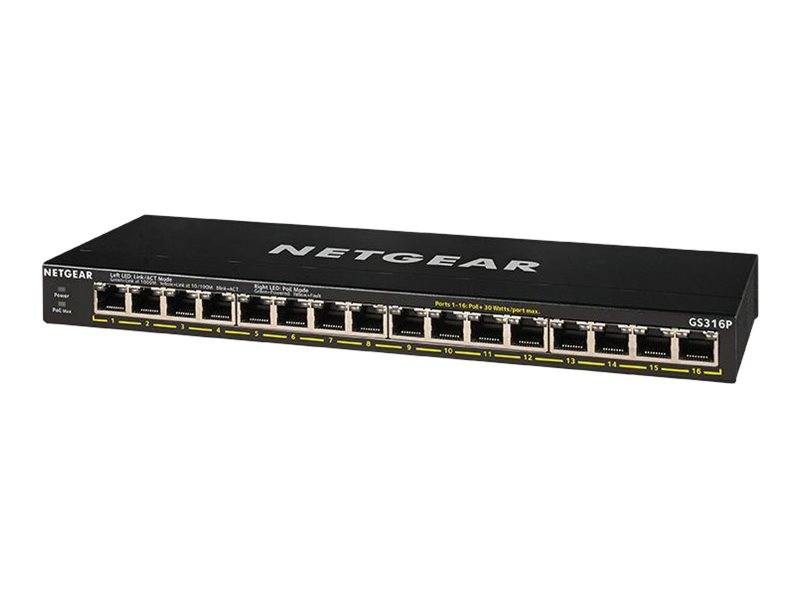

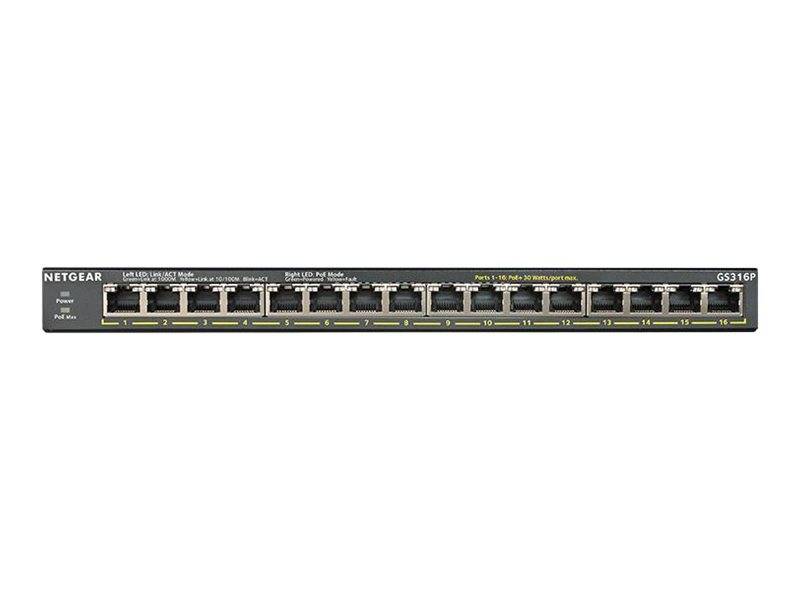

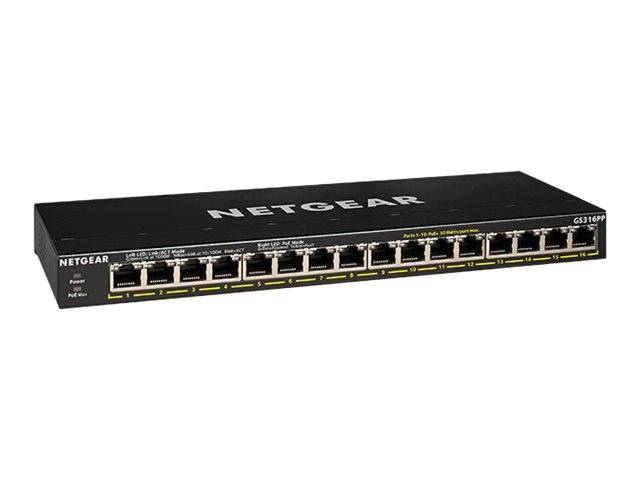

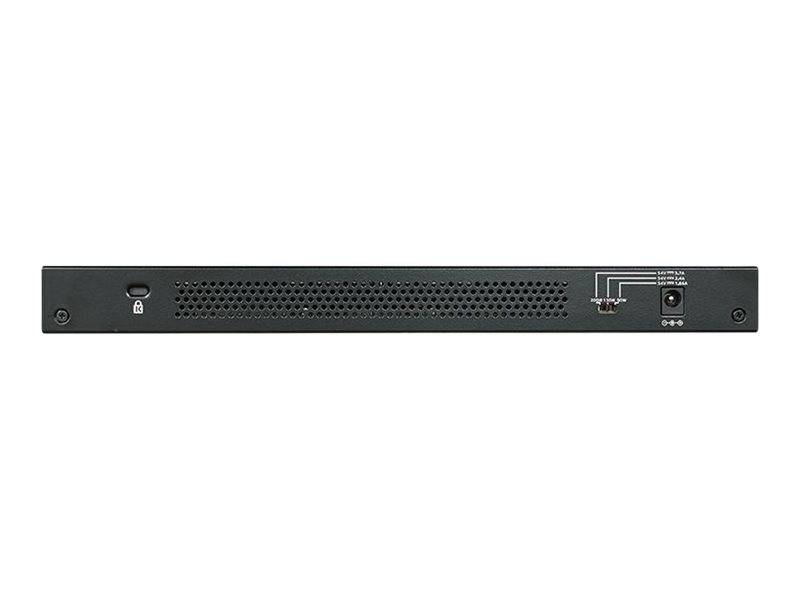

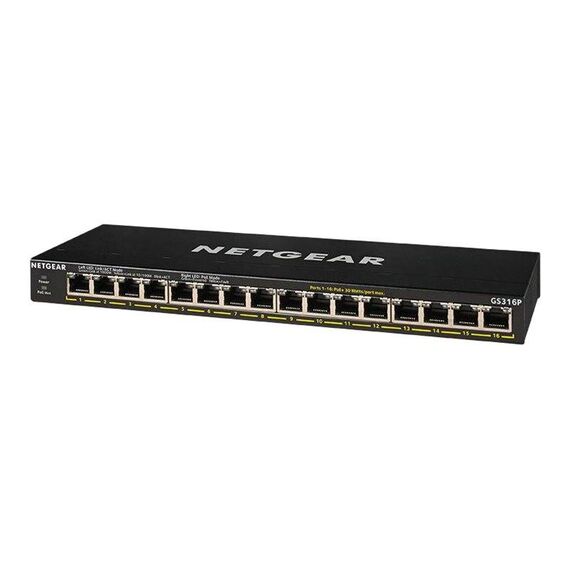

NETGEAR GS316P / Switch / unmanaged / 16 x 10/100/1000 (PoE+) / desktop, wall-mountable / PoE+ (115 W) | GS316P-100EUS
Please sign in so that we can notify you about a reply
Special Features
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Fanless design for silent operation
Product Specification
| Device Type | Switch - 16 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 16 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 115 W |
| Performance | Non-blocking bandwidth: 32 Gbps ¦ Packet buffer size: 1 MB ¦ Forwarding performance (64-byte packet size): 1448000 pps ¦ Latency (64-byte packets): 3.7 µs |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ support, half duplex mode, full duplex mode, fanless, Energy Efficient Ethernet, Class of Service (CoS), SOHO (Small Office/Home Office), Weighted Round Robin (WRR) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, PoE, fan, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 16 x 1000Base-T RJ-45 PoE+ - 30 W |
| Power | Power |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Power Provided | 130 Watt |
| Power Consumption Operational | 127.9 Watt |
| Power Consumption Stand by | 2.68 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| MTBF | 2,362,192 hours |
| Compliant Standards | Plug and Play, VCCI, CB, IC Class A, FCC Part 15 A, LVD, KC, RCM |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28.6 cm |
| Depth | 10.2 cm |
| Height | 2.7 cm |
| Weight | 880 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - phone consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - GS316P-100EUS
General
16-Port
More Details
Product Code
0714656
EAN Code
0606449146882
Manufacturer
NetGear
