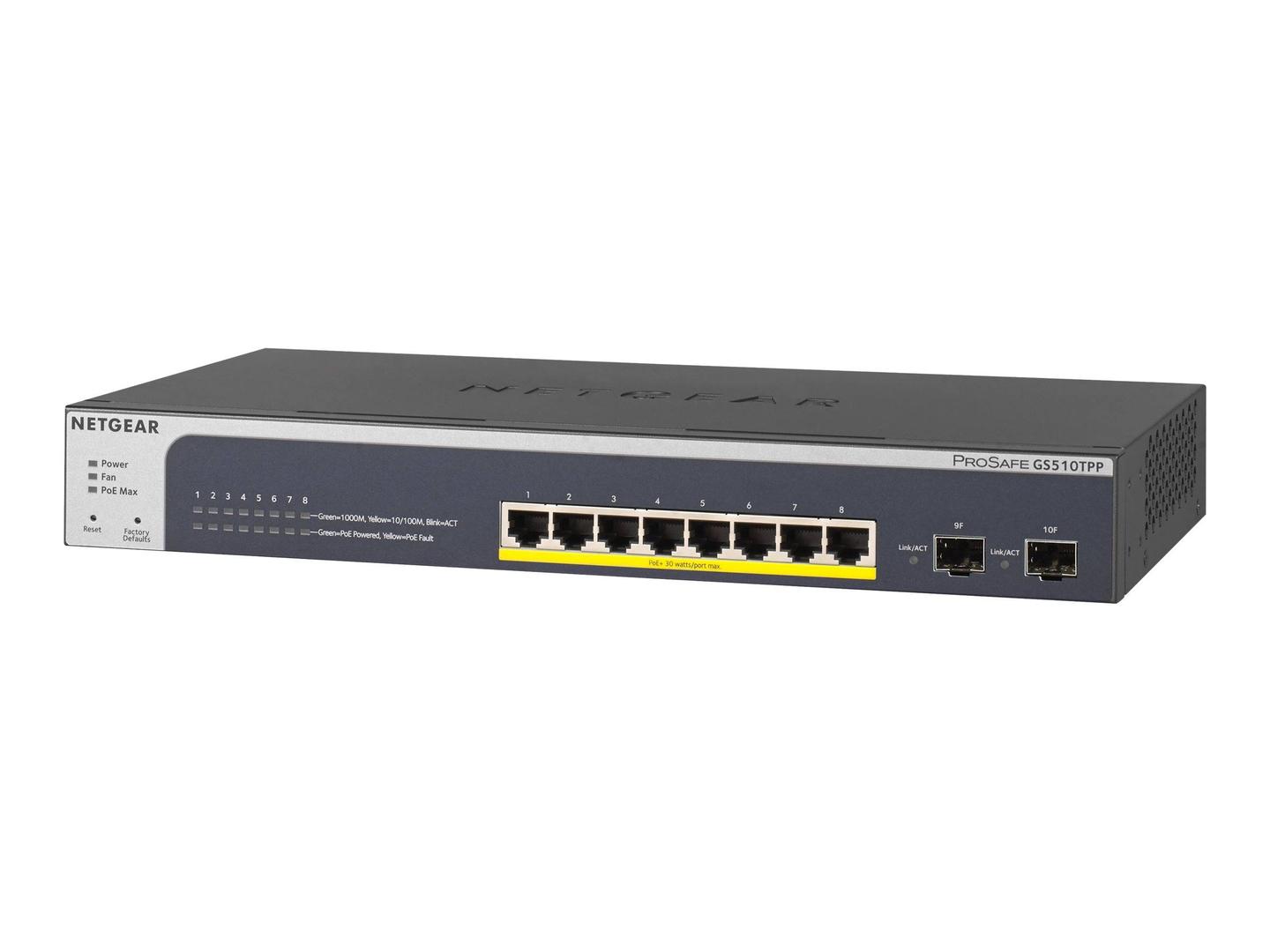

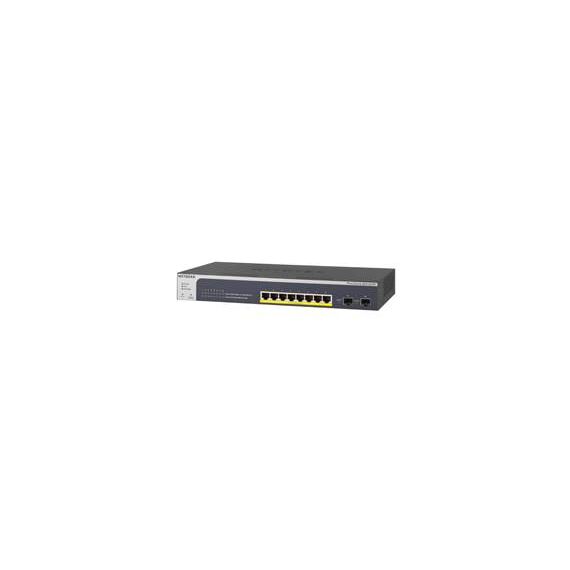

NETGEAR Smart GS510TPP / Switch / L3 Lite / smart / 8 x 10/100/1000 (PoE+) + 2 x SFP / desktop, rack-mountable / PoE+ (190 W) | GS510TPP-100EUS
Please sign in so that we can notify you about a reply
Special Features
- Smart managed switch with 190W PoE budget available across 8 Gigabit PoE+ ports (802.3at)
- 2 dedicated Gigabit SFP fiber ports for aggregation to your network core
- Quiet desktop operation or rack mounting
- Advanced smart features include Layer 3 static routing with 32 routes
- Easy-to-use web browser-based management GUI, no need for an IT expert
Product Specification
| Device Type | Switch - 8 ports - L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 190 W |
| Performance | Fabric throughput: 20 Gbps ¦ Packet forwarding rate: 14.88 Mpps |
| Capacity | Virtual interfaces (VLANs): 256 ¦ ACL: 100 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ IGMP snooping groups: 512 ¦ Priority queues: 8 ¦ Layer 3 multicast groups: 512 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Encryption Algorithm | TLS 1.0, SSL 3.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Network Access Control (NAC), 802.1x authentication, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, ICMP Router Discovery Protocol (IRDP), IGMP querier, 1 fan |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | Cortex-A9: 400 MHz |
| RAM | 512 MB |
| Flash Memory | 256 MB |
| Status Indicators | Port transmission speed, power, link/activity, fan |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 225 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 foot pads |
| Rack Mounting Kit | Included |
| MTBF | 1,509,979 hours |
| Compliant Standards | CISPR 22 Class A, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 60950-1, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, AS/NZS CISPR22:2009+A1:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, ICES-003 issue 6 Class A, IEC 950, ANSI C63.4-2014, cUL 950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 32.8 cm |
| Depth | 16.9 cm |
| Height | 4.3 cm |
| Weight | 1.83 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | NETGEAR lifetime warranty |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
Features - NetGear - GS510TPP-100EUS
General
8-Port
More Details
Product Code
0714224
EAN Code
0606449119015
Manufacturer
NetGear
