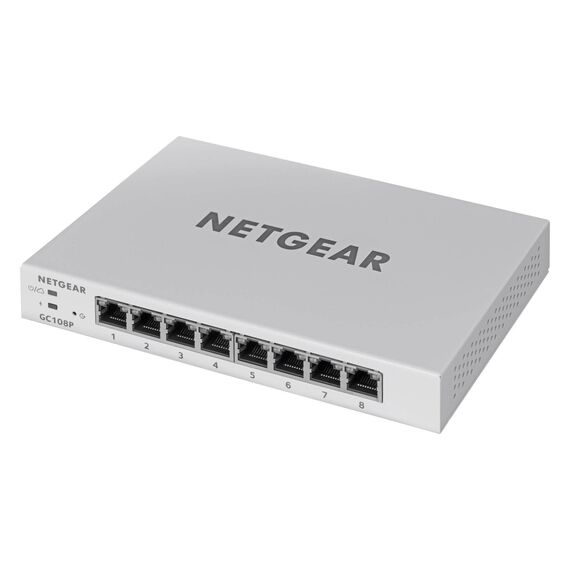

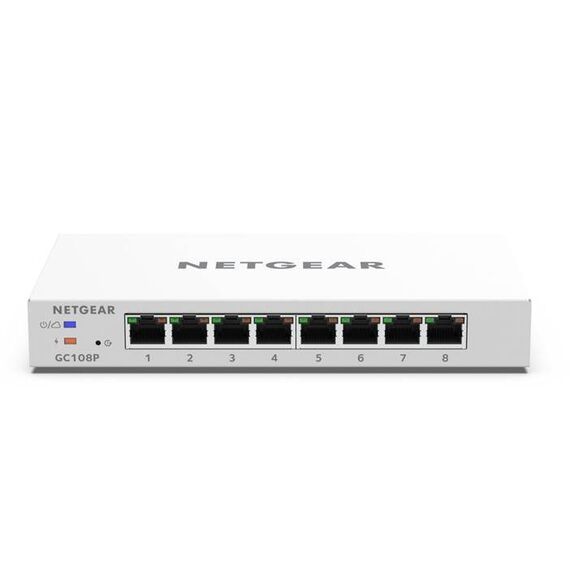

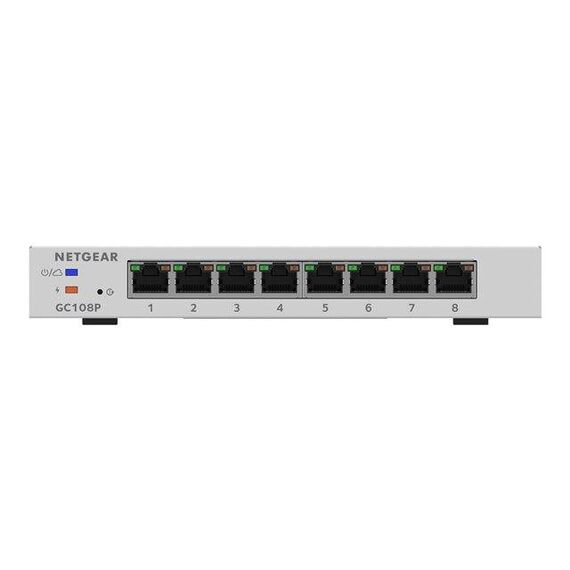

NETGEAR Insight Managed Smart Cloud GC108P / Switch / L3 Lite / smart / 8 x 10/100/1000 (PoE+) / desktop, wall-mountable / PoE+ (64 W) | GC108P-100PES
Please sign in so that we can notify you about a reply
NETGEAR Insight Managed Smart Cloud GC108P / Switch / L3 Lite / smart / 8 x 10/100/1000 (PoE+) / desktop, wall-mountable / PoE+ (64 W) | GC108P-100PES
Description
Insight Managed Smart Cloud Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design silent or whisper-quiet operation, they are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there.
NETGEAR Insight Managed Smart Cloud GC108P / Switch | GC108P-100PES
Special Features
- Experience the most versatile and easy to manage Advanced Smart switches in the market
- Fully-integrated cloud-manageable devices
- Clean, sleek silent (or whisper-quiet) designs
- Network-centric configuration and management
Product features
- Experience the most versatile and easy to manage Advanced Smart switches in the market
Insight Managed Smart Cloud Switches are the first switches from NETGEAR with anywhere configuration and management. Using either the NETGEAR Insight app on your mobile device or tablet, or the Insight Cloud Portal from your PC, Mac, or tablet, you can quickly discover, setup, monitor and manage your Smart Cloud Switches from anywhere in the world! With their remote cloud manageability, sleek design silent or whisper-quiet operation, they are the most versatile switches in the market for any environment. Whether at home, out of the office or on a business trip, you can still manage and monitor your network as if you were right there. - Fully-integrated cloud-manageable devices
NETGEAR Insight Managed switches are fully-integrated, cloudmanageable, plug-and-play devices. Just connect to your network and without any setup, they’re passing traffic. For configuration setup, management, and monitoring, you can use the Insight mobile app on your mobile device or the Insight Cloud Portal from your PC, Mac, or tablet web browser. No additional cloud controller, appliance, network manager, or on-premise cloud server necessary. - Clean, sleek silent (or whisper-quiet) designs
Insight Managed switches have a modern, clean design, with at-aglance power/cloud and and PoE max LEDs for quick status monitoring. Additionally, on-port LEDs for link/activity and PoE power allow for port-specific connectivity monitoring. Both models are fanless for silent, anywhere deployment in noise-sensitive environments, and include a wall-mount kit for flexible placement. - Network-centric configuration and management
NETGEAR Insight Managed Switches and Wireless Access Points using the NETGEAR Insight app allow for cross-device automated configuration of VLANs, QoS, ACLs, and LAGs. Auto-join and configure (zero-touch privisioning) allows for additional devices added seamlessly.
Product Specification
| Device Type | Switch - 8 ports - L3 Lite - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 64 W |
| Performance | Fabric throughput: 16 Gbps ¦ 1 Gbps copper latency (64-byte packets): 3460 µs ¦ Packet buffer size: 512 KB ¦ Packet forwarding rate: 11.9 Mfps ¦ 1 Gbps copper latency (1518-byte packets): 3360 µs ¦ 1 Gbps copper latency (9216-byte packets): 3560 µs |
| Capacity | ACL: 100 ¦ VLANs supported: 64 ¦ ARP entries: 512 ¦ IPv4 routes (static): 32 ¦ Priority queues: 8 ¦ IGMP multicast groups: 256 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, TFTP, IPv4, IPv6 |
| Encryption Algorithm | TLS 1.0 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Features | Flow control, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, fanless, LACP support, DHCP client, Multicast VLAN Registration (MVR), dual firmware images, loop prevention, Strict Priority (SP), cloud managed, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, ICMP Router Discovery Protocol (IRDP), DNS client, LLDP-MED, Private VLAN, Guest VLAN, protected ports, Energy-Efficient Ethernet (EEE), PoE timer, Weighted Round Robin (WRR), VLAN Tagging, Unknown Storm Control, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, UPnP |
| Processor | : 500 MHz |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Power, PoE, link/activity/speed, cloud |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE+ |
| Power Device | External power adapter |
| Power Consumption Operational | 66.7 Watt |
| MTBF | 2,635,395 hours |
| Compliant Standards | BSMI, BSMI CNS 13438 Class A, UL 60950-1 Second Edition, KCC, GB4943.1-2011, RCM, EN 61000-3-3:2013, YD/T993-1998, FCC CFR47 Part 15 B Class A, EN 55024:2010+A1:2015, KN32, KN35, CNS 14336-1, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2015 Class A, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, GB/T9254-2008, EN 55032:2015+AC:2016 Class A |
| Localisation | Europe |
| Width | 18.8 cm |
| Depth | 11 cm |
| Height | 2.7 cm |
| Weight | 520 g |
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day ¦ Limited warranty - replacement - power supply - 2 years - response time: next business day ¦ Technical support - 90 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Features - NetGear - GC108P-100PES
More Details
Product Code
0714547
EAN Code
0606449140194
Manufacturer
NetGear
