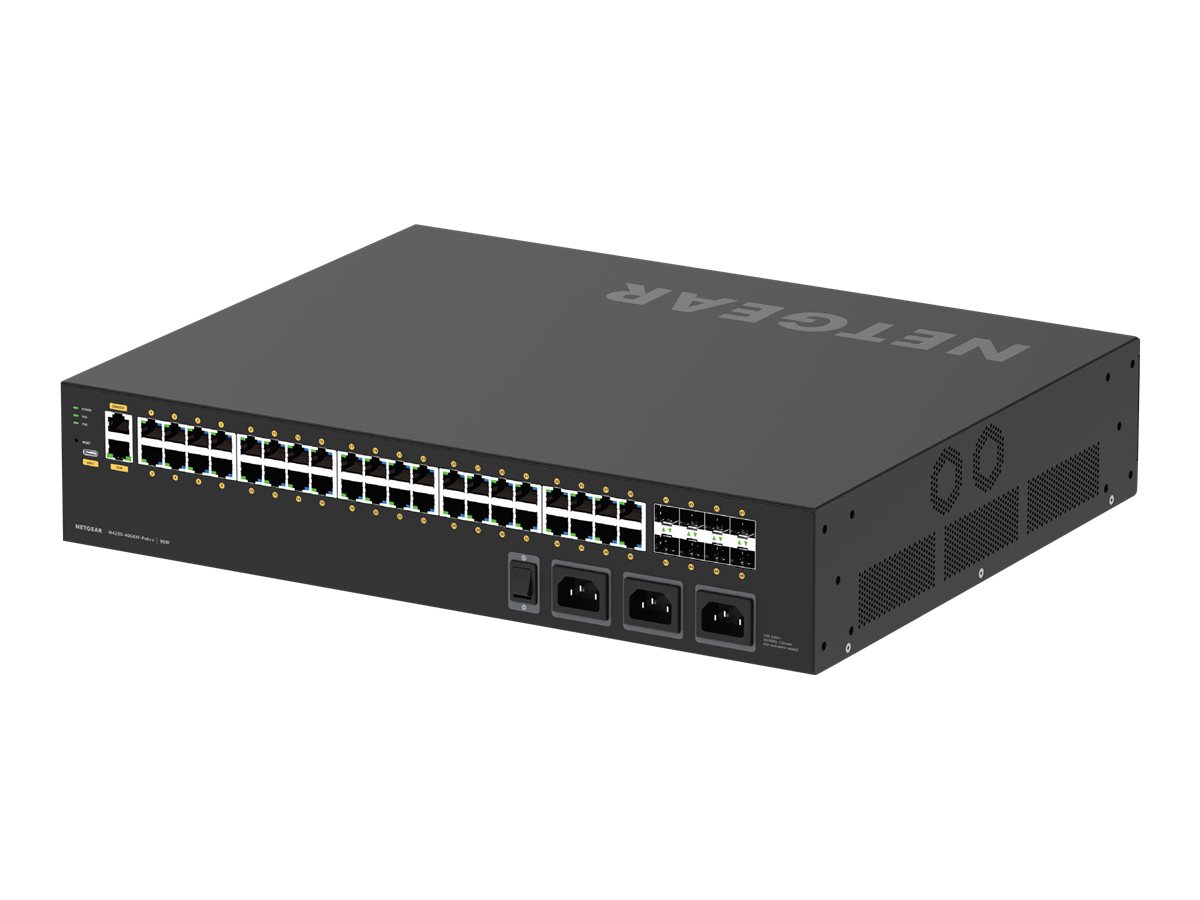

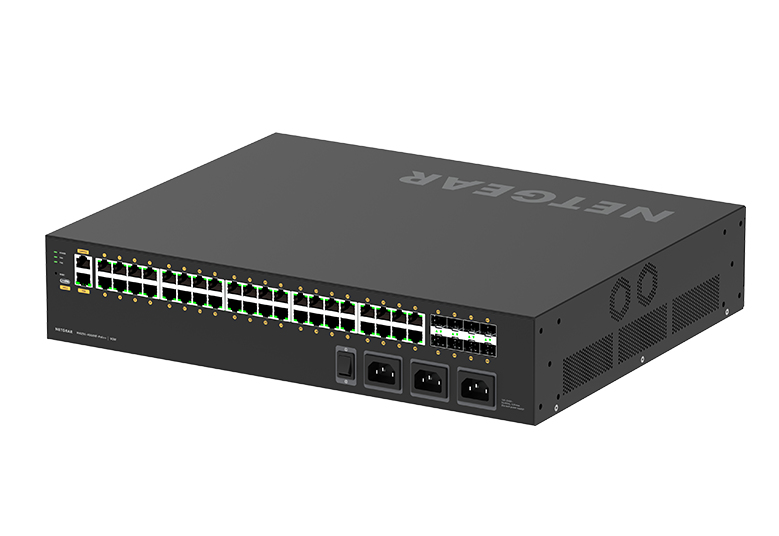

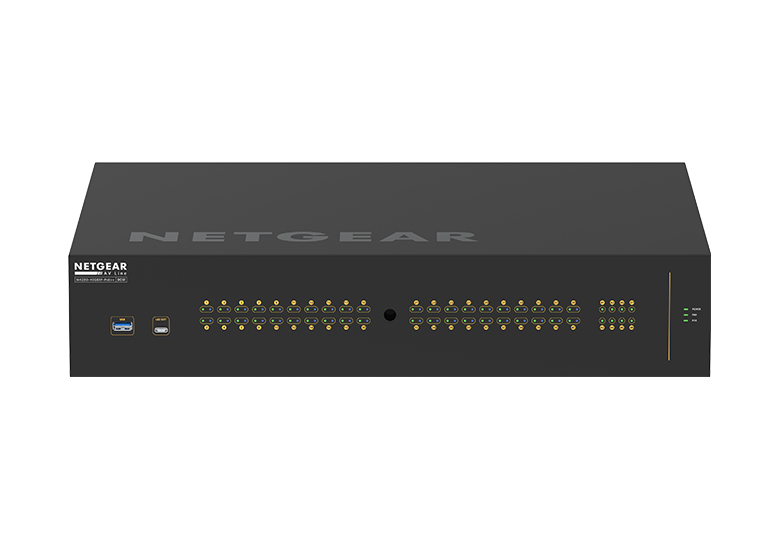

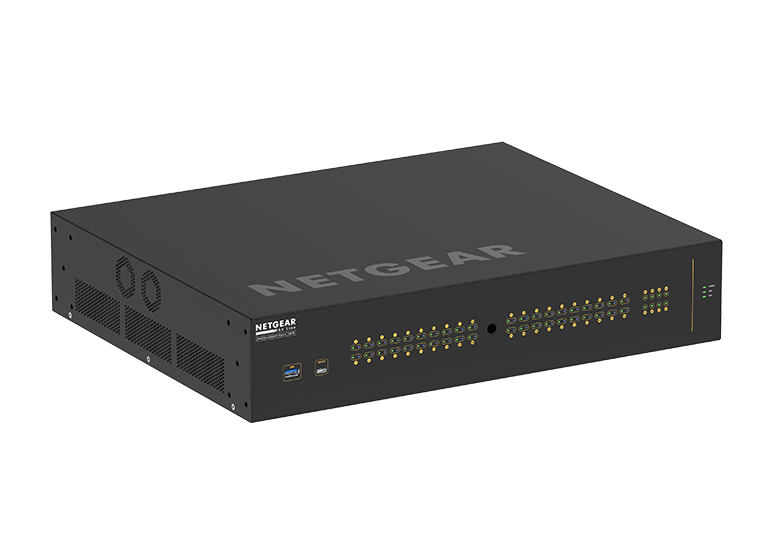

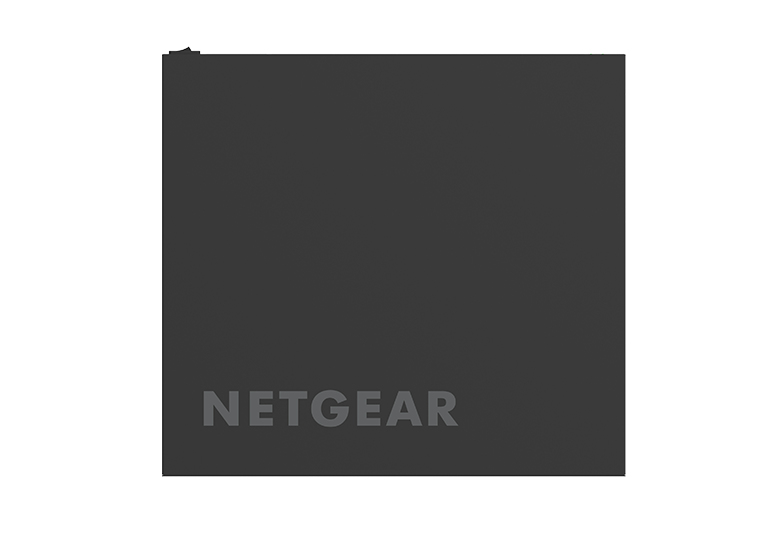

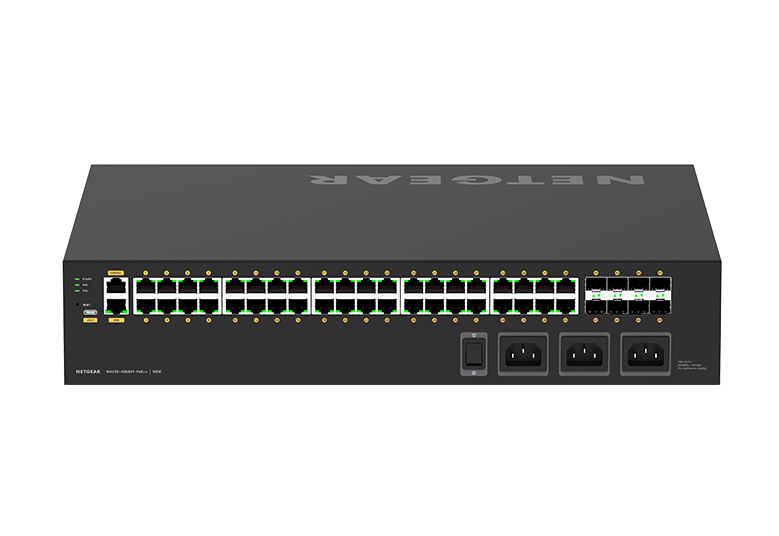

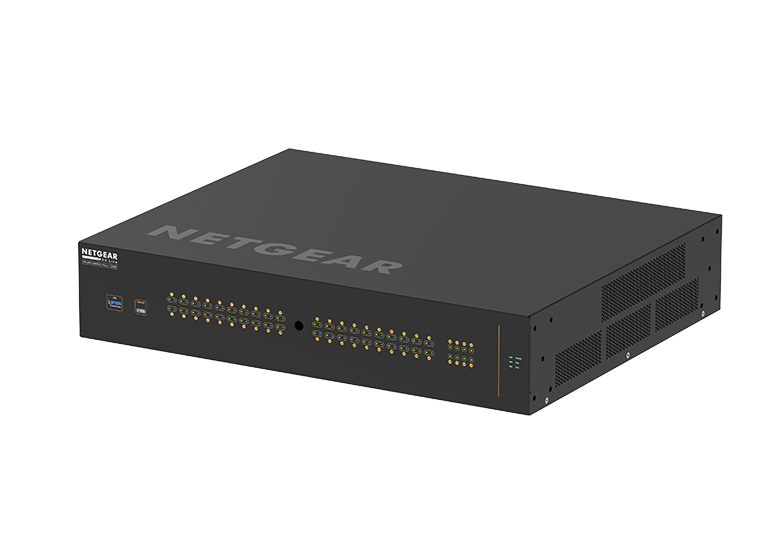

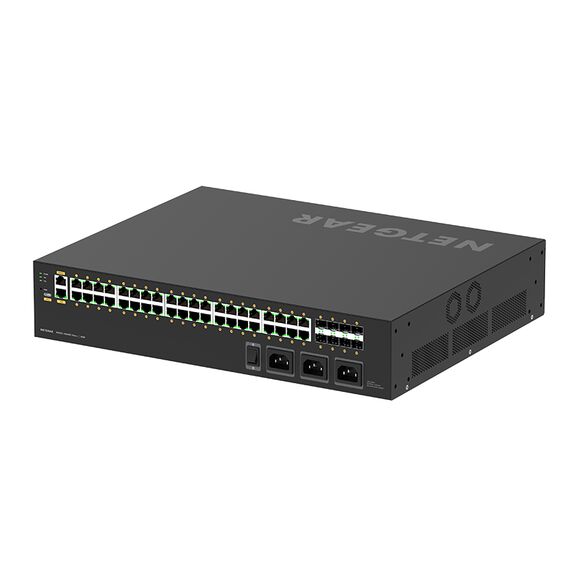

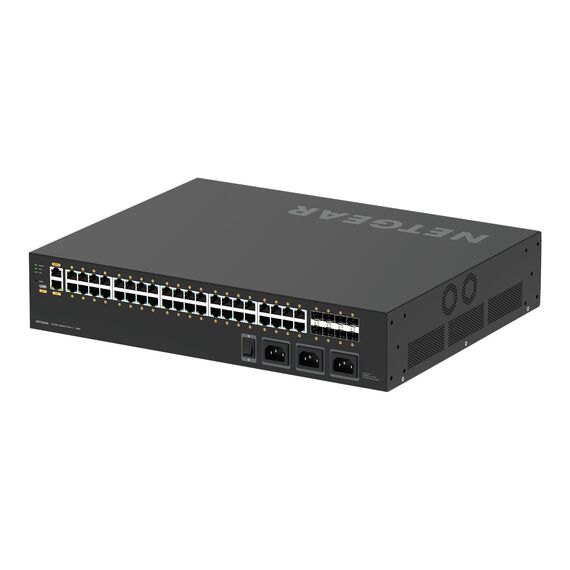

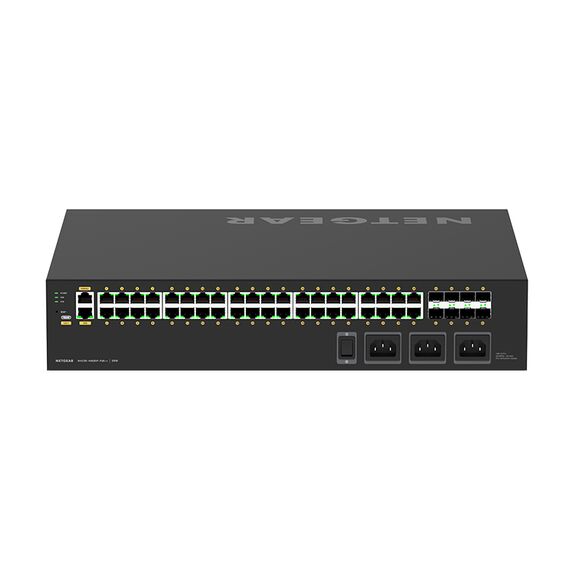

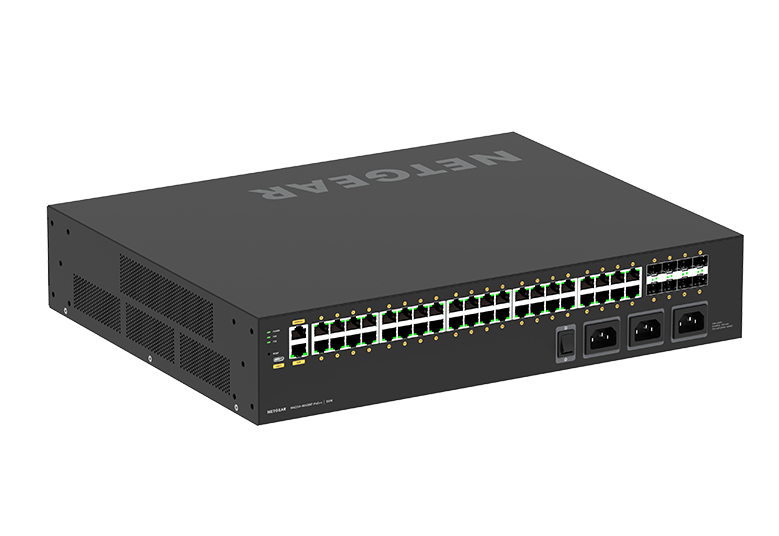

NETGEAR AV Line M4250-40G8XF-PoE++ - Switch - L3 - Managed - 40 x 10/100/1000 (PoE++) + 8 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE++ (2880 W) | GSM4248UX-100EUS
Please sign in so that we can notify you about a reply
Product Features
- Robust security
With advanced security features including AES, SSL 3.0, TLS 1.0, and TLS 1.2 encryption algorithms, the NETGEAR M4250-40G8XF-PoE++ ensures secure network environments. Authentication methods like RADIUS, Secure Shell (SSH), and TACACS+ bolster network integrity, making it ideal for sensitive data operations. - High-capacity networking
Equipped with a 240 Gbps switching capacity and support for up to 16K MAC address entries, this switch is designed to handle heavy data traffic. The inclusion of 40 PoE++ ports and 8 SFP+ ports provides flexibility for a variety of network configurations and high-power device support. - Efficient power management
The NETGEAR M4250-40G8XF-PoE++ features a comprehensive PoE budget of 2880 W, supported by three internal power supplies. This ensures efficient power management and operational reliability for all connected devices, even under heavy load. - Advanced networking features
This switch supports Layer 3 advanced switching, multiple VLANs, Quality of Service (QoS), and multicast VLAN registration for optimized network traffic management. Features like IGMP snooping, MLD proxy, and PIM support enhance multicast operation efficiency. - Durable and reliable
With a mean time between failures (MTBF) of 304,916 hours and a robust rack-mountable form factor, the NETGEAR M4250-40G8XF-PoE++ is built for longevity and reliability in demanding environments. Side to side airflow ensures optimal cooling for continuous operation.
Special Fetures
- 40 PoE++ ports with a total PoE budget of 2880 W for extensive power delivery
- Advanced Layer 3 switching capabilities for efficient network traffic management
- Comprehensive security features including AES encryption and SSH for secure operations
- Supports high-performance networking with 240 Gbps switching capacity
- Energy-efficient design with a power consumption operational at 3523 watts
Product Specification
| Device Type | Switch - 40 ports - L3 - Managed |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 40 x 10/100/1000 (PoE++) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 2880 W |
| Performance | Switching capacity: 240 Gbps <br /> Firewall throughput (64-byte packet size): 178.56 Mpps <br /> 1 Gbps fibre latency (64-byte packets): 1.084 µs <br /> 1 Gbps fibre latency (512-byte packets): 1.103 µs <br /> 1 Gbps fibre latency (1024-byte packets): 1.098 µs <br /> 1 Gbps fibre latency (1518-byte packets): 1.115 µs <br /> 1 Gbps copper latency (64-byte packets): 2.251 µs <br /> 1 Gbps copper latency (512-byte packets): 2.625 µs <br /> 1 Gbps copper latency (1024-byte packets): 2.775 µs <br /> 1 Gbps copper latency (1518-byte packets): 2.641 µs <br /> 10 Gbps fibre latency (64-byte packets): 0.708 µs <br /> 10 Gbps fibre latency (512-byte packets): 0.716 µs <br /> 10 Gbps fibre latency (1024-byte packets): 0.728 µs <br /> 10 Gbps fibre latency (1518-byte packets): 0.713 µs |
| Capacity | ARP entries: 4000 <br /> NDP entries: 4000 <br /> Packet buffer size: 32 MB <br /> VLANs supported: 4093 <br /> IGMP multicast groups: 4000 <br /> QoS hardware queues: 8 <br /> IPv4 routes (static): 64 <br /> IPv6 routes (static): 64 <br /> RIP application route scaling (IPv4): 32 <br /> IPv4 groups (Multicast): 512 <br /> IPv6 groups (Multicast): 128 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS |
| Encryption Algorithm | AES, TLS 1.0, SSL 3.0, TLS 1.2 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, WRED, sFlow, DHCP snooping, QoS, DHCP server, MLD snooping, DAI, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, Energy Efficient Ethernet, MVR, dual firmware images, MVRP, NDP, CoS, SP, GARP, GVRP, IGMP proxy, 802.1x authentication, PTP, DSCP support, cable test, MLD proxy, IP source guard, GMRP, SSM, DNS client, Voice VLAN, LLDP-MED, RA guard, STP BPDU Guard, STP loop guard, DoS protection, PIM, AVB, MAB, LAG, TPID, IPTV support, MACAL, ISDP, RPVST+, MRP, STP BPDU Filtering, STP BPDU Flooding, MGMD Snooping, ASM |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bt |
| Processor | X ARM: 1.8 GHz |
| RAM | 2 GB |
| Flash Memory | 256 MB |
| Status Indicators | Port status, power, fan, PoE max |
| Expansion / Connectivity | |
| Interfaces | 40 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W <br /> 8 x 1000Base-X/10GBase-X SFP+ <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 1 x management (RS-232) RJ-45 <br /> 1 x USB-C <br /> 1 x USB Type A |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 3 |
| Power Consumption Operational | 3523 Watt |
| Power Consumption Stand by | 68.5 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, rubber caps |
| Cables Included | 1 x console cable <br /> 1 x USB-C to USB-A cable |
| Rack Mounting Kit | Included |
| MTBF | 304,916 hours |
| Compliant Standards | cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014 |
| Localisation | Europe |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 35 cm |
| Height | 8.64 cm |
| Weight | 10.28 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime <br /> Limited warranty - technical support - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - GSM4248UX-100EUS
General
48-Port
More Details
Product Code
CA81337
EAN Code
0606449151763
Manufacturer
NetGear
