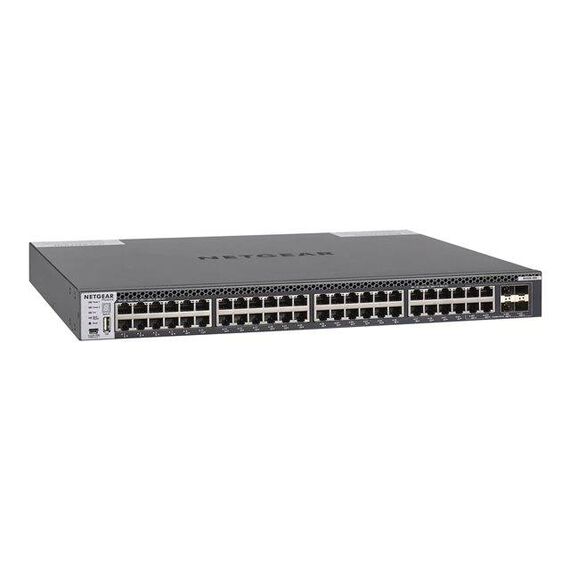

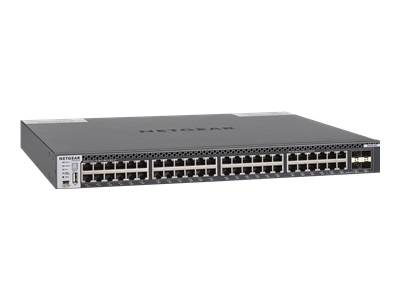

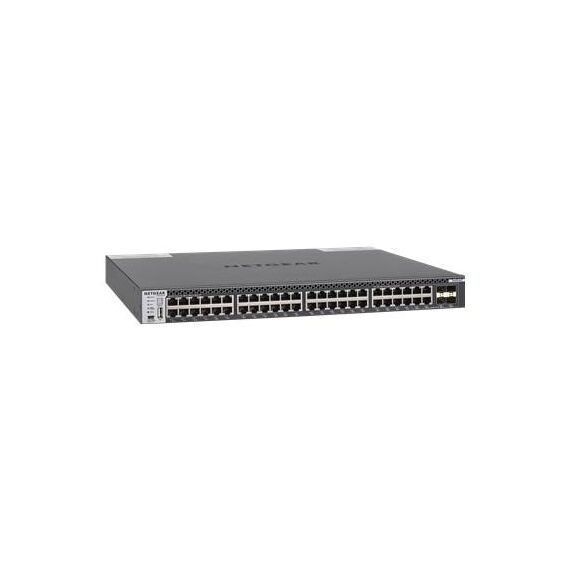

NETGEAR ProSAFE M4300-48X / Switch / L3 / Managed / 48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+ / rack-mountable | XSM4348CS-100NES

Brand: NetGear

CODE (SKU):

XSM4348CS-100NES

€8,980.55

(€10,686.85 inc. VAT)

Availability: 1 item(s)

Standard delivery within 4 to 8 business days.

Express delivery within 2 to 3 business days.

+ −

Ask a question

Find similar

Delivery

Payment options

Product Code0714172 EAN Code0606449114607 ManufacturerNetGear

Description
Features

NETGEAR ProSAFE M4300-48X / Switch / L3 / Managed / 48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+ / rack-mountable | XSM4348CS-100NES

Description

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing ' as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Special Features

Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
Up to 384 (Gigabit) ports, or 384 (10 Gigabit) ports, or a combination of both in a single logical switch
PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
48-port 10G models ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes
SDN-Ready OpenFlow 1.3 support for maximum investment protection

Product Specification

Device Type	Switch - 48 ports - L3 - Managed - stackable
Enclosure Type	Rack-mountable 1U
Subtype	10 Gigabit Ethernet
Ports	48 x 10 Gigabit Ethernet + 4 x shared 10 Gigabit SFP+
Performance	Switching capacity: 960 Gbps ¦ Throughput: 714 Mpps ¦ 10 Gbps fibre latency (64-byte packets): 1.508 µs ¦ 10 Gbps fibre latency (512-byte packets): 1.516 µs ¦ 10 Gbps fibre latency (1024-byte packets): 1.516 µs ¦ 10 Gbps fibre latency (1518-byte packets): 1.523 µs ¦ 10 Gbps copper latency (64-byte packets): 2.409 µs ¦ 10 Gbps copper latency (512-byte packets): 2.425 µs ¦ 10 Gbps copper latency (1024-byte packets): 2.43 µs ¦ 10 Gbps copper latency (1518-byte packets): 2.432 µs ¦ 1 Gbps fibre latency (64-byte packets): 2.285 µs ¦ 1 Gbps fibre latency (512-byte packets): 2.39 µs ¦ 1 Gbps fibre latency (1024-byte packets): 2.426 µs ¦ 1 Gbps fibre latency (1518-byte packets): 2.379 µs ¦ 1 Gbps copper latency (64-byte packets): 2.702 µs ¦ 1 Gbps copper latency (512-byte packets): 2.714 µs ¦ 1 Gbps copper latency (1024-byte packets): 2.73 µs ¦ 1 Gbps copper latency (1518-byte packets): 2.709 µs
Capacity	Virtual interfaces (VLANs): 4093 ¦ IGMP groups: 4000 ¦ LAG groups: 128 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ RIP routes: 512 ¦ IP router interfaces: 128 ¦ OSPF IPv4 routes: 12288 ¦ OSPF IPv6 routes: 4096
MAC Address Table Size	128K entries
Jumbo Frame Support	12KB
Max Units In A Stack	8
Routing Protocol	OSPF, RIP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, MLDv2
Remote Management Protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, HTTPS, SSH, CLI
Authentication Method	RADIUS, TACACS+
Features	ARP support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, front to back airflow, STP Root Guard, IPv4 support, LACP support, DHCP relay, Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), dynamic ARP protection, IP source guard, Bridge protocol data unit (BPDU), LISP Across Subnet Mode (ASM), Source-Specific Multicast (SSM)
Compliant Standards	IEEE 802.3ad (LACP), IEEE 802.3az
Processor	1: 800 MHz
RAM	1 GB
Flash Memory	256 MB
Interfaces	48 x 10GBase-T - RJ-45 ¦ 4 x 10GBase-X - SFP+ ¦ 1 x management (Gigabit LAN) - RJ-45 ¦ 1 x serial (RS-232) - RJ-45 ¦ 1 x console (mini-USB) ¦ 1 x USB - Type A
Power Device	Internal power supply
Installed Qty	1 (installed) / 2 (max)
Power Provided	250 Watt
Voltage Required	AC 120/230 V
Power Consumption Operational	237.2 Watt
Cables Included	1 x mini-USB cable ¦ 1 x console cable
MTBF	249,393 hours
Compliant Standards	CISPR 22 Class A, EN50082-1, FCC Part 15 A, C-Tick Class A, VCCI Class A, EN 55024, EN 55022 Class A
Localisation	Europe, Americas
Width	44 cm
Depth	34.5 cm
Height	4.4 cm
Weight	6.55 kg
Service & Support	Limited warranty - lifetime
Min Operating Temperature	0 °C
Max Operating Temperature	50 °C
Humidity Range Operating	0 - 90% (non-condensing)
Min Storage Temperature	-20 °C
Max Storage Temperature	70 °C
Humidity Range Storage	0 - 95% (non-condensing)
