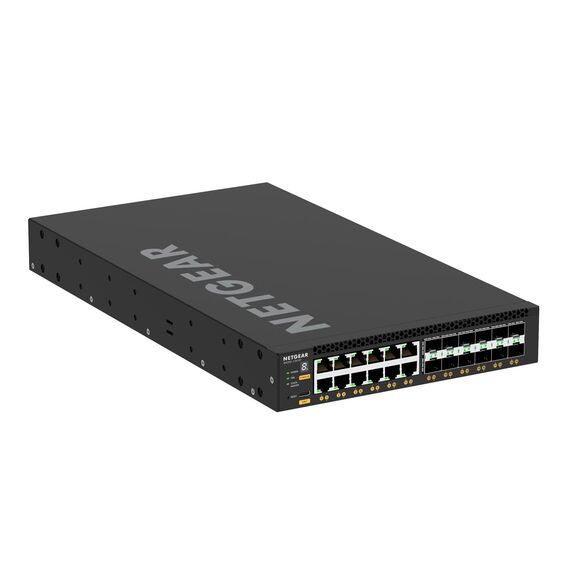

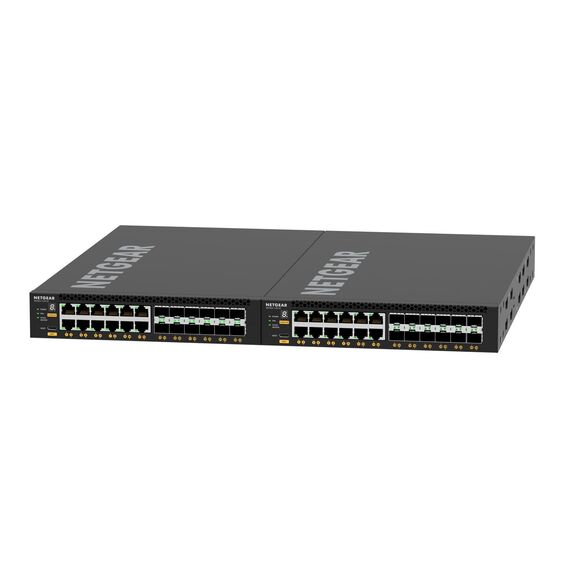

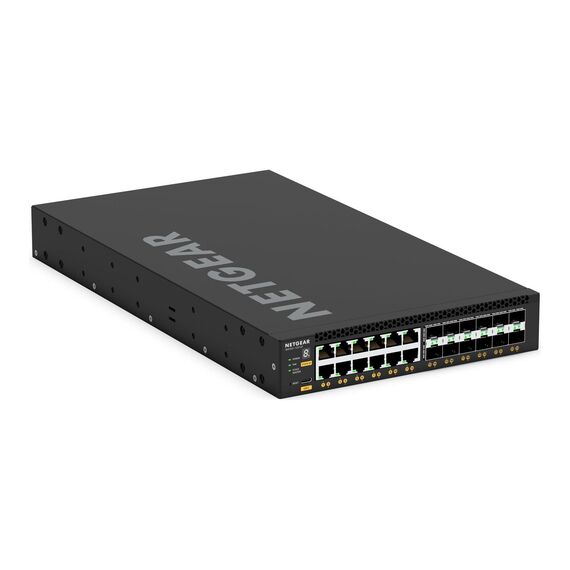

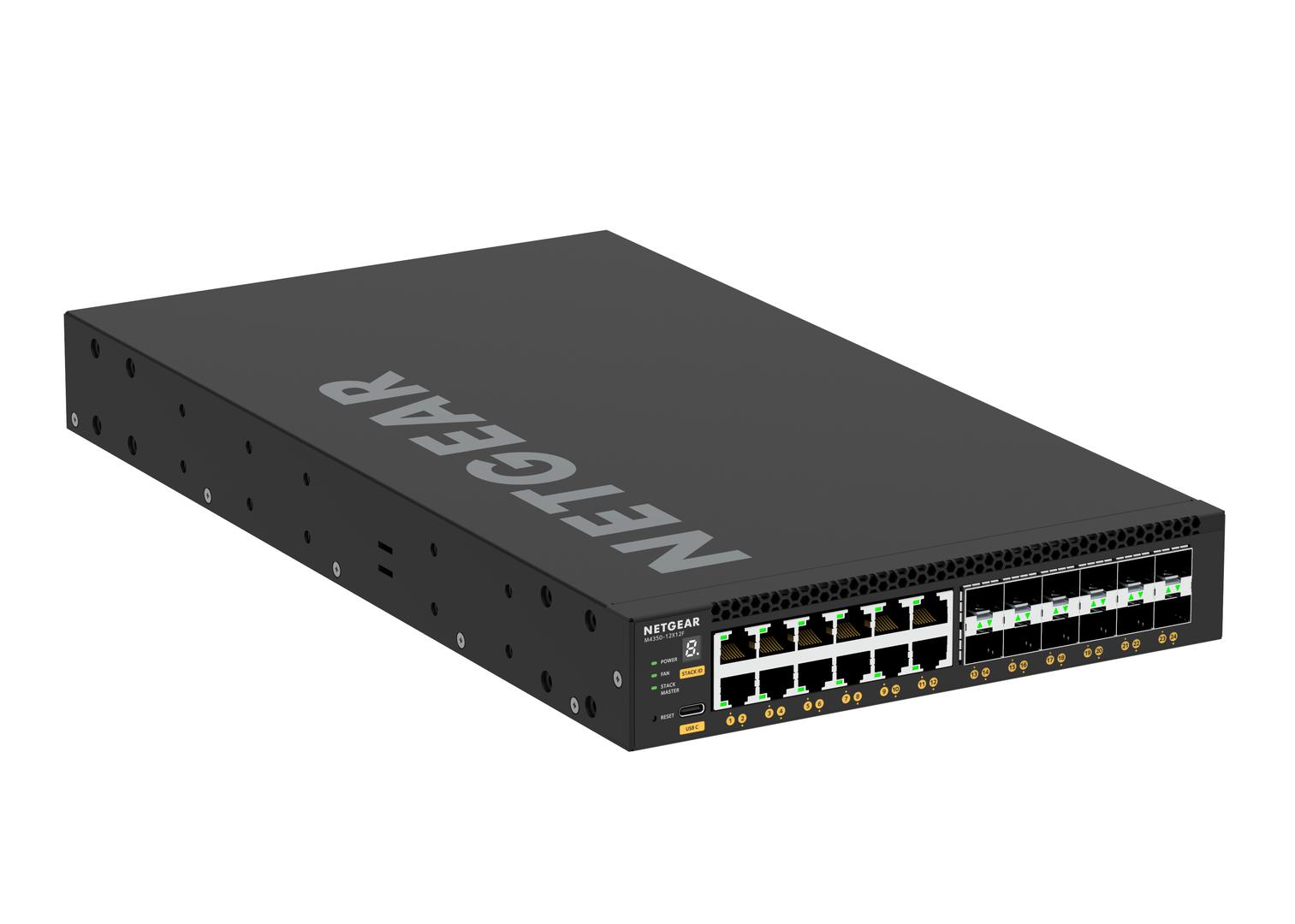

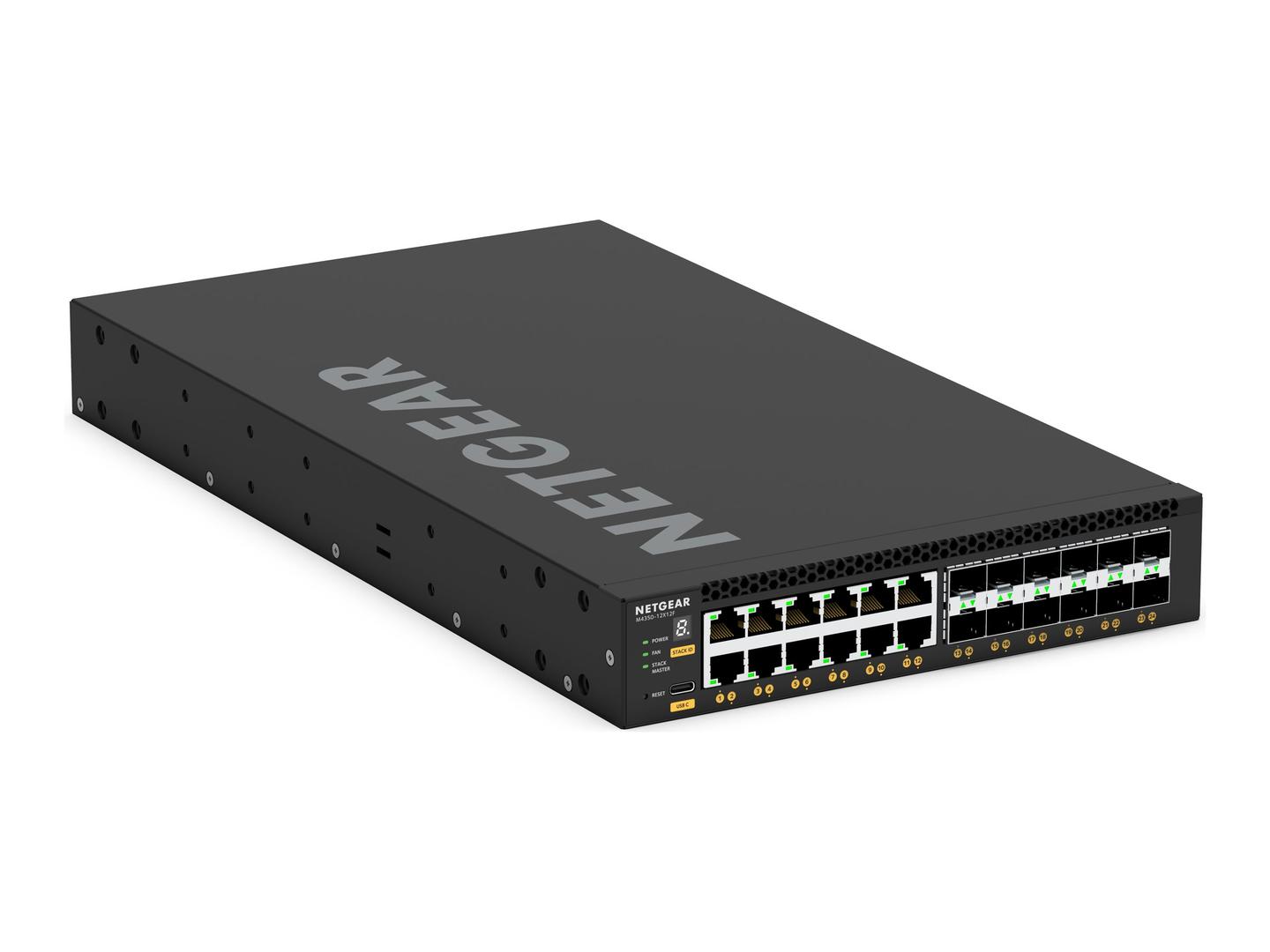

NETGEAR M4350 Series M4350-12X12F - Switch - L3 - Managed - 12 x 1/2.5/5/10GBase-T + 12 x SFP+ - front to back airflow - rack-mountable | XSM4324-100NES
Please sign in so that we can notify you about a reply
Product Features
- Enhanced security
With support for 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, MD5, SHA, SSL 3.0, and TLS 2.0 encryption algorithms, this switch ensures your network's security is robust and resilient against unauthorized access and threats. - High-capacity networking
Boasting a routing/switching capacity of 480 Gbps and supporting up to 4000 VLANs, this device is designed to handle extensive networks efficiently, making it suitable for growing businesses. - Advanced connectivity options

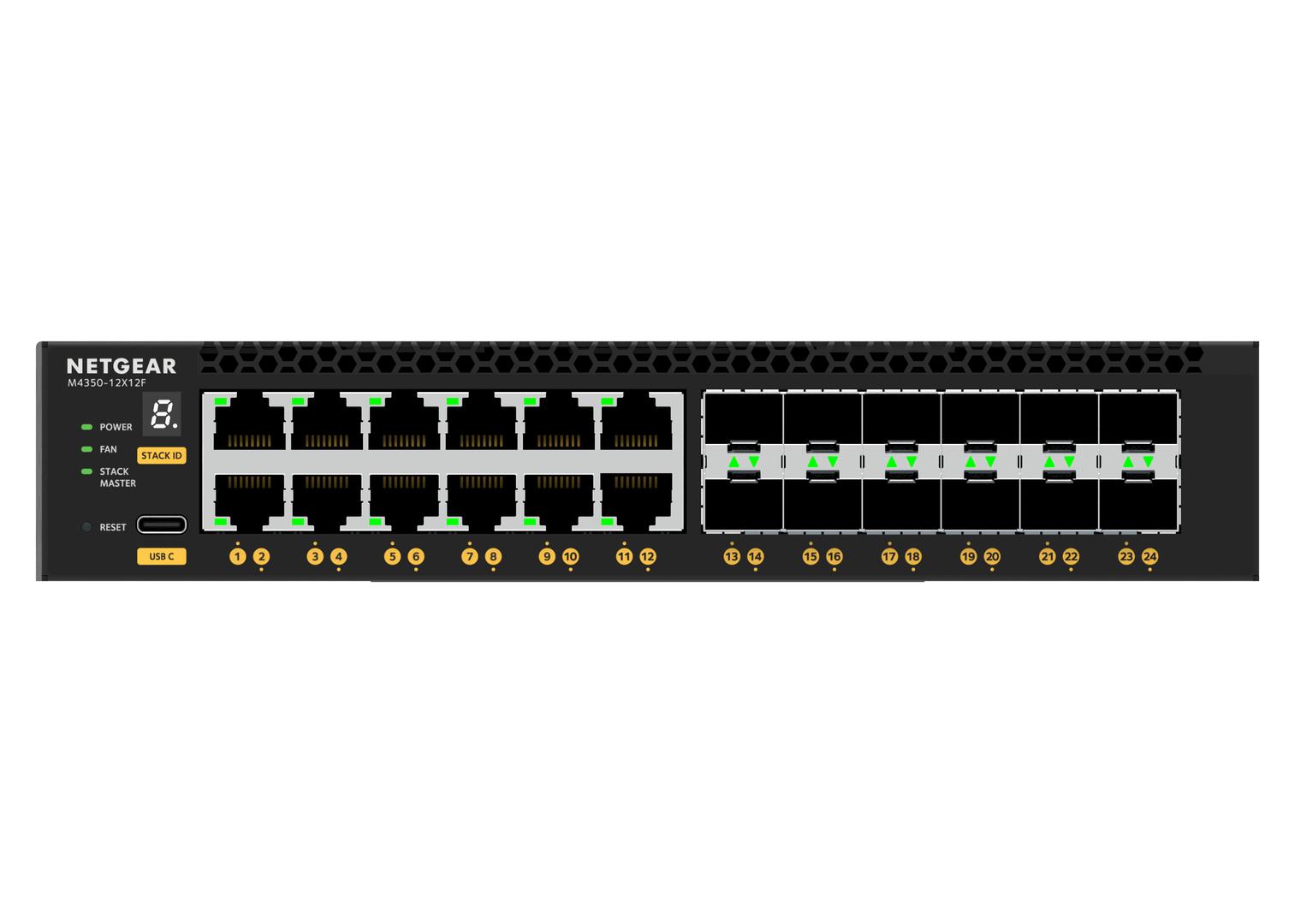

Equipped with 24 ports, including 12 10GBase-T and 12 SFP+ ports, alongside management and USB interfaces, this switch offers versatile connectivity options for a wide range of network configurations. - Reliable performance
Featuring a quad-core CPU with a clock speed of 1.8 GHz and 2 GB of DDR4 SDRAM, the NETGEAR M4350-12X12F delivers reliable, high-speed performance for demanding network environments. - Efficient operation
With front to back airflow design, this switch maintains optimal operating temperatures up to 50 °C, ensuring stable performance and longevity of the device.
Special Fetures
- Quad-core CPU and 2 GB DDR4 SDRAM for high-speed, reliable performance
- 480 Gbps routing/switching capacity for efficient handling of large networks
- Supports up to 4000 VLANs, catering to extensive network segmentation needs
- Comprehensive encryption support including 2048-bit RSA and 256-bit SHA-2 for enhanced security
- 24 ports with a mix of 10GBase-T and SFP+ for flexible connectivity options
Product Specification

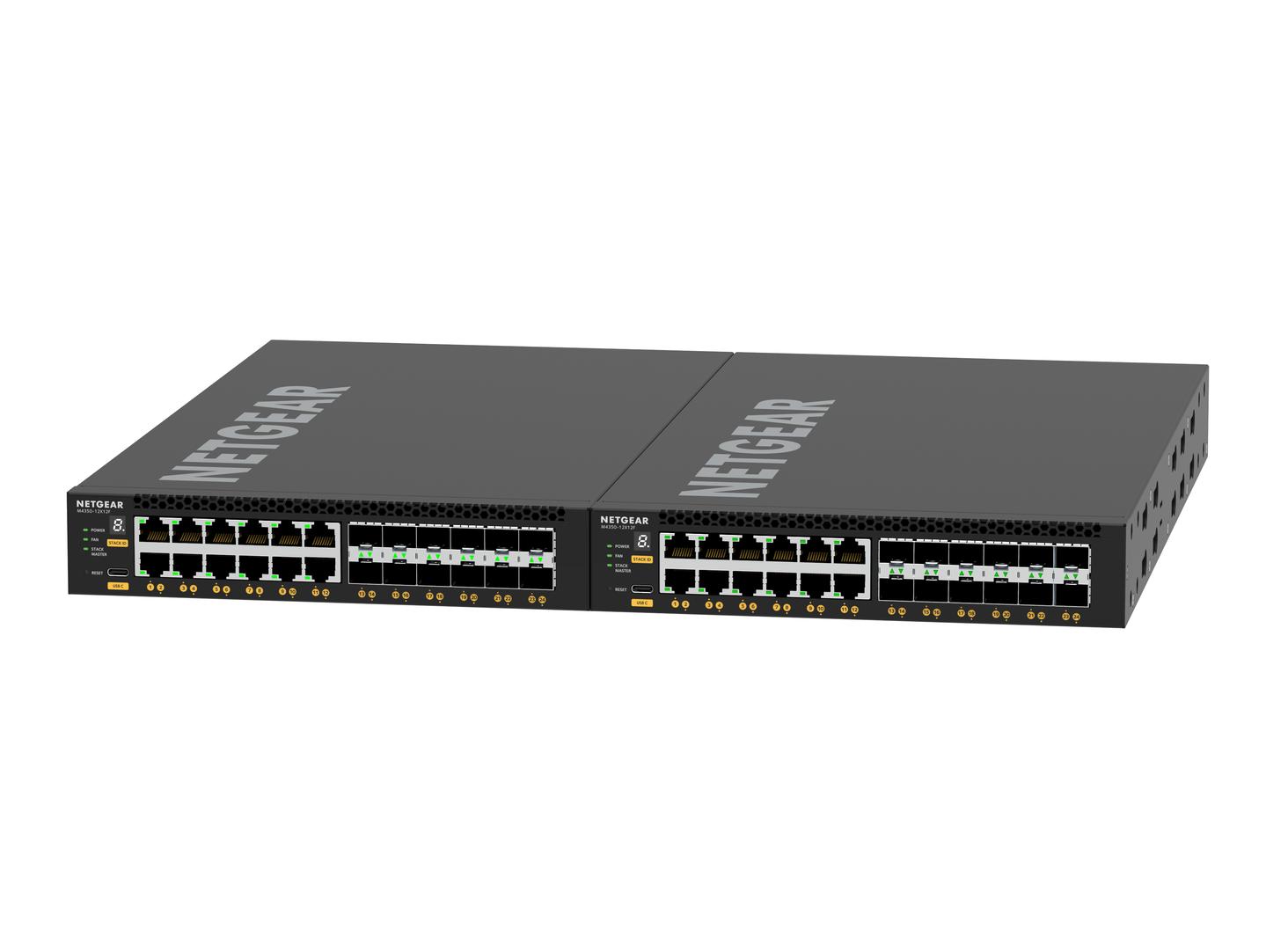

| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |

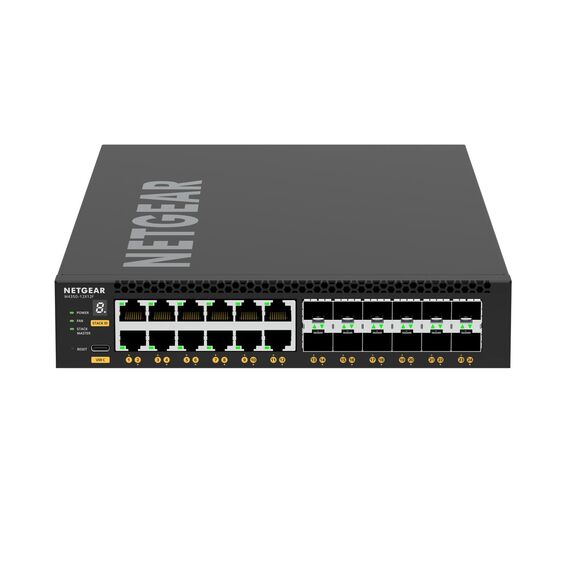

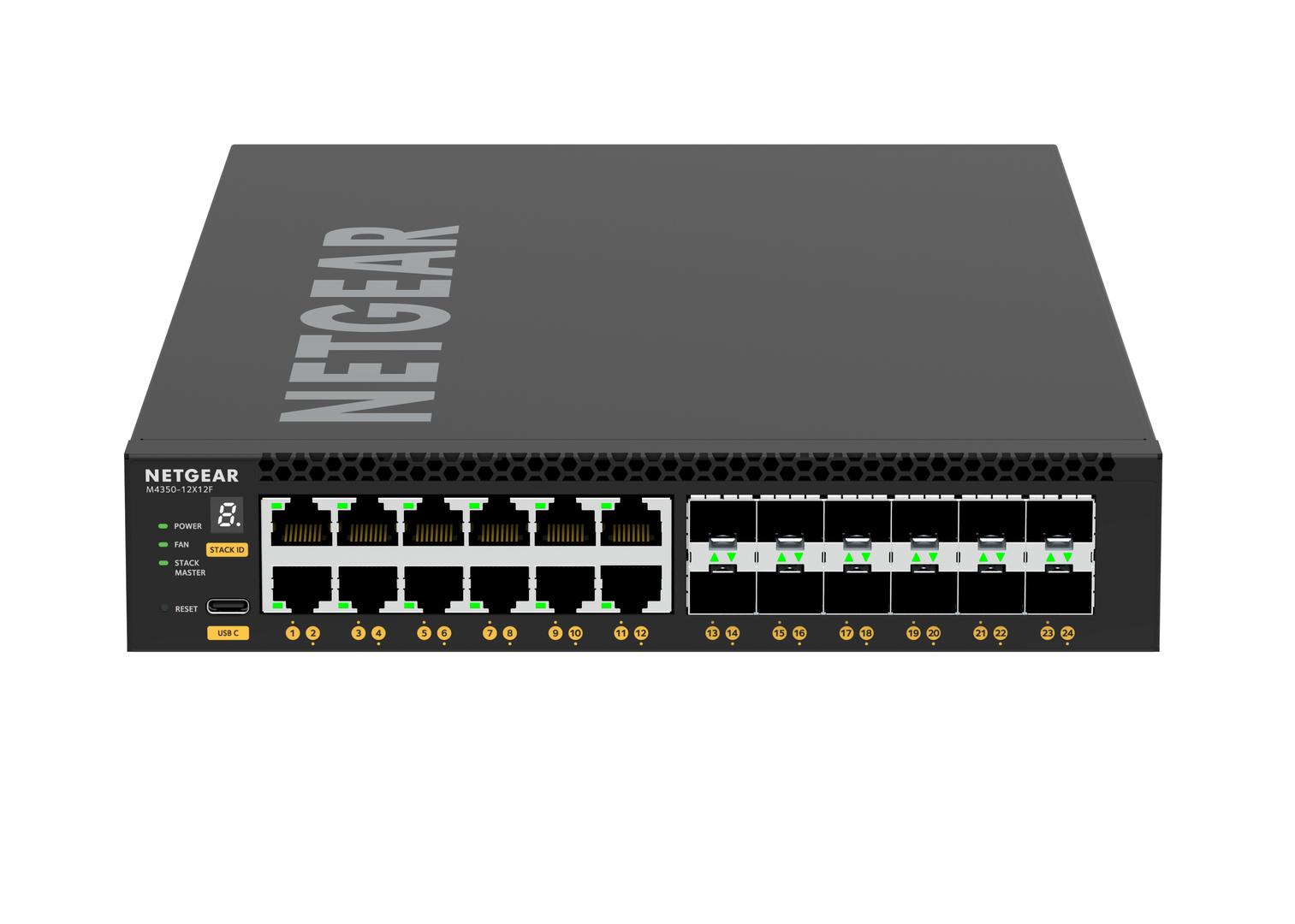

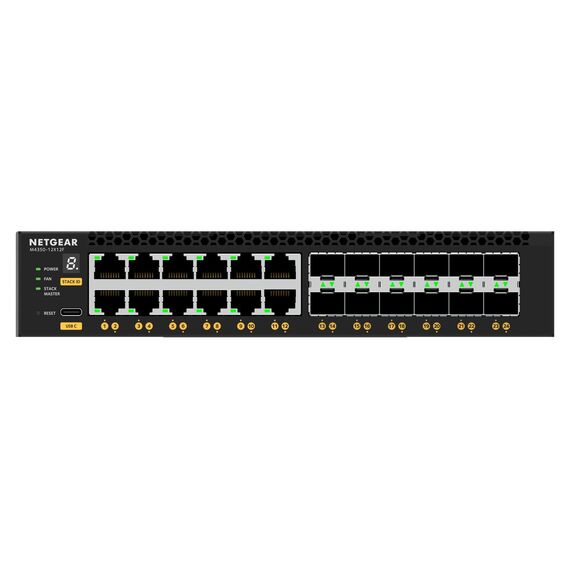

| Ports | 12 x 1/2.5/5/10GBase-T + 12 x SFP+ |
| Performance | Routing/switching capacity: 480 Gbps <br /> Throughput (64-byte packet size): 357.12 Mpps <br /> 10 Gbps copper latency (64-byte packets): < 2.29 µs <br /> 10 Gbps fibre latency (64-byte packets): < 0.72 µs <br /> Latency (1 Gbps): < 2.14 µs |
| Capacity | Packet buffer size: 32 MB <br /> Multicast entries (IPv4): 512 <br /> Multicast entries (IPv6): 256 <br /> VLANs supported: 4000 <br /> Jumbo frame size: up to 12000 <br /> IGMP multicast groups: 2000 <br /> DHCP users: 2000 <br /> ARP entries: 4000 <br /> NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | SNMP 3, HTTPS, CLI, Telnet, SSH-2, MIB, RSTP, DHCP, RMON |
| Encryption Algorithm | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | TACACS, RADIUS, Secure Shell (SSH) |
| Features | Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Processor | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |

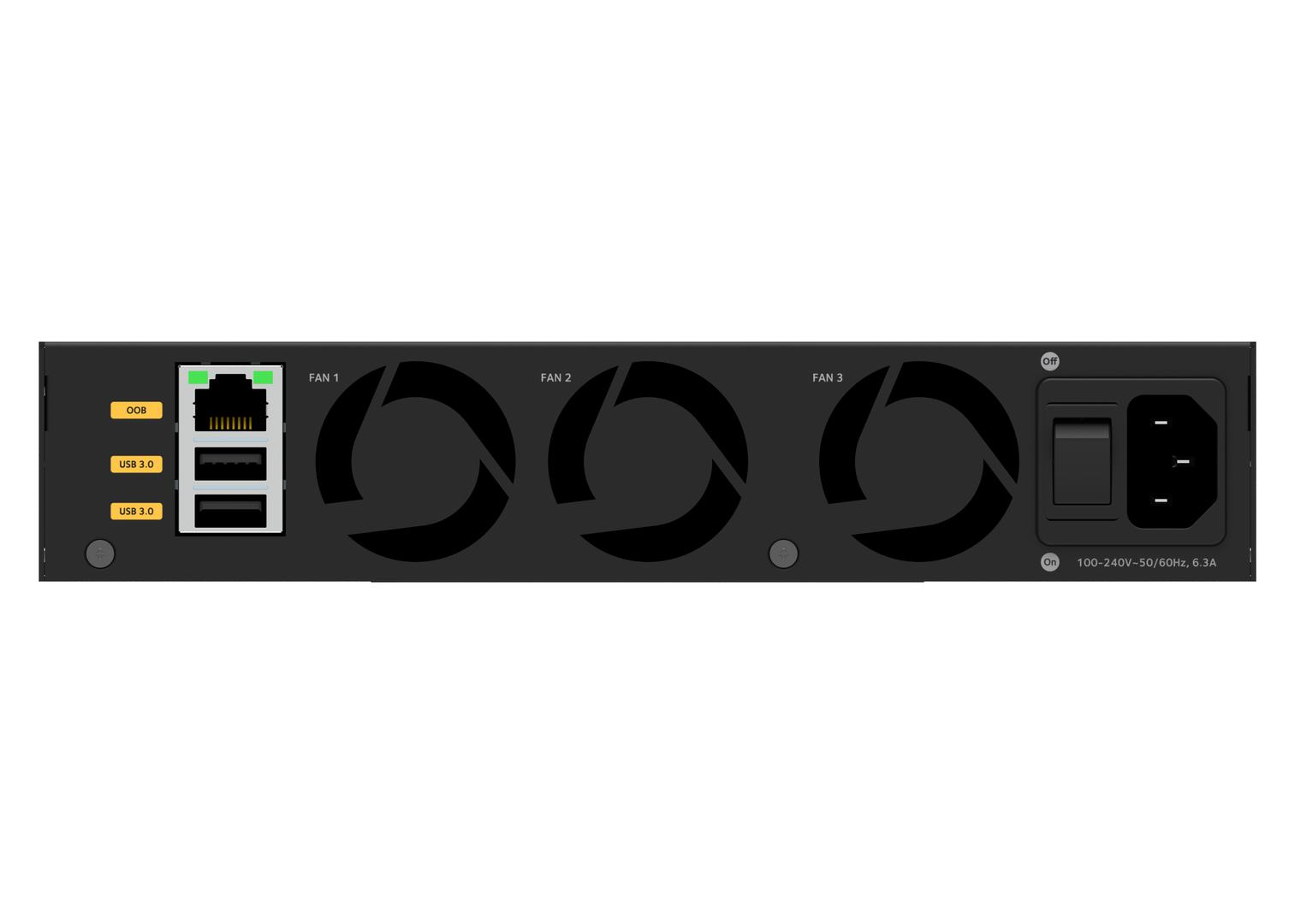

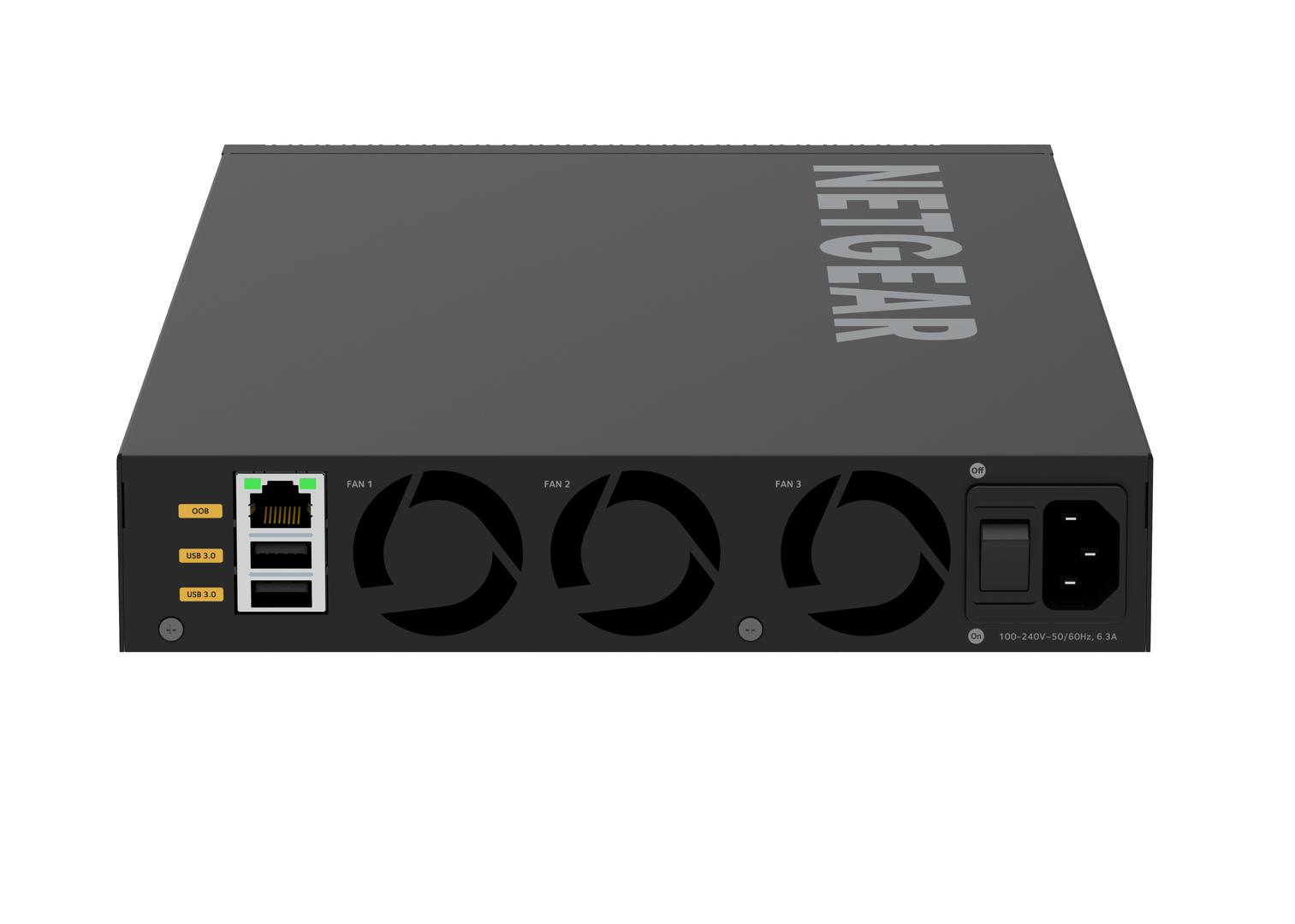

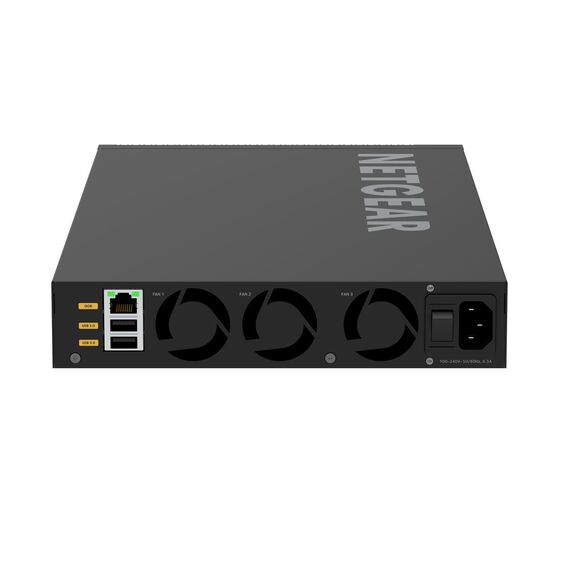

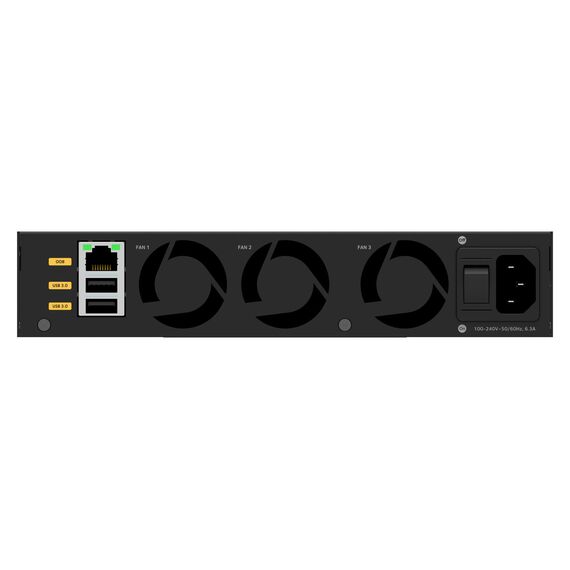

| Interfaces | 12 x 10GBase-X SFP+ <br /> 12 x 10GBase-T RJ-45 <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 2 x USB Type A <br /> 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Provided | 240 Watt |
| Power Consumption Operational | 95.8 Watt |
| Power Consumption Stand by | 34 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting brackets |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation | Europe, North America, United Kingdom |
| Dimensions & Weight | |
| Width | 22 cm |
| Depth | 4.32 cm |
| Height | 40 cm |
| Weight | 9.48 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - XSM4324-100NES
More Details
Product Code
CI33009
EAN Code
0606449161458
Manufacturer
NetGear
