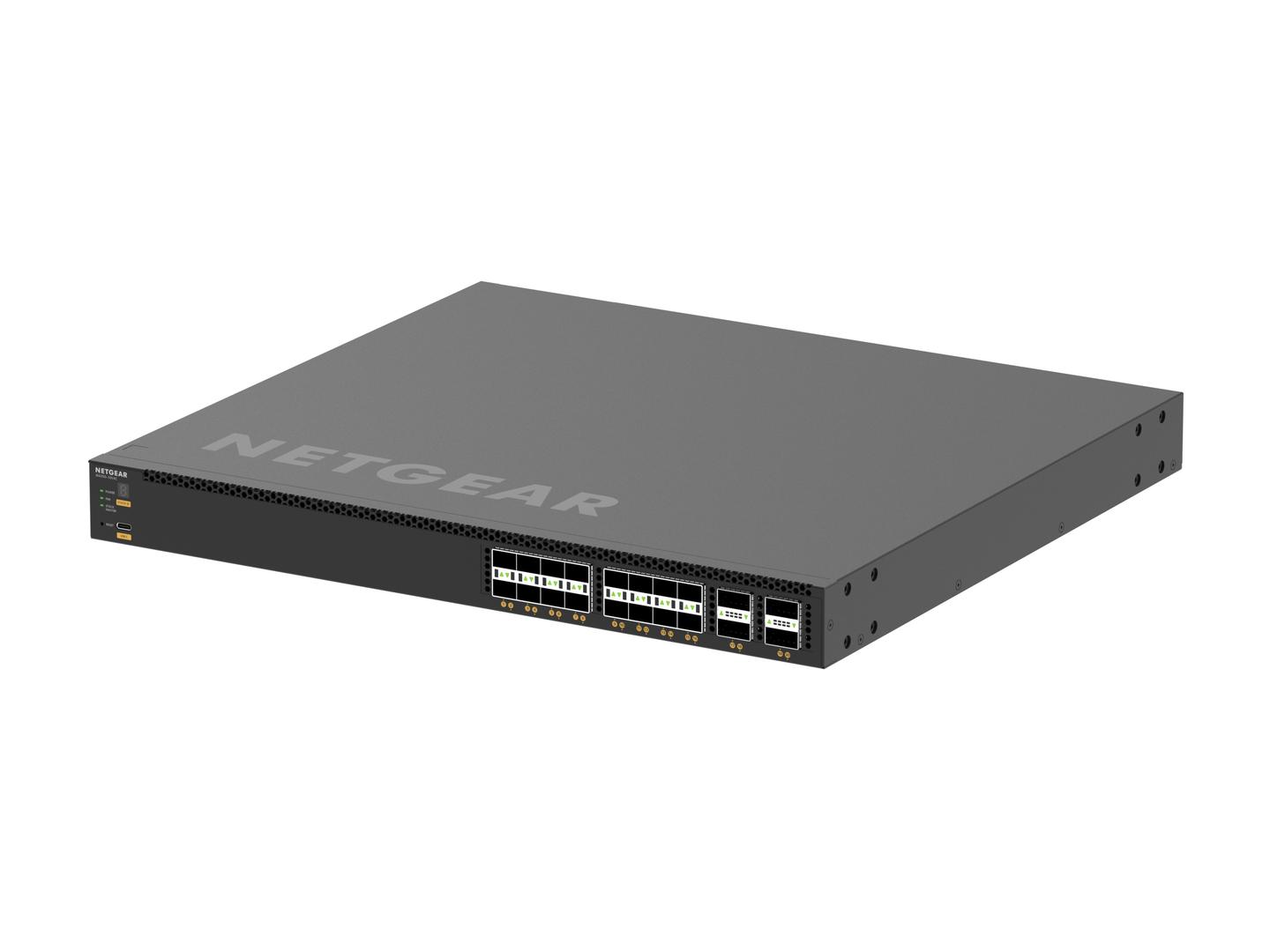

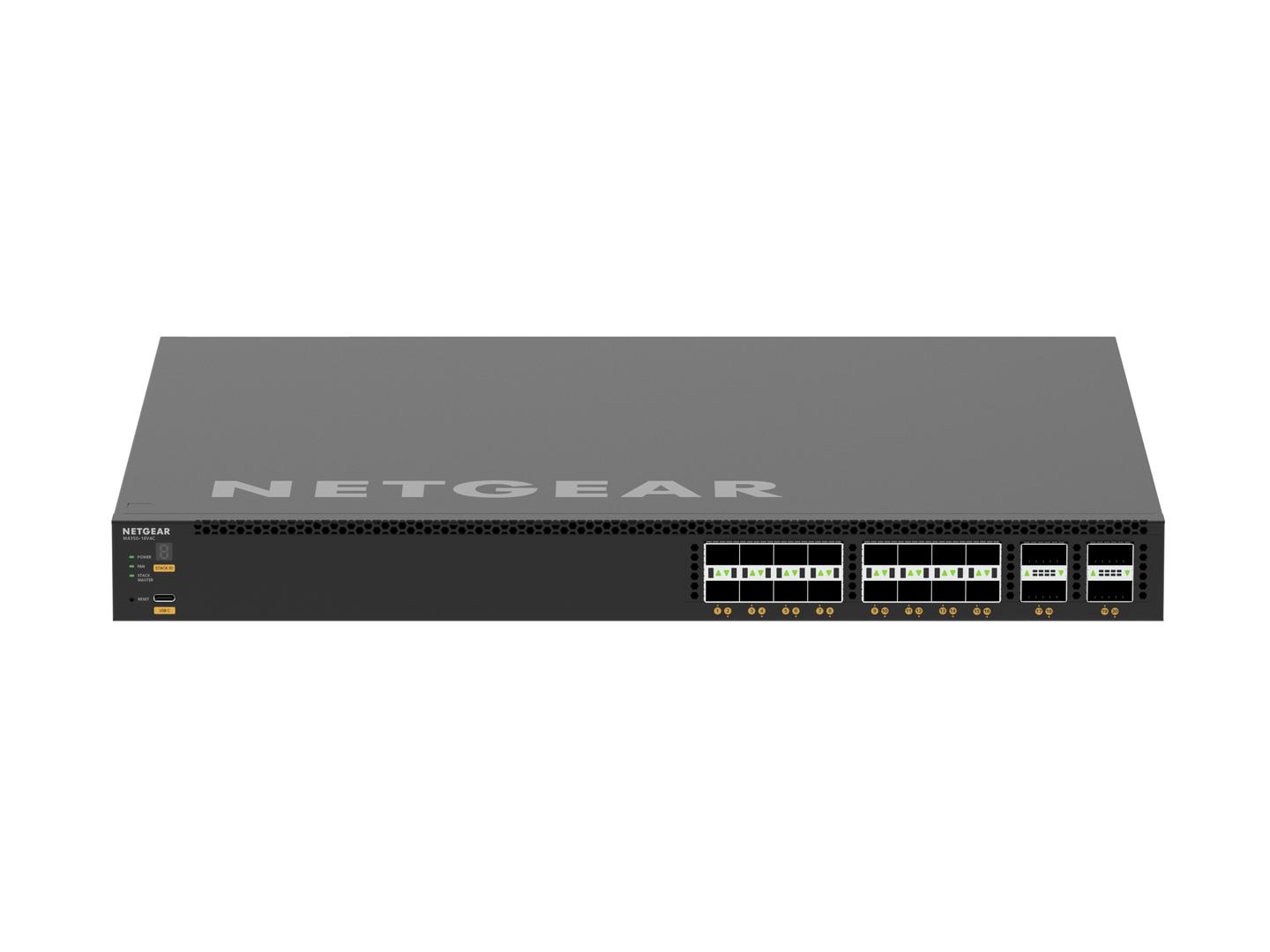

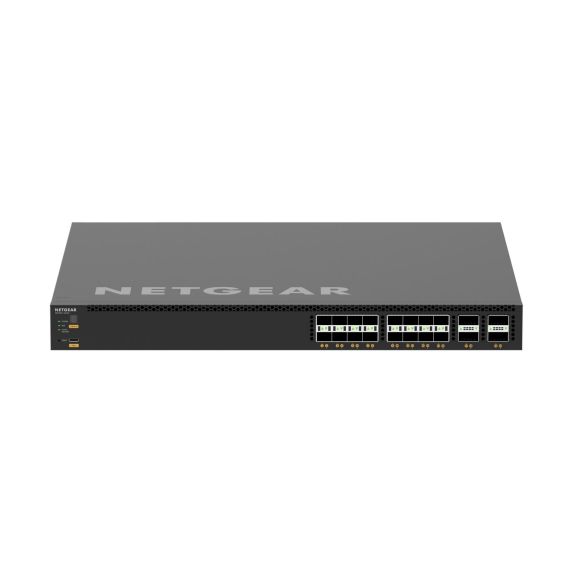

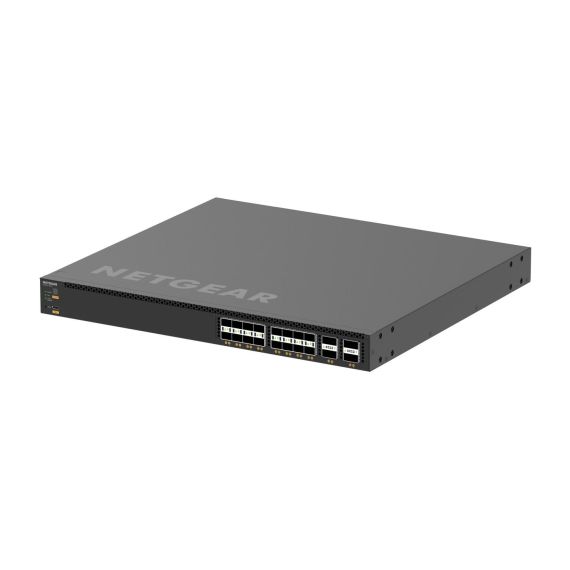

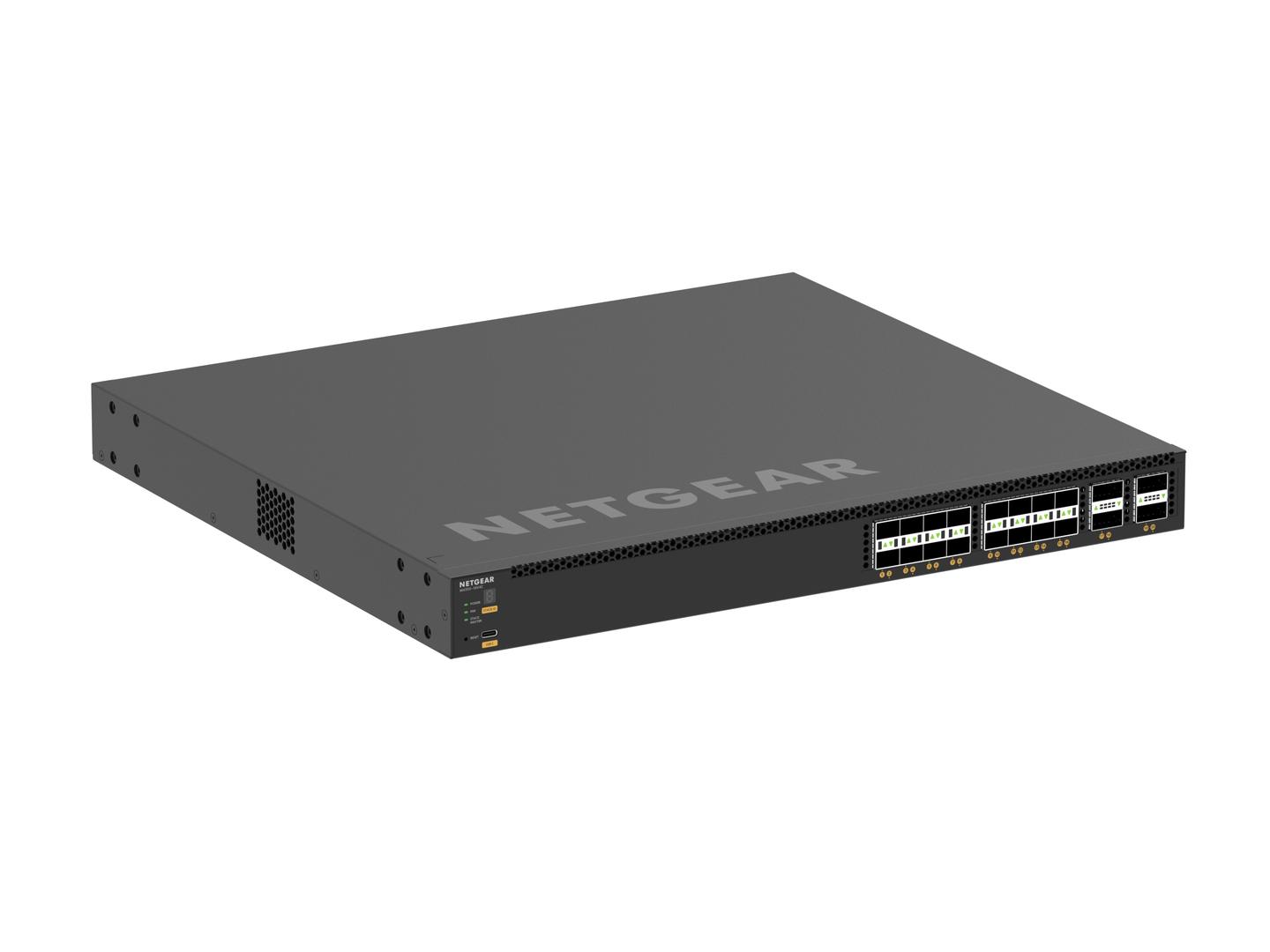

NETGEAR M4350 Series M4350-16V4C - Switch - L3 - Managed - 16 x 1/10/25 Gigabit SFP28 + 4 x 40/100 Gigabit QSFP28 - front to back airflow - rack-mountable | VSM4320C-100NES
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With 16 SFP28 ports for 1/10/25GBase-X and 4 QSFP28 ports for 40/100GBase-X, the NETGEAR M4350-16V4C offers versatile connectivity options for diverse networking needs, ensuring high-speed data transfer and efficient network operations. - Robust security features
The device is equipped with advanced security protocols including RADIUS, Secure Shell (SSH), and TACACS, alongside encryption algorithms like 2048-bit RSA and 256-bit SHA-2, providing a secure networking environment resistant to unauthorized access and data breaches. - High performance
Featuring a quad-core CPU with a 1.8 GHz ARM Cortex-A57 processor and 4 GB of DDR4 SDRAM, this switch delivers exceptional performance and efficiency, capable of handling demanding network tasks with ease. - Comprehensive network management
Support for a wide range of remote management protocols, including CLI, HTTPS, SNMP, and SSH, allows for flexible and comprehensive management of the network infrastructure, ensuring optimal performance and reliability. - Durable and reliable

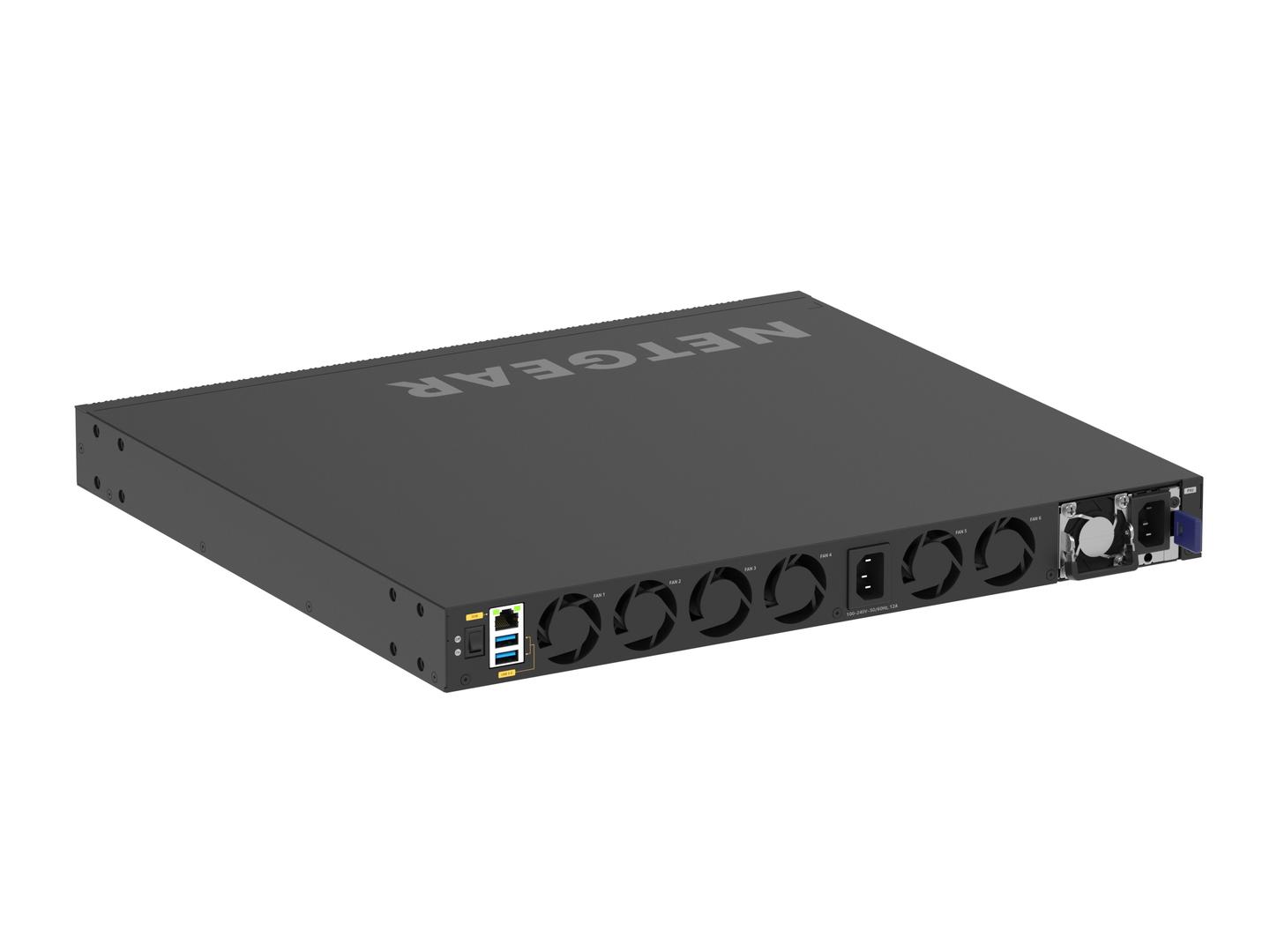

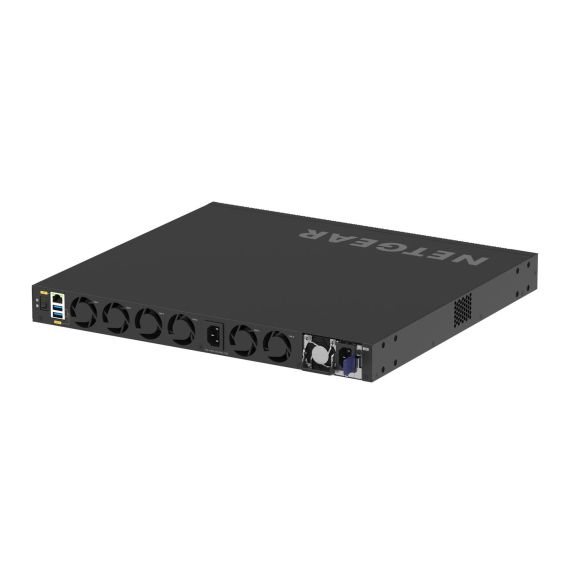

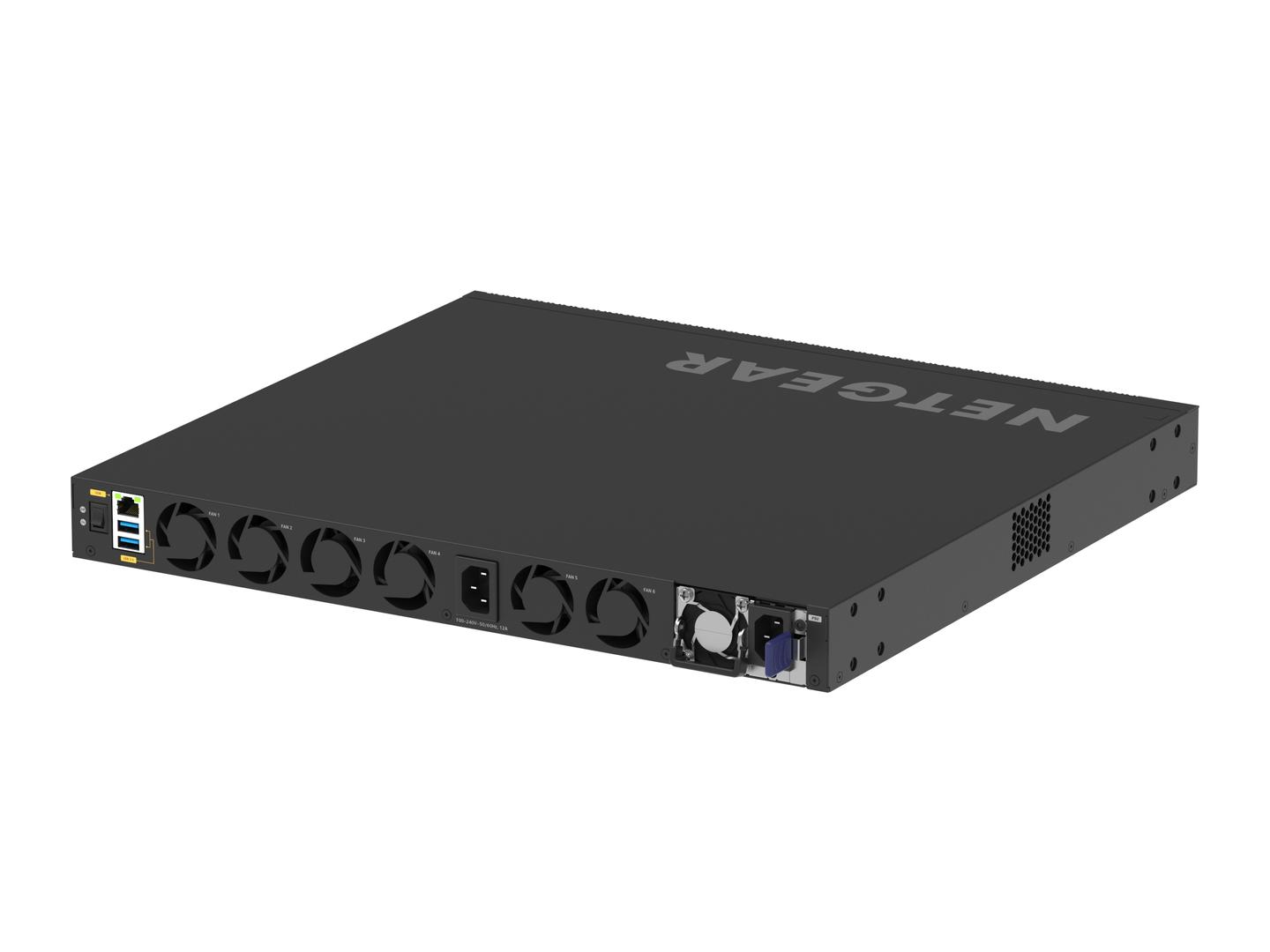

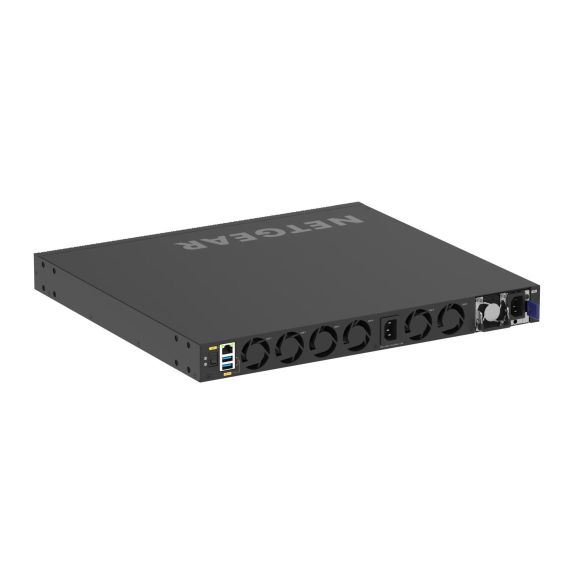

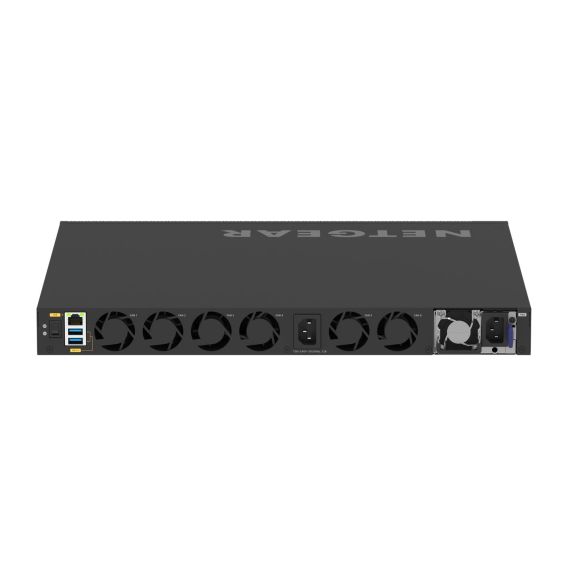

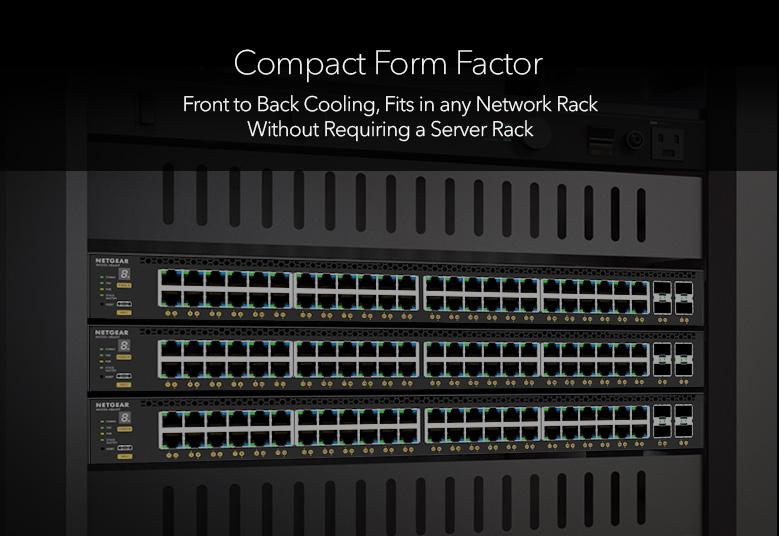

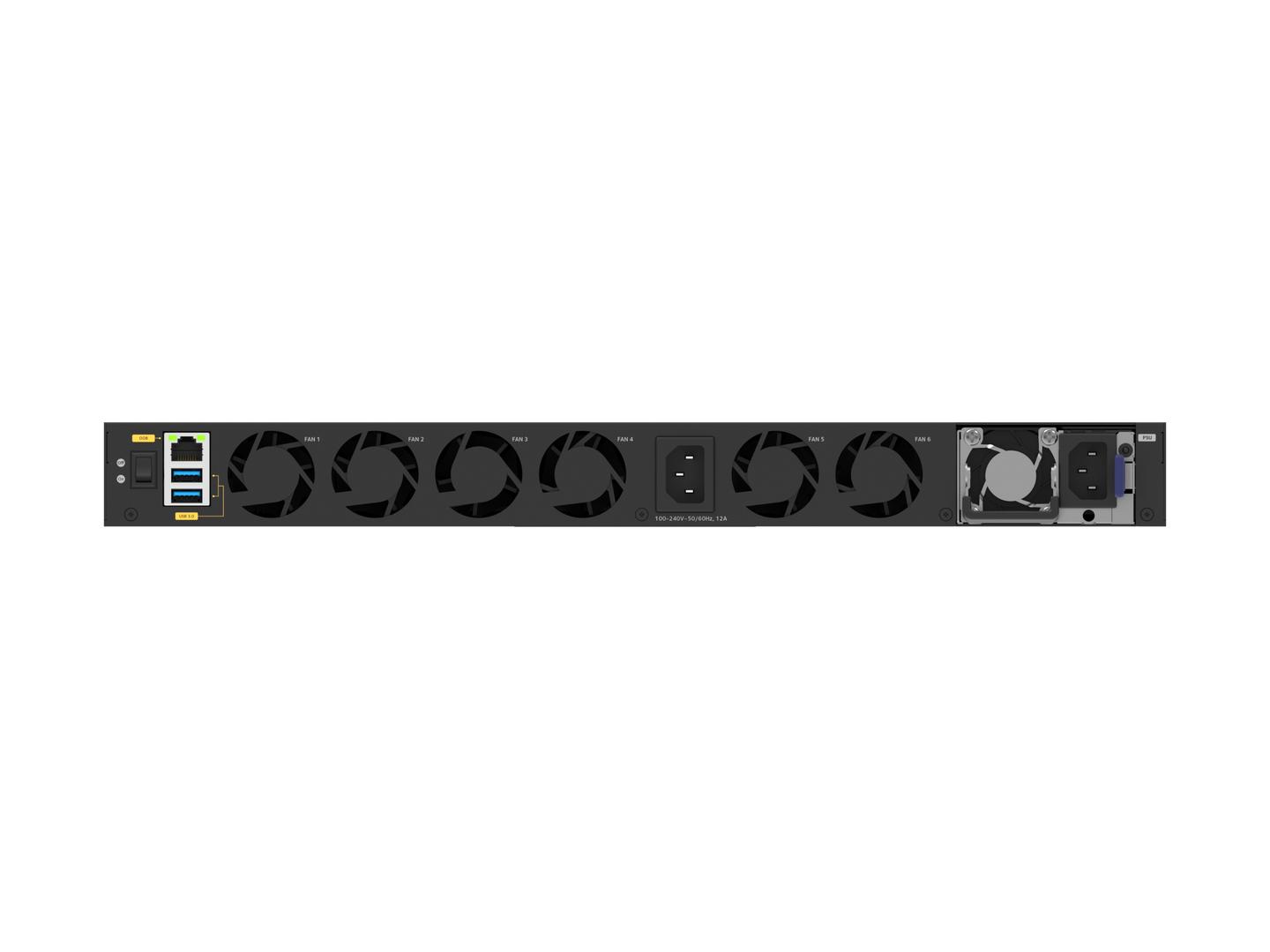

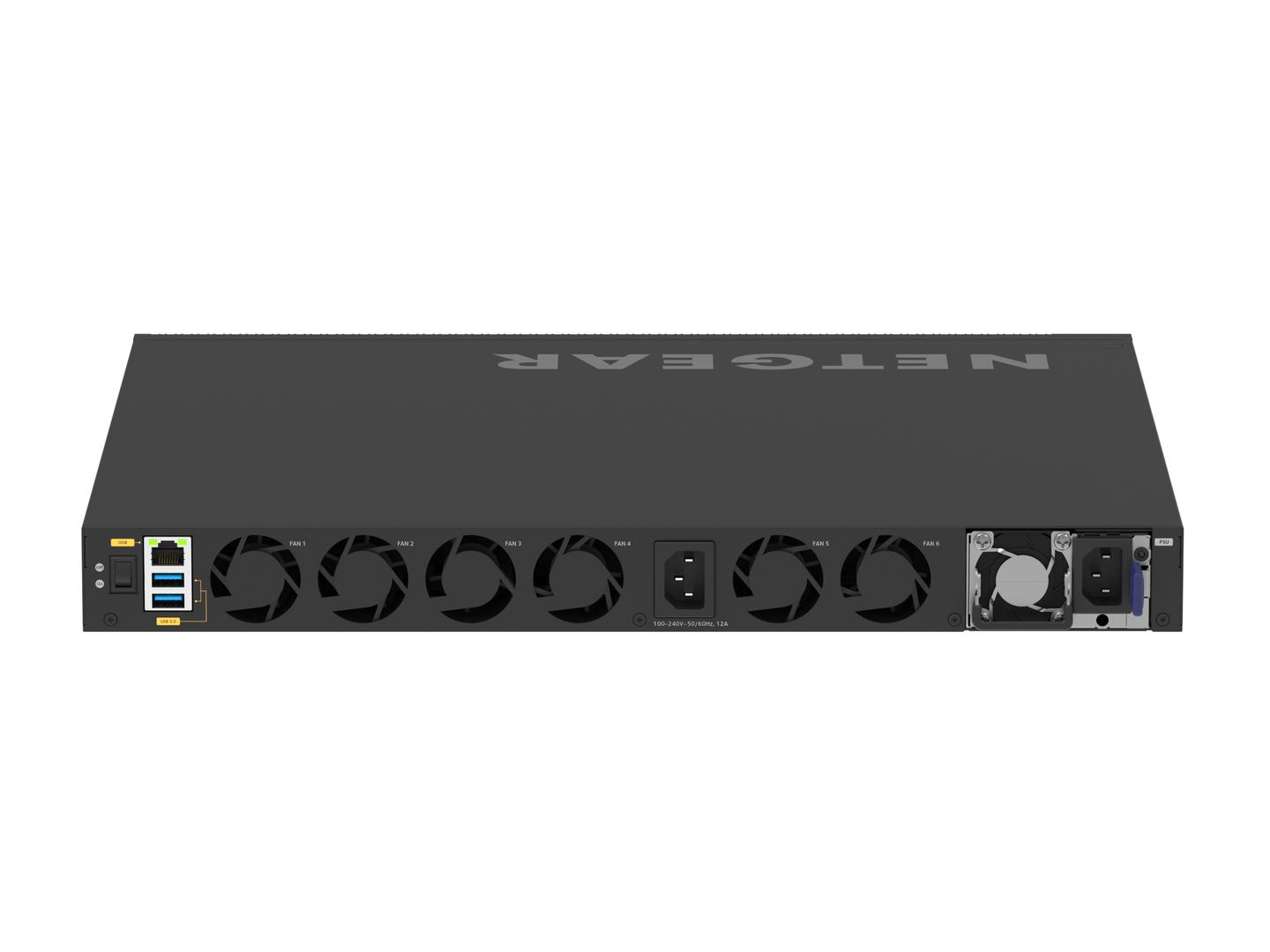

Designed with front to back airflow, a rack mounting kit included, and operating within a wide range of temperatures, the NETGEAR M4350-16V4C is built for durability and reliability in various operational environments.
Special Fetures
- 16 25GBase-X SFP28 ports with 4 100GBase-X QSFP28 uplinks
- 420 W internal power supply
- 1 slot for modular power supply (1+1 redundancy)
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
Product Specification
| Device Type | Switch - 20 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |

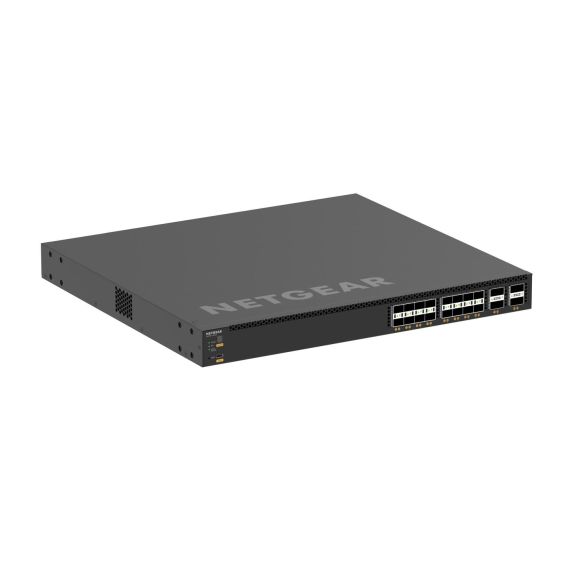

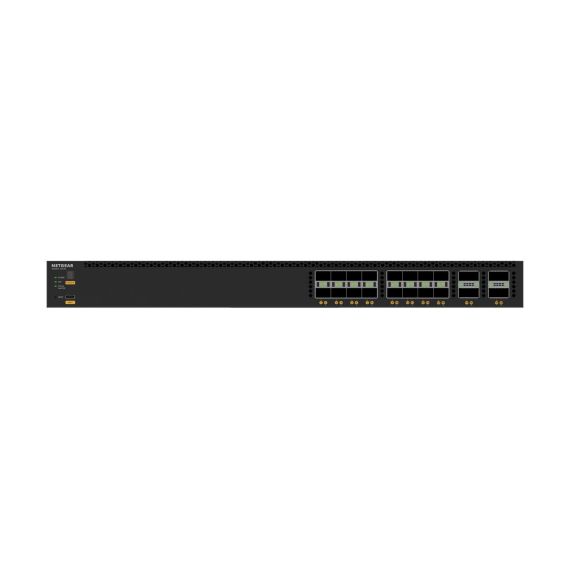

| Ports | 16 x 1/10/25 Gigabit SFP28 + 4 x 40/100 Gigabit QSFP28 |
| Performance | Routing/switching capacity: 1.6 Tbps |
| Capacity | Packet buffer size: 256 <br /> Multicast entries (IPv4): 256 <br /> Multicast entries (IPv6): 512 <br /> VLANs supported: 4000 <br /> Jumbo frame size: up to 12000 <br /> IGMP multicast groups: 2000 <br /> DHCP users: 2000 <br /> ARP entries: 4000 <br /> NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12000 bytes |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | SNMP, HTTPS, CLI, Telnet, SSH, MIB, RADIUS, RSTP |
| Encryption Algorithm | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | TACACS, RADIUS, Secure Shell (SSH) |
| Features | Jumbo Frames support, LLDP-MED, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU |
| Compliant Standards | IEEE 802.1as, IEEE 1588-2008 PTPv2, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ak, IEEE 802.1BA, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3ad (LACP), IEEE 802.3ax, IEEE 802.3x |
| Processor | X ARM Cortex-A57: 1.8 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 16 x 1/10/25GBase-X SFP28 <br /> 4 x 40/100GBase-X QSFP28 <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 2 x USB Type A <br /> 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 420 Watt |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 143.4 Watt |
| Power Consumption Stand by | 60.4 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting brackets, rubber caps |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation | Europe, North America, United Kingdom |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 40 cm |
| Height | 4.32 cm |
| Weight | 7.15 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - VSM4320C-100NES
General
16-Port
More Details
Product Code
CI33007
EAN Code
0606449165074
Manufacturer
NetGear
