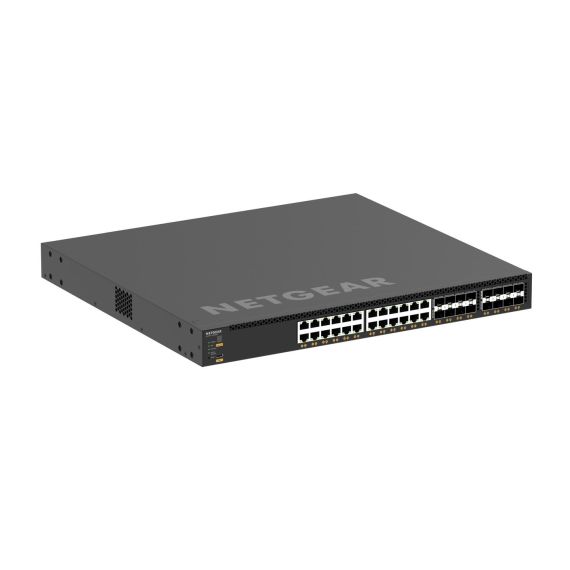

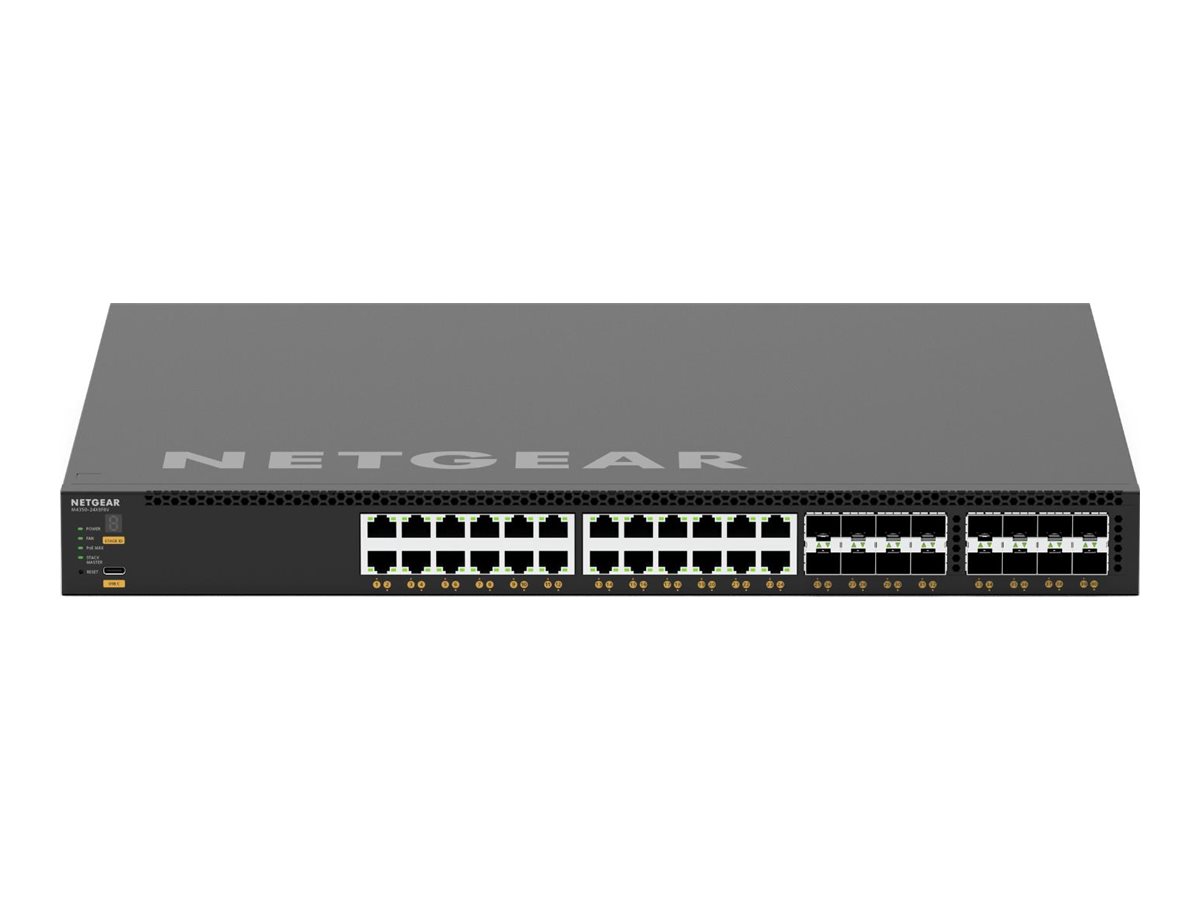

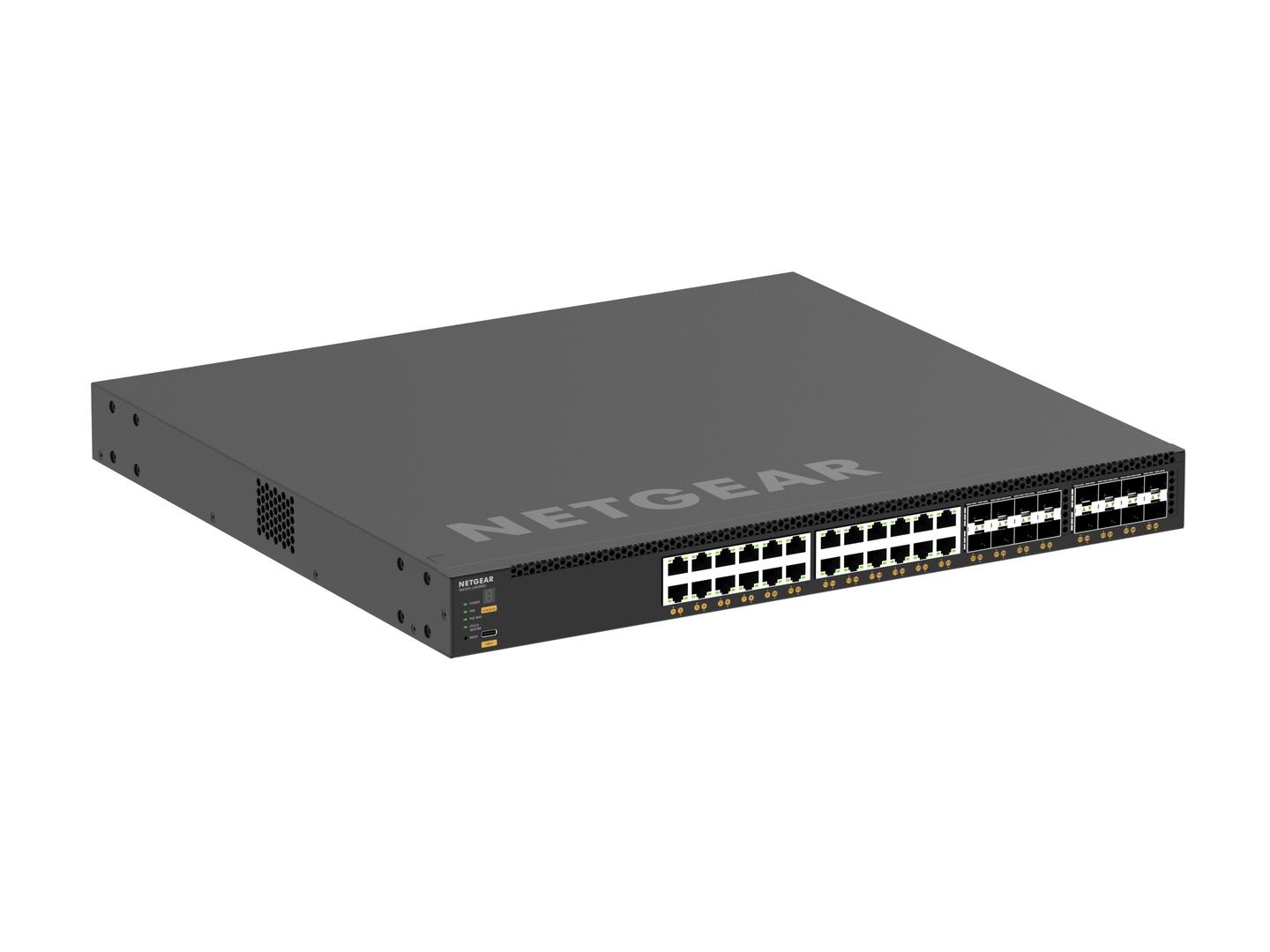

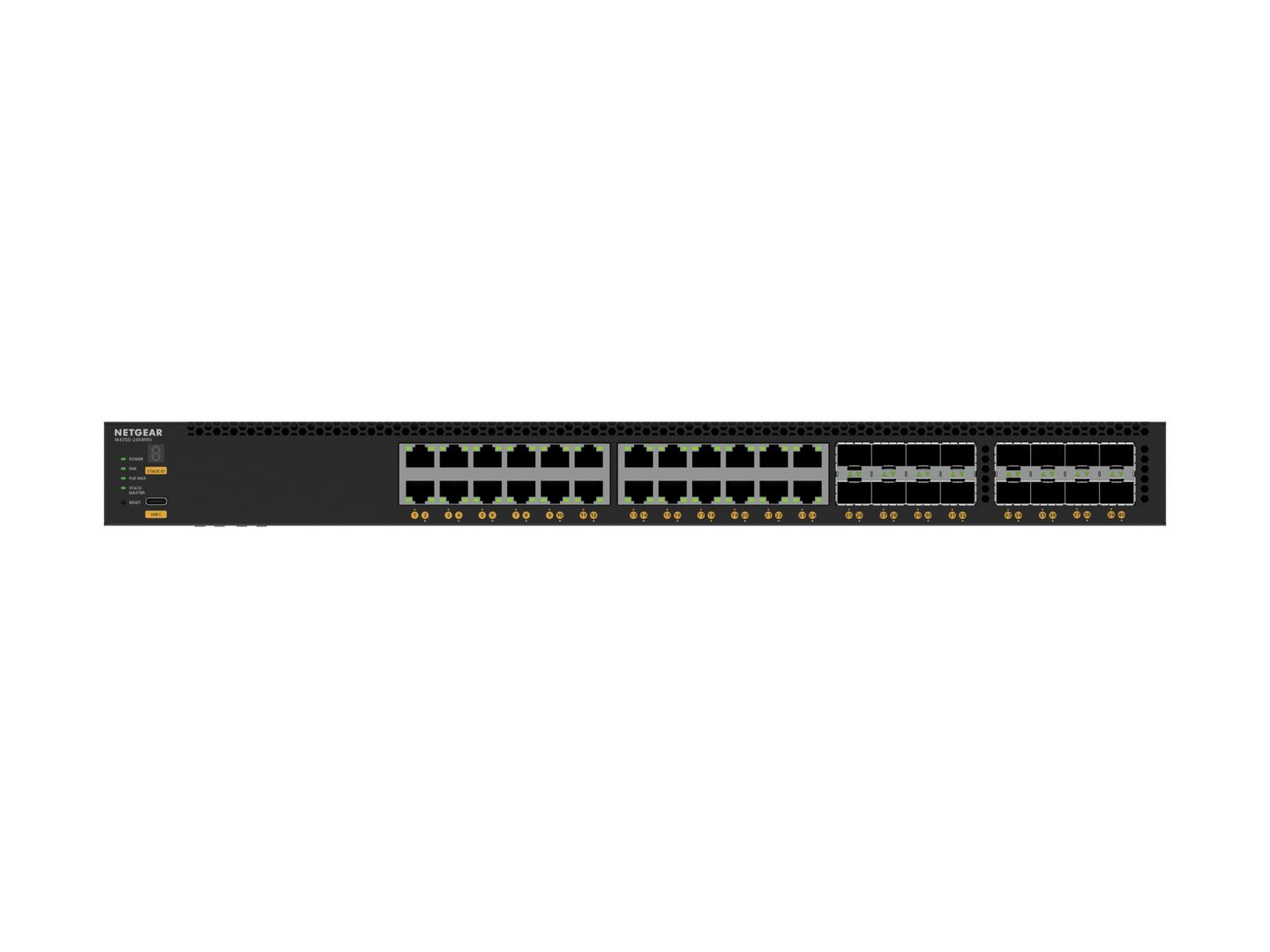

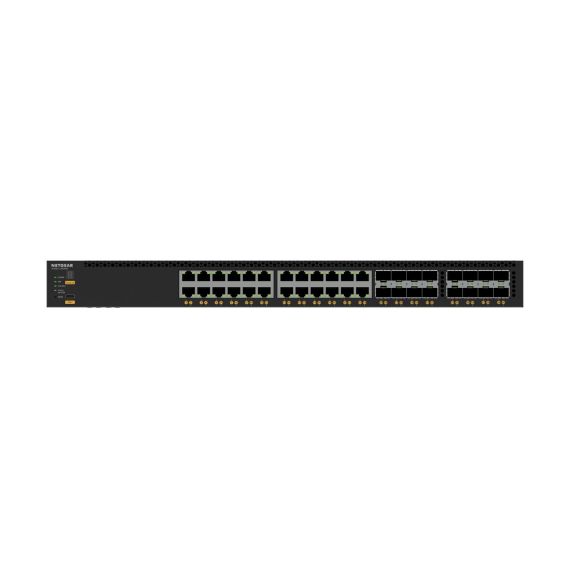

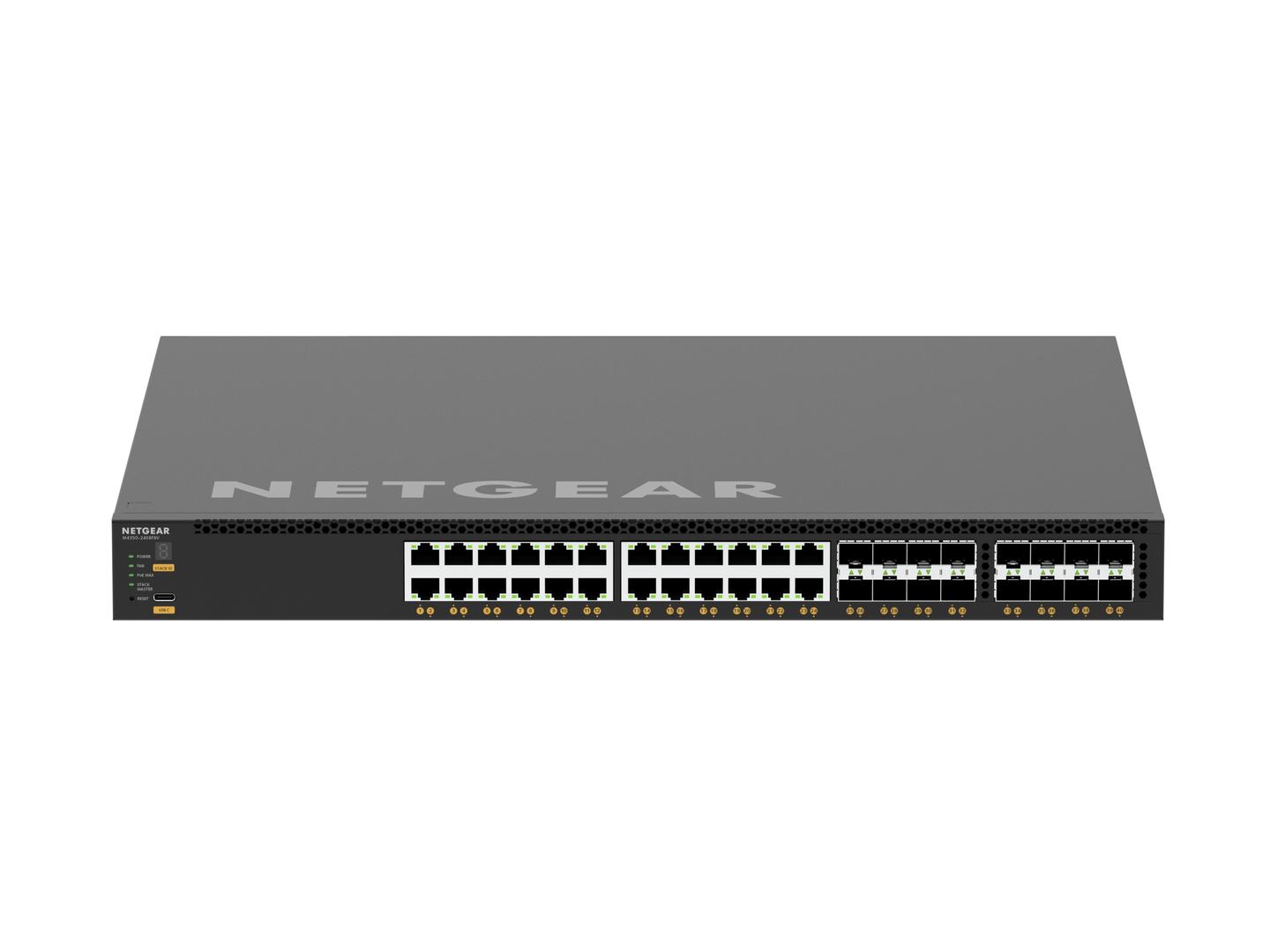

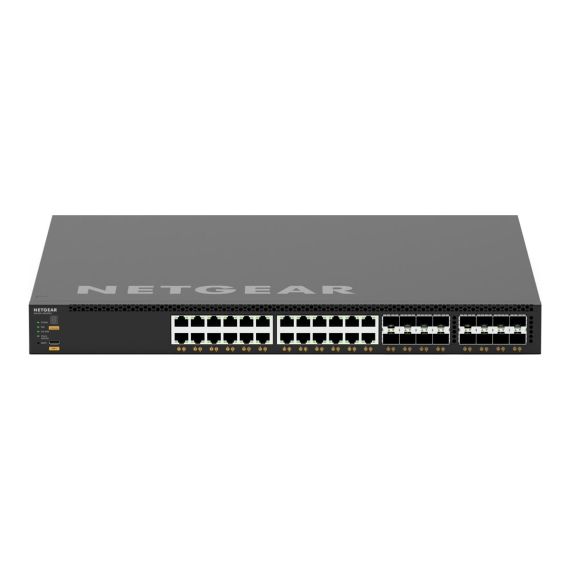

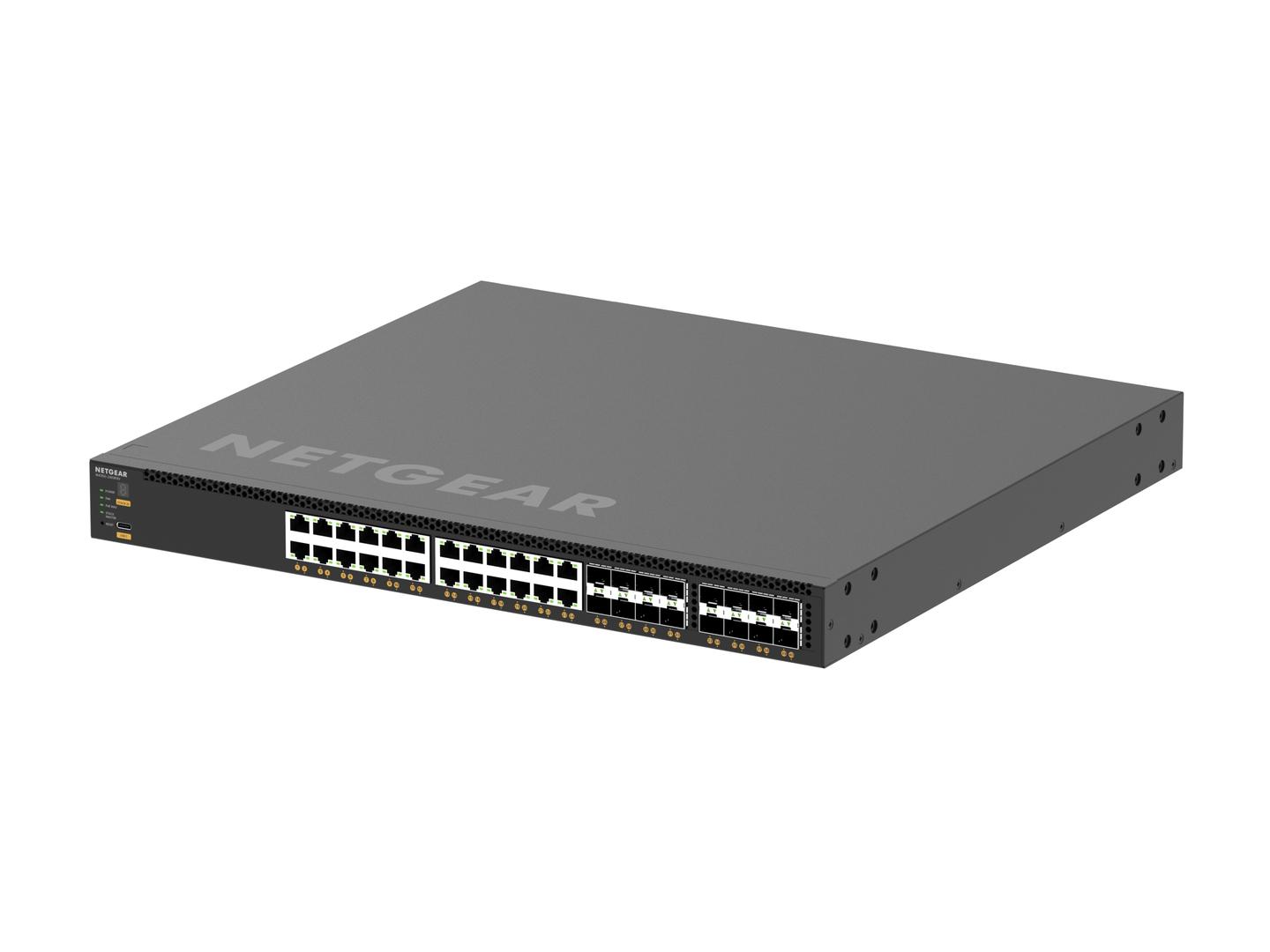

NETGEAR AV Line M4350-24X8F8V - Switch - L3 - Managed - 24 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 8 x 10Gb Ethernet SFP+ + 8 x 25 Gigabit SFP28 - front to back airflow - rack-mountable - PoE++ (290 W) | XSM4340V-100NES
Please sign in so that we can notify you about a reply
Product Features
- AV GUI

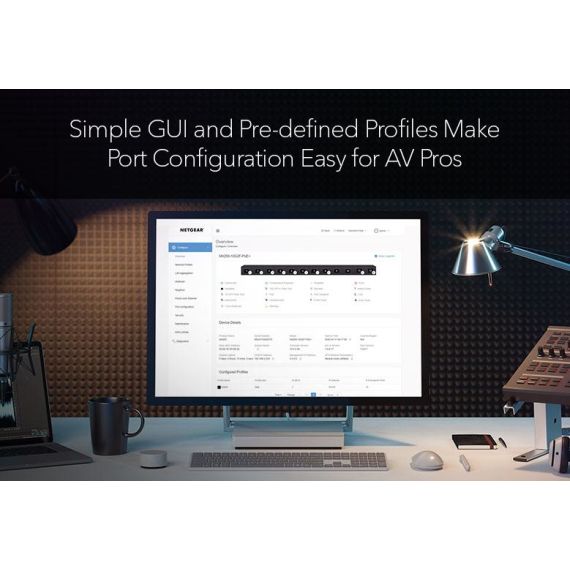

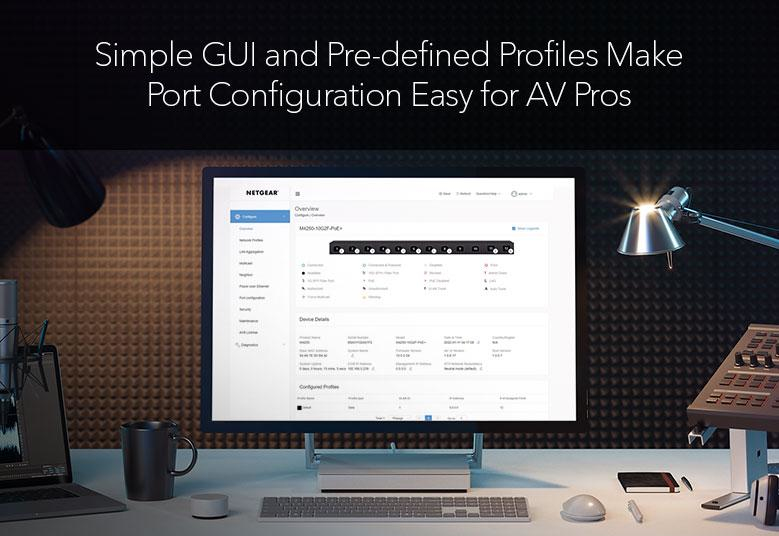

A simplified user interface makes it easy to assign configuration profiles to each port. - Multicast in an instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications. - Sleek, quiet design
Less fan noise, and mounting ears included for rack mounting. - Automatic configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Special Fetures

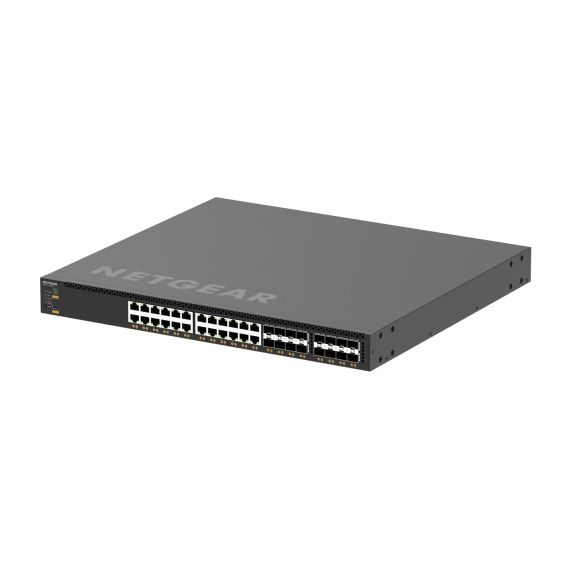

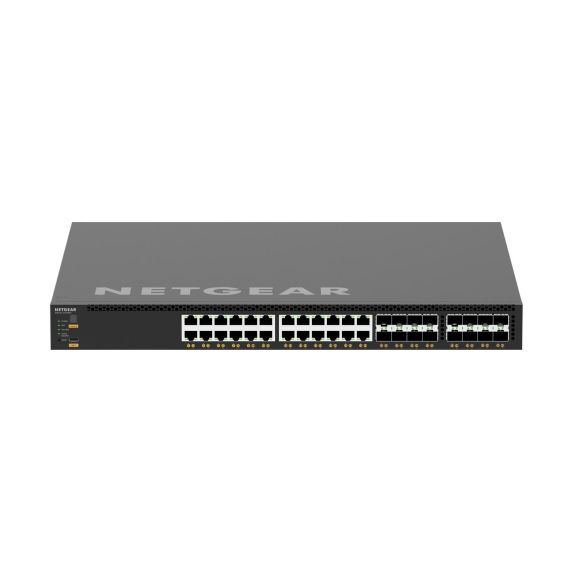

- 24 10G/Multi-Gig PoE++ ports, 8 10GBase-X SFP+ and 8 25GBase-X SFP28 ports
- 750 W internal power supply providing 290 W of PoE budget

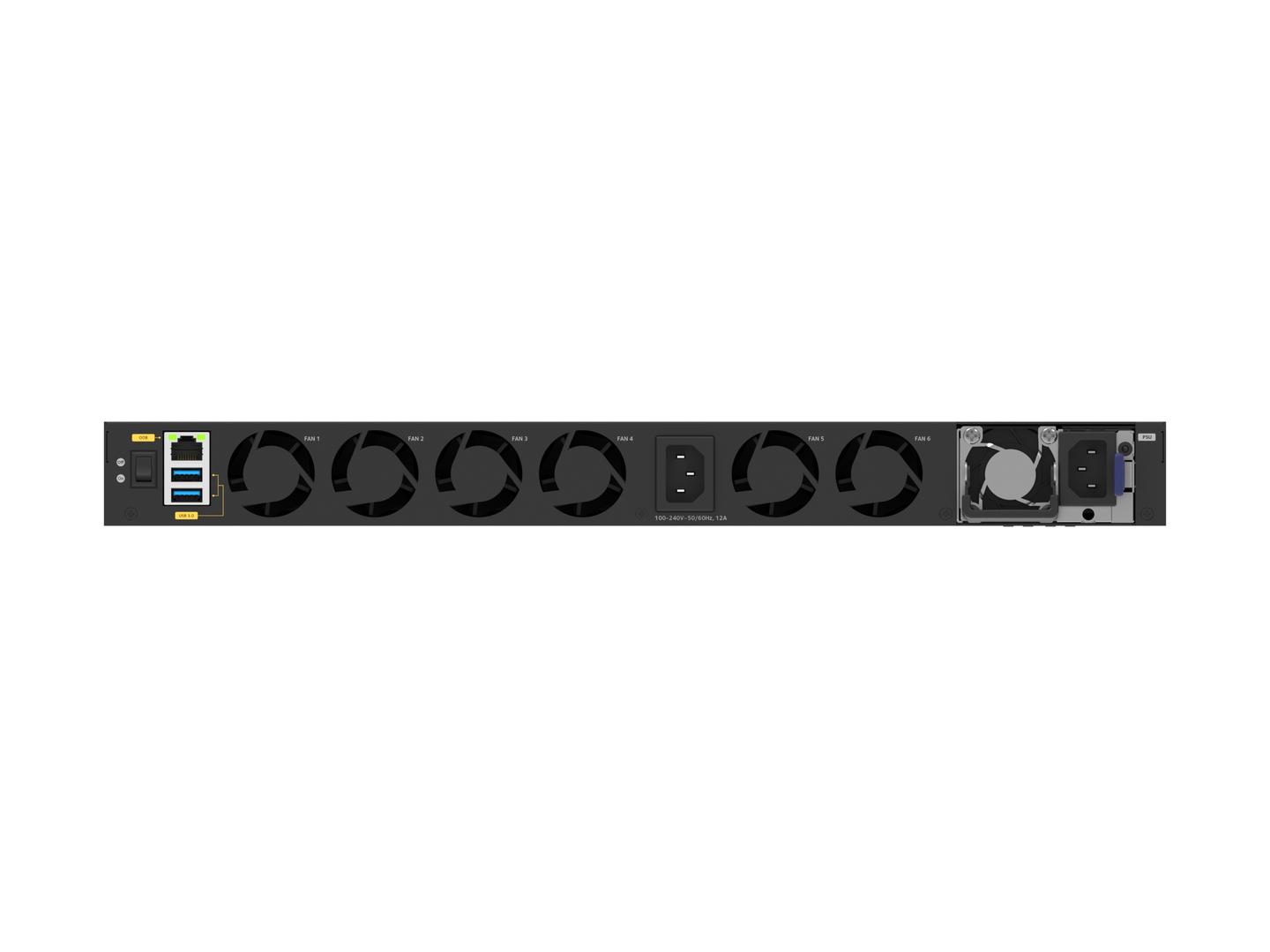

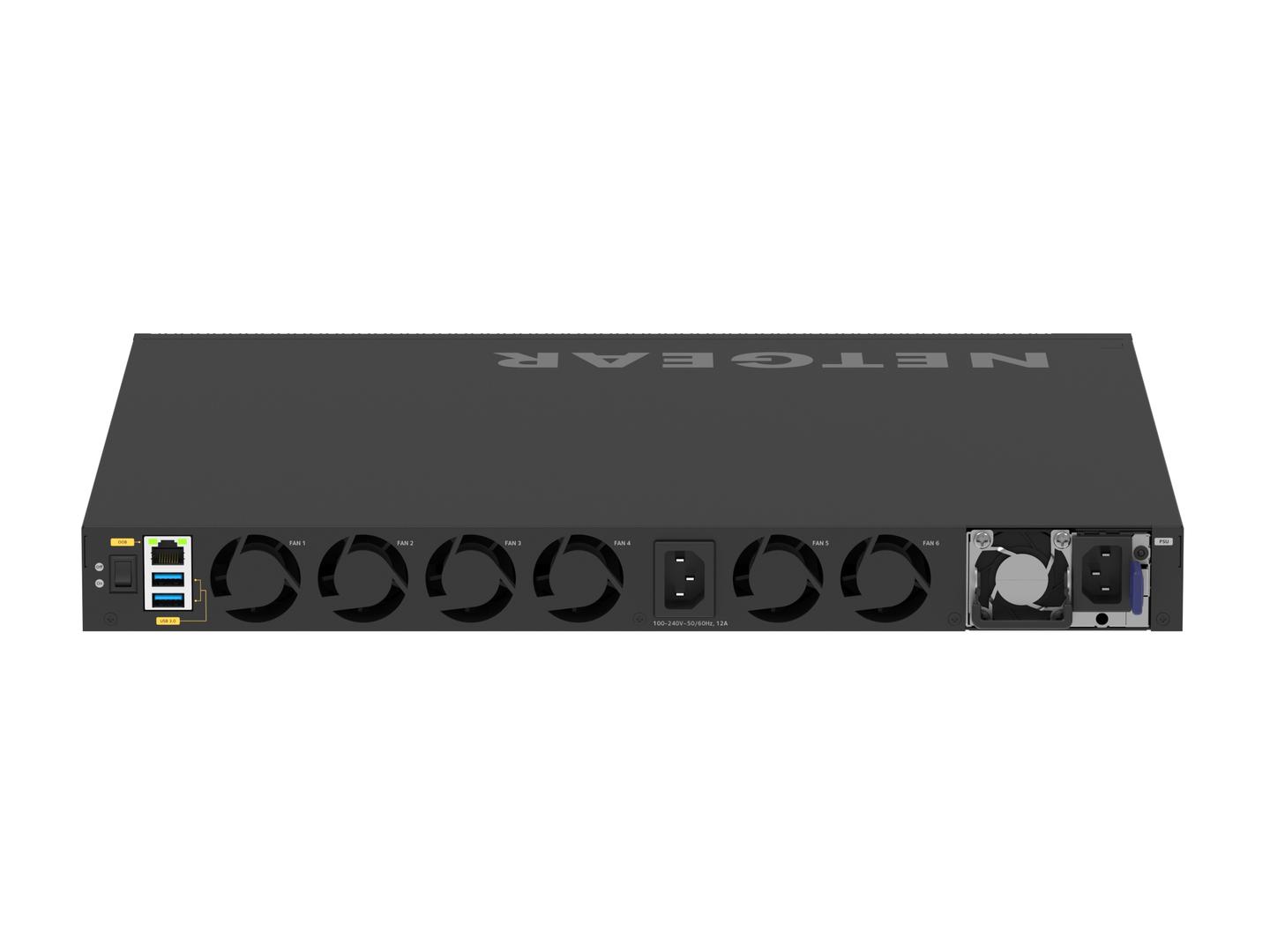

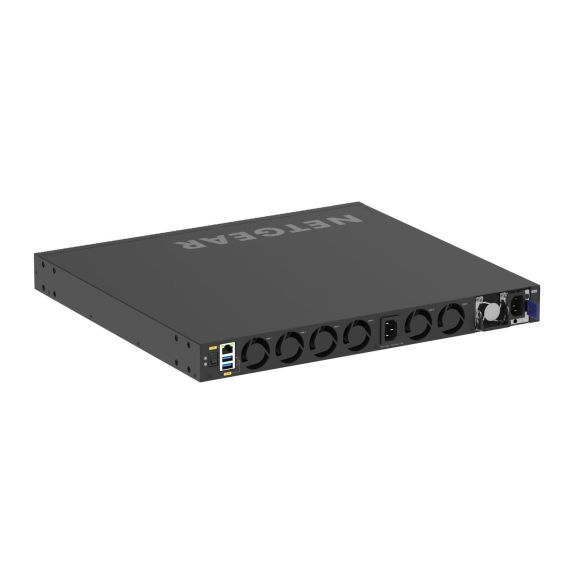

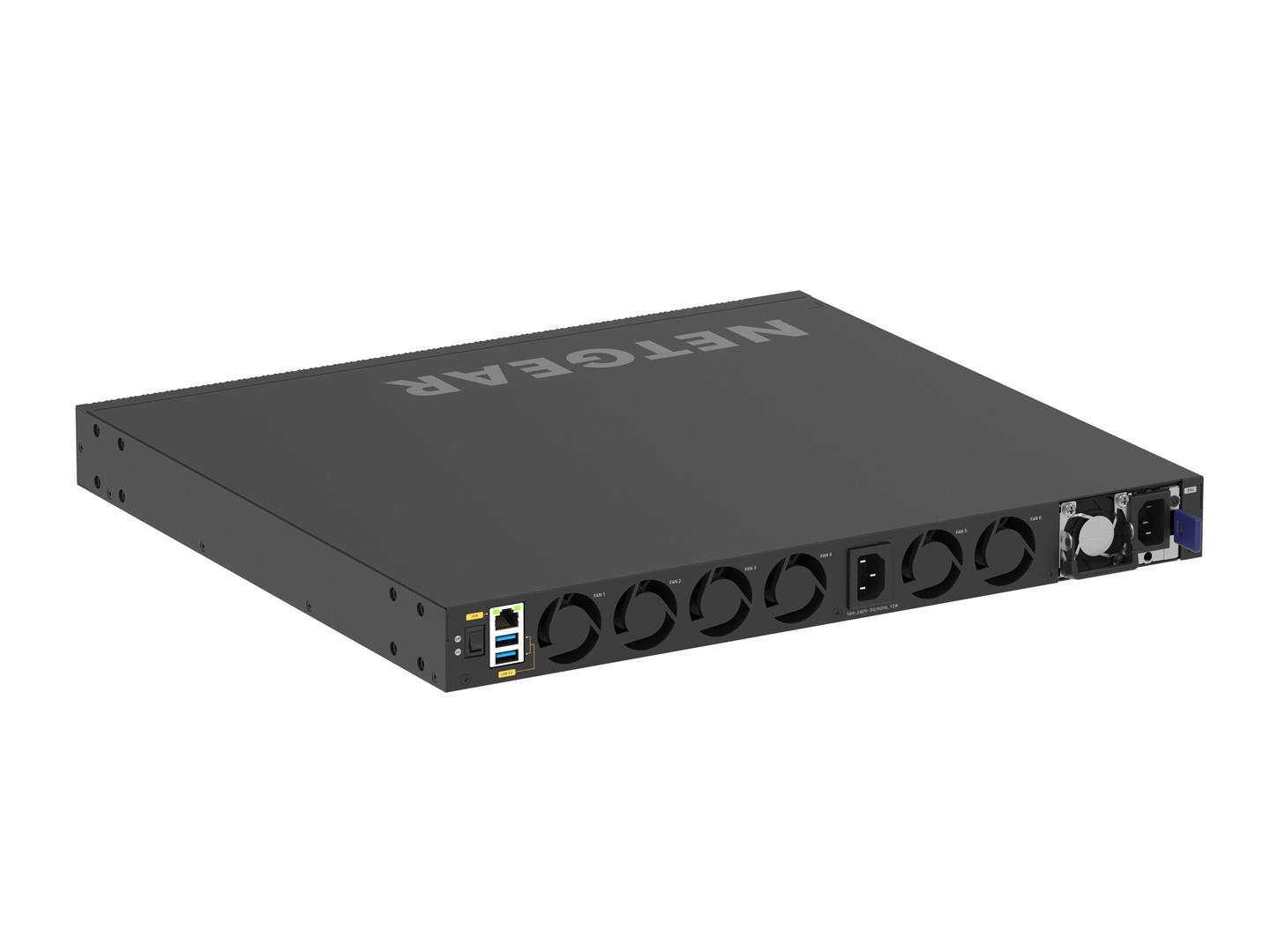

- 1 slot for modular power supply (1+1 redundancy and/or EPS share)
- The PoE budget can reach 1770 W, when the redundant PoE budget remains 290 W
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
Product Specification
| Device Type | Switch - 40 ports - L3 - Managed - stackable |

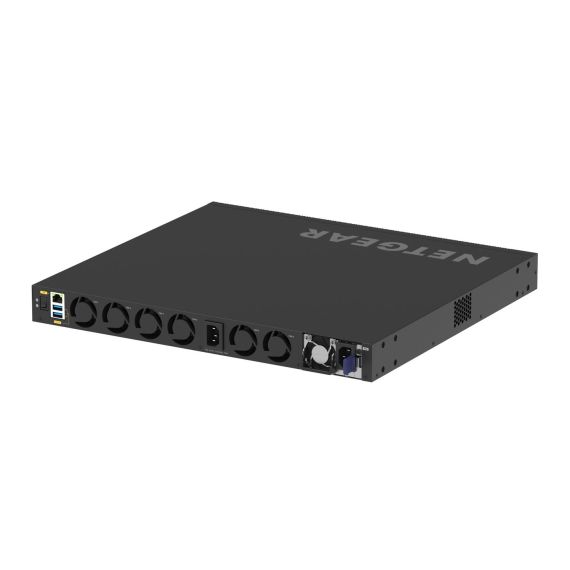

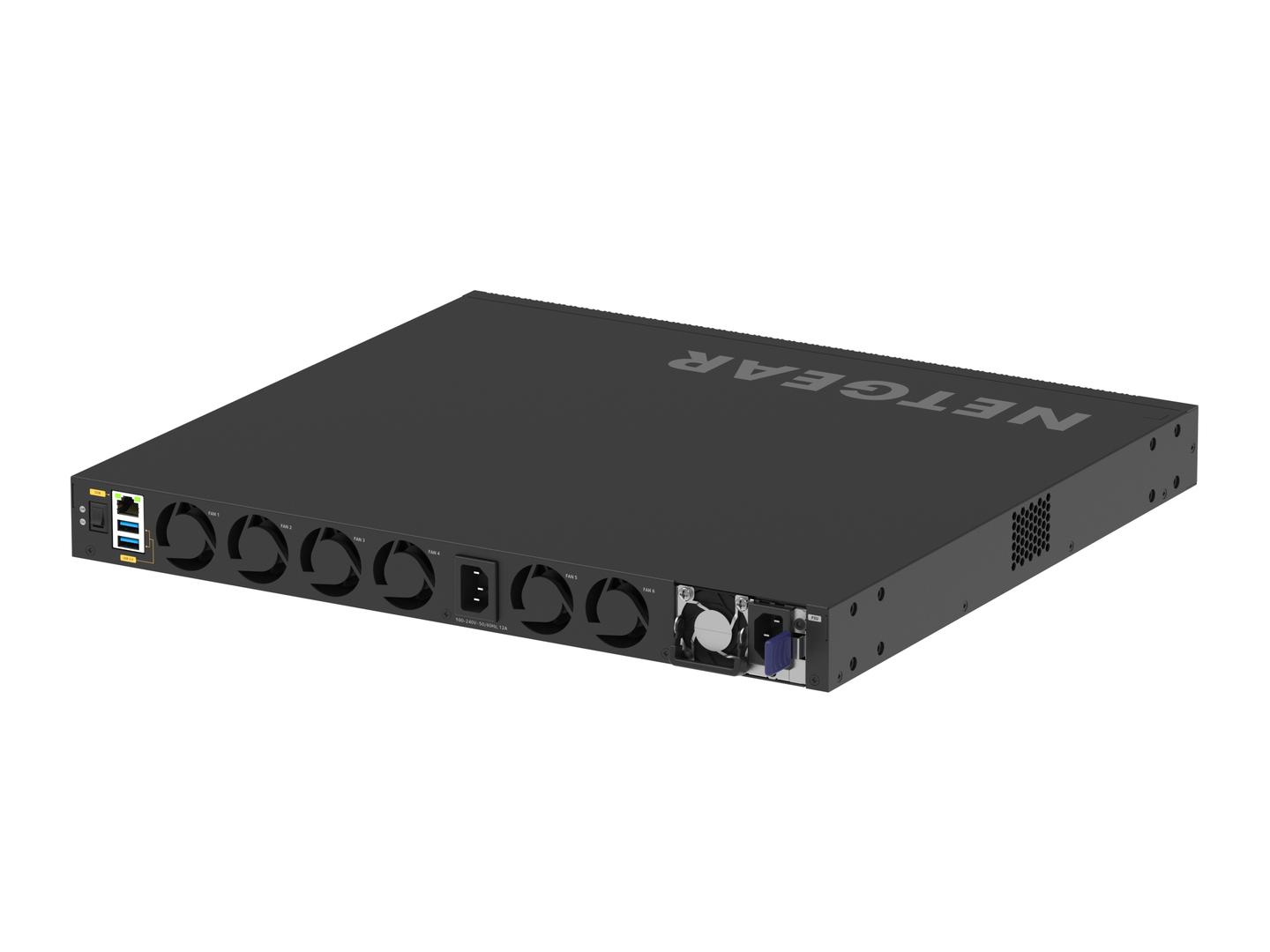

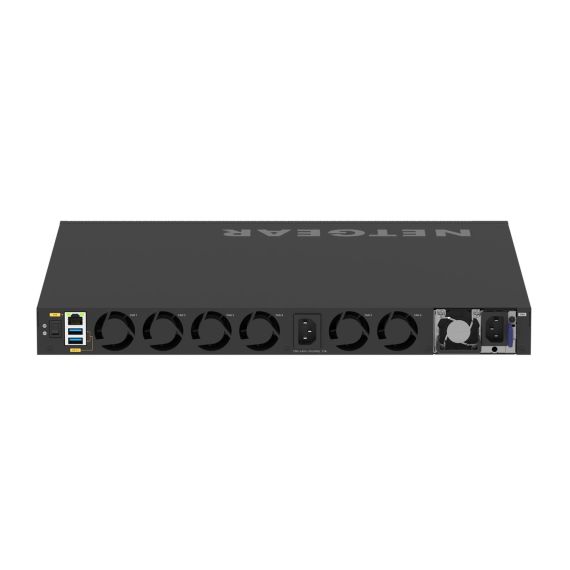

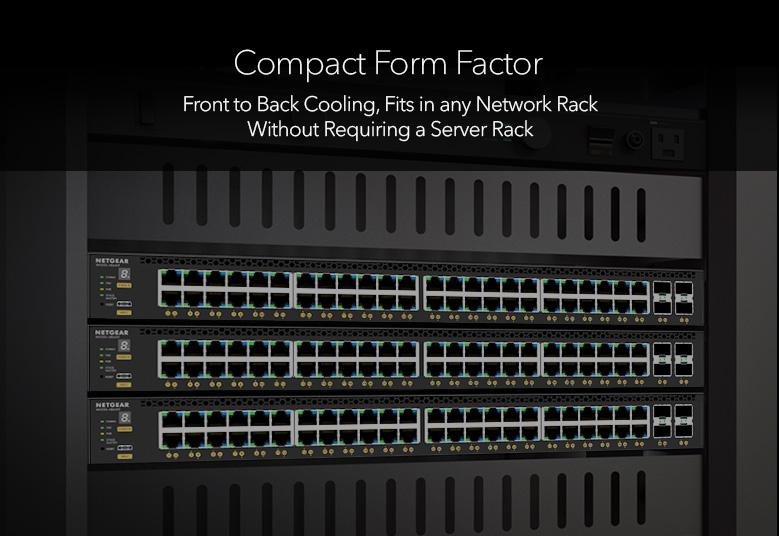

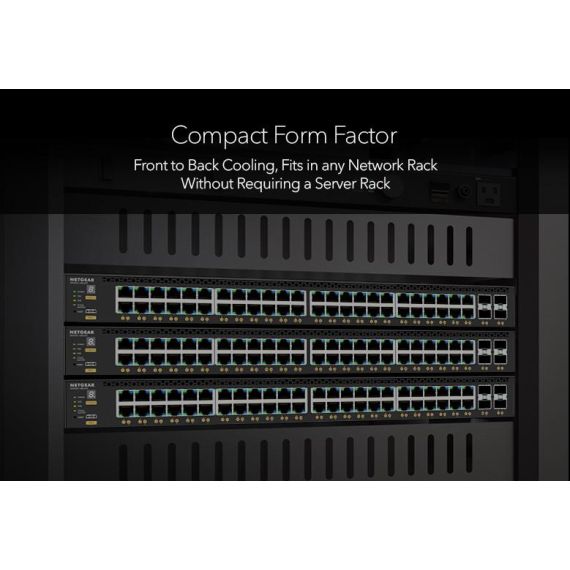

| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet / 25 Gigabit Ethernet |
| Ports | 24 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 8 x 10Gb Ethernet SFP+ + 8 x 25 Gigabit SFP28 |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 290 W |
| Performance | Routing/switching capacity: 1.04 Tbps |
| Capacity | Packet buffer size: 64 <br /> Multicast entries (IPv4): 256 <br /> Multicast entries (IPv6): 512 <br /> VLANs supported: 4000 <br /> Jumbo frame size: up to 12000 <br /> IGMP multicast groups: 2000 <br /> DHCP users: 2000 <br /> ARP entries: 4000 <br /> NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | SNMP, HTTPS, CLI, Telnet, SSH, MIB, RSTP, DHCP, RMON |
| Encryption Algorithm | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | TACACS, RADIUS, Secure Shell (SSH) |
| Features | Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Processor | X ARM Cortex-A57: 1.8 GHz |
| RAM | 4 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | Link/activity/speed, PoE, power |
| Expansion / Connectivity | |
| Interfaces | 24 x 10GBase-T RJ-45 PoE++ <br /> 4 x 25GBase-X SFP28 <br /> 8 x 10GBase-T SFP+ <br /> 2 x USB Type A <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 750 Watt |
| Power Consumption Operational | 151.8 Watt |
| Power Consumption Stand by | 53.4 Watt |
| Miscellaneous | |
| Included Accessories | Rubber caps, rubber feet, mounting brackets |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation | Europe, North America, United Kingdom |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 40 cm |
| Height | 4.32 cm |
| Weight | 7.24 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - XSM4340V-100NES
General
24-Port
More Details
Product Code
CI33017
EAN Code
0606449165135
Manufacturer
NetGear
