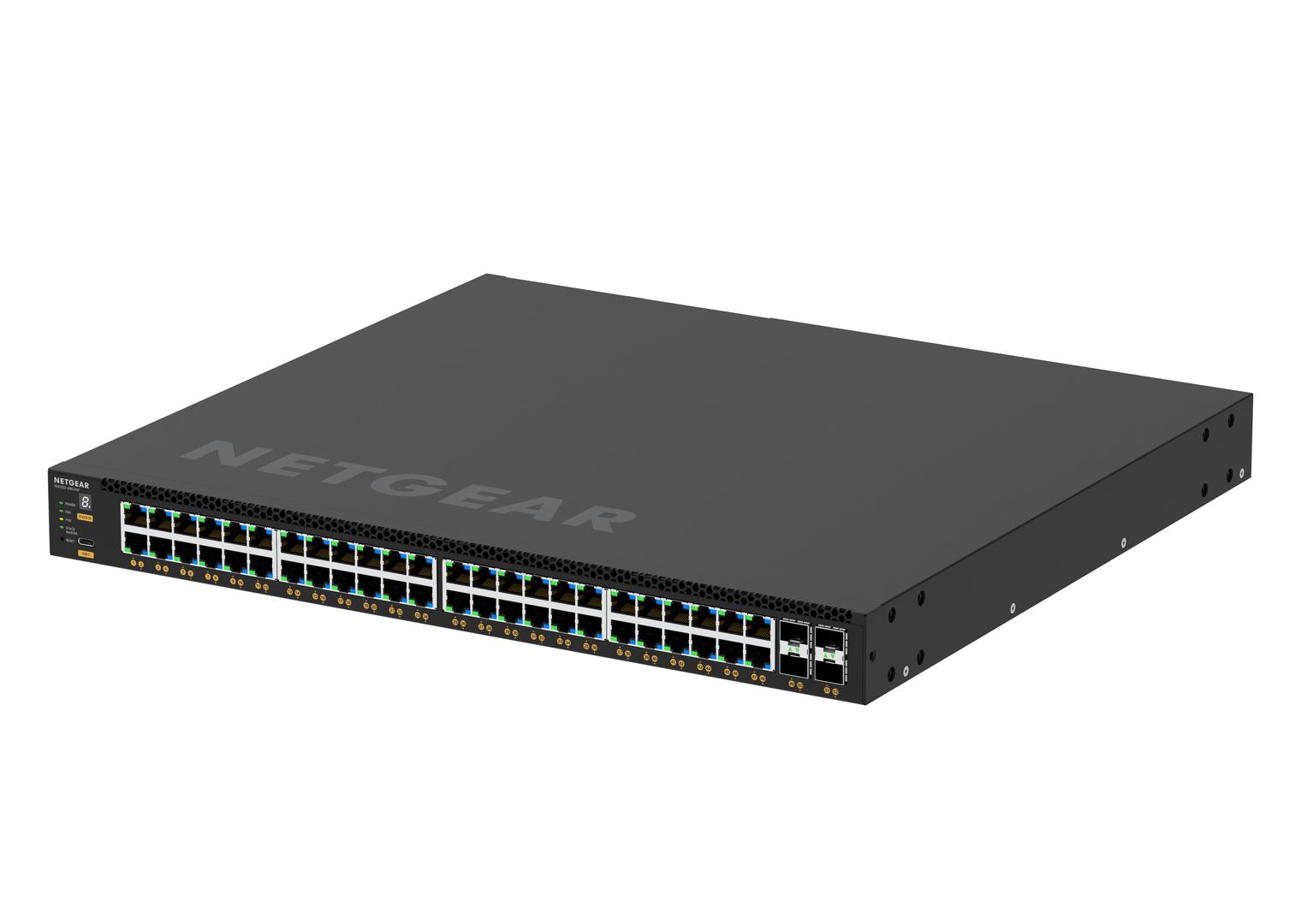

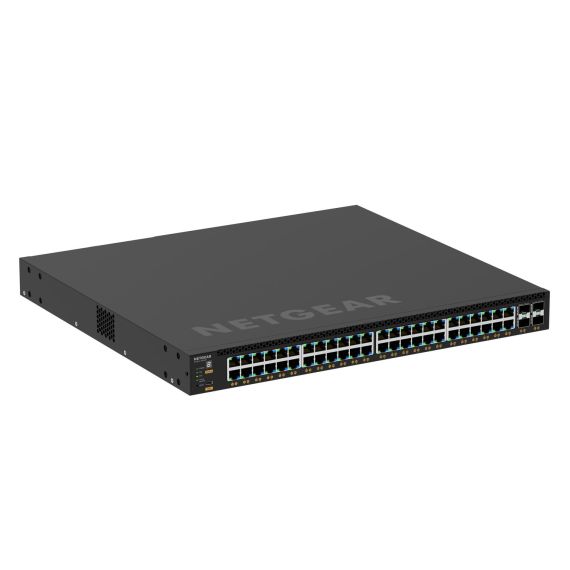

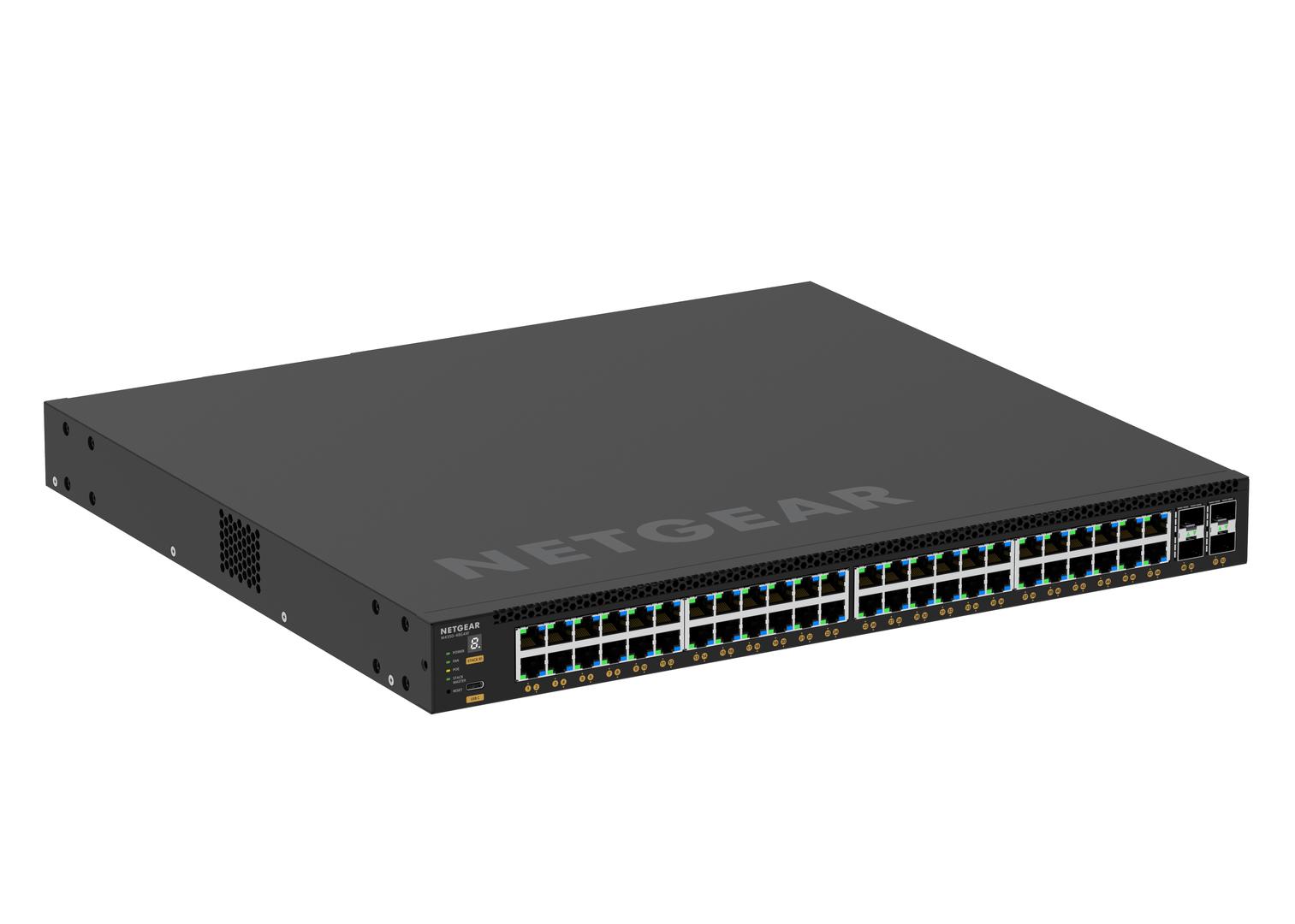

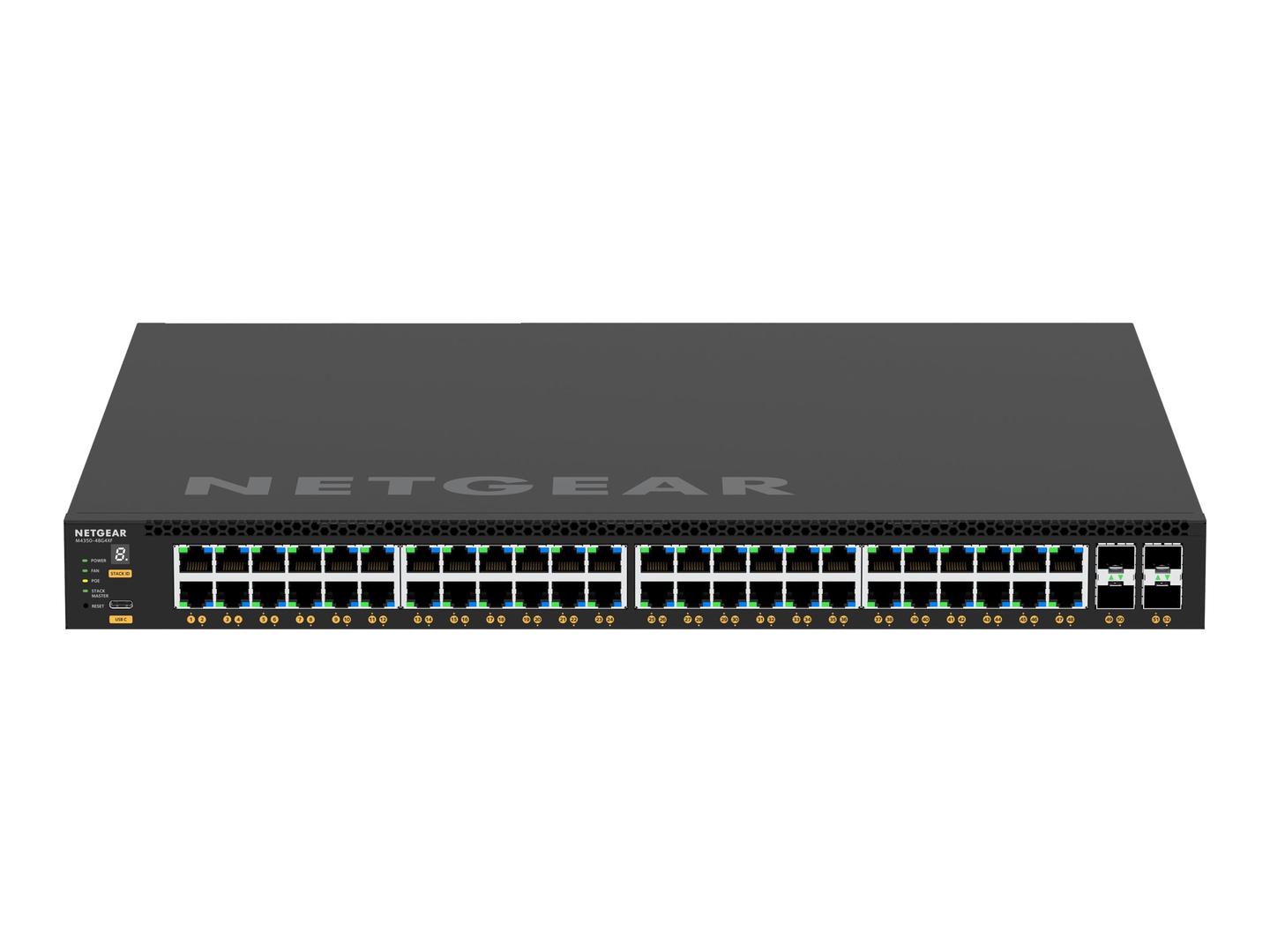

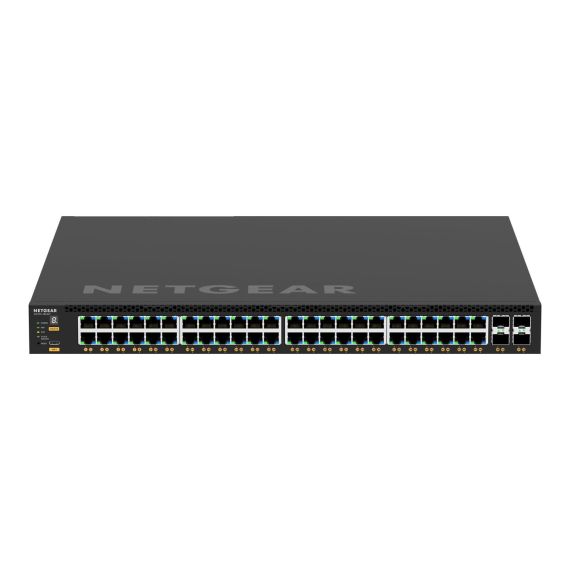

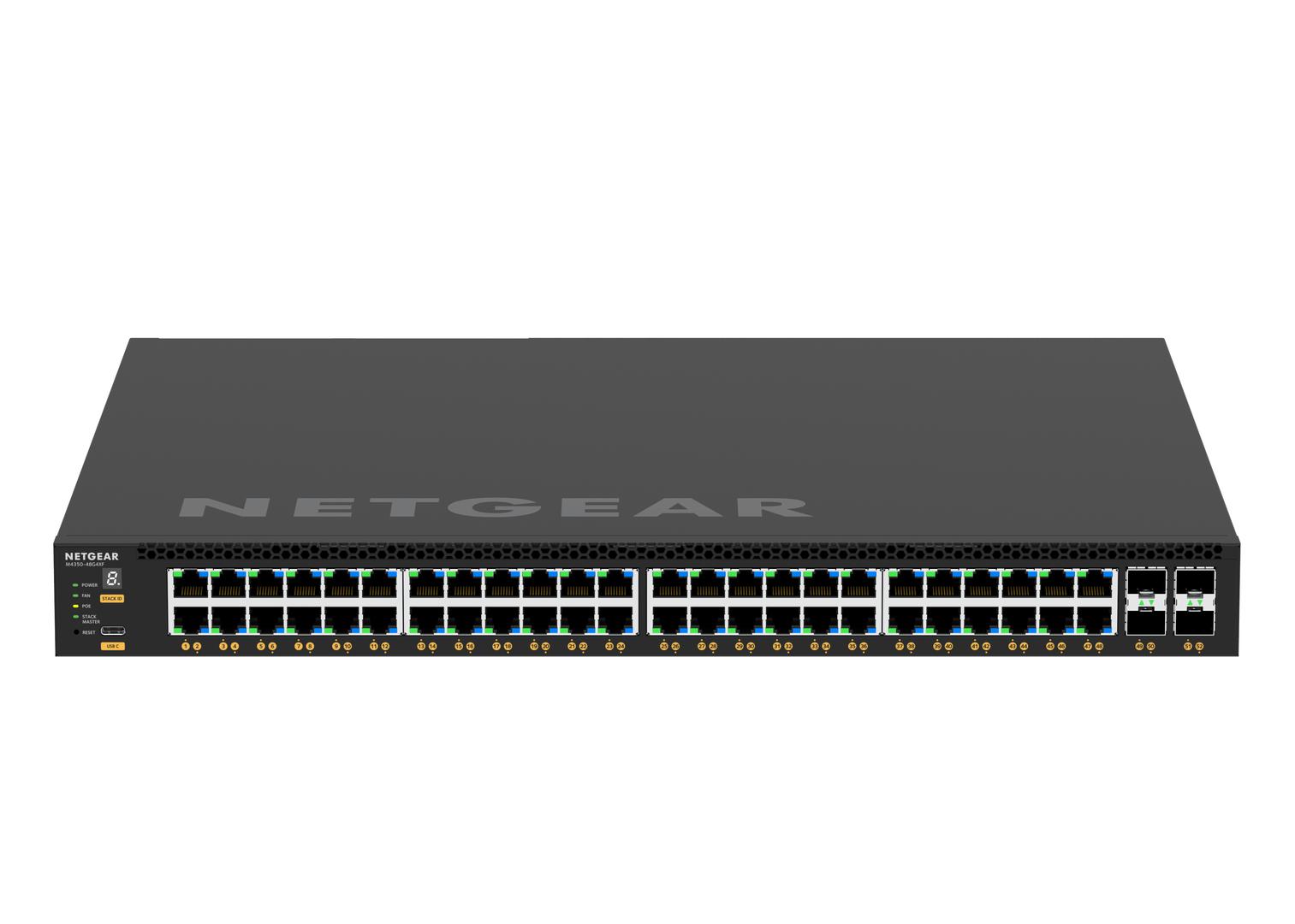

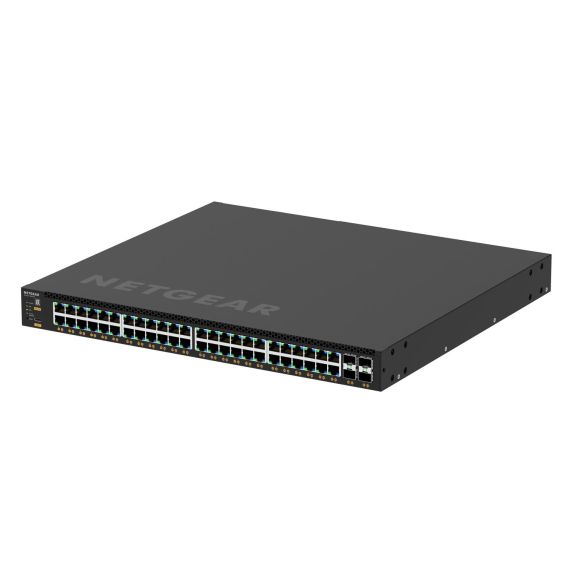

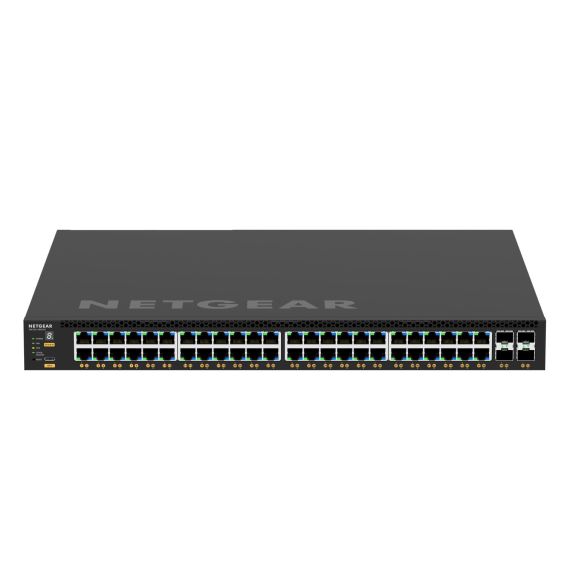

NETGEAR M4350-48G4XF - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - front to back airflow - rack-mountable - PoE+ (1440 W) | GSM4352-100NES
Please sign in so that we can notify you about a reply
Product Features
- Enhanced connectivity
With 48 10/100/1000 (PoE+) ports and 4 10 Gigabit SFP+ ports, this switch offers extensive connectivity options for a variety of networking needs, ensuring high-speed connections for all connected devices. - Robust security features
Equipped with advanced encryption algorithms including 2048-bit RSA, 256-bit SHA-2, and 512-bit SHA-2, alongside RADIUS and TACACS+ authentication methods, this switch provides a secure networking environment to protect against unauthorized access. - High performance
Featuring a quad-core CPU and 2 GB of DDR4 SDRAM, the switch delivers exceptional performance with a routing/switching capacity of 176 Gbps and throughput of 130.94 Mpps, ensuring efficient data handling for busy networks. - Comprehensive management
Manageable via CLI, HTTPS, SNMP 3, and more, this switch offers versatile management options for detailed control and monitoring of network resources, enhancing operational efficiency. - Durable and reliable

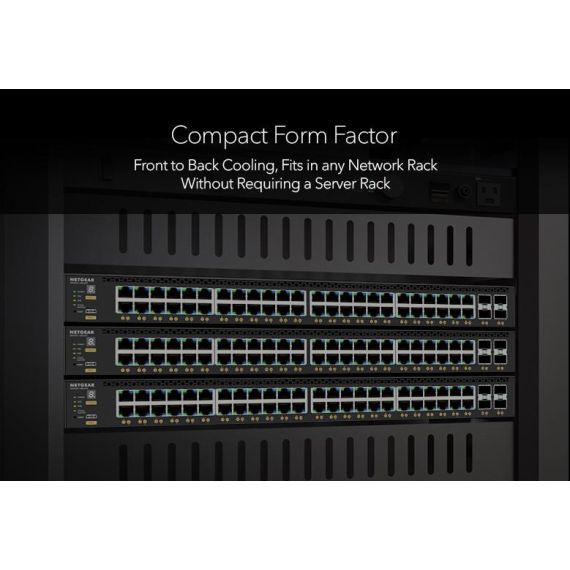

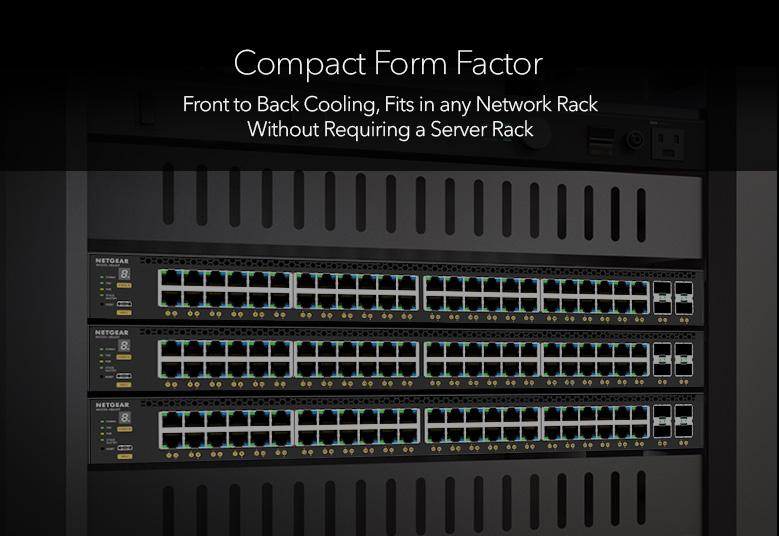

Designed with front to back airflow, a rack-mountable form factor, and operating temperature ranges from 0 °C to 50 °C, this switch is built for reliability and durability in various environments.
Special Fetures
- 48 PoE+ ports and 4 SFP+ ports for extensive connectivity
- Advanced security with 2048-bit RSA and 256-bit SHA-2 encryption
- Quad-core CPU and 2 GB DDR4 SDRAM for high-speed performance
- Comprehensive remote management protocols including SNMP 3 and HTTPS
- Supports up to 4000 VLANs for extensive network segmentation
Product Specification
| Device Type | Switch - 52 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |

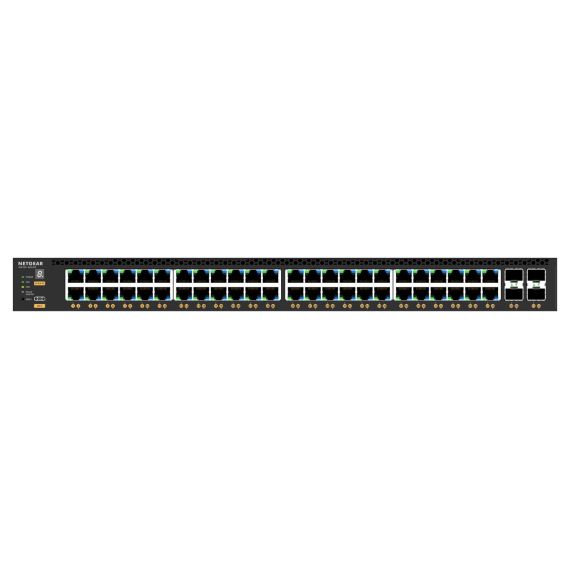

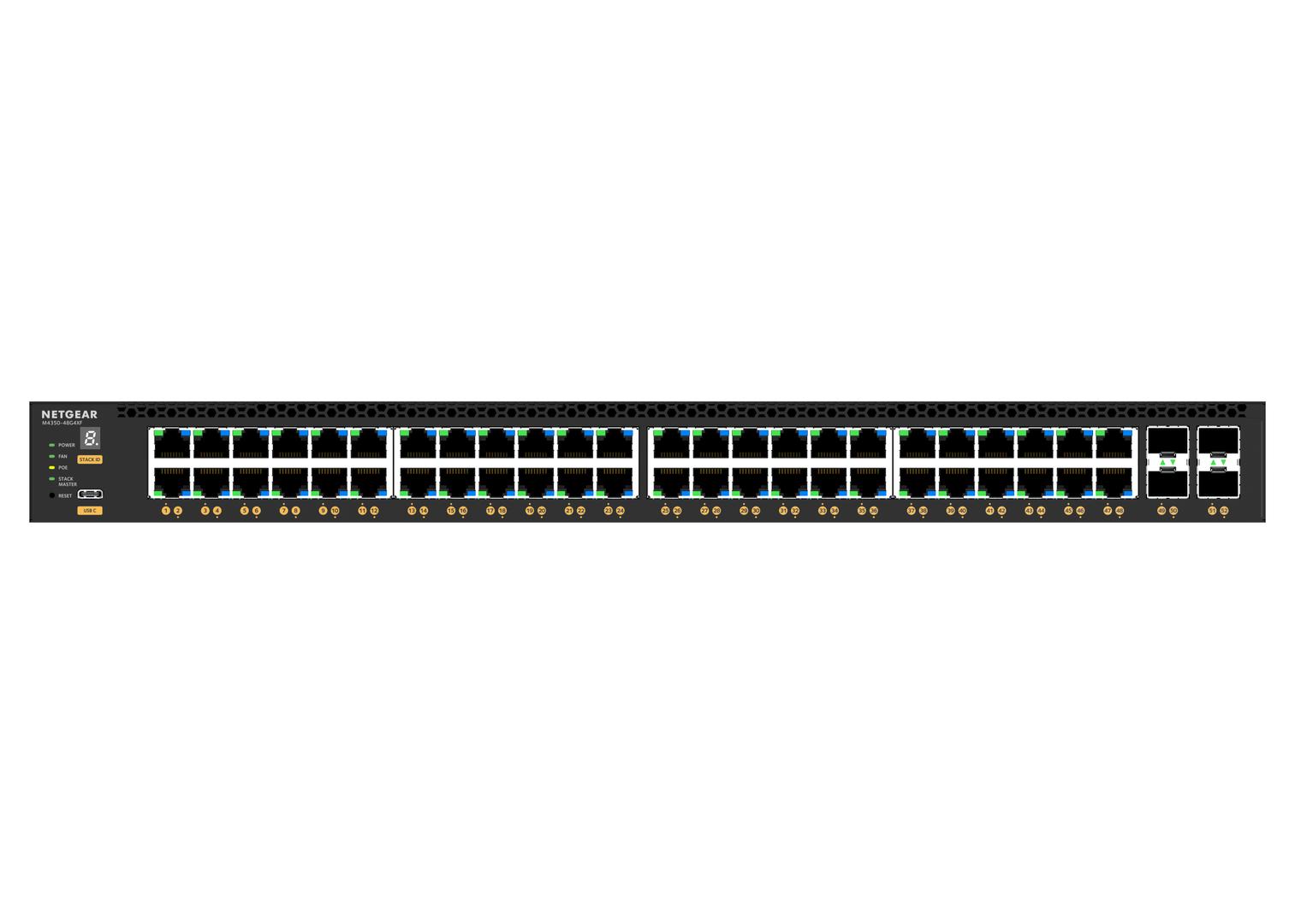

| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 1440 W |
| Performance | Routing/switching capacity: 176 Gbps <br /> Throughput (64-byte packet size): 130.94 Mpps <br /> Latency (1 Gbps): < 2.20 µs <br /> 10 Gbps fibre latency (64-byte packets): < 0.70 µs |
| Capacity | Packet buffer size: 32 MB <br /> Multicast entries (IPv4): 512 <br /> Multicast entries (IPv6): 256 <br /> VLANs supported: 4000 <br /> Jumbo frame size: up to 12000 <br /> IGMP multicast groups: 2000 <br /> DHCP users: 2000 <br /> ARP entries: 4000 <br /> NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Routing Protocol | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol | SNMP 3, HTTPS, CLI, Telnet, SSH-2, MIB, RSTP, DHCP, RMON |
| Encryption Algorithm | TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method | RADIUS, TACACS+ |
| Features | Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Processor | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+ <br /> 4 x 1000Base-X/10GBase-X SFP+ <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 2 x USB Type A <br /> 1 x console (USB) Type C |
| Power | |

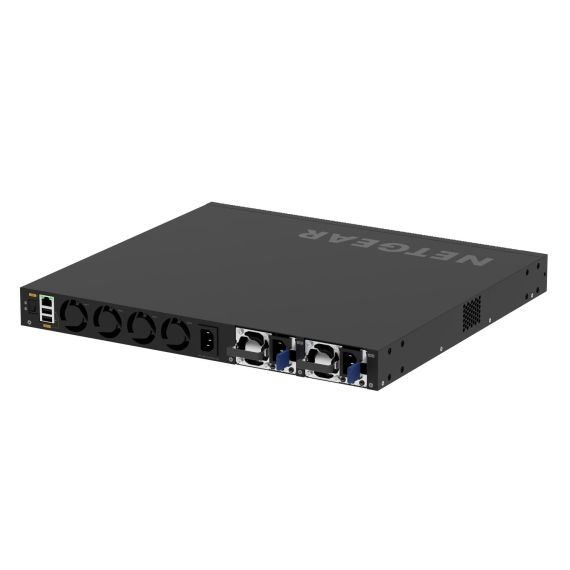

| Power Device | Internal power supply |
| Installed Qty | 1 |
| Power Provided | 550 Watt |
| Power Consumption Operational | 99 Watt |
| Power Consumption Stand by | 48.5 Watt |
| Miscellaneous | |
| Included Accessories | Rubber feet, mounting brackets, rubber caps |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| Compliant Standards | SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation | Europe, North America, United Kingdom |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 4.32 cm |
| Height | 40 cm |
| Weight | 7.19 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - GSM4352-100NES
General
48-Port
More Details
Product Code
CI33006
EAN Code
0606449161953
Manufacturer
NetGear
