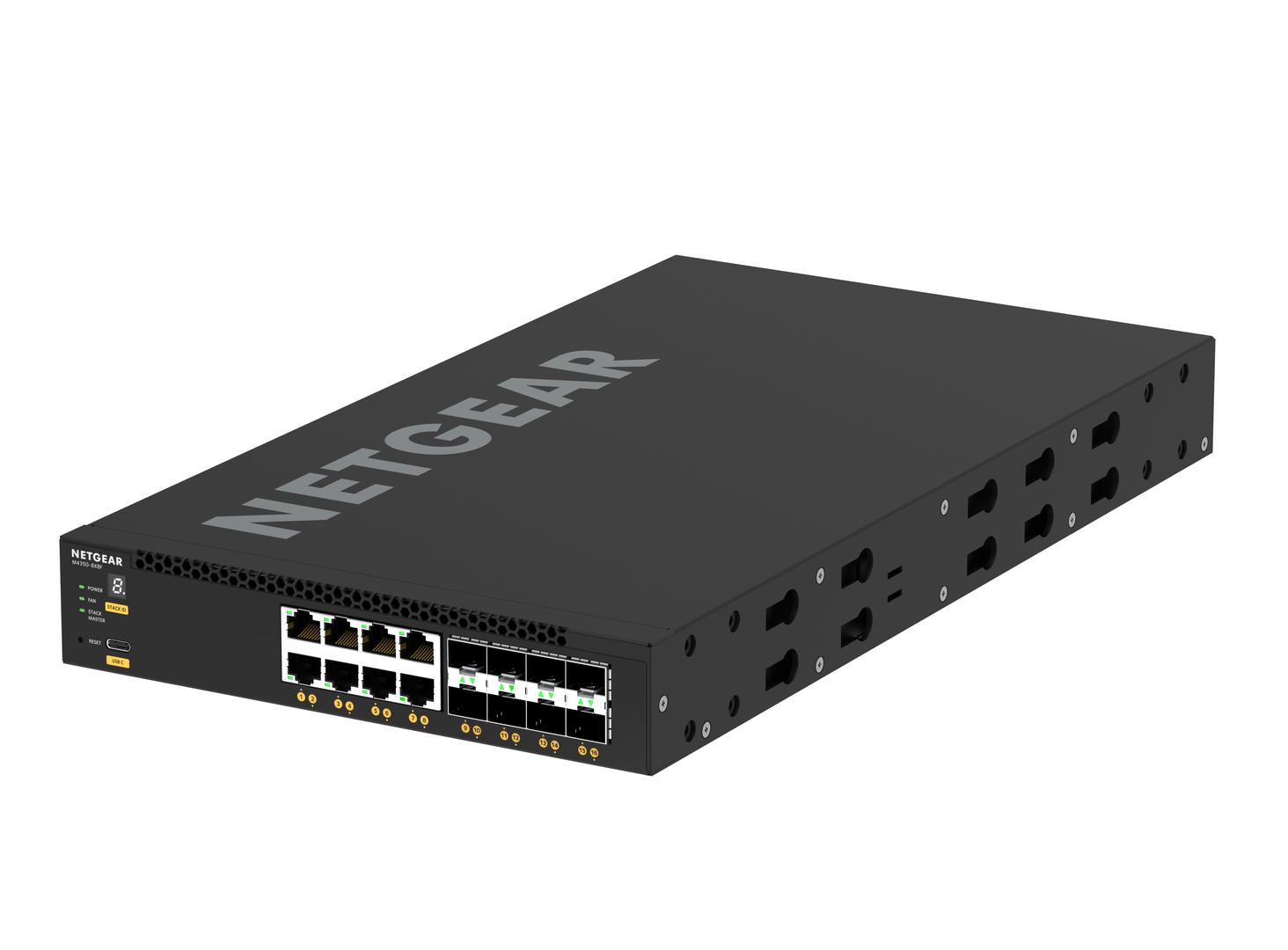

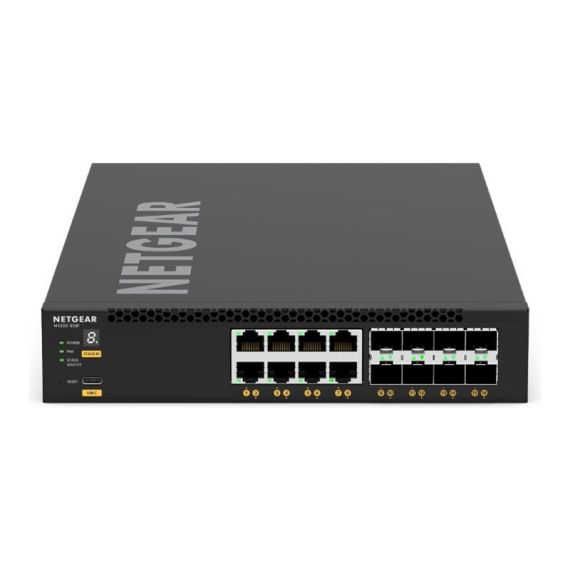

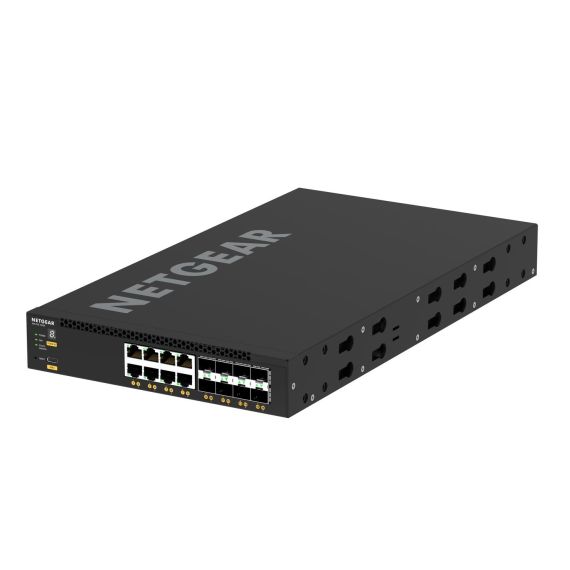

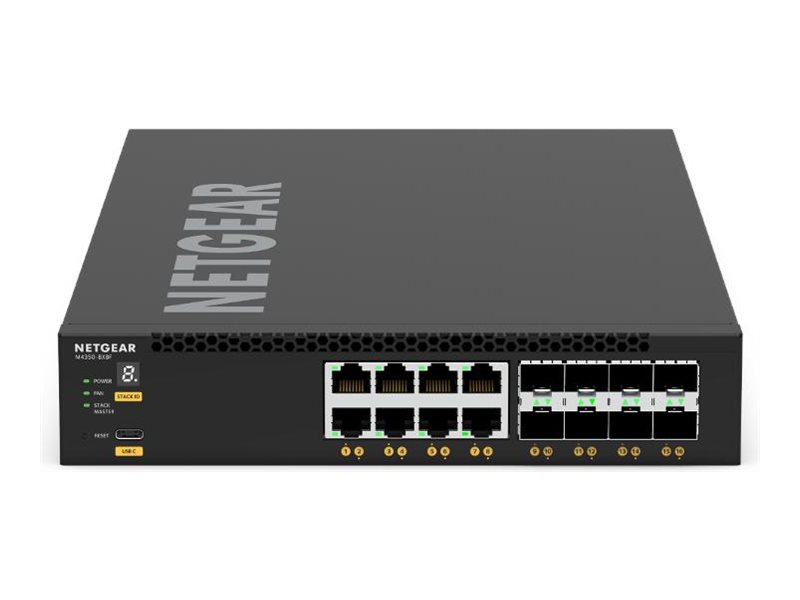

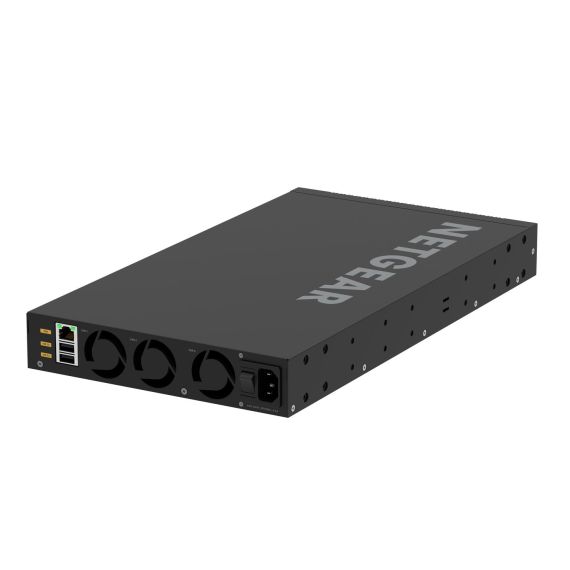

NETGEAR M4350 Series M4350-8X8F - Switch - L3 - Managed - 8 x 10/100/1000/2.5G/5G/10GBase-T + 8 x 1 Gigabit / 10 Gigabit SFP+ - front to back airflow - rack-mountable | XSM4316-100NES
Please sign in so that we can notify you about a reply
Product Features
- Enhanced security
With support for encryption algorithms like 2048-bit RSA, 256-bit SHA-2, and SSL 3.0, the NETGEAR M4350-8X8F ensures your network remains secure against external threats. - High capacity and performance
Boasting a routing/switching capacity of 320 Gbps and a throughput of 238.08 Mpps, this switch is designed to handle heavy data traffic efficiently. - Versatile connectivity options
Equipped with 8 multi-Gigabit Ethernet ports and 8 SFP+ ports, the NETGEAR M4350-8X8F offers flexible connection options for a variety of network setups. - Robust environmental tolerance
Operational in a wide range of temperatures and humidity, this device ensures reliability and performance in diverse environmental conditions. - Advanced network management
Featuring Layer 3 switching capabilities and support for multiple routing protocols, this switch allows for sophisticated network management and optimization.
Special Fetures

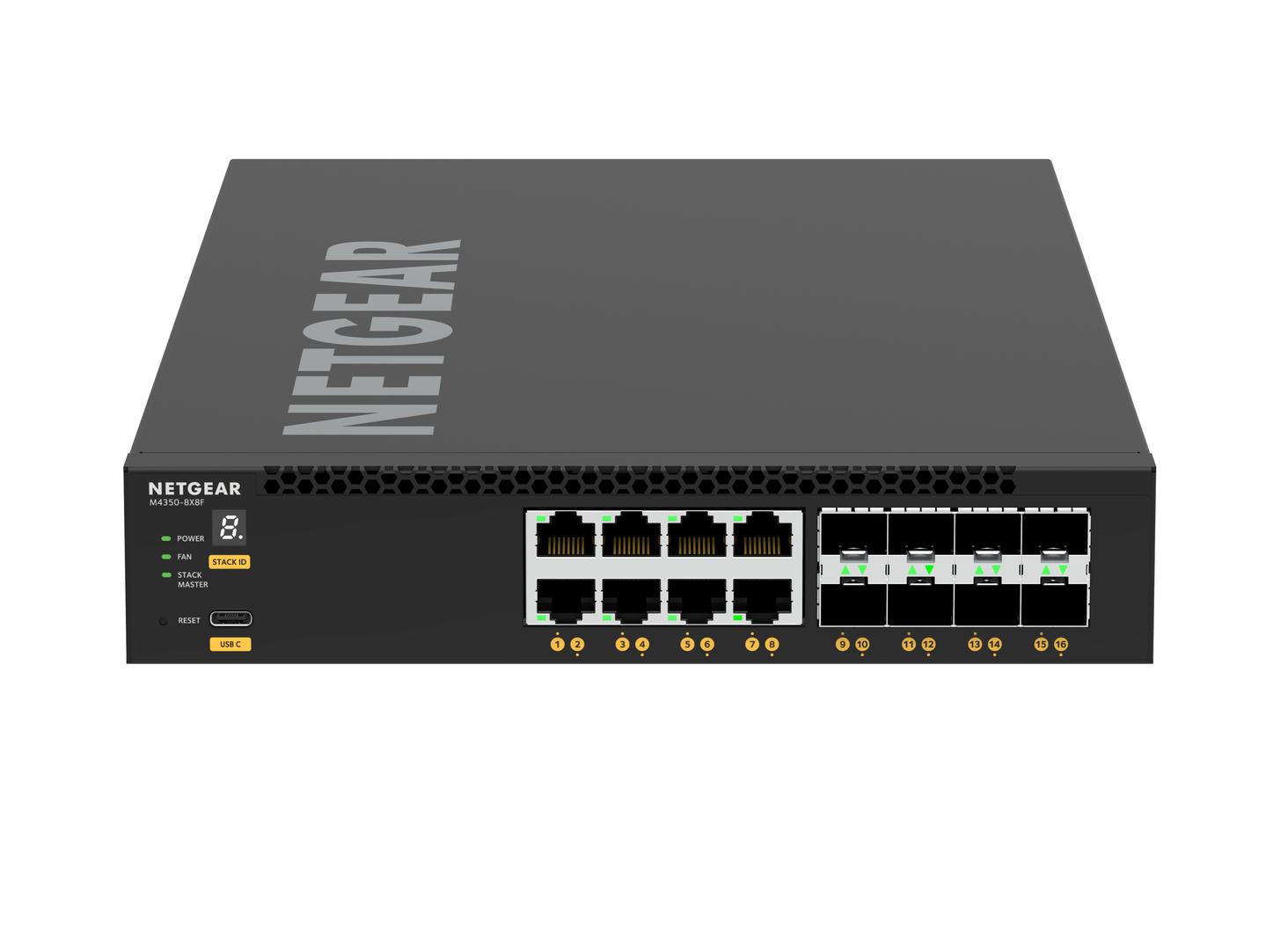

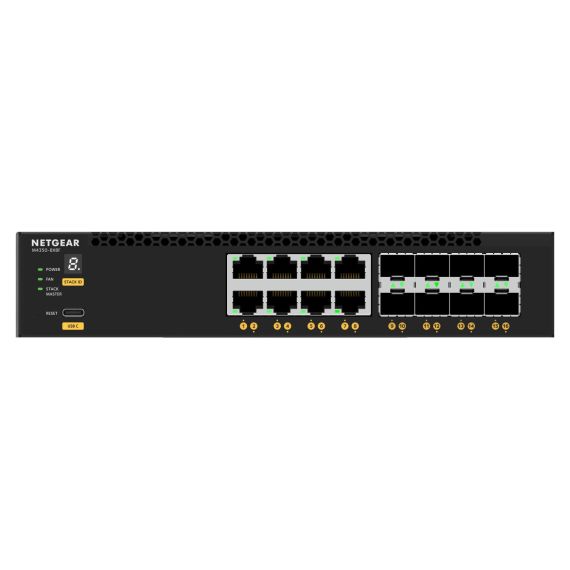

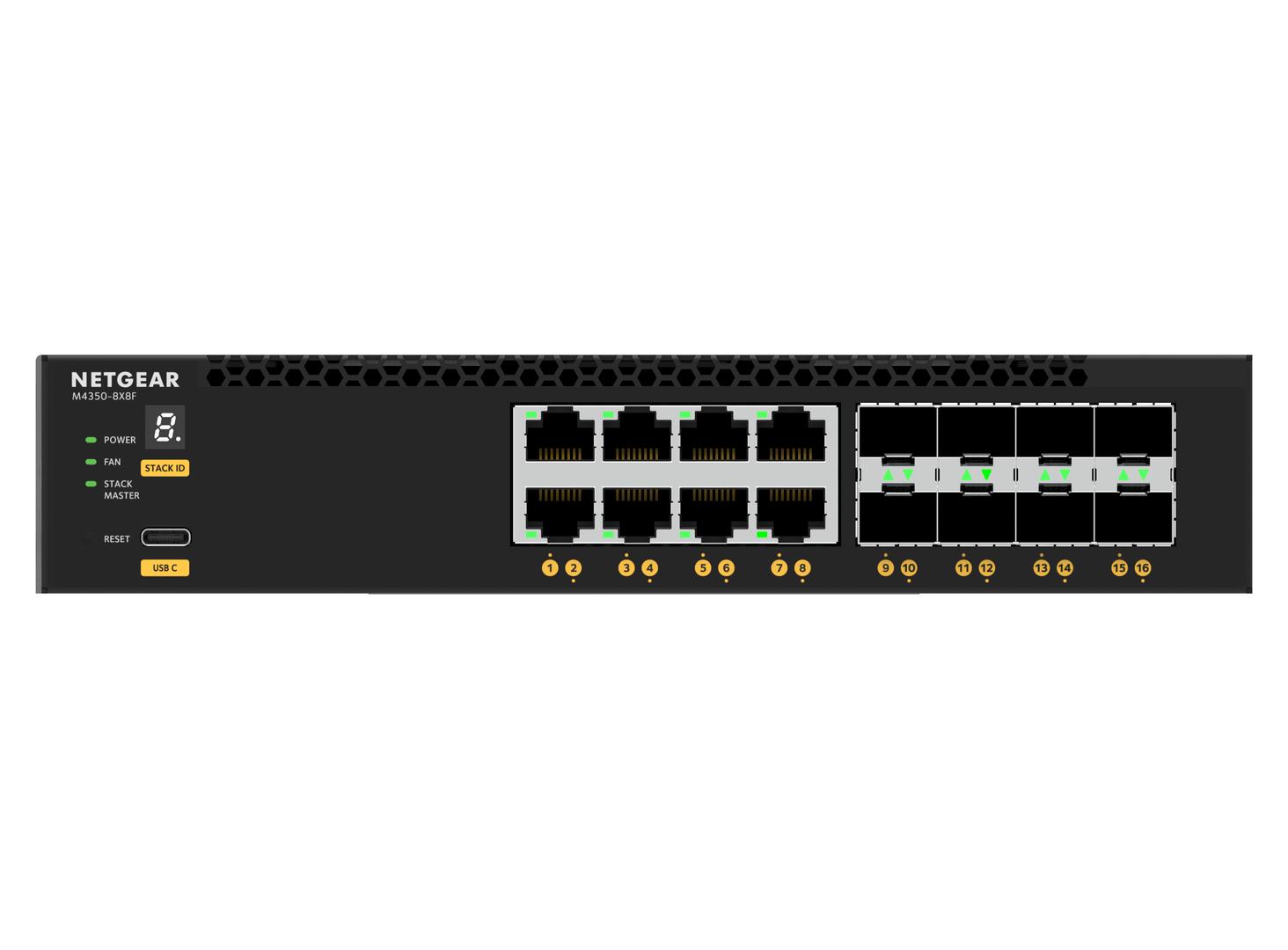

- 8 10G/Multi-Gig ports and 8 10GBase-X SFP+ ports
- 240 W internal power supply

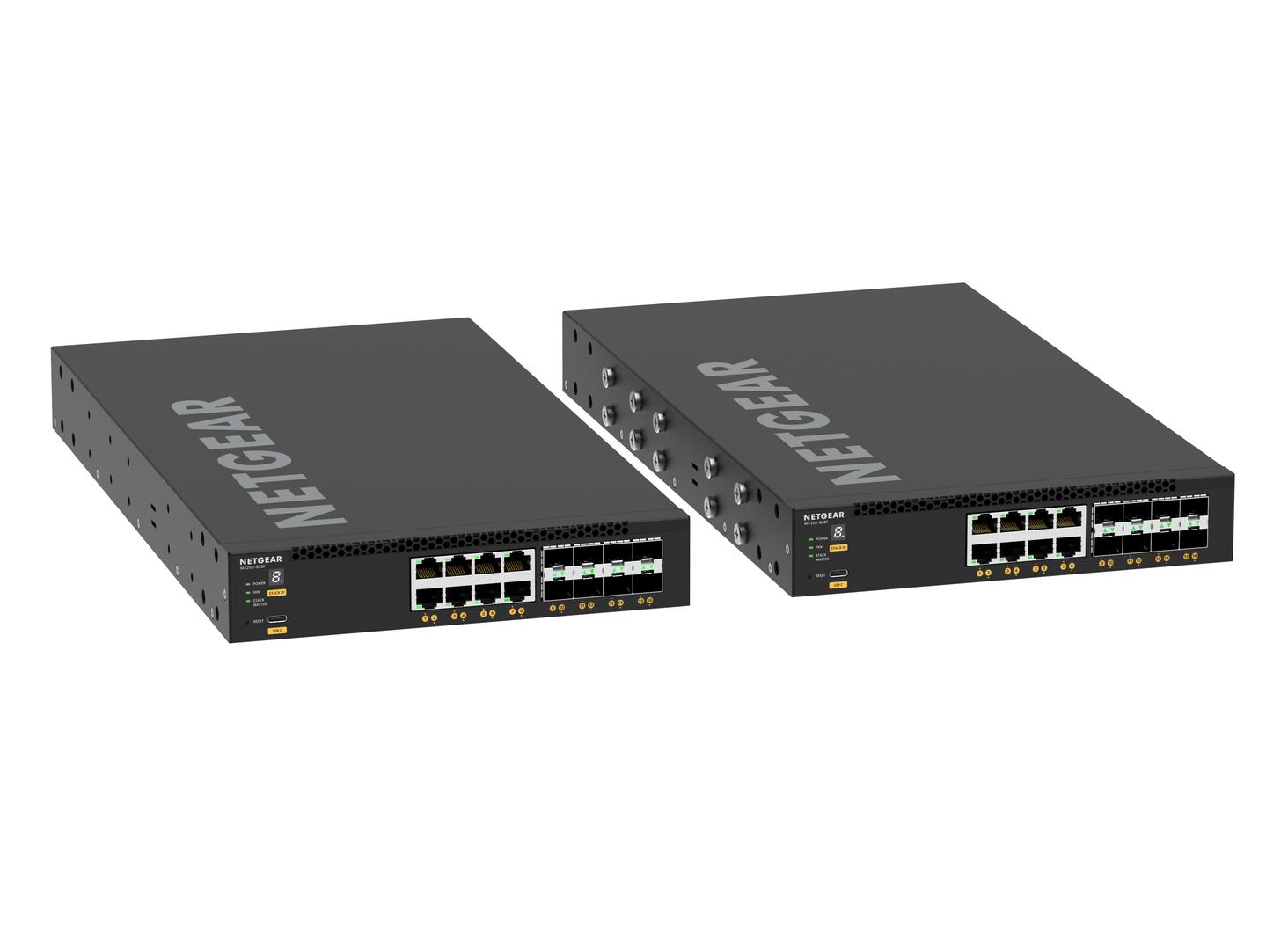

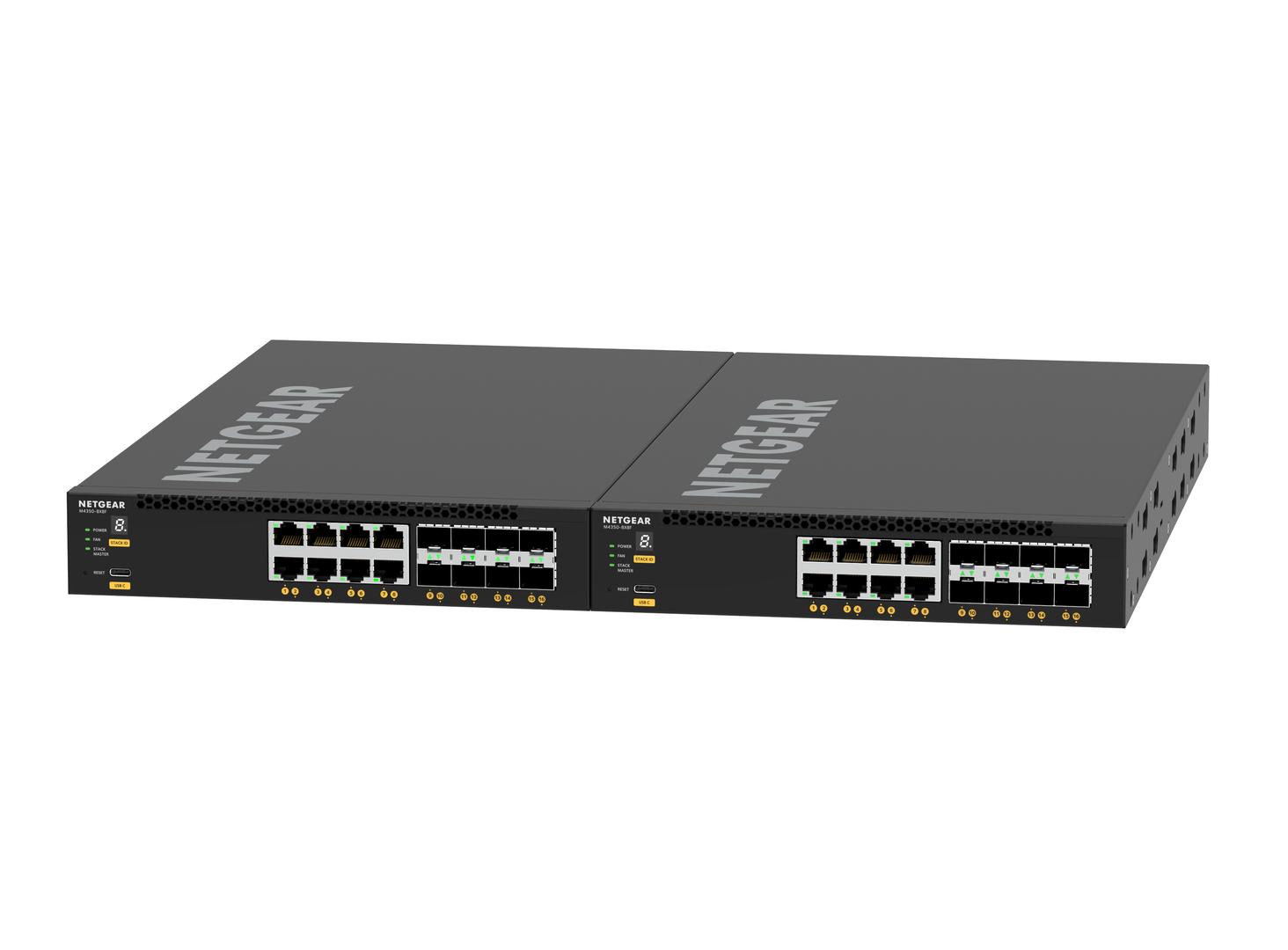

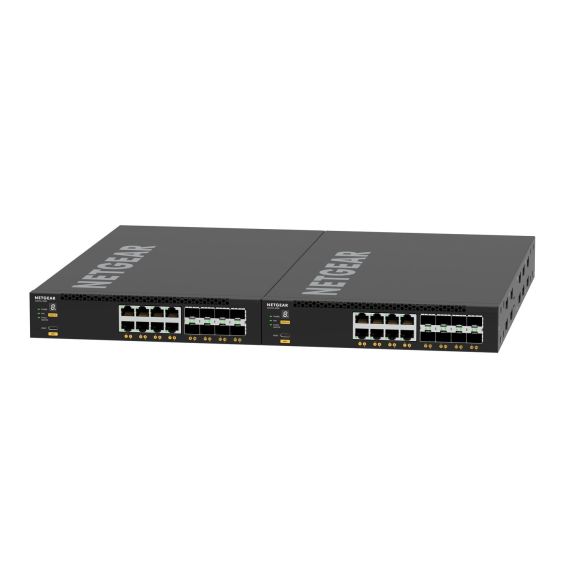

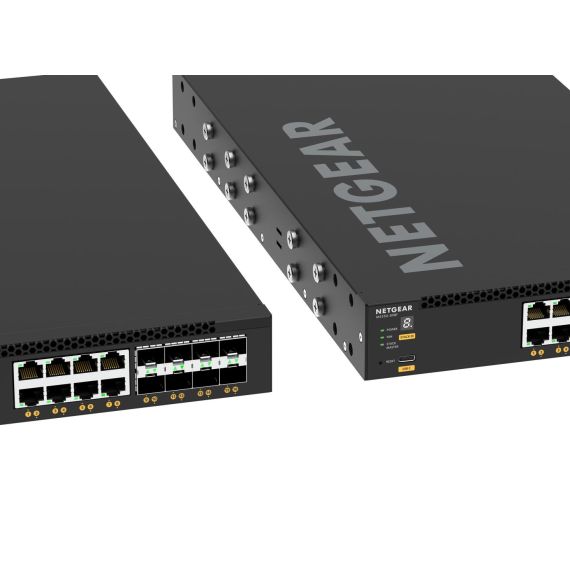

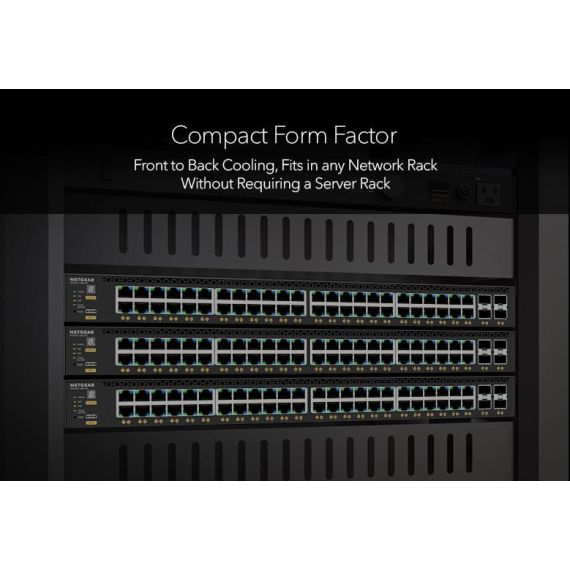

- Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
- Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
- Layer 3 feature set includes static, policy-based, and dynamic routing
- NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations
Product Specification
| Device Type | Switch - 16 ports - L3 - Managed - stackable |

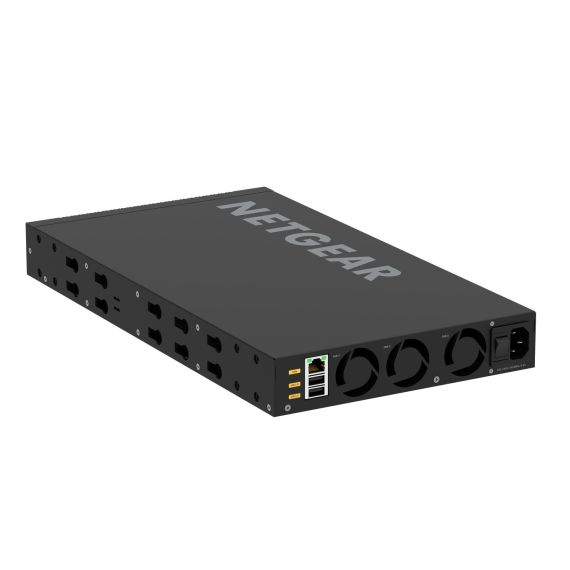

| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 10/100/1000/2.5G/5G/10GBase-T + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance | Routing/switching capacity: 320 Gbps <br /> Throughput: 238.08 Mpps |
| Capacity | Packet buffer size: 32 MB <br /> Multicast entries (IPv4): 512 <br /> Multicast entries (IPv6): 256 <br /> VLANs supported: 4000 <br /> Jumbo frame size: up to 12000 <br /> IGMP multicast groups: 2000 <br /> DHCP users: 2000 <br /> ARP entries: 4000 <br /> NDP entries: 512 |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Routing Protocol | RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SHA, MD5, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0, SSL 3.0 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | BOOTP support, DHCP support, ARP support, DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, RSTP support, MSTP support, LLDP support, LACP, MIB, CoS, PTP, PIM |
| Compliant Standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1BA, IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Processor | X ARM Cortex-A57: 1.8 GHz |
| RAM | 2 GB DDR4 SDRAM |
| Flash Memory | 512 GB |
| Status Indicators | Speed/activity, link |
| Expansion / Connectivity | |

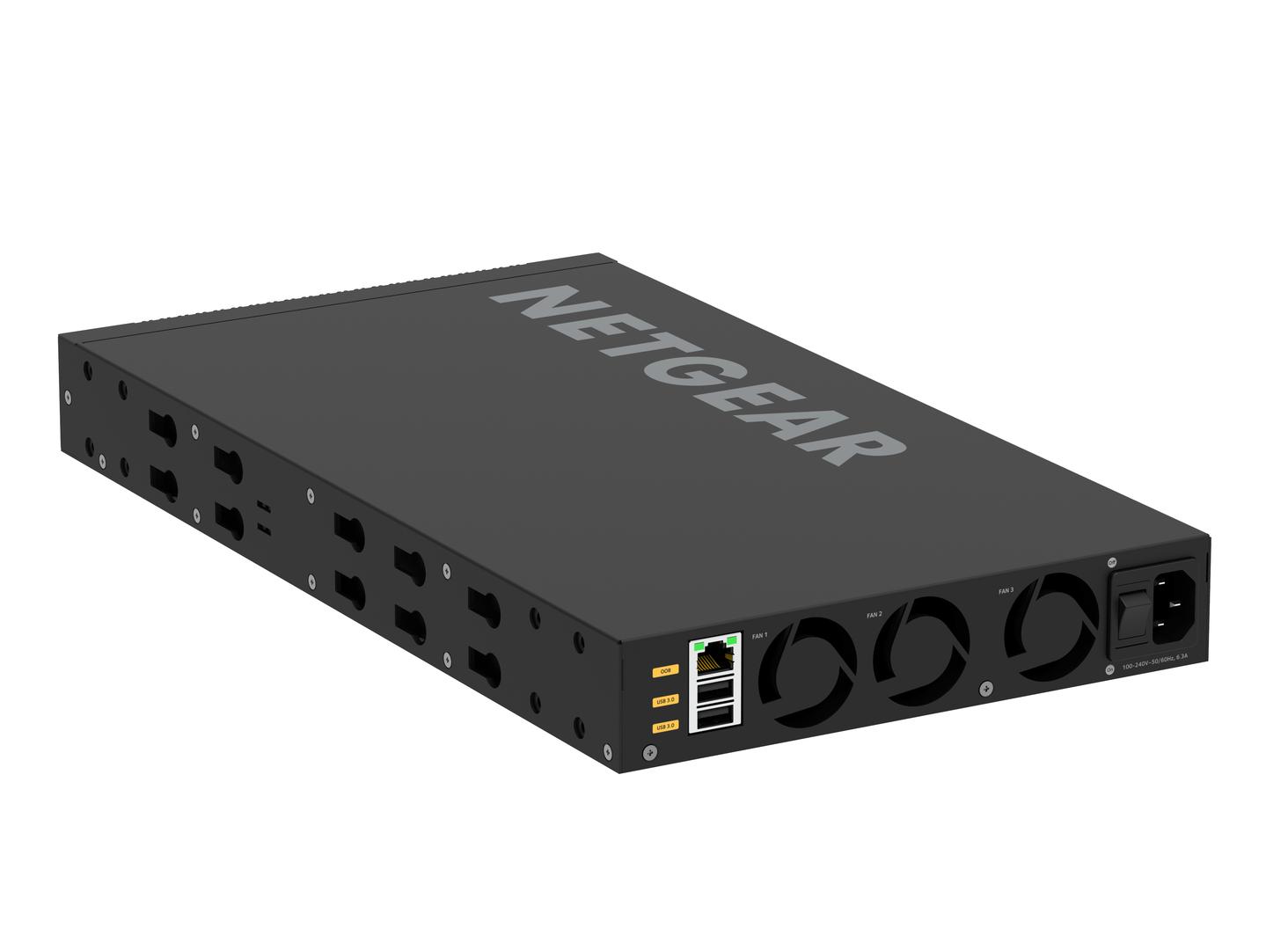

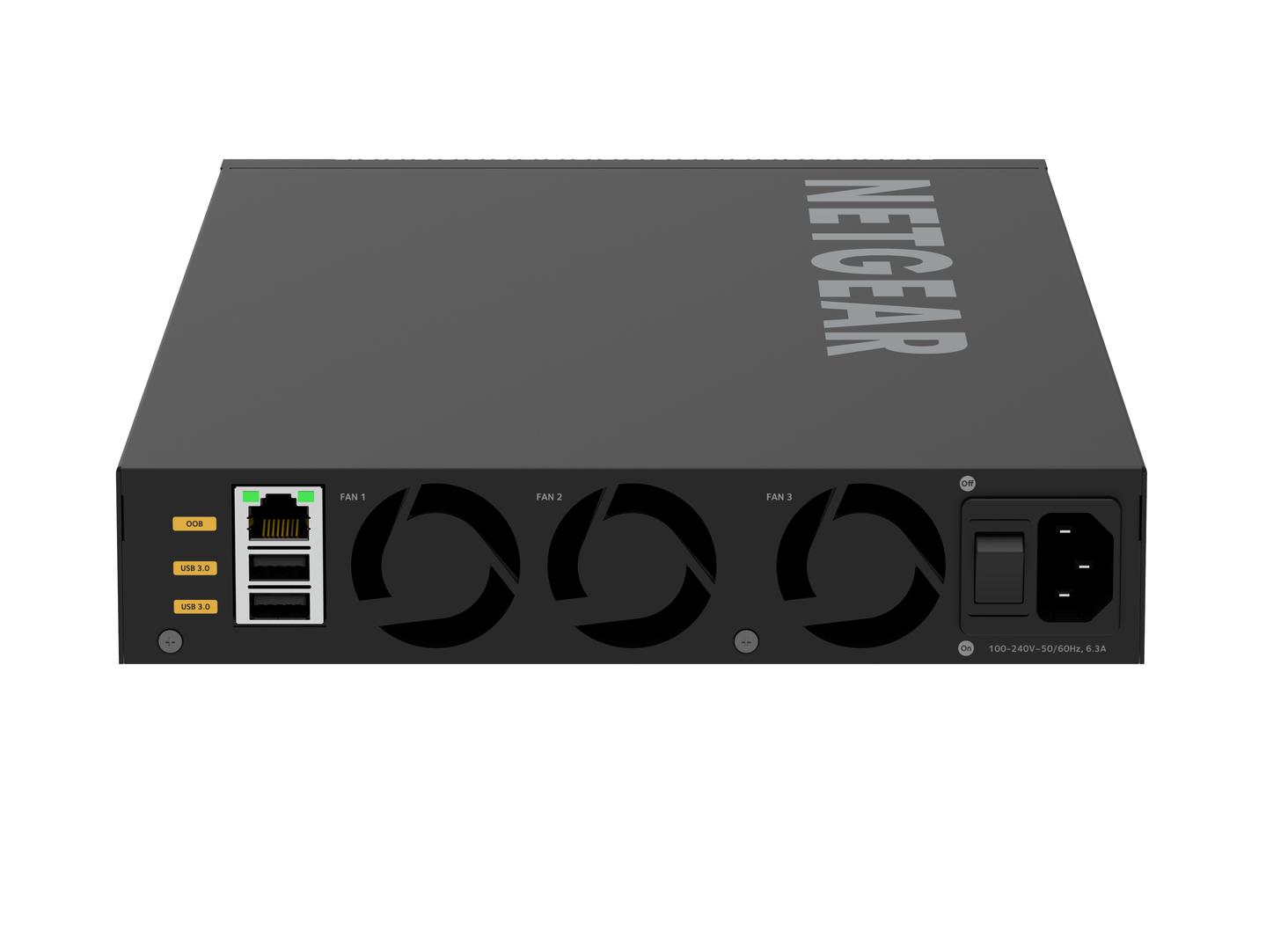

| Interfaces | 8 x 100/1000/2.5G/5G/10GBase-T RJ-45 <br /> 8 x 1/10GBase-X SFP+ <br /> 2 x USB Type A <br /> 1 x management (Gigabit LAN) RJ-45 <br /> 1 x console (USB) Type C |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 240 Watt |
| Power Consumption Operational | 81.1 Watt |
| Power Consumption Stand by | 30.5 Watt |
| Miscellaneous | |
| Included Accessories | Rubber caps, rubber feet, mounting brackets |
| Cables Included | 1 x console cable |
| Rack Mounting Kit | Included |
| MTBF | 1,101,630 hours |
| Compliant Standards | EN 55032:2012+AC:2013 Class A, CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, AS/NZS CISPR32:2013 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, VCCI-CISPR 32:2016 Class A, YD/T993-1998, FCC CFR 47 Part 15 Class A, ICES-003:2016 issue 6 Class A, ANSI C63.4:2014, BSMI CNS 13438 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, RCM, CCC, AN/NZS 60950.1:2015, BSMI CNS 14336-1 |
| Localisation | North America, United Kingdom, Europe |
| Dimensions & Weight | |
| Width | 22 cm |
| Depth | 40 cm |
| Height | 4.32 cm |
| Weight | 4.05 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
Features - NetGear - XSM4316-100NES
General
16-Port
More Details
Product Code
CI33010
EAN Code
0606449161472
Manufacturer
NetGear
