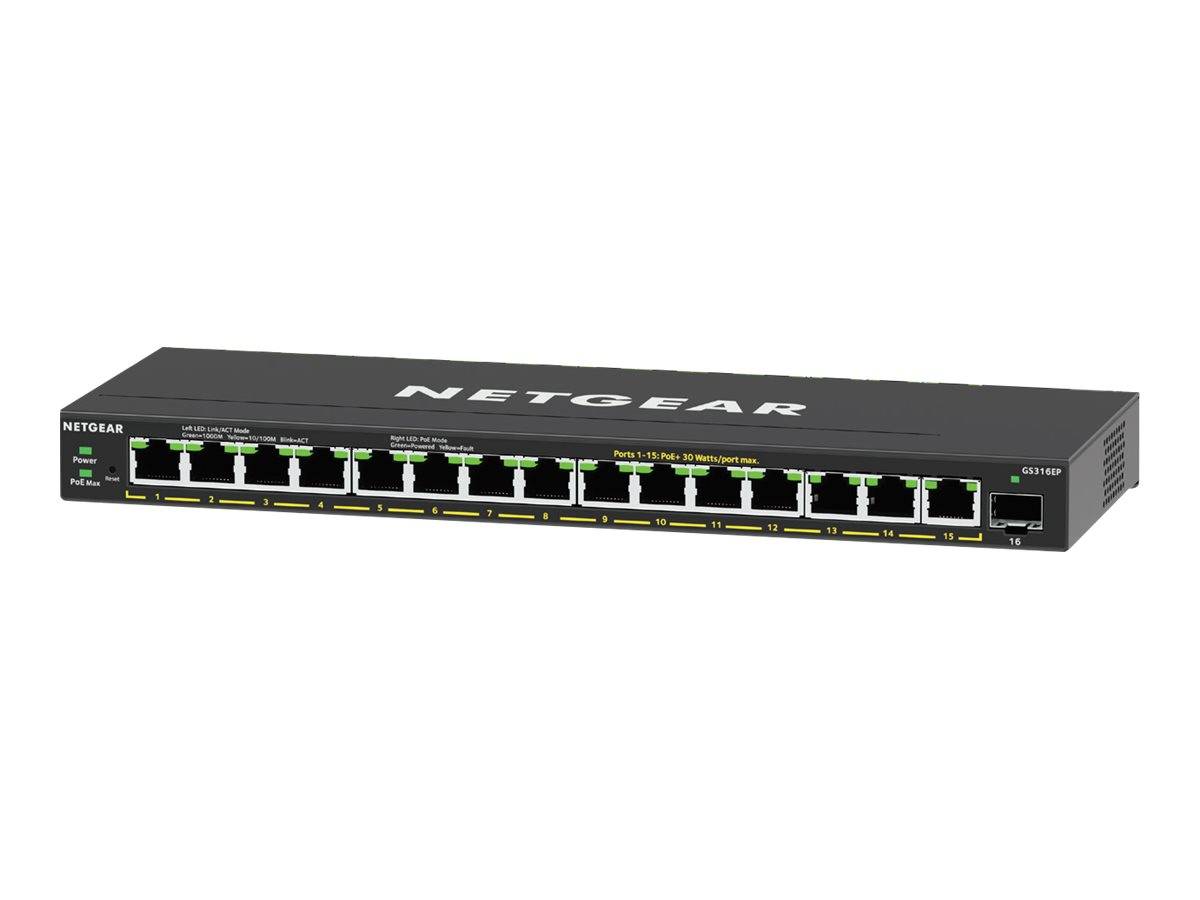

NETGEAR Plus GS316EP / Switch / Managed / 15 x 10/100/1000 (PoE+) + 1 x SFP / desktop, wall-mountable / PoE+ (180 W) | GS316EP-100PES
GS316EP-100PES
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Special Features
- Plug-and-play Plus switch fundamental network management features
- 15-port PoE+ for a total of 180W of power enabling powering of all types of PoE devices with a single wire deployment of power and network connectivity to PoE+ devices such as wireless access points, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices
- Completely silent operation within a small, desktop form factor and also wall-mountable
- 10 Gbps (10/100/1000 Mbps) line rate fabric for great connectivity to your devices without congestion
Product Specification
| Device Type | Switch - 16 ports - Managed |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 15 x 10/100/1000 (PoE+) + 1 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 180 W |
| Performance | Bandwidth: 28 Gbps |
| Capacity | Buffer memory (kBytes): 192 ¦ VLANs supported: 64 ¦ Multicast groups: 128 |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | HTTP, DHCP |
| Features | Flow control, VLAN support, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, full duplex mode, Quality of Service (QoS), fanless, DHCP client, loop prevention, Class of Service (CoS), Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, Link Aggregation, rate limit, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection, PoE scheduling, uninterrupted PoE |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, system, PoE, link/activity/speed, PoE max |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 15 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-X SFP |
| Power | Power |
| Power Device | External power adapter |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rubber feet, wall mounting kit |
| MTBF | 784,742 hours |
| Compliant Standards | CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 28.6 cm |
| Depth | 10.2 cm |
| Height | 2.7 cm |
| Weight | 883 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - power supply - 2 years ¦ Limited warranty - phone consulting - 90 days with product registration |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
