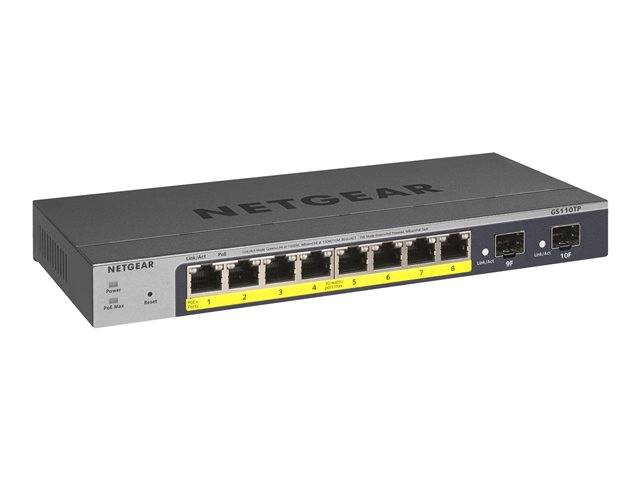

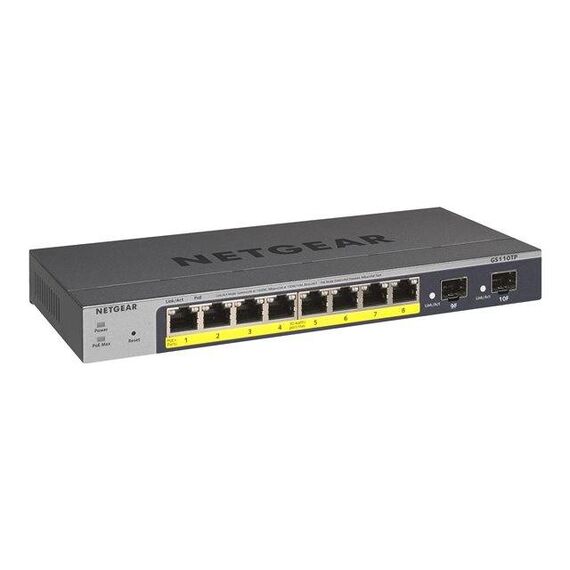

NETGEAR Pro GS110TPv3 / Switch / smart / 8 x 10/100/1000 (PoE) + 2 x SFP / desktop, wall-mountable / PoE+ (55 W) / DC power | GS110TP-300EUS
Please sign in so that we can notify you about a reply
NETGEAR Pro GS110TPv3 / Switch / smart / 8 x 10/100/1000 (PoE) + 2 x SFP / desktop, wall-mountable / PoE+ (55 W) / DC power | GS110TP-300EUS
Description
The GS110TPv3 adds full 8 port PoE support for deployment of modern PoE devices. Cautious spender organizations can now deploy PoE devices connected to a cost effective switch, with a reasonable PoE power budget of 55W. Each port can provide up to 30 watts to power up connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting.
NETGEAR Pro GS110TPv3 / Switch | GS110TP-300EUS
Special Features
- Non-blocking switching with 16Gbps and 20Gbps
- Fanless switches for silent operation in noise sensitive environment
- Layer 3 static routing with 32 routes (IPv4) for inter-VLAN local routing
- Advanced VLAN support for better network segmentation
- Auto "denial-of-service" (Dos) prevention
- IGMP Snooping and Querier for multicast optimization
- Rate limiting and priority queuing for better bandwidth allocation
- Port mirroring for network monitoring
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
- Cable test to troubleshoot connection issues
- SNMP v1, v2c, v3 and RMON remote monitoring
Product Specification
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 (PoE) + 2 x SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 55 W |
| Performance | Switching fabric bandwidth: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.8 Mpps |
| Capacity | Packet buffer size: 512 KB ¦ ACL entries (ingress): 100 ¦ VLANs supported: 64 ¦ IPv4 routes (static): 32 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, IPv6 |
| Encryption Algorithm | TLS 1.2 |
| Authentication Method | RADIUS, TACACS+ |
| Features | IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, MLD snooping, fanless, Link Aggregation Control Protocol (LACP), DHCP client, dual firmware images, loop prevention, tagged VLAN, cable test, LLDP-MED, protected ports, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), Advanced QoS, Unknown Storm Control, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | : 500 MHz |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port status, PoE, link/activity/speed |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP |
| Power Device | External power adapter |
| Voltage Required | DC 54 V |
| Power Consumption Operational | 69.5 Watt |
| Power Consumption Stand by | 4.3 Watt |
| Included Accessories | Wall mounting kit |
| MTBF | 1,200,041 hours |
| Localisation | Europe |
| Width | 23.6 cm |
| Depth | 10.1 cm |
| Height | 2.7 cm |
| Weight | 610 g |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Limited warranty - power supply - 2 years ¦ Technical support - phone consulting - 90 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 95% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
