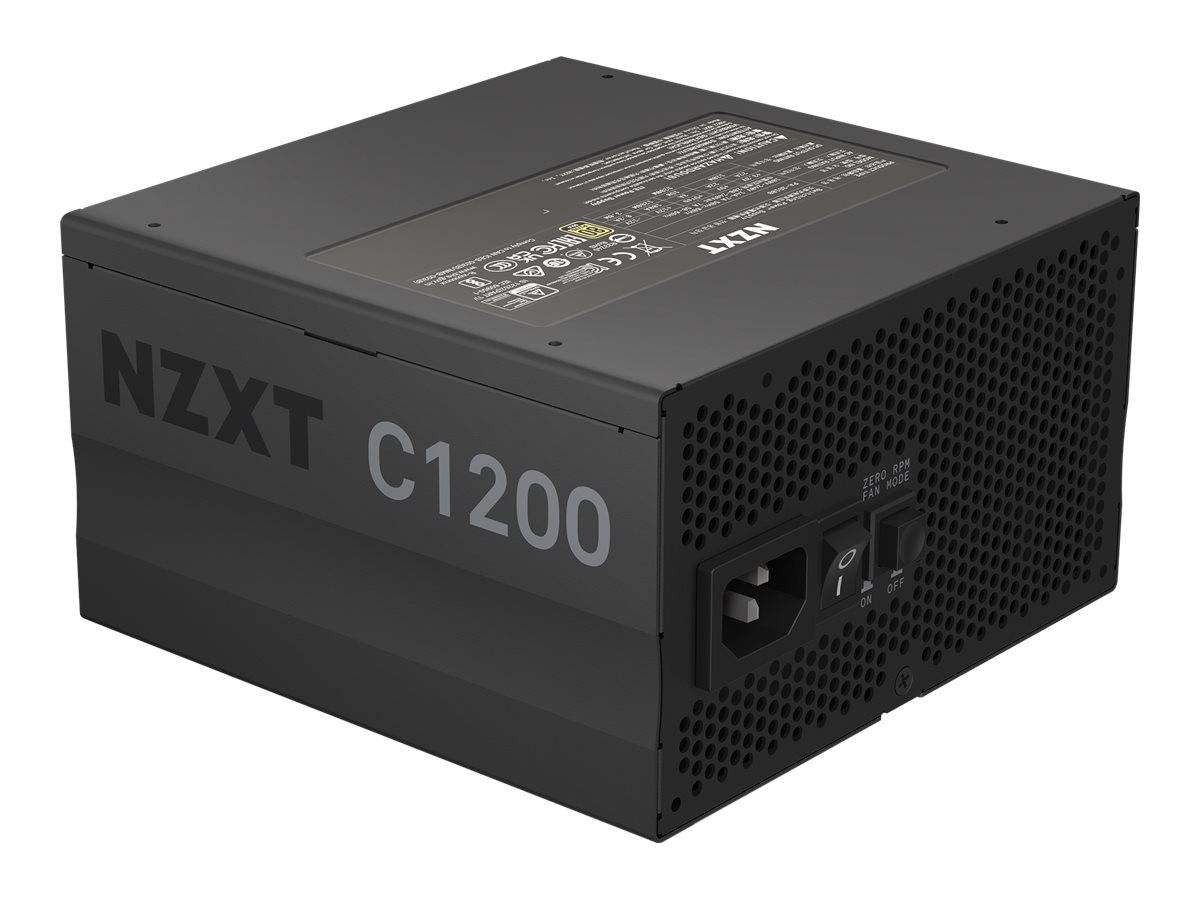

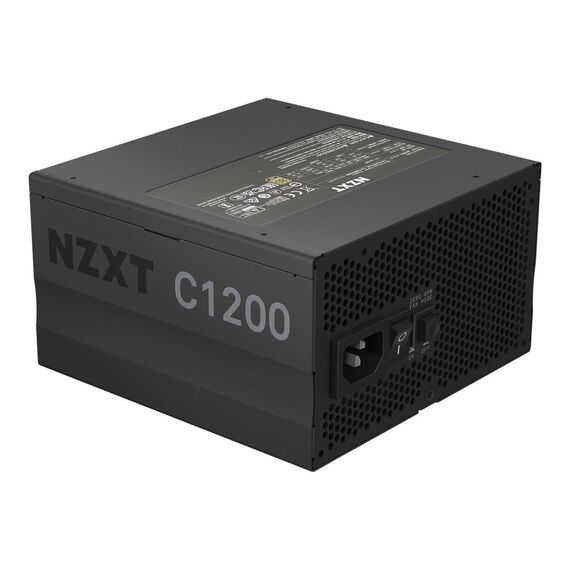

NZXT C-Series C1200 Gold / Power supply (internal) / ATX12V 3.0/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 1200 Watt / active PFC / Europe / matte black | PA-2G1BB-EU
Please sign in so that we can notify you about a reply
Product Features
- Next-gen power
Provides up to 600 W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector. - Future-proof design
Built to handle massive power spikes from next-gen GPUs. - Single cable connection
Featuring a single 16-pin connection cable - perfect for 40 Series CARDS. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters. - High-quality components
Constructed with all Japanese 105°C-rated capacitors for the highest standard in performance, reliability, and longevity. - Elite efficiency
With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs. - Silent operation
The 135 mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.
Special Features
- 16-pin PCIe 12VHPWR connector can pump up to 600 watts of power to a graphics card over a single cable
- Built and tested with the strictest standards for trouble-free installation and operation
- 90.5% efficiency peak at 50% load lowers temperatures, energy consumption, and noise
- Zero Fan Mode stops the fan when under light loads to reduce system noise
- 135mm PWM fan with fluid dynamic bearing operates quietly with a long lifespan
- Constructed with high-quality Japanese 105°C capacitors
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Matte black |
| Localisation | Europe |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x 12VHPWR ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 100 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Efficiency | 87.5% at 100% Load, 90.5% at 50% Load, 87.5% at 20% Load |
| Power Factor (PF) | 0.96 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
| Compliant Standards | TUV, BSMI, cUL, CB, CCC, CEC, LVD, EAC, RCM, cTUV, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
Features - NZXT - PA-2G1BB-EU
More Details
Product Code
03:215891
EAN Code
5056547202495
Manufacturer
NZXT
