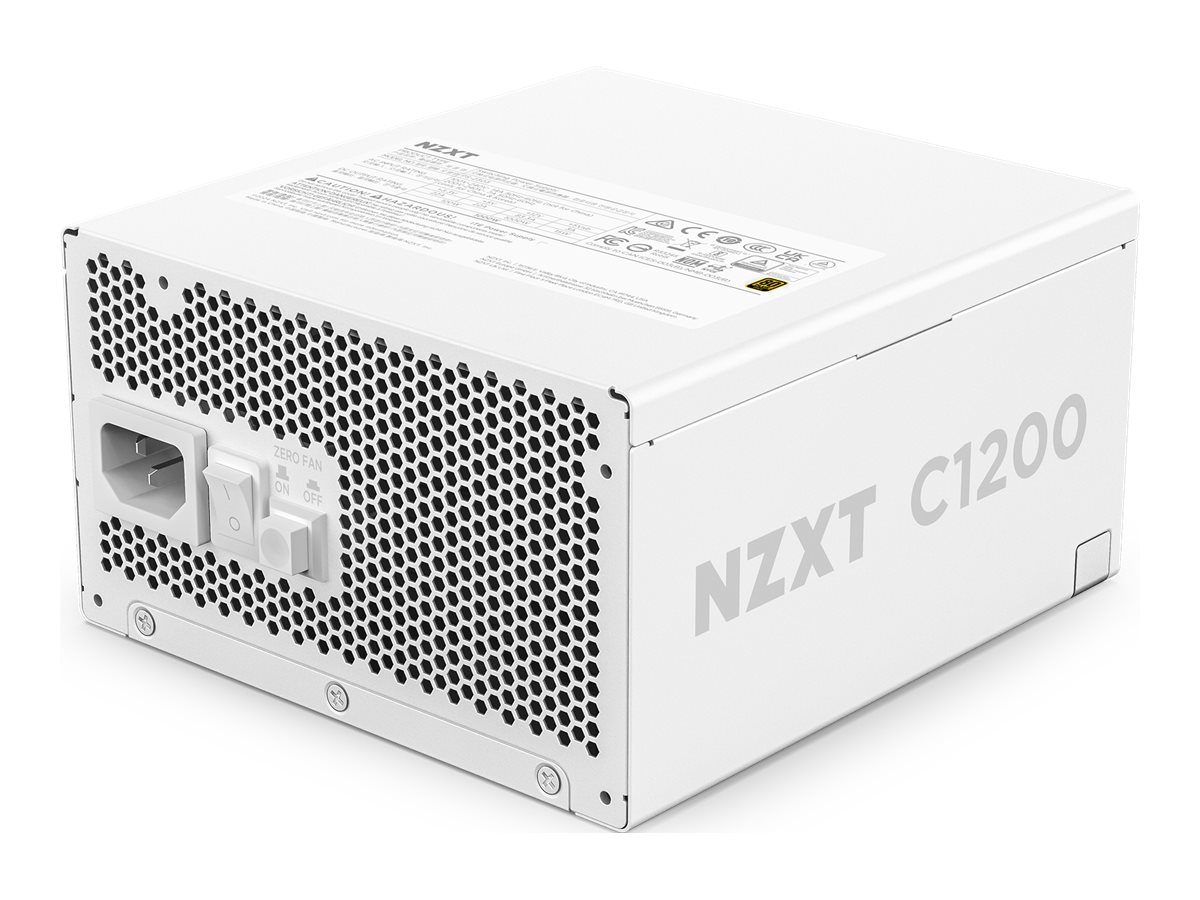

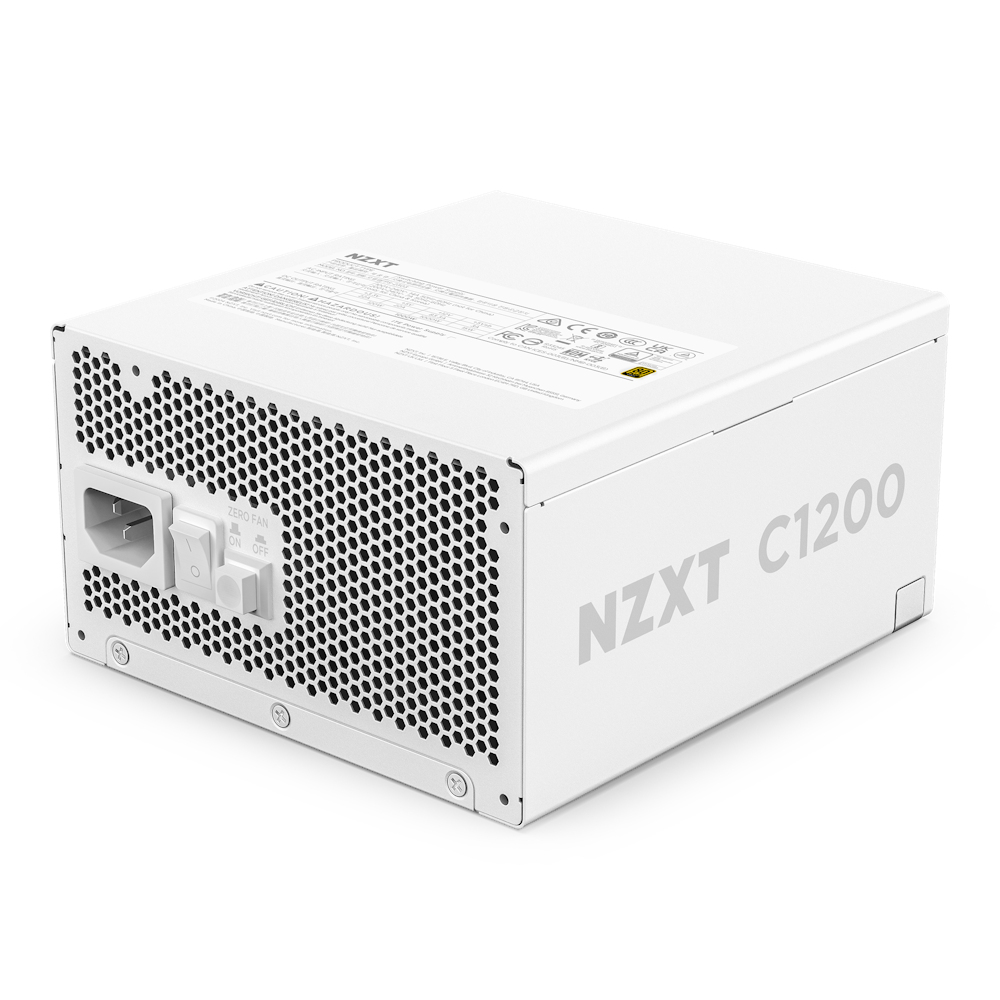

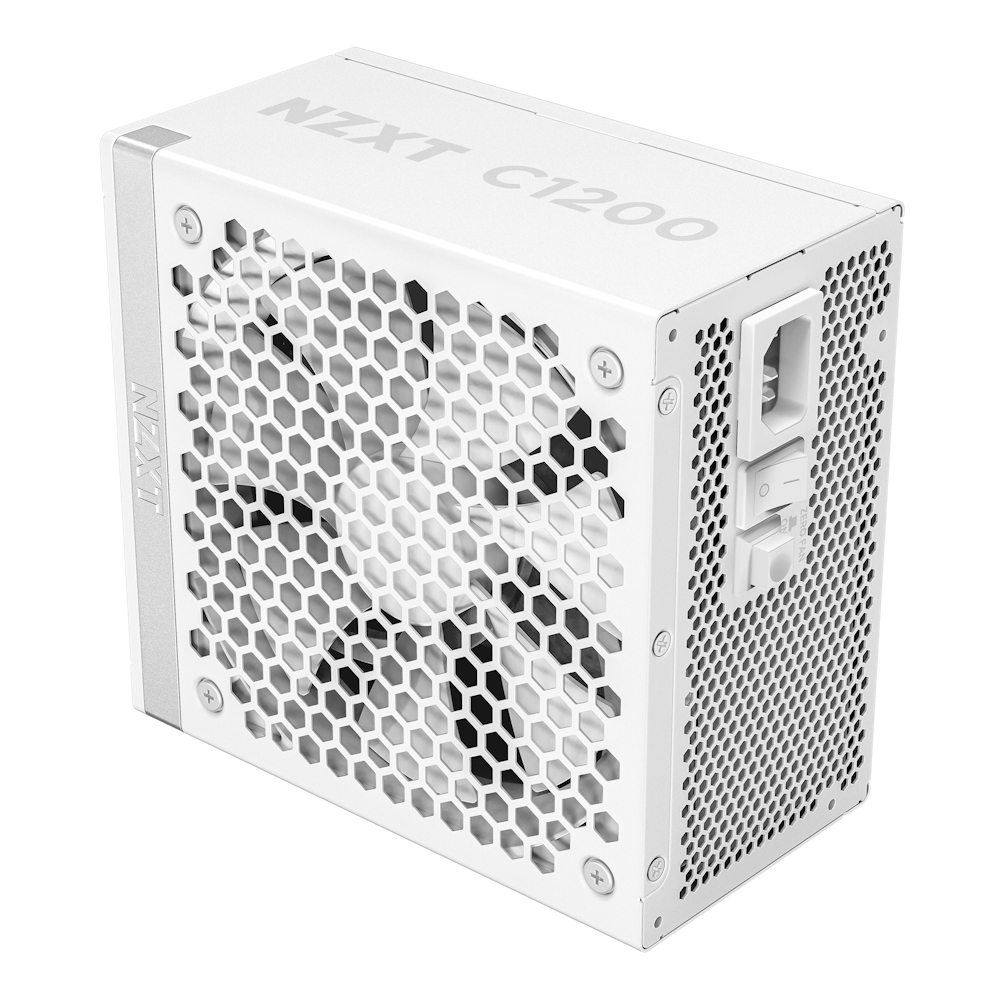

NZXT C-Series C1200 - Power supply (internal) - ATX12V 3.1/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 1200 Watt - active PFC - Europe - matt white | PA-2G2BW-EU
Please sign in so that we can notify you about a reply
Product Features
- Efficient power supply
The NZXT C-Series C1200 power supply offers an impressive 80 PLUS Gold certification, ensuring high energy efficiency with up to 91% efficiency at 50% load. This not only reduces heat generation but also contributes to lower operating costs. - Advanced cooling system

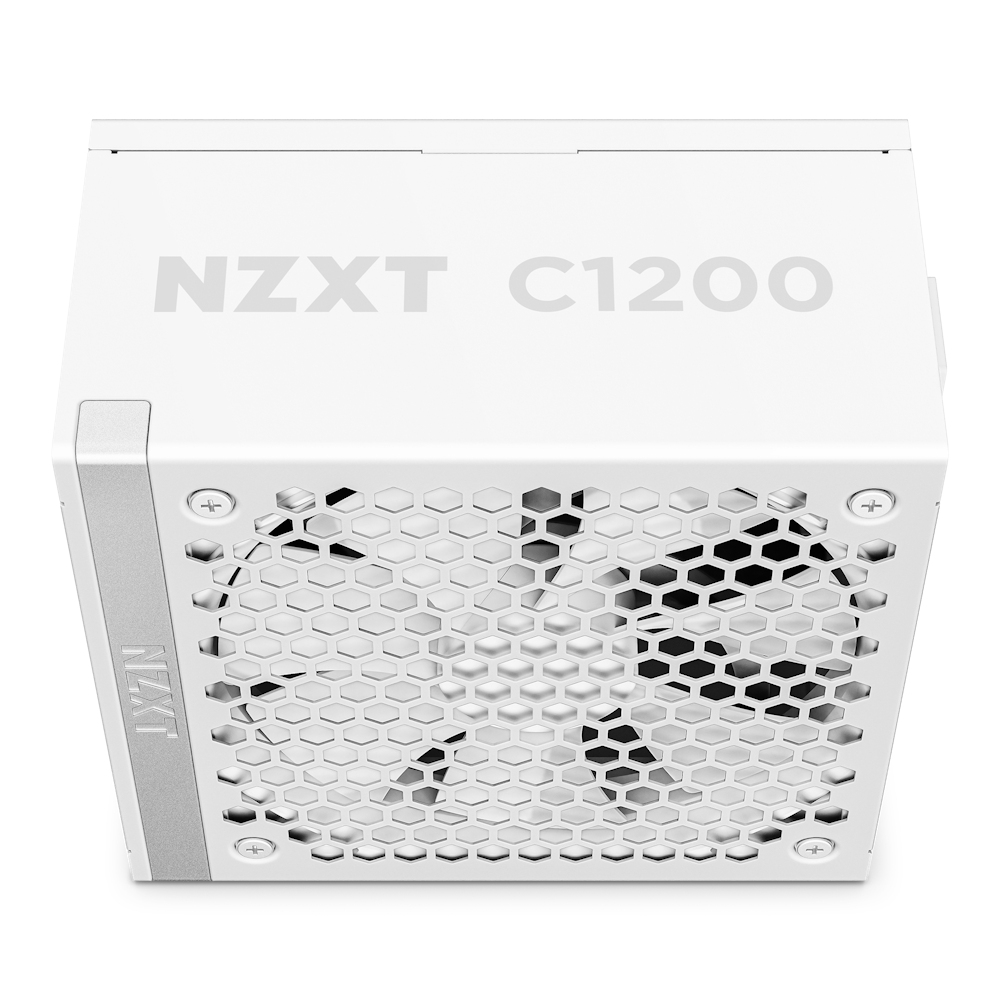

Equipped with a 135 mm fan featuring fluid dynamic bearing, the C1200 ensures silent performance while keeping the system cool. This cooling solution enhances the overall reliability and longevity of the power supply. - Fully modular design

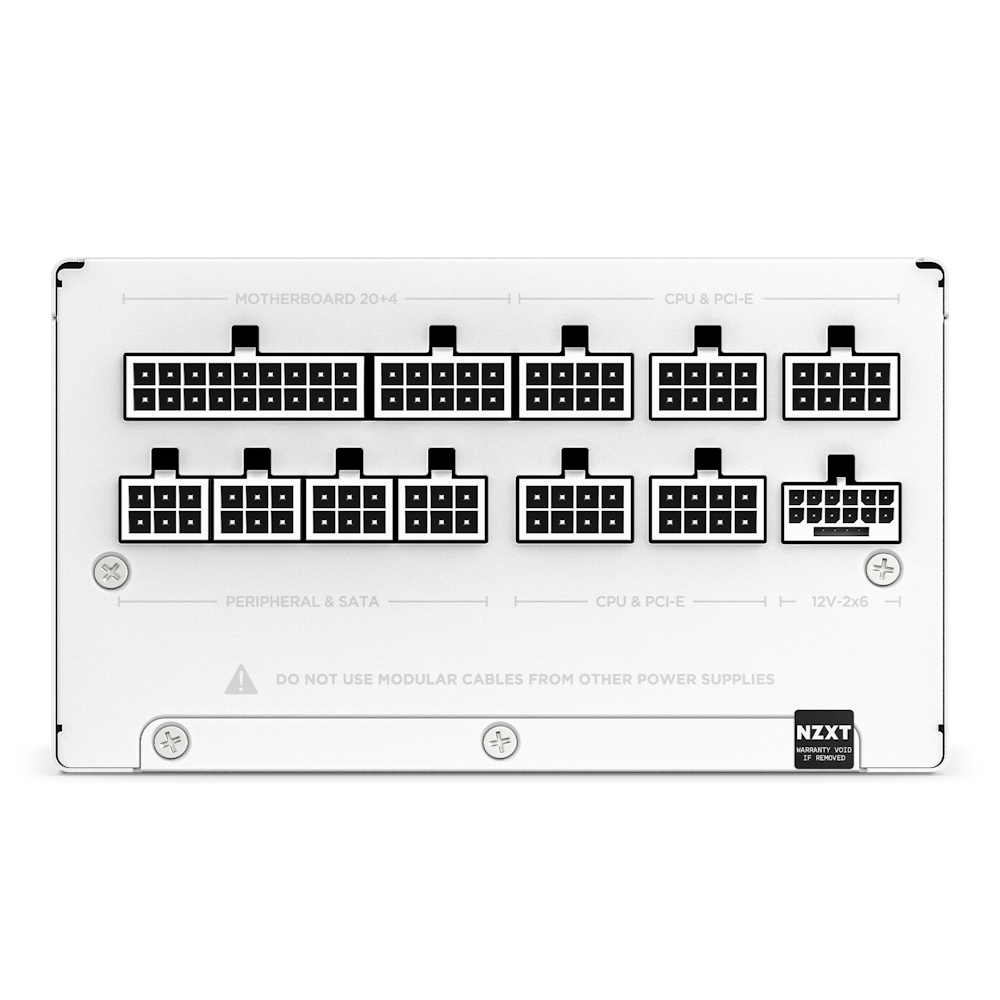

The fully modular cable management system allows users to use only the cables they need, leading to a cleaner setup and improved airflow within the PC case. This flexibility is ideal for building a neat and organized system. - Wide compatibility
With a comprehensive range of power output connectors, including 24-pin ATX, 8-pin EPS12V, and multiple PCI Express power connectors, the C1200 is compatible with a wide variety of PC and server configurations, making it a versatile choice for different power needs.
Special Fetures
- 80 PLUS Gold certification for high energy efficiency
- 135 mm cooling fan with fluid dynamic bearing for silent operation
- Fully modular cable management for a clean system build
- Supports a wide range of PC and server configurations with versatile connectors
- Robust power output of 1200 watts suitable for demanding systems
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.1/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Matt white |
| Localisation | Europe |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX <br /> 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 1 x power 8 pin CPU <br /> 3 x 8 pin PCI Express power with detachable 2 pin section <br /> 1 x 16 pin PCI Express power <br /> 12 x 15 pin Serial ATA power <br /> 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, +12 V, +5Vsb V |
| Power Capacity | 1200 Watt |
| Output Current | +3.3V - 22 A <br /> +5V - 22 A <br /> +12V - 100 A <br /> +5VSB - 3 A |
| Efficiency | 85% at 10% Load, 90.1% at 20% Load, 91.6% at 50% Load, 88.7% at 100% Load |
| Power Factor (PF) | 0.99 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Included Accessories | 4 screws |
| Cables Included | AC input cable - external <br /> Power 24 pin ATX with detachable 4 pin section modular cable 60 cm <br /> Power 8 pin +12V with detachable 4 pin section modular cable 70 cm <br /> Power 8 pin EPS12V modular cable 70 cm <br /> 16-pin 12VHPWR power cable 65 cm <br /> 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm <br /> 2x Serial ATA modular cable 65 cm <br /> 4 pin internal power cable 65 cm |
| MTBF | 100,000 hours |
| Cooling System | 135 mm fan |
| Features | Sleeved cables, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
| Compliant Standards | TUV, BSMI, CB, CCC, FCC, cTUVus, KC, RCM, CP65, BIS, IEC 62368-1, UAE, UKCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Sound Emission | 44.5 dB |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
