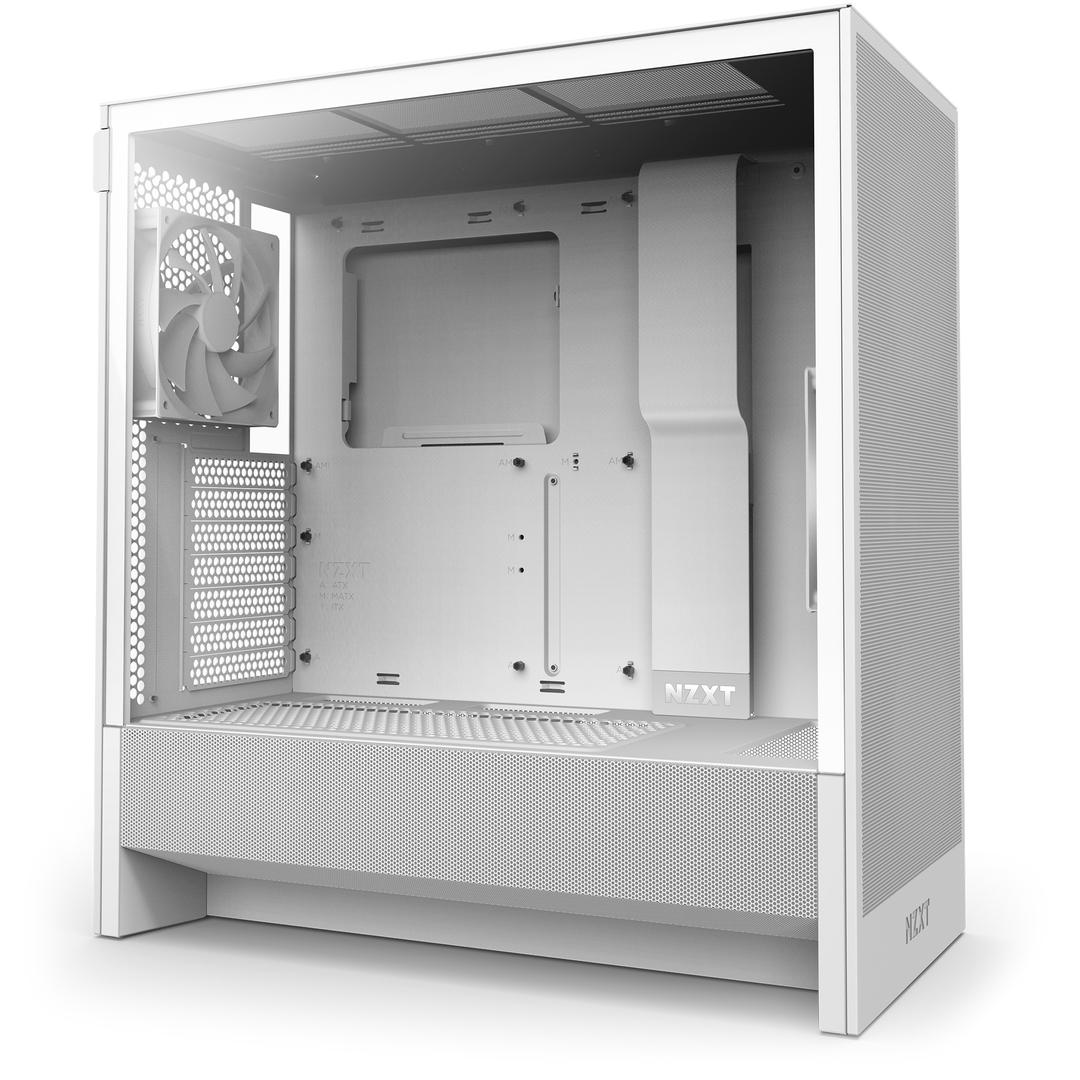

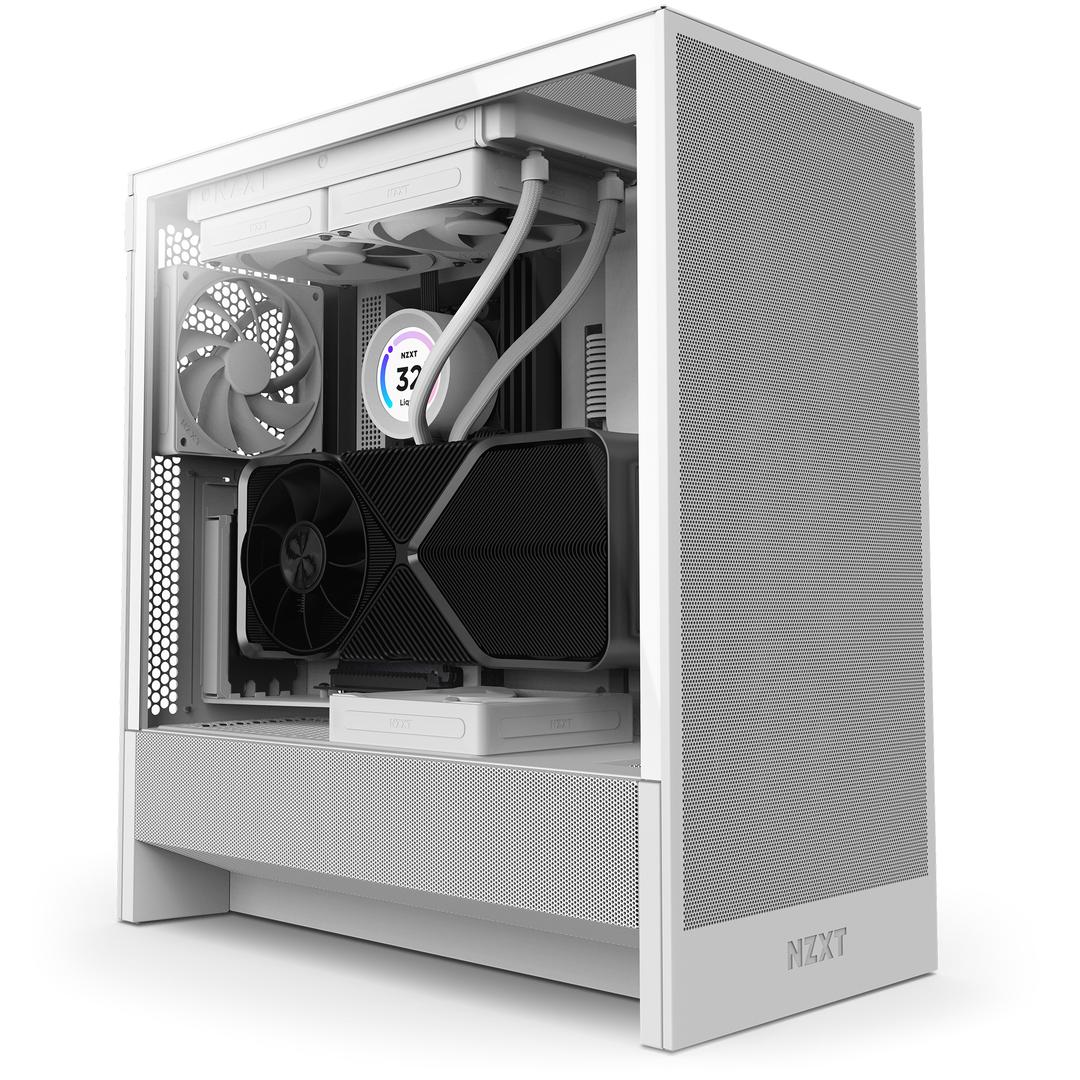

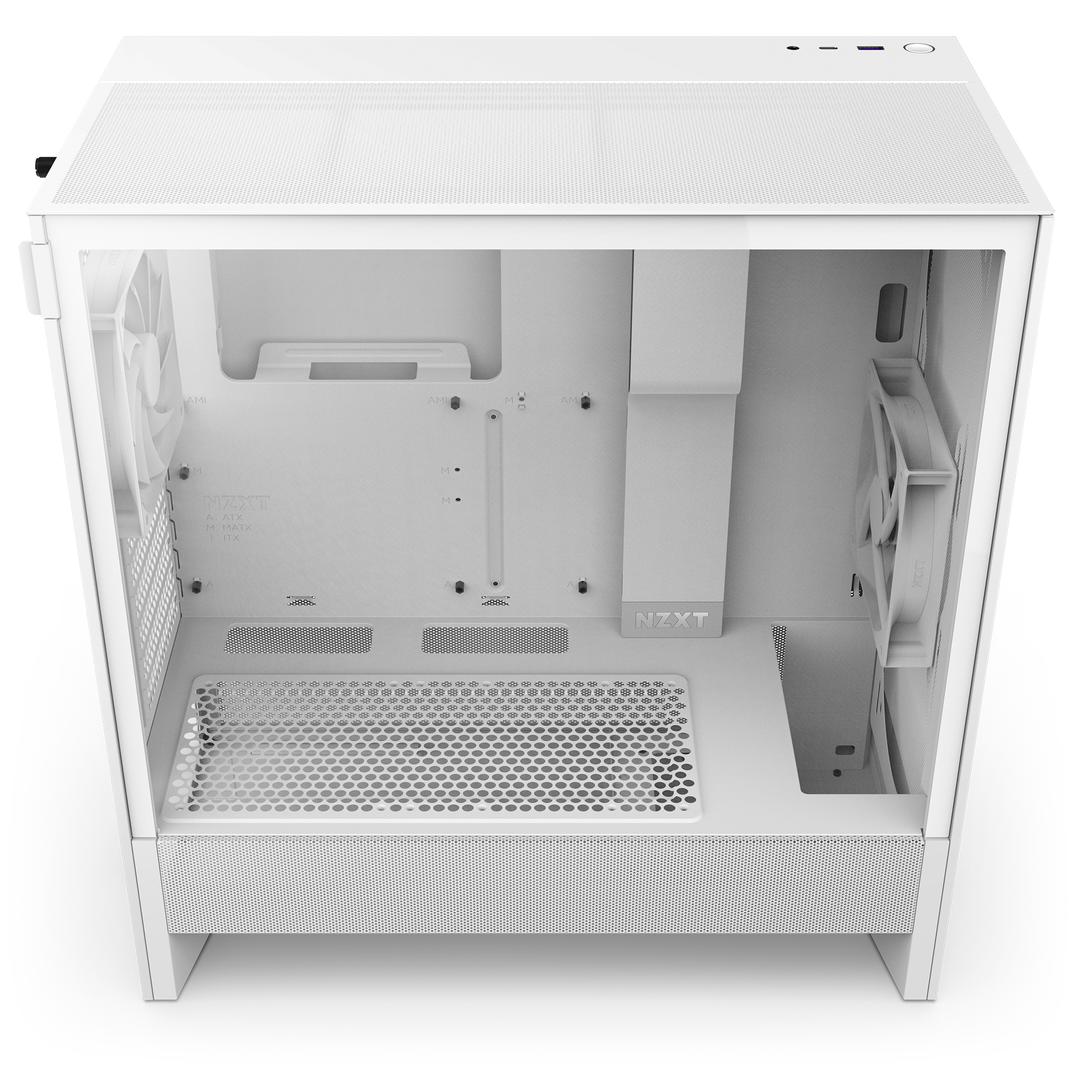

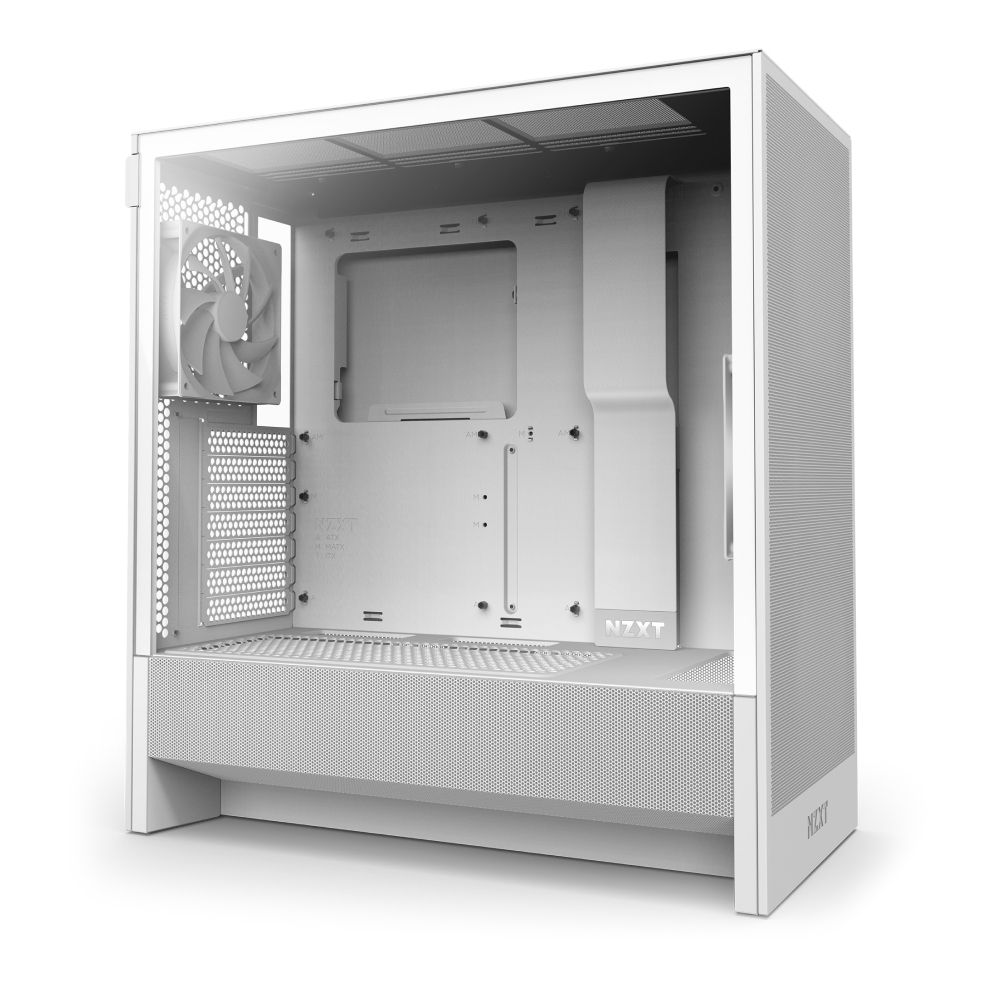

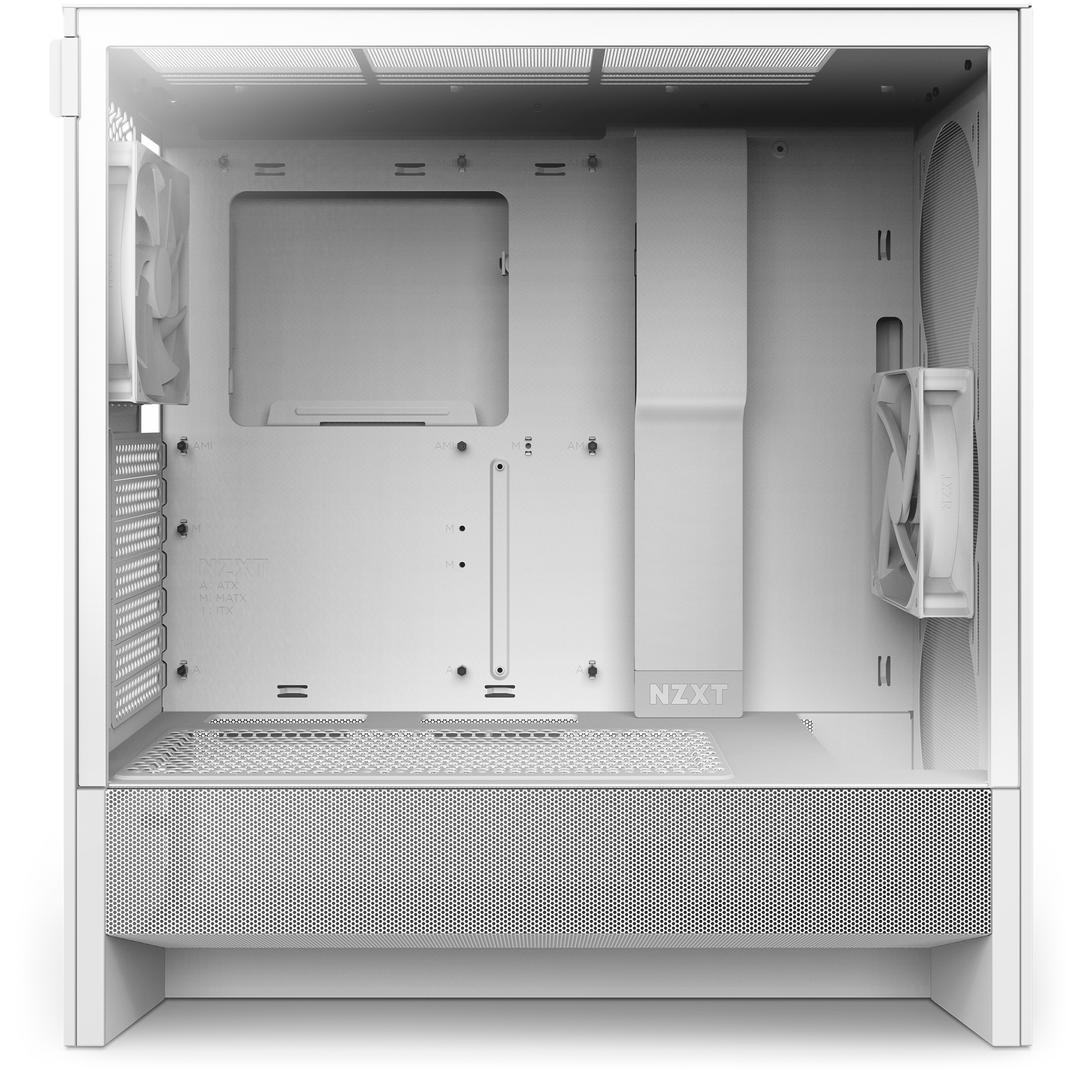

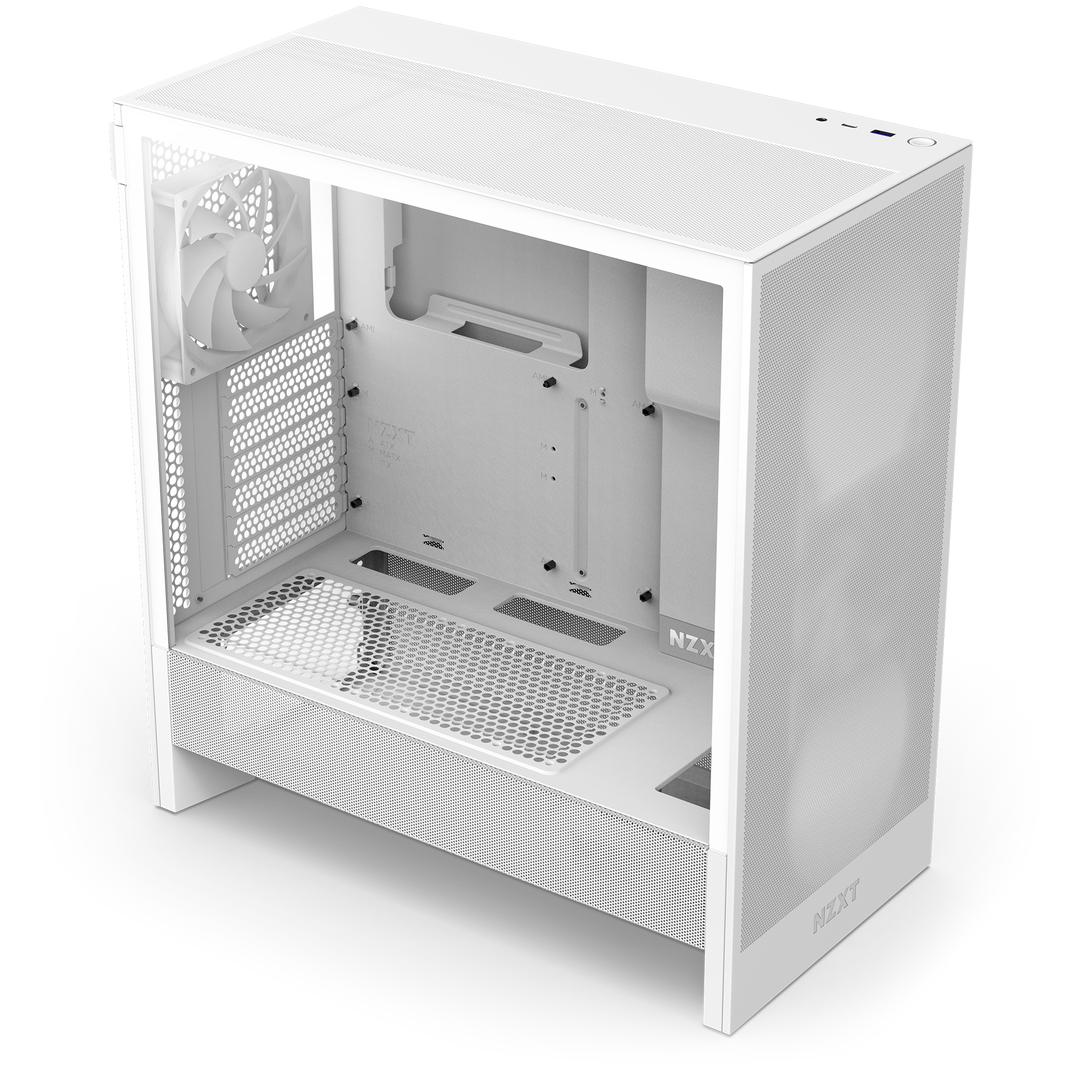

NZXT H series H5 Flow - Mid tower - extended ATX - windowed side panel (tempered glass) - no power supply - white - USB/Audio | CC-H52FW-01
Please sign in so that we can notify you about a reply
Special Fetures

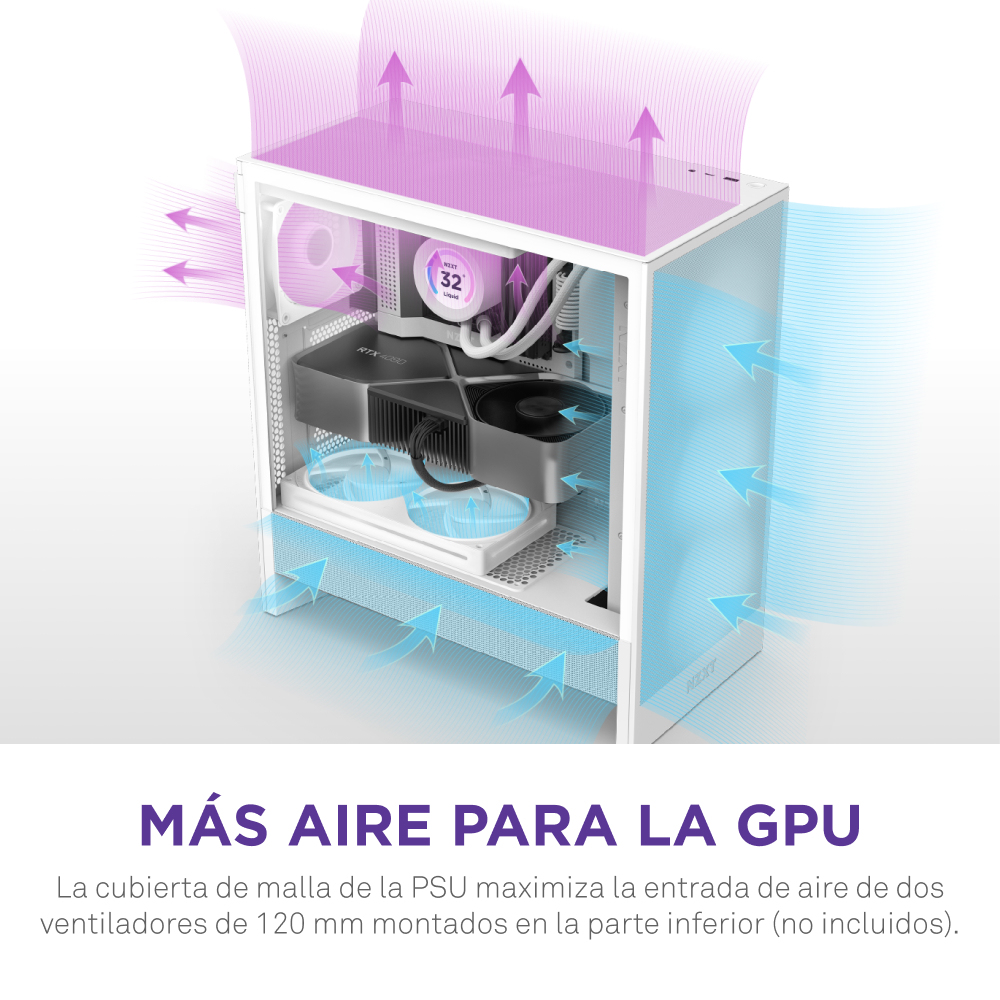

- Dedicated fan on bottom inside panel is angled to cool GPU

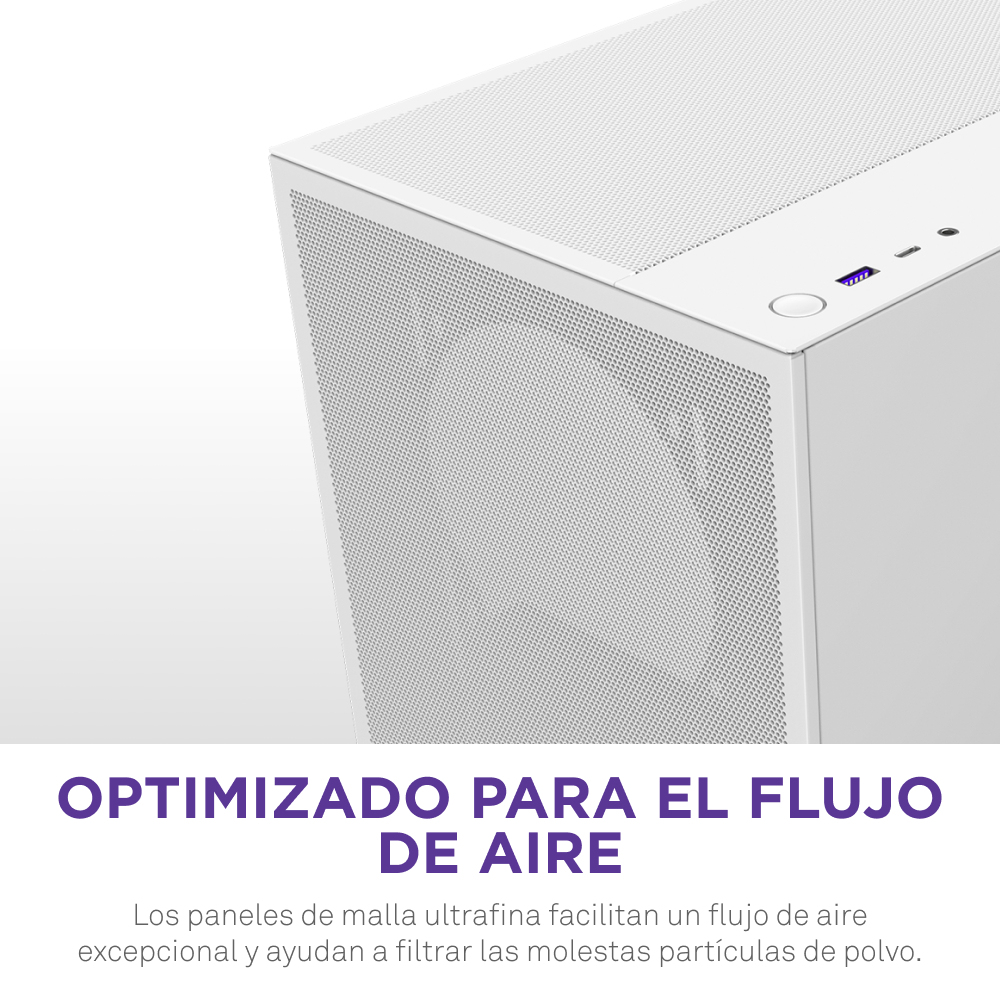

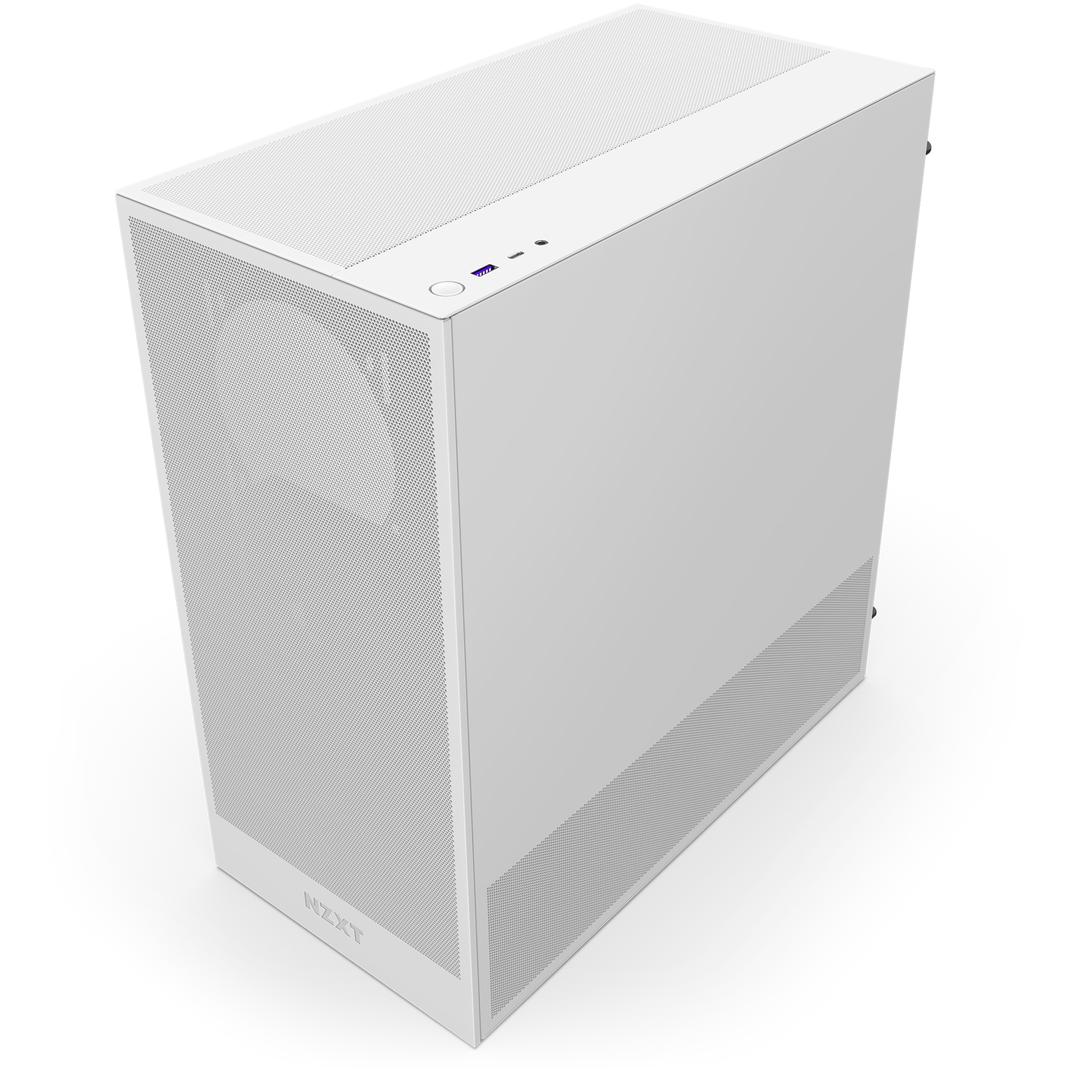

- Perforated front panel provides optimal ventilation

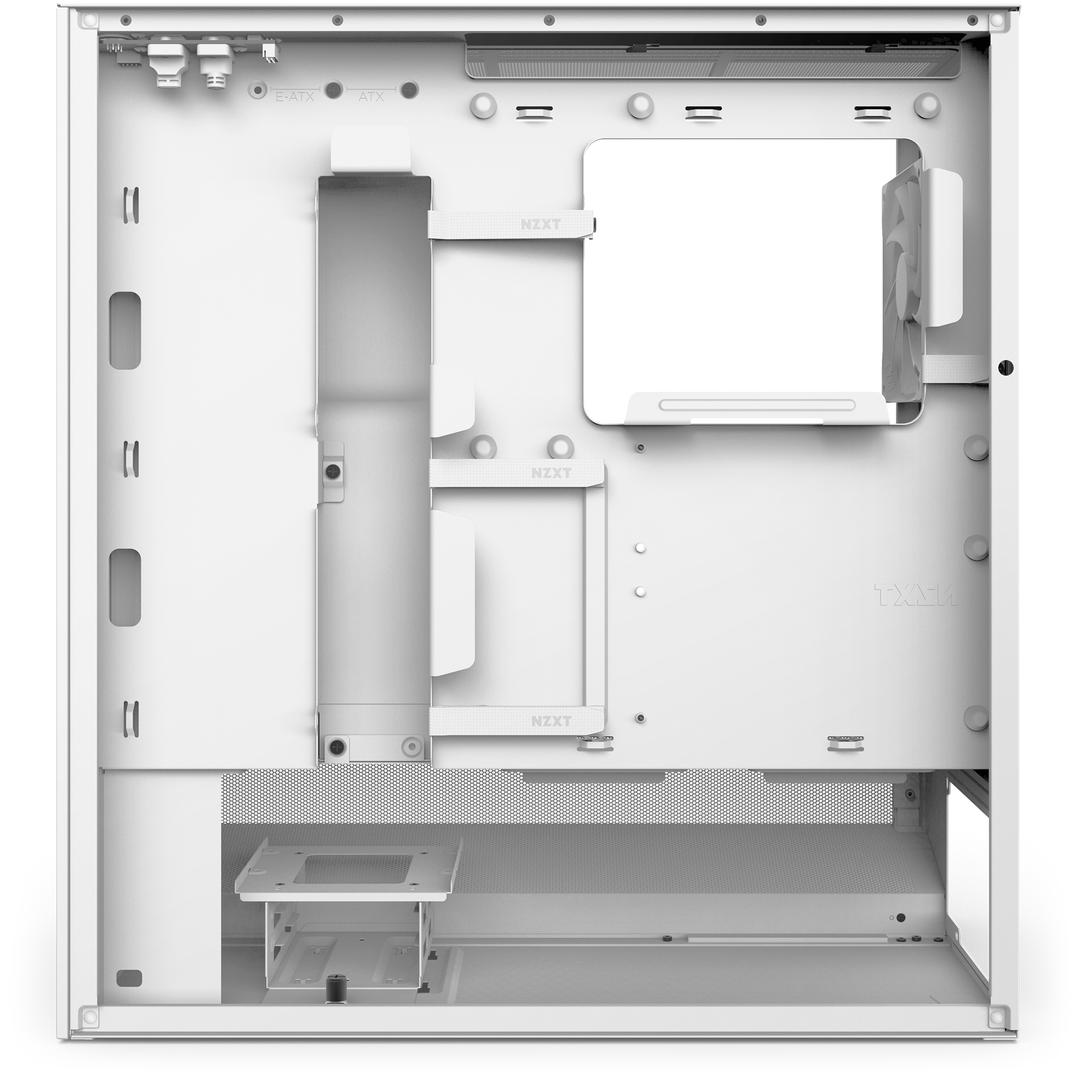

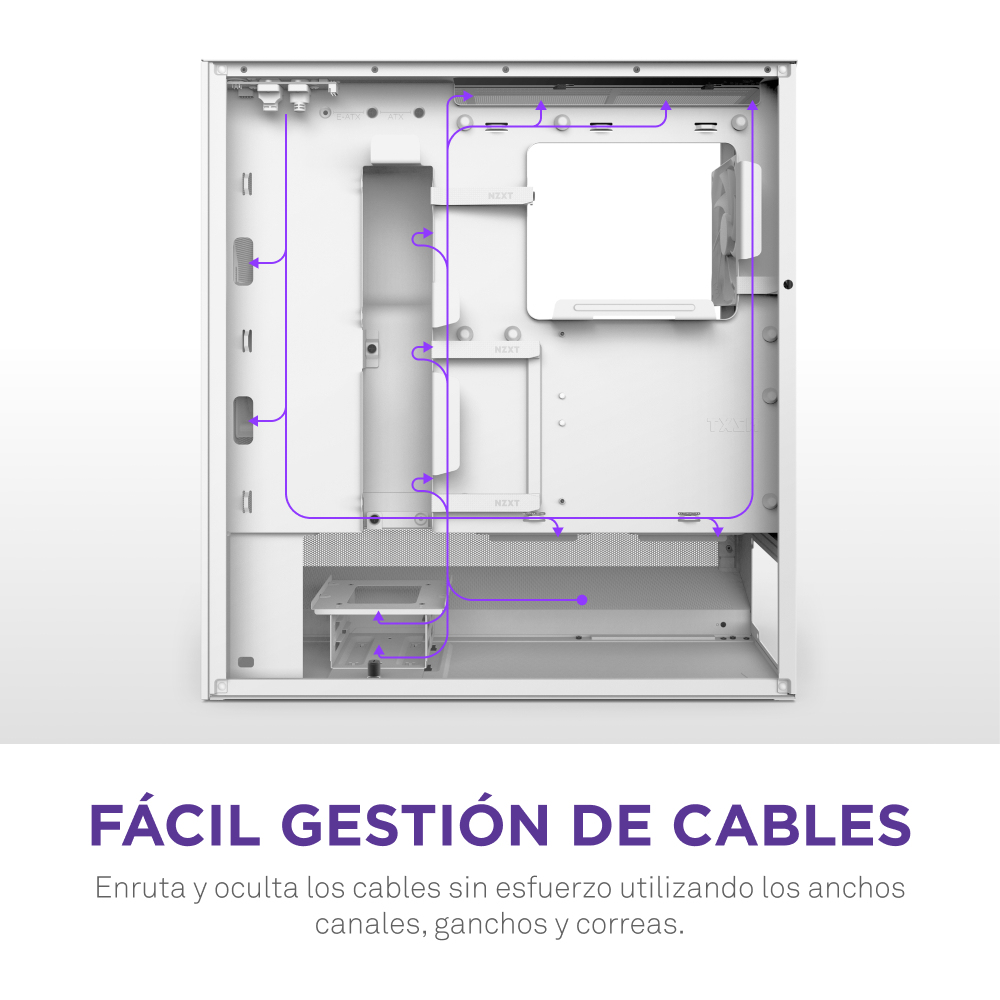

- Intuitive cable management system with wide channels, hooks and straps

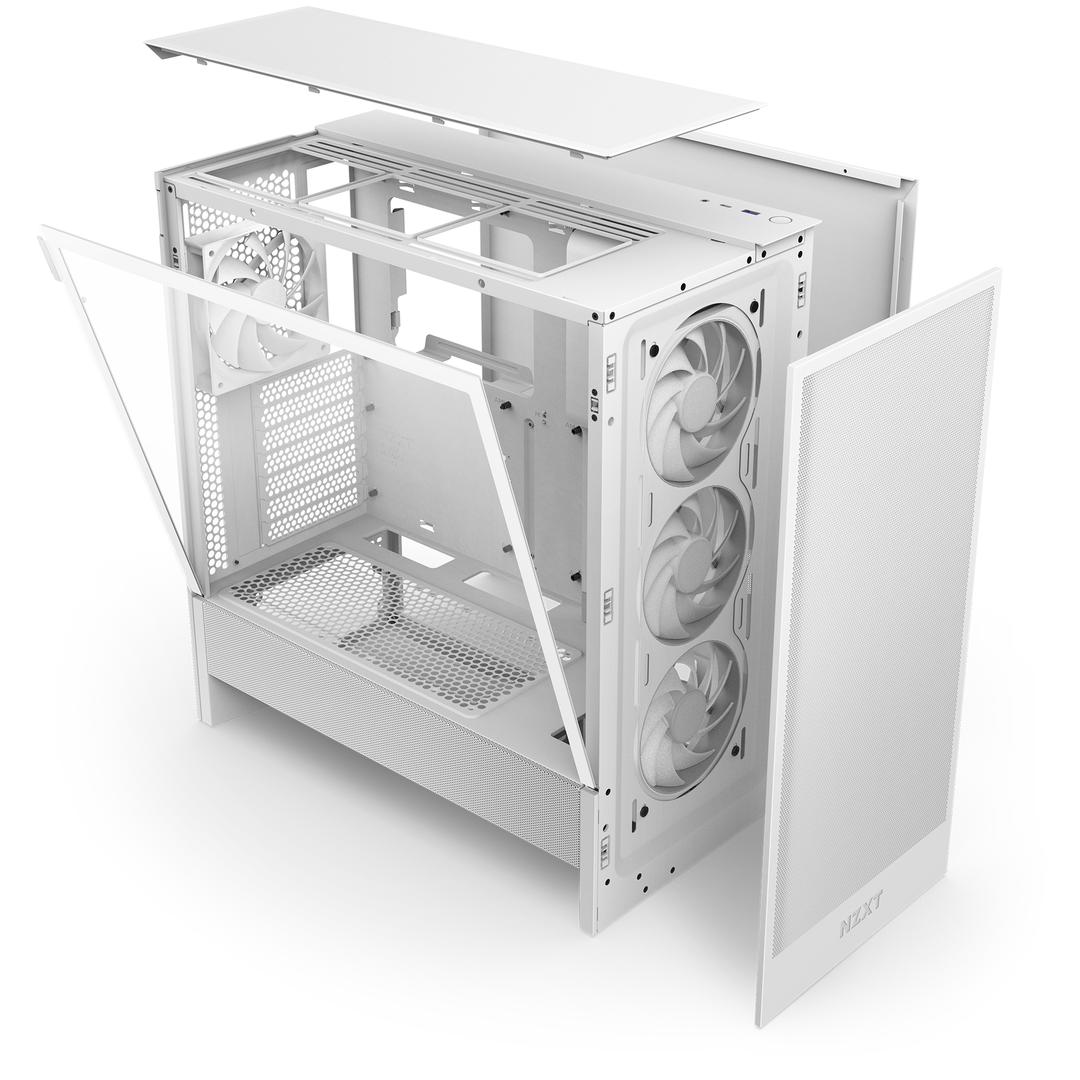

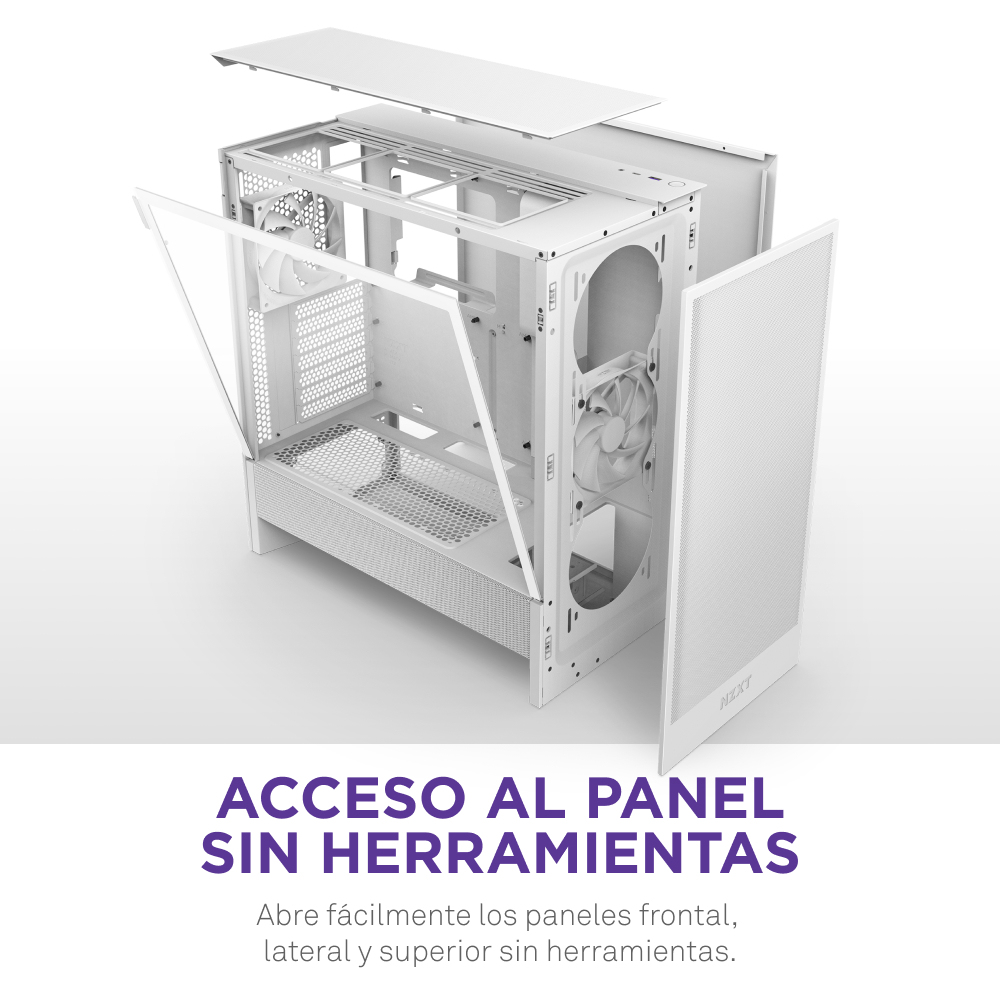

- Tool less access to front and side panels
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, microATX, Mini-ITX, ATX |
| Internal Bays Qty | 3 |

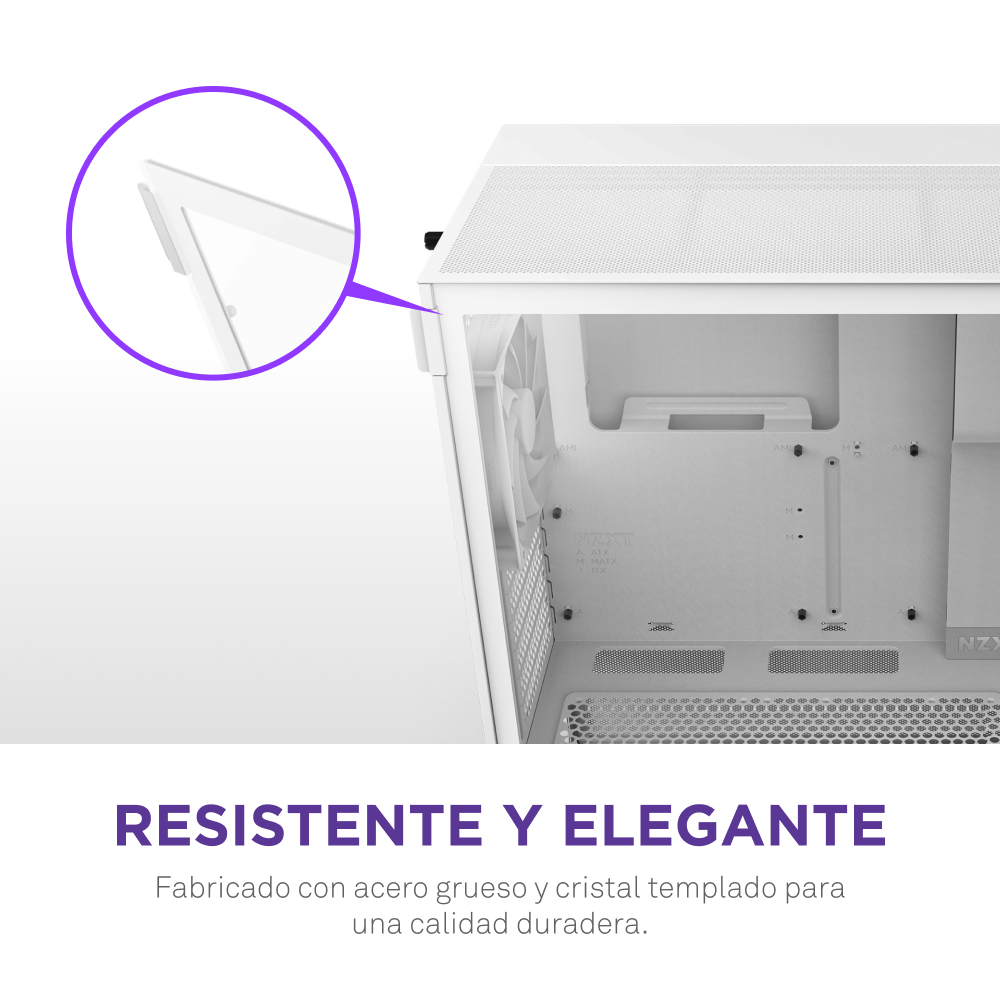

| Product Material | SECC steel, tempered glass |
| Colour | White |

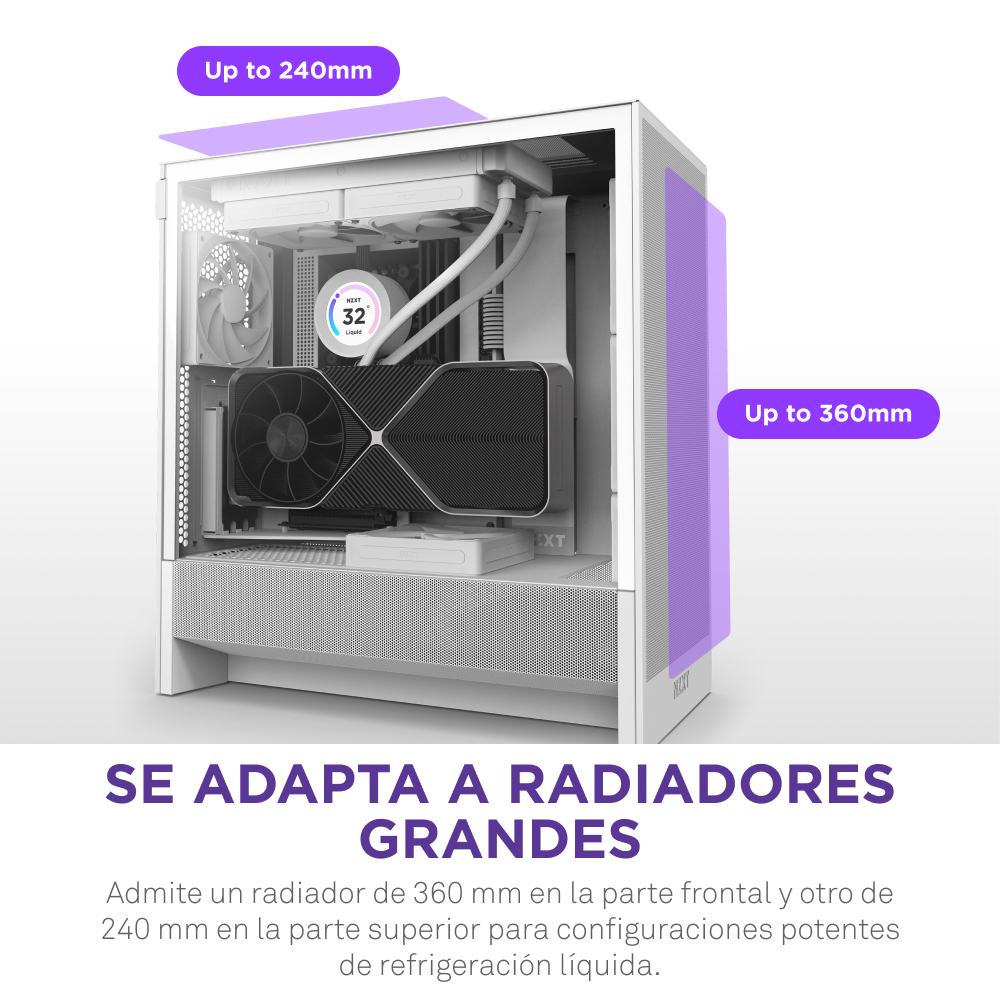

| Cooling System | Front: 120 mm fan x 1 / 150-1350 rpm / 60.2 cfm / 24.1 dBA / 3 x 120 mm or 2 x 140 mm fan supported or 1 x 360 mm radiator supported <br /> Top: 120/240 mm fan mount x 2 / 240mm radiator supported <br /> Bottom: 120 mm fan mount x 2 <br /> Rear: 120 mm fan x 1 / 150-1350 rpm / 60.2 cfm / 24.1 dBA / 1 x 120 mm fan supported |
| CPU Cooler Max Height | 170 mm |
| Video Card Max Length | 410 mm |
| Power Supply Max Length | 200 mm |
| System Cabinet Features | Cable management system (28 mm clearance), tool-less side panels, airflow optimised mesh |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" <br /> 1 (total) / 1 (free) x internal - 3.5" |
| Expansion Slots | 7 |
| Interfaces | 1 x USB 3.2 <br /> 1 x USB-C 3.2 <br /> 1 x headphone/microphone - mini-jack |
| Miscellaneous | |

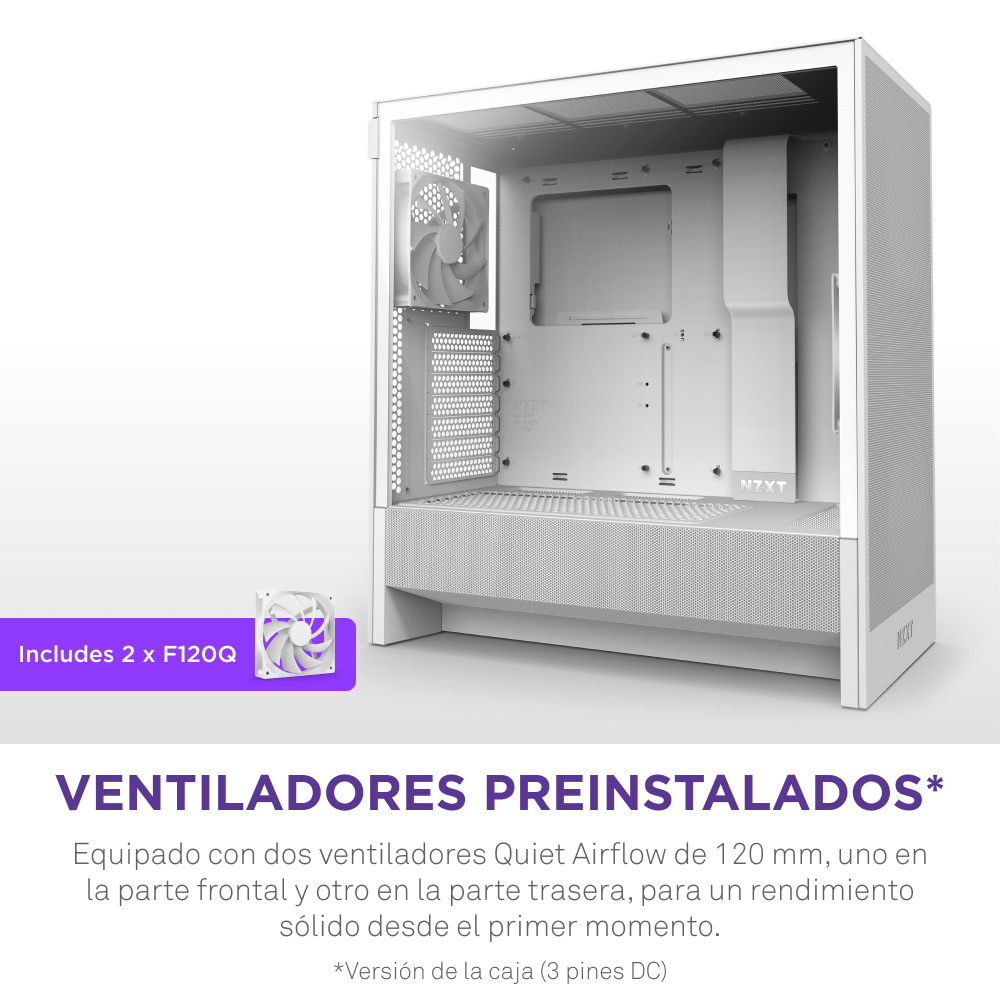

| Included Accessories | 2 x F120Q fan |
| Power | |
| Power Device | No power supply |
| Dimensions & Weight | |

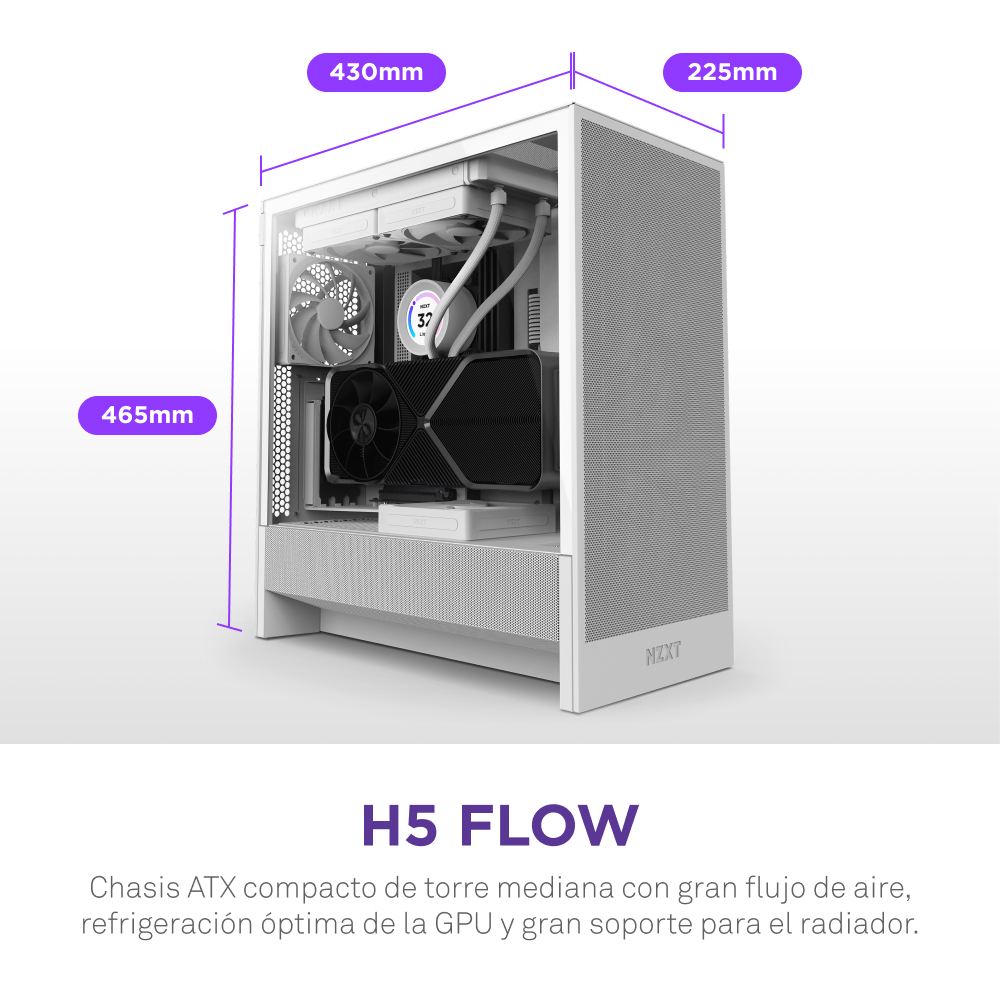

| Width | 22.5 cm |
| Depth | 43 cm |
| Height | 46.5 cm |
| Weight | 7.63 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Features - NZXT - CC-H52FW-01
More Details
Product Code
03:255761
EAN Code
5056547205847
Manufacturer
NZXT
