NZXT H series H7 Flow - Mid tower - ATX - windowed side panel (tempered glass) - no power supply - matte black - USB/Audio | CM-H72FB-01
Please sign in so that we can notify you about a reply
Special Fetures
- Perforated front and top panels enable maximum thermal performance

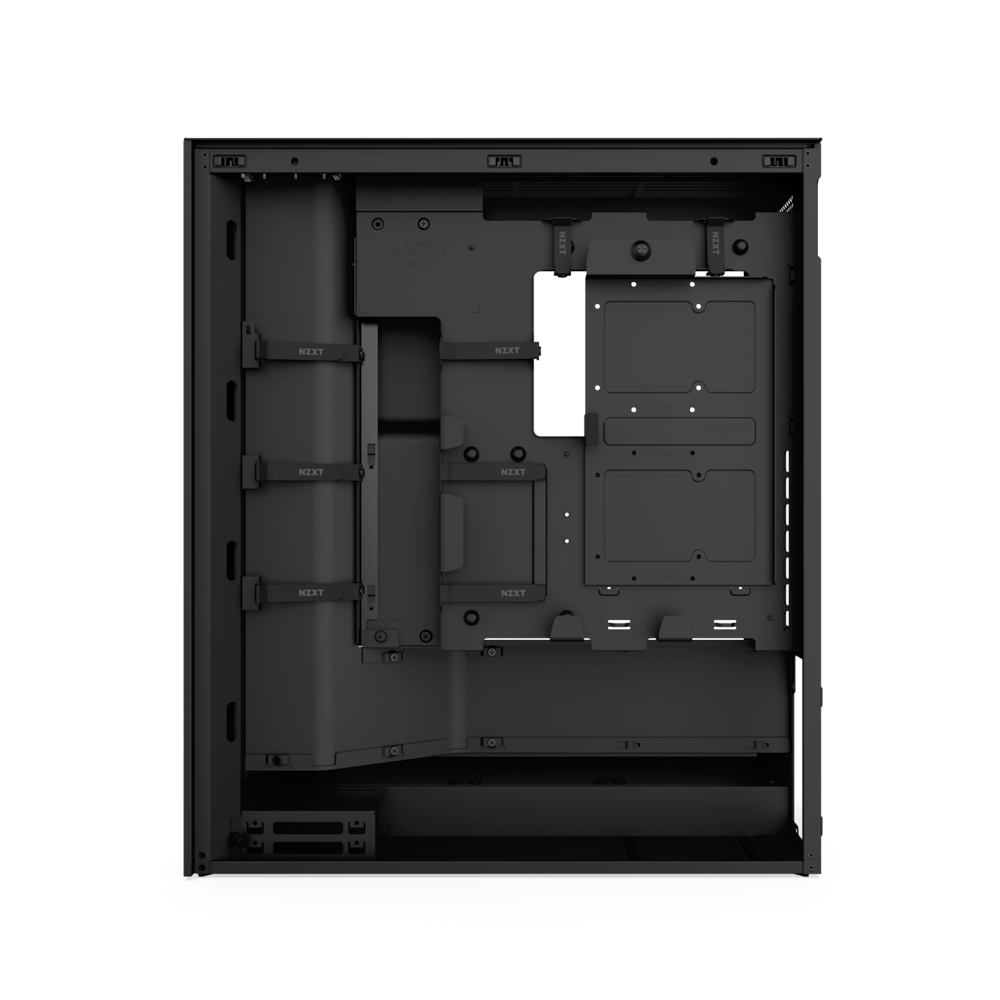

- Intuitive cable management system with wide channels, hooks, and straps

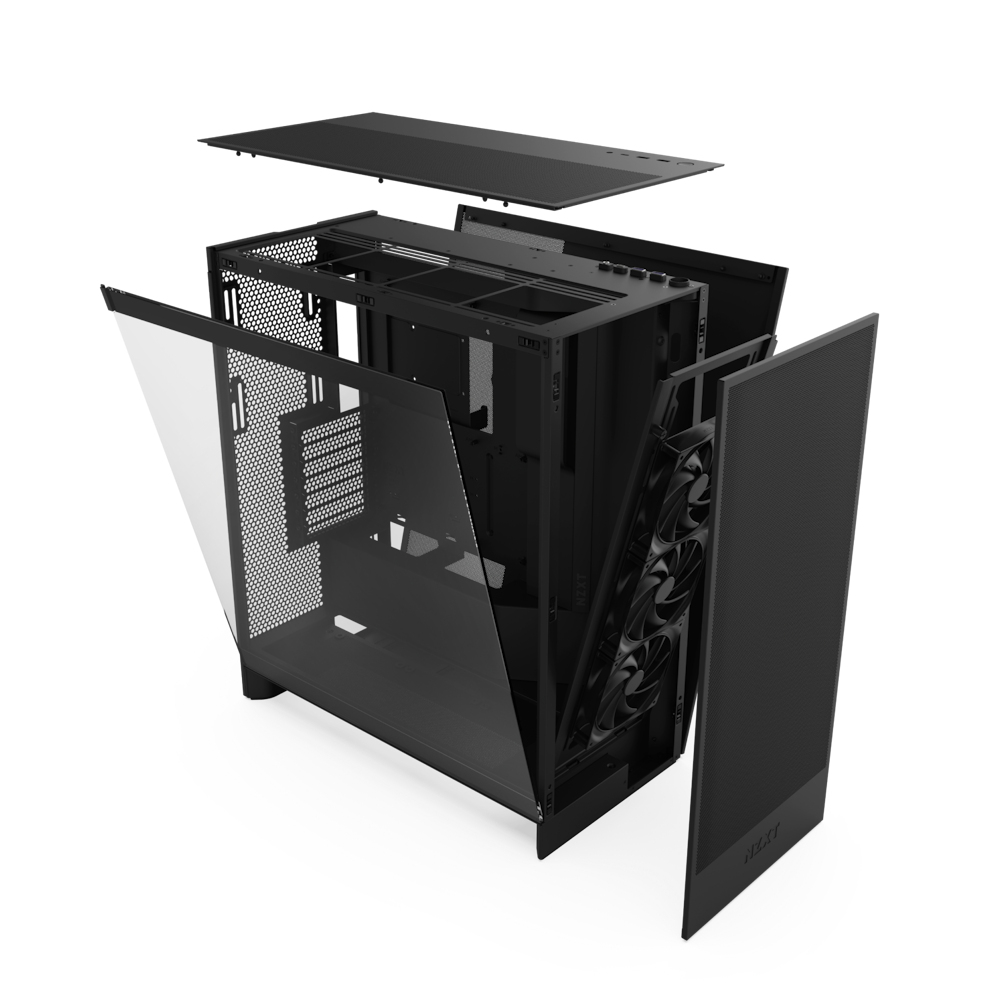

- Tool-less access to front and side panels
- Front and top support radiators up to 360 mm
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 8 |
| Product Material | Tempered glass, SGCC |
| Colour | Matte black |
| Cooling System | Front: 140 mm fan x 3 / 1200 rpm / 61.74 cfm / 29.05 dBA / RGB fan , 3 x 120 mm fan supported ¦ Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported ¦ Rear: 140 mm fan x 1 / 1200 rpm / 61.74 cfm / 29.05 dBA / 1 x 120 mm fan supported |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 400 mm |
| Power Supply Max Length | 200 mm |
| System Cabinet Features | Supports up to 360 mm radiator in front panel, supports up to 360 mm radiator in top panel, supports up to 140 mm radiator in rear panel, vertical graphic card ready, tool-less side panels, tool-less front cover, cable management system (22 mm clearance) |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared ¦ 4 (total) / 4 (free) x internal - 2.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ USB-C 3.2 Gen 2 ¦ 1 x headphones - mini-jack |
| Power | |
| Power Device | No power supply |
| Dimensions & Weight | |
| Width | 23 cm |
| Depth | 48 cm |
| Height | 50.5 cm |
| Weight | 10.57 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Features - NZXT - CM-H72FB-01
More Details
Product Code
03:236278
EAN Code
5056547205502
Manufacturer
NZXT
