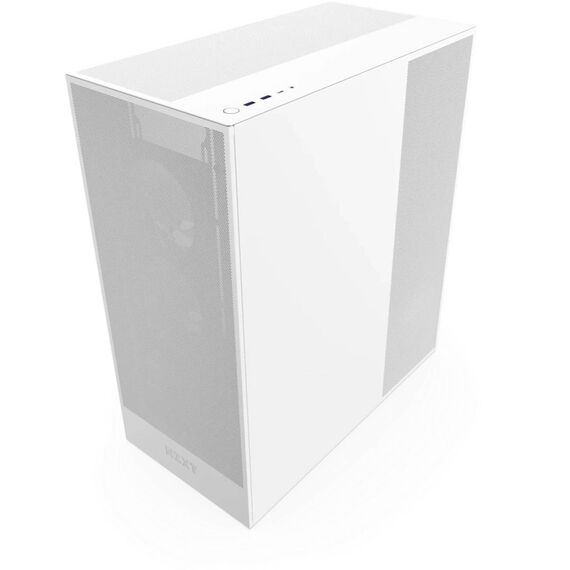

NZXT H series H7 Flow - Mid tower - ATX - windowed side panel (tempered glass) - no power supply - matt white - USB/Audio | CM-H72FW-01
Please sign in so that we can notify you about a reply
Special Fetures

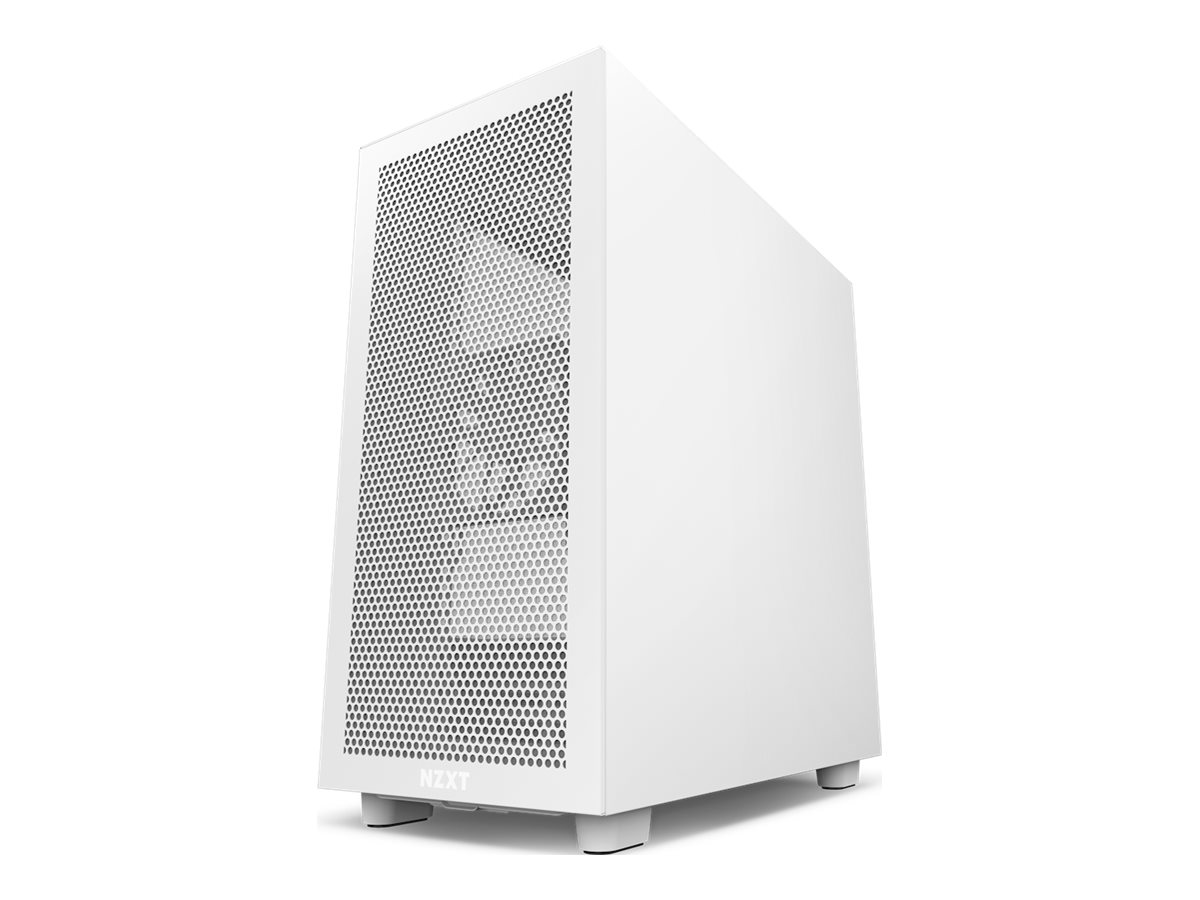

- Perforated front and top panels enable maximum thermal performance

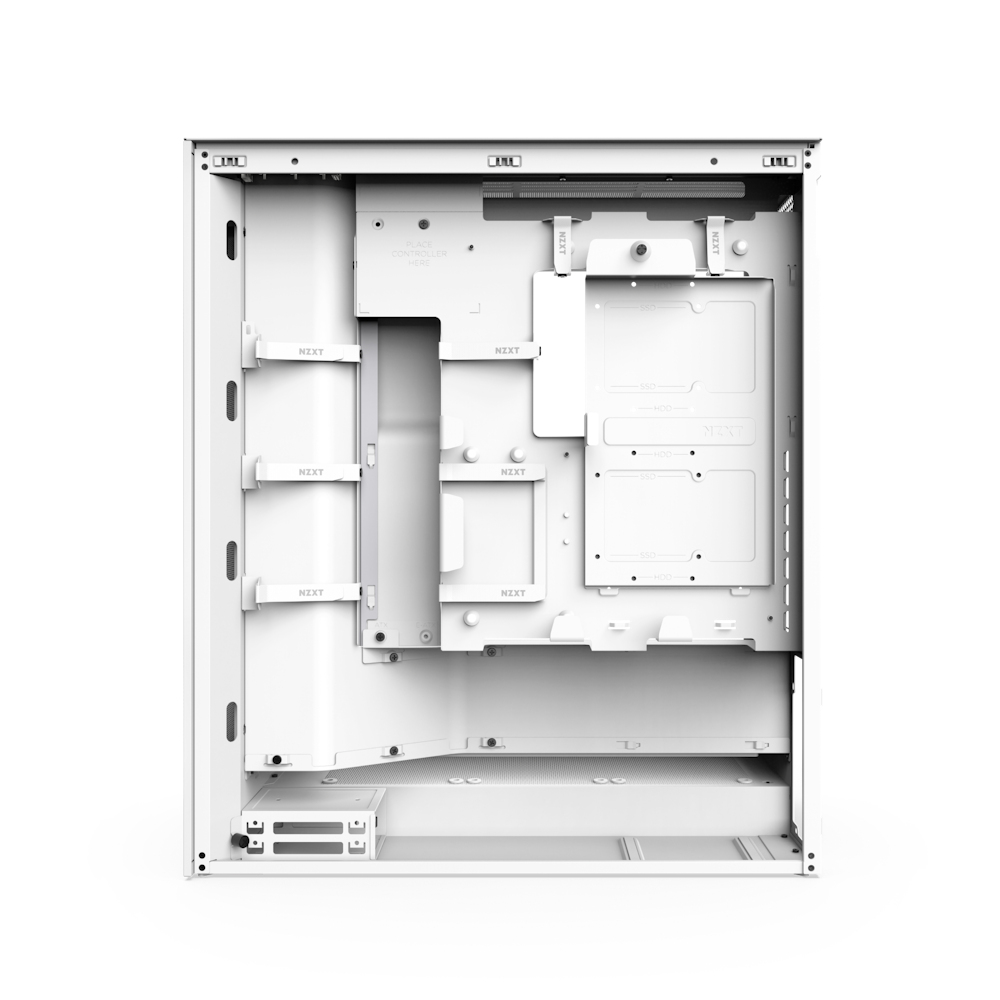

- Intuitive cable management system with wide channels, hooks, and straps

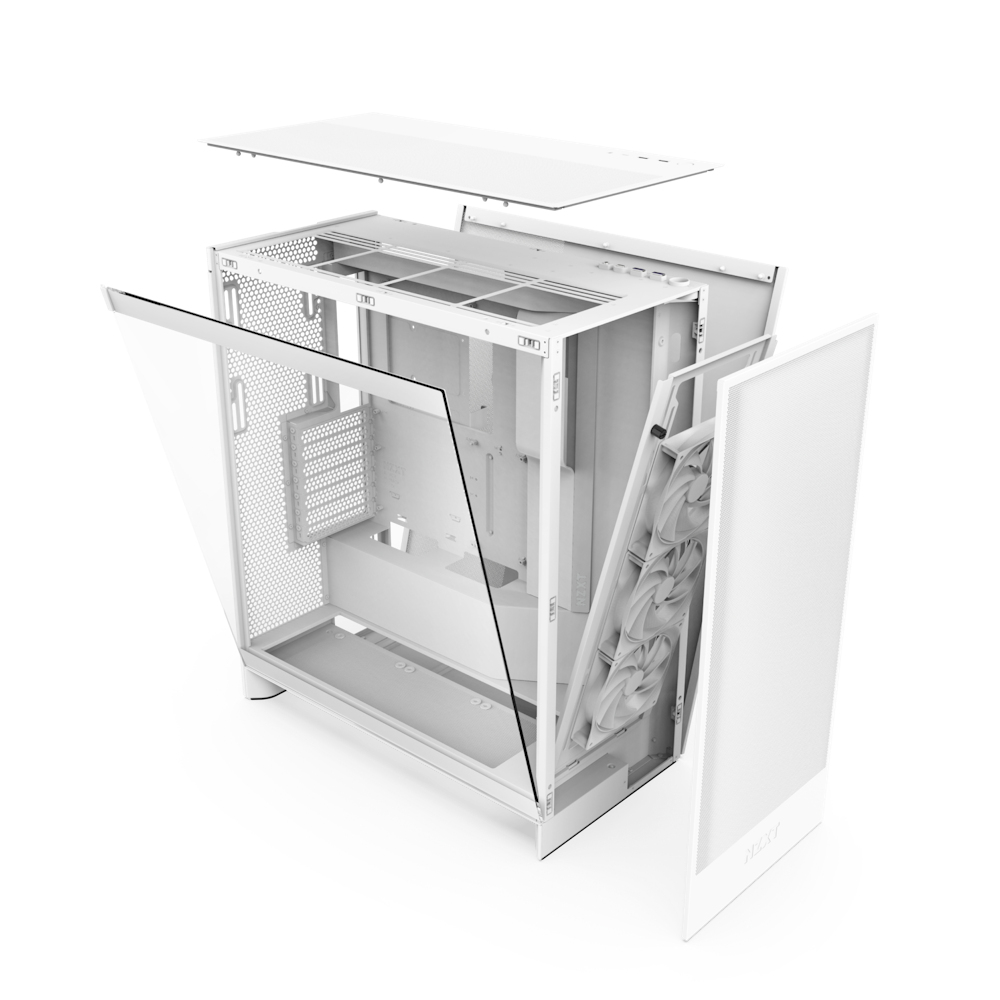

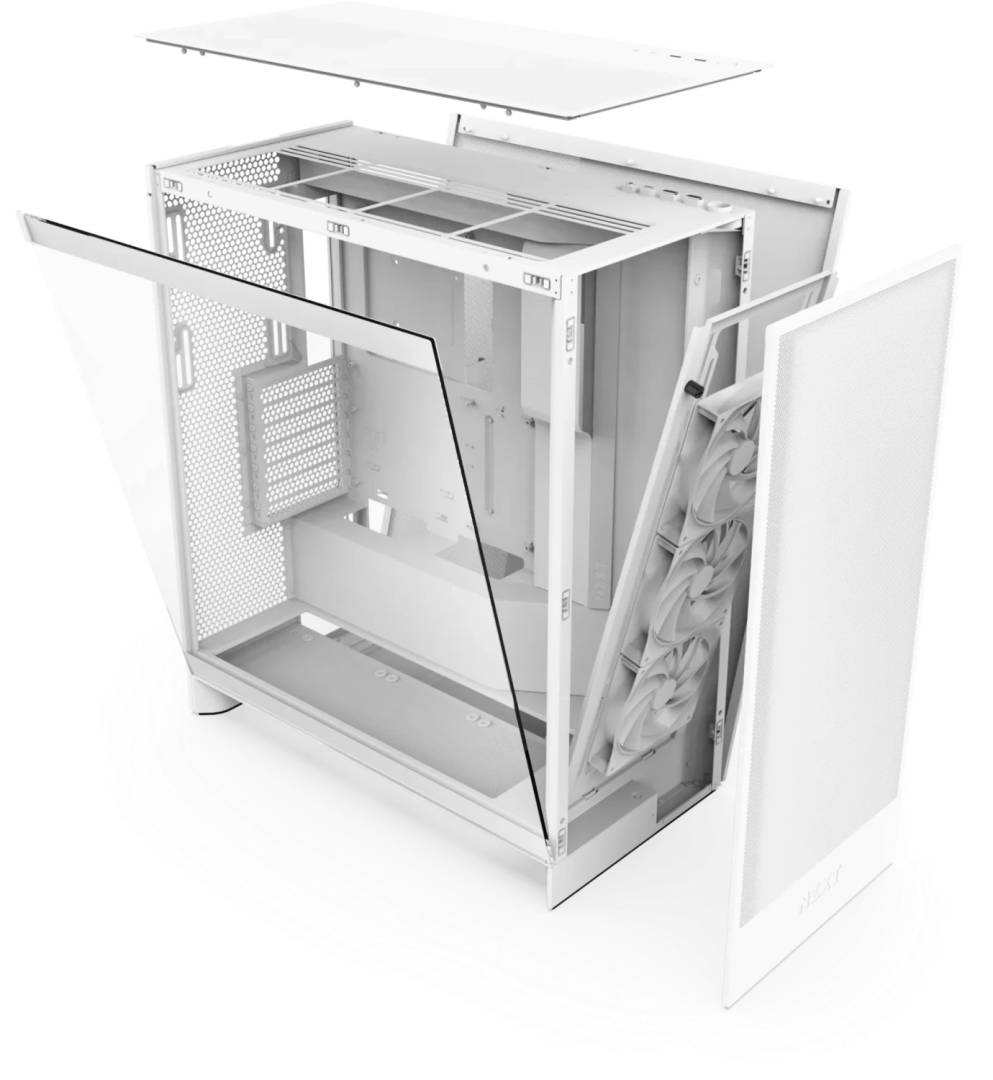

- Tool-less access to front and side panels
- Front and top support radiators up to 360 mm

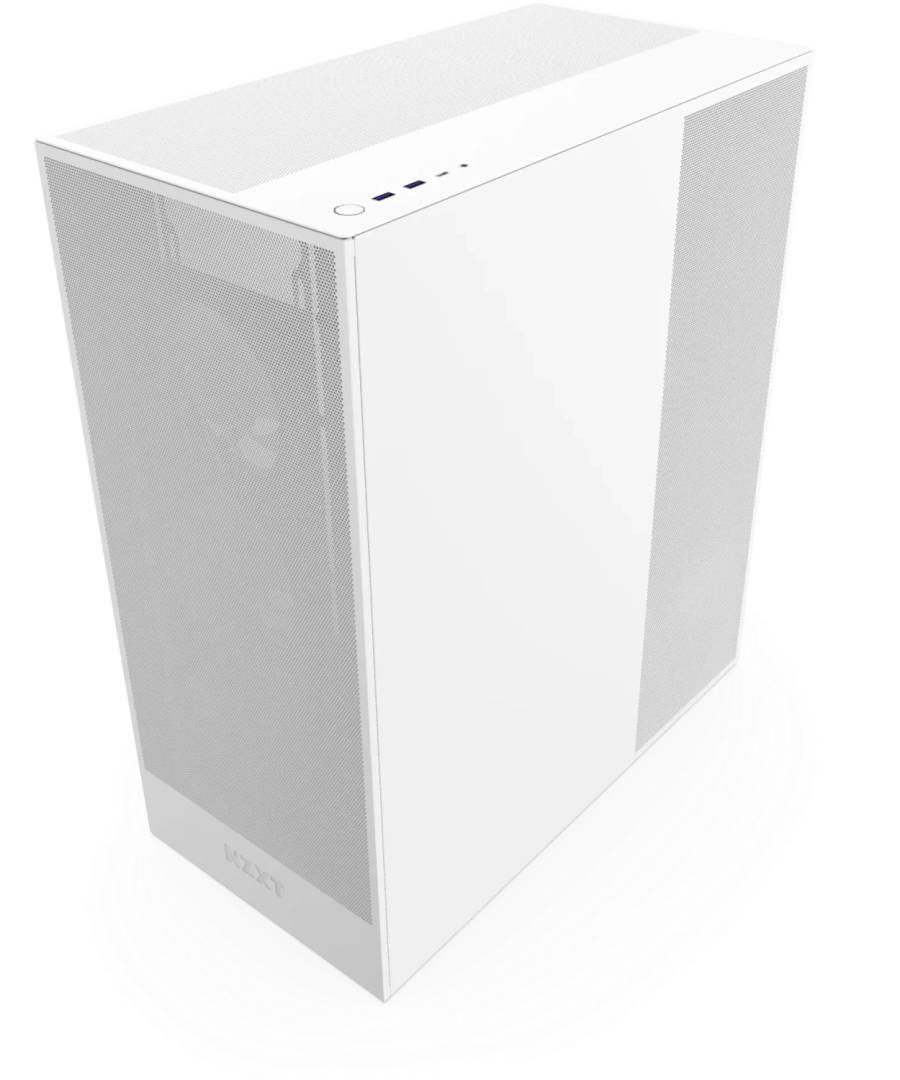

- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
Product Specification
| Form Factor | Mid tower |
| Windowed Side Panel | Yes |
| Windowed Side Panel Material | Tempered glass |
| Max Mainboard Size | ATX |
| Supported Motherboards | ATX, microATX, Mini-ITX |
| Internal Bays Qty | 8 |
| Product Material | Steel, tempered glass, SGCC |
| Colour | Matt white |
| Cooling System | Front: 120 mm fan x 1 / 1200 rpm / 62.18 cfm / 25.1 dBA / 3 x 120/140 mm fan or 360 mm radiator supported ¦ Rear: 120 mm fan x 1 / 1200 rpm / 62.18 cfm / 25.1 dBA / 1 x 120/140 mm fan or 140 mm radiator supported ¦ Top: fan mount / 3 x 120 mm or 2 x 140 mm fan supported or 1 x 360 mm radiator supported |
| CPU Cooler Max Height | 185 mm |
| Video Card Max Length | 400 mm |
| System Cabinet Features | Cable management system, tool-less side panels, tool-less front cover, perforated steel front panel, perforated steel top panel |
| Expansion / Connectivity | |
| Expansion Bays | 6 (total) / 6 (free) x internal - 2.5" ¦ 2 (total) / 2 (free) x internal - 3.5" |
| Expansion Slots | 7 |
| Interfaces | 2 x USB 3.2 Gen 1 ¦ USB-C 3.2 Gen 2 ¦ 1 x headphones - mini-jack |
| Power | |
| Power Device | No power supply |
| Dimensions & Weight | |
| Width | 23 cm |
| Depth | 48 cm |
| Height | 50.5 cm |
| Weight | 10.57 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
Features - NZXT - CM-H72FW-01
More Details
Product Code
03:236279
EAN Code
5056547205519
Manufacturer
NZXT
