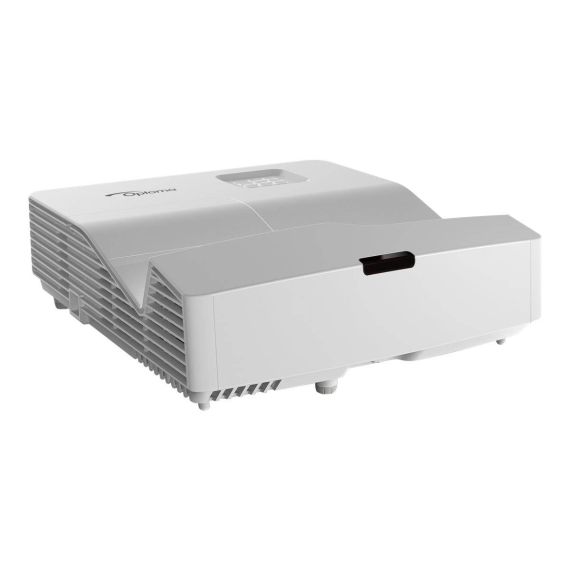

Optoma W340UST / DLP projector / 3D / 4000 lumens / WXGA (1280 x 800) / 16:10 / 720p / ultra short-throw fixed lens / LAN | E1P1A1FWE1Z2
Please sign in so that we can notify you about a reply
Product Features
- DLP technology
DLP (Digital Light Processing) is a proprietary technology from Texas Instruments that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation. - Ultra-short throw
Ultra-short throw projection enables closer placement to the wall with reduced shadows for easy presenting. The placement makes it perfect for interactive applications and education environments, too. - PC-free USB image and document viewer
Integrated PC-free image and document viewer provide direct viewing of office documents, PDFs, images and presentations from any USB storage device. - RS-232 control
Take control of the projector using HEX or ASCII commands via RS-232 cable. - Four-corner adjustment
Four-corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.
Special Features
- Bright 4000 lumens and 22,000:1 contrast ratio produce razor-sharp images
- PC-free USB image viewer and office document reader
- USB display screen mirroring with iOS and Android devices
- LAN display via Ethernet with Windows and Mac OS X
- Auto keystone and four-corner correction for robust installation
Product Specification
| Device Type | DLP projector - 720p |
| 3D Capable | Yes (3D glasses sold separately) |
| Projector | Projector |
| Microdisplay | DMD Chip |
| Brightness | 4000 lumens |
| Contrast Ratio | 22000:1 |
| Image Size | 216 cm - 292 cm |
| Projection Distance | 0.49 m - 0.66 m |
| Throw Ratio | 0.27:1 |
| Uniformity | 80 % |
| Resolution | WXGA - WXGA (1280 x 800) |
| Native Aspect Ratio | 16:10 |
| Colour Support | 1.07 billion colours |
| Max Sync Rate (V x H) | 120 Hz x 91.147 kHz |
| Bulb type | 240 Watt |
| Bulb life cycle | Up to 4000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode ¦ Up to 15000 hour(s) - Eco+ mode ¦ Up to 12000 hour(s) - dynamic mode |
| Controls & Adjustments | Keystone correction |
| Features | 6-segment colour wheel, JPEG photo playback, MP3 playback, BMP photo playback, Crestron RoomView, DOC files support, XLS files support, PDF files support, APE playback, OGG playback, FLAC playback, DOCX files support, XLSX files support, WMA playback, GIF photo playback |
| Lens | Lens |
| Type | Ultra short-throw fixed lens |
| Lens Aperture | F/2.4 |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -4 / +4 |
| Horizontal Keystone Correction | -4 / +4 |
| Video Input | Video Input |
| TV System | NTSC, SECAM, PAL |
| Video Interfaces | VGA, HDMI, composite video |
| Video Modes | 720p, 1080i, 1080p |
| Speakers | Speakers |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 16 Watt |
| Speakers | 1 x mixed channel |
| Expansion / Connectivity | Expansion / Connectivity |

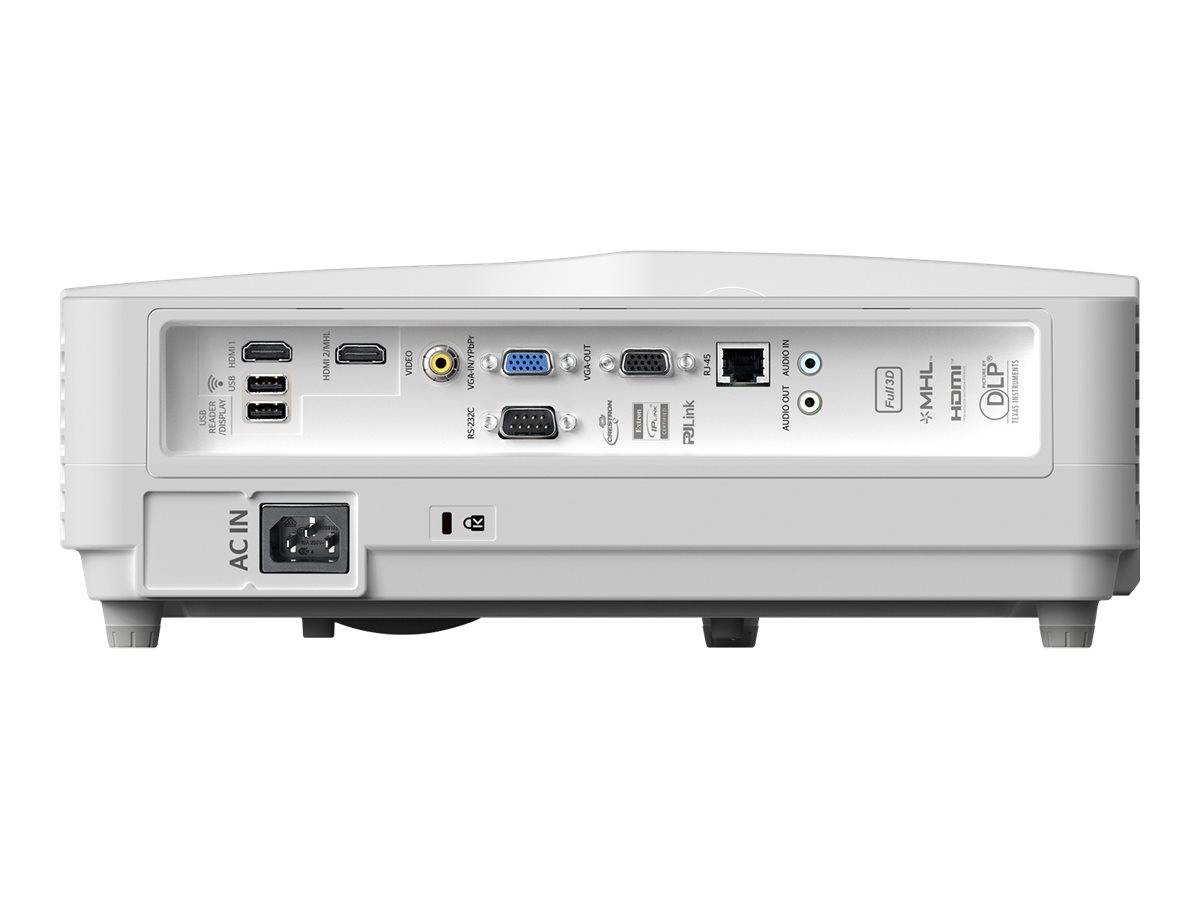

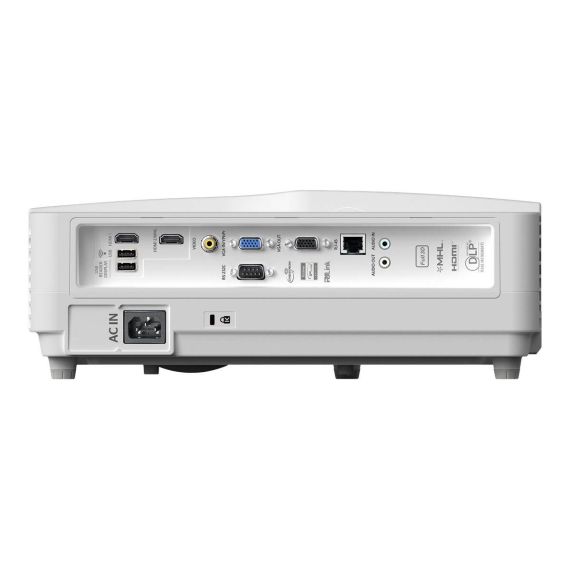

| Interfaces | 1 x HDMI - 19 pin HDMI Type A ¦ 1 x VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) (management) ¦ 2 x USB - 4 pin USB Type A ¦ 1 x Mobile High-Definition Link (MHL) / HDMI - 19 pin HDMI Type A ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x network - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wireless remote control, battery for remote control |
| Security Features | Security lock slot (cable lock sold separately), security bar, keypad lock |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS |
| Power | Power |
| Power Source | AC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 275 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 34.3 cm |
| Depth | 38.3 cm |
| Height | 11.2 cm |
| Weight | 3.9 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 5.7 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 85% |
| Sound Emission (Economic Mode) | 25 dB |
Features - Optoma - E1P1A1FWE1Z2
More Details
Product Code
07:126801
EAN Code
5055387664463
Manufacturer
Optoma
