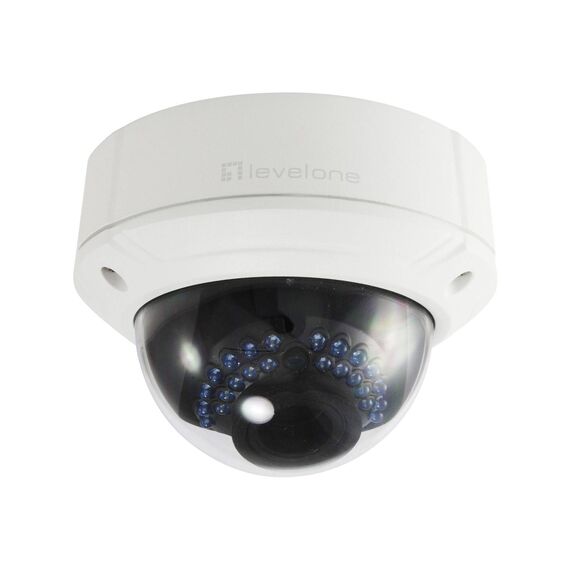

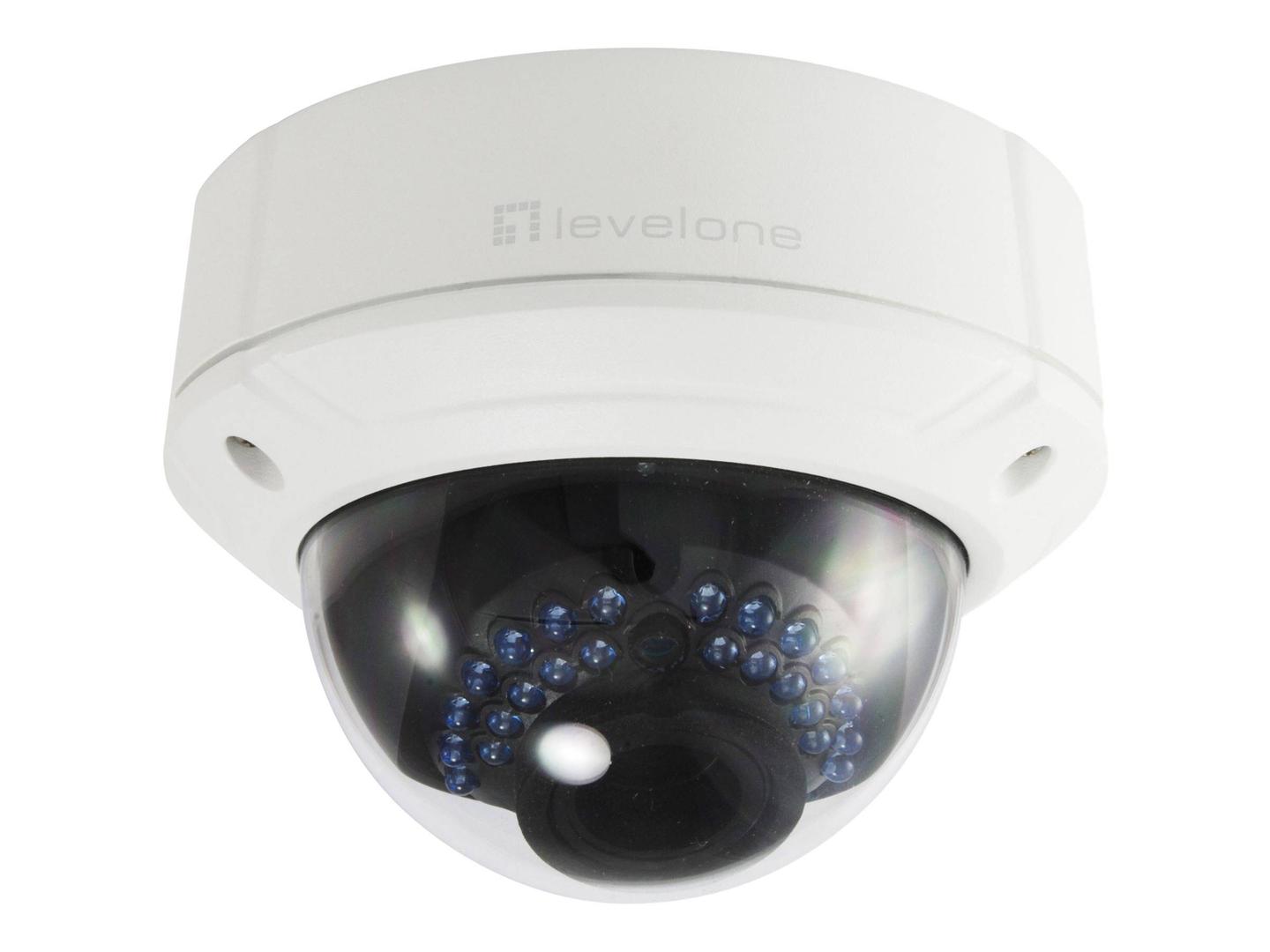

LevelOne FCS-3085 / Network surveillance camera / dome / outdoor / vandal / weatherproof / colour (Day&Night) / 4 MP / 2688 x 1520 / motorized / audio / LAN 10/100 / MJPEG, H.264 / DC 12 V / PoE | FCS-3085
Please sign in so that we can notify you about a reply
Special Features
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Built-in infrared LEDs for night viewing up to 30 m
- Removable IR-cut filter for day and night surveillance
- Compression: H.264/MJPEG
- Power support: PoE (IEEE 802.3af)
Product Specification
| Device Type | Network surveillance camera |
| Audio Support | Yes: two-way audio capability |
| Form Factor | Dome |
| Connectivity Technology | Wired |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor - vandal / weatherproof |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 2688 x 1520 |
| Motion Detection | Yes |
| Exposure Range | 1/3 sec - 1/10000 sec |
| Minimum Illumination | 0.01 lux F1.2 - AGC on ¦ 0.014 lux F1.4 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Video Capture | 2688 x 1520 @ 20 fps ¦ 1920 x 1080 @ 30 fps ¦ 1280 x 720 @ 30 fps |
| Features | Sharpness control, progressive scanning, saturation control, brightness control, Power over Ethernet, contrast control, image mirror, Wide Dynamic Range (WDR), ONVIF support, Motion Detection Technology, infrared cut filter, Privacy Mask Function, PSIA, reset button, password protection, microSD/SDHC/SDXC Memory Card slot, intrusion detection |
| Image Sensor | Image Sensor |
| Type | 4 MP CMOS 1/3" |
| Lens Construction | Lens Construction |
| Type | Motorized zoom |
| Optical Zoom | 4.3 x |
| Focal Length | 2.8 mm - 12 mm |
| Lens Iris | F/1.4 |
| Horizontal Field of View (degree) | 33.8 - 112 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, RTCP, PPPoE, IGMP, QOS |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power - RJ-45 ¦ Audio line in ¦ Audio line out |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit |
| Compliant Standards | FCC, IEC 60068-2-75, IK10, IP66, EN 50102 |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 5.5 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-3085
More Details
Product Code
04:219067
EAN Code
4015867199237
Manufacturer
LevelOne
