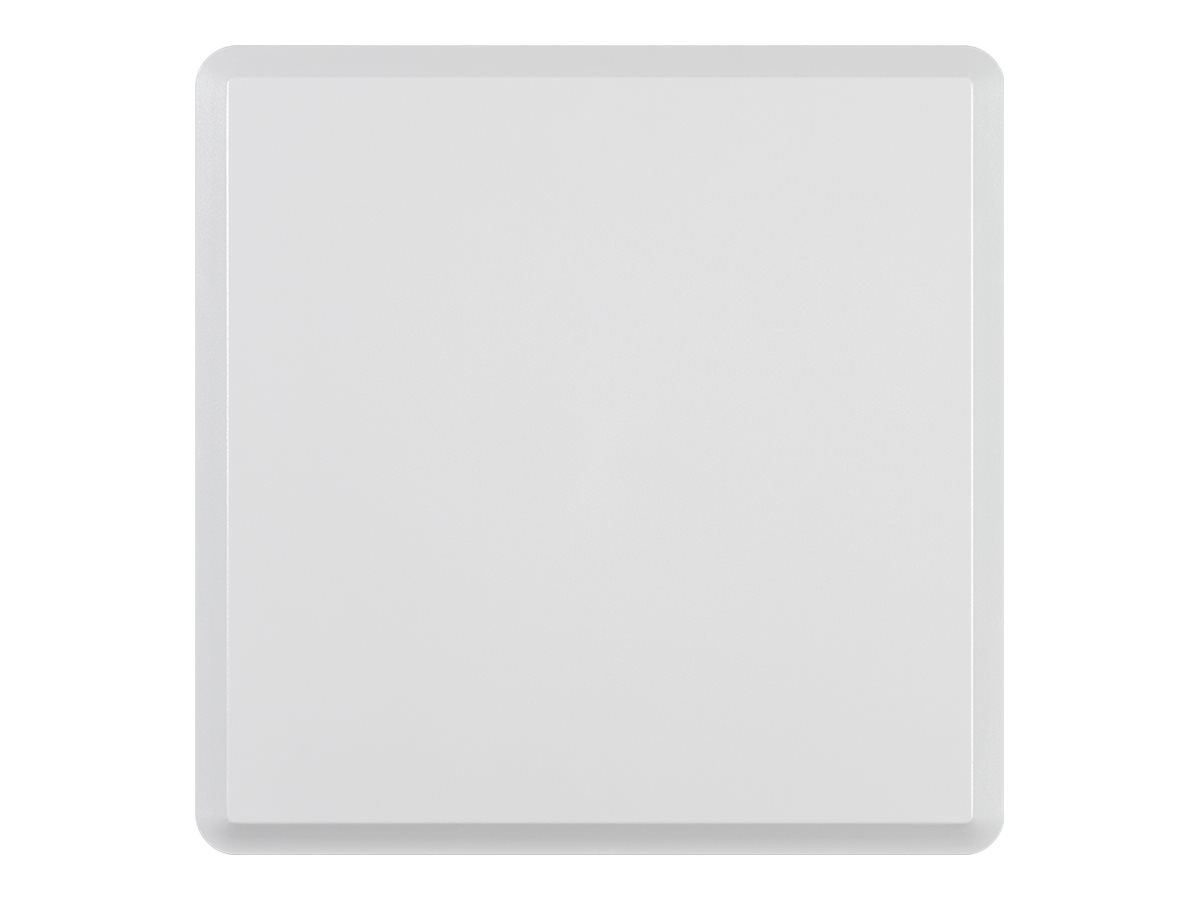

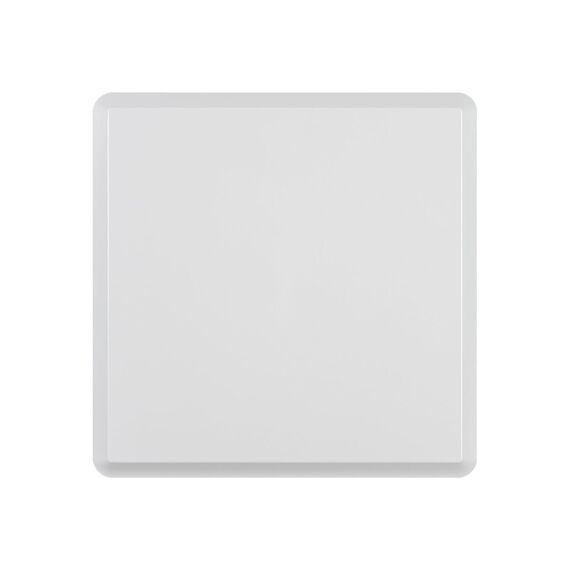

LANCOM AirLancer ON-Q30 / Antenna / 30°, 4x4 MIMO / sector / Wi-Fi / 10 dBi (for 2.4 GHz), 10 dBi (for 5 GHz) / outdoor, wall-mountable, pole mount / light grey | 61266
Please sign in so that we can notify you about a reply
Product Features
- Robust design
Crafted for durability, the LANCOM AirLancer ON-Q30 features a UV-resistant and weatherproof plastic construction, ensuring it stands up to harsh environmental conditions without compromising performance. - Versatile mounting options
With options for outdoor, pole, and wall mounting, this antenna offers flexible installation solutions to meet diverse setup requirements, making it an ideal choice for various Wi-Fi deployment scenarios. - Enhanced connectivity
Equipped with a 4x4 MIMO function, the ON-Q30 improves signal quality and bandwidth, providing a more reliable and efficient wireless communication experience. - Optimized performance
The antenna operates across a wide frequency range with a 10 dBi gain for both 2.4 GHz and 5 GHz bands, coupled with a precise 30° horizontal and vertical beamwidth, optimizing Wi-Fi coverage and signal strength.
Special Features
- UV-resistant and weatherproof construction for durability in any environment
- Flexible installation with outdoor, pole, and wall-mounting options
- 4x4 MIMO function for improved signal quality and bandwidth
- Dual-band operation with 10 dBi gain for enhanced Wi-Fi coverage
- Includes a mounting kit for easy setup
Product Specification
| Product Type | Antenna - 30°, 4x4 MIMO |
| Product Material | Plastic |
| Width | 37 cm |
| Depth | 37 cm |
| Height | 3 cm |
| Weight | 2.2 kg |
| Cable Length | 1 m |
| Enclosure Colour | Light grey |
| Aerial | Aerial |
| Form Factor | Sector |
| Intended For | Wi-Fi |
| Aerial Placing / Mounting | Outdoor, wall-mountable, pole mount |
| Frequency Range | 2.4 - 2.5 GHz, 4.9 - 5.875 GHz |
| Gain | 10 dBi (for 2.4 GHz), 10 dBi (for 5 GHz) |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 - 2.0:1 |
| Horizontal Beamwidth | 30° |
| Vertical Beamwidth | 30° |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 4 x N connector plug |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Features | Weatherproof, 4x4 MiMo function, UV-resistant |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
Features - Lancom Systems - 61266
More Details
Product Code
04:469031
EAN Code
4044144612664
Manufacturer
Lancom Systems
