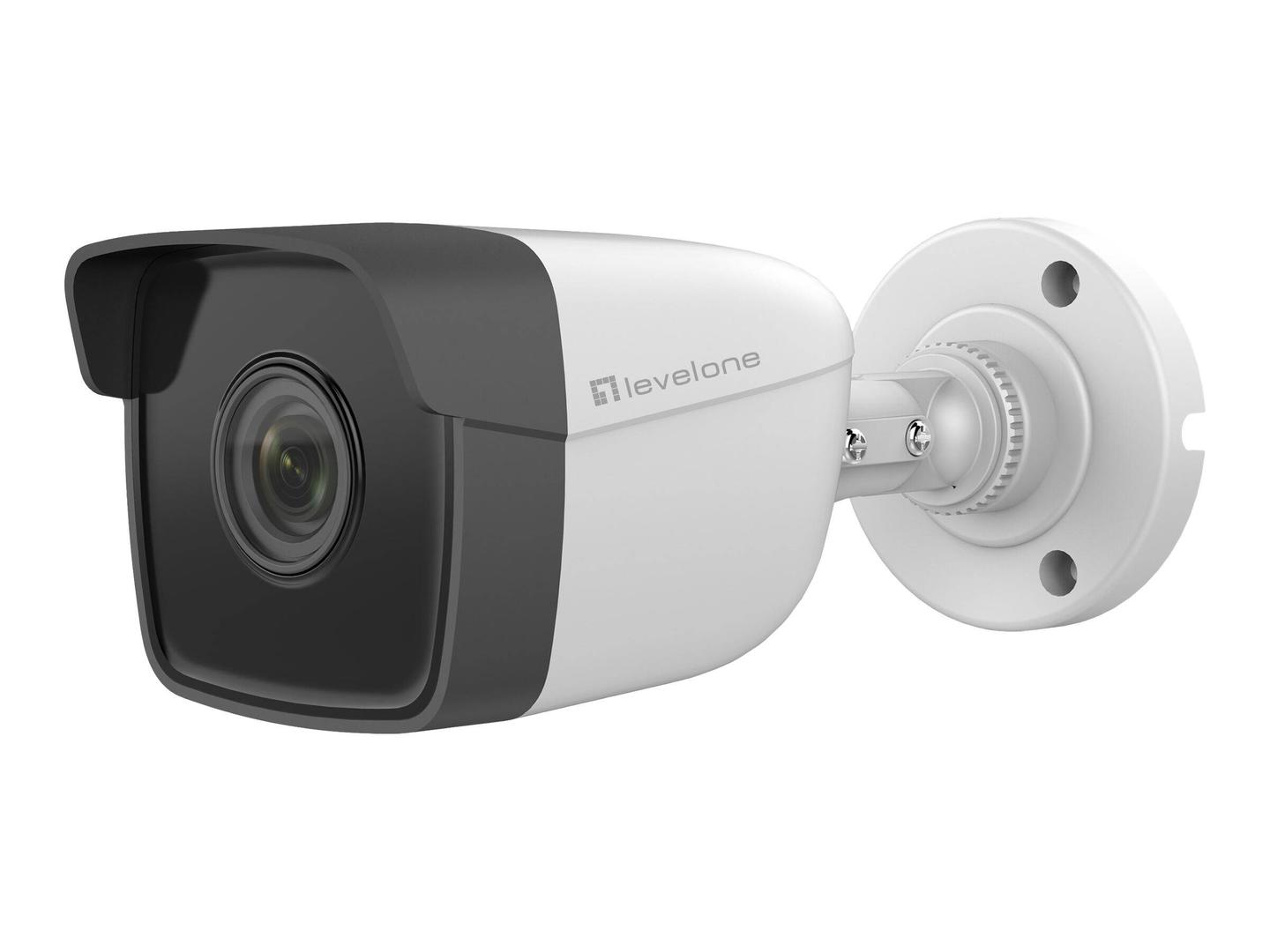

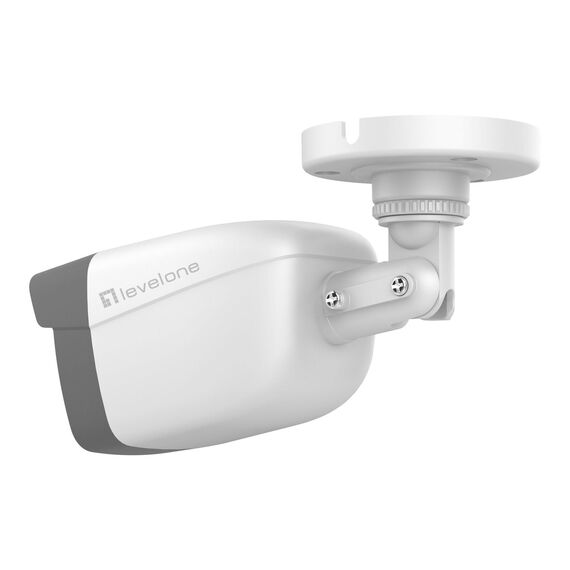

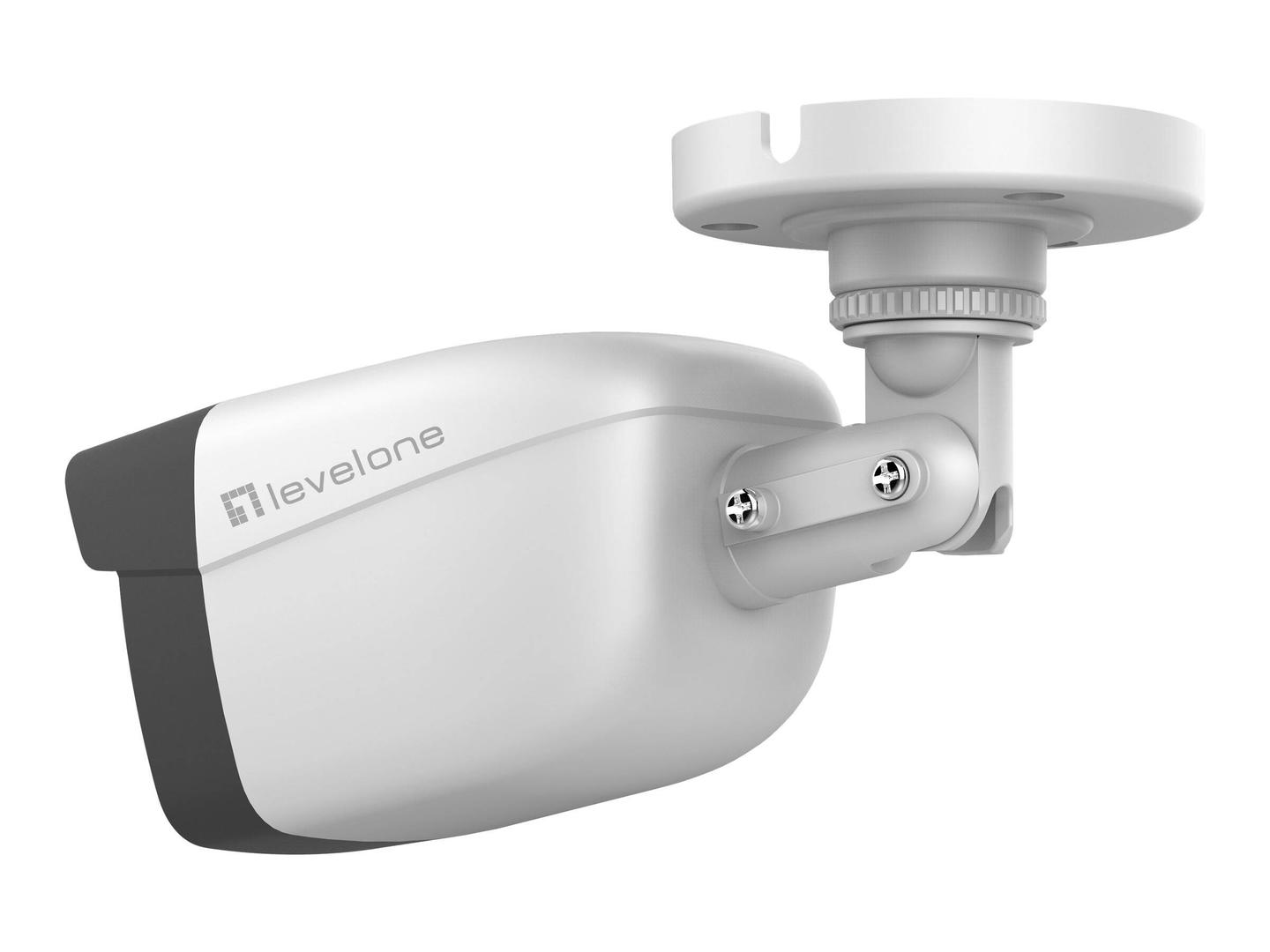

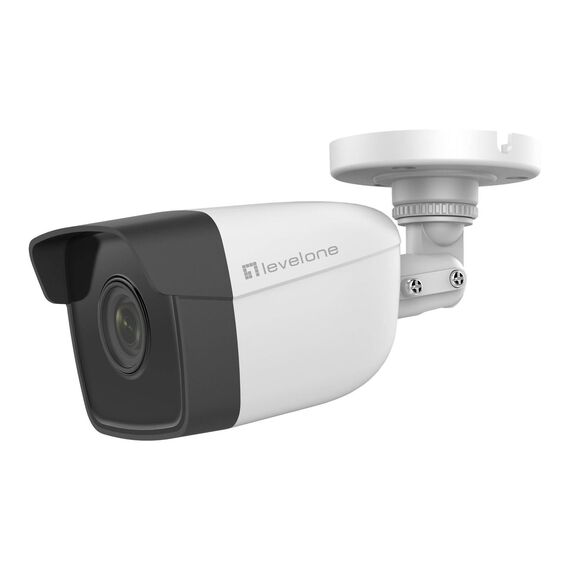

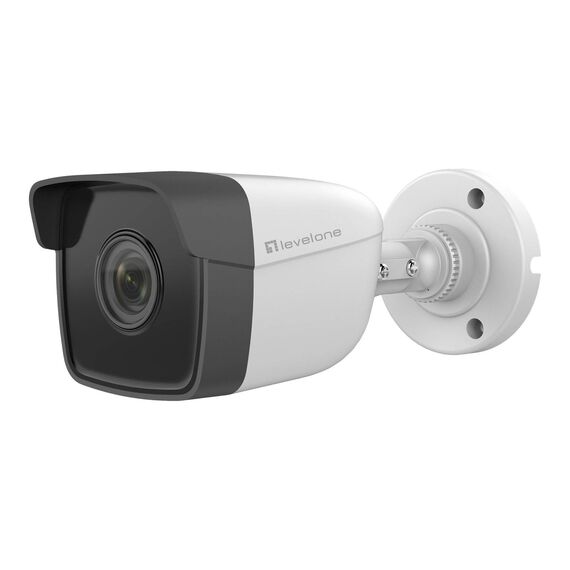

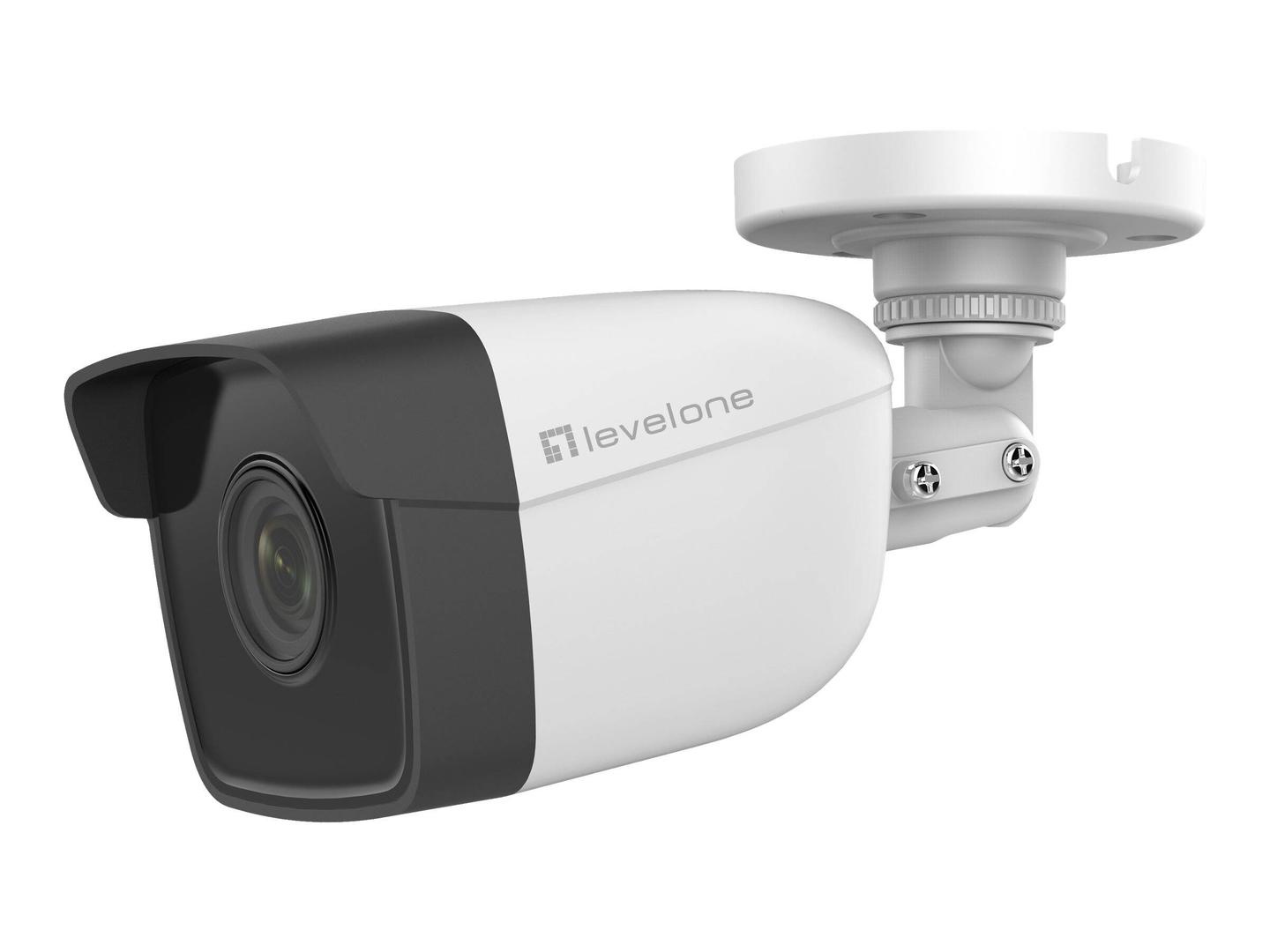

LevelOne GEMINI series FCS-5201 - Network surveillance camera - outdoor, indoor - weatherproof - colour (Day&Night) - 2 MP - 1920 x 1080 - board mount - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE | FCS-5201
Please sign in so that we can notify you about a reply
Special Fetures
- High-definition resolution
- Removable IR-cut filter for day and night surveillance
- Built-in infrared LEDs for night viewing
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 7 cm |
| Depth | 17.27 cm |
| Height | 7 cm |
| Weight | 280 g |
| Camera | |
| Type | Colour - Day&Night - fixed - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264, H.265 |
| Max Digital Video Resolution | 1920 x 1080 |
| Motion Detection | Yes |
| Digital Zoom | 8 |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Infrared LEDs | Yes |
| Infrared Distance | 30 m |
| Digital Video Capture Resolution | 1280 x 720, 640 x 480, 1280 x 960, 320 x 240, 1920 x 1080, 640 x 360 |
| Frame Rate (max) | 60 frames per second |
| Features | Backlight Compensation (BLC), sharpness control, white balance, progressive scanning, saturation control, brightness control, contrast control, image mirror, infrared cut filter, Privacy Mask Function, active tampering alarm, password protection, Region of Interest (ROI), auto gain control, ONVIF (Profile S) support, ONVIF (Profile G) support, watermark, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), 3D digital noise reduction (DNR) |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Lens Construction | |
| Type | Board mount |
| Focal Length | 4 mm |
| Lens Iris | F/2.0 |
| Horizontal Field of View (degree) | 83.6 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DHCP, FTP, HTTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, IGMP, QOS |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, IP67, IEEE 802.3af |
| Colour | White |
| Power | |
| Power Requirements | DC 12 V / PoE |
| Power Device | 7 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 50 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - LevelOne - FCS-5201
More Details
Product Code
04:467582
EAN Code
4015867207734
Manufacturer
LevelOne
