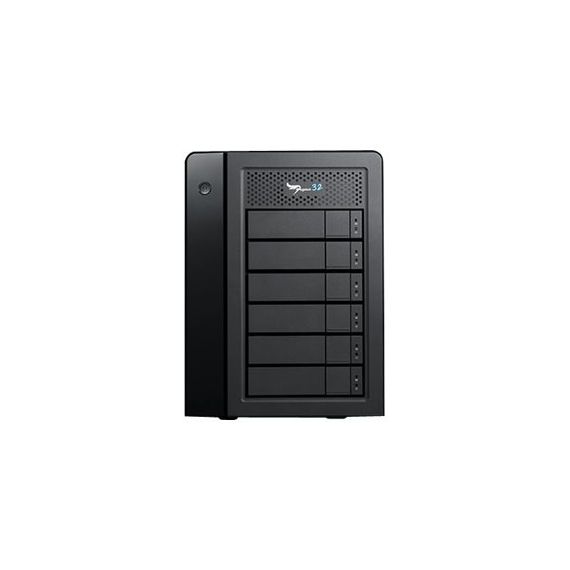

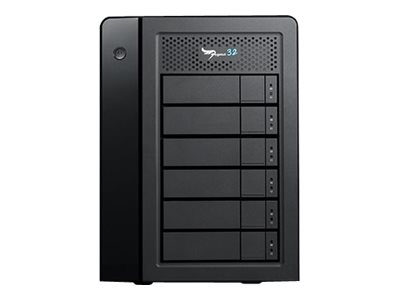

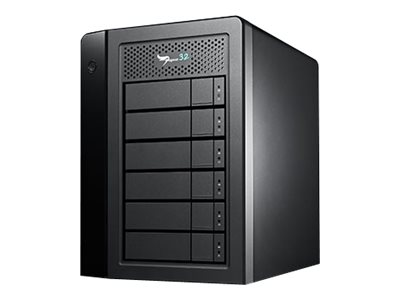

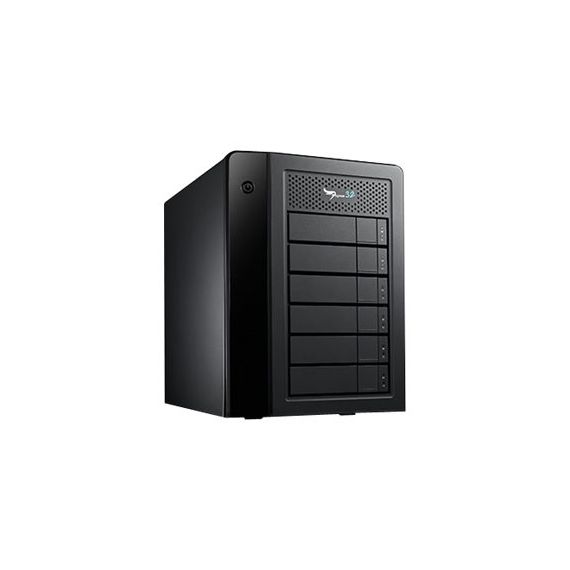

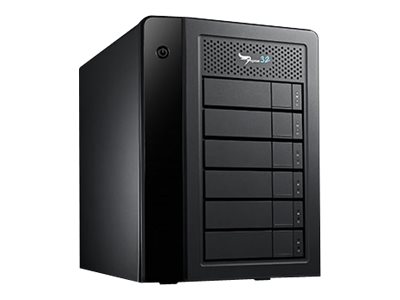

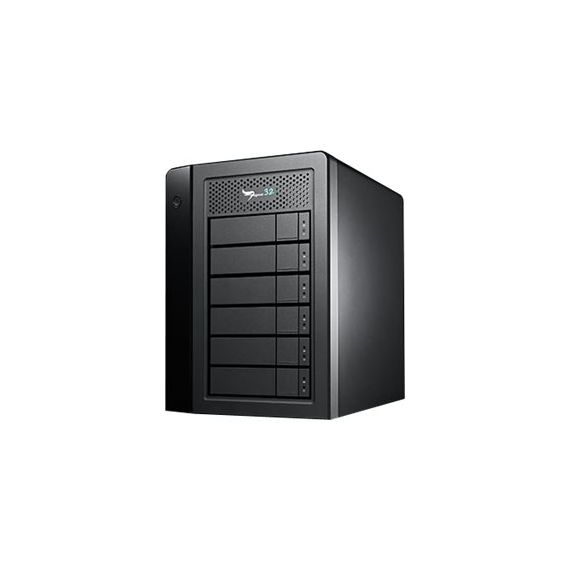

Promise Pegasus32 R6 - Hard drive array - 48 TB - 6 bays (SATA-600) - HDD 8 TB x 6 - Thunderbolt 3, USB 3.2 Gen 2 (external) | F40P2R600000003
F40P2R600000003
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Hard drive array |
| Chassis | |
| Built-in Devices | Led panel |
| Installed Devices / Modules Qty | 6 |
| Supported Devices / Modules Qty | 6 |
| Supported Drives | SATA-600 |
| Storage | |
| Total Array Capacity | 48 TB |
| Max Supported Capacity | 84 TB |
| HDD Array External Interface | Thunderbolt 3, USB 3.2 Gen 2 |
| Processor | |
| CPU | 1 x 8067 |
| RAM | |
| Installed Size | 1 GB |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 1E |
| Hard Drive | |
| Type | HDD - hot-swap |
| Capacity | 6 x 8 TB |
| Interface Type | SATA 6Gb/s |
| Spindle Speed | 7200 rpm |
| Expansion / Connectivity | |
| Expansion Bays | 6 (total) / 0 (free) x hot-swap - 3.5" |

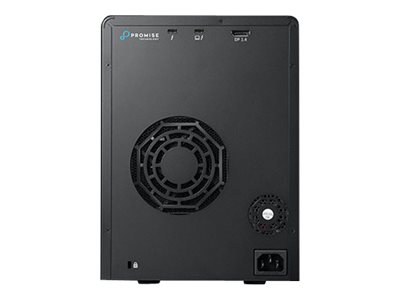

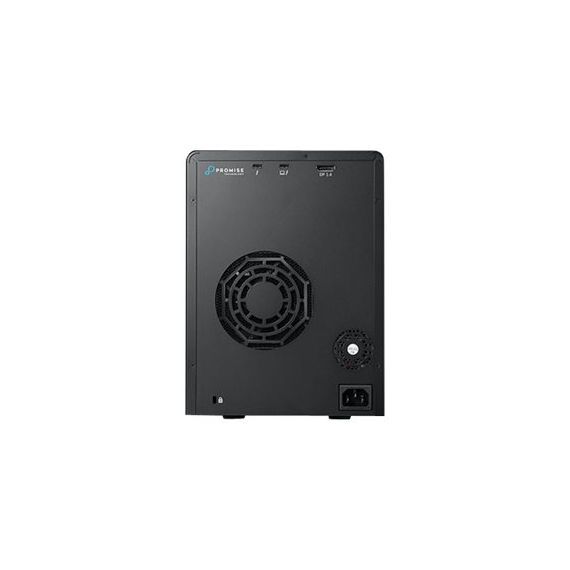

| Interfaces | 2 x Thunderbolt 3 / USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x DisplayPort - 20 pin DisplayPort |
| System Requirements | |
| OS Required | Windows 10 64-bit Edition, Apple macOS 10.14 or later |
| Miscellaneous | |
| Features | Built-in cooling fan, daisy chaining support, kensington security slot |
| Cables Included | 1 x Thunderbolt 3 / USB-C cable - 70 cm |
| Compliant Standards | TUV, VCCI, BSMI, ICES-003 Class B, FCC, cTUVus, RCM, MSIP, RoHS 2011/65/EU, BIS, EMC 2014/30/EU, LVD 2014/35/EU, SPRING, DisplayPort 1.4 |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 250 Watt |
| 80 PLUS Certification | 80 PLUS Bronze |
| Dimensions & Weight | |
| Width | 18.7 cm |
| Depth | 24.5 cm |
| Height | 25.1 cm |
| Weight | 9.1 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Promise Technology - F40P2R600000003
More Details
Product Code
S351192
EAN Code
0704118154432
Manufacturer
Promise Technology
