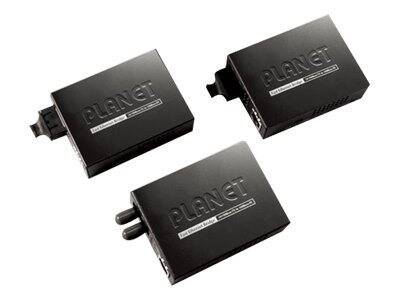

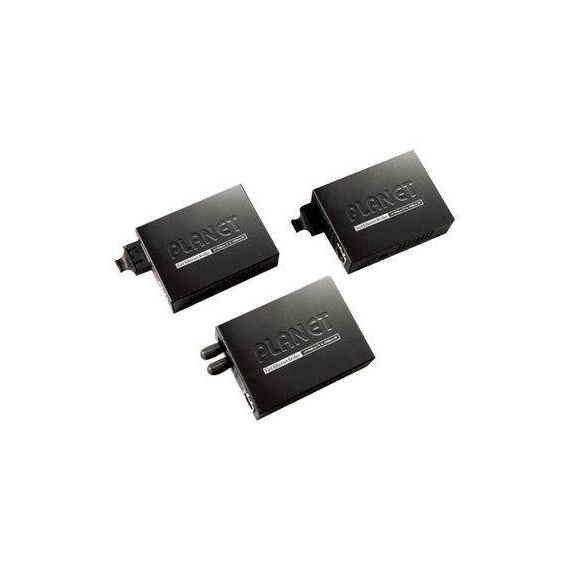

PLANET FT-802S50 / Fibre media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / SC single-mode / up to 50 km / 1310 nm | FT-802S50
Please sign in so that we can notify you about a reply
Special Features
- Comply with IEEE802.3, IEEE802.3u 10/100Base-TX, 100Base-FX standard
- Connectors: one RJ-45 (auto-MDI / MDI-X) twisted pair, EIA568
- One fiber-optic, 1310 nm wavelength, connector-type and distance vary with model
- LED indicators
- DIP-switch: 2 DIP-switches
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 50 km |
| Status Indicators | Collision status, power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), Link Fault Pass Through function (LFP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x Ethernet 100Base-FX - SC single-mode x 2 |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 9.7 cm |
| Depth | 6.9 cm |
| Height | 2.6 cm |
| Weight | 200 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
Features - Planet - FT-802S50
More Details
Product Code
04:247685
EAN Code
4711213680564
Manufacturer
Planet
