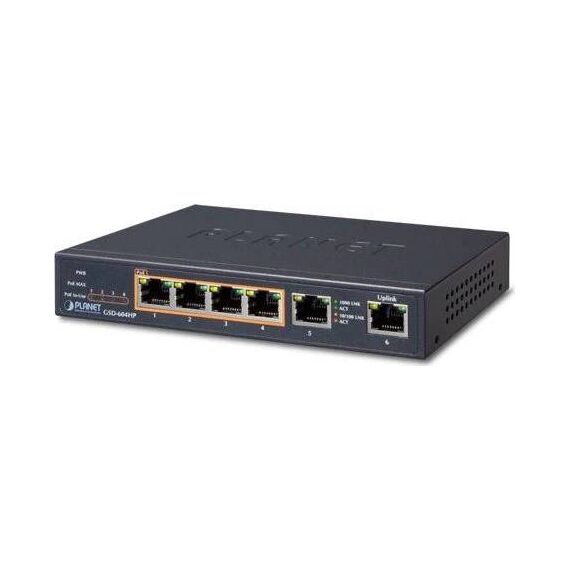

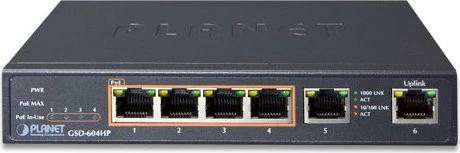

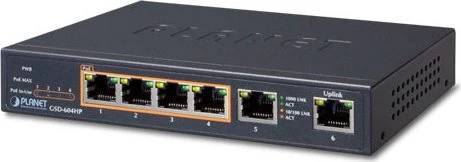

PLANET GSD-604HP - Switch - 4 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) - desktop - PoE+ (55 W) | GSD-604HP
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 6 ports |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 55 W |
| Performance | Switch fabric speed: 12 Gbps ¦ Switching throughput: 8.92 Mpps |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Jumbo Frames support, fanless, short circuit protection, loop prevention, 6KV ESD Protector, Back Pressure Support, port-based VLAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at |
| Status Indicators | Power, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 uplink |
| Power | |
| Power Device | External power adapter |
| Power Consumption Operational | 60 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified |
| Dimensions & Weight | |
| Width | 16 cm |
| Depth | 92.5 cm |
| Height | 2.8 cm |
| Weight | 374 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -10 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Planet - GSD-604HP
More Details
Product Code
04:247878
EAN Code
4711605281546
