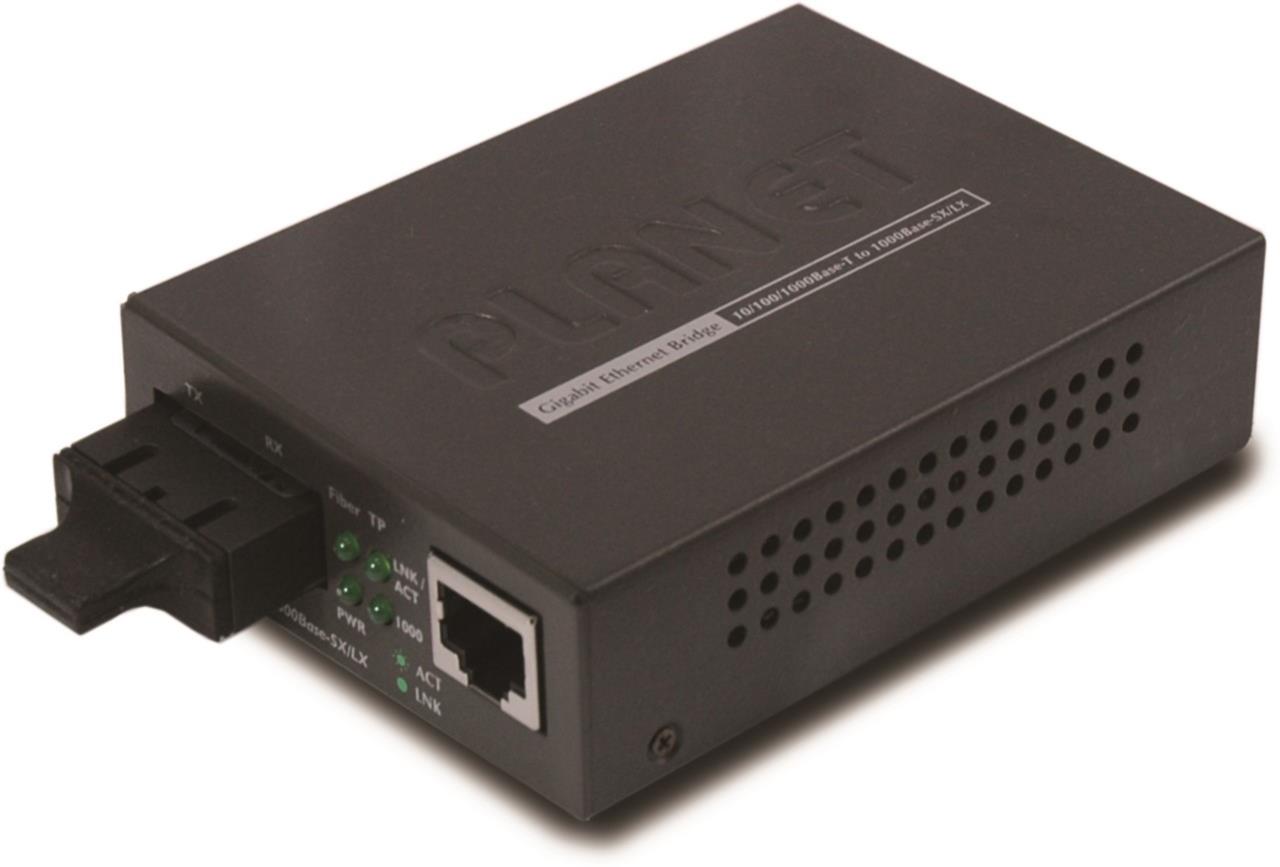

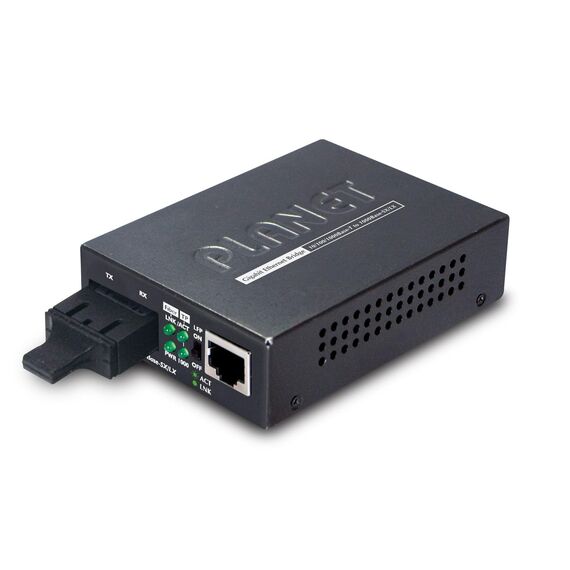

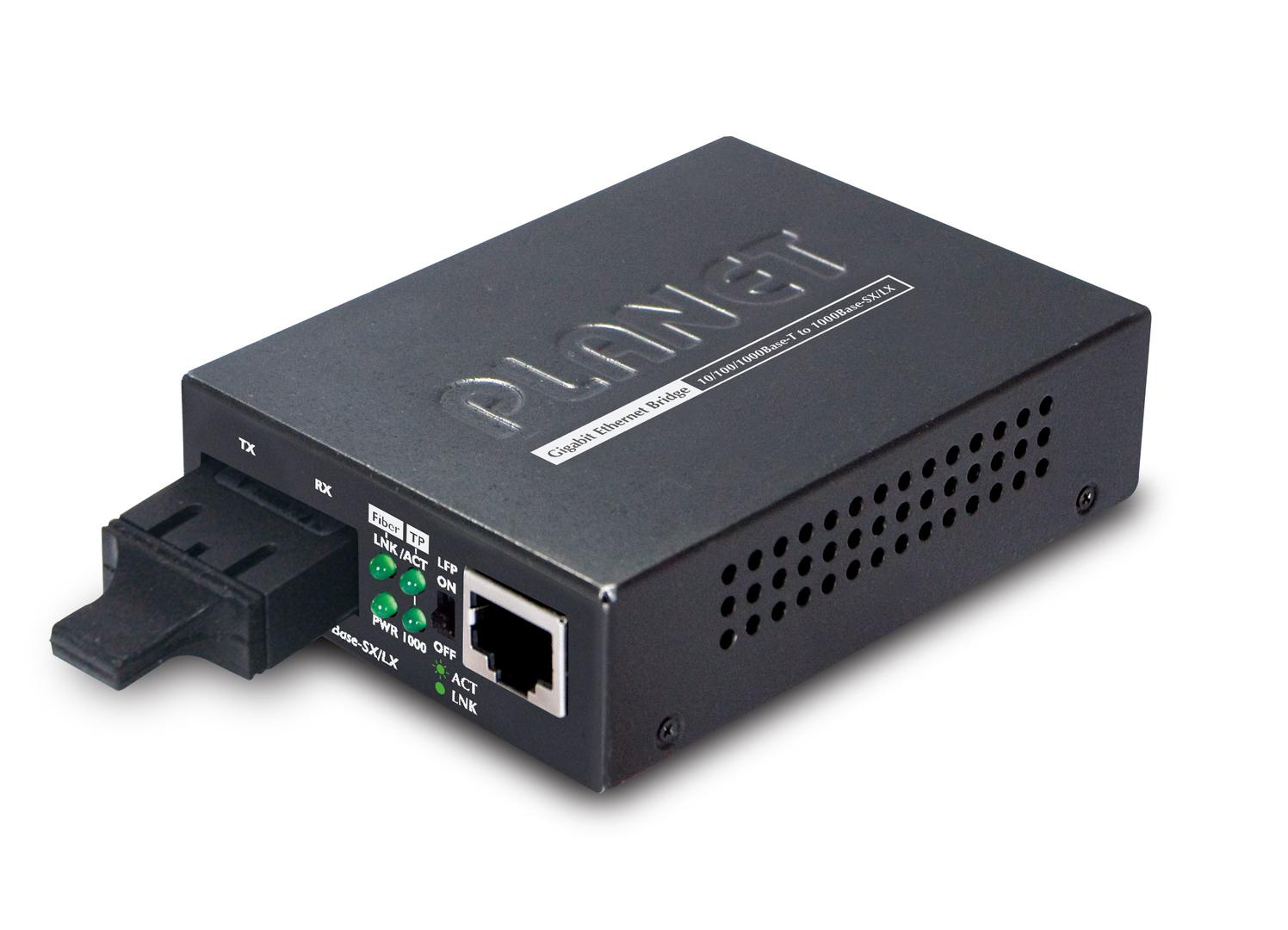

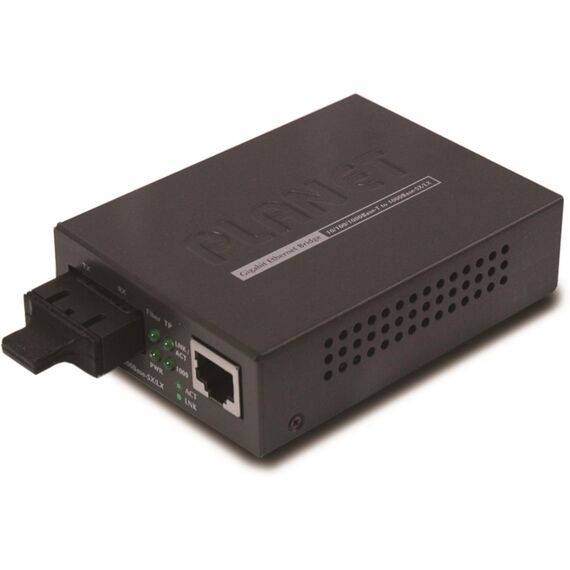

PLANET GT-802S - Fibre media converter - 1GbE - 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T - RJ-45 / SC single-mode - up to 10 km - 1310 nm | GT-802S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX - SC single-mode x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified |
| Power | |
| Power Consumption Operational | 5.6 Watt |
| Dimensions & Weight | |
| Width | 9.7 cm |
| Depth | 6.9 cm |
| Height | 2.6 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
Features - Planet - GT-802S
More Details
Product Code
04:247701
EAN Code
4711213686214
Manufacturer
Planet
