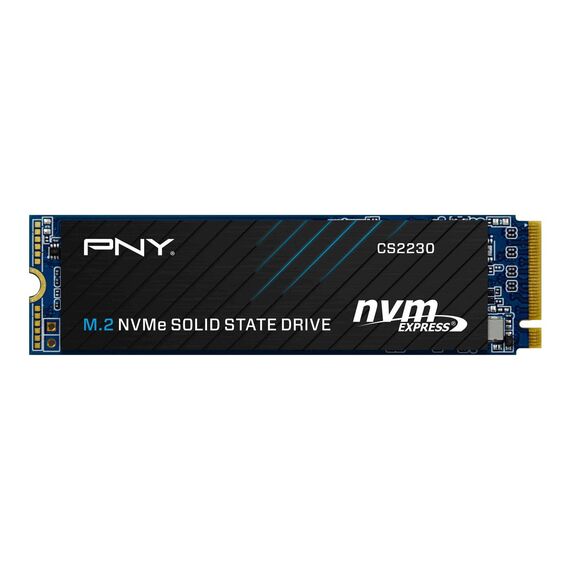

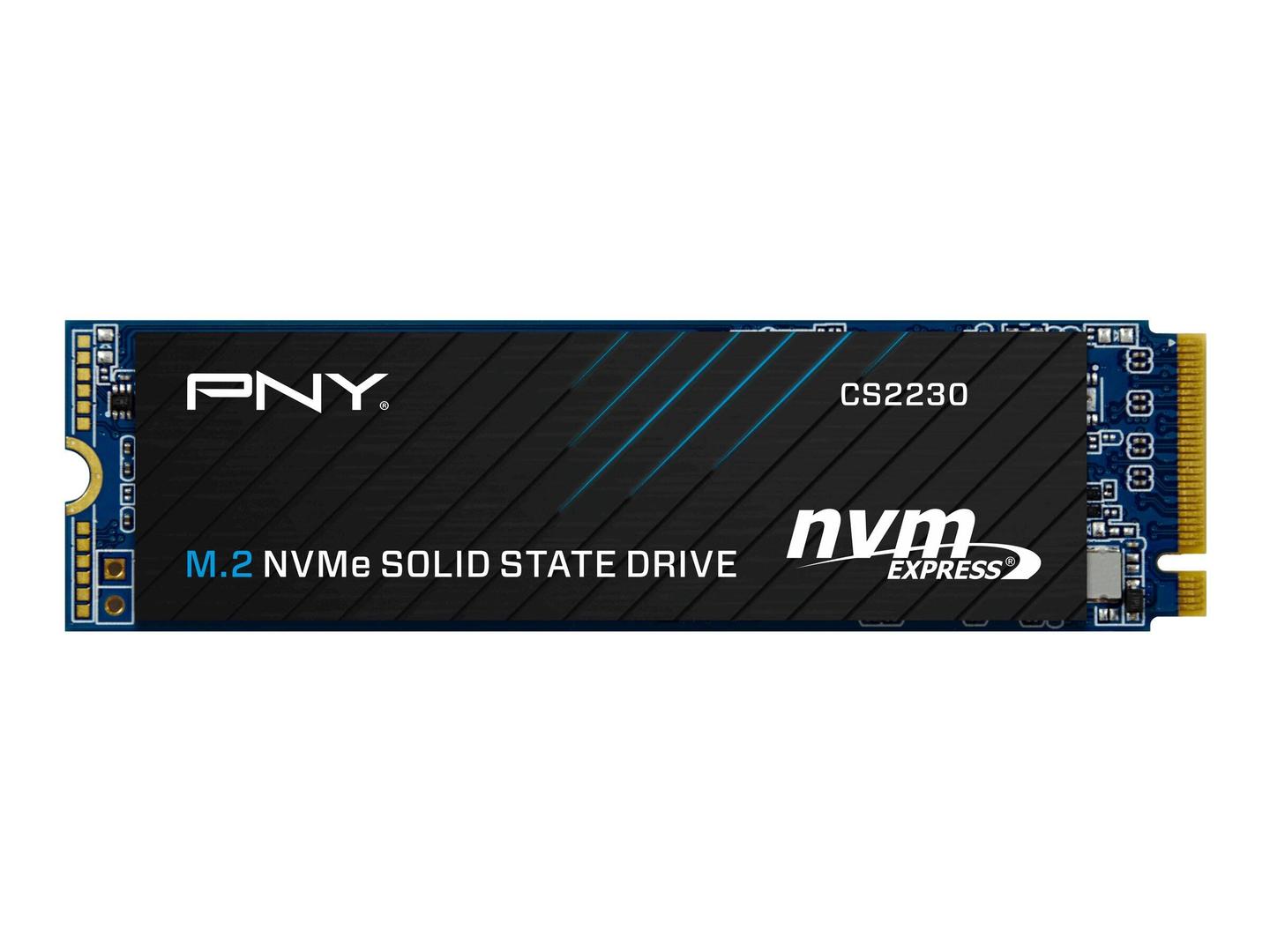

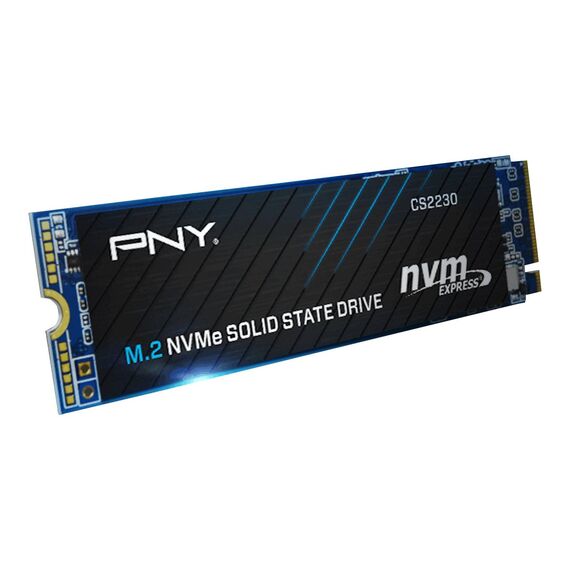

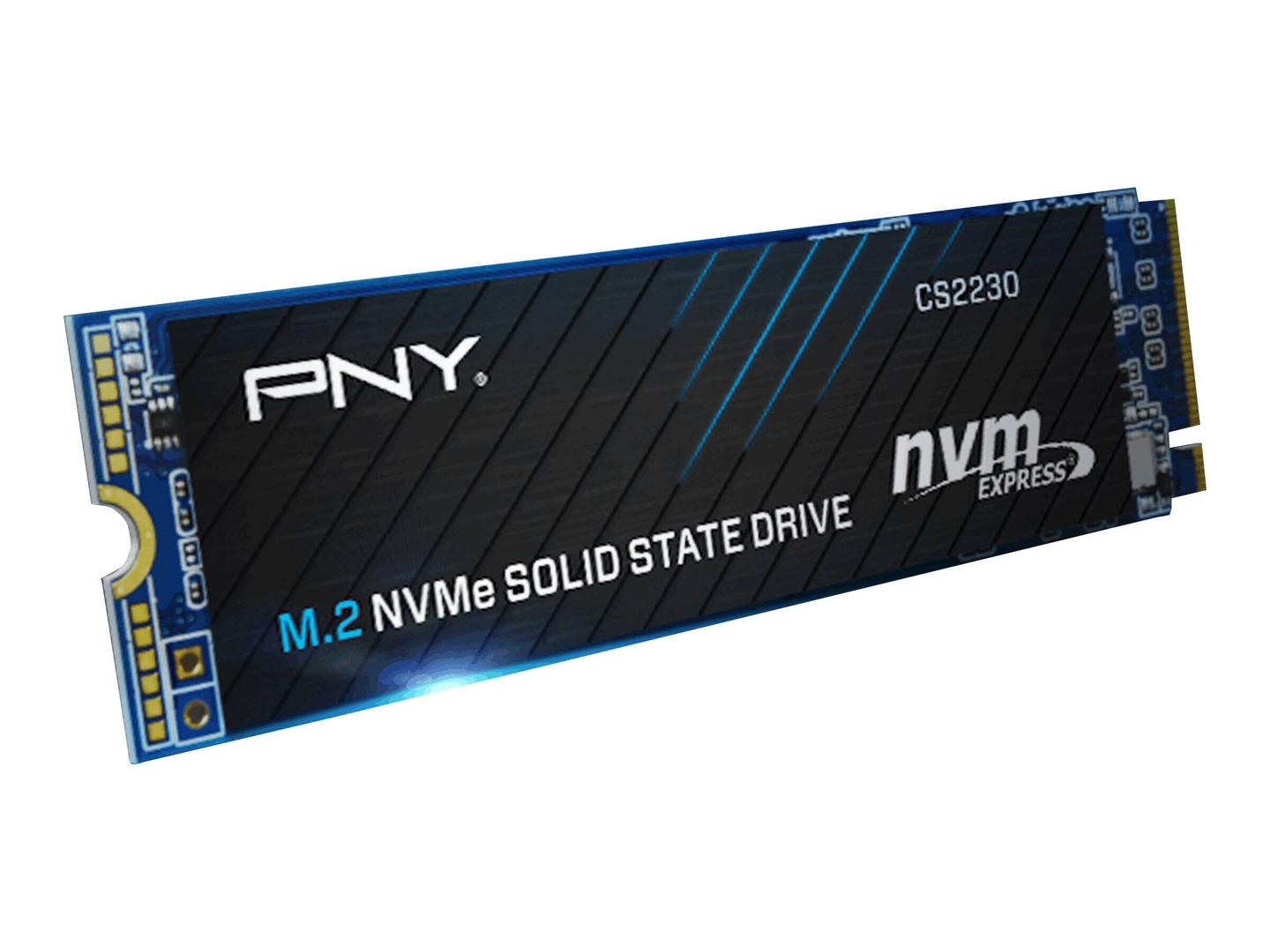

PNY CS2230 - SSD - 1 TB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) | M280CS2230-1TB-RB
Please sign in so that we can notify you about a reply
Special Fetures
- Sequential read of up to 3,300 Mbps and write of up to 2,600 Mbps
- Faster boot up, quicker application launch, and improved overall system performance
- Reliable storage
- Low power consumption, cool and quiet operation
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 3.0 x4 (NVMe) |
| Features | TRIM support, End-to-end data path protection, ECC Recovery LDPC, L1.2 low-power mode, NVM Express (NVMe) 1.4, Autonomous Power State Transition (APST), Active State Power Management (ASPM), S.M.A.R.T. |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 4 mm |
| Weight | 6.6 g |
| Performance | |
| Internal Data Rate | 3300 MBps (read) / 2600 MBps (write) |
| Reliability | |
| MTBF | 1,000,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
| Miscellaneous | |
| Compliant Standards | VCCI, FCC, RoHS, UKCA |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 6.99 cm |
| Shipping Depth | 9.91 cm |
| Shipping Height | 0.64 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
Features - PNY - M280CS2230-1TB-RB
Form Factor
- Internal
Capacity
1TB
Interface
- M.2
More Details
Product Code
04:421943
EAN Code
0751492756271
Manufacturer
PNY
