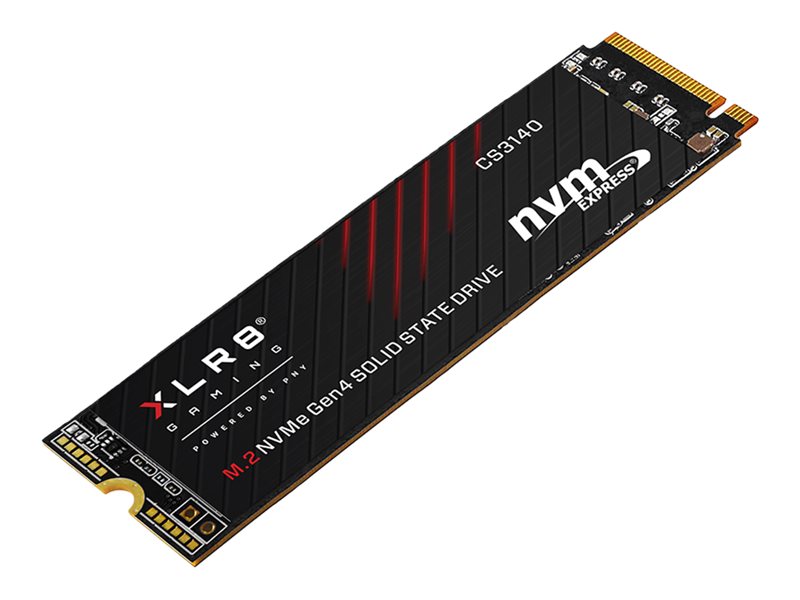

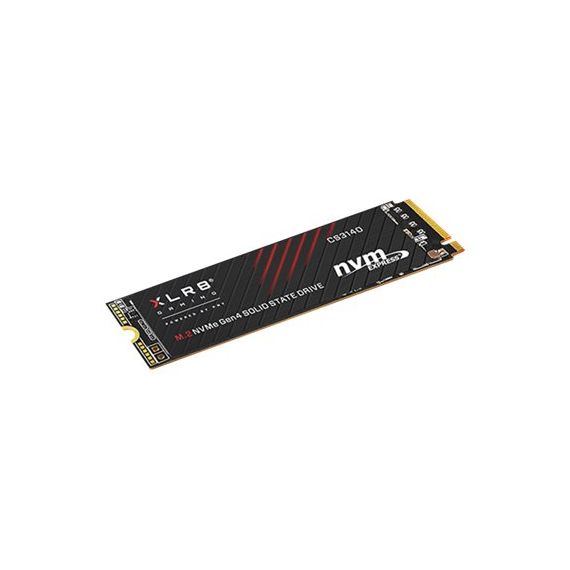

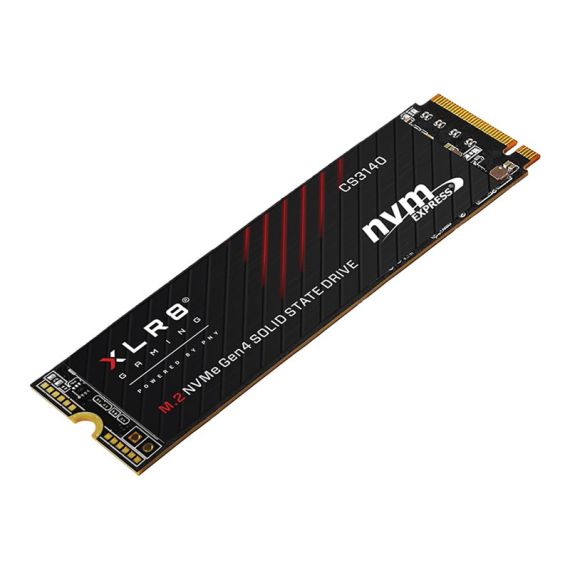

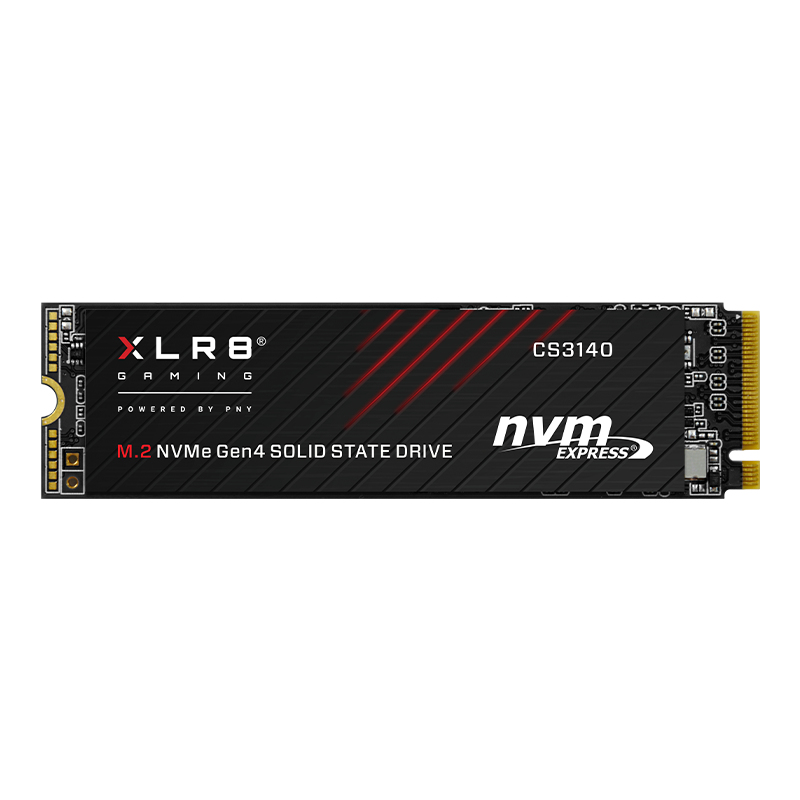

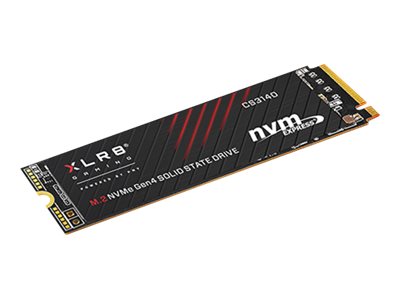

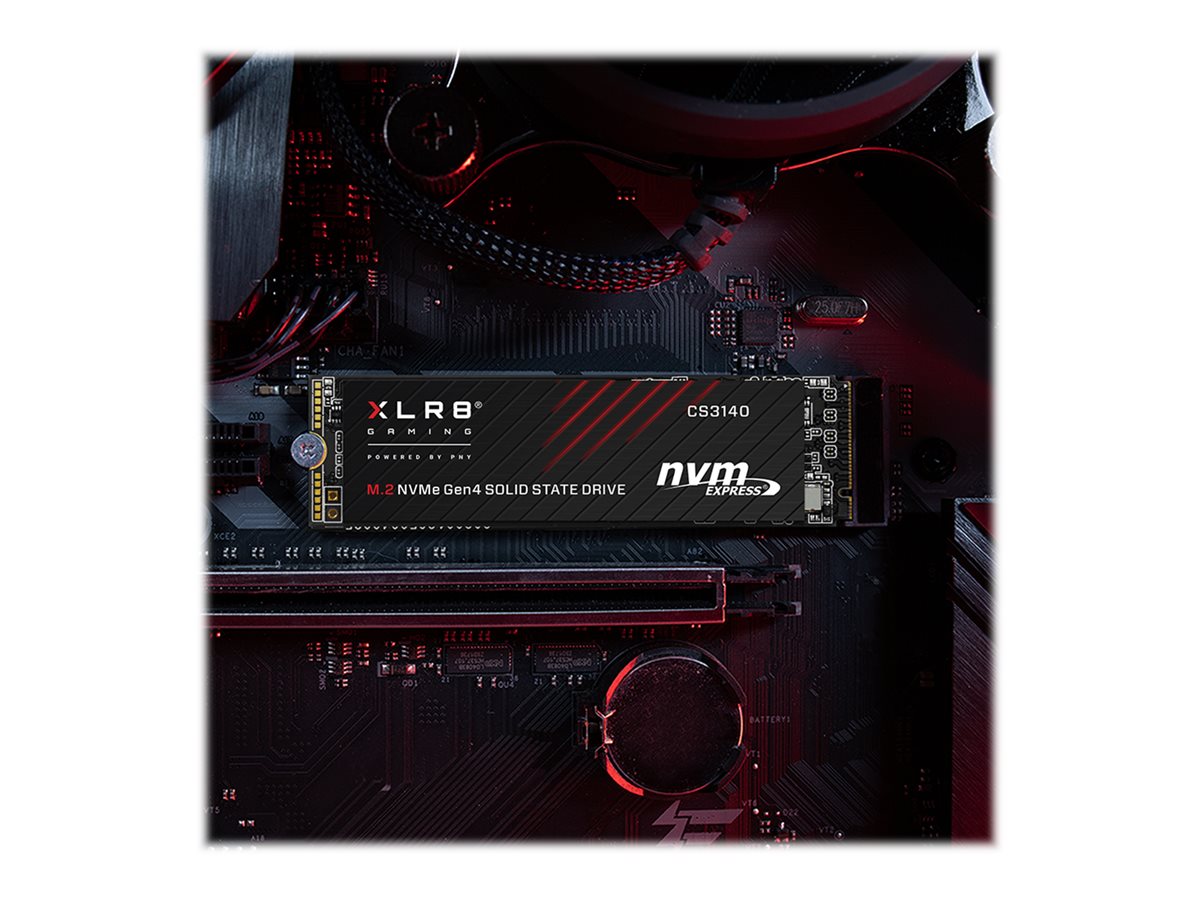

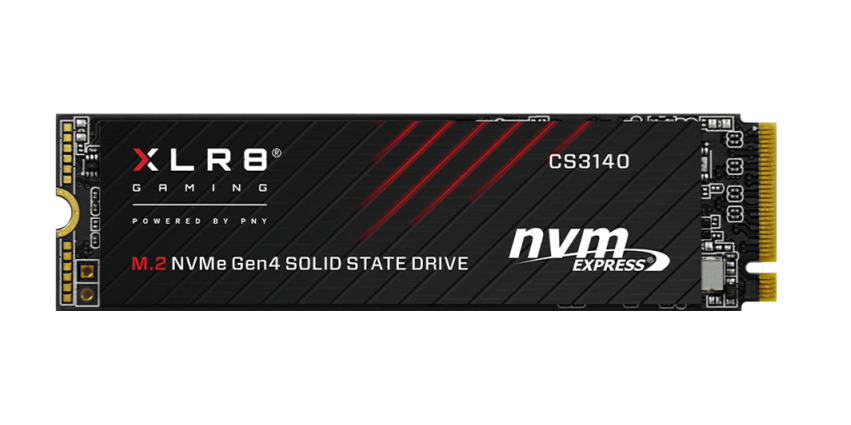

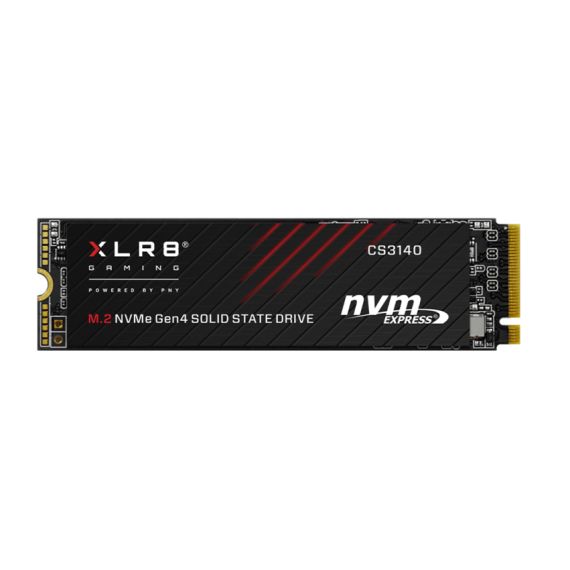

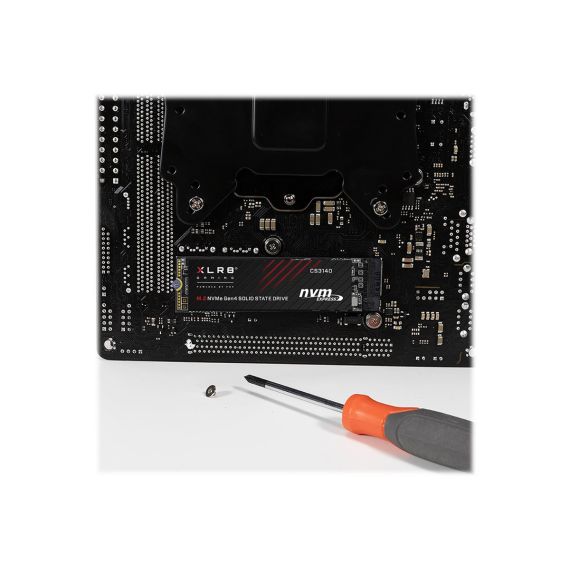

PNY XLR8 CS3140 - SSD - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe) - 256-bit AES | M280CS3140-1TB-RB
M280CS3140-1TB-RB
Form FactorInternal
Capacity1TB
InterfaceM.2
Product CodeCM22306
EAN Code0751492642383
ManufacturerPNY
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Enhanced durability
With an MTBF (Mean Time Between Failures) of 2,000,000 hours, this solid state drive offers reliability and longevity, ensuring your data is safeguarded through extensive use. - Robust security
Equipped with a 256-bit AES encryption algorithm, this drive provides high-level security for your data, protecting against unauthorized access and ensuring your information remains confidential. - High-speed performance
Featuring PCI Express 4.0 x4 (NVMe) interface, the XLR8 CS3140 delivers swift data transfer rates, enhancing your computing experience with faster boot times and nearly instantaneous data access. - Efficient power management
Incorporating Active State Power Management (ASPM) and L1.2 low-power mode, this SSD optimizes power consumption, making it an efficient choice for your system. - Advanced technology
Utilizing 3D NAND technology and supporting NVMe 1.4, this SSD offers improved density, performance, and endurance, making it an ideal solution for high-demand applications and workloads.
Special Fetures
- 2,000,000 hours MTBF for enhanced reliability
- 256-bit AES encryption for high-level data security
- PCI Express 4.0 x4 (NVMe) interface for high-speed data transfer
- Supports 3D NAND technology for improved performance
- Efficient with ASPM and L1.2 low-power mode
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 1 TB |
| Encryption Algorithm | 256-bit AES |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | TRIM support, End-to-end data path protection, 3D NAND Technology, ECC Recovery LDPC, L1.2 low-power mode, NVM Express (NVMe) 1.4, Autonomous Power State Transition (APST), Active State Power Management (ASPM), S.M.A.R.T. |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 4 mm |
| Weight | 6.6 g |
| Performance | |
| Internal Data Rate | 7500 MBps (read) / 5650 MBps (write) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
| Compatible Bay | M.2 2280 |
| Miscellaneous | |
| Compliant Standards | VCCI, BSMI, FCC, RoHS, REACH |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 1.6 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
