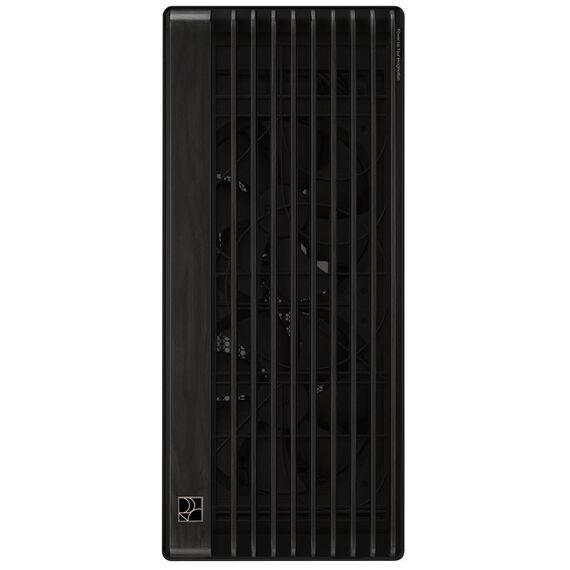

ASUS ProArt PA602 / Wood Edition / mid tower / extended ATX / no power supply / black / USB/Audio | 90DC00J0-B09020
Please sign in so that we can notify you about a reply
Product Features
- Efficient cooling system

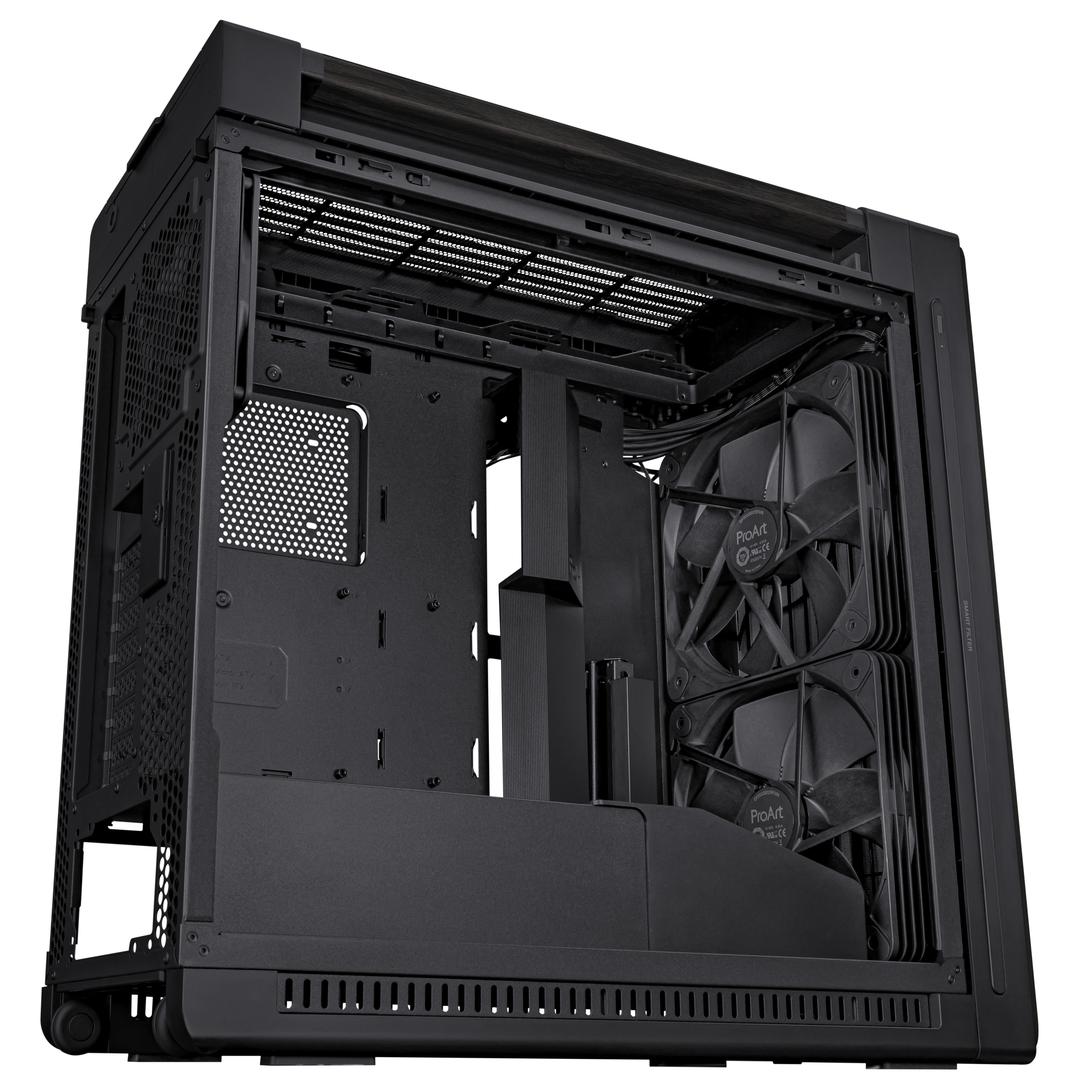

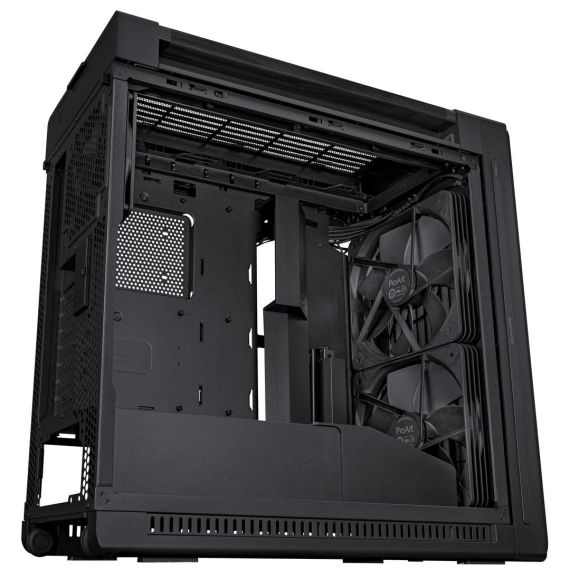

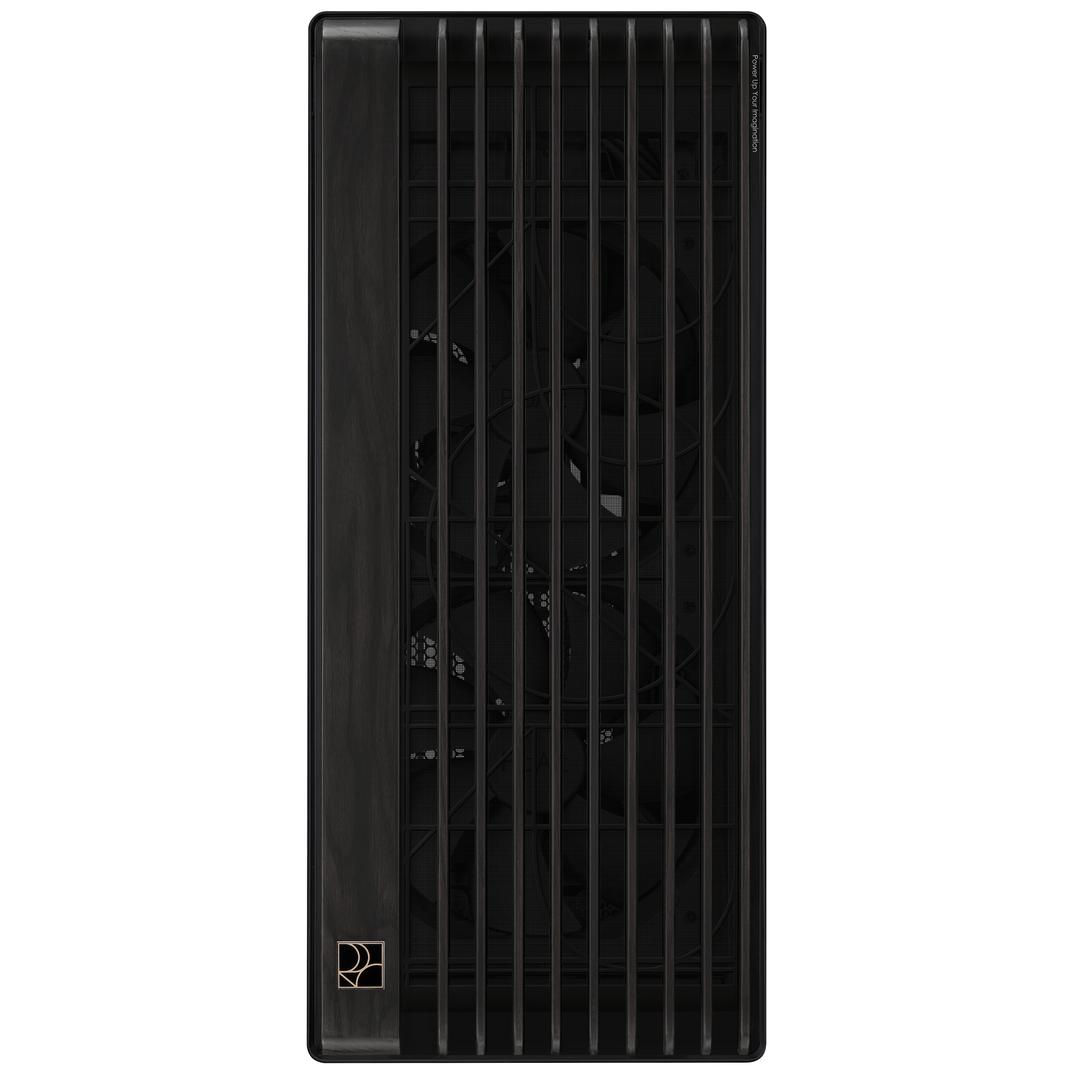

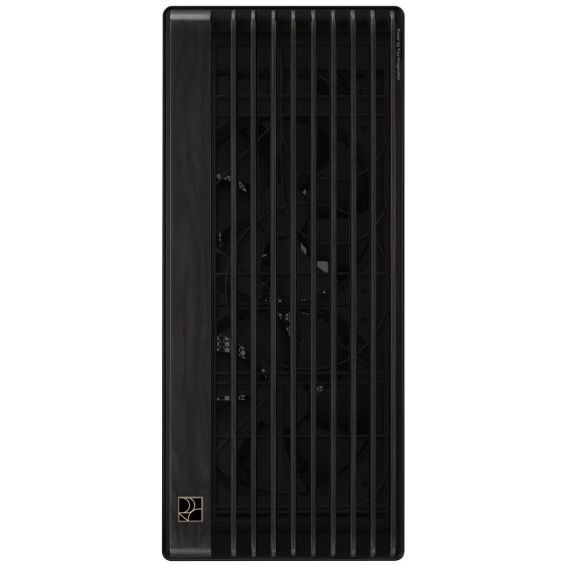

The ASUS ProArt PA602 is equipped with a robust cooling system, featuring two 200 mm fans at the front, one 140 mm fan at the rear, and up to three 120/140 mm fan mounts on the top. This setup ensures optimal airflow, keeping your components cool even under heavy load. - Versatile expansion options
With support for ATX, DTX, Extended ATX, Mini-DTX, Mini-ITX, and microATX motherboards, the ASUS ProArt PA602 offers flexibility for system builders. It also boasts eight expansion slots, including two vertical ones, and four 3.5" internal bays, accommodating a wide range of upgrades and customizations. - Elegant design with practical features

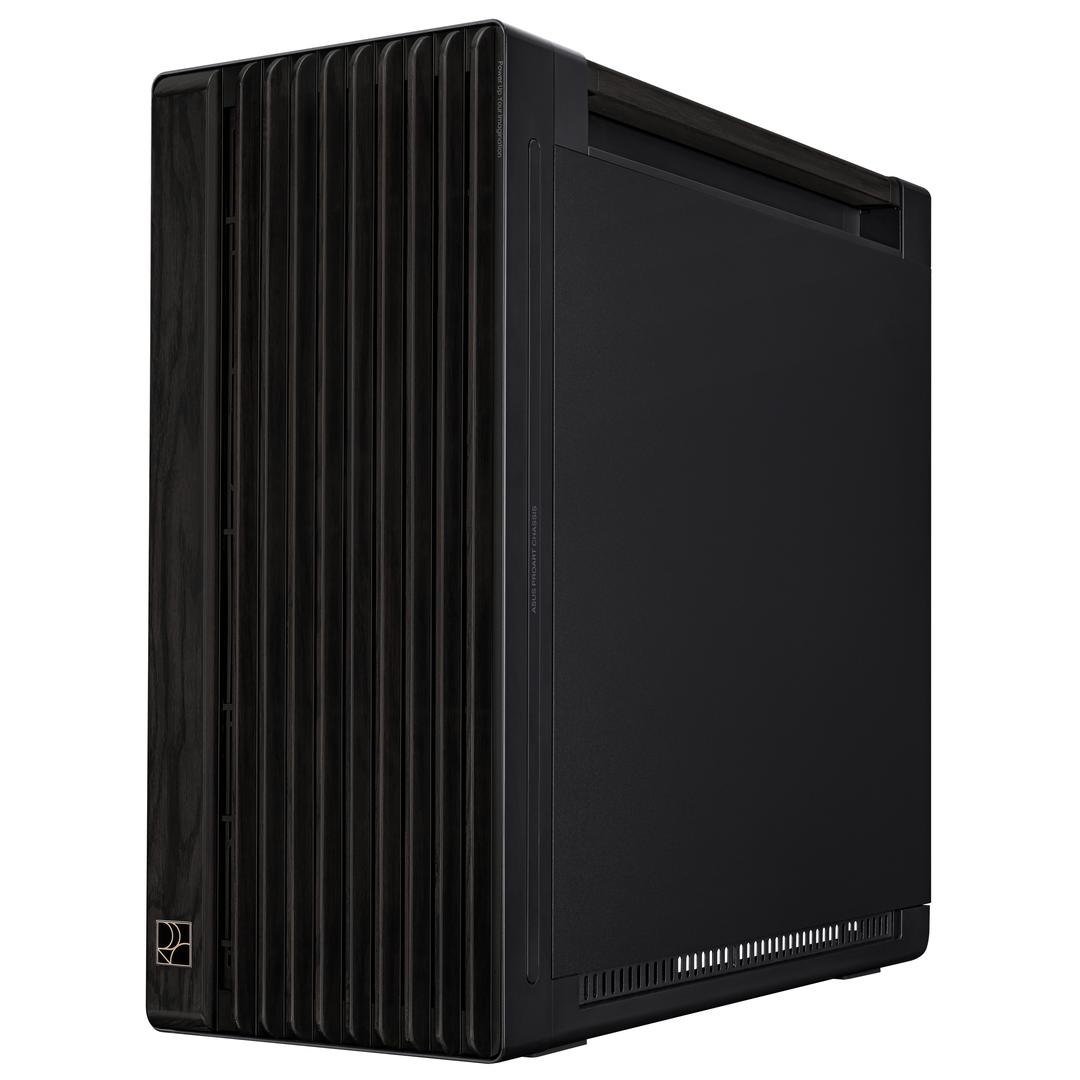

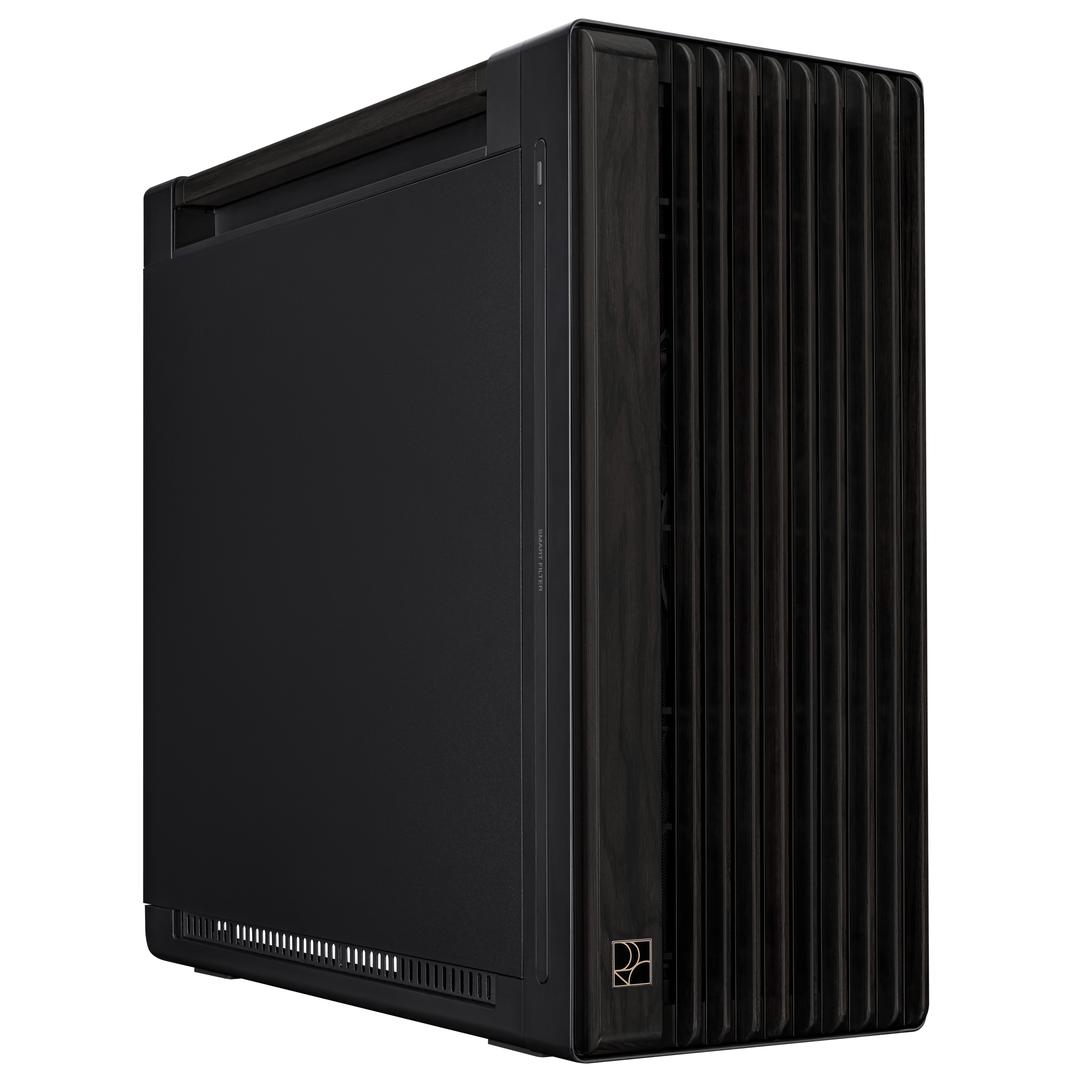

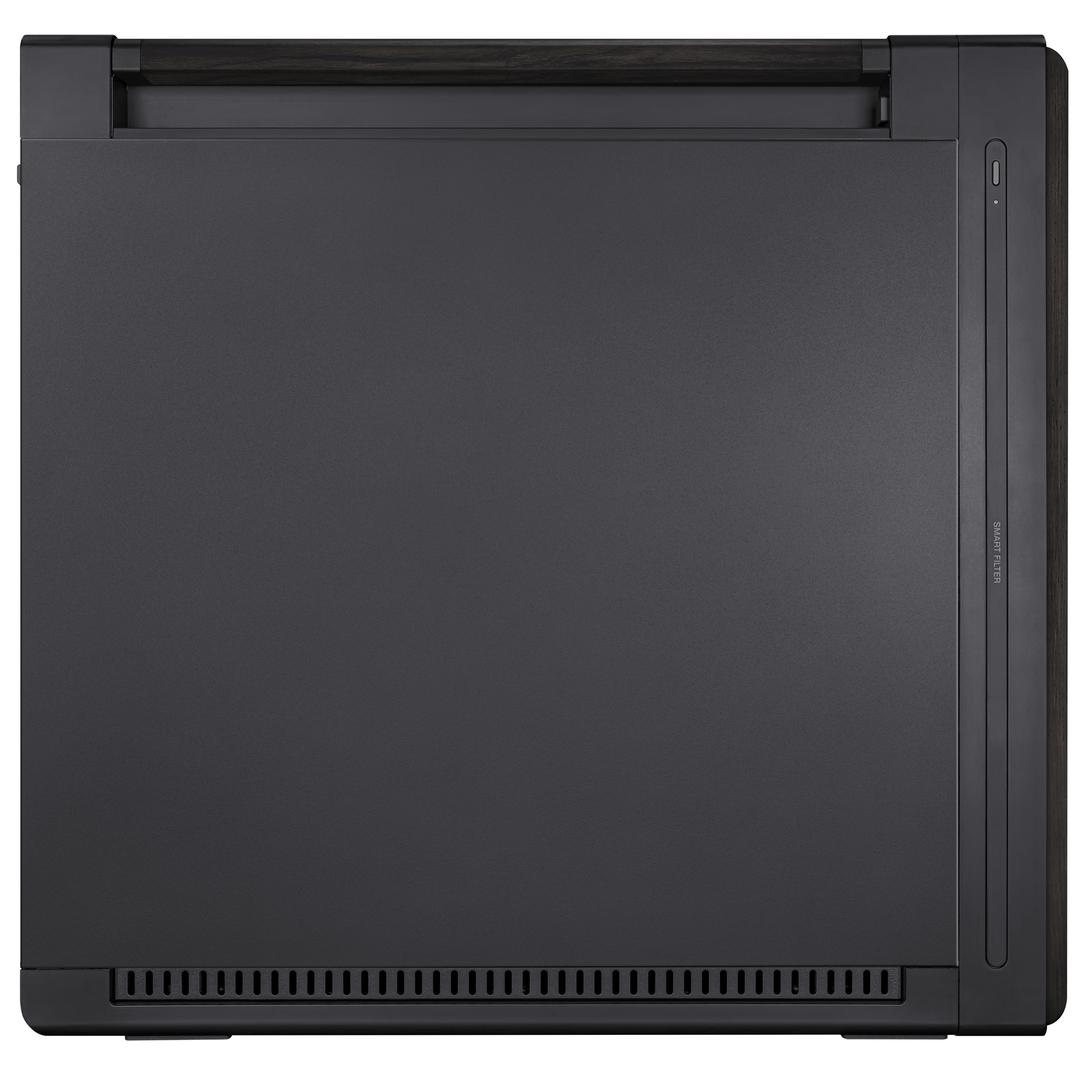

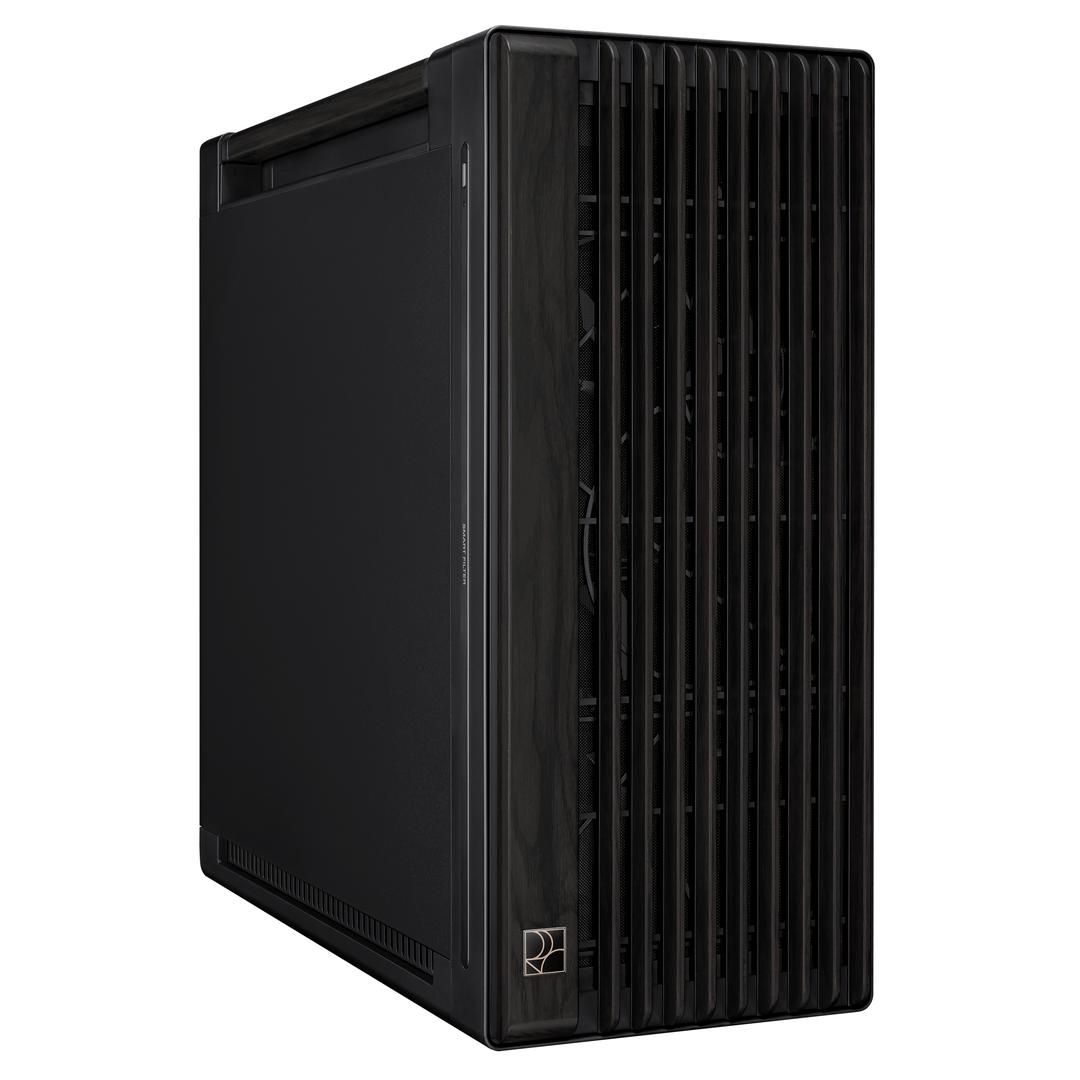

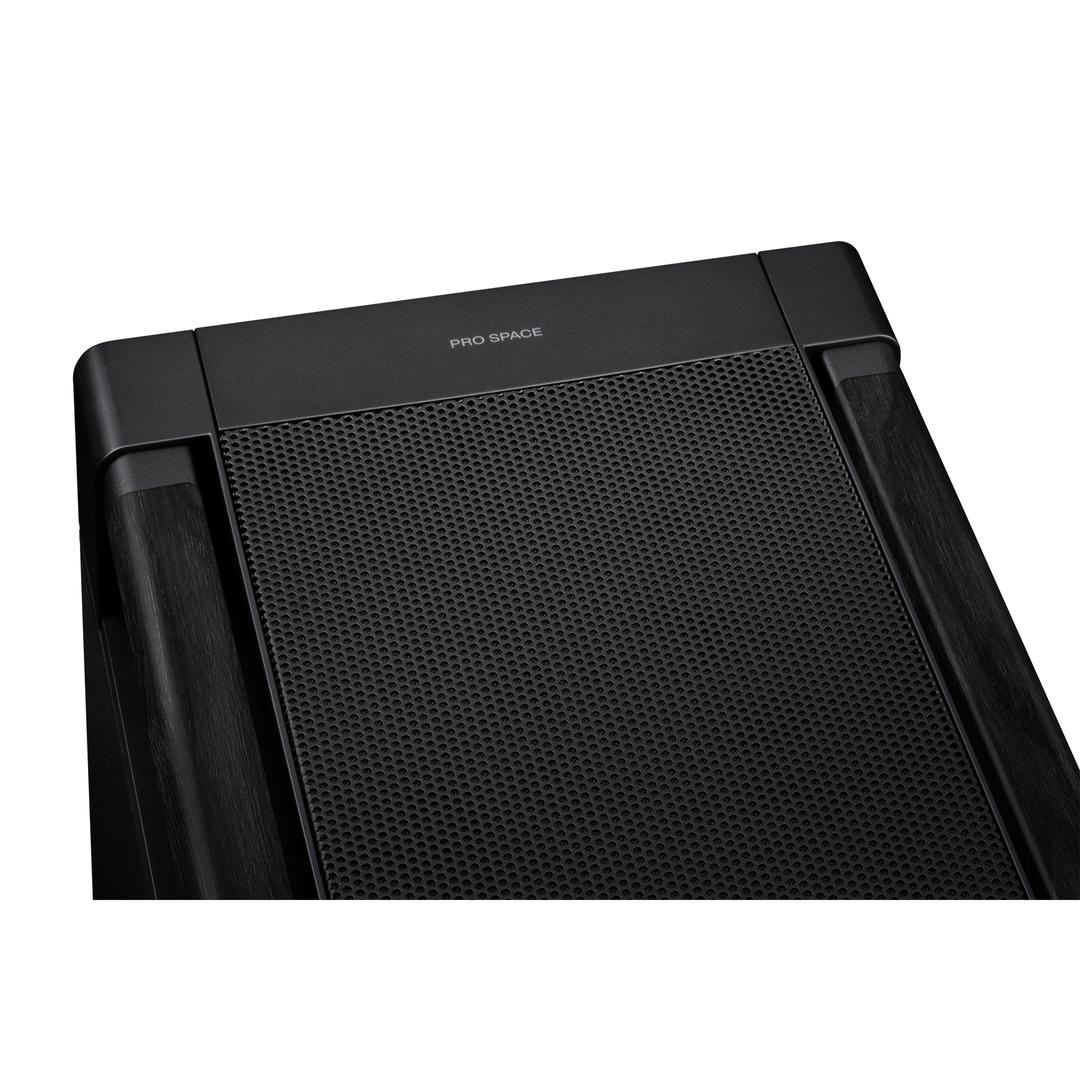

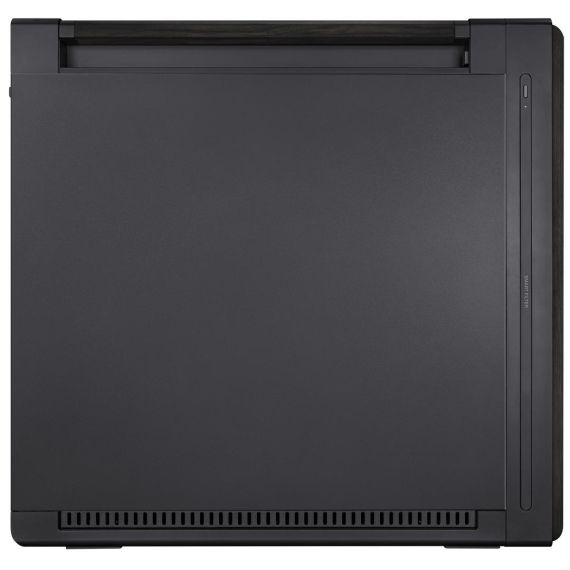

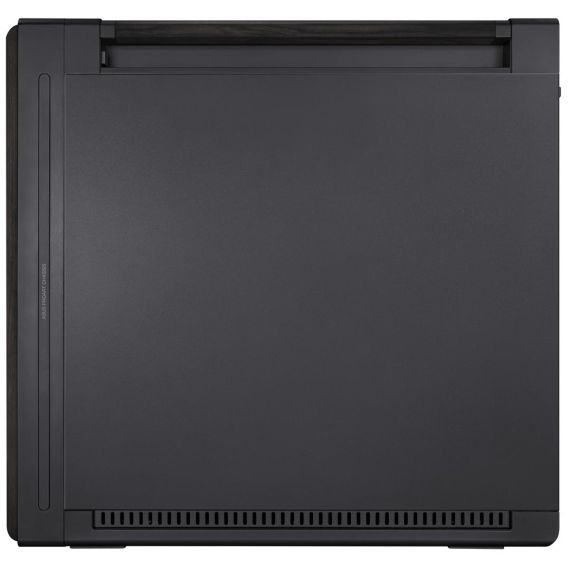

The mid-tower chassis of the ASUS ProArt PA602 not only looks great with its tempered-glass windowed side panel but also includes practical features like integrated cable management and dust filters on the bottom, front, and top panels. This design not only enhances the aesthetic appeal of your setup but also contributes to maintaining a clean and efficient operating environment.
Special Features
- Supports a wide range of motherboards including ATX, DTX, Extended ATX, Mini-DTX, Mini-ITX, and microATX
- Features a comprehensive cooling system with front, rear, and top fan mounts

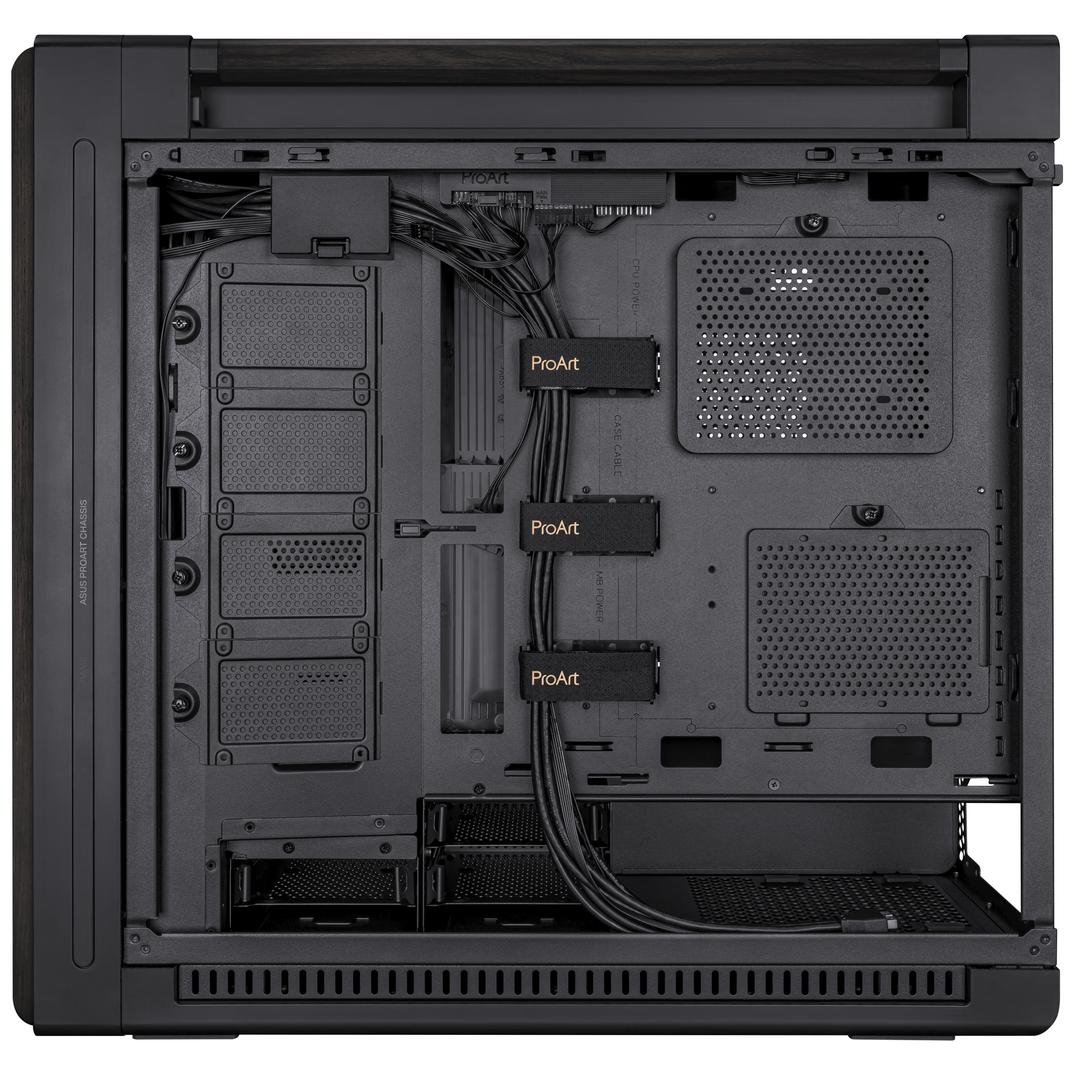

- Includes integrated cable management and dust filters for a clean setup
- Equipped with a tempered-glass windowed side panel for showcasing your build

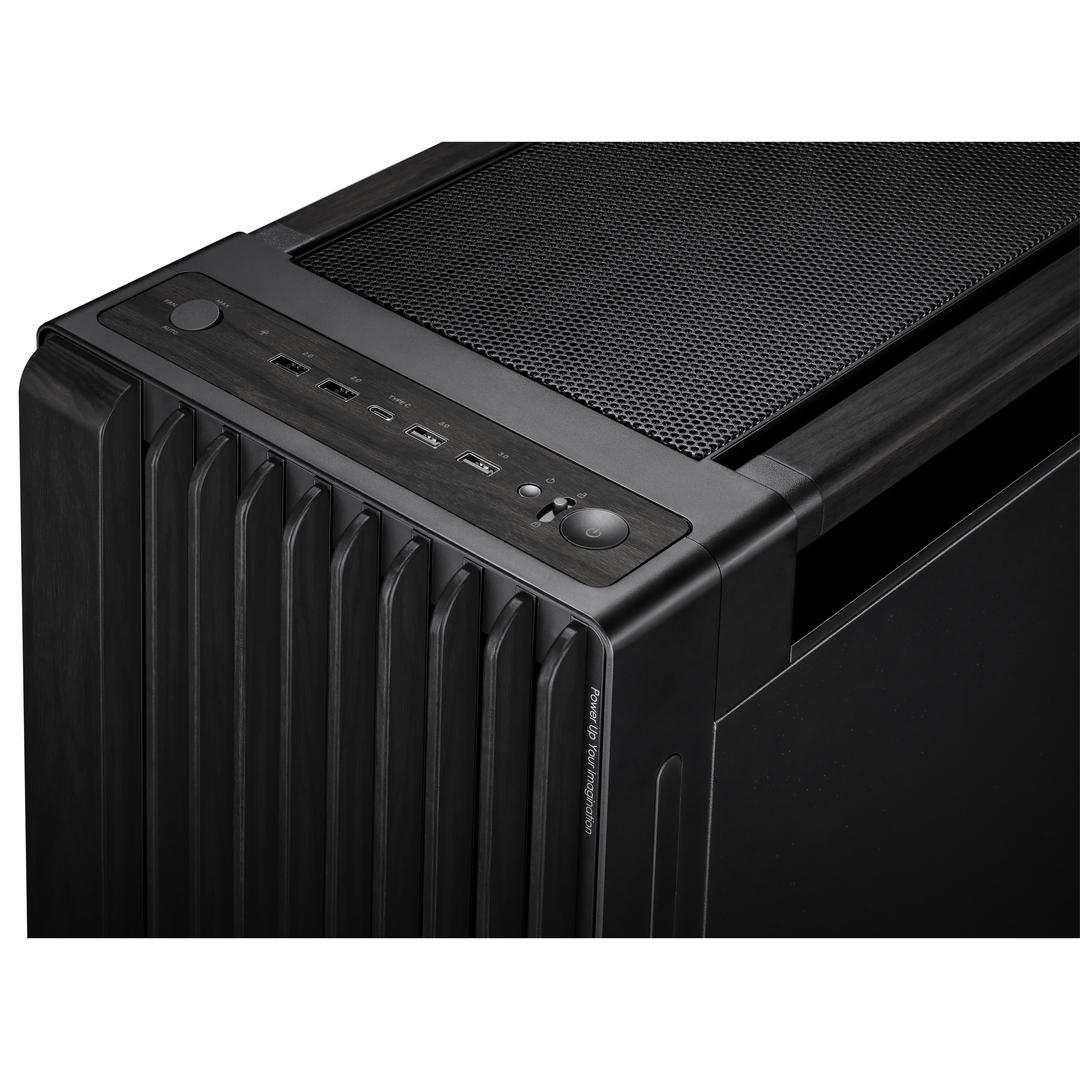

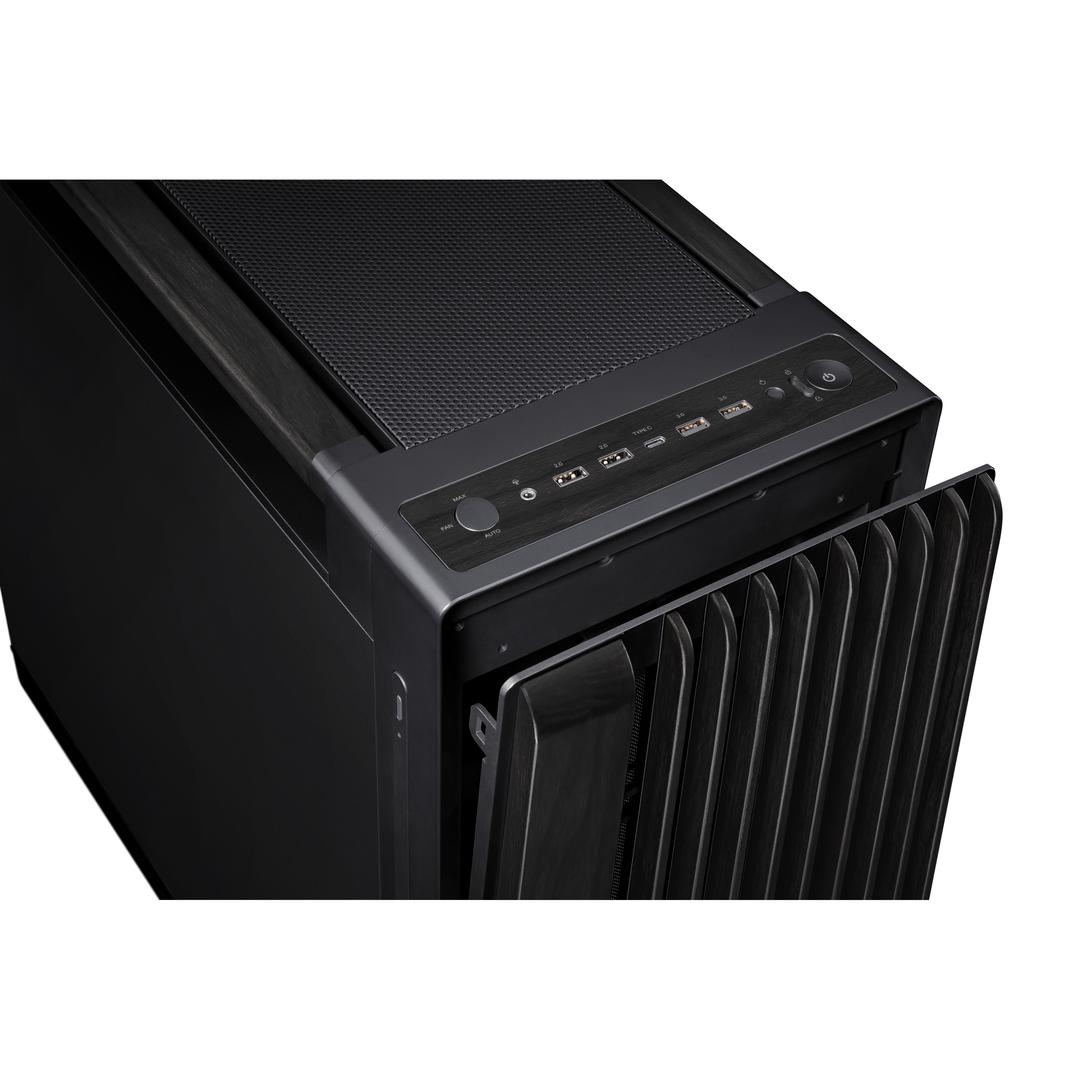

- Offers versatile connectivity options with USB 3.1 Gen 1, USB-C 3.2 Gen 2x2, and headphone/microphone ports
Product Specification
| Form Factor | Mid tower |
| Max Mainboard Size | Extended ATX |
| Supported Motherboards | Extended ATX, ATX, microATX, Mini-ITX, DTX, Mini-DTX |
| Internal Bays Qty | 8 |
| Built-in Devices | Fan control panel, PWM controller |
| Product Material | Ash wood, metal |
| Colour | Black |
| Cooling System | Front: 200 mm fan x 2 Rear: 140 mm fan x 1 / 1 x 120 mm fan supported, Pulse-width modulation (PWM) support Top: 120/140 mm fan mount x 3 / 120/140/240/280/360/420mm radiator supported |
| CPU Cooler Max Height | 190 mm |
| Video Card Max Length | 450 mm |
| Power Supply Max Length | 190 mm |
| System Cabinet Features | Fan speed controller, lockable power button, Open Frame design, wheels, tool-free graphics card mounting, cable management system (30 mm clearance), vertical/horizontal graphic card orientation, front dust filter, top panel dust filter, bottom dust filter |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 4 (total) / 4 (free) x internal - 2.5" 4 (total) / 4 (free) x internal - 2.5" / 3.5" shared |
| Expansion Slots | 8 2 x vertical |

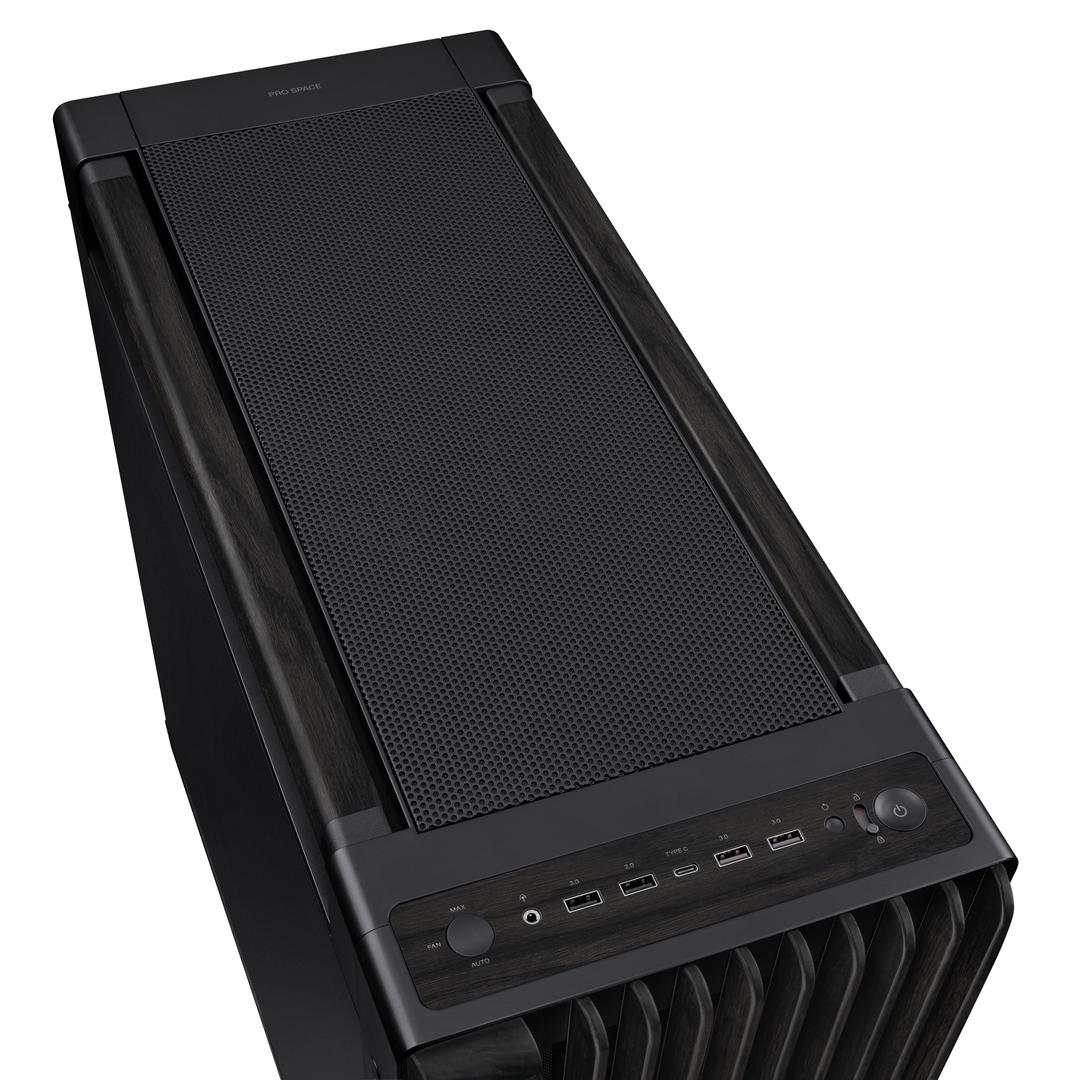

| Interfaces | 2 x USB 3.1 Gen 1 1 x USB-C 3.2 Gen 2x2 2 x USB 2.0 1 x headphone/microphone - mini-jack |
| Power | Power |
| Power Device | No power supply |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24.5 cm |
| Depth | 59.3 cm |
| Height | 56 cm |
| Weight | 15.8 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 73.5 cm |
| Shipping Depth | 37 cm |
| Shipping Height | 67 cm |
| Shipping Weight | 18.8 kg |
Features - Asus - 90DC00J0-B09020
More Details
Product Code
03:246762
EAN Code
4711387664469
Manufacturer
Asus
