QNAP QMiro-201W - Wireless router 1GbE - Wi-Fi 5 - Bluetooth - Dual Band | QMIRO-201W
Product Features
- Connect your home with high-coverage Tri-Band Mesh Wi-Fi
Say goodbye to weak Wi-Fi signals by setting up a Mesh Wi-Fi structure in your home. QMiro-201W adopts Wi-Fi Handover technology, allowing multiple users to be automatically connected to the router with the strongest Wi-Fi signal with a single SSID. With dual-band 2.4GHz/5GHz, QMiro-201W provides a dedicated Mesh 5GHz frequency for high-bandwidth connections between Mesh Wi-Fi routers, guaranteeing smooth and stable Wi-Fi connections. - Dedicated Tri-band Mesh Wi-Fi for smooth connections
The QMiro-201W supports tri-band Wi-Fi of 2.4GHz, 5GHz and a dedicated Mesh Wi-Fi 5GHz band for high-bandwidth connections between Mesh Wi-Fi routers. Unlike conventional dual-band routers whose 5GHz band must be shared between Wi-Fi clients and Mesh Wi-Fi routers, the QMiro-201W guarantees smooth and stable Wi-Fi connections. - QuRouter OS: user-friendly router management
With a web-based GUI and at-a-glance dashboard, the QuRouter OS provides a user-friendly interface for everyday network management. The QMiro-201W also supports wireless router or AP mode configuration via the QuRouter OS, allowing dispatching an IP address as a master router or receiving an IP address from another main router. With the QuRouter OS, not only can users efficiently manage all connected wired and wireless devices in real-time, but they can also configure NAT, VPN, security and QuWAN advanced functions. - Convenient connectivity for remote workers
Working from home has transformed the lives and daily practices of workers and businesses alike, but now the challenge is ensuring that we are always securely connected to business IT. QNAP QuWAN is a SD-WAN solution that enables automatic Mesh VPN topology from corporate networks to personal home routers. Once your home QMiro-201W is set up, QuWAN Cloud Orchestrator enables QMiro-201W to connect to the mesh VPN whether in router mode or AP mode. After that, your QMiro-201W is your gateway to the company cloud. - Create a family-friendly internet environment
Parental controls are included for you to block inappropriate sites, set up screen time, and filter keywords on search engines to ensure that everyone in your family can use the internet safely. - Protect yourself from breaches and intrusion
QNAP follows the Zero Trust ("never trust, always verify") security model, helping to protect you from malware and intrusion. Connections, devices, and IP addresses can also be blocked using the NAT. - Stylish Morandi blue and fanless design for homes

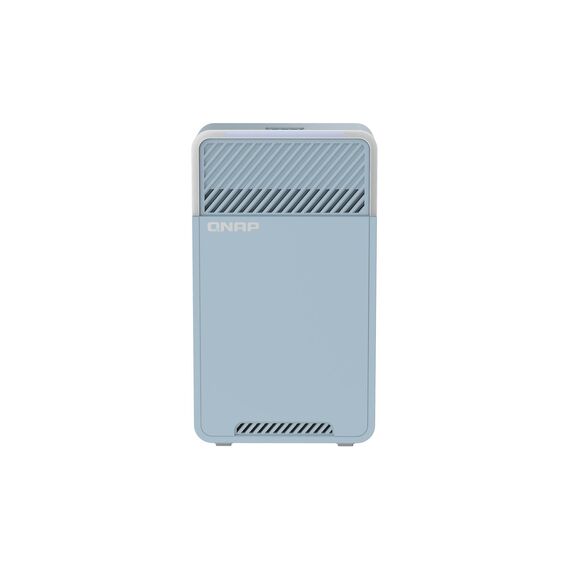

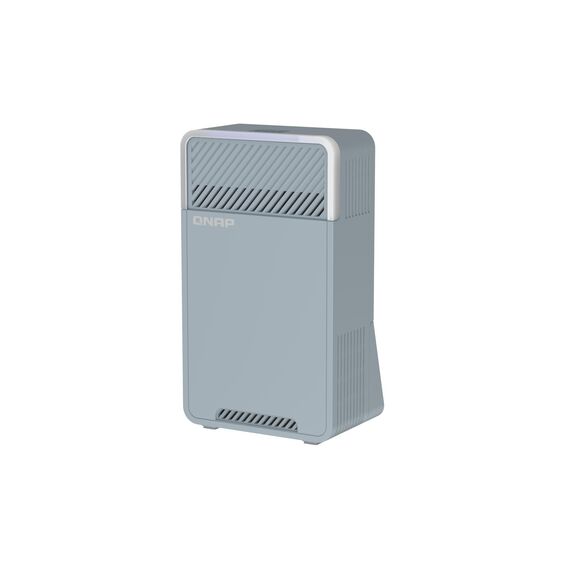

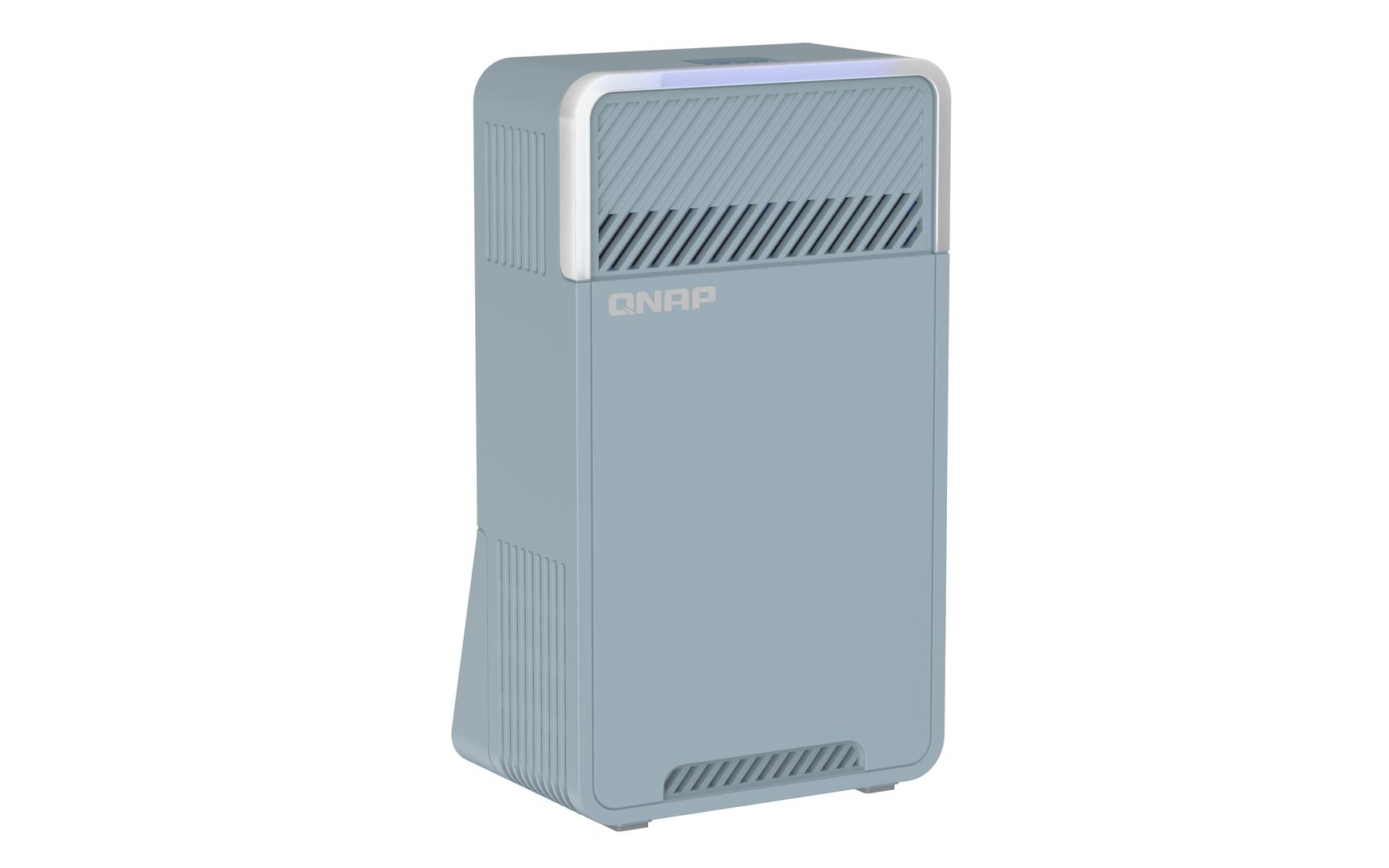

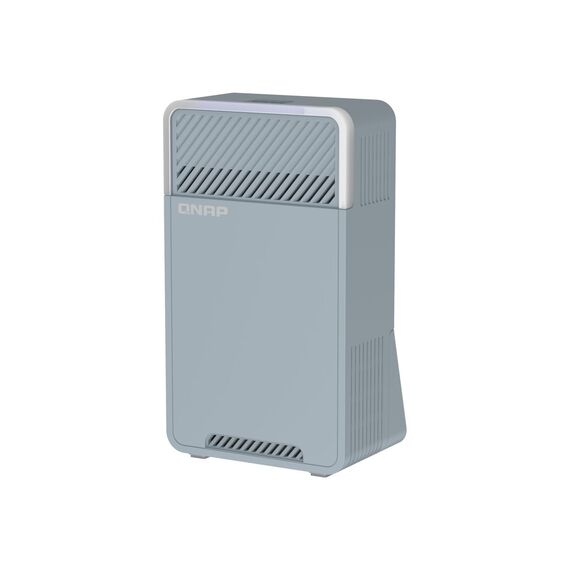

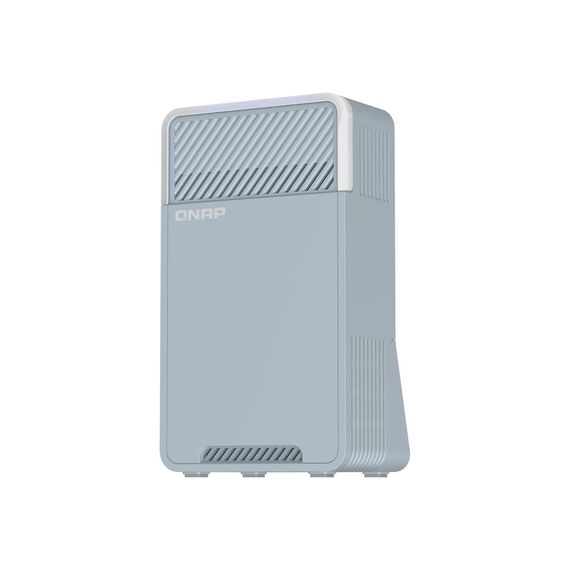

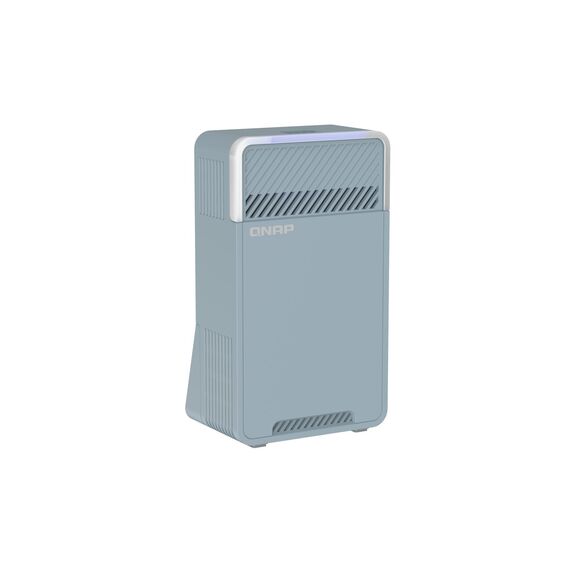

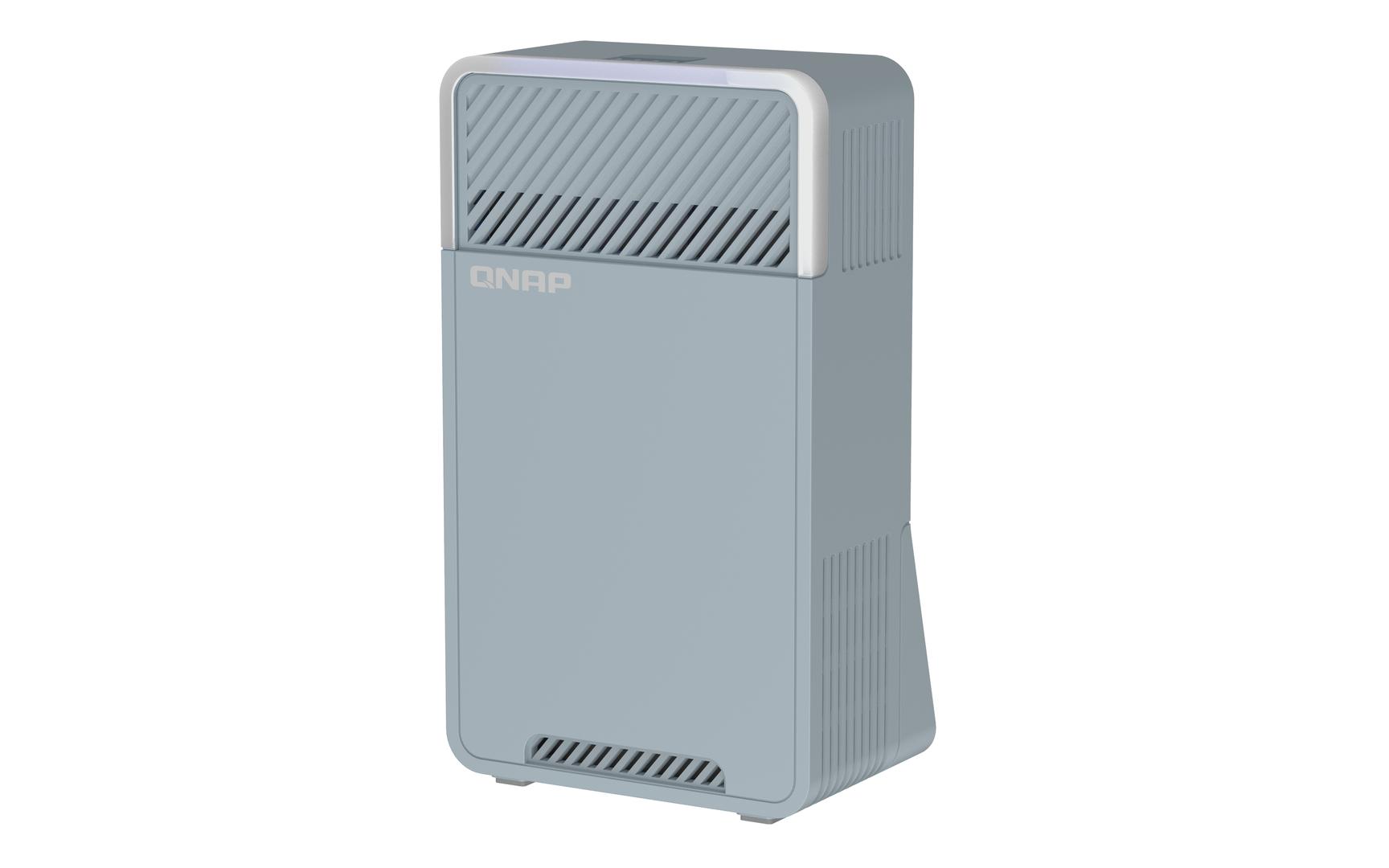

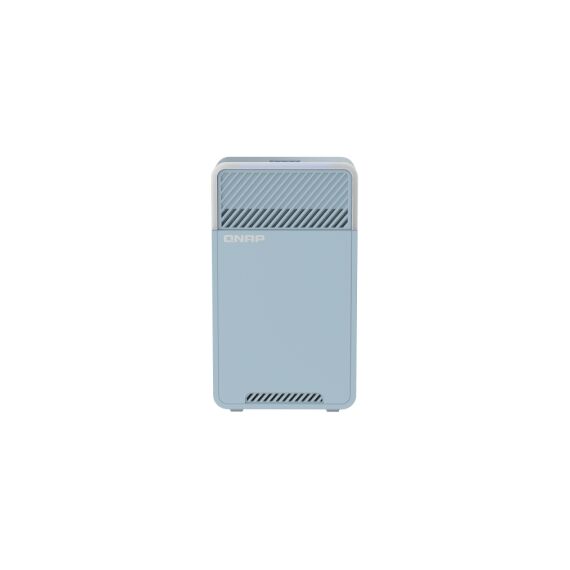

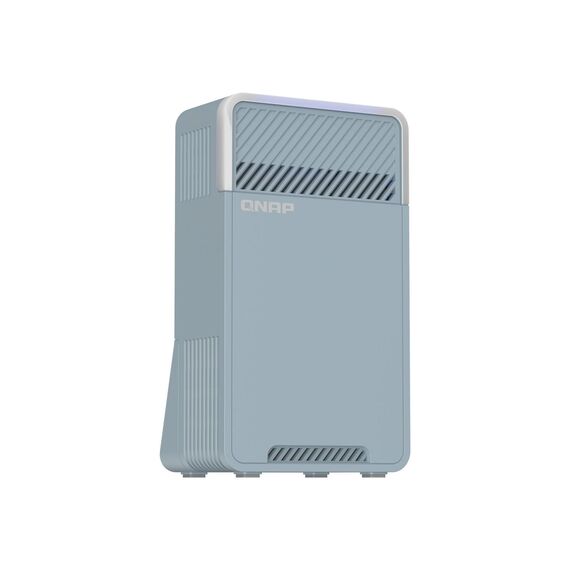

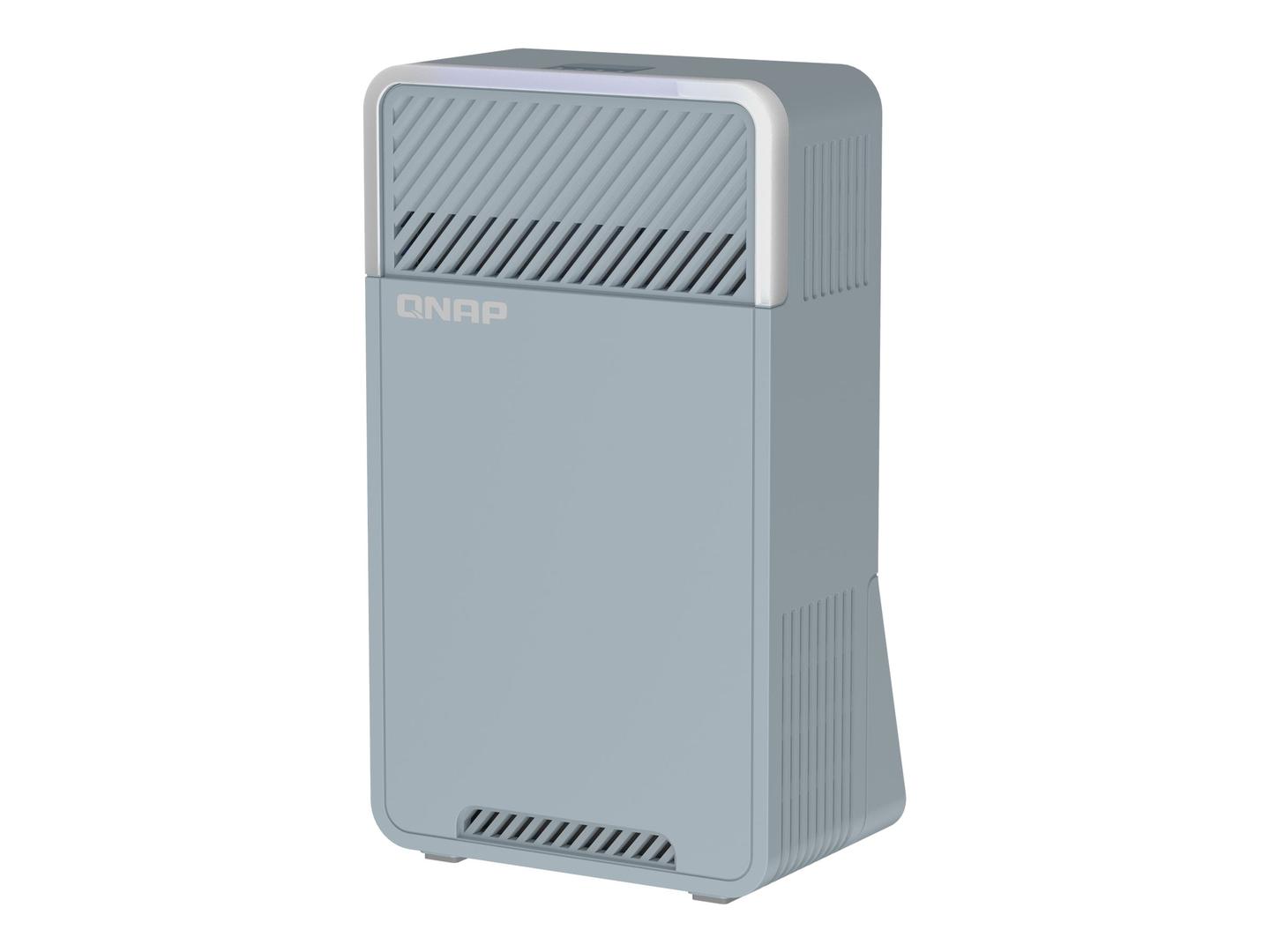

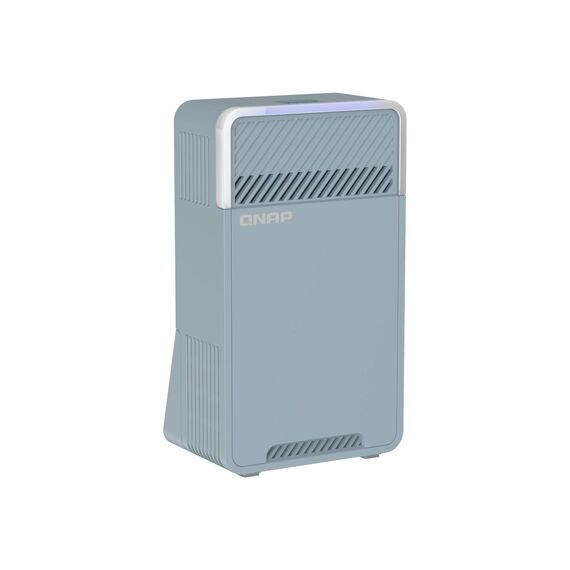

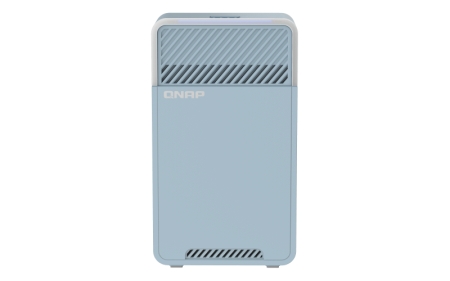

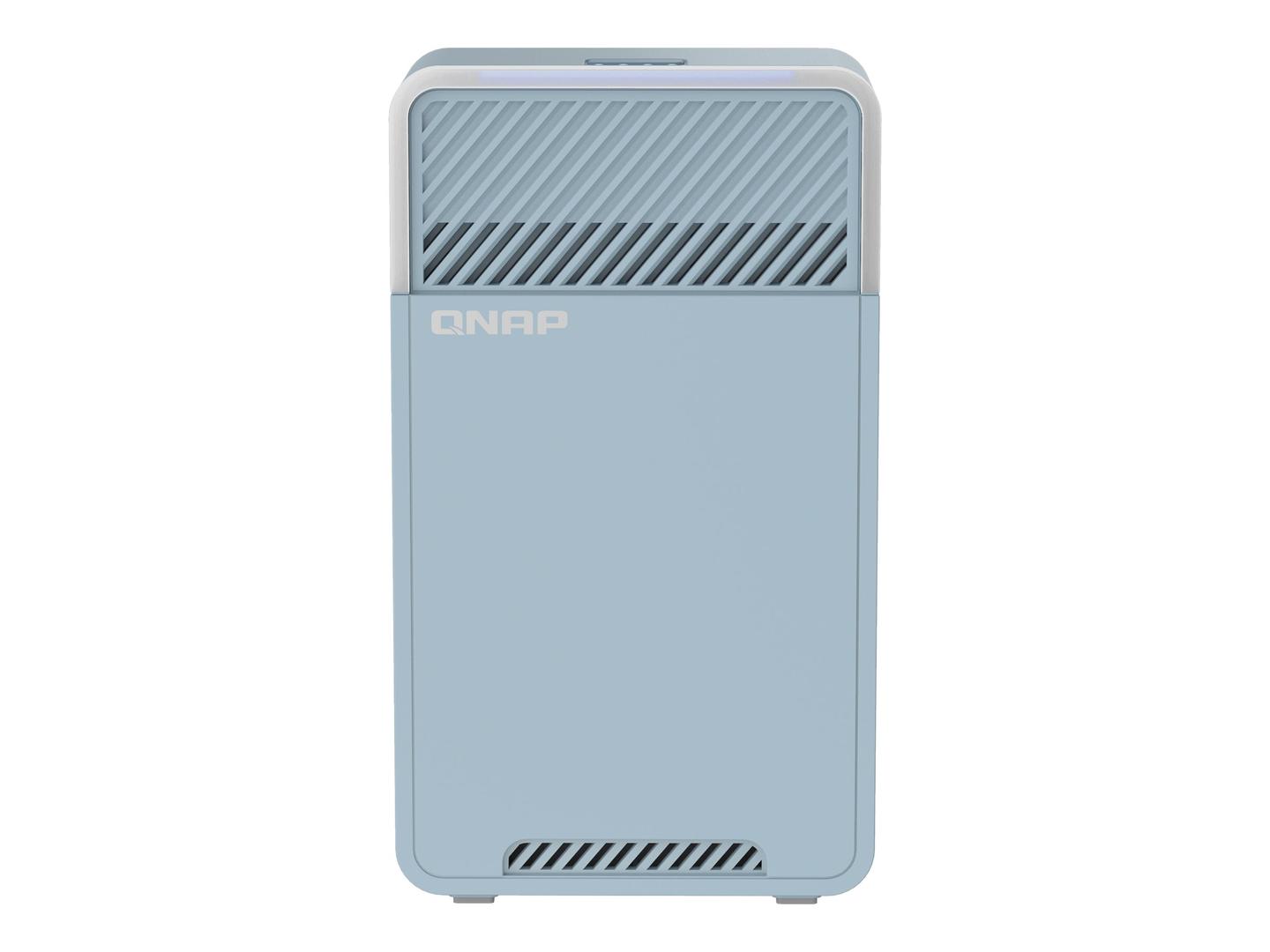

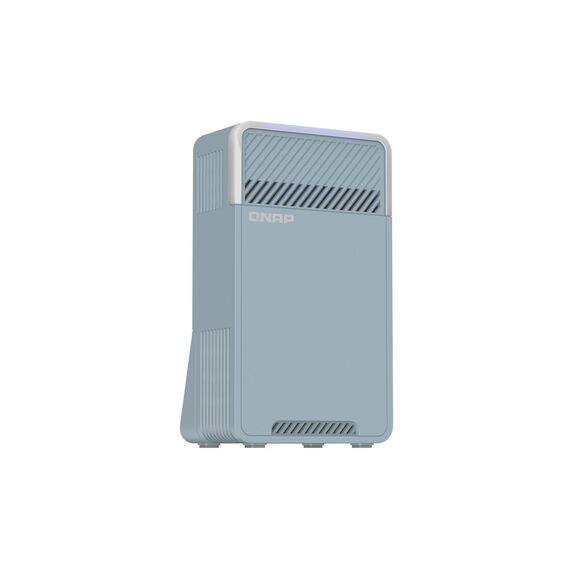

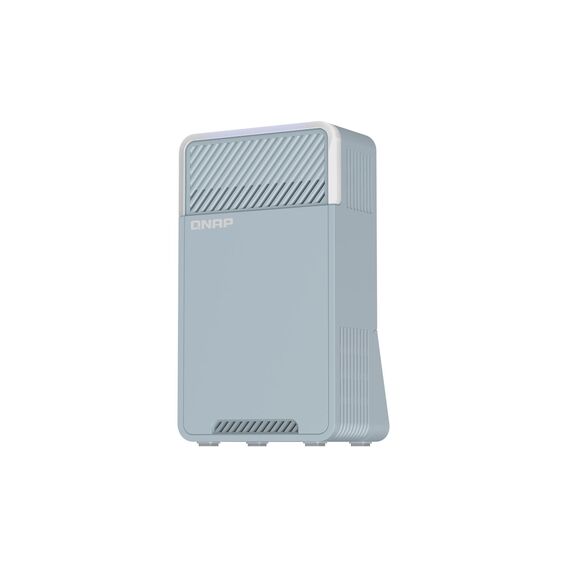

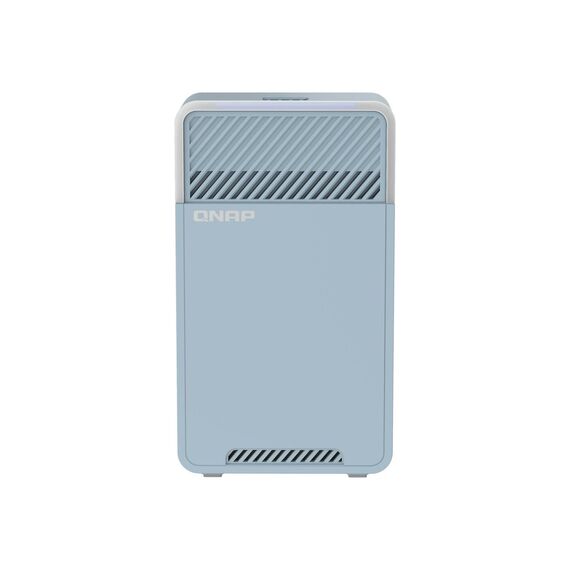

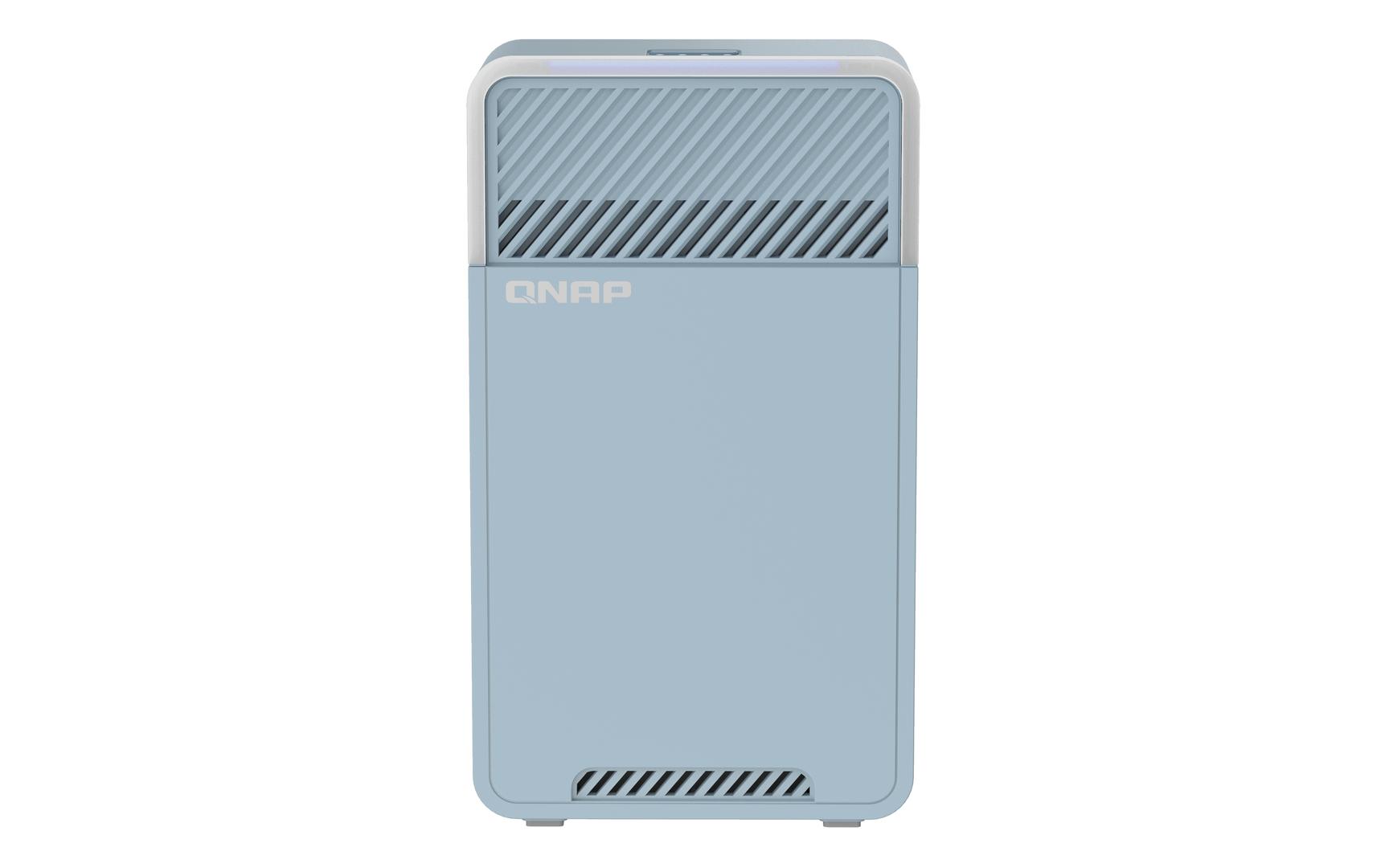

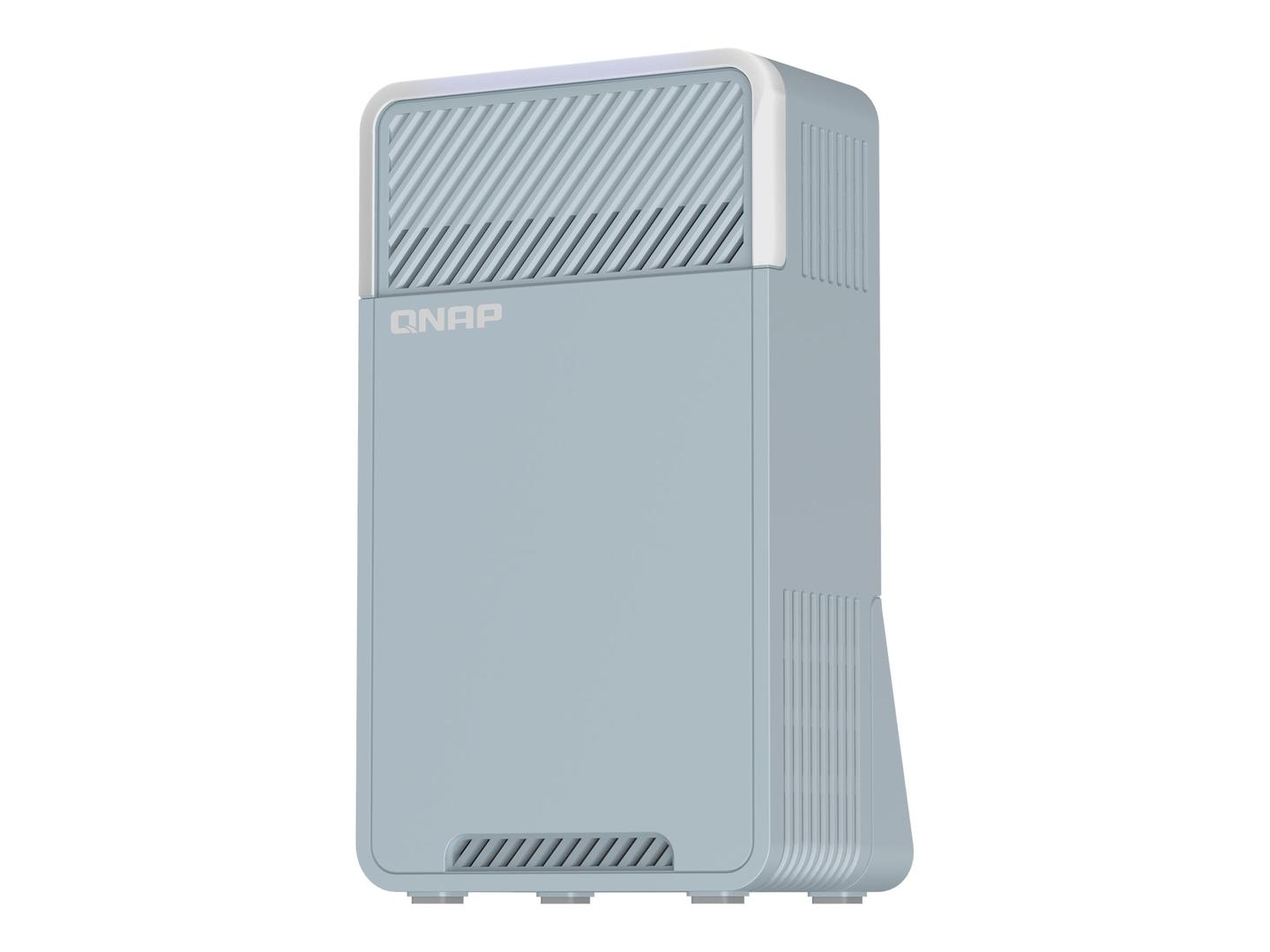

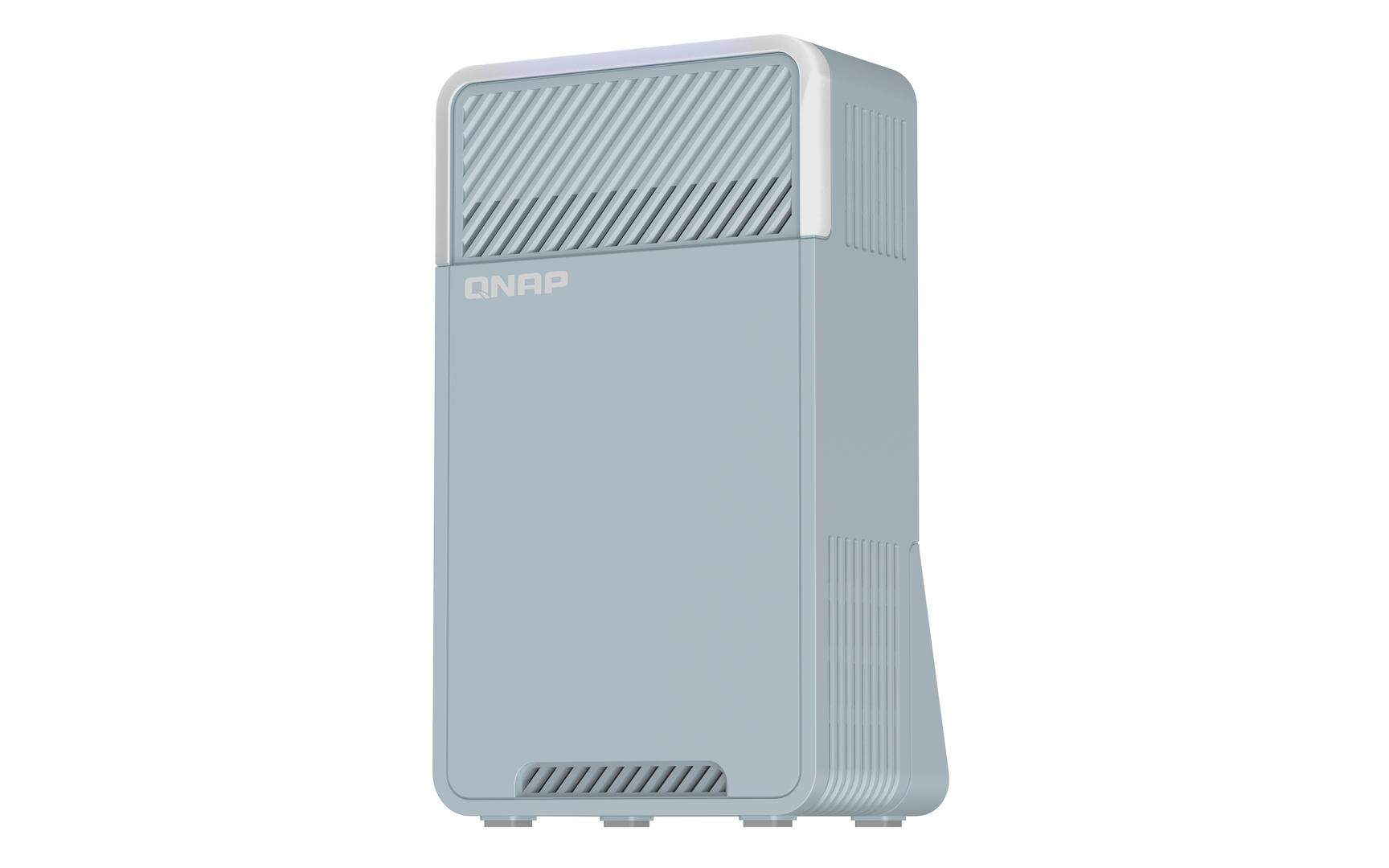

Combining style and functionality to fit modern digital homes, the QMiro-201W's design includes Morandi colors and near-silent fanless cooling.
Special Fetures
- Tri-Band Wi-Fi guarantees smooth and stable Wi-Fi connections via 2.4GHz, 5GHz and dedicated Mesh 5GHz frequencies
- Supports Mesh Wi-Fi handover for wide-range connectivity
- Easily and securely connect to your company networks and multi-site VPN using the built-in QNAP SD-WAN solution, QuWAN
Product Specification
Device Type | Wireless router |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
Frequency Band | 2.4 GHz / 5 GHz |
Data Transfer Rate | 2134 Mbps |
Performance | Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 1734 Mbps |
Capacity | Tunnel scale: 30 |
Network / Transport Protocol | PPTP, PPPoE, FTP, DHCP |
Wi-Fi Rating | AC2200 |
Features | NAT support, VPN support, load balancing, parental control, Access Point operational mode, firmware upgradable, Mesh networking, event log, WPS, DHCP server, port forwarding, reset button, IPv4 support, fanless, DHCP client, MU-MIMO technology, Wireless Scheduler, failover protection, Web Filtering, Tri-Band, VPN client, Smart Connect, router mode, guest access, Wireless Mesh support, L2TP support, SD-WAN support, WPS button, password protection, QuWAN Network Management, QuWAN Identity Verification |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, VCCI, BSMI, JATE, IC, FCC, SRRC, NCC, RCM, OFCA |
Processor | 1 x Qualcomm IPQ4019 716.8 MHz |
RAM | 512 MB DDR3 SDRAM |
Flash Memory | 4 GB |
Expansion / Connectivity | |

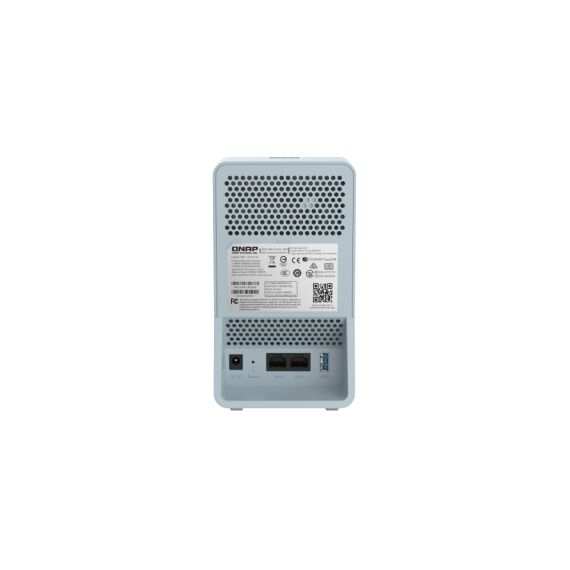

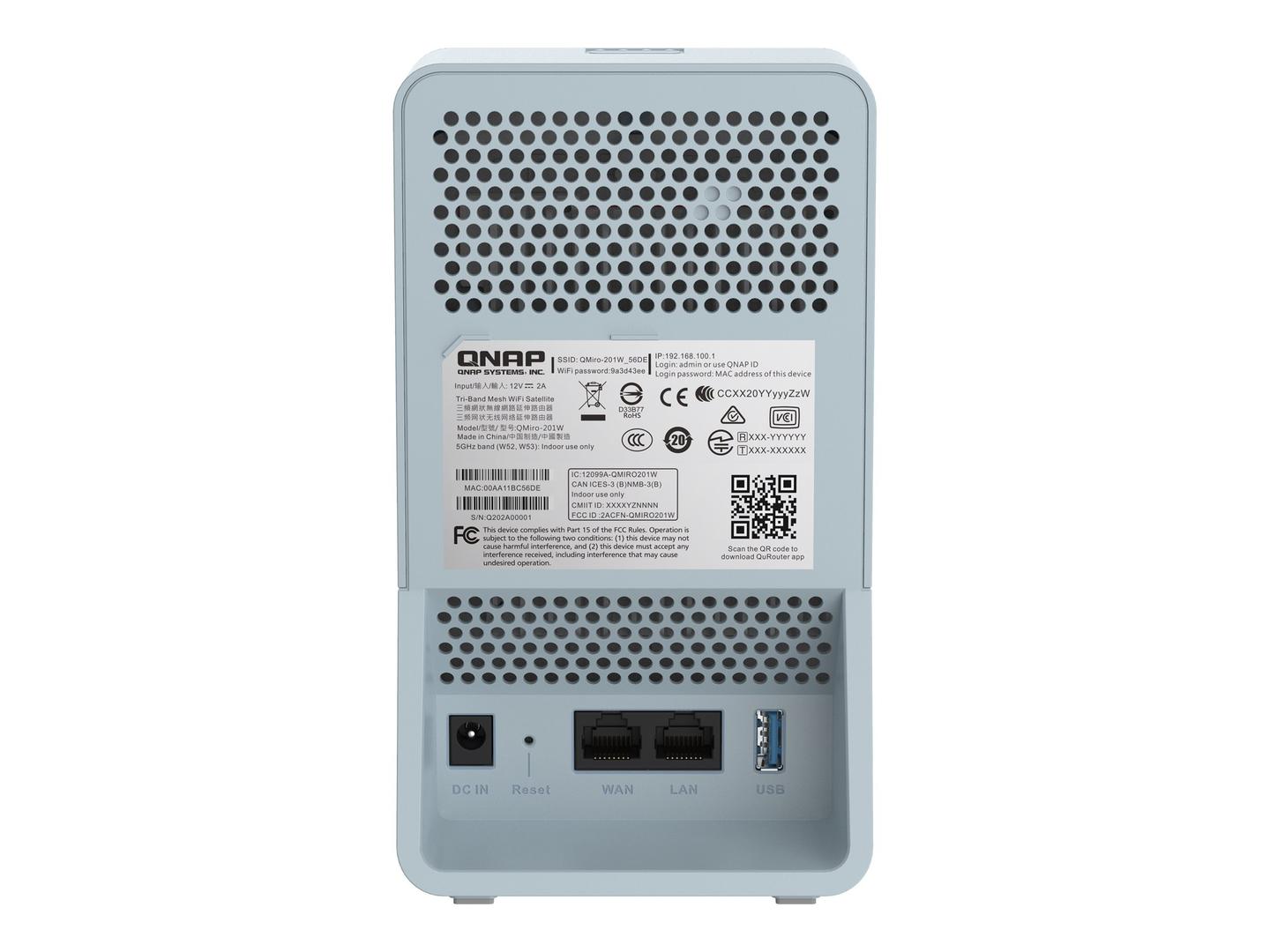

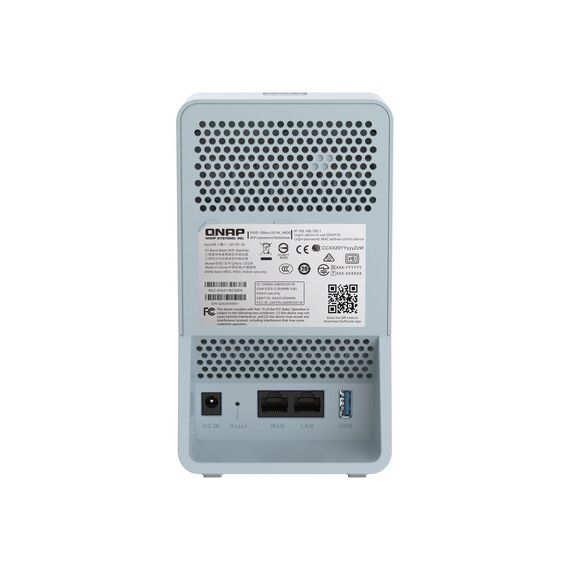

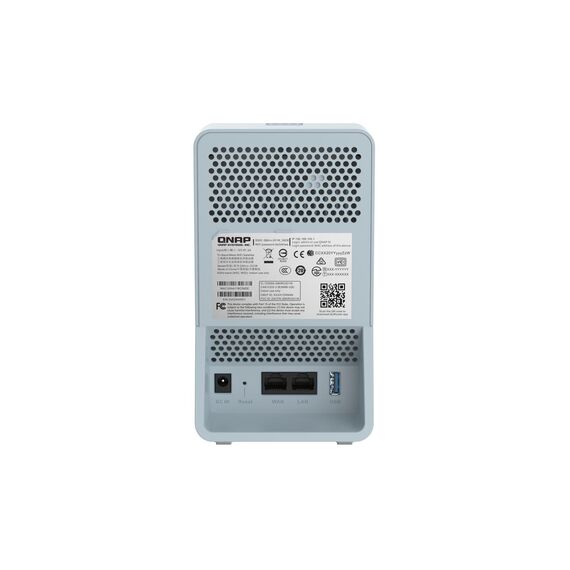

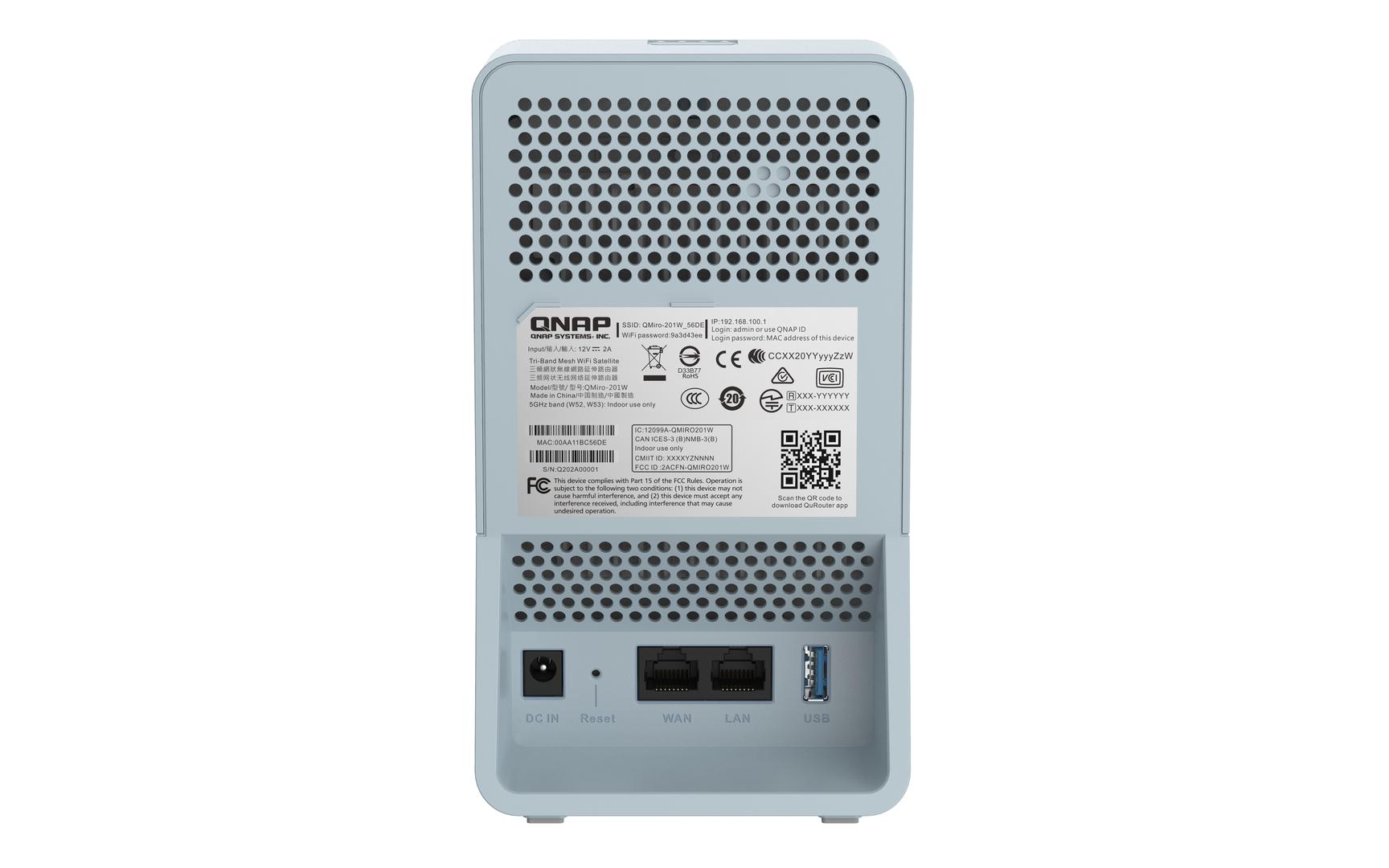

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 1 x 9 pin USB Type A |
Aerial | |
Aerial | Internal |
Antenna Qty | 4 |
Power | |
Power Device | External power adapter |
Power Consumption Operational | 24 Watt |
Miscellaneous | |
Enclosure Colour | Morandi blue |
Cables Included | 1 x network cable |
Software / System Requirements | |
OS Provided | QuRouter OS |
Dimensions & Weight | |
Width | 10 cm |
Depth | 6.8 cm |
Height | 17.55 cm |
Weight | 440 g |
Dimensions & Weight (Shipping) | |
Shipping Weight | 1.11 kg |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
