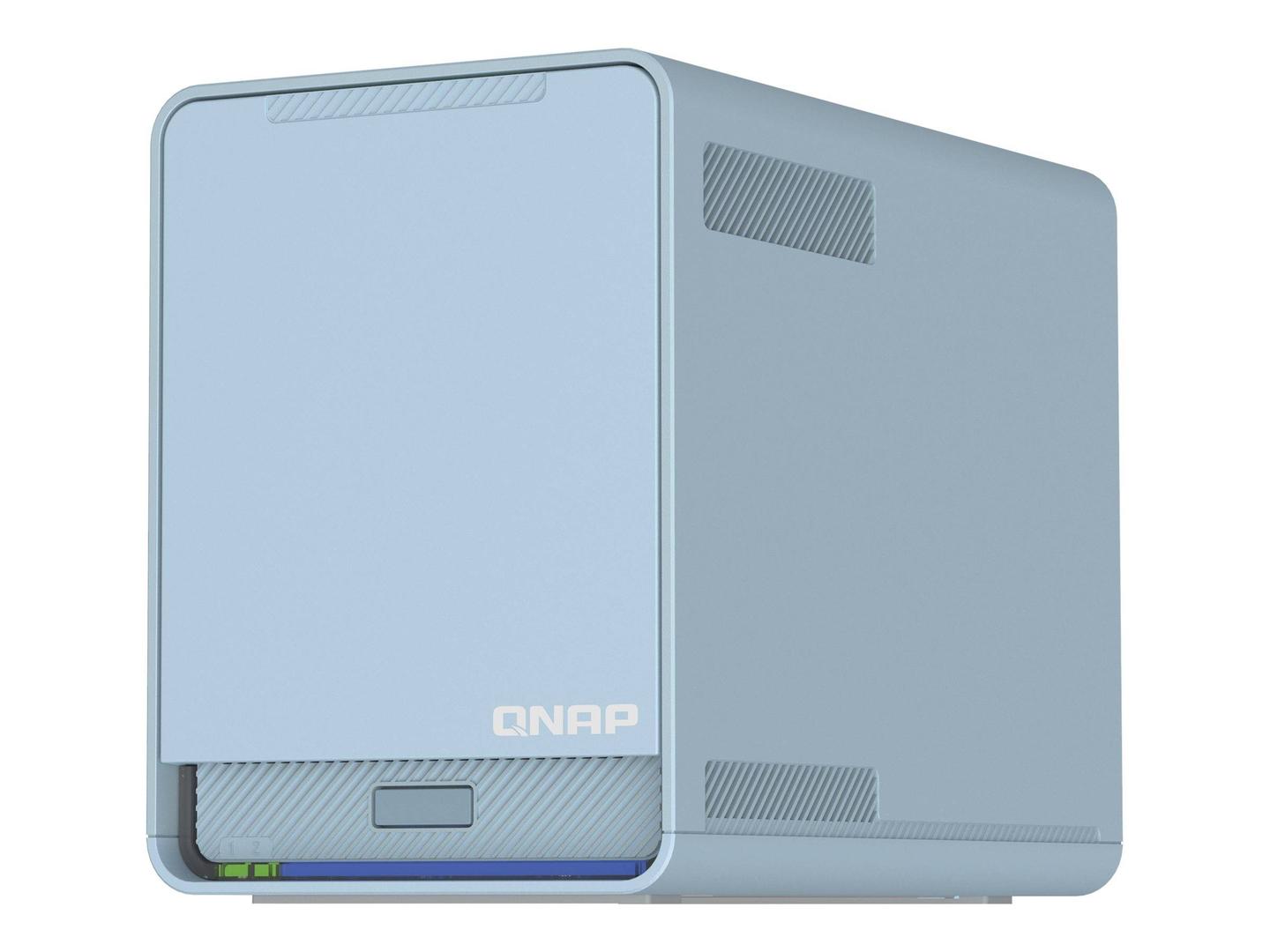

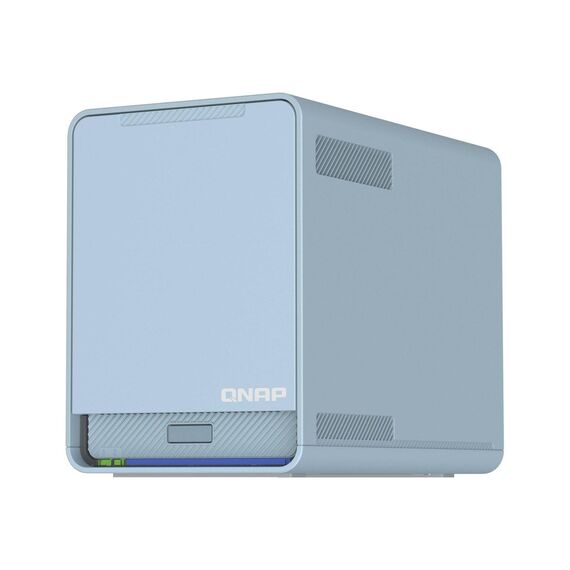

QNAP QMiroPlus-201W / Wireless router / GigE, 2.5 GigE / Wi-Fi 5 / Bluetooth / Dual Band | QMiroPlus-201W
Product Features
- Connect your home with high-coverage Tri-Band Mesh Wi-Fi
Say goodbye to weak Wi-Fi signals by setting up a Mesh Wi-Fi structure in your home. QMiroPlus-201W adopts Wi-Fi Handover technology, allowing multiple users to be automatically connected to the router with the strongest Wi-Fi signal with a single SSID. - Dedicated Tri-Band Mesh Wi-Fi for smooth connections
The QMiroPlus-201W supports Tri-band Wi-Fi of 2.4GHz, 5GHz and a dedicated Mesh Wi-Fi 5GHz band for high-bandwidth connections between Mesh Wi-Fi routers. Unlike conventional dual-band routers whose 5GHz band must be shared between Wi-Fi clients and Mesh Wi-Fi routers, the QMiroPlus-201W guarantees smooth and stable Wi-Fi connections. - File storage and backup - easily to use for all ages
QMiroPlus-201W provides convenient internet storage space for everyone in your family. Simply follow the beginner's guide to create family accounts, and then invite them to enjoy centralized data storage and real-time backup services. - Convenient connectivity for remote workers
QNAP QuWAN is a SD-WAN solution that enables automatic Mesh VPN topology from corporate networks to personal home routers. Once your home QMiroPlus-201W is set up, QuWAN Cloud Orchestrator enables QMiroPlus-201W to connect to the mesh VPN whether in router mode or AP mode. After that, your QMiroPlus-201W is your gateway to the company cloud. You can even mount storage from your company's NAS to your QMiroPlus-201W for quick and convenient access to important files and data. - Sync and back up your data anytime, anywhere
With Qsync and Hybrid Backup Sync (HBS) you can easily sync and back up your data from anywhere at any time. Qsync enables you to sync data between a QMiroPlus-201W and other end devices, while HBS helps back up data from the QMiroPlus-201W to a QNAP NAS or public cloud storage. Both apps work seamlessly with the QMiroPlus-201W to create a secure cross-device and multi-version backup solution.
Special Features
- Supports Mesh Wi-Fi Handover, allowing wide-coverage connectivity
- Tri-Band Wi-Fi guarantees smooth and stable Wi-Fi connections via 2.4GHz, 5GHz and dedicated Mesh 5GHz frequencies
- Supports QTS/QuRouter dual-system with home cloud 2.0 solution for easier NAS applications and routing configuration
- Easily and securely connect to your company networks and multi-site VPN using the built-in QNAP SD-WAN solution, QuWAN
- Use the QMiroPlus-201W as a home storage and entertainment center with various apps for file management, backup, and multimedia
- HybridMount integrates mainstream cloud services and local caching, allowing you to access cloud-based files as if they were stored locally
- One 2.5GbE host management port and four Gigabit ports for flexible LAN and WAN deployment
Product Specification
Device Type | Wireless router |
Enclosure Type | Desktop |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.0 |
Frequency Band | 2.4 GHz / 5 GHz |
Performance | Maximum data rate (2.4 GHz): 400 Mbps ¦ Maximum data rate (5 GHz): 1734 Mbps |
Capacity | Tunnel scale: 30 |
Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, PPPoE, FTP, DHCP |
Wi-Fi Rating | AC2200 |
Features | NAT support, VPN support, ALG support, parental control, Access Point operational mode, firmware upgradable, event log, Wi-Fi Protected Setup (WPS), DHCP server, port forwarding, reset button, IPv4 support, DHCP client, MU-MIMO technology, band steering, Wireless Scheduler, Web Filtering, Smart Connect, guest access, L2TP support, DNS filtering, Tri-Band mesh support with dedicated backhaul channel, SD-WAN support, QuWAN Network Management, QuWAN Identity Verification |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, VCCI, BSMI, JATE, IC, FCC, SRRC, NCC, RCM, OFCA |
Built-in Devices | NAS server |
Expansion / Connectivity | Expansion / Connectivity |

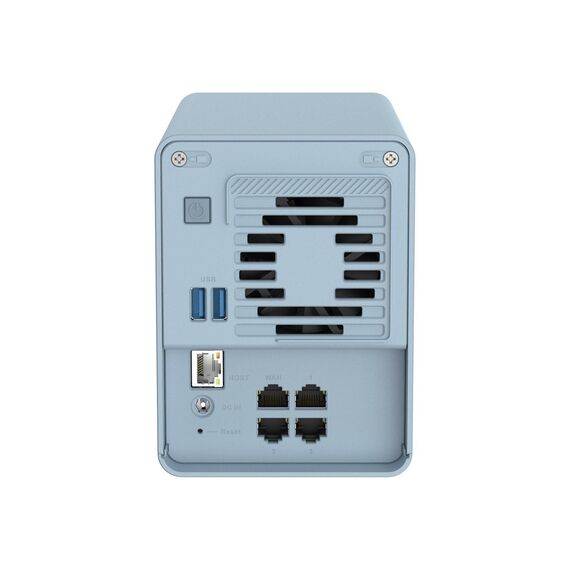

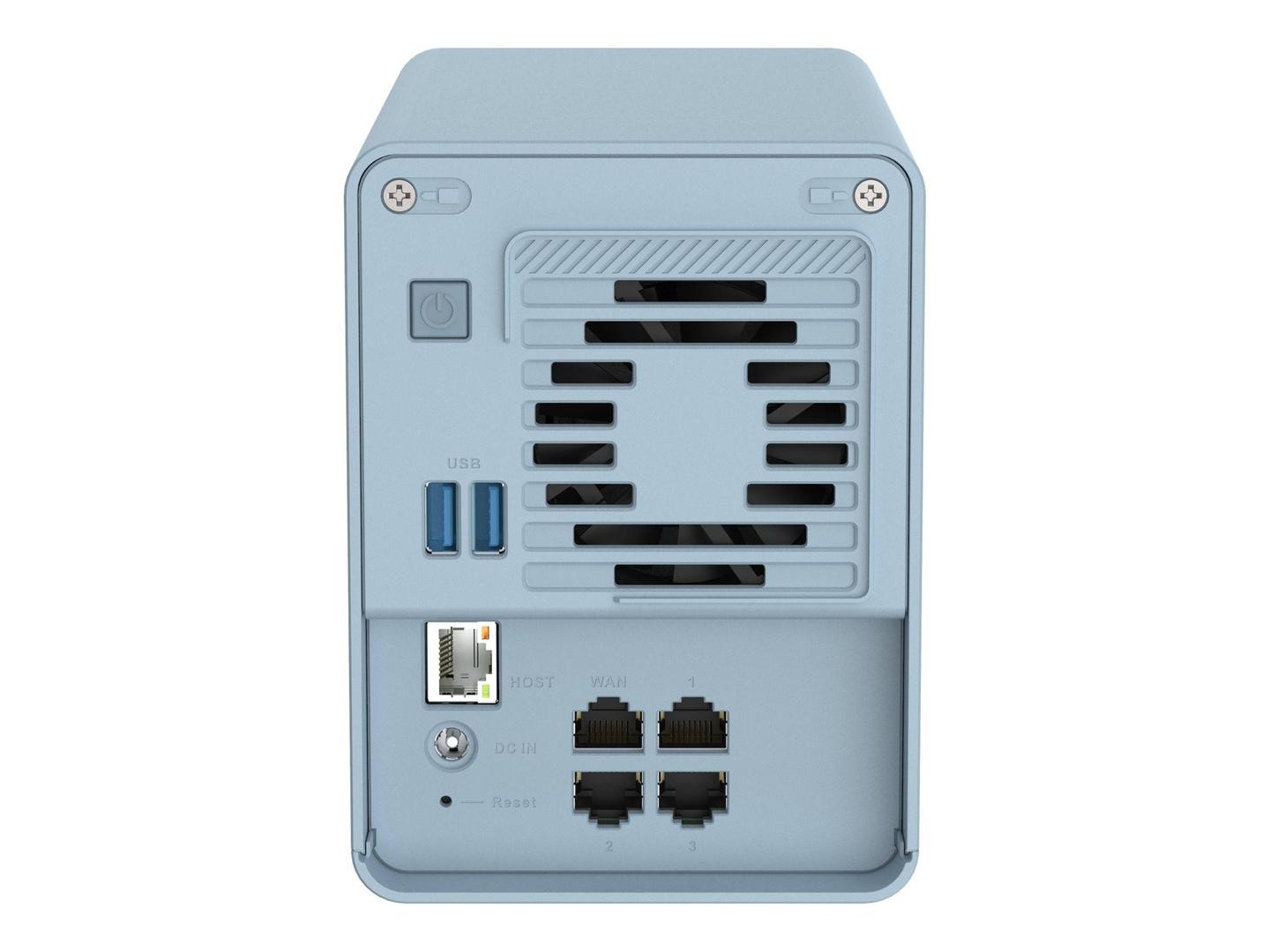

Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ USB 3.2 Gen 1: 2 x 9 pin USB Type A ¦ LAN: 1 x 2.5GBase-T - RJ-45 |
Aerial | Aerial |
Aerial | Internal |
Antenna Qty | 4 |
Power | Power |
Power Device | External power adapter |
Power Consumption Operational | 60 Watt |
Miscellaneous | Miscellaneous |
Enclosure Colour | Morandi blue |
Cables Included | 1 x network cable |
Dimensions & Weight | Dimensions & Weight |
Width | 10 cm |
Depth | 18.35 cm |
Height | 14.35 cm |
Weight | 1.44 kg |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Weight | 2.15 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
