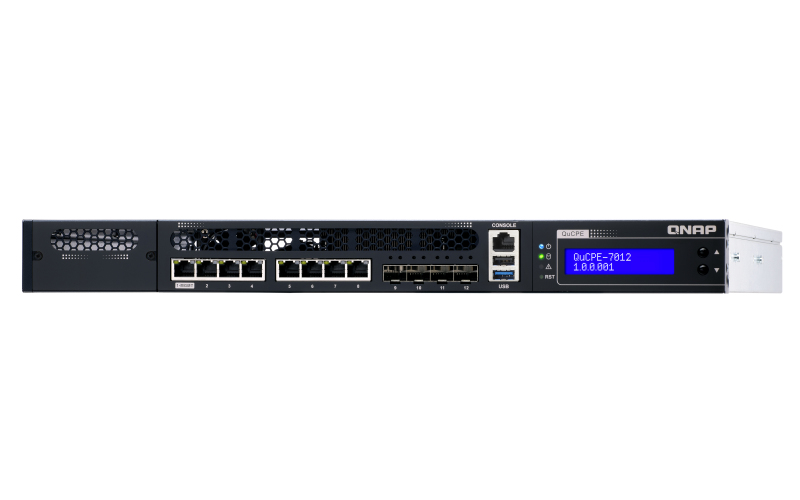

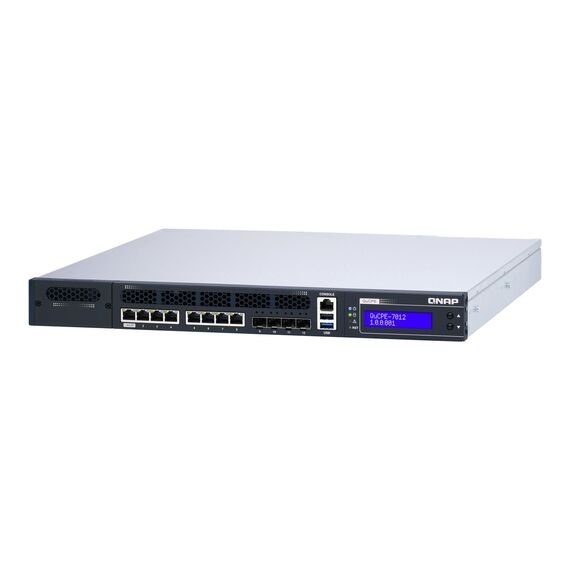

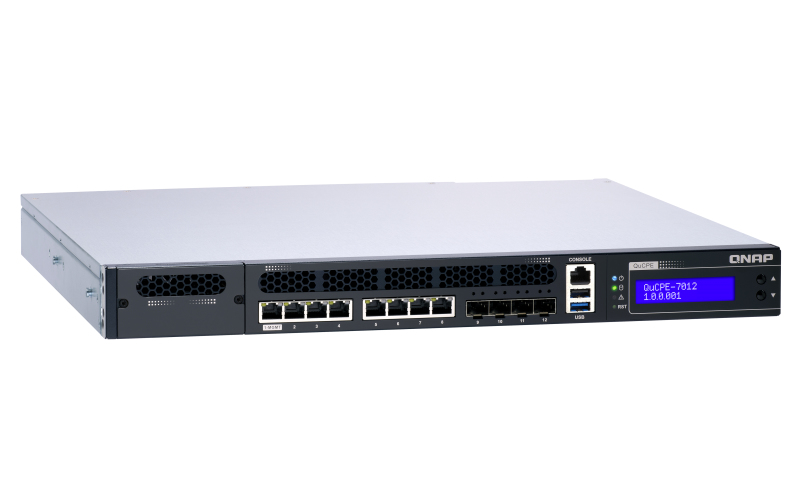

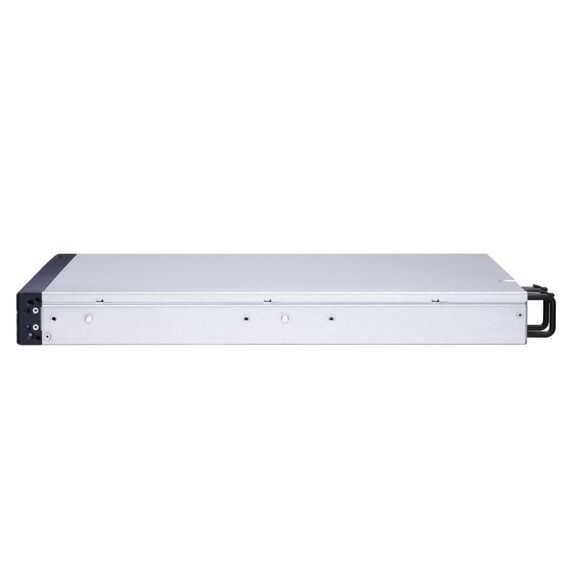

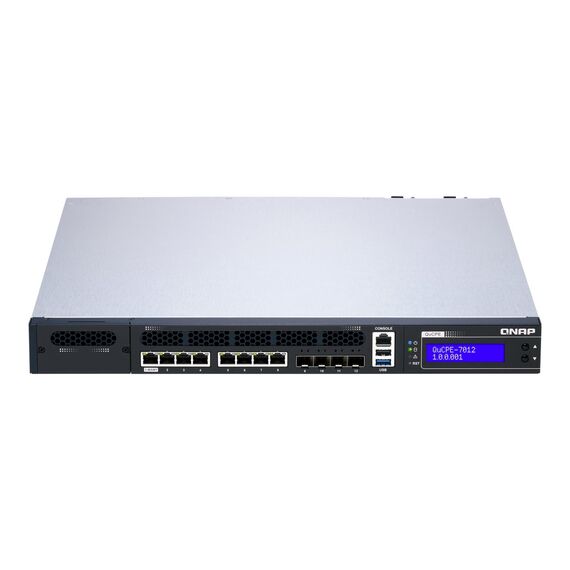

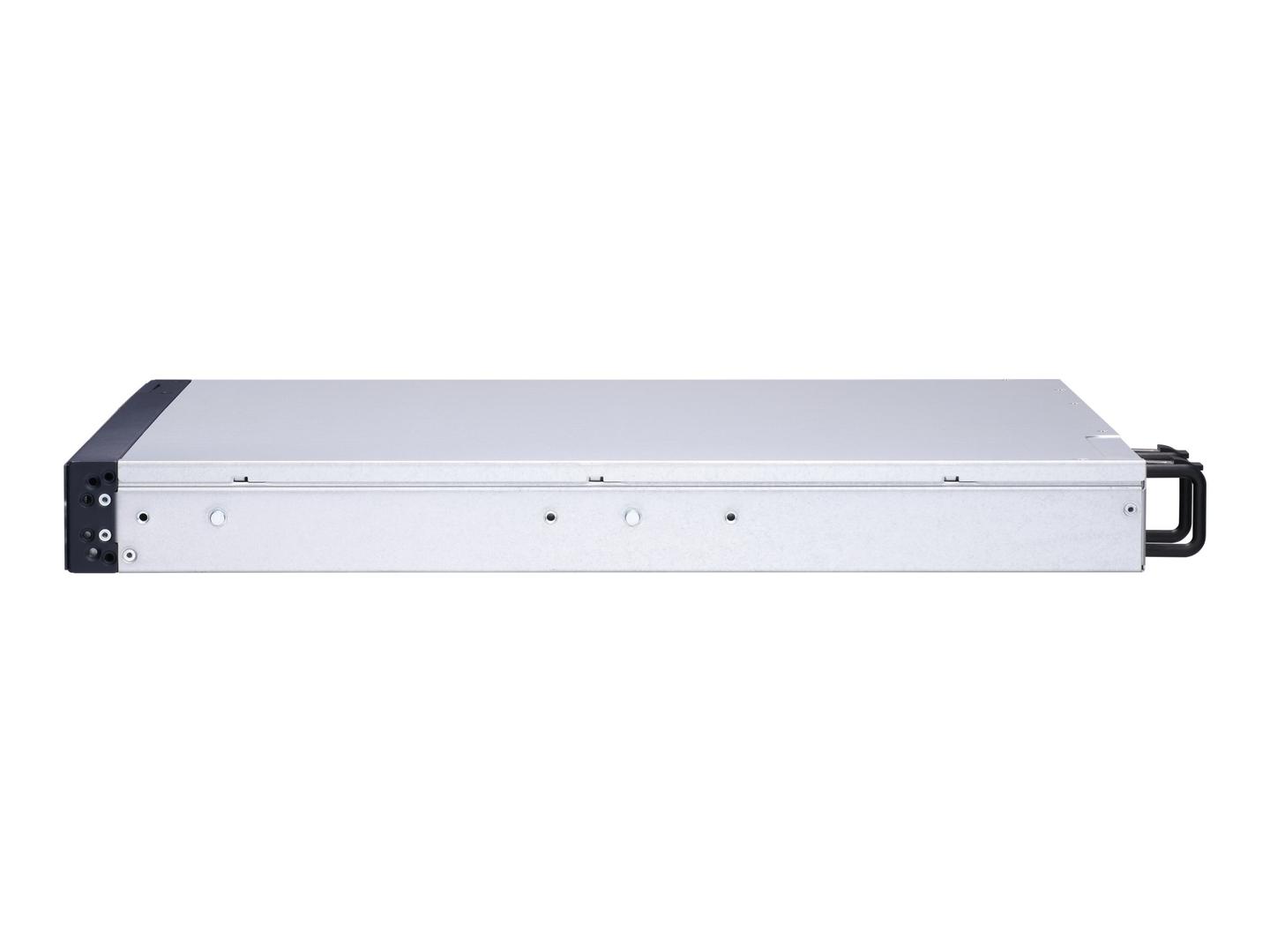

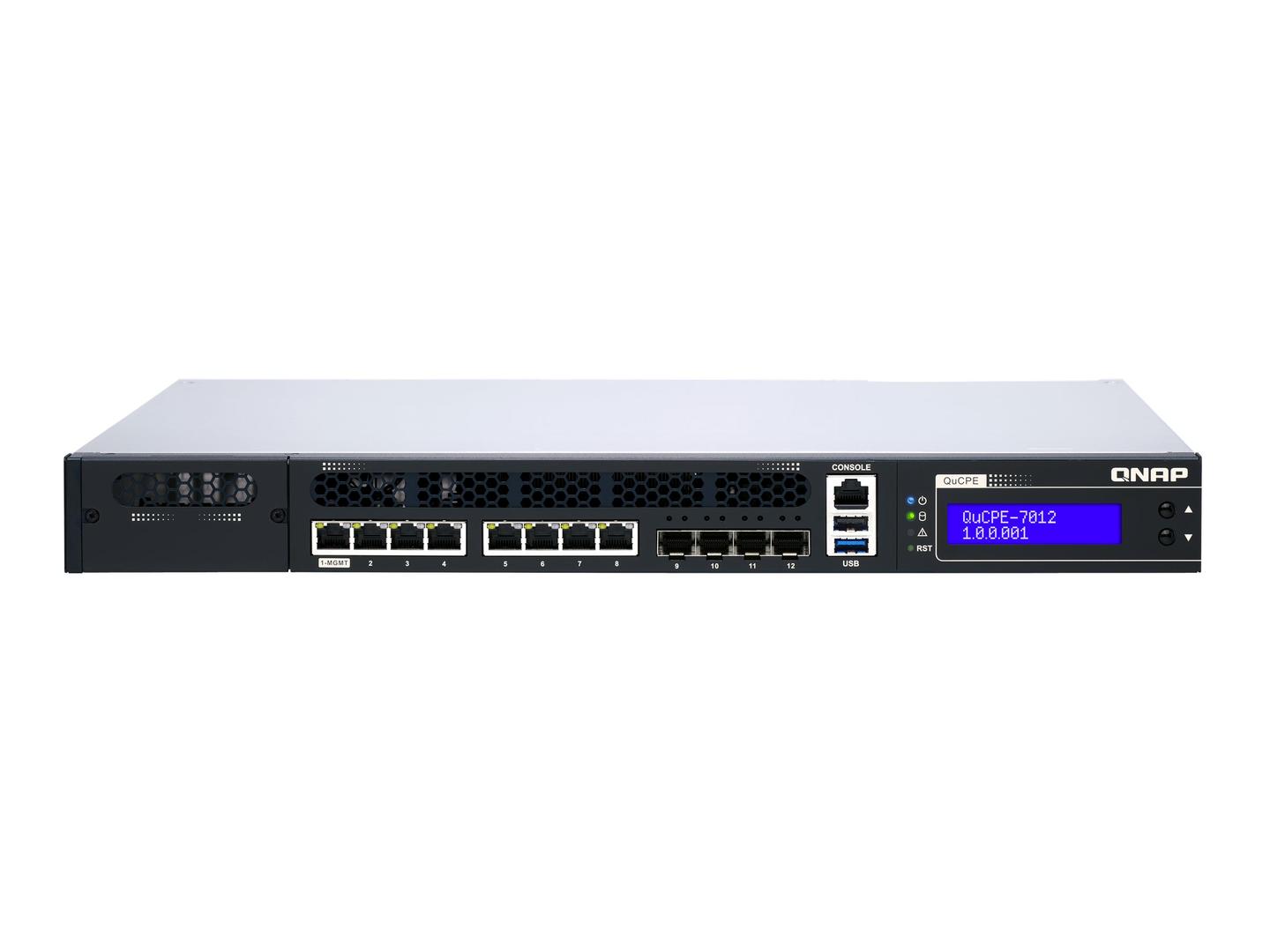

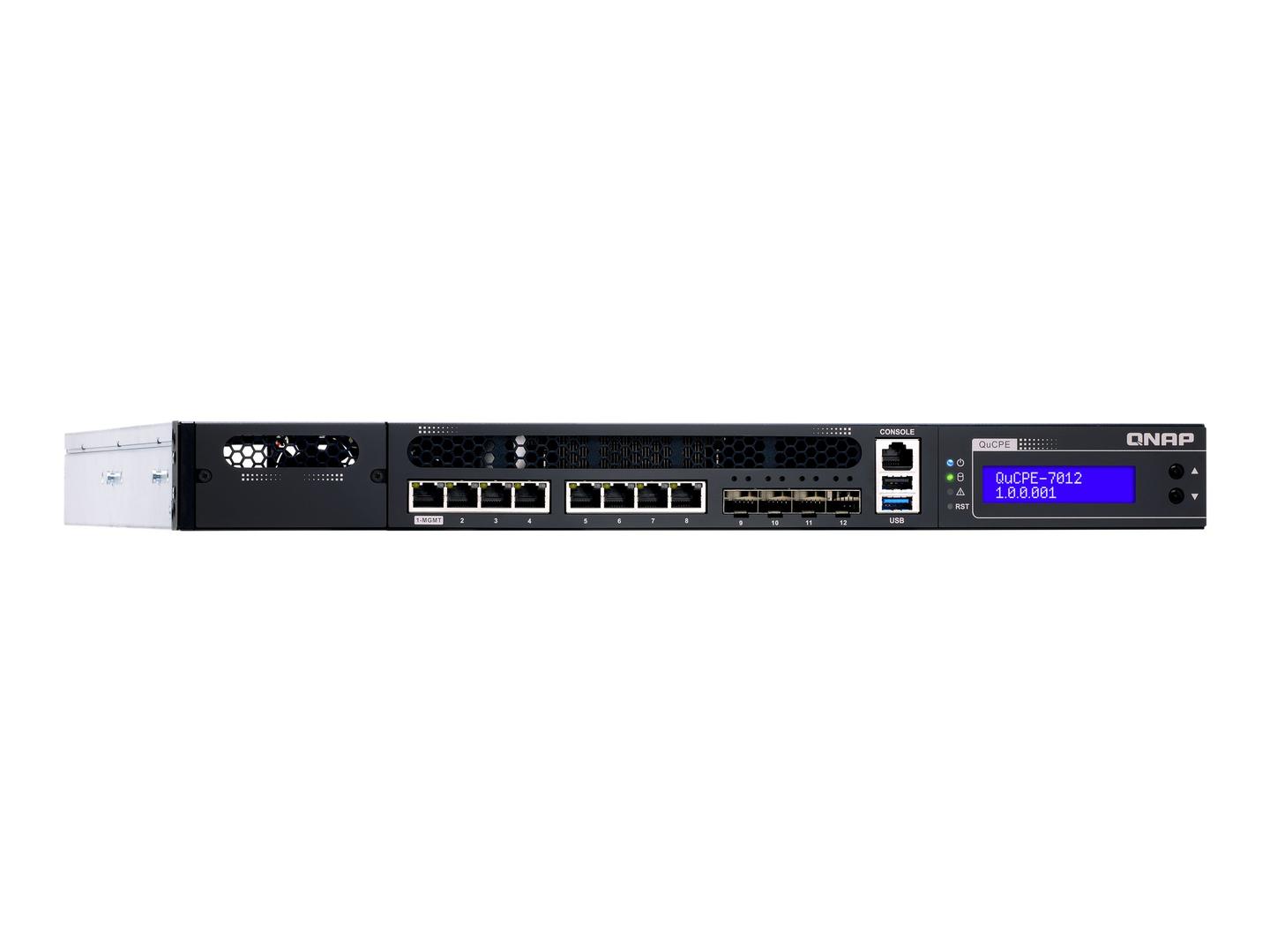

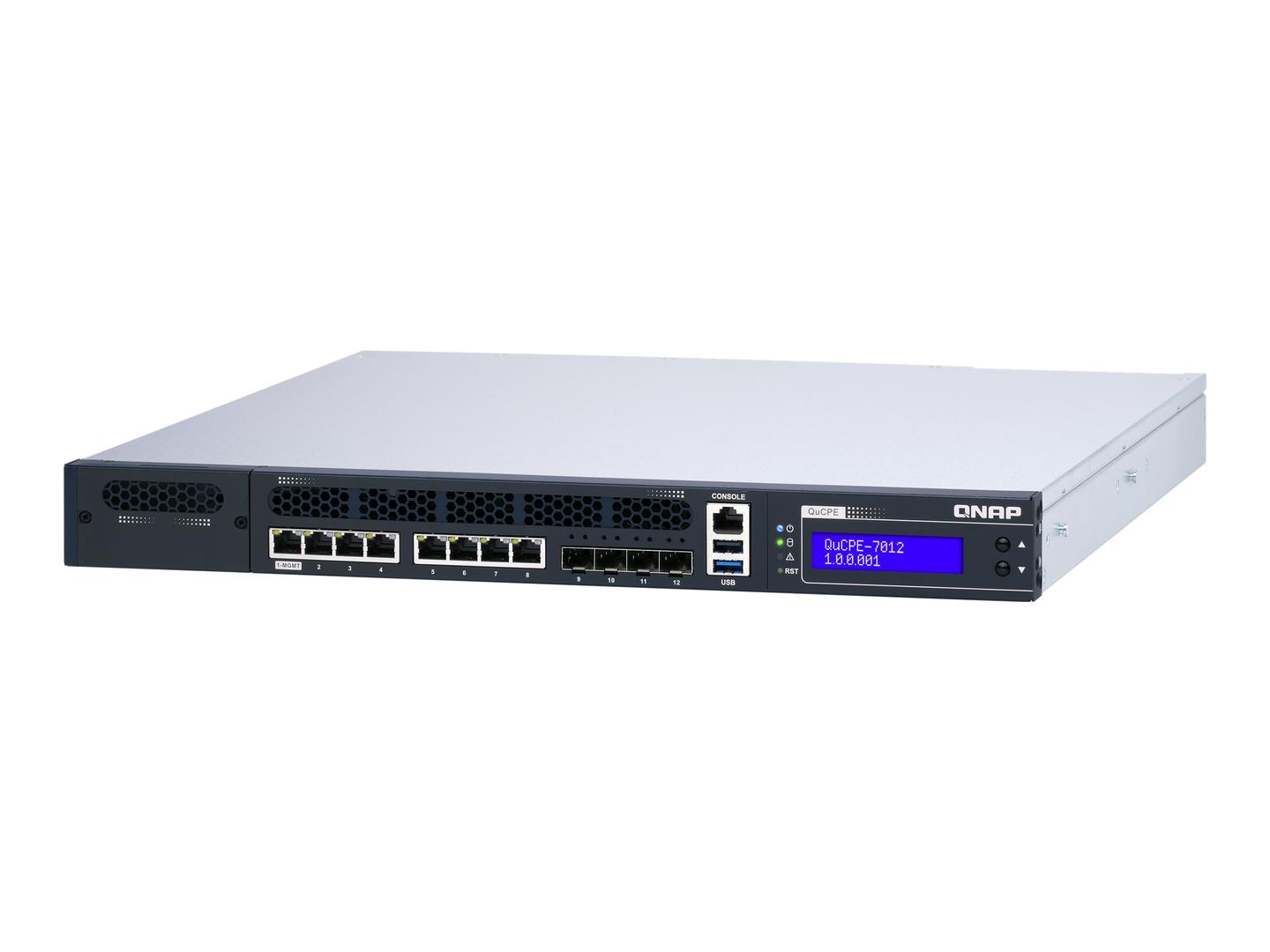

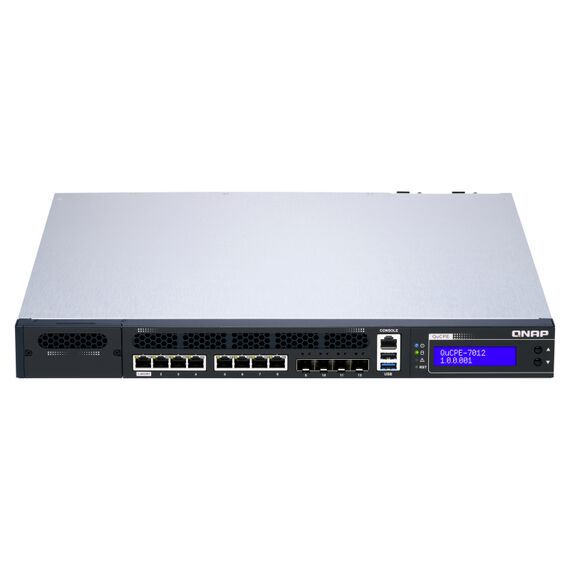

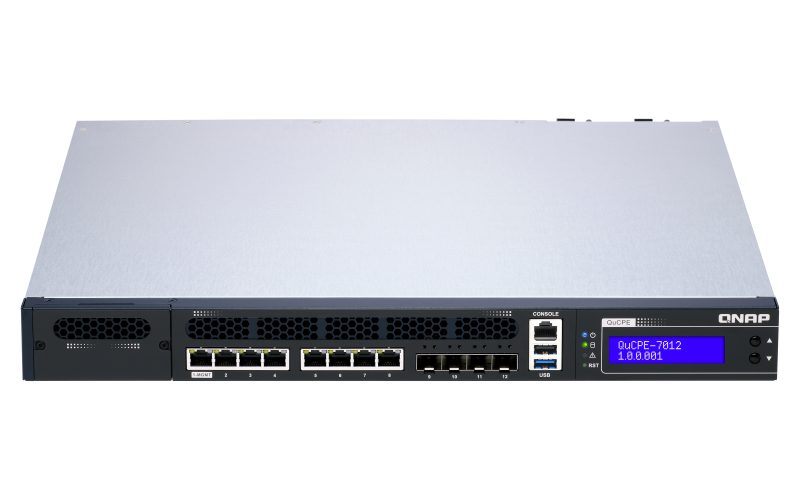

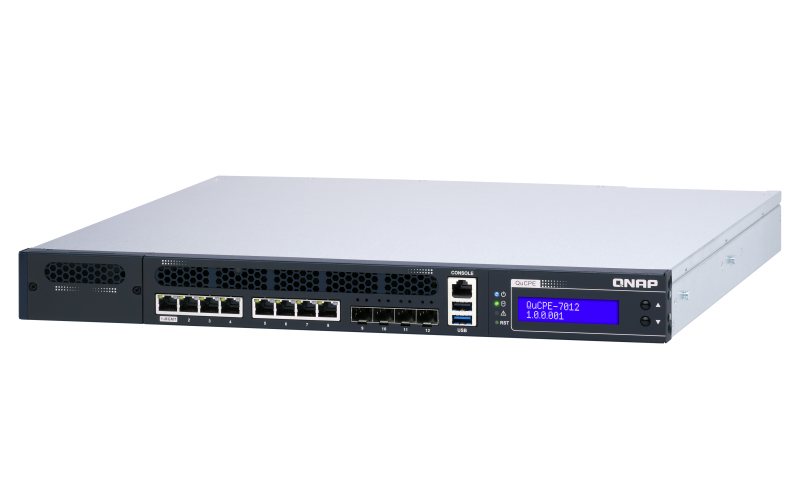

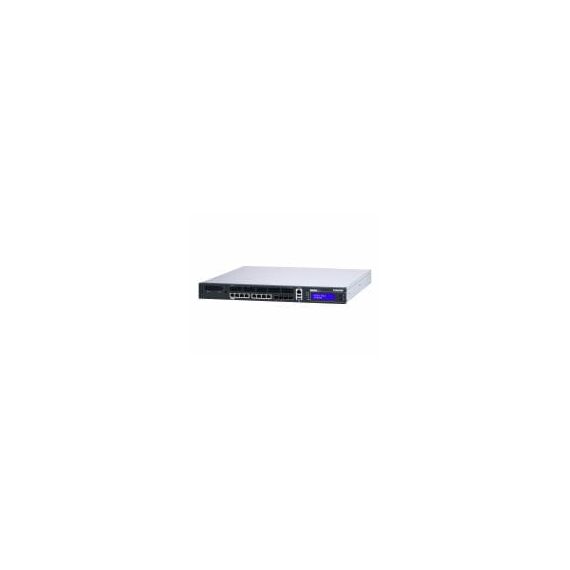

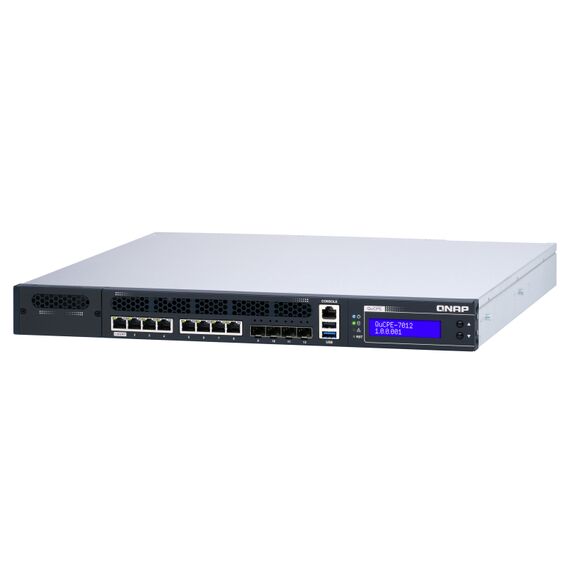

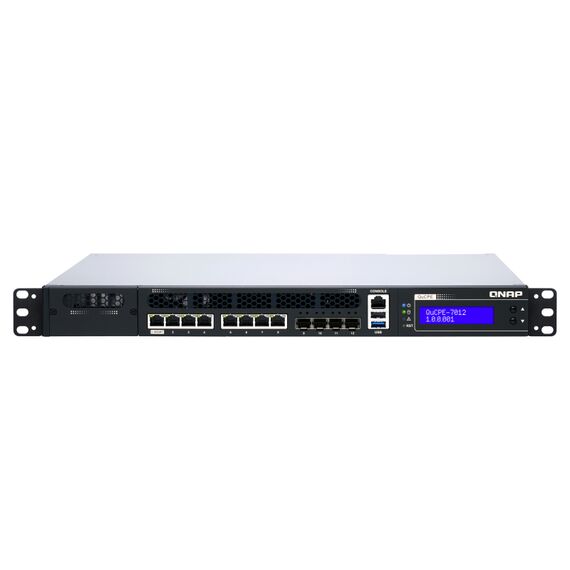

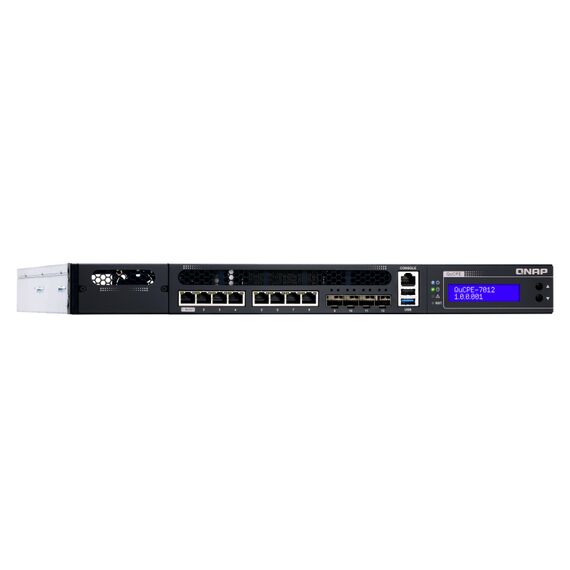

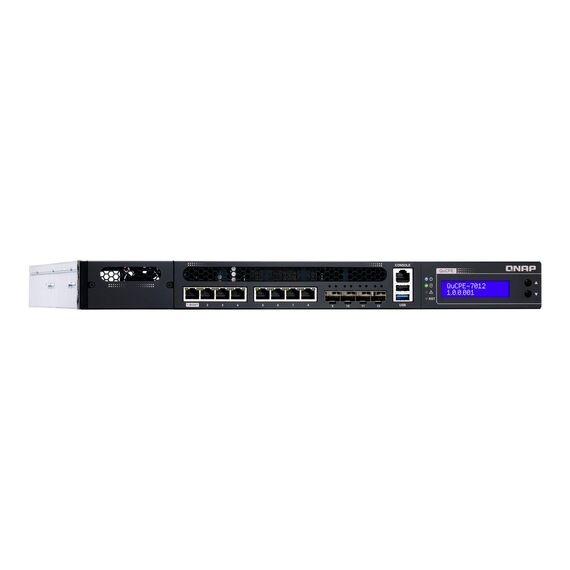

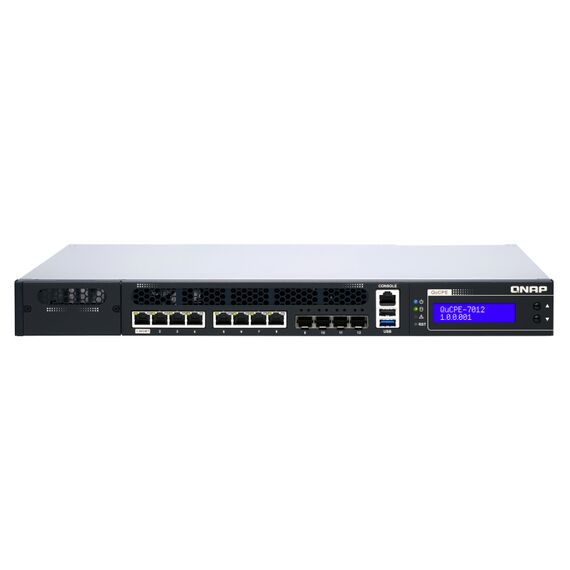

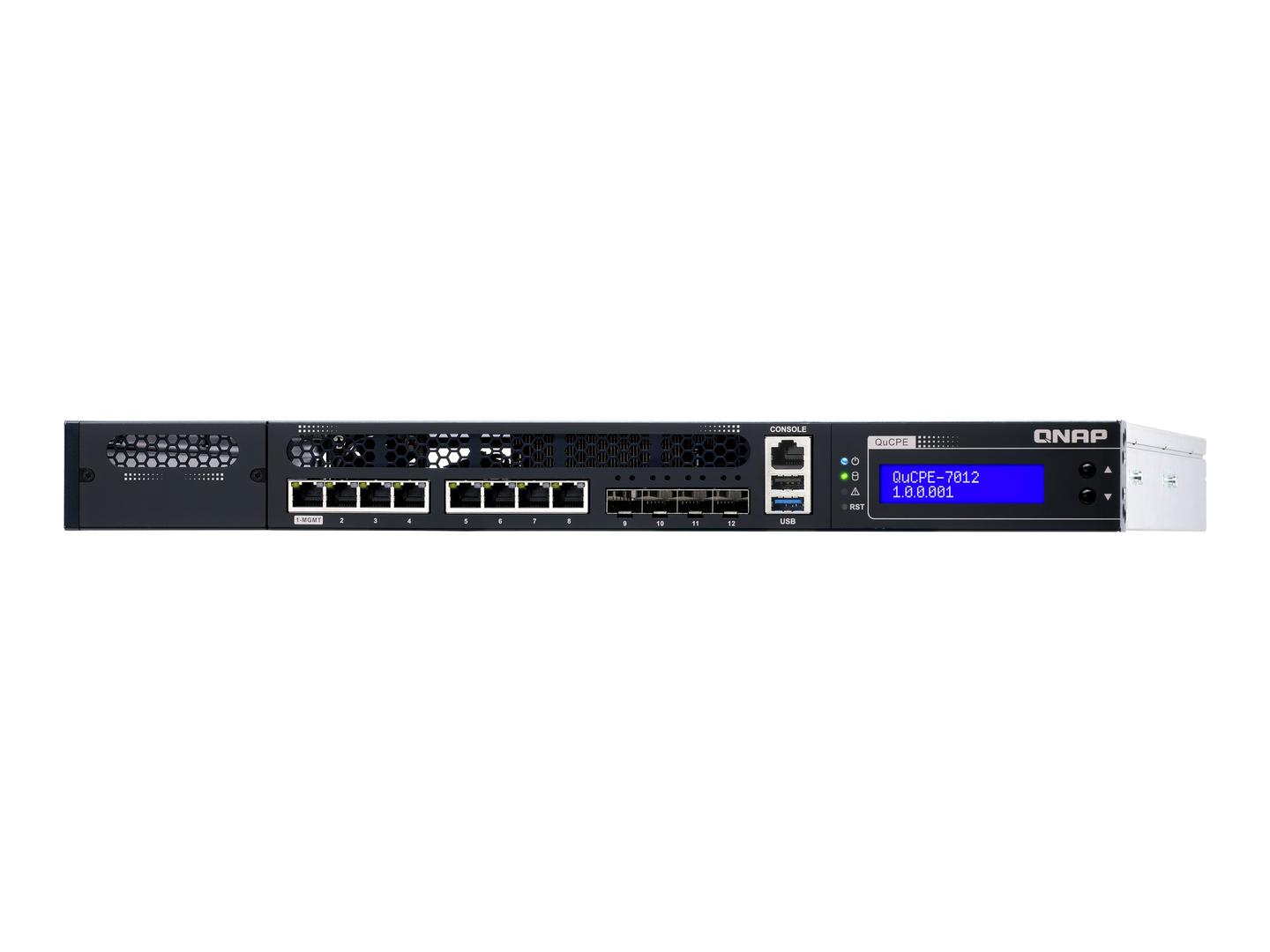

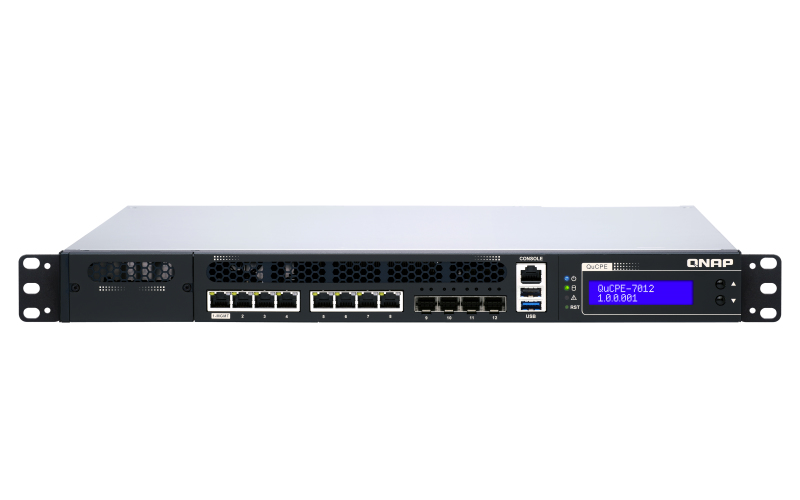

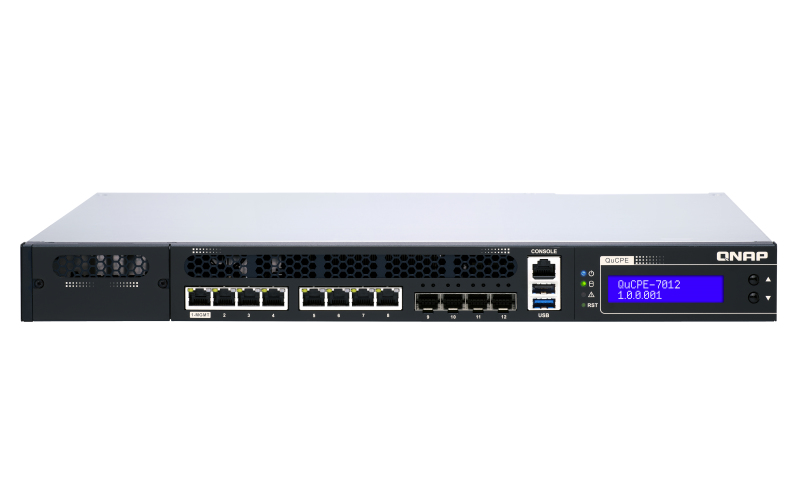

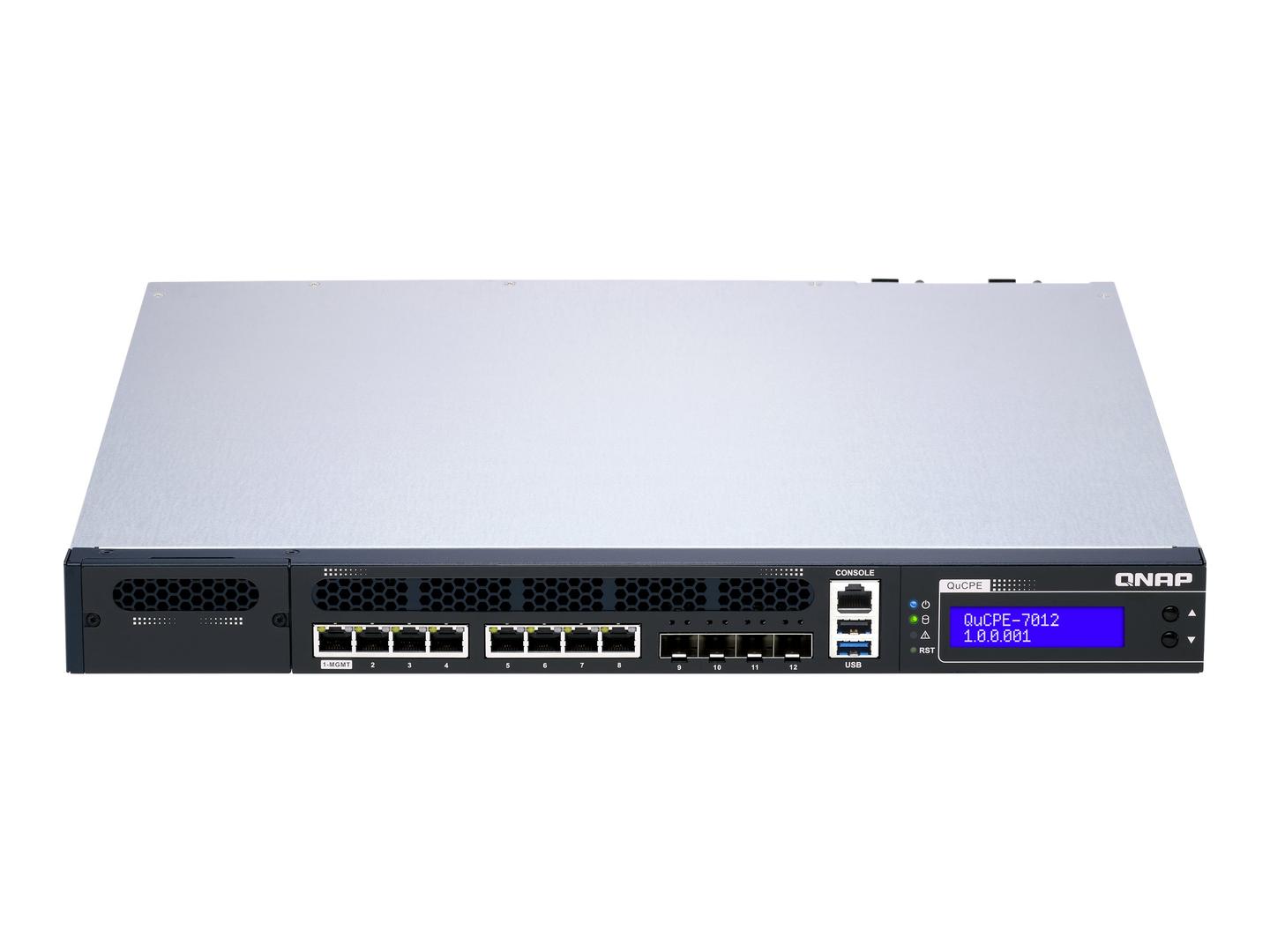

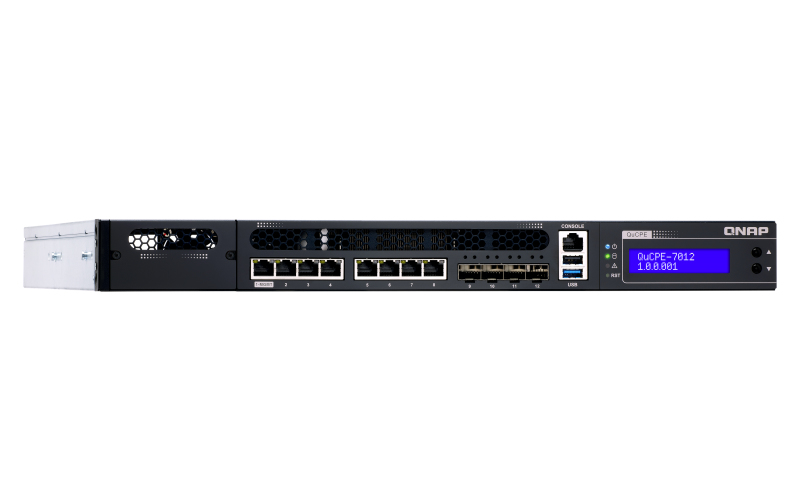

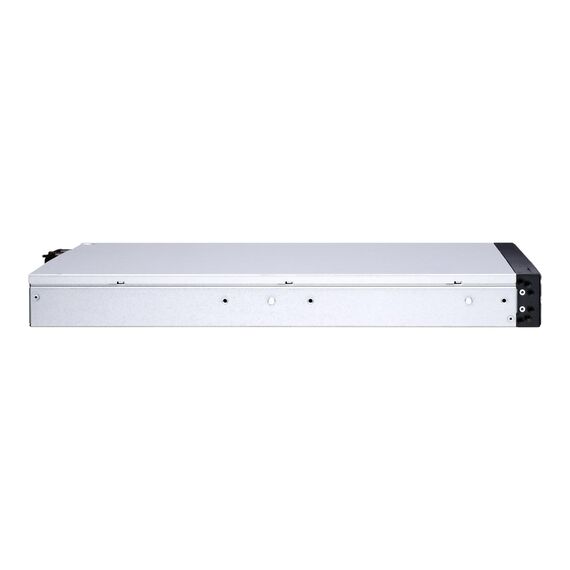

QNAP QuCPE-7012 / Virtualisation appliance / 10GbE, 2.5GbE / 1U / cloud-managed / rack-mountable | QuCPE-7012-D2146NT-32G
Please sign in so that we can notify you about a reply
Product Features
- Easily deploy virtual network environments with the 2-in-1 premise equipment
When deploying virtualized environments, Enterprises often choose to install costly enterprise-grade solutions on edge servers or free solutions with limited technical support - a hard decision for resource-constricted SMBs. In addition, simultaneously running multiple VMs can impact network performance. QNAP's QuCPE network virtualization premise equipment feature hardware acceleration technologies, QNAP's proprietary QNE Network operating system and the AMIZ Cloud centralized management platform to help SMBs build a highly-optimized virtual network infrastructure. - The QNE Network Operating System completes the virtual network infrastructure
QNAP's proprietary QNE Network operating system supports the intuitive Network Service Composer and Software-Defined WAN (SD-WAN), allowing for flexible network deployment and multi-site network infrastructure expansion. By supporting Virtual Network Functions (VNF), Virtual Machines and Containers, QNE Network integrates network, computing and application services to realize network virtualization, application virtualization and efficient management, greatly lowering management and maintenance complexity. - Powerful server-grade hardware architecture
With multi-port capabilities and expandable architecture, the QuCPE-7012 enables optimal storage, computing, and deployment flexibility to fulfill performance and application diversification requirements.
Special Features
- Easily deploy virtual network environments with the 2-in-1 premise equipment
- The QNE Network Operating System completes the virtual network infrastructure
- Powerful server-grade hardware architecture
Product Specification
| Device Type | Virtualisation appliance |
| Height (Rack Units) | 1U |
| Built-in Devices | Status LCD |
| Width | 42.6 cm |
| Depth | 43 cm |
| Height | 4.42 cm |
| Weight | 7.21 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x Intel Xeon D-2146NT 2.3 GHz |
| RAM | 32 GB (256 GB max) DDR4 SDRAM DIMM 288-pin |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Routing Protocol | Static IP routing |
| Cloud-Managed | Yes |
| Features | Firewall protection, Single Root I/O Virtualization (SR-IOV), Zero-touch provisioning (ZTP), Data Plane Development Kit (DPDK) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 2 - 2.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x8 |

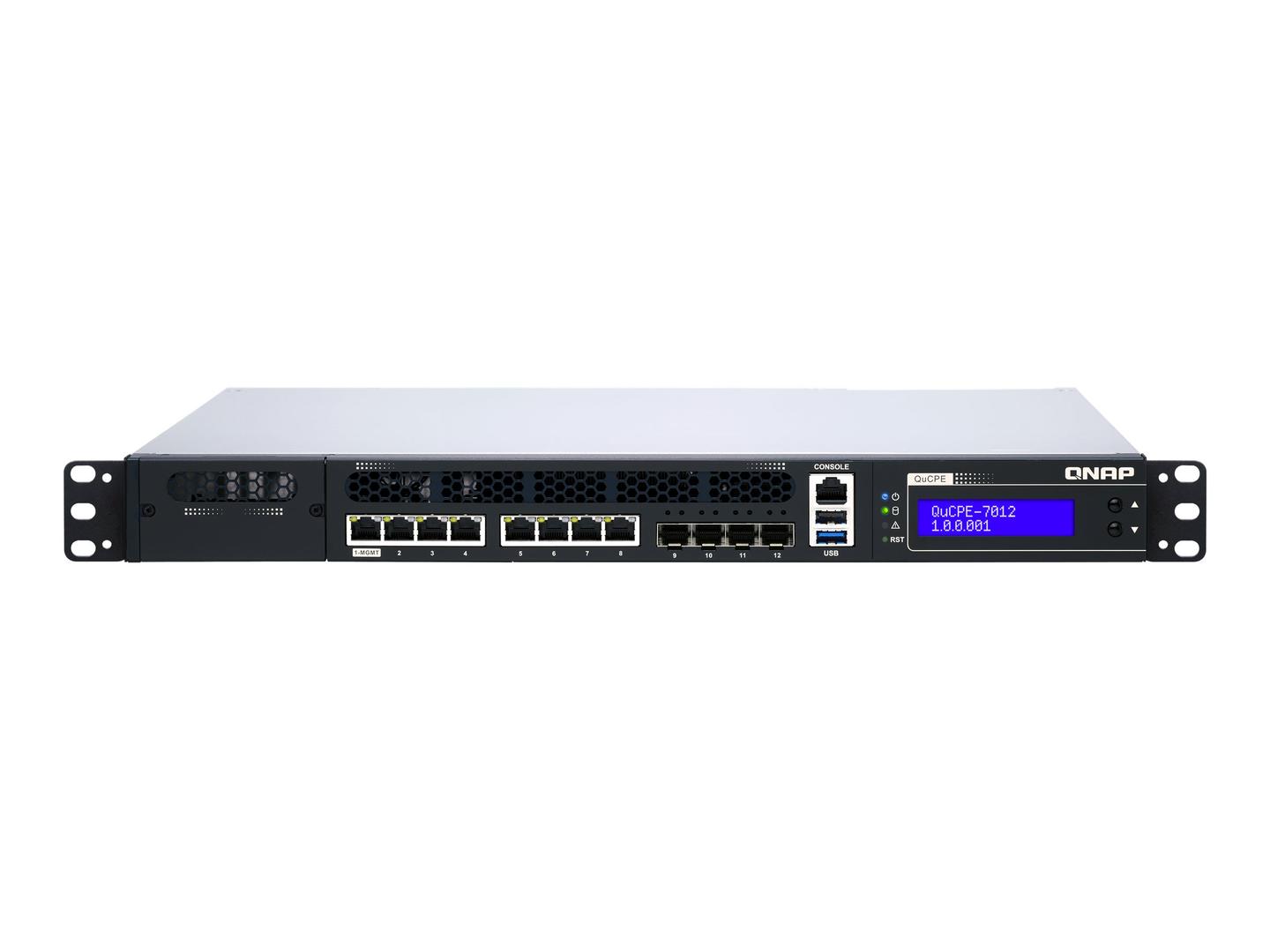

| Interfaces | 8 x 2.5 GBase-T - RJ-45 ¦ 4 x 10Gb Ethernet - SFP+ ¦ 1 x USB 2.0 - Type A ¦ 1 x USB 3.2 Gen 1 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | 12 x flat head screws (for 2.5" HDD) |
| Cables Included | 1 x network cable |

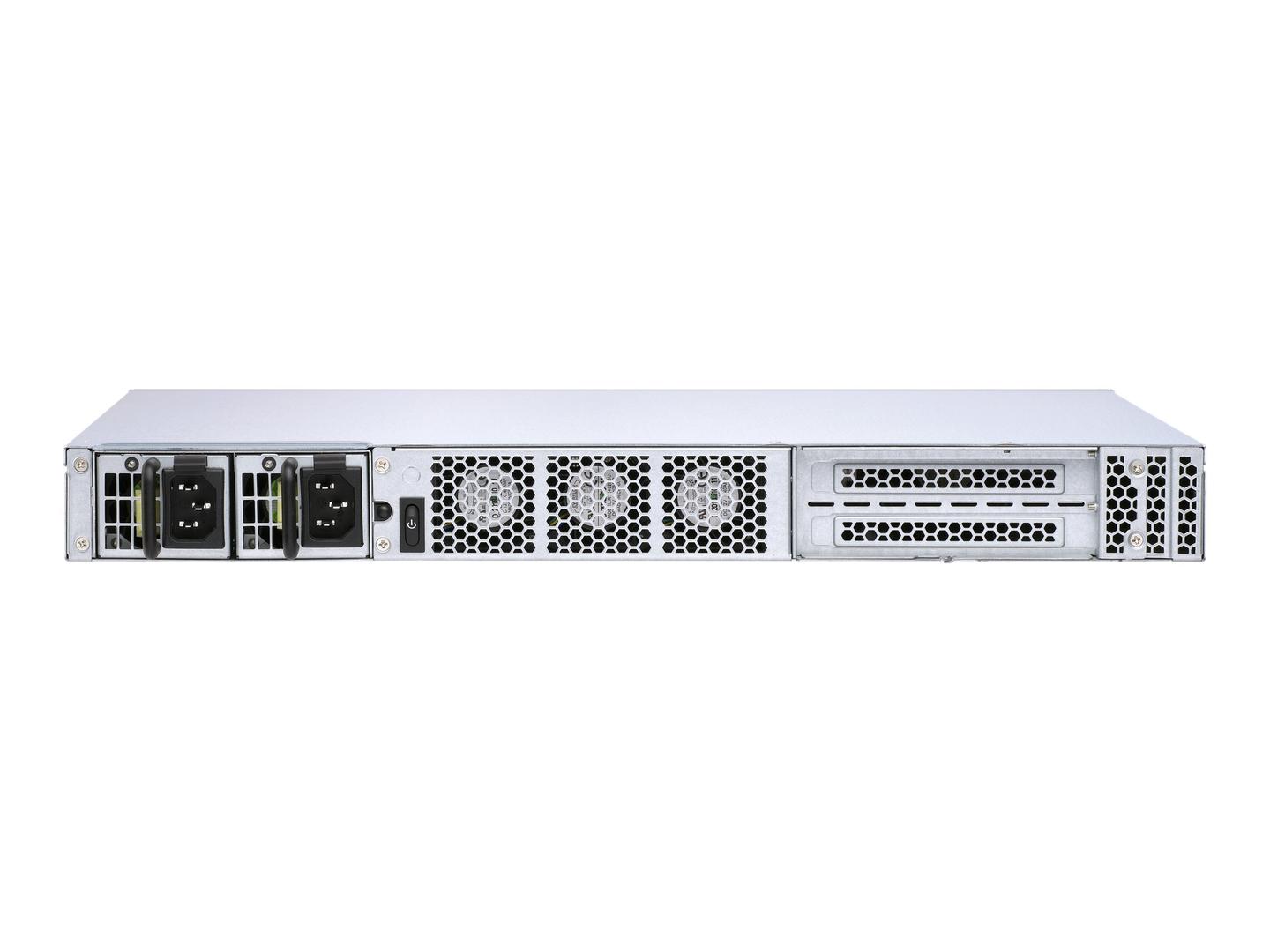

| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 90-264 V |
| Power Provided | 300 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Provided | QNE Network OS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - QNAP - QuCPE-7012-D2146NT-32G
More Details
Product Code
04:457649
EAN Code
4711103080269
Manufacturer
QNAP
