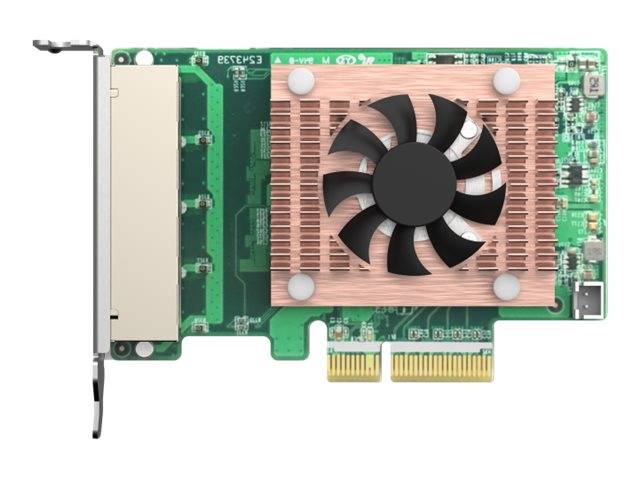

QNAP QXG-2G4T-I225 / Network adapter / PCIe 2.0 x4 low profile / 2.5GBase-T x 4 / for QNAP TDS-16489, 16489U R2, TS-1886, 251, 2888, h1277, h1283, h977, TVS-1672, 672, 872, 972 | QXG-2G4T-I225
QXG-2G4T-I225
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Quad-port 2.5 GbE network expansion card
- Controller: Intel Ethernet Controller I225-LM
- Connector: RJ45
- PCIe interface: PCIe Gen2 x4
- Transmission rates: 2.5Gbps/1Gbps/100Mbps/10Mbps
- Supported operating systems: QTS 4.4.2 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (driver required)
- Supported QNAP NAS: Models with PCIe slot(s) (1 free slot required)
- Port and cable: RJ-45; over CAT-5 class cable
- Supported functions: PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Networking | Networking |
| Ports | 2.5GBase-T x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Features | VLAN support, wake on LAN (WOL), teaming support, PXE support, Receive Side Scaling (RSS), Extended Message-Signaled Interrupts (MSI-X), 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qbv |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Intel I225-LM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Full-height bracket, QNAP NAS bracket |
| Software / System Requirements | Software / System Requirements |
| OS Required | Ubuntu, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, QNAP QTS 4.4.2 or later |
| Compatibility Information | Compatibility Information |
| Designed For | QNAP TDS-16489U R2, TDS-16489U-SA1, TDS-16489U-SA2, TDS-16489U-SB2, TDS-16489U-SB3, TDS-16489U-SD3, TDS-16489U-SE1, TDS-16489U-SE1-R2, TDS-16489U-SE2, TDS-16489U-SE2-R2, TDS-16489U-SF2, TDS-16489U-SF2-R2, TDS-16489U-SF3, TDS-16489U-SF3-R2, TES-1885U, TES-3085U, TS-1273U, TS-1273U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TS-1635AX, TS-1673U, TS-1673U-RP, TS-1677X, TS-1677XU-RP, TS-1683XU-RP, TS-1685, TS-1886XU-RP, TS-2477XU-RP, TS-2483XU-RP, TS-251D, TS-2888X, TS-431X, TS-473, TS-531P, TS-531X, TS-673, TS-677, TS-831X, TS-873, TS-873U, TS-873U-RP, TS-877, TS-877XU-RP, TS-883XU, TS-977XU-RP, TS-983XU, TS-EC1080 Pro Turbo NAS, TS-EC880 Pro Turbo NAS, TS-h1277XU-RP, TS-h1283XU-RP, TS-h977XU-RP, TVS-1271U-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TVS-1672XU-RP, TVS-2472XU-RP, TVS-471, TVS-471U, TVS-471U-RP, TVS-472XT, TVS-473, TVS-473e, TVS-671, TVS-672N, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TVS-871, TVS-871T, TVS-871U-RP, TVS-872N, TVS-872XT, TVS-872XU, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TVS-972XU, TVS-EC1080 Turbo NAS, TVS-EC1080+ Turbo NAS, TVS-EC880, TVS-EC880 Turbo NAS |
