QNAP QXP-16G2FC / Host bus adapter / PCIe 3.0 x8 low profile / 16Gb Fibre Channel Gen 5 x 2 / with 2 x SFP+ transceivers (TRX-16GFCSFP-SR) / for QNAP TS-1277, 463, 677, 877, 977, EC1280, TVS-2472, 682, 872, 882, EC1280, EC1580, EC2480 | QXP-16G2FC

Product Features

• QNAP NAS as a Fibre Channel SAN storage solution
  Replacing Fibre Channel SAN environments can be expensive and time consuming. By installing a PCIe-based Fibre Channel card to a QNAP NAS, your existing SAN environment gains a budget-friendly storage or backup solution. Not only is a QNAP NAS more affordable than typical SAN devices, but it also provides rich enterprise features to make storage applications more efficient - including LUN snapshots, Qtier auto-tiering, SSD cache acceleration, hybrid cloud backup solutions, and much more. The Fibre-Channel-ready QNAP NAS is a unified storage solution that provides SAN, NAS, and cloud storage features with higher cost-effectiveness and application flexibility.
• Manage Fibre Channel connection using iSCSI & Fibre Channel app
  Use the QTS iSCSI & Fibre Channel app to set the QNAP NAS as a Fibre Channel Target, and add the NAS to your SAN environment with WWPN addresses. You can also take advantage of the Fibre Channel Switch that allows multiple connection paths to have multiple servers share the NAS. In addition, the LUN Masking and Port Binding features provide an additional layer of security for your data.

Special Features

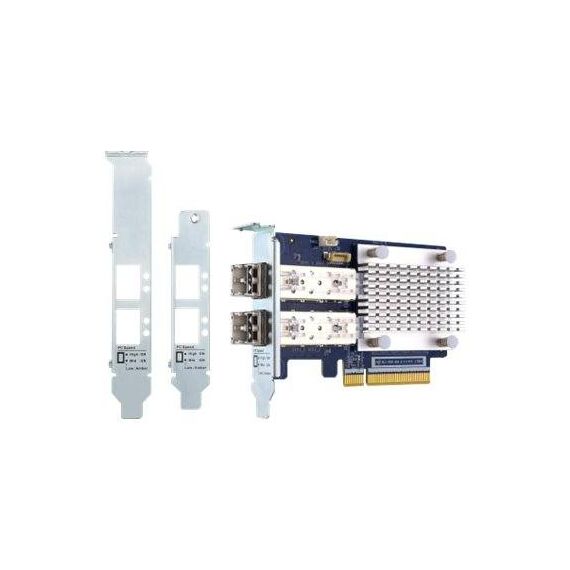

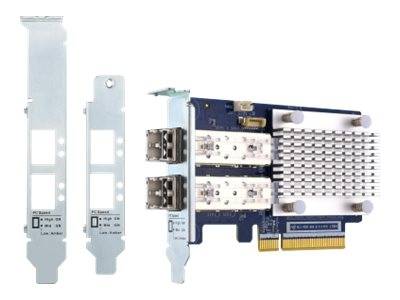

• Dual-port 16Gb Enhanced Gen 5 Fibre Channel expansion card with SFP+ transceivers
• Transmission rates: Fibre Channel 16/8/4 Gb/s (up to 14.025 Gb/s per port)
• Form factor: low-profile PCIe card 10.68 x 6.89 cm
• Bracket: low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled
