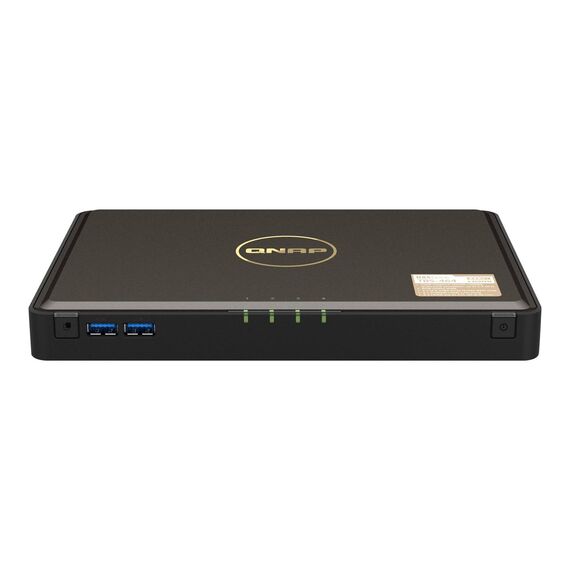

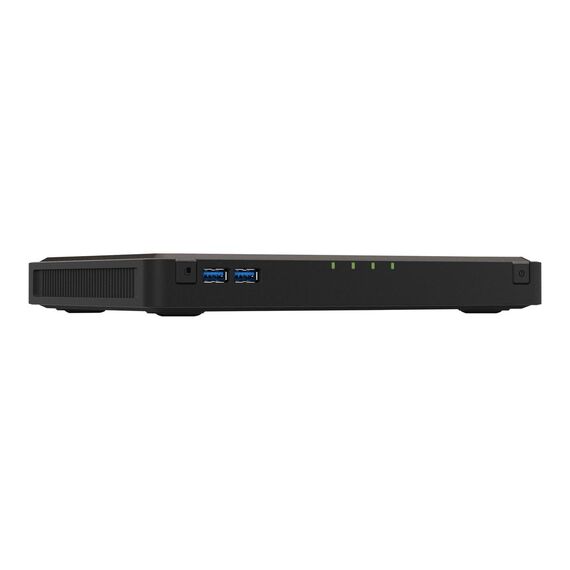

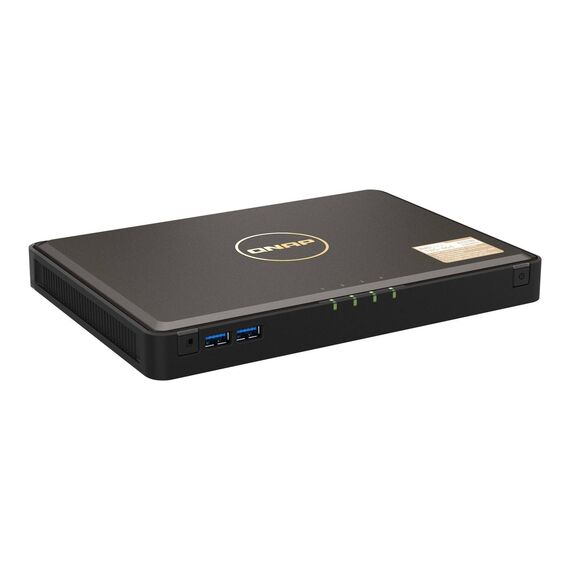

QNAP TBS-464 NASbook / NAS server / 4 bays / RAID RAID 0, 1, 5, 6, 10 / RAM 8 GB / 2.5 Gigabit Ethernet / iSCSI support | TBS-464-8G

TBS-464-8G
873.61
(1,039.60 inc. VAT)
Availability: 6 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:388551 EAN Code4713213519974 ManufacturerQNAP

Product Features

  • Two 2.5GbE ports with USB 3.2 Gen1 connectivity for greater performance
    The TBS-464 is powered by an Intel Celeron N5105 / N5095 quad-core processor with 8 GB DDR4 memory, and has two USB 3.2 Gen 1 ports for faster data transfer. With two 2.5GbE ports the TBS-464 provides exceptional file transfer performance, and with Port Trunking can achieve speeds of up to 5 Gbps. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance.
  • Build a high-speed 2.5GbE network environment
    QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network to handle bandwidth-hungry applications.
  • A fast 2.5GbE NAS
    A QNAP NAS features one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
  • Upgrade computers and servers
    Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
  • Add a 5GbE port to laptops
    Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
  • A switch that supports 2.5GbE+
    QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
  • Handy, quiet and compact - the stylish tech gadget for everyday use
    Designed around QNAP's unique "NASbook" concept, the TBS-464 is a thin, B5-sized device that measures just 1.18 x 9.06 x 6.50 inch, weighs just 740 g, so it easily fits any working environment. Have it within your office, carry it around, and take it into meetings to enable quick file sharing, collaboration and presentations.
  • Video conferencing system and wireless presentation for enterprise
    The TBS-464 can be used with QNAP KoiMeeter to build a high-quality video conferencing system. With 4K output you can see every detail in screen shares, web browsers, and online meetings. Important files can be shared using the built-in chat room and video calls and messages can be recorded to the TBS-464 for future playback or archiving.

Special Features

  • Two 2.5GbE ports with USB 3.2 Gen1 connectivity for greater performance
  • Build a high-speed 2.5GbE network environment
  • A fast 2.5GbE NAS
  • Upgrade computers and servers
  • Add a 5GbE port to laptops
  • A switch that supports 2.5GbE+
  • Handy, quiet and compact - the stylish tech gadget for everyday use
  • Video conferencing system and wireless presentation for enterprise

Product Specification

Device Type NAS server
Host Connectivity 2.5 Gigabit Ethernet
Total Storage Capacity 0 GB
Installed Devices / Modules Qty 0 (installed) / 4 (max)
Width 23 cm
Depth 16.5 cm
Height 3 cm
Weight 800 g ()
Built-in Devices Led panel
Processor / Memory Processor / Memory
Processors Installed 1 x Intel Celeron 2 GHz
Number of Cores Quad-Core
Max Supported Qty 1
Max Turbo Speed 2.9 GHz
RAM 8 GB DDR4
Flash Memory Installed 4 GB
Storage Controller Storage Controller
Type RAID
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Networking Networking
Data Link Protocol 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol PPTP, L2TP, IPSec, iSCSI, FTP, DHCP, SMB, DDNS, NFS, SFTP, HTTP, HTTPs, IPv4, IPv6
Remote Management Protocol SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, DHCP, RADIUS
Network Services Compatibility File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Features Firewall protection, hardware encryption, VPN support, LDAP support, VLAN support, wake on LAN (WOL), web server, backup server, download client, file sharing, anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, FTP server, reset button, online RAID capacity expansion, online RAID level migration, anti-virus protection, system log, Photo album server, event notification, built-in hardware transcoding, file station, port trunking, black list, USB One Touch Copy, EXT4 file system, SSD trim, Windows ODX, white list, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), snapshot (folder and LUN), SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN
Encryption Algorithm SSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Security DVR Security DVR
IP Cameras Supported 8
Compression Format MPEG-4, H.264
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x M.2 2280

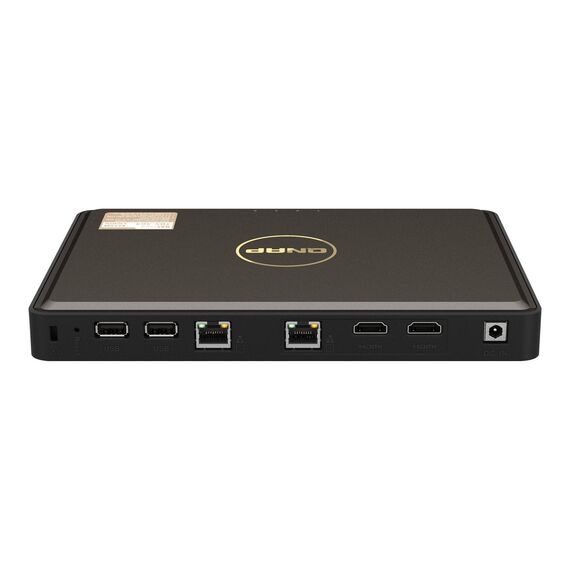

Interfaces 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 1 - Type A
Miscellaneous Miscellaneous
Cables Included 1 x network cable
Features Security lock slot (cable lock sold separately), wake on LAN, built-in cooling fan, Online RAID Level Migration (RLM), scheduled power on/off, S.M.A.R.T. support, Secure Erase, dual boot, alarm buzzer, array roaming
Security Slot Type Kensington security slot
Compliant Standards FIPS 140-2, ISO 7779
Included Accessories 4 x M.2 SSD heatsinks, 12 x M.2 SSD thermal pads, power cable
Power Power
Power Device External power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 28 Watt
Power Consumption Stand by 18 Watt
Power Provided 65 Watt
Software / System Requirements Software / System Requirements
Storage Operating System QNAP QTS 5.0.0
Software Included McAfee AntiVirus
OS Required Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 2 years
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Weight 1.7 kg
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 0 - 95% RH (non-condensing)
Sound Emission 25 dBA

Features - QNAP - TBS-464-8G

More Details
Product Code
04:388551
EAN Code
4713213519974
Manufacturer
QNAP
