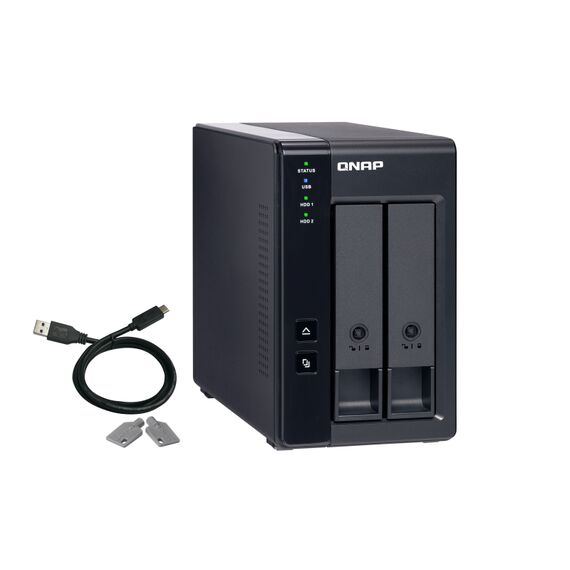

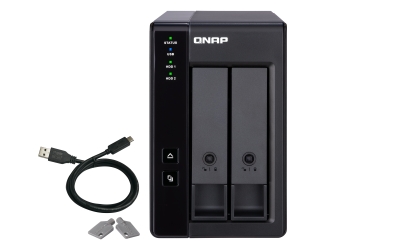

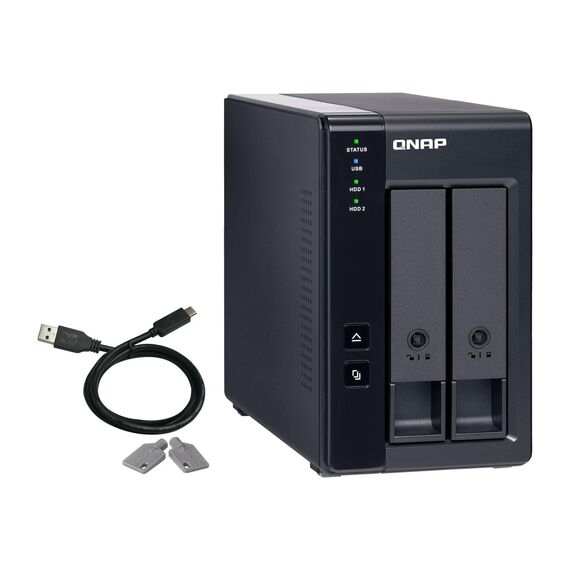

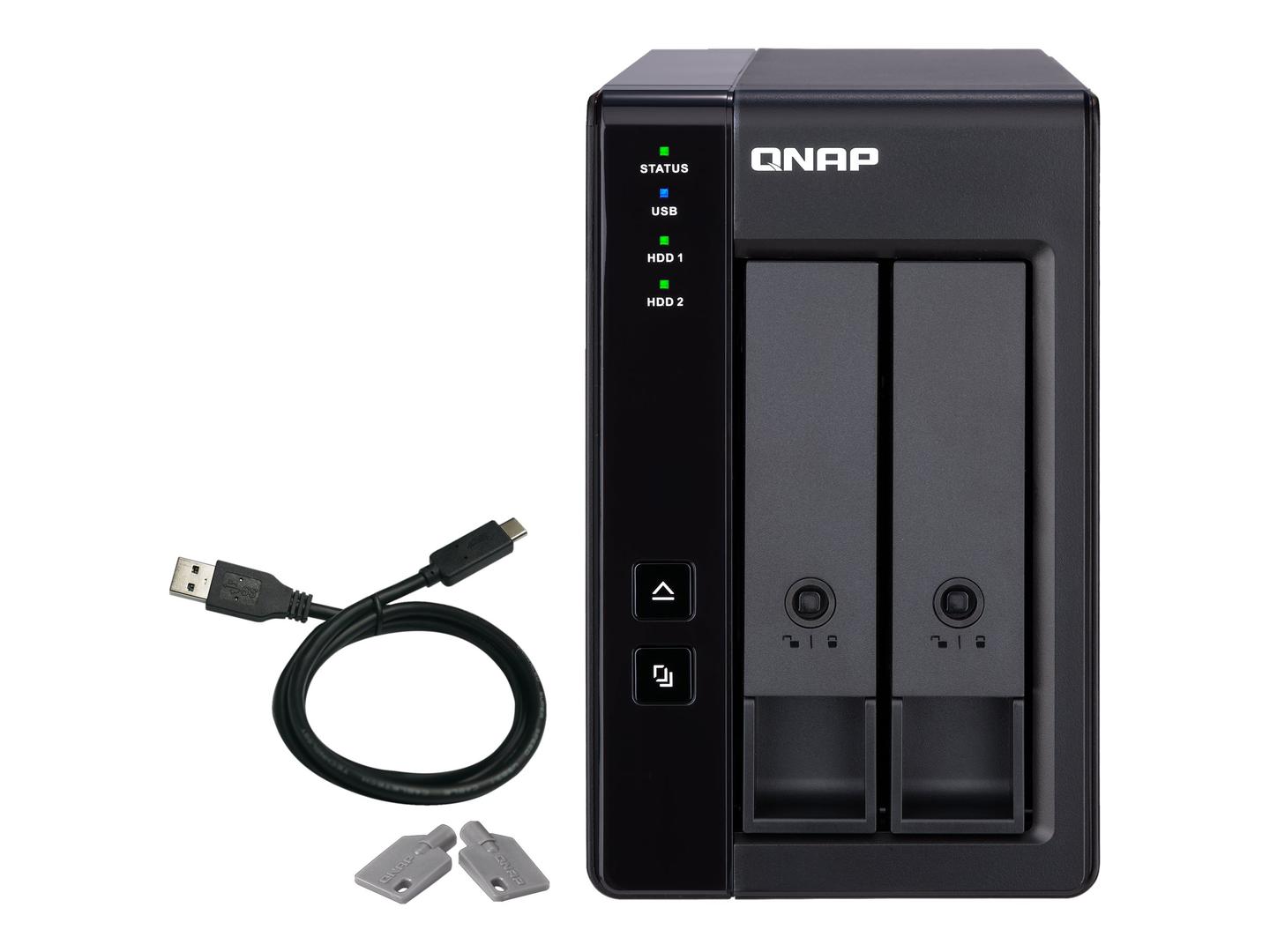

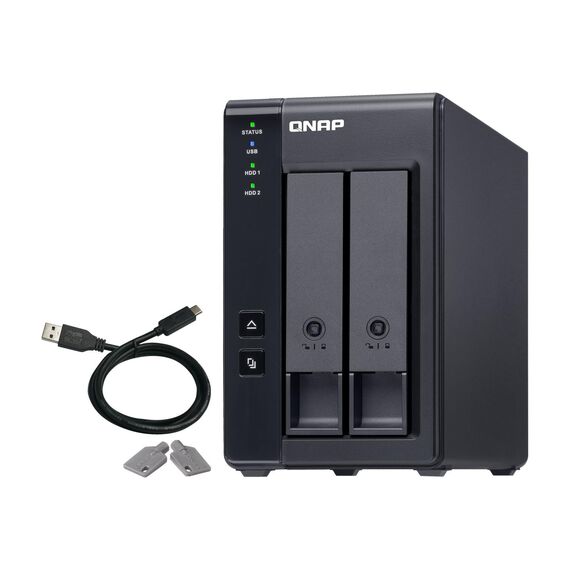

QNAP TR-002 - Hard drive array - 2 bays (SATA-600) - USB 3.1 Gen 2 (external) | TR-002
Please sign in so that we can notify you about a reply
Product Features
- Effective storage expansion with RAID Support
The TR-002 is an ideal storage expansion solution for PCs, especially for laptops which lack the ability to install higher-capacity drives. Featuring two 3.5-inch SATA drive bays and supporting RAID configuration, the TR-002 provides the ability to store a vast number of files and data and to ensure protection against potential drive failure. - Supports various RAID levels
The TR-002 supports various RAID configurations. Depending on your requirements, you can switch between hardware- or software-controlled RAID modes. Move the DIP switches to corresponding positions for your ideal RAID mode: Individual, JBOD, RAID 0 or RAID 1. You can also configure the RAID settings from your QNAP NAS, or by using the QNAP External RAID Manager utility on your computer. - Flexible storage configuration and management
Compared with other RAID enclosures, the TR-002 provides software-controlled configurations for greater management flexibility. Users can configure RAID and monitor disk health using Storage & Snapshots Manager on a QNAP NAS, or by using the QNAP External RAID Manager utility on their computer.
Special Fetures
- USB 3.1 Gen. 2 Type-C port for faster data transfer
- Supports up to two SATA drives

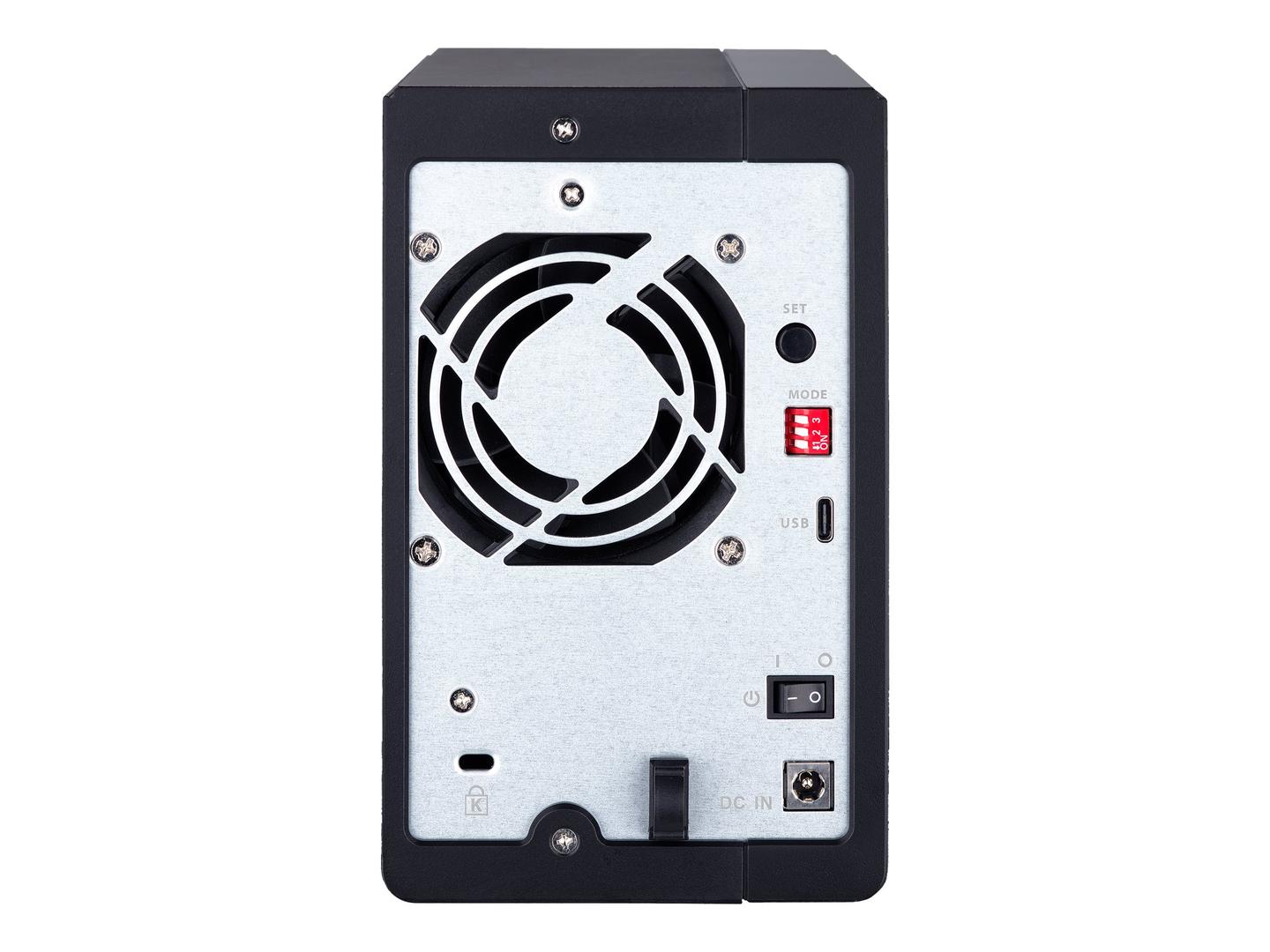

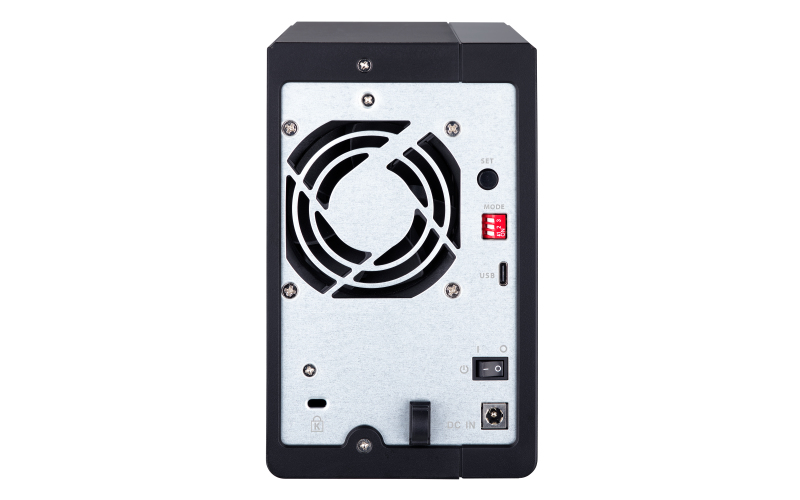

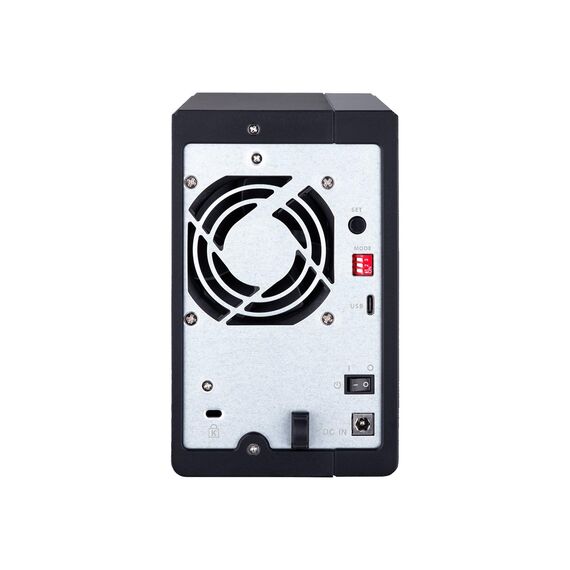

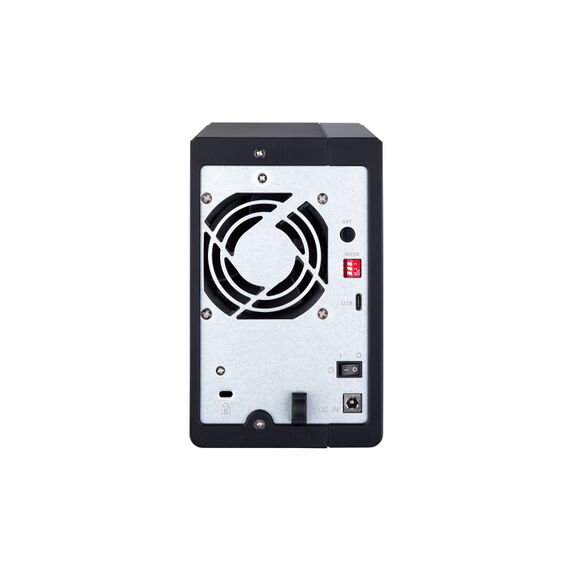

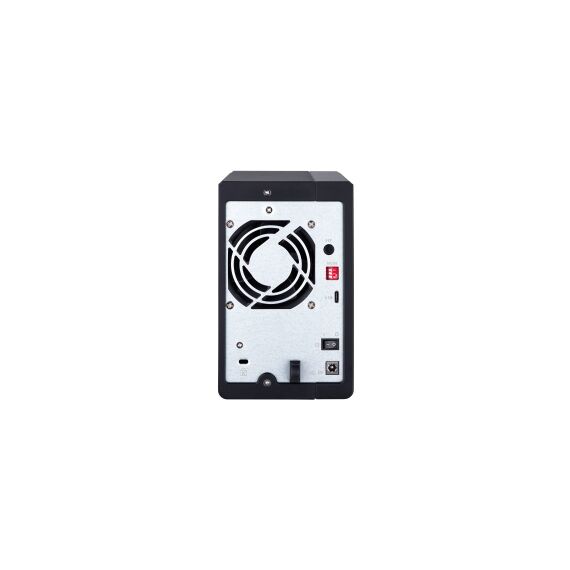

- Disk mode DIP switch to change from Hardware Control and Software Control configurations for setting RAID group

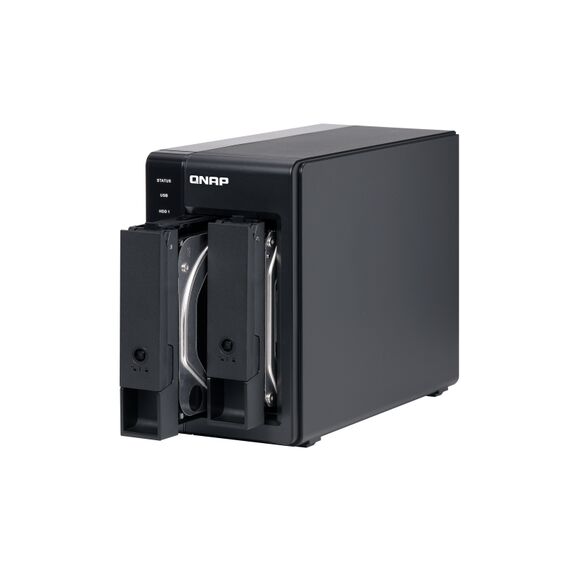

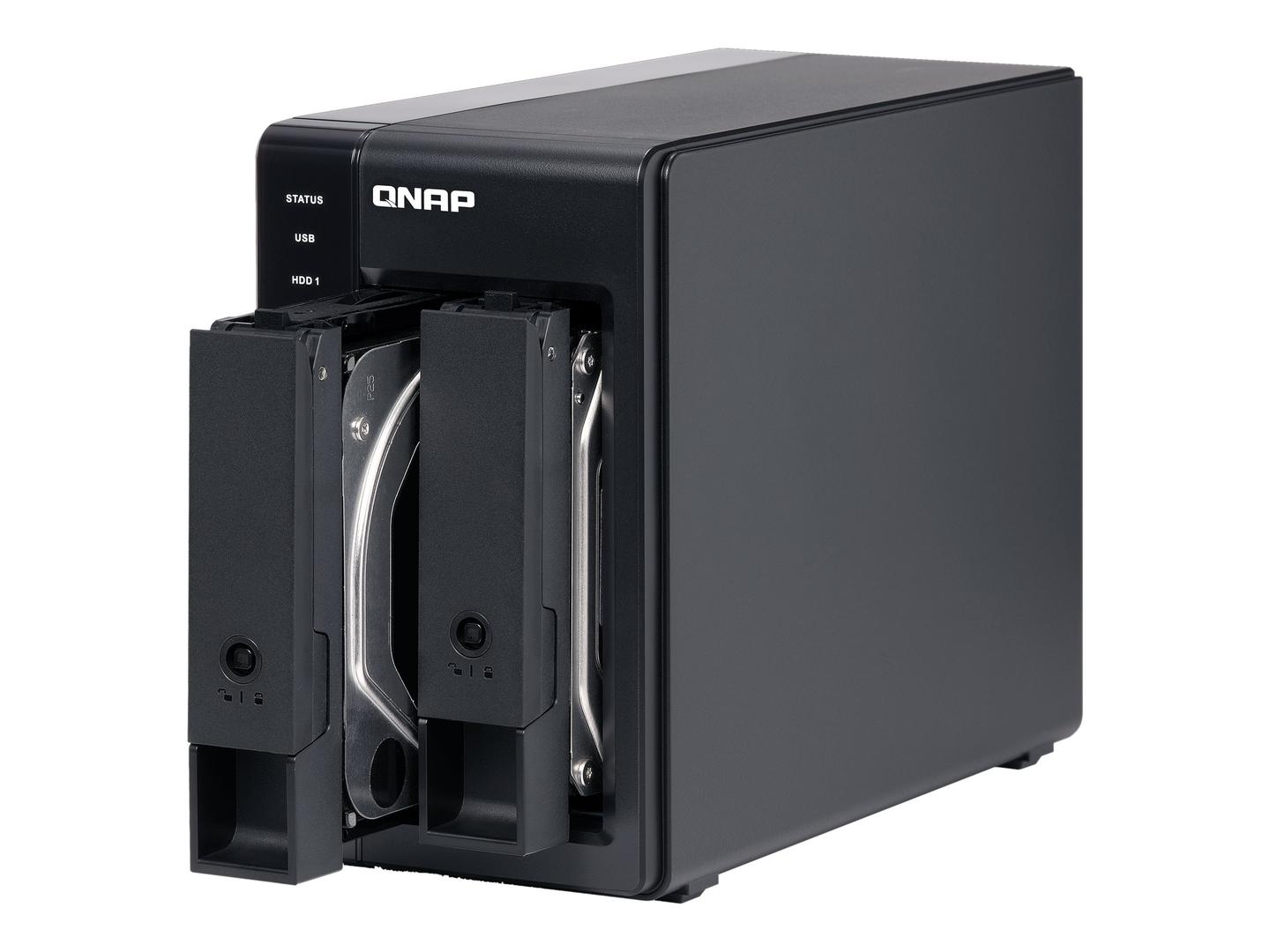

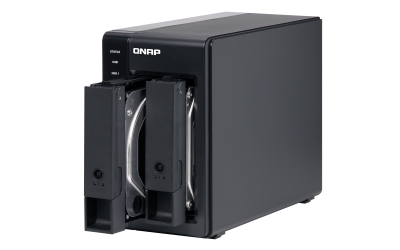

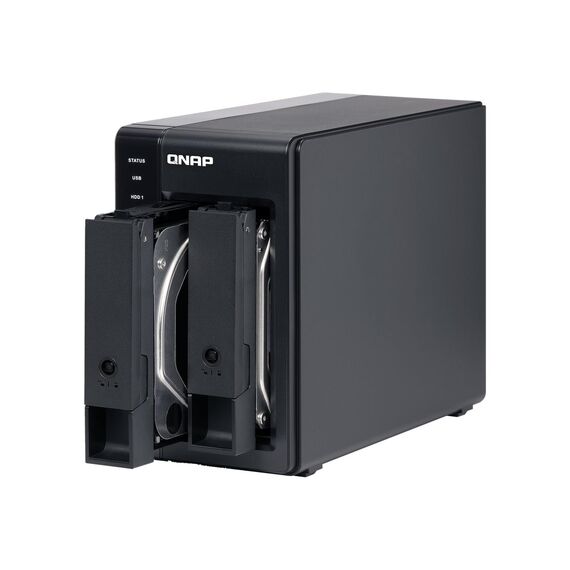

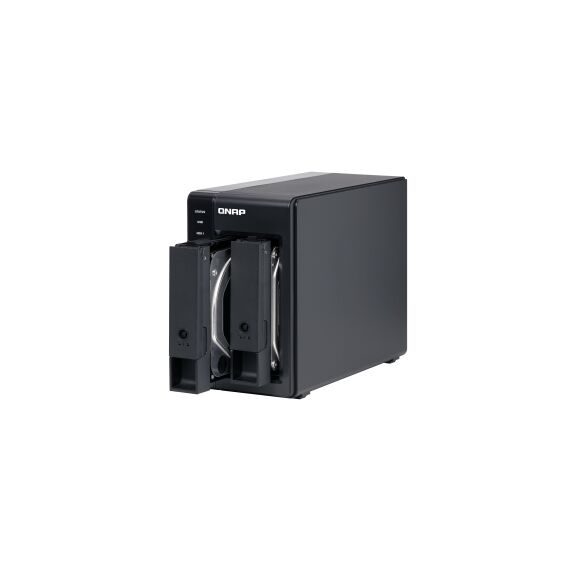

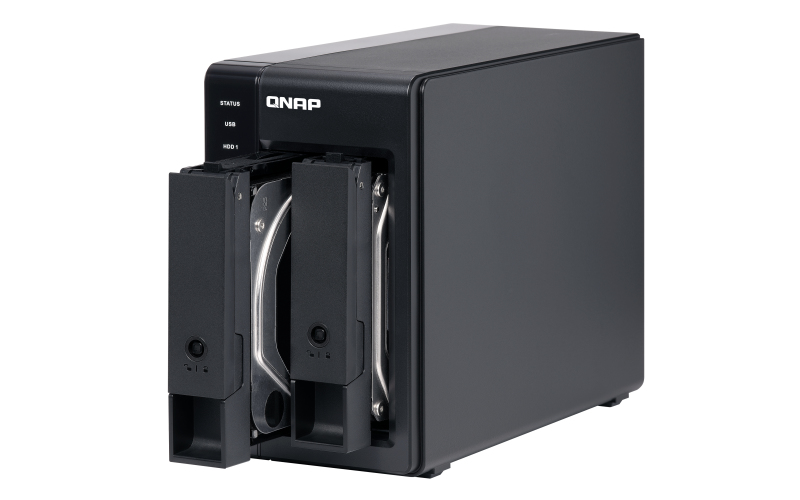

- Lockable hard drive trays to prevent accidental drive removal
- Eject button for disconnecting the TR-002 from a NAS or computer
- Instantly back up files from the TR-002 to the NAS using the One Touch Copy button
Product Specification
| Device Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 2 |
| Supported Drives | SATA-600 |
| Storage | |
| HDD Array External Interface | USB 3.1 Gen 2 |
| Storage Controller | |
| Type | RAID |
| Installed Qty | 1 |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, JBOD |
| Storage Controller (2nd) | |
| Installed Qty | 1 |
| Hard Drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 1 x USB 3.1 Gen 2 - 24 pin USB-C |
| Miscellaneous | |
| Features | Security lock slot (cable lock sold separately), built-in cooling fan |

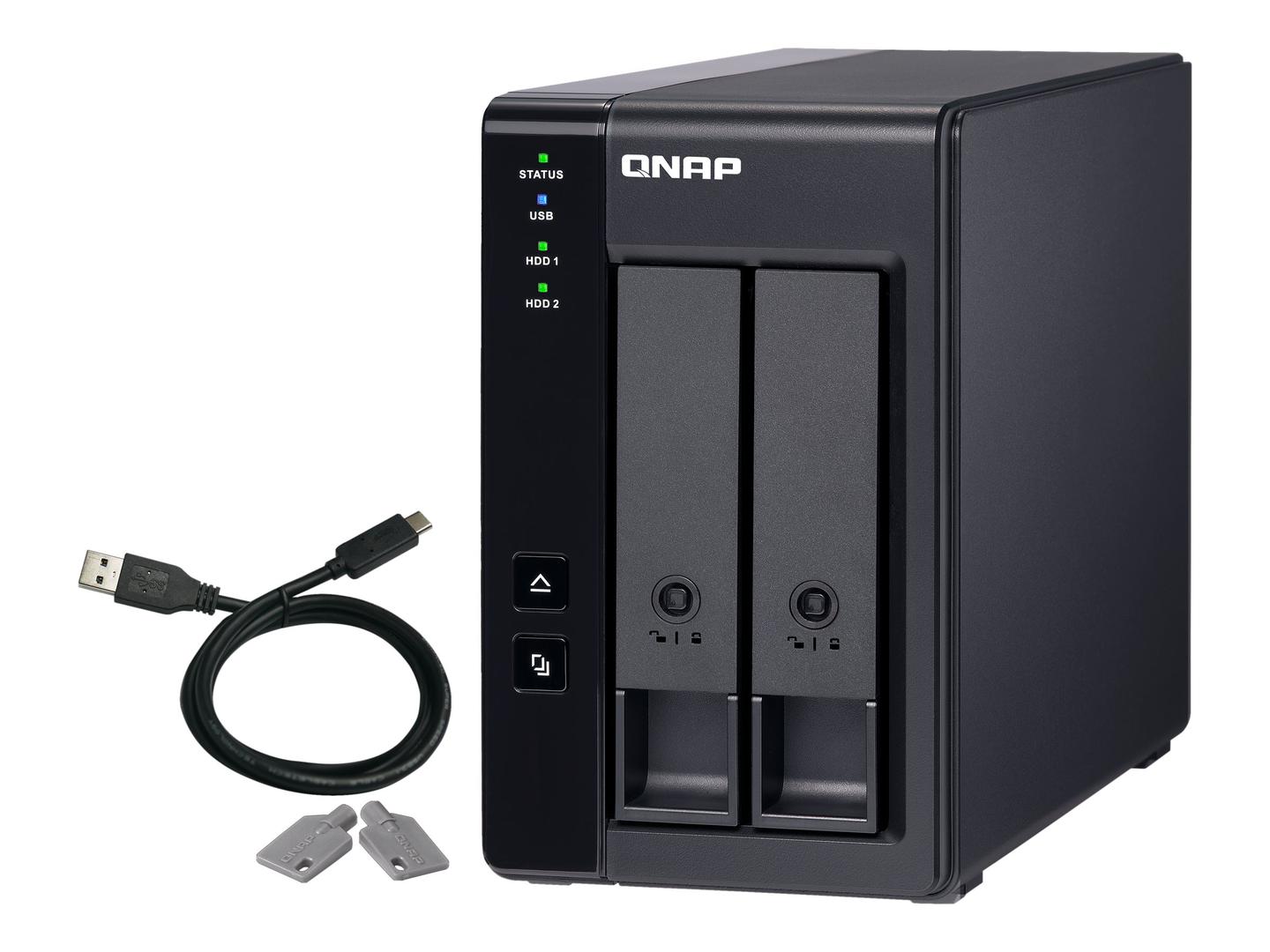

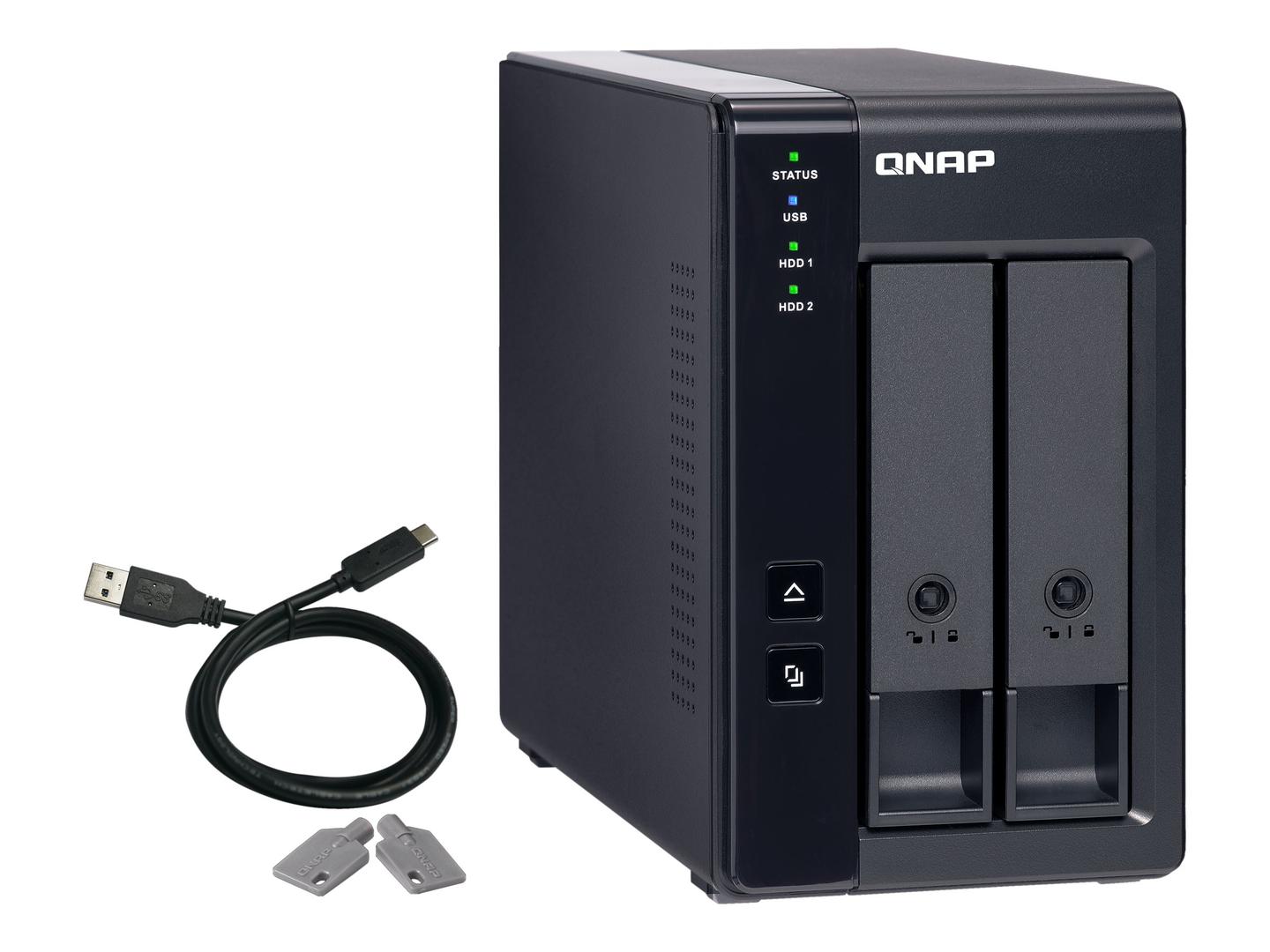

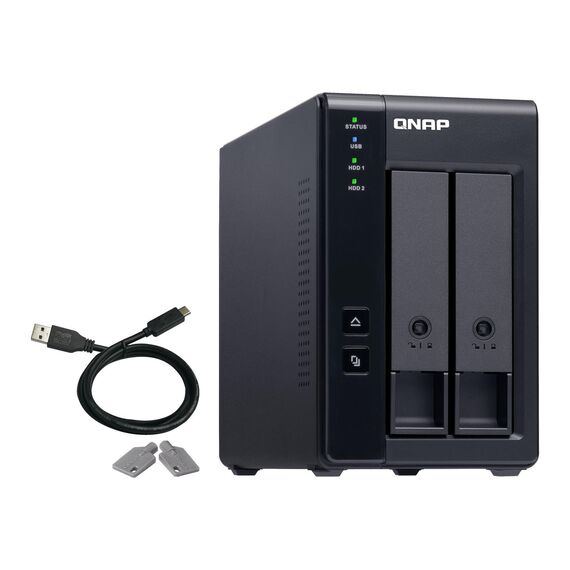

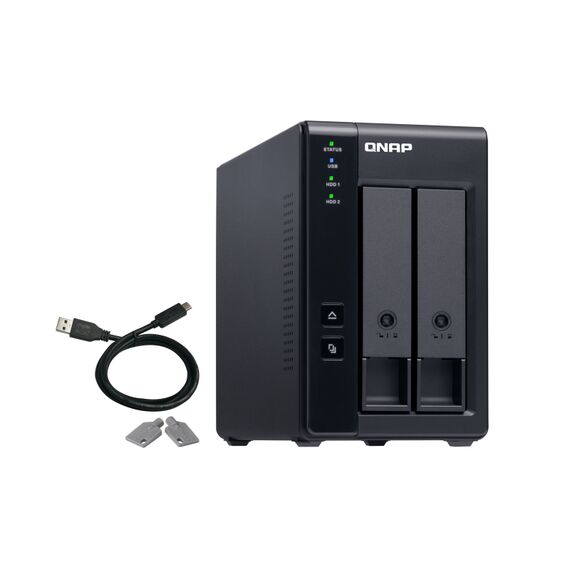

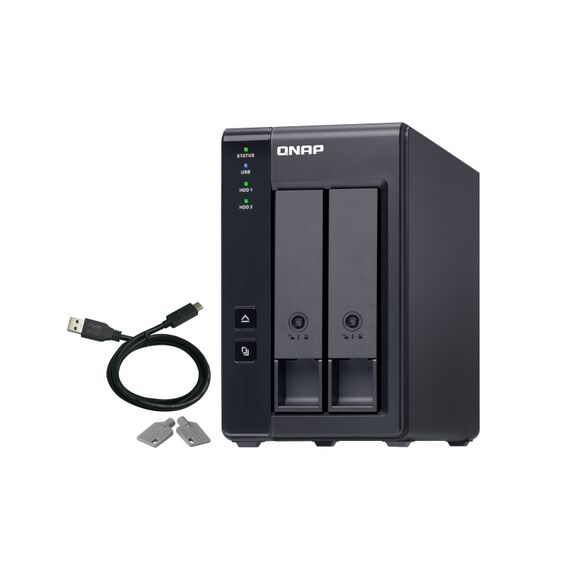

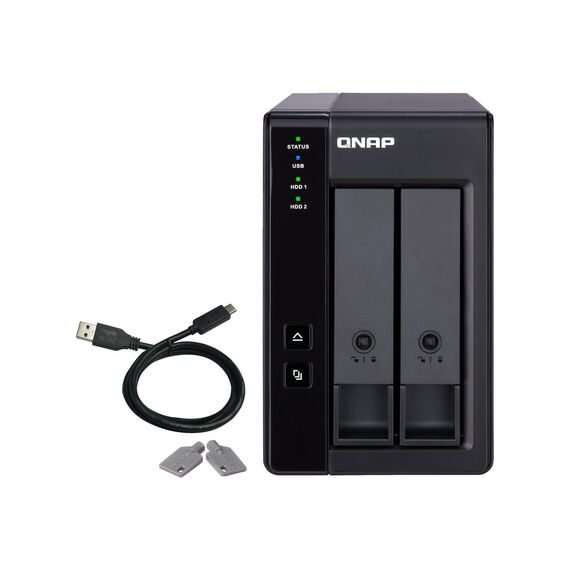

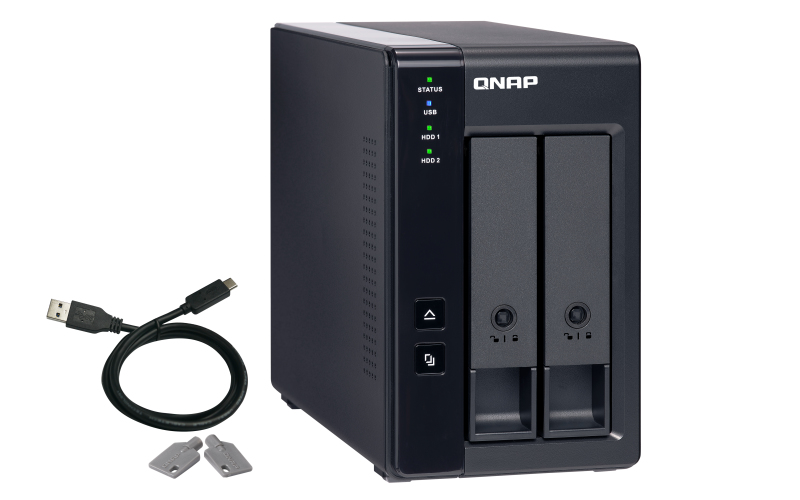

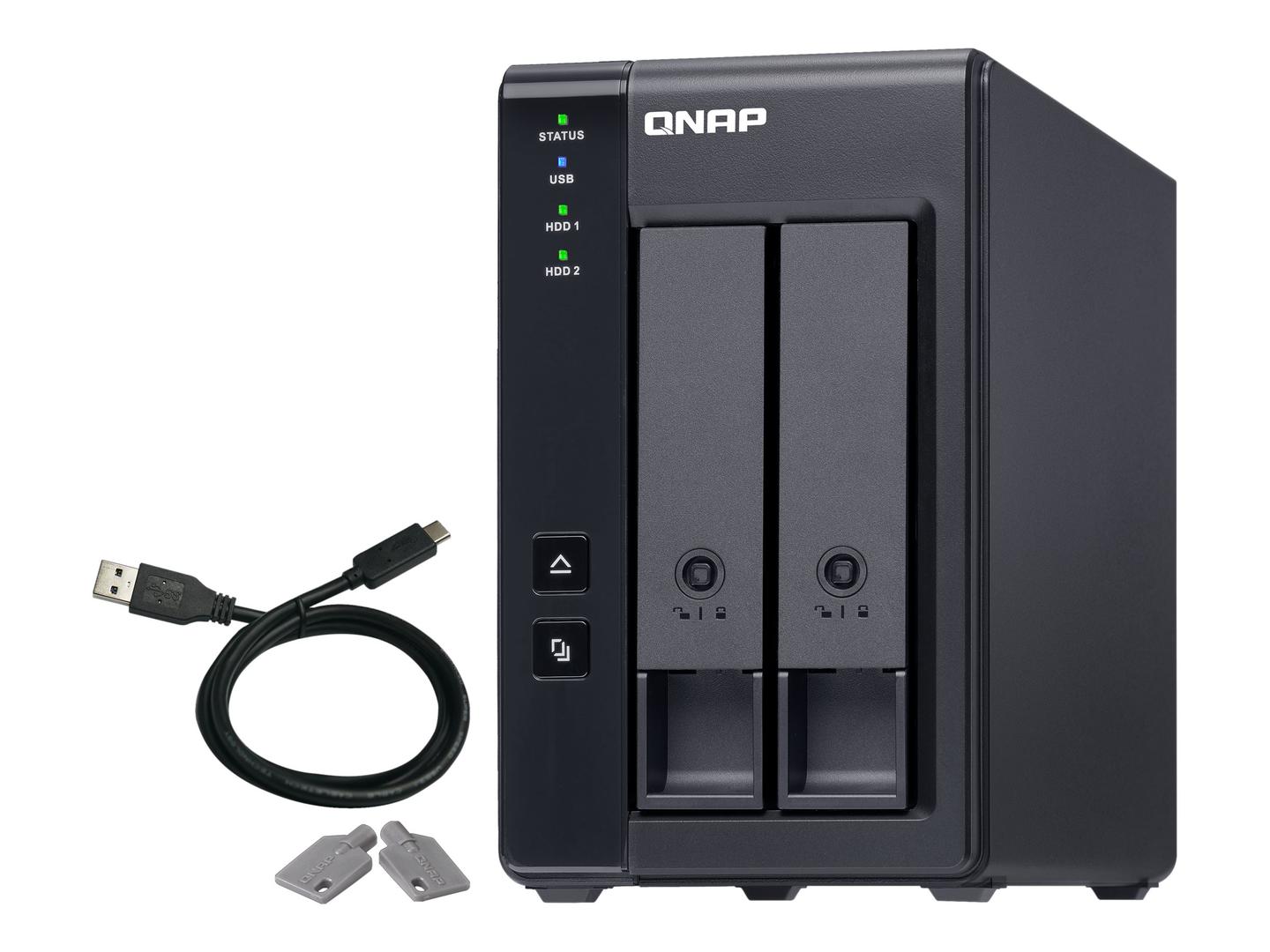

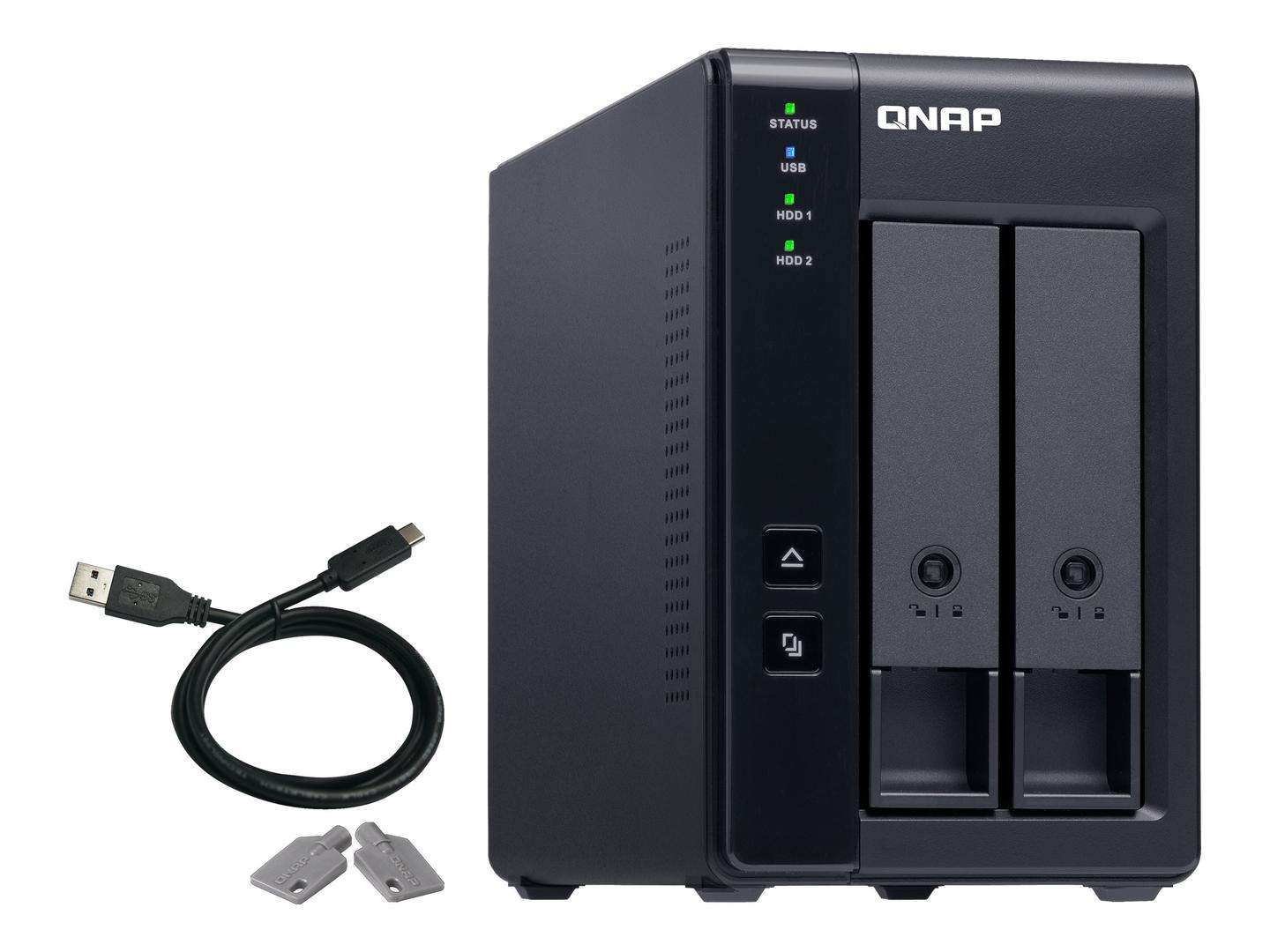

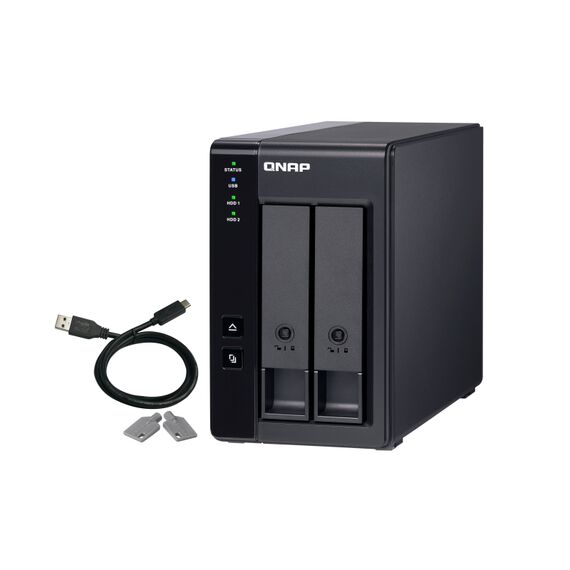

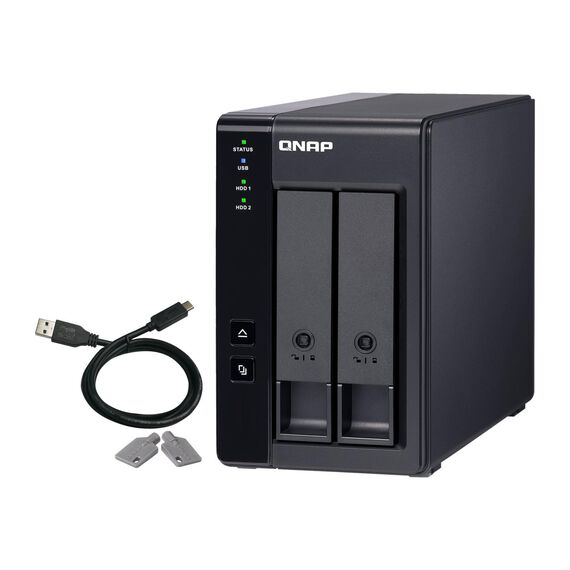

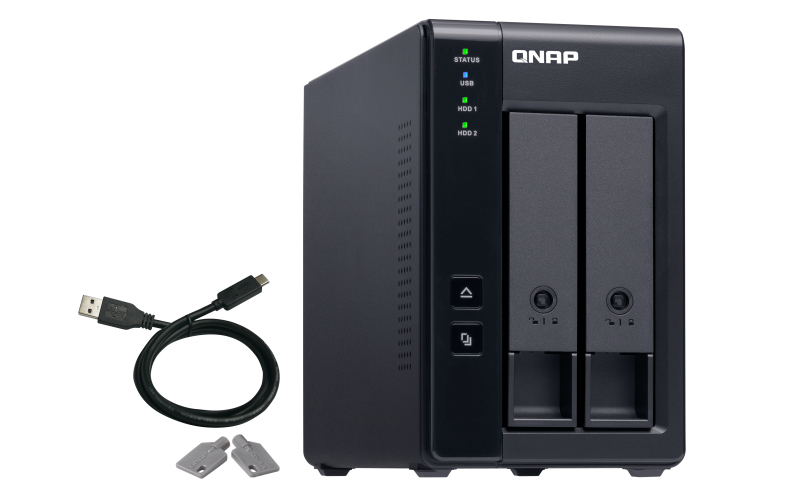

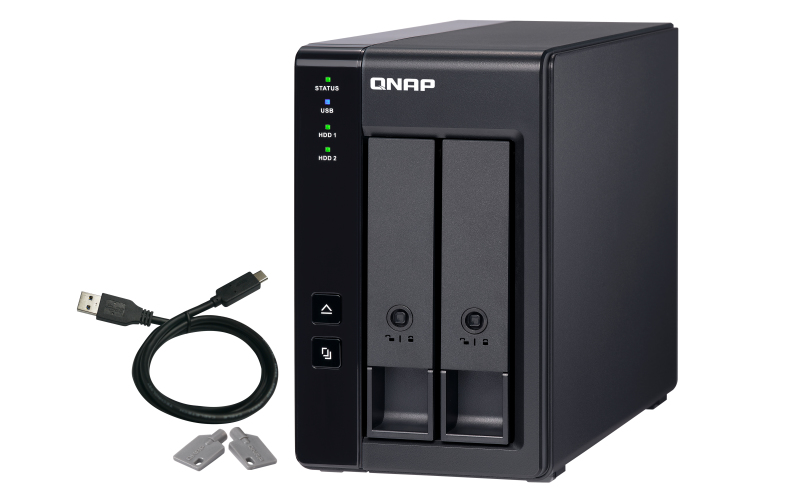

| Cables Included | 1 x USB-C to USB-A cable |
| Included Accessories | 2 x keys, cable clip, 6 x screws (for 2.5" HDD), 8 x screws (for 3.5" HDD), power cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 10.15 Watt |
| Power Provided | 36 Watt |
| Power Consumption Stand by | 2.98 Watt |
| Dimensions & Weight | |
| Width | 10.2 cm |
| Depth | 21.9 cm |
| Height | 16.85 cm |
| Weight | 1.37 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 17.8 dBA |
Features - QNAP - TR-002
More Details
Product Code
04:338582
EAN Code
4713213515310
Manufacturer
QNAP
