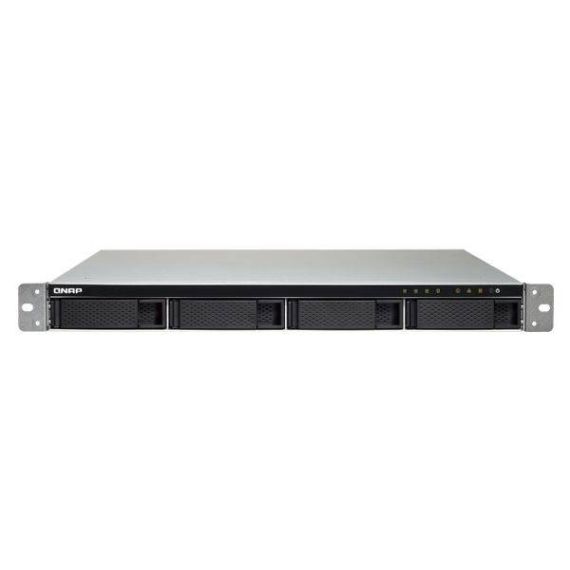

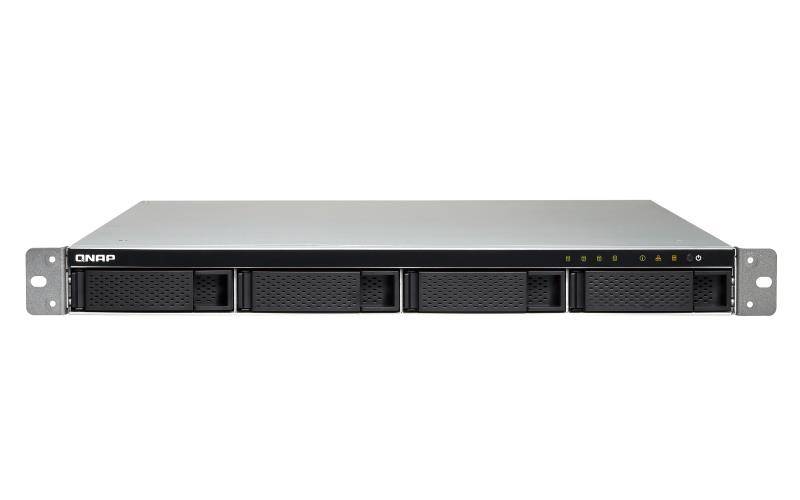

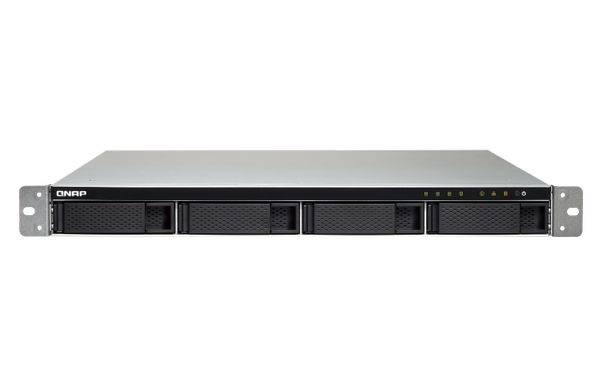

QNAP TS-432XU-RP / NAS server / 4 bays / rack-mountable / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare / RAM 2 GB / Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI / 1U | TS-432XU-RP-2G
QNAP TS-432XU-RP / NAS server / 4 bays / rack-mountable / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare / RAM 2 GB / Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI / 1U | TS-432XU-RP-2G
Description
The TS-432XU-RP is built to deliver high performance, flexible expansion capabilities and versatile applications at an affordable and cost-effective price for small/medium-sized businesses. Two 10GbE SFP+ ports are capable of high-speed transmission of time-critical business data and a PCI Express (PCIe) 2.0 ×2 slot (×4 length) provides flexibility for expanding connectivity and/or storage with M.2 SATA/PCIe NVMe SSDs, via QNAP's QM2 expansion cards. The TS-432XU-RP can be deployed to suit various needs for data storage, file backup, disaster recovery, containerized applications, surveillance, and more. The TS-432XU-RP is also equipped with a redundant power supply to ensure uninterrupted services.
QNAP TS-432XU-RP / NAS server | TS-432XU-RP-2G
Special Features
- The built-in 10GbE SFP+ ports deliver high speed for mission-critical applications such as database hosting and VM storage
- One PCIe 2.0 ×2 slot (×4 length) is available for adding a 10GbE port and/or M.2 SSD slots. With SSDs installed, Qtier auto tiering can be enabled to optimize storage utilization
- Snapshots add an extra layer of protection to your disaster recovery plan, giving you the flexibility to create and revert snapshots locally and/or remotely
- The Hybrid Backup Sync app completes your backup strategies, allowing you to back up, restore and sync files locally and remotely
- QNAP's Virtual JBOD technology can be used to expand remote NAS capacity, ensuring all available space can be fully utilized
- The hot-swappable redundant power supply ensures high reliability and maximum system uptime
Product Specification
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
Enclosure Type | Rack-mountable - 1U |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 43.9 cm |
Depth | 49.9 cm |
Height | 4.4 cm |
Built-in Devices | Led panel |
Processors Installed | 1 x Annapurna Labs Alpine AL-324 1.7 GHz |
Number of Cores | Quad-Core |
Max Supported Qty | 1 |
RAM | (supported) 2 GB (installed) / 16 GB (supported) - DDR4 |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare |
Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 10 GigE |
Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
Features | Hardware encryption, trunking, LDAP support, wake on LAN (WOL), Syslog support, manageable, E-mail alert, print server, IPv6 support, 256-bit encryption, proxy server, backup server, download client, file sharing, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, reset button, bandwidth control, IPv4 support, surveillance station, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, cloud backup, VPN Server, SFTP client, SNMP support, Apple AirPlay, anti-virus protection |
Encryption Algorithm | SSL, TLS, 256-bit AES |
Compliant Standards | UPnP |
Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
Expansion Slots | 1 (total) / 1 (free) x PCI Express 2.0 x2 |
Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 4 x USB 3.1 Gen 1 - Type A ¦ 2 x Ethernet 10Gb - SFP+ |
Cables Included | 2 x network cable |
Features | Audible alarm, built-in 2 cooling fans, hardware encryption, reset button |
Power Device | Internal power supply |
Installed Qty | 2 |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Provided | 250 Watt |
Storage Operating System | QNAP QTS 4.3.4 |
OS Required | UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
