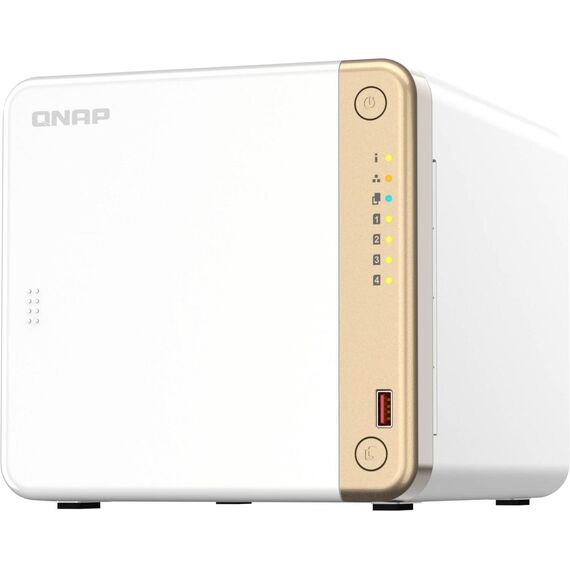

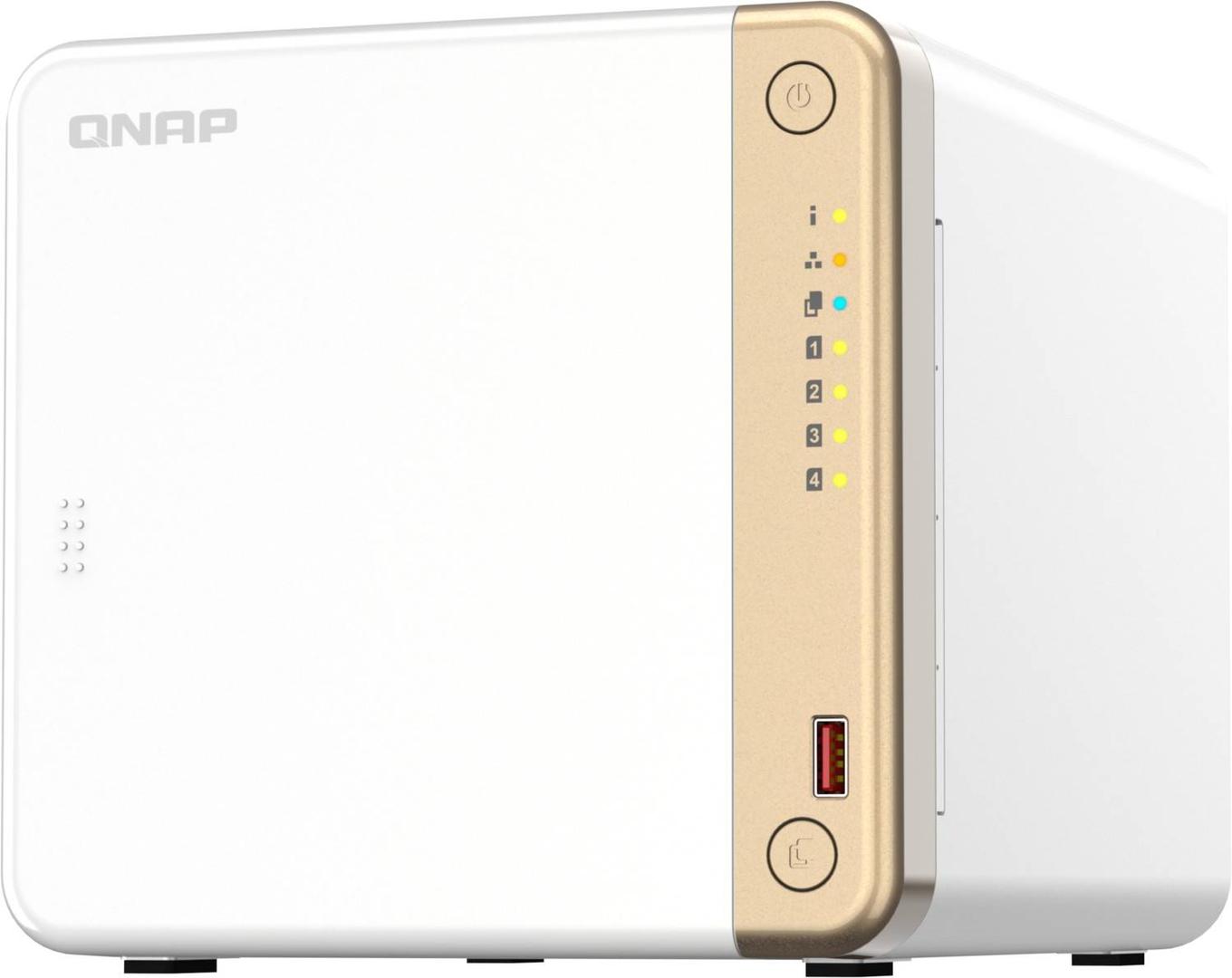

QNAP TS-462 / NAS server / 4 bays / SATA 6Gb/s / RAID RAID 0, 1, 5, 6, 10, JBOD / RAM 4 GB / 2.5 Gigabit Ethernet / iSCSI support | TS-462-4G
Please sign in so that we can notify you about a reply
Product Features
- 2.5 GbE port
Immediately multiply your network speed by 2.5 times while using existing CAT5e cables. - HDMI port
4K media playback and real-time transcoding; directly watch videos using HDMI (4K @ 60 Hz) output. - PCIe slot
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-462, including a Multi-Gig 10 GbE/5 GbE network card, a USB 3.2 Gen 2 (10 Gbps) card, or a Wi-Fi 6 network card. - Expand storage capacity
Flexibly scale your total storage capacity by connecting USB expansion enclosures.
Special Features
- 2.5 GbE port
- HDMI port
- PCIe slot
- Expand storage capacity
Product Specification
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 17 cm |
| Depth | 22.6 cm |
| Height | 16.8 cm |
| Weight | 2.26 kg () |
| Built-in Devices | Led panel, IR sensor |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x Intel Celeron N4505 |
| Number of Cores | Dual-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.9 GHz |
| RAM | 4 GB |
| Flash Memory Installed | 4 GB |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Networking | Networking |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, FTP, DDNS, SFTP, IPv4, IPv6, WireGuard, TFTP, QBelt, QuFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, RADIUS |
| Network Services Compatibility | Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 1500 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum volume size: 250 TB ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 128 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Virtual hosts: 32 ¦ Log recording: 3000 events per second |
| Features | VLAN support, wake on LAN (WOL), Jumbo Frames support, DHCP server, FTP server, Domain Controller, built-in hardware transcoding, file station, WebDAV server support, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, QmailAgent, QuWAN, user quota managerment, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, SSD Cache RAID |
| Encryption Algorithm | SSL, TLS, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x2 |

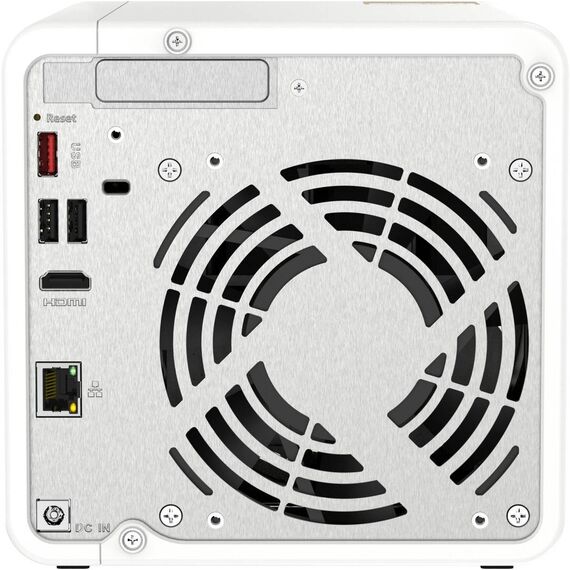

| Interfaces | 1 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately), wake on LAN, built-in firewall, reset button, Secure Erase, dual boot, alarm buzzer, 120mm cooling fan, on/off power switch, USB copy button |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 |
| Included Accessories | 12 x flat head screws (for 2.5" HDD), 16 x flat head screws (for 3.5" HDD), power cable |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 32.4 Watt (with drives fully populated) |
| Power Provided | 90 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | QNAP QTS 5.0.1 |
| Software Included | McAfee, IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 3.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TS-462-4G
More Details
Product Code
03:246783
EAN Code
4711103080030
Manufacturer
QNAP
