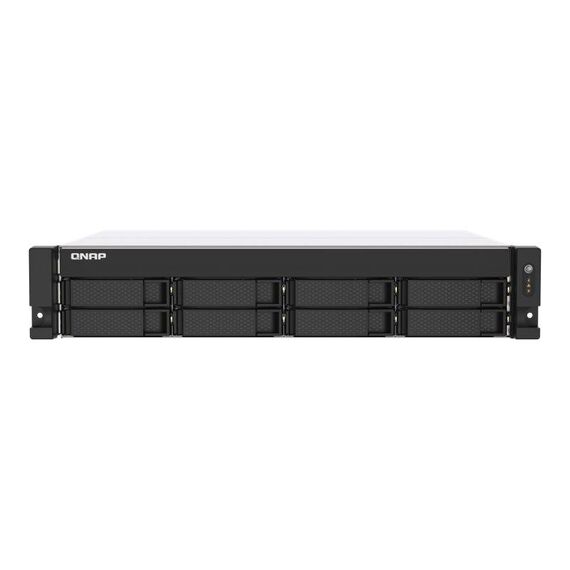

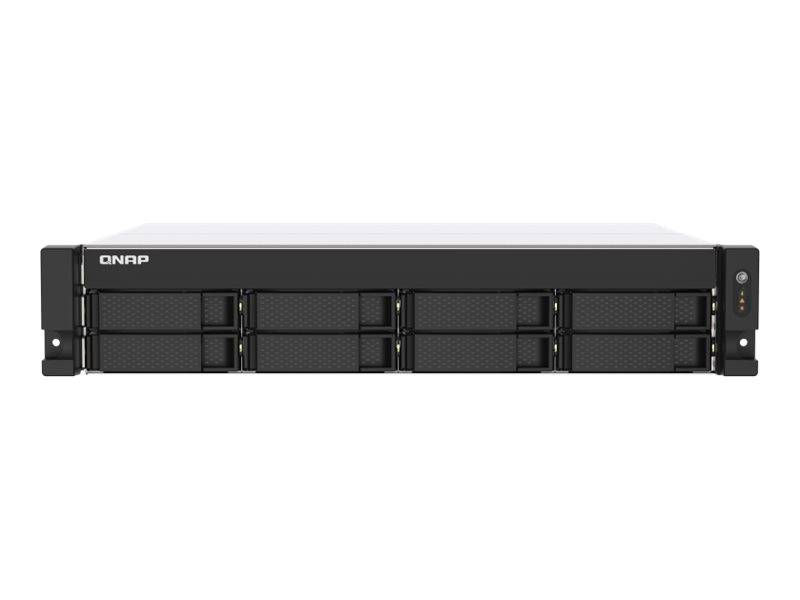

QNAP TS-873AeU-RP / NAS server / 8 bays / rack-mountable / SATA 6Gb/s / RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / RAM 4 GB / 2.5 Gigabit Ethernet / iSCSI support / 2U | TS-873AeU-RP-4G
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 8 (max) |
| Width | 48.2 cm |
| Depth | 29.74 cm |
| Height | 8.9 cm |
| Weight | 8.15 kg () |
| Built-in Devices | Led panel |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x AMD Ryzen Embedded V1500B 2.2 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 4 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Networking | Networking |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, iSCSI, FTP, DHCP, SMB, DDNS, NFS, SFTP, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, DHCP, RADIUS |
| Network Services Compatibility | File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 2000 - (with maximum memory) |
| Features | Firewall protection, hardware encryption, VPN support, LDAP support, VLAN support, wake on LAN (WOL), web server, backup server, download client, file sharing, anti-malware protection, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, DHCP server, FTP server, reset button, online RAID capacity expansion, online RAID level migration, dual firmware images, anti-virus protection, system log, Photo album server, event notification, file station, port trunking, black list, USB One Touch Copy, EXT4 file system, SSD trim, Windows ODX, white list, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), snapshot (folder and LUN), SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN |
| Encryption Algorithm | SSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
| Security DVR | Security DVR |
| IP Cameras Supported | 8 |
| Compression Format | MPEG-4, H.264 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x8 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 2 x USB 3.2 Gen 2 - Type C |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Features | Wake on LAN, built-in 3 cooling fans, Online RAID Level Migration (RLM), hardware encryption, scheduled power on/off, S.M.A.R.T. support, reset button, Secure Erase, dual boot, alarm buzzer, array roaming |
| Compliant Standards | FIPS 140-2, ISO 7779 |
| Included Accessories | 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD) |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Provided | 300 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | QNAP QuTS hero h5.0.0 |
| Software Included | McAfee AntiVirus |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 10.92 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TS-873AeU-RP-4G
More Details
Product Code
04:400956
EAN Code
4711103081082
Manufacturer
QNAP
