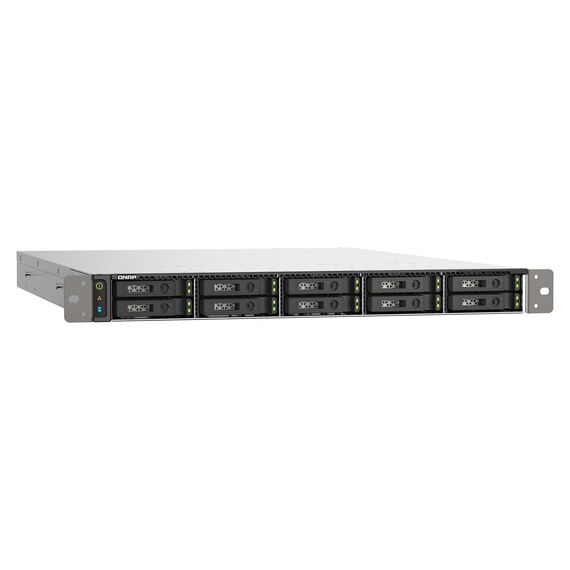

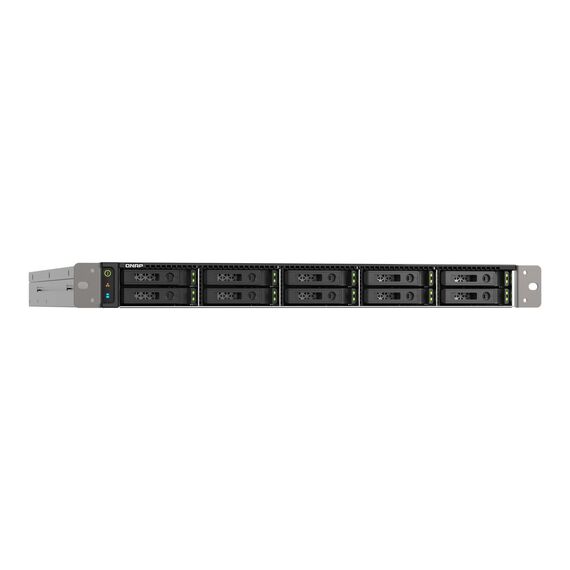

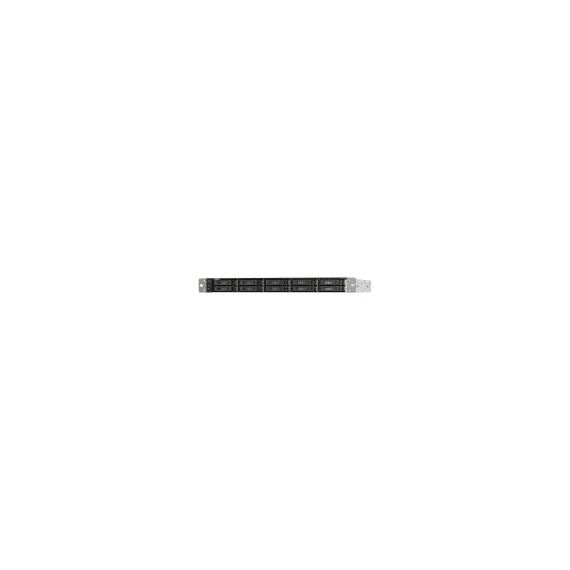

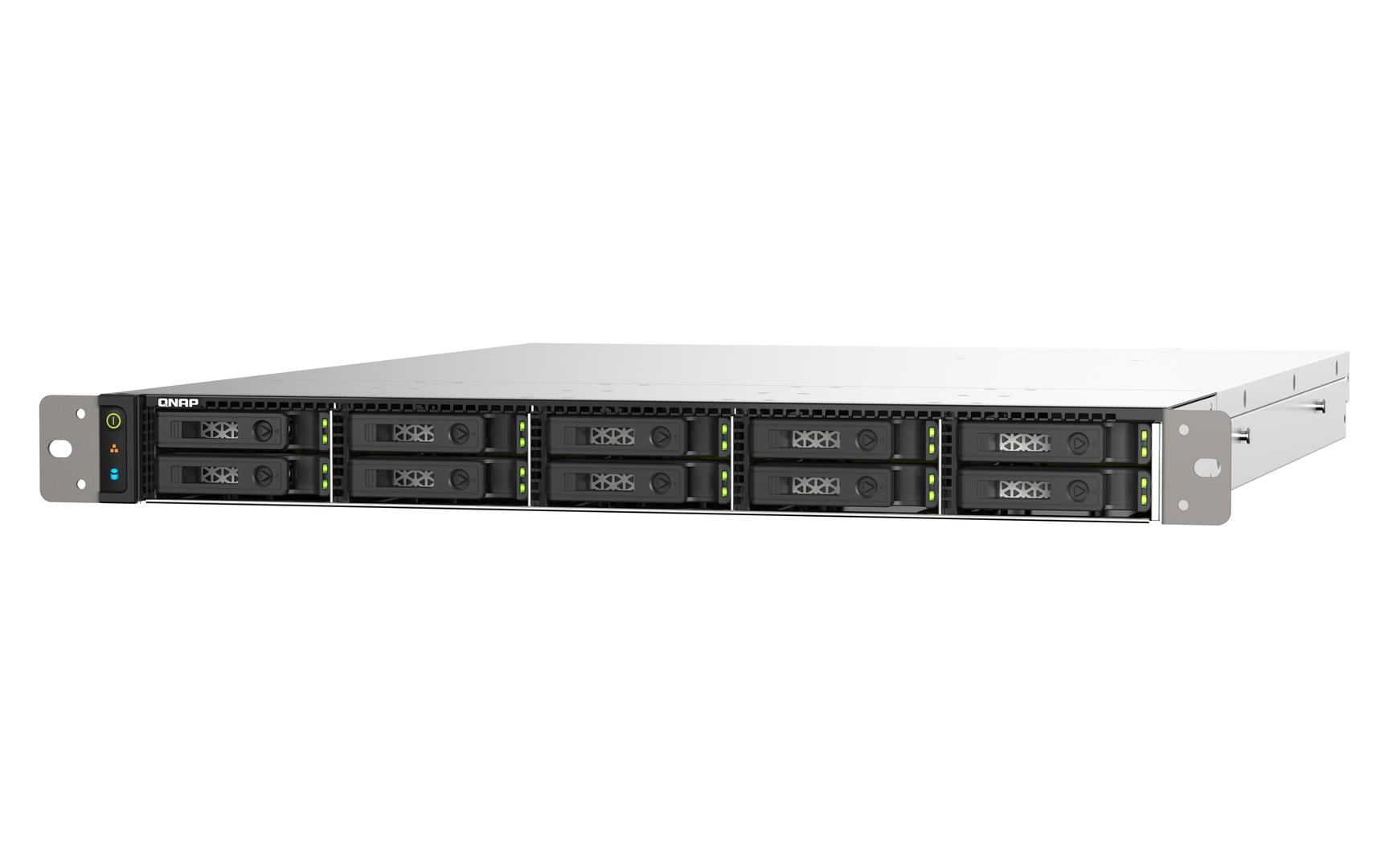

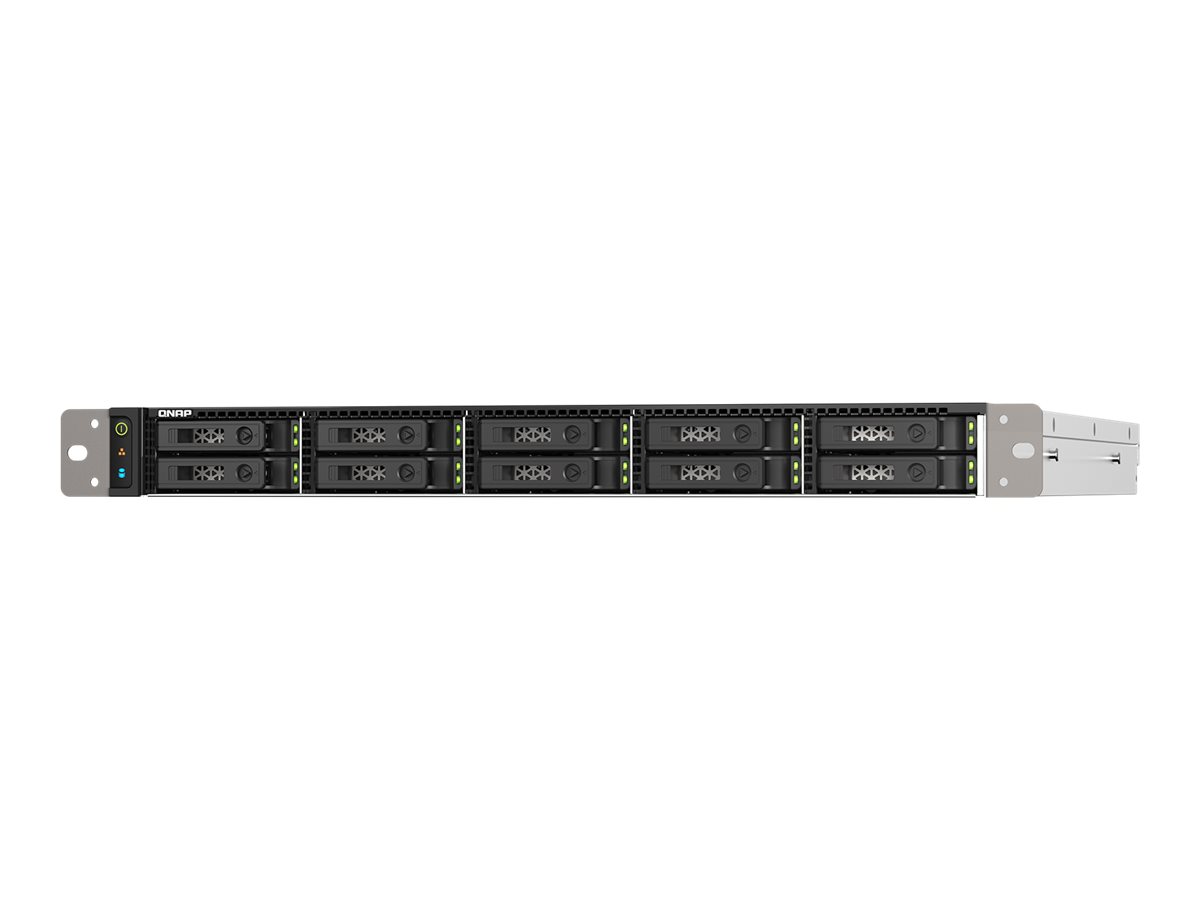

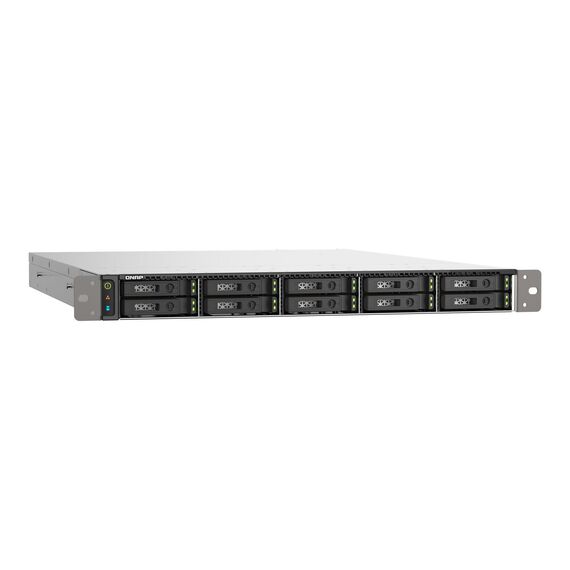

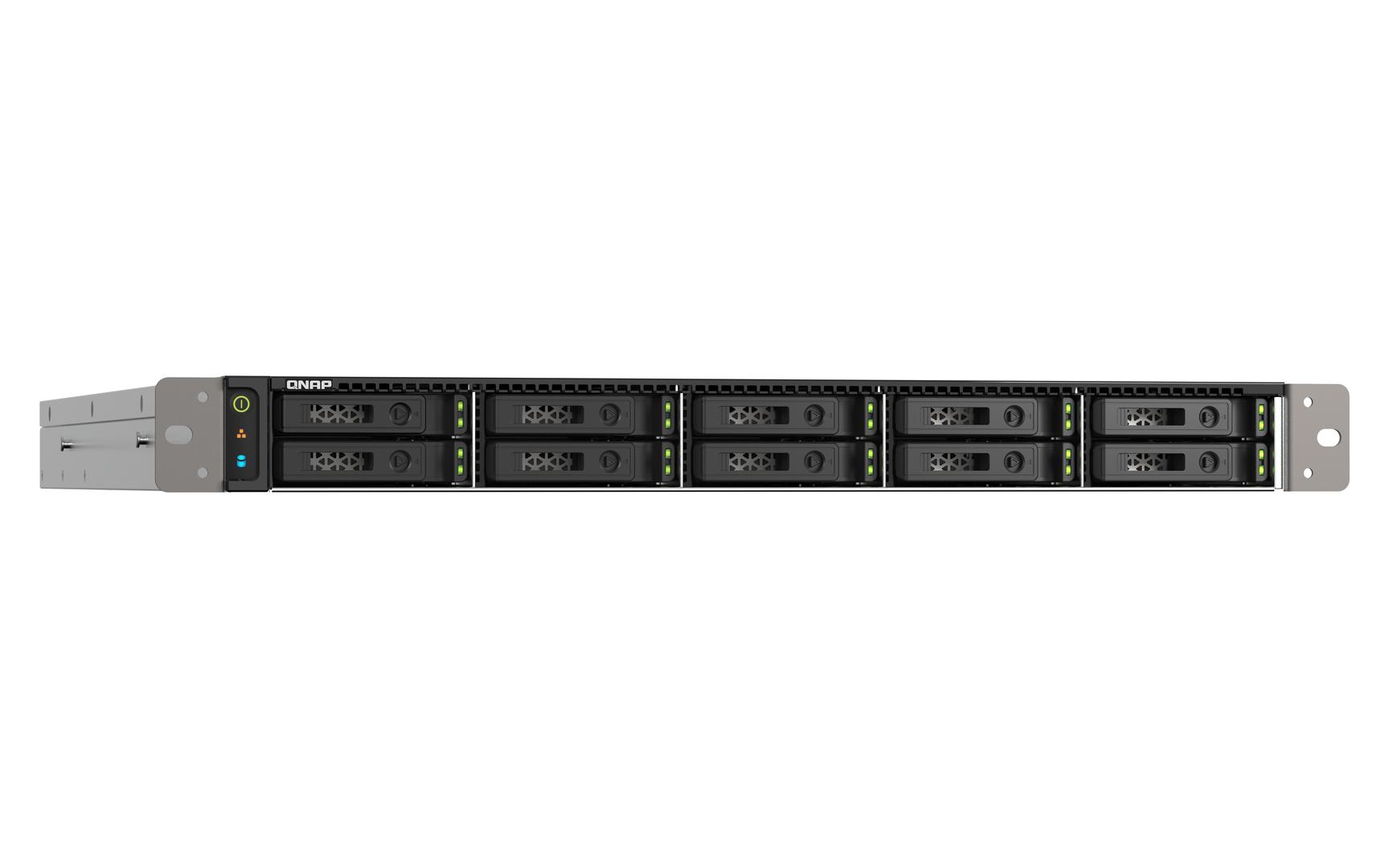

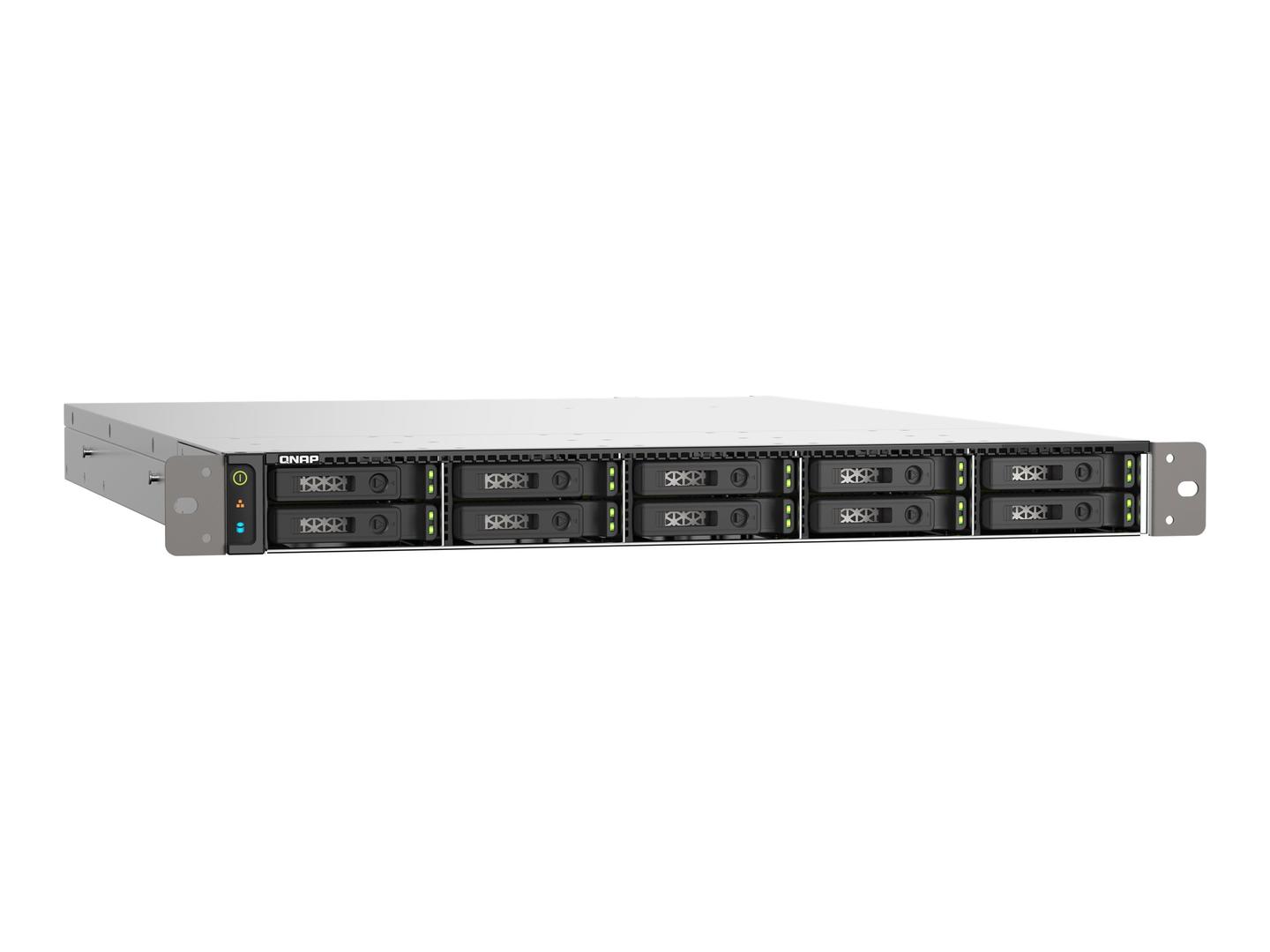

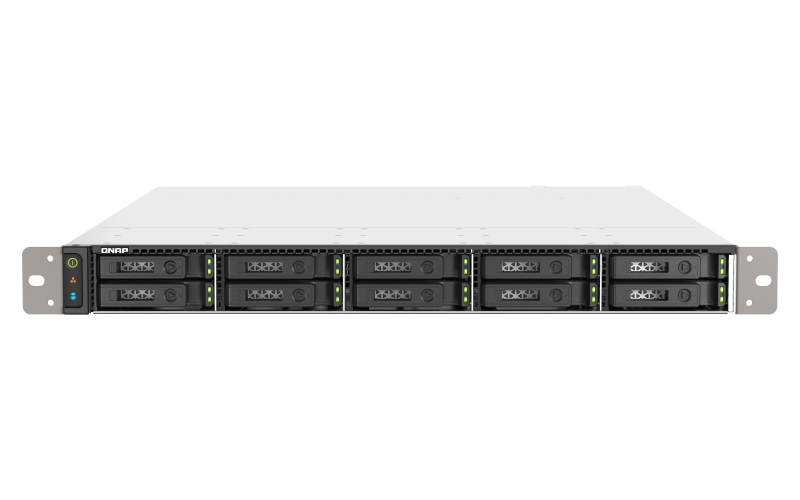

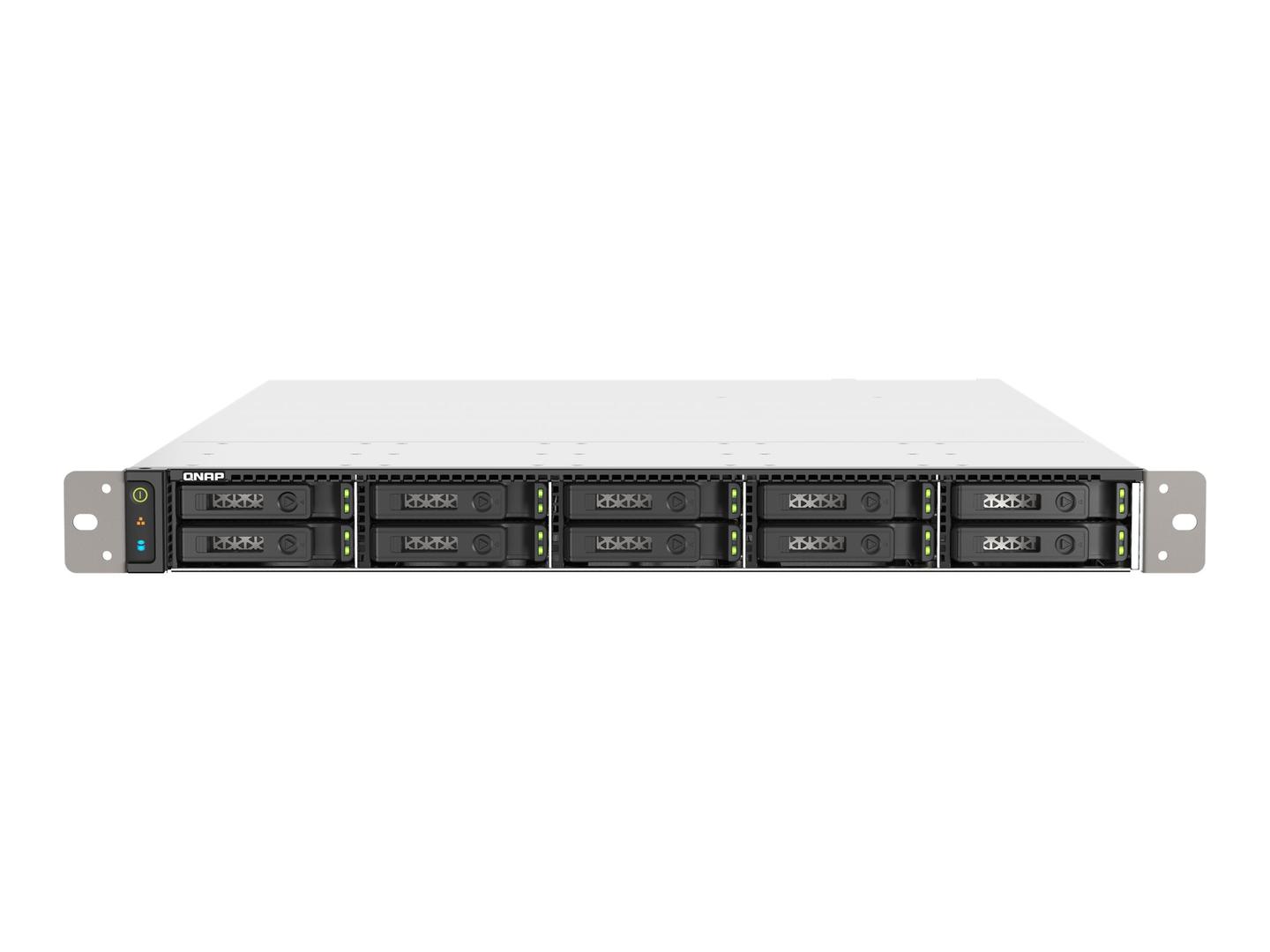

QNAP TS-h1090FU - NAS server - 10 bays - rack-mountable - SATA 6Gb/s / PCIe (NVMe) / U.2 - RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60 - RAM 128 GB - 25 Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support - 1U | TS-h1090FU-7302P-128G
Please sign in so that we can notify you about a reply
Product Features
- High-density all flash storage
Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays. - Optimized SSD performance and lifespan
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan. - 25GbE future-proof connectivity
Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks. - High-speed PCIe Gen 4 slots
Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fiber Channel cards to increase application performance. - Virtualization applications
Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps. - Flexible storage expansion
Scalable design to grow with your business by connecting QNAP's economical expansion enclosures.
Special Fetures
- High-density all flash storage
- Optimized SSD performance and lifespan
- 25GbE future-proof connectivity
- High-speed PCIe Gen 4 slots
- Virtualization applications
- Flexible storage expansion
Product Specification
| Device Type | NAS server |
| Host Connectivity | 25 Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 1U |
| Total Storage Capacity | 0 GB |
| Max Supported Capacity | 308 TB |
| Installed Devices / Modules Qty | 0 (installed) / 10 (max) |
| Width | 43 cm |
| Depth | 58 cm |
| Height | 4.4 cm |
| Weight | 10.33 kg () |
| Localisation | Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Dutch, Greek, Turkish, Romanian, Japanese, Korean |
| Processor / Memory | |
| Processors Installed | 1 x AMD EPYC 7302P |
| Number of Cores | 16-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.3 GHz |
| RAM | 128 GB (installed) / 256 GB (supported) - DDR4 |
| Features | ECC |
| Flash Memory Installed | 5 GB |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s / PCIe (NVMe) / U.2 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Networking | |
| Data Link Protocol | 2.5GbE, 25GbE |
| Network / Transport Protocol | DDNS, IPv4, IPv6 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS |
| Network Services Compatibility | FTP, Server Message Block (SMB), Apple File Protocol (AFP) |
| Performance | Concurrent connections (CIFS): 10000 ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Syslog: 3000 events per second ¦ Virtual hosts: 32 |
| Features | Firewall protection, VPN support, VLAN support, wake on LAN (WOL), antivirus analysis, Jumbo Frames support, DHCP server, FTP server, Domain Controller, Single Root I/O Virtualization (SR-IOV), file station, WebDAV server support, port trunking, SSD trim, Windows ODX, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, McAfee protection, Qsync, QuMagie, QmailAgent, QuWAN, user quota managerment, LDAP server, Storage Pool, SED Storage Pool, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, DA Driver Analyzer, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off |
| Encryption Algorithm | FIPS 140-2, 256-bit AES, AES-NI |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" |
| Expansion Slots | 2 (total) / 2 (free) x PCI Express 4.0 x16 |

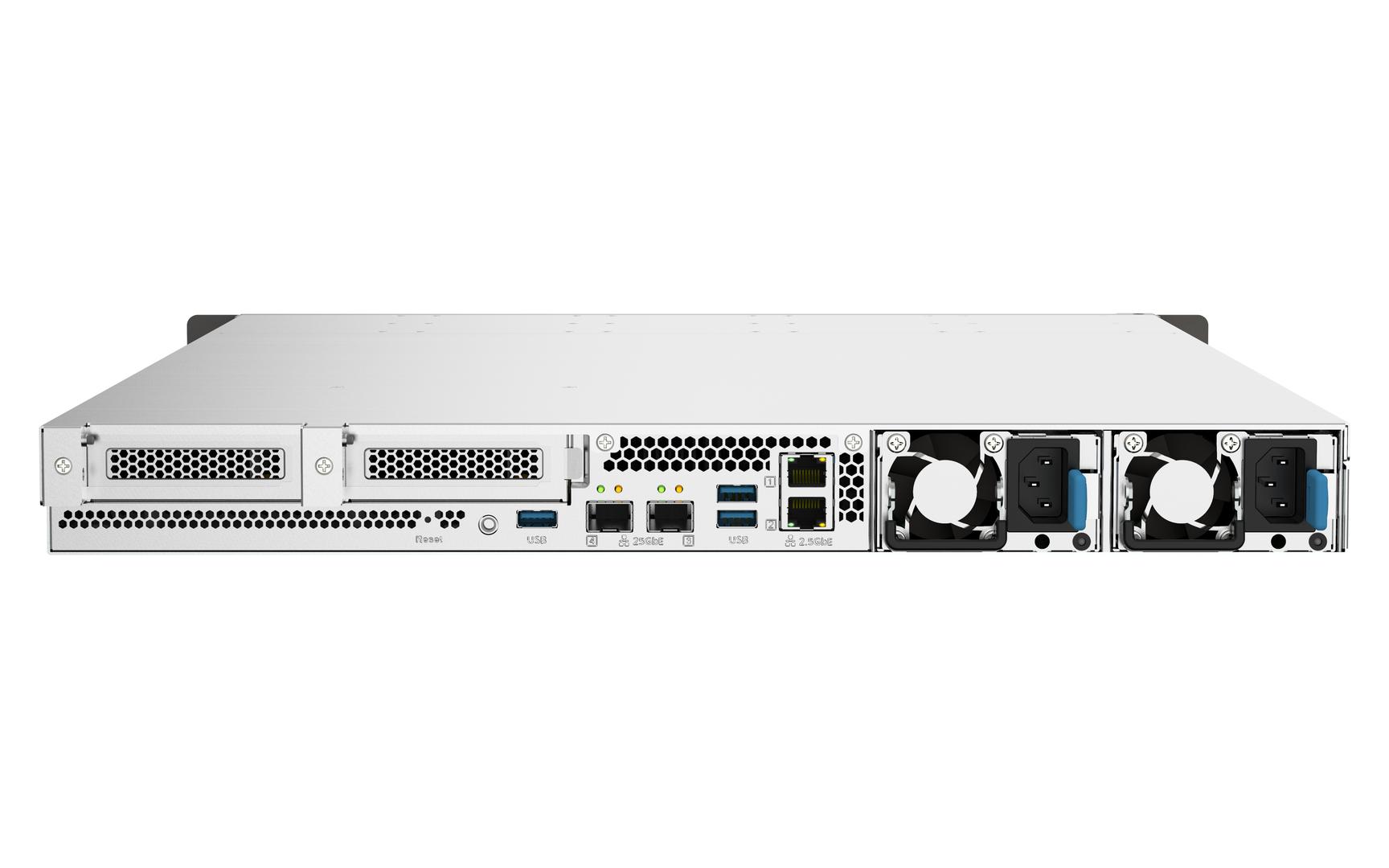

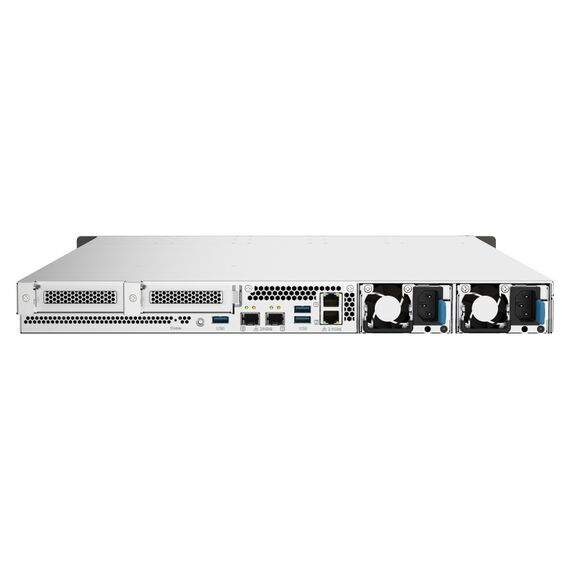

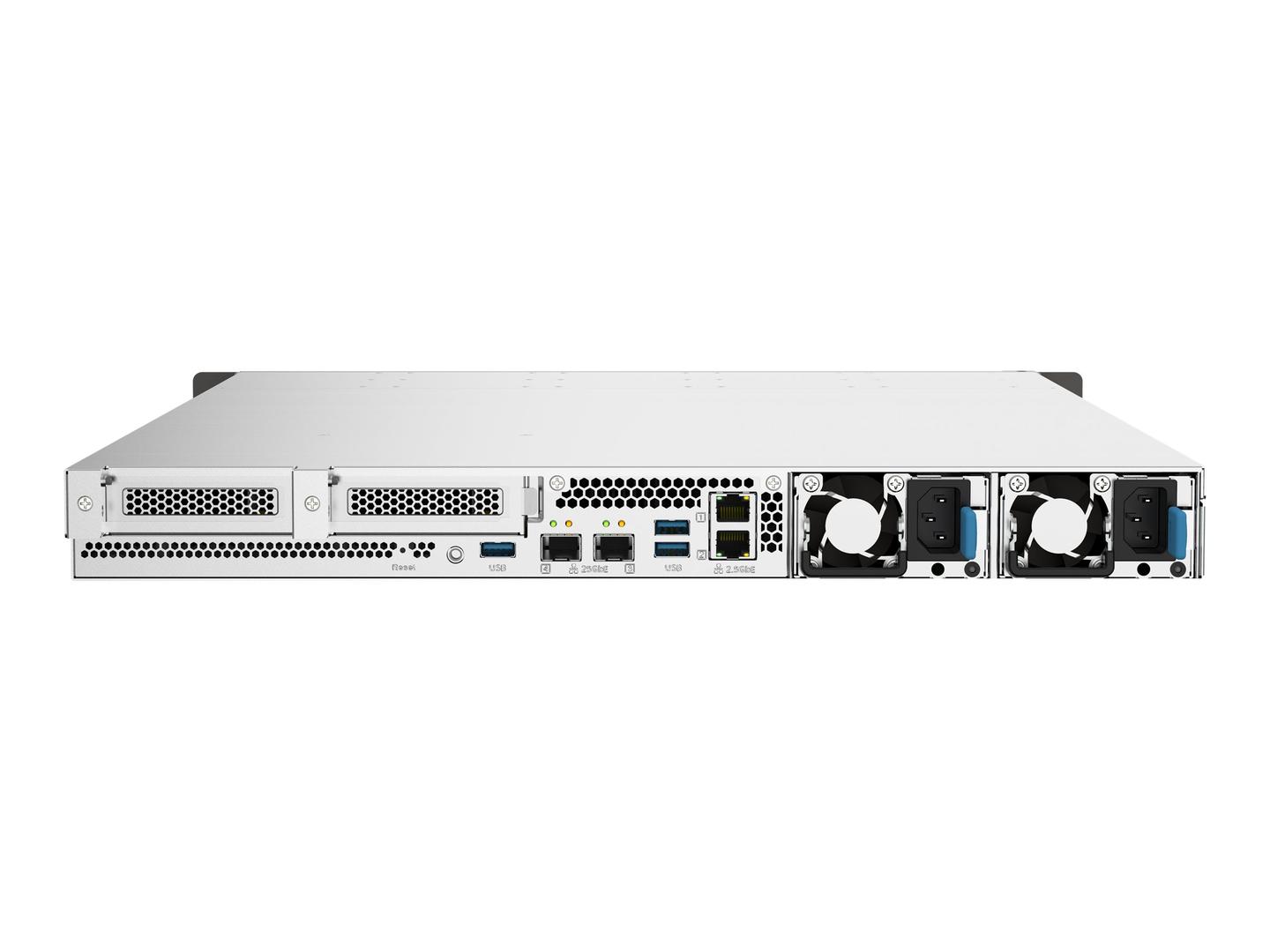

| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 1 - Type A ¦ 2 x Ethernet 25Gb - SFP28 |
| Miscellaneous | |
| Cables Included | 1 x network cable ¦ 1 x power cable |
| Features | Built-in 5 cooling fans, Citrix Ready, S.M.A.R.T. support, reset button, Secure Erase, dual boot, Smart Fan, alarm buzzer, 60 mm cooling fan, on/off power switch |
| Compliant Standards | TLS v1.2, TLS v1.0, TLS v1.1, TLS v1.3 |
| Included Accessories | 2 x hangers, 2 x holders, 40 x flat head screws (for 2.5" HDD), 2 x drive tray keys |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 157.97 Watt |
| Power Provided | 550 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QTS 5.0.0 |
| Software Included | IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, QNAP QVR Pro, QNAP QVR Elite |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 13.38 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
