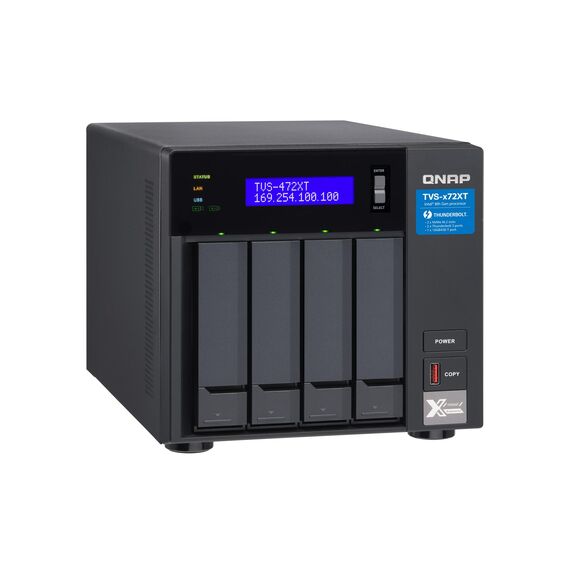

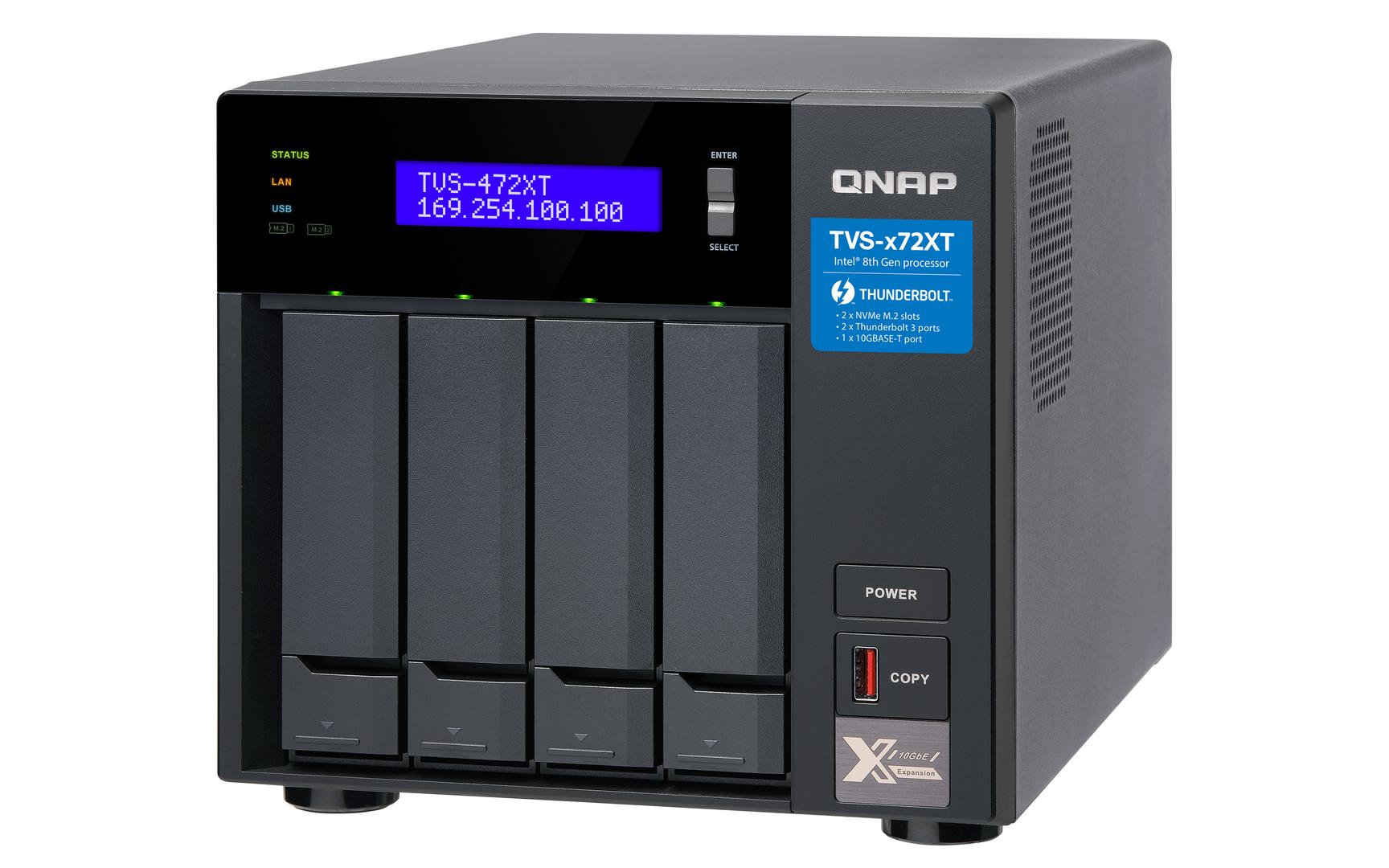

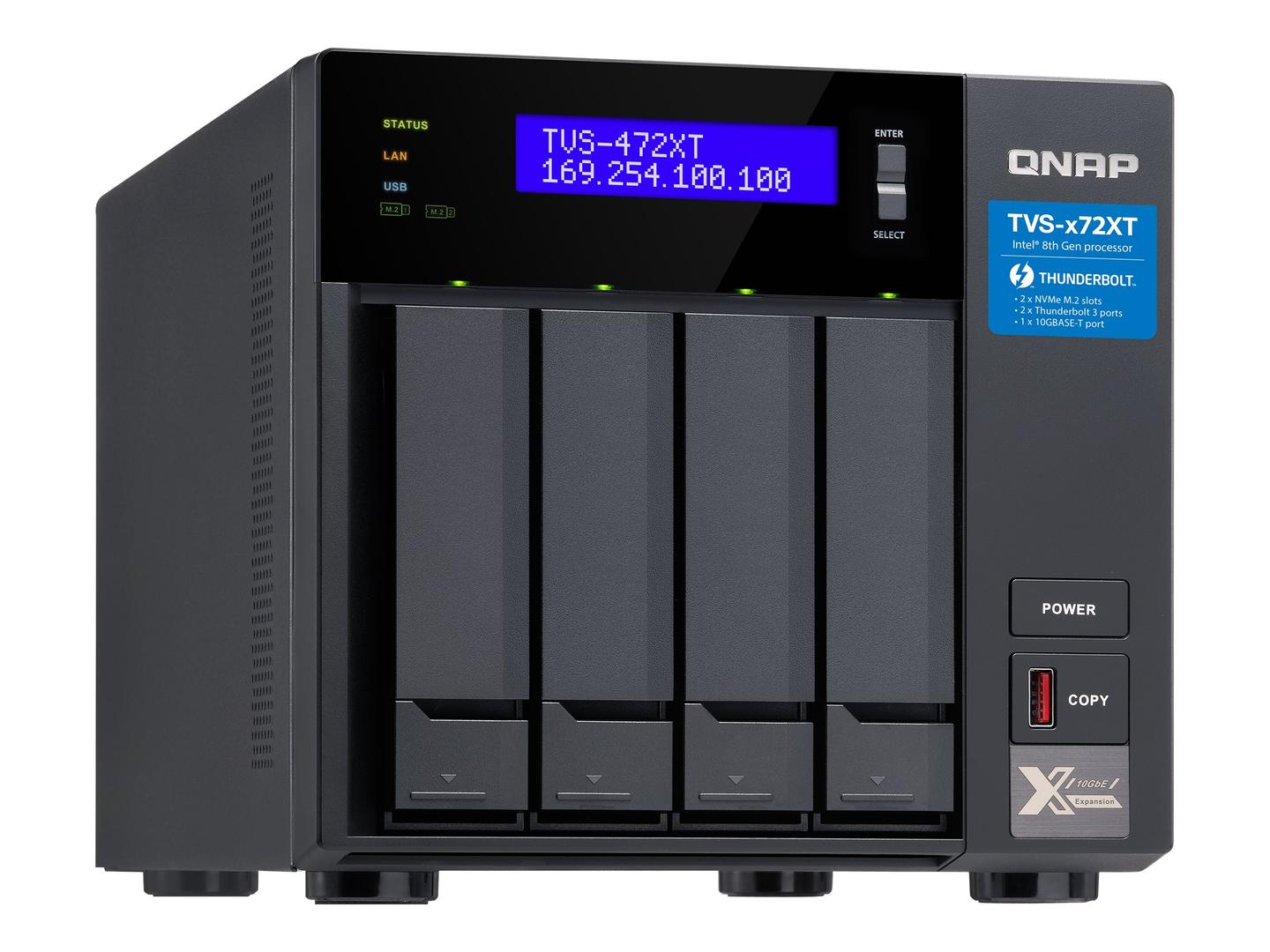

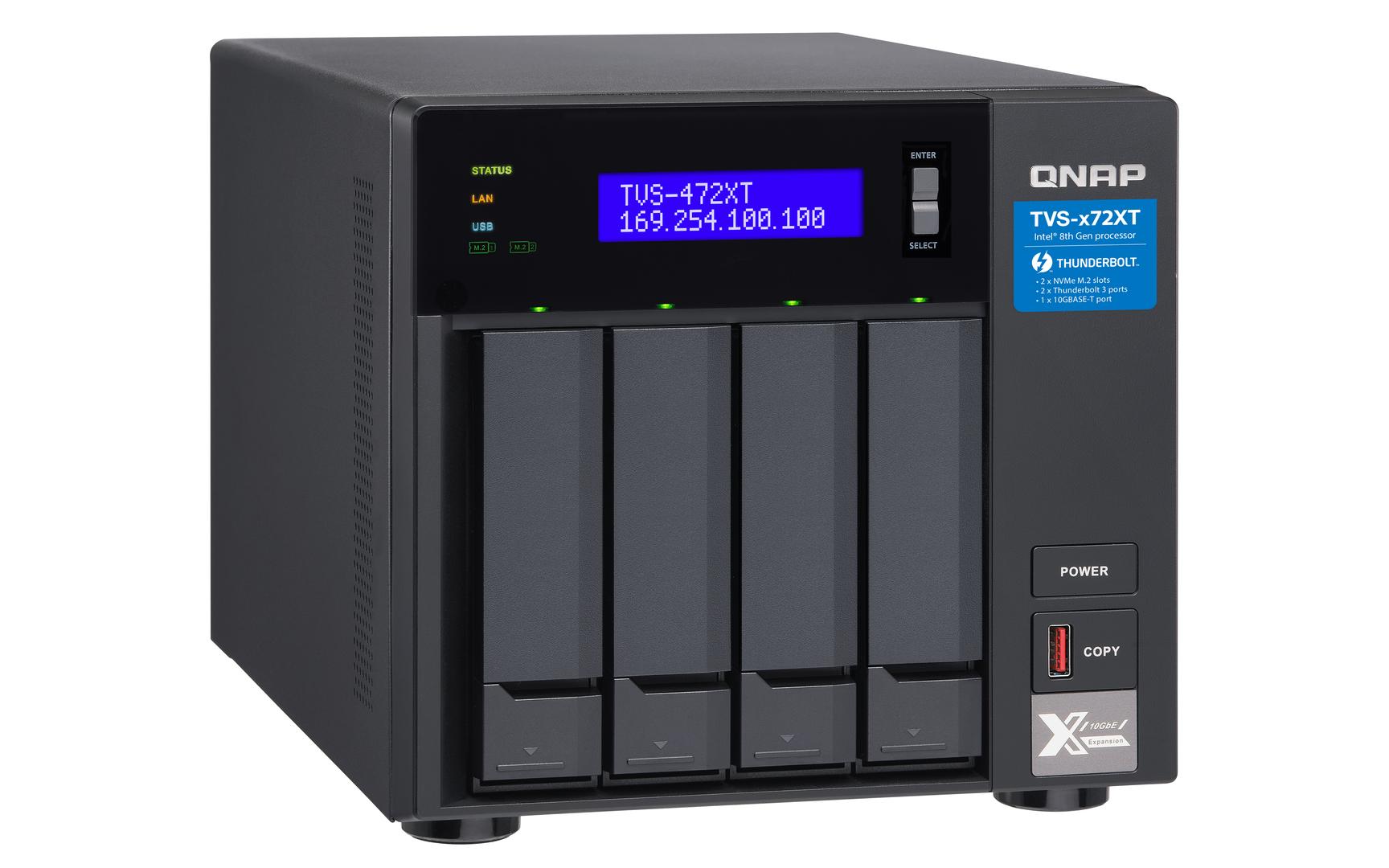

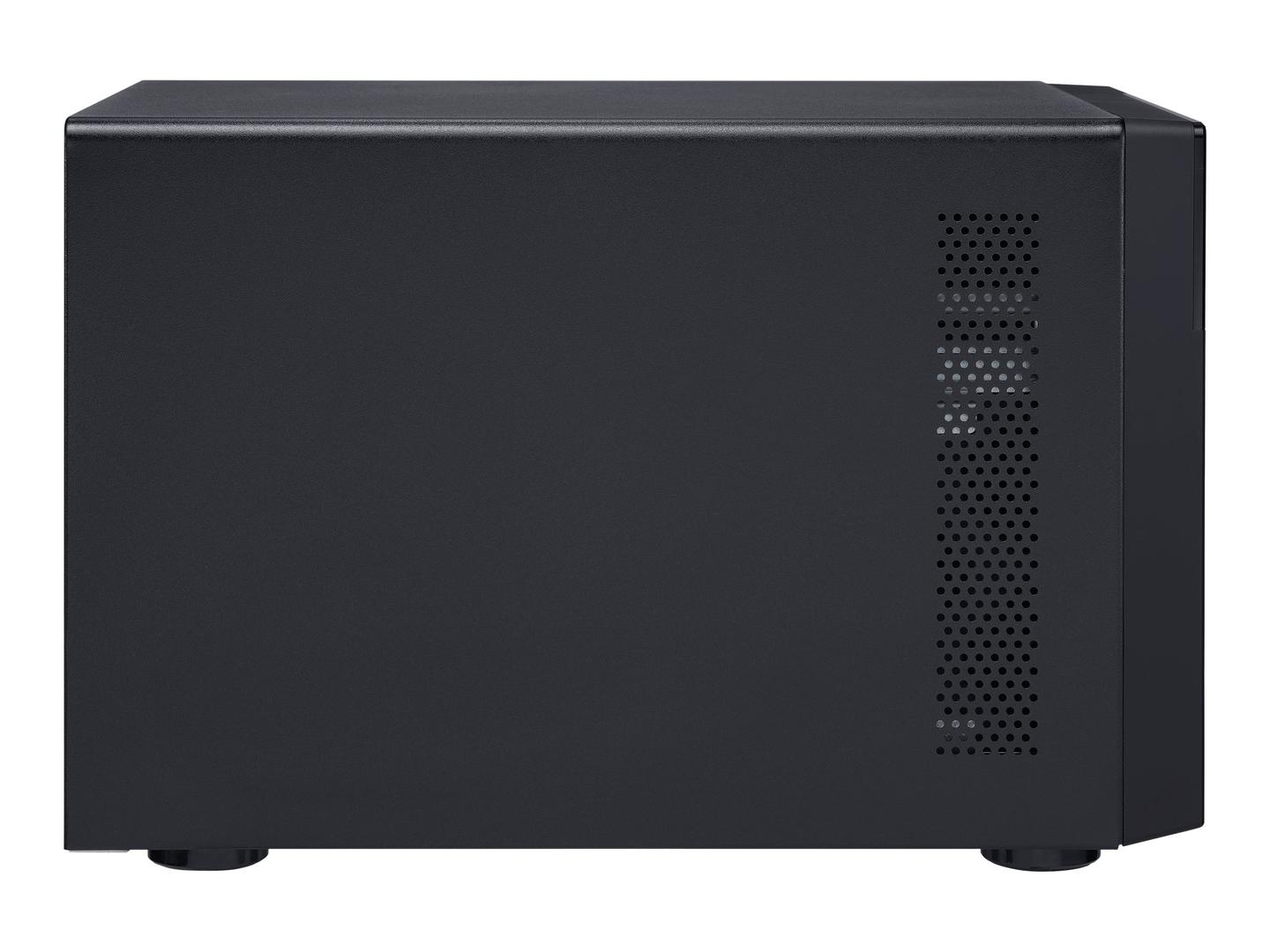

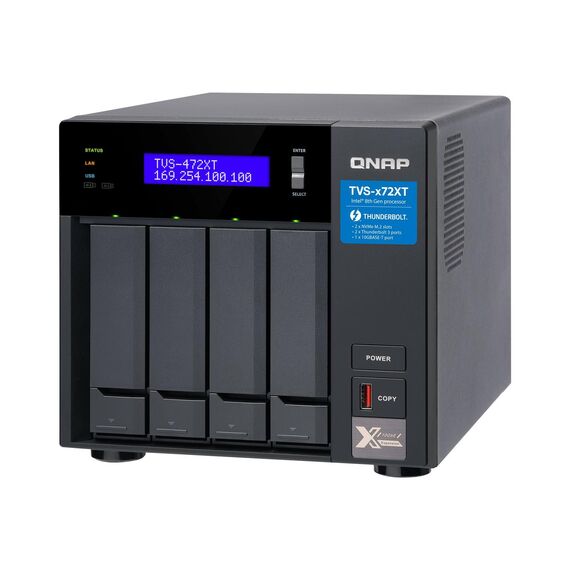

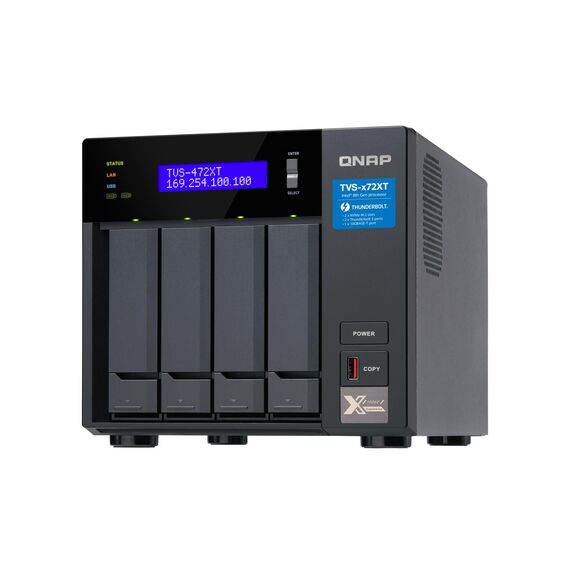

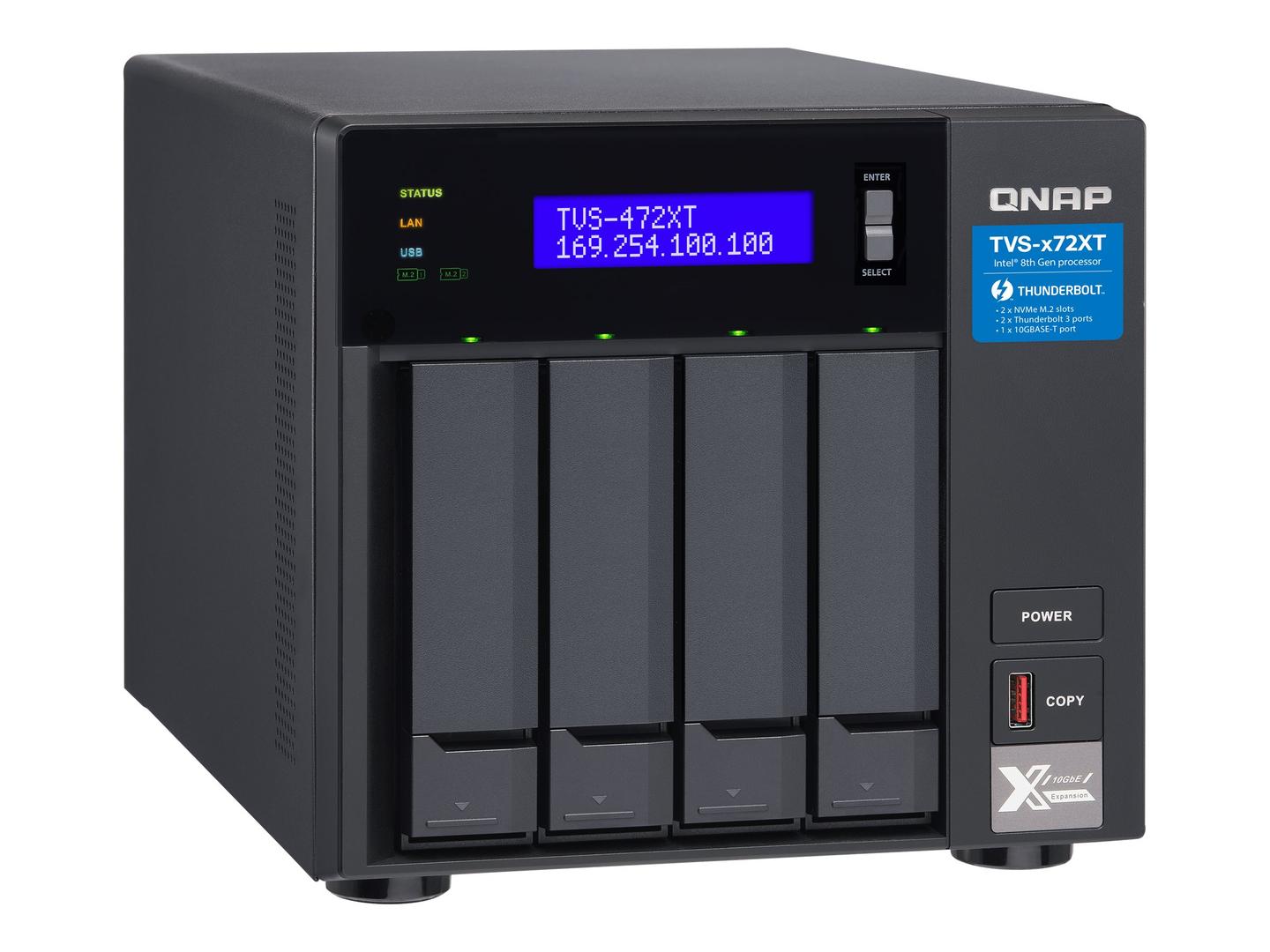

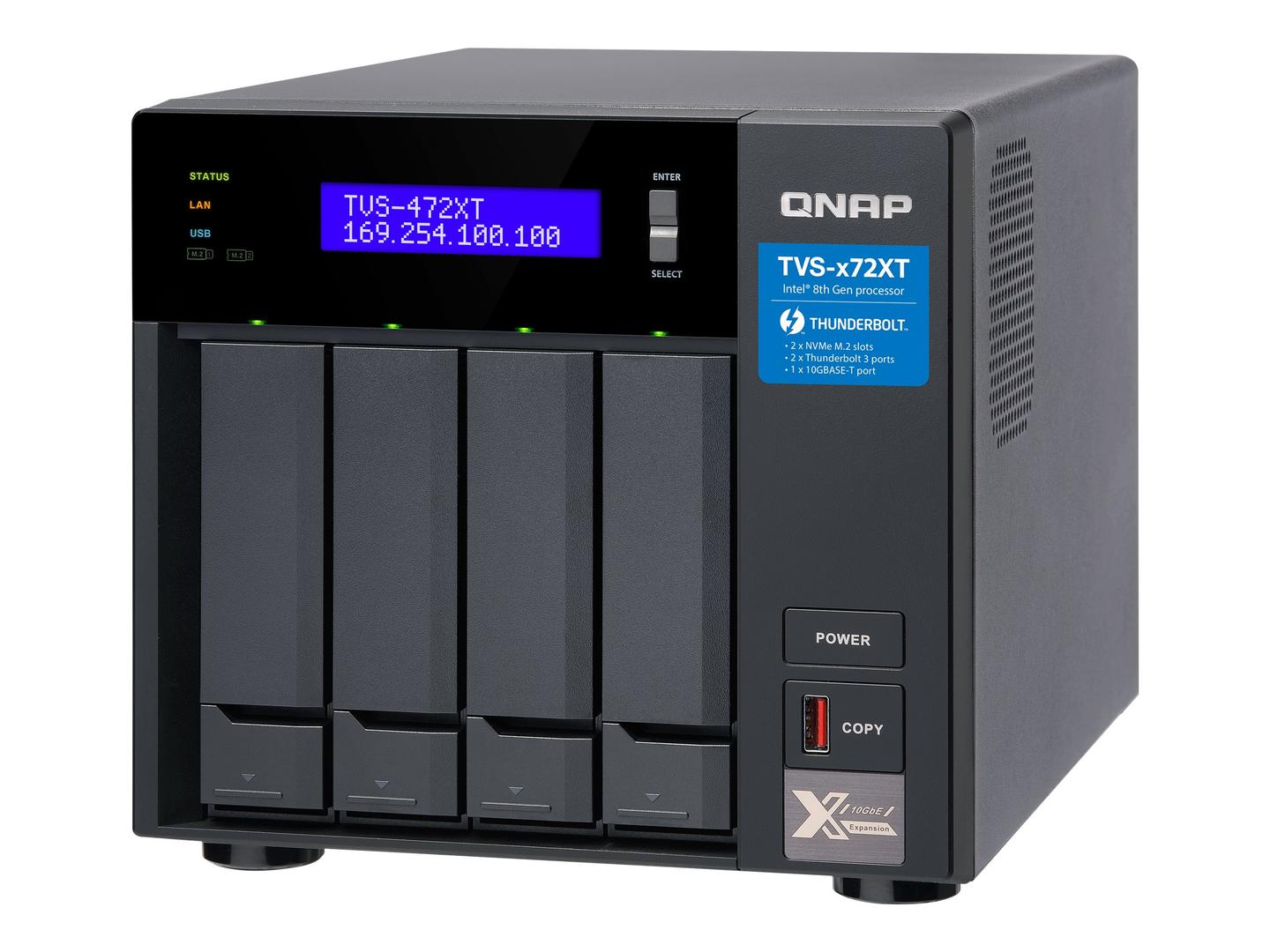

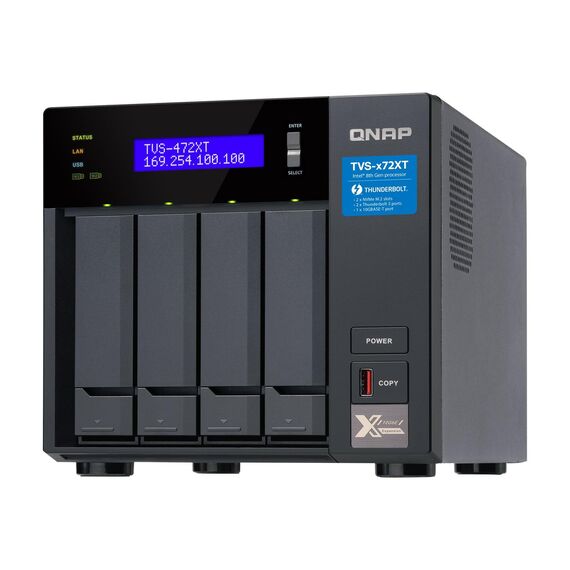

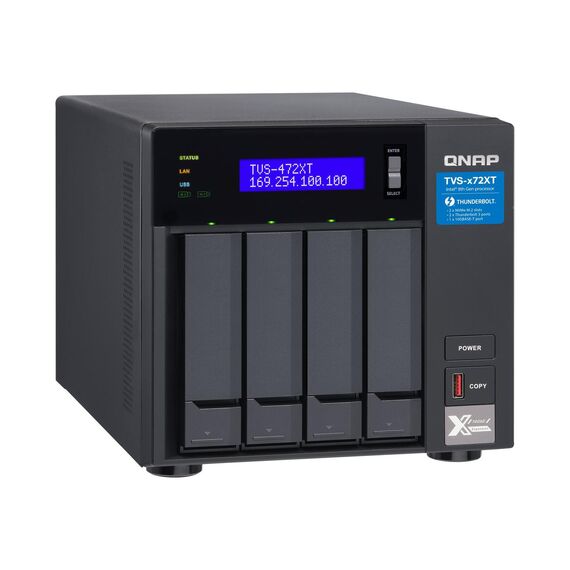

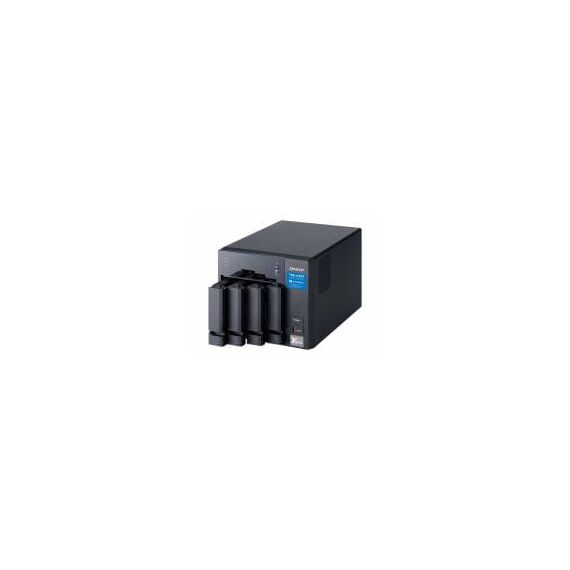

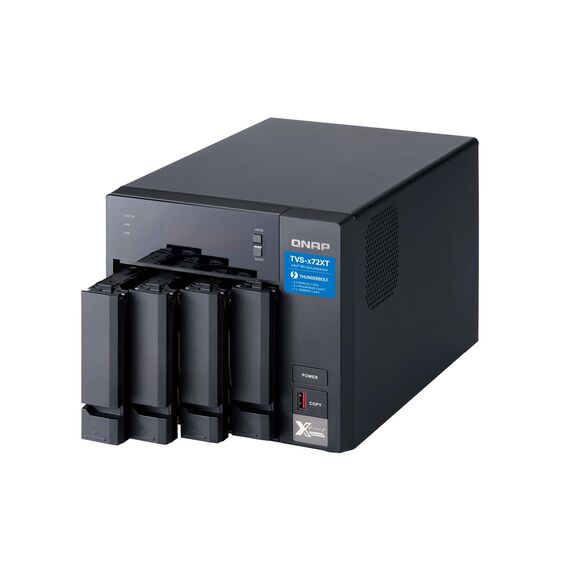

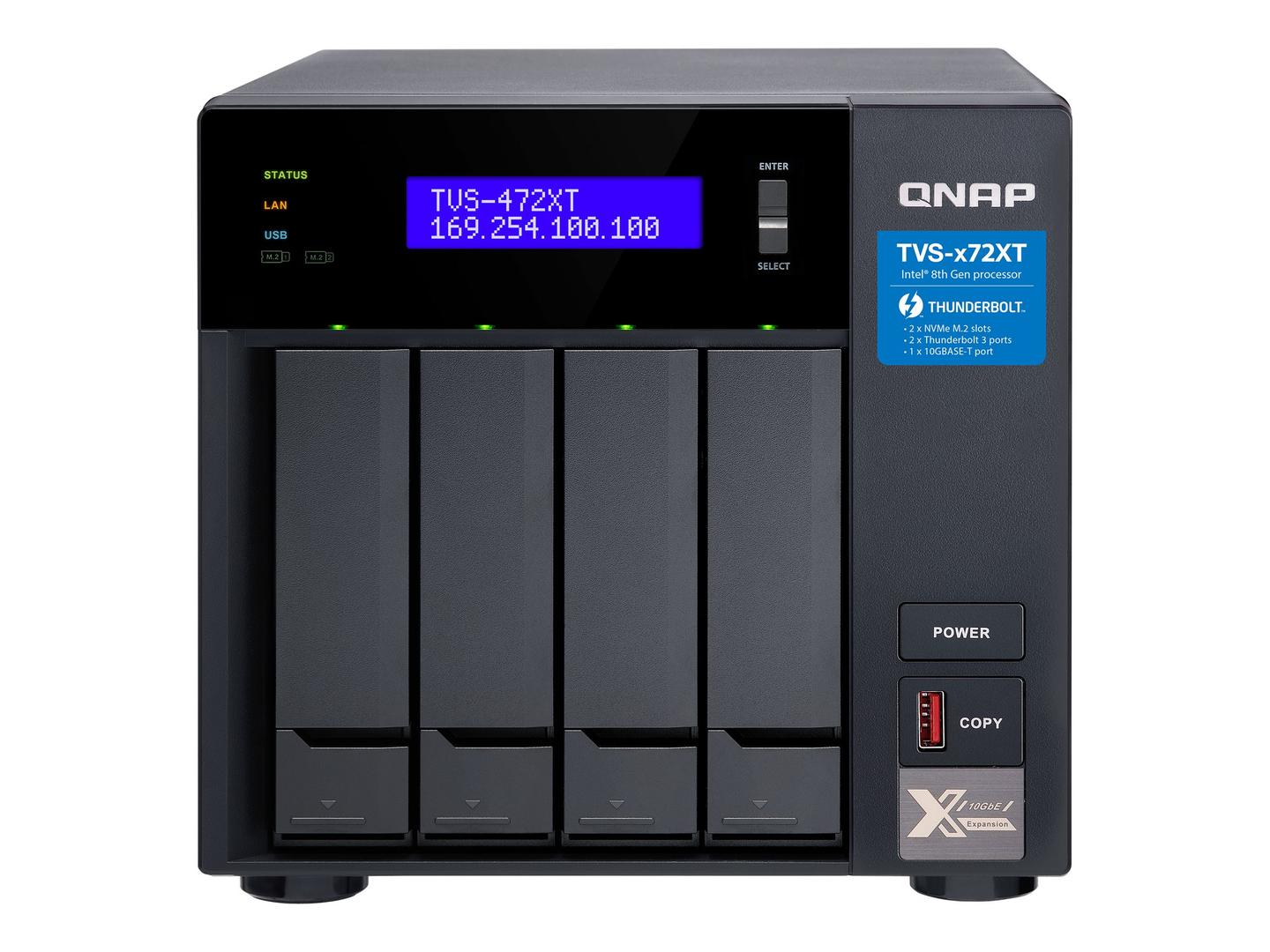

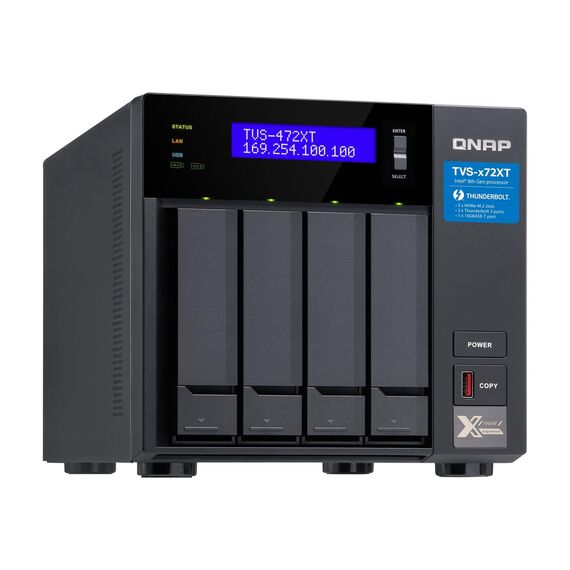

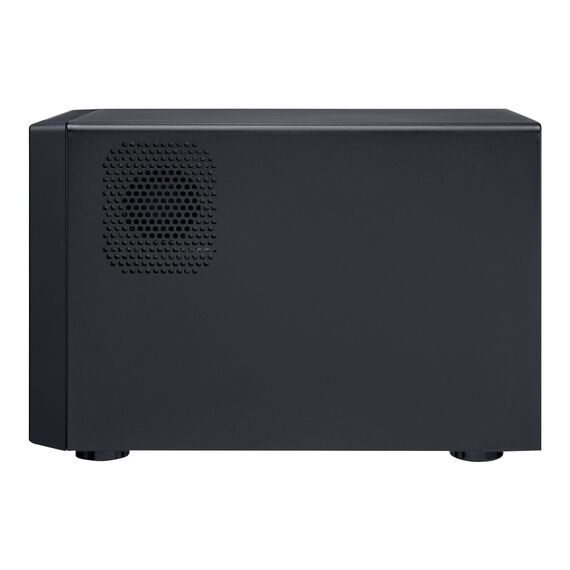

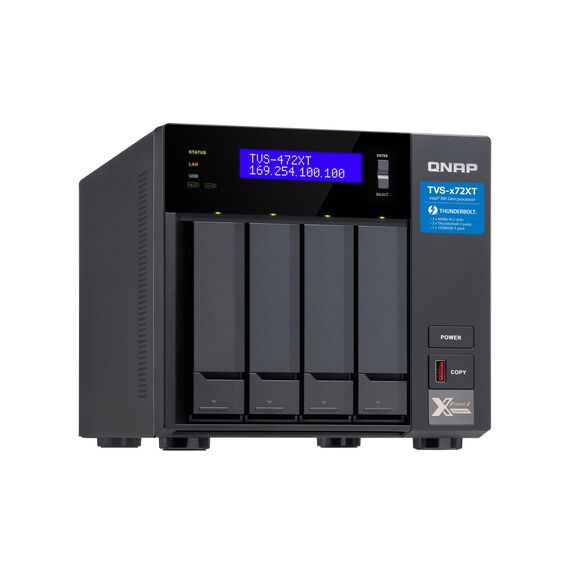

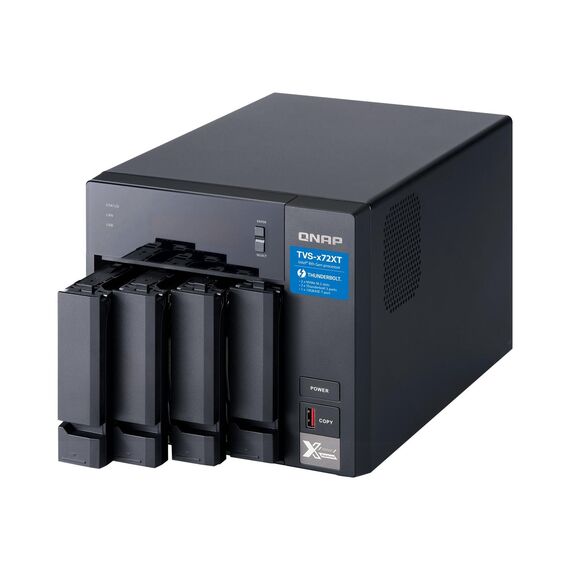

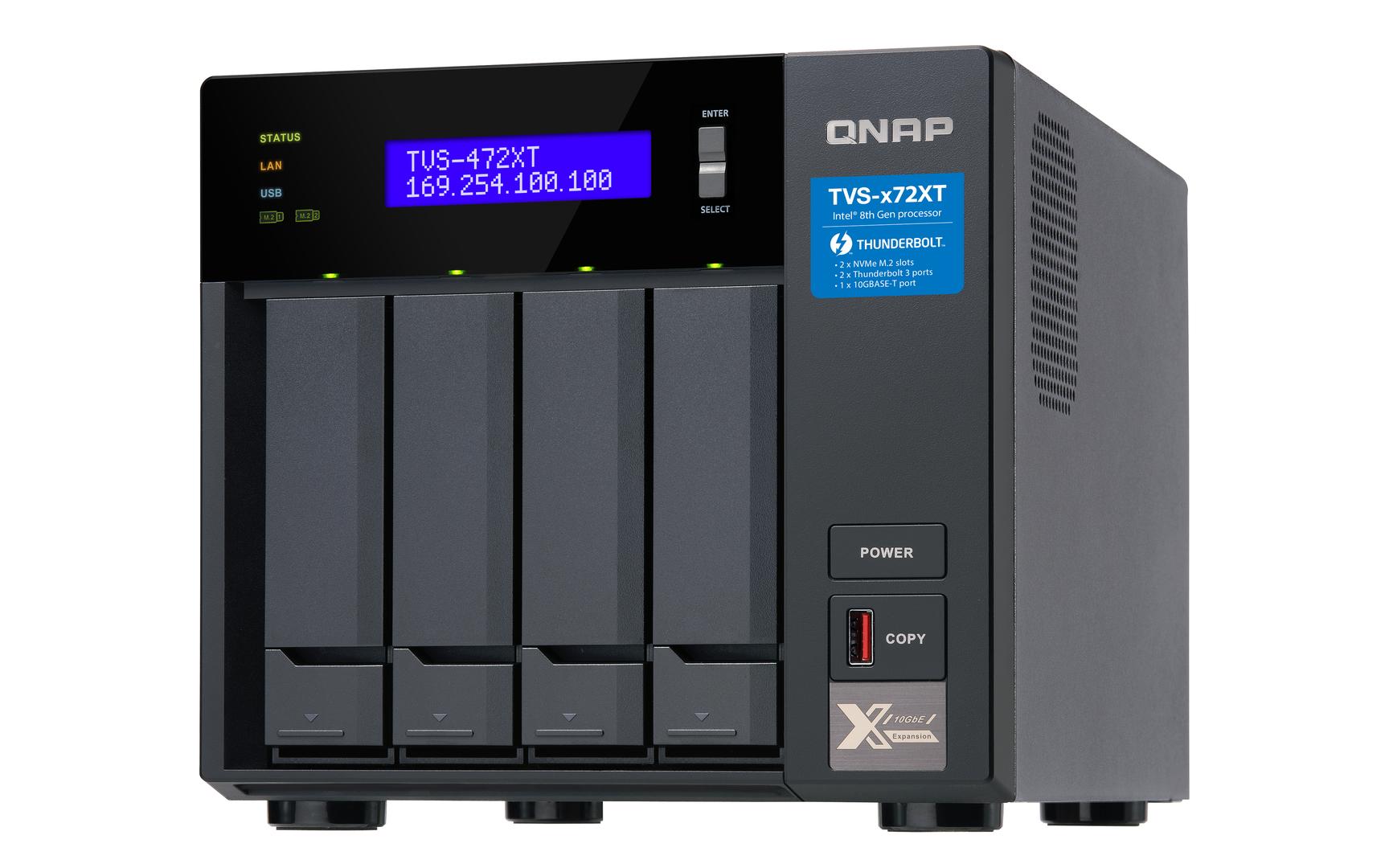

QNAP TVS-472XT - NAS server - 4 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare - RAM 4 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support | TVS-4
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet / 5 Gigabit Ethernet / 10 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 19.93 cm |
| Depth | 27.96 cm |
| Height | 18.82 cm |
| Weight | 5.4 kg () |
| Built-in Devices | Led panel |
| Processor / Memory | |
| Processors Installed | 1 x Intel Core i3 8100T 3.1 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 4 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare |
| Networking | |
| Data Link Protocol | 100Mb LAN, GigE, 10 GigE, 5 GigE, 2.5 GigE, Thunderbolt 3 |
| Network / Transport Protocol | TCP/IP, PPTP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP |
| Features | LDAP support, wake on LAN (WOL), Syslog support, E-mail alert, IPv6 support, Access Control List (ACL) support, DHCP server, SMS alert, reset button, IPv4 support, DHCP client, 4K resolution support, cloud backup, Real-time Remote Replication (RTRR) |
| Encryption Algorithm | SSL, 128-bit AES, 256-bit AES |
| Compliant Standards | DLNA CERTIFIED, UPnP |
| Expansion / Connectivity | |

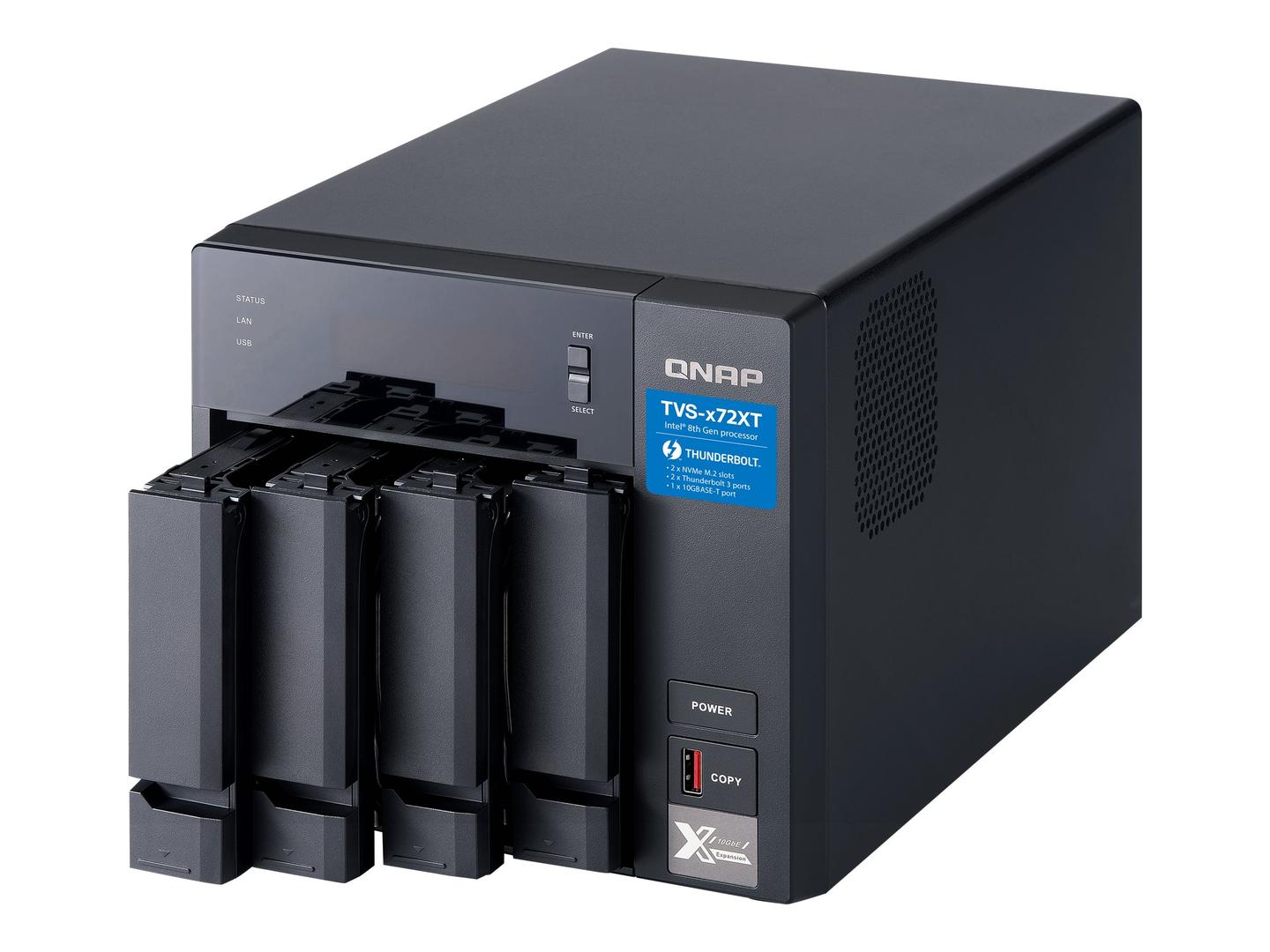

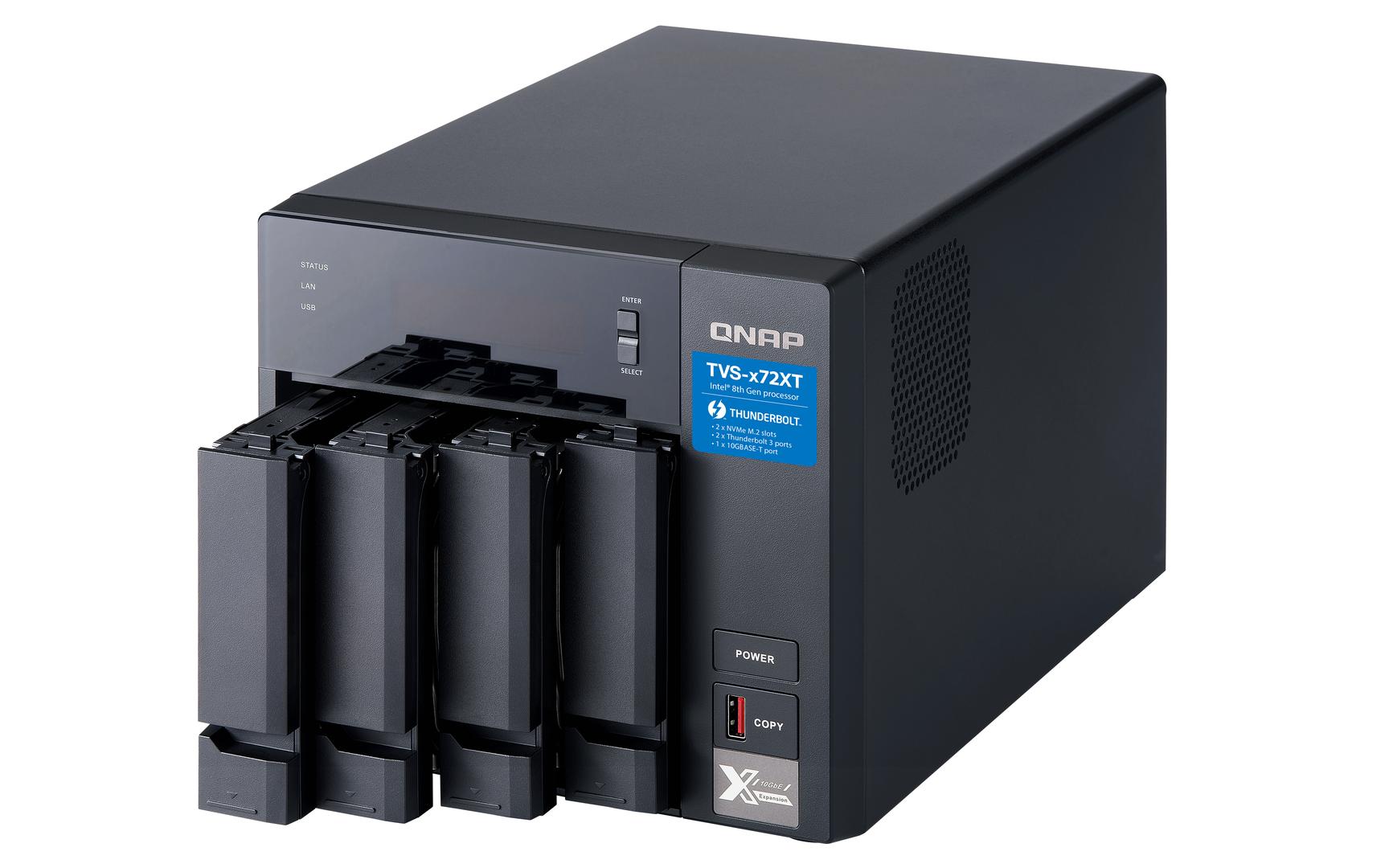

| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x4 ¦ 1 (total) / 1 (free) x PCI Express 3.0 x16 ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 x SO-DIMM 260-pin |

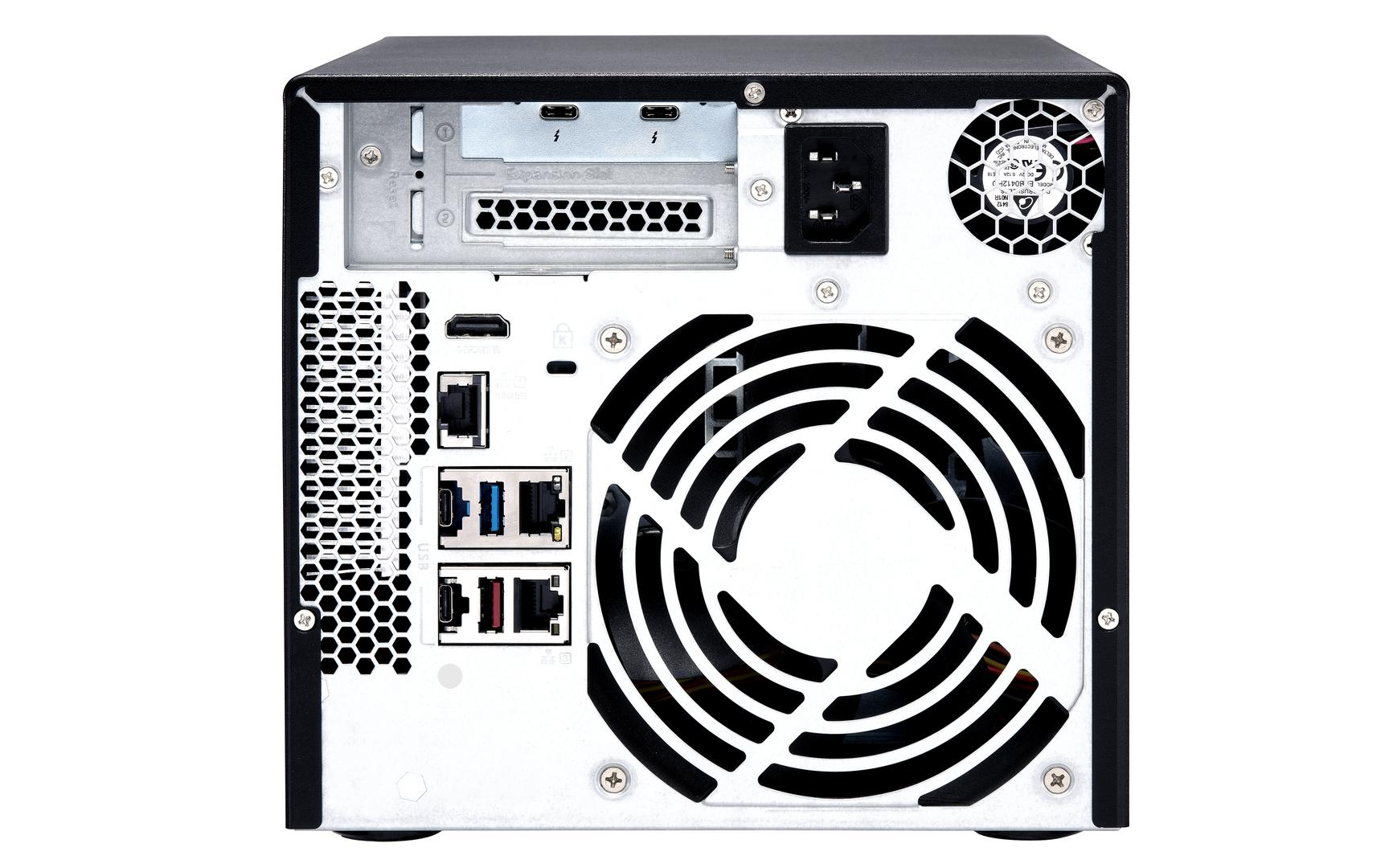

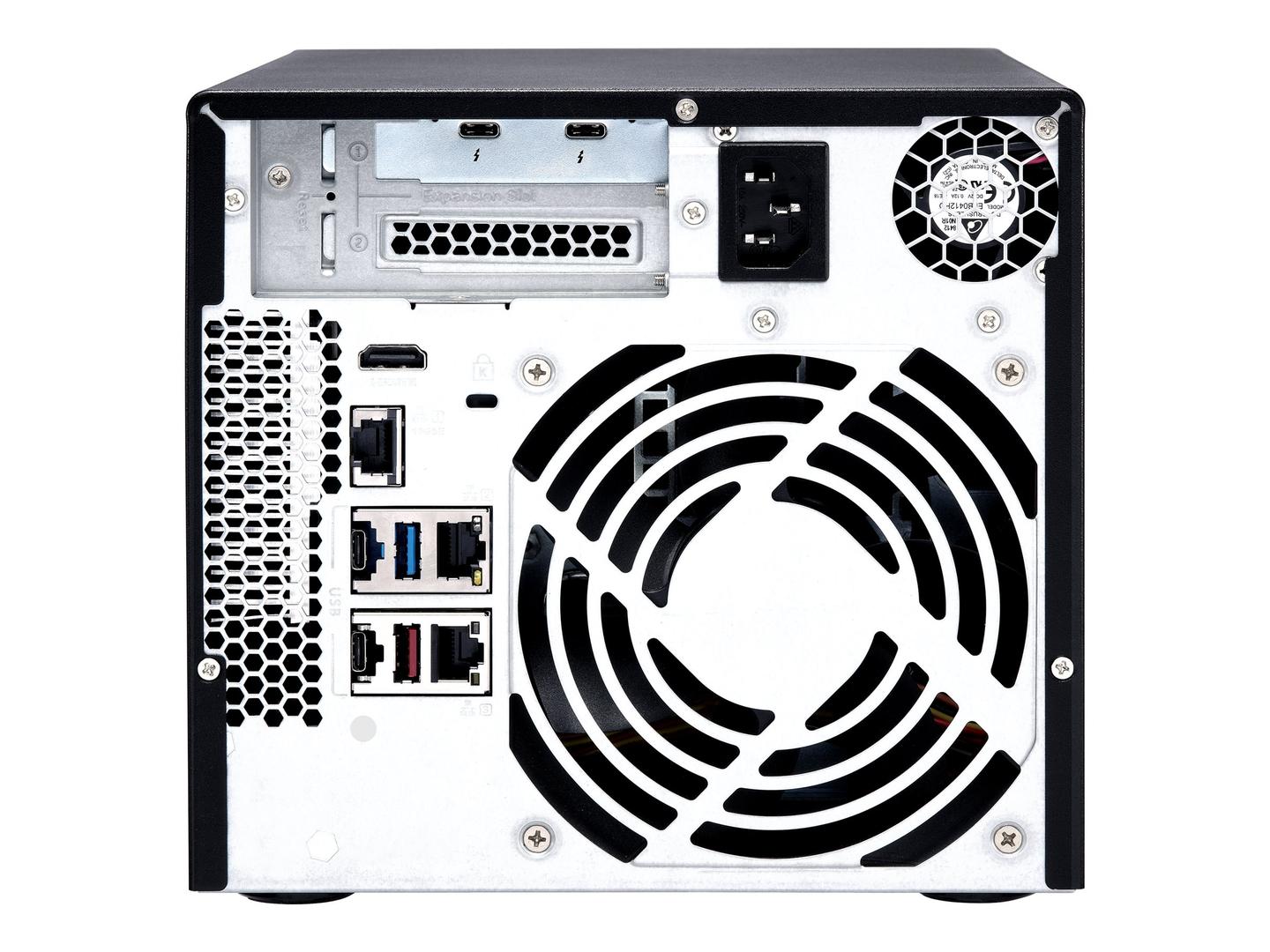

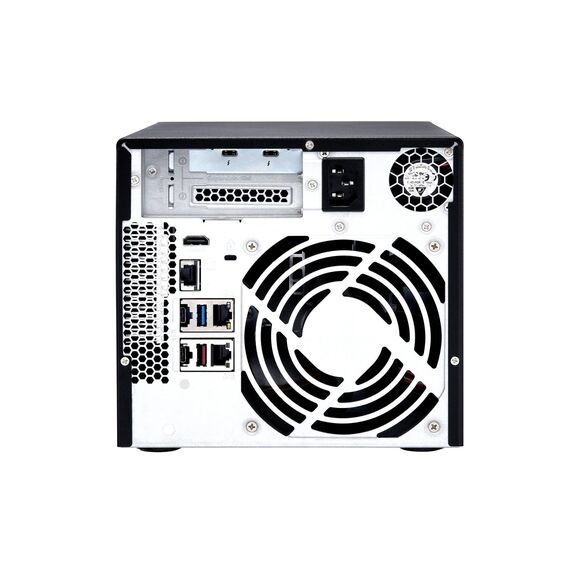

| Interfaces | 1 x Ethernet 10Gb - RJ-45 ¦ 1 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 2 x USB 3.2 Gen 2 - Type C ¦ 2 x Thunderbolt 3 ¦ 1 x HDMI output |
| Miscellaneous | |
| Cables Included | 2 x 1000Base-T cable ¦ 1 x 10GBase-T cable |
| Features | Security lock slot (cable lock sold separately), built-in 2 cooling fans |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2 |
| Included Accessories | 2 x M.2 SSD heatsink, flat head screws (for 2.5" HDD), flat head screws (for 3.5" HDD) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 37.32 Watt |
| Power Consumption Stand by | 24.14 Watt |
| Power Provided | 250 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QTS 4.4.0 |
| OS Required | UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.01 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 21.2 dBA |
Features - QNAP - TVS-472XT-I3-4G
More Details
Product Code
04:377280
EAN Code
4713213519318
Manufacturer
QNAP
