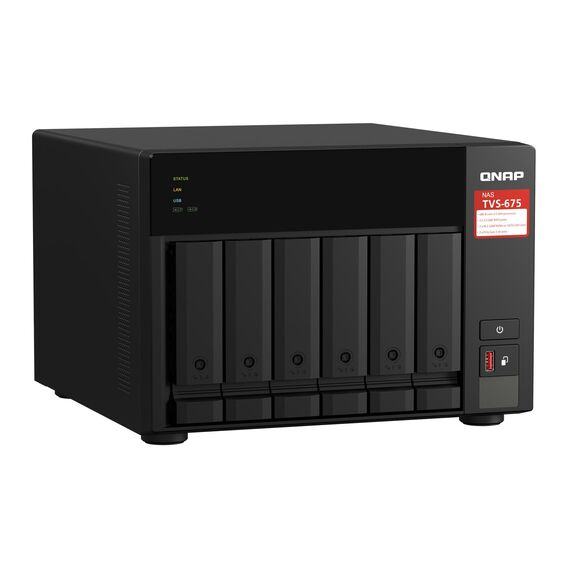

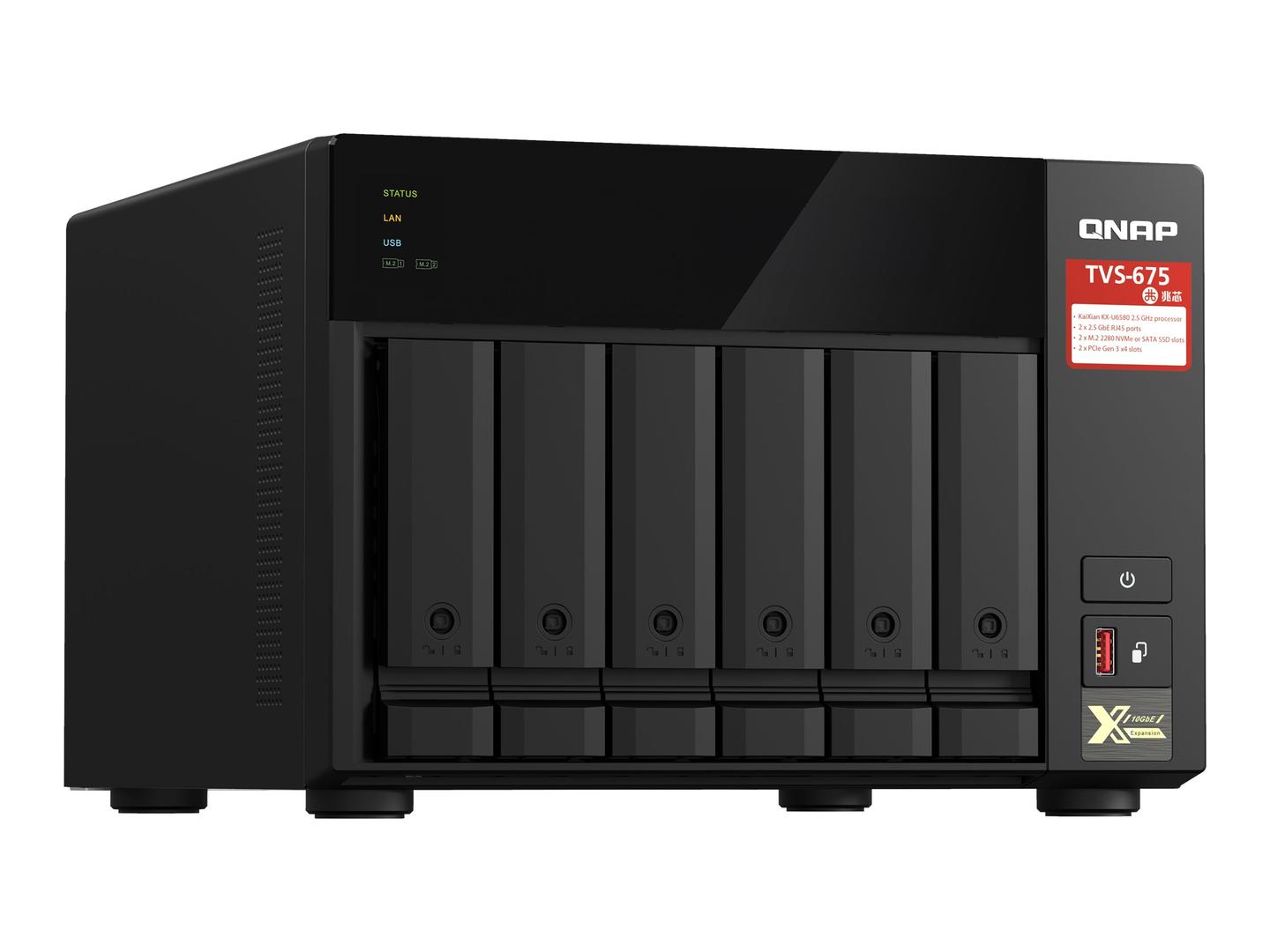

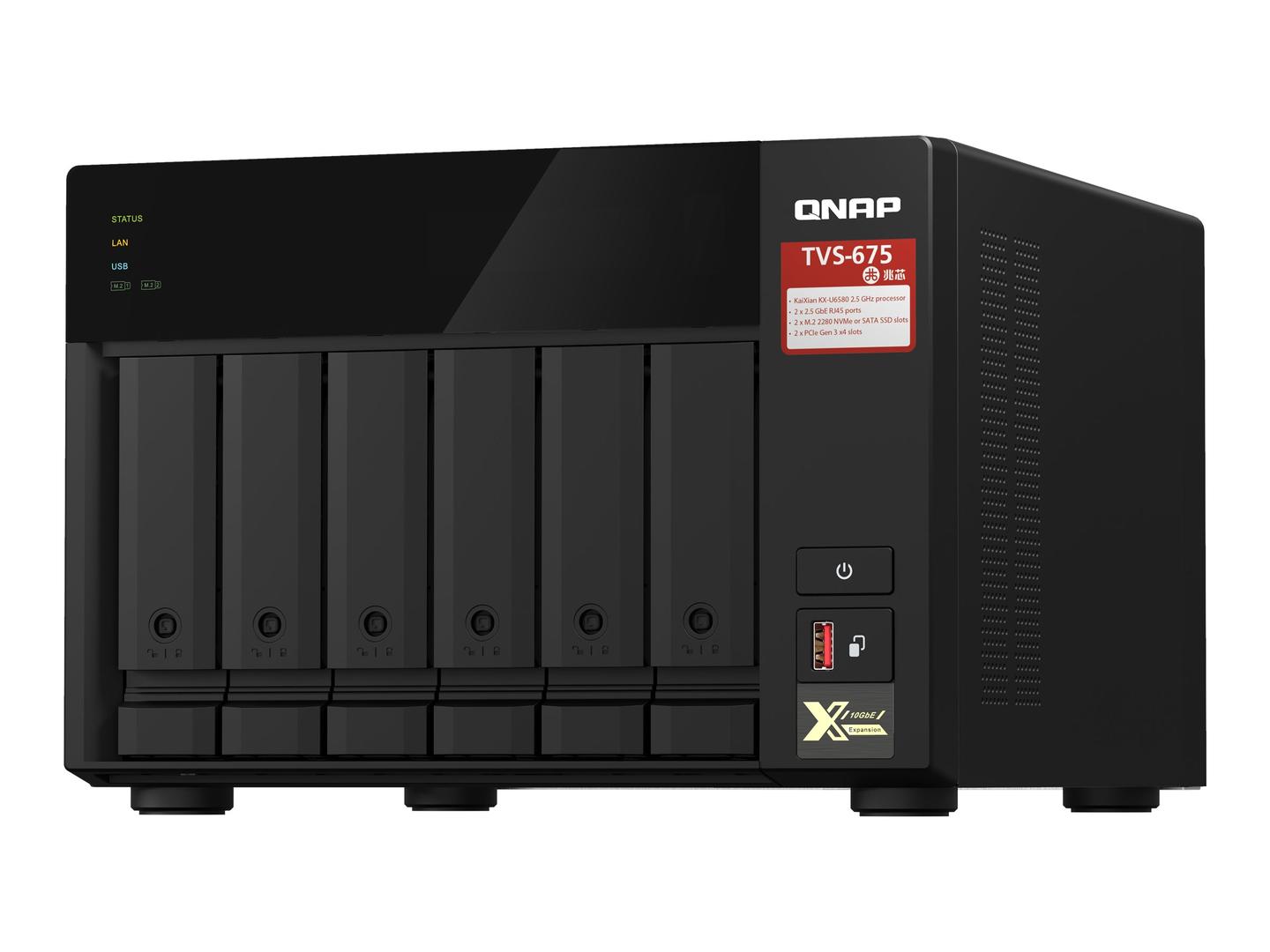

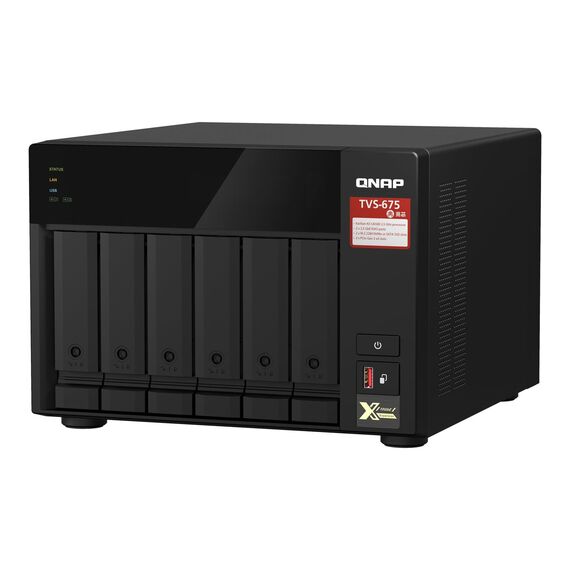

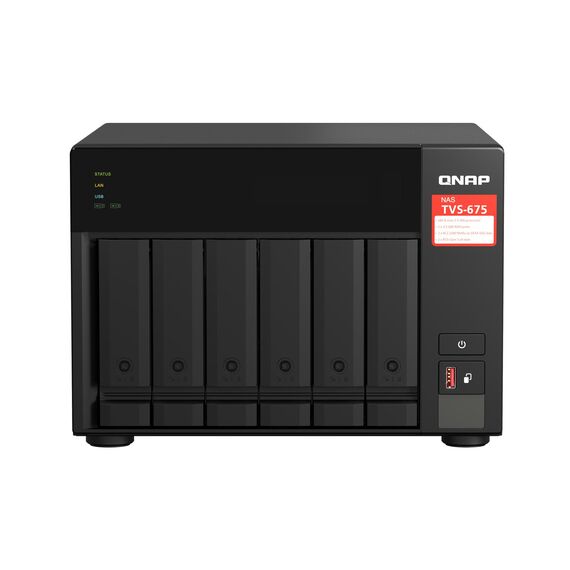

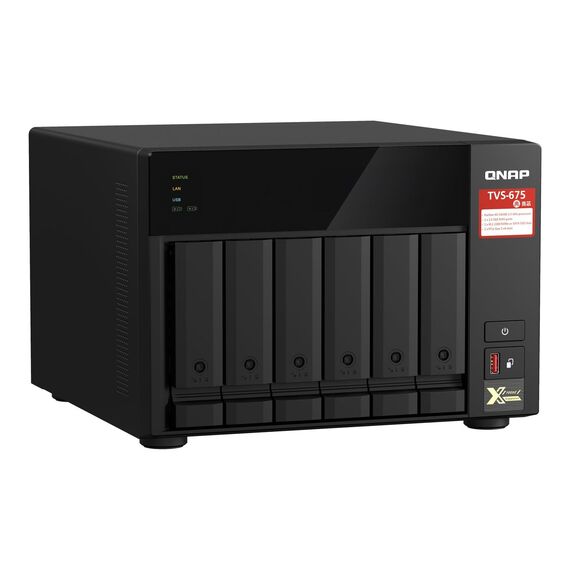

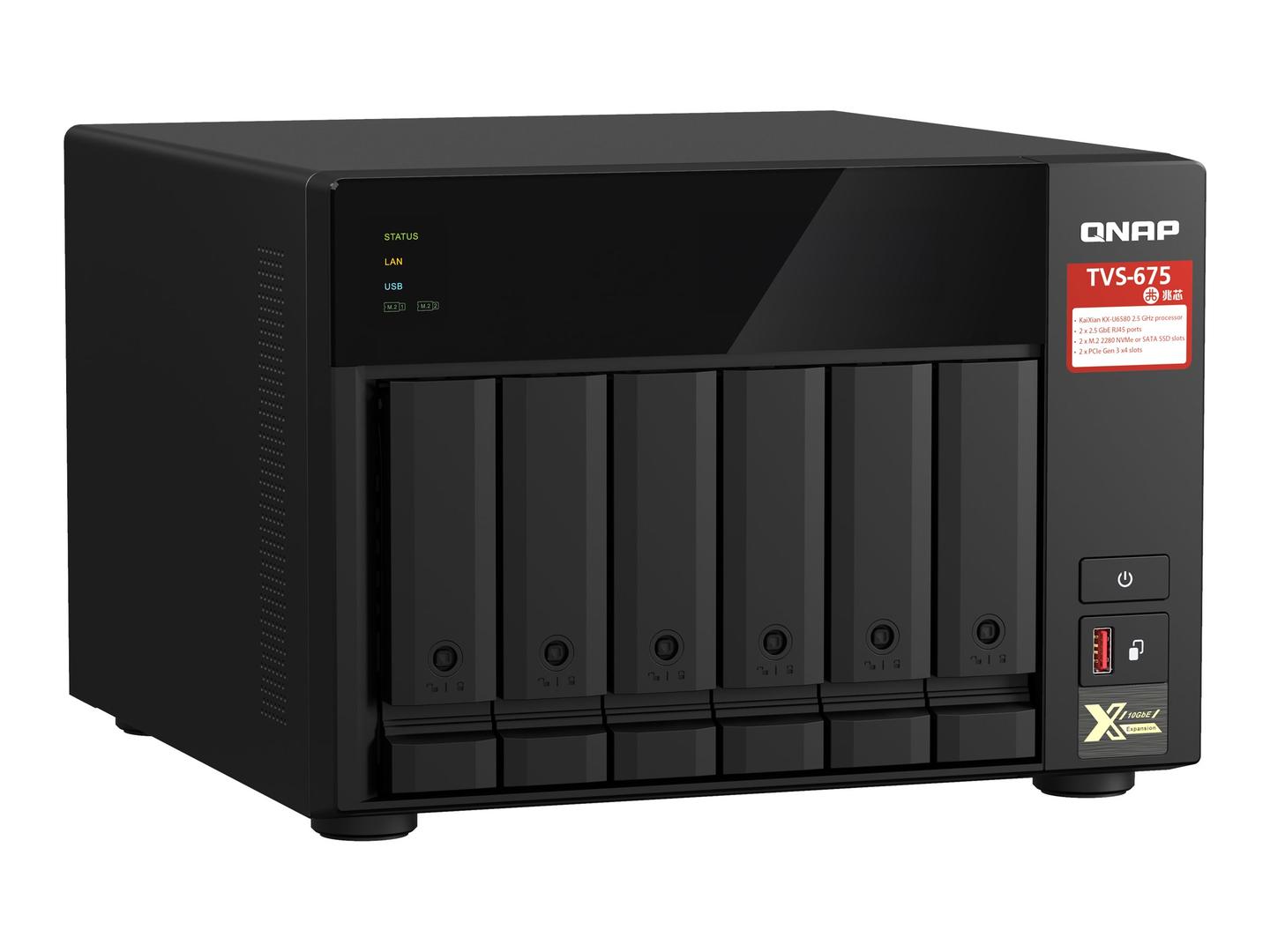

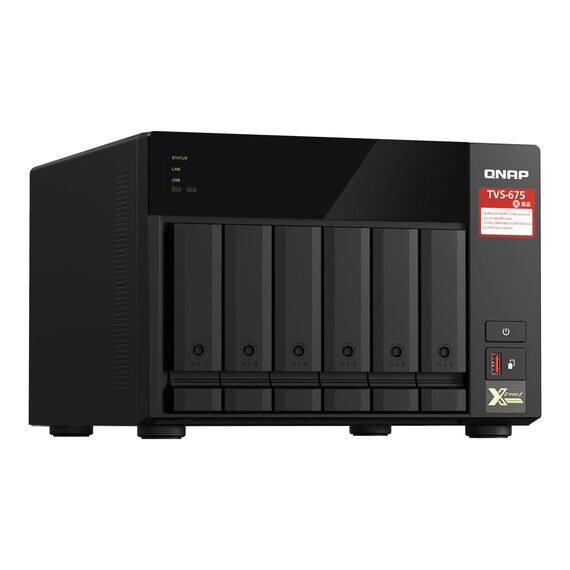

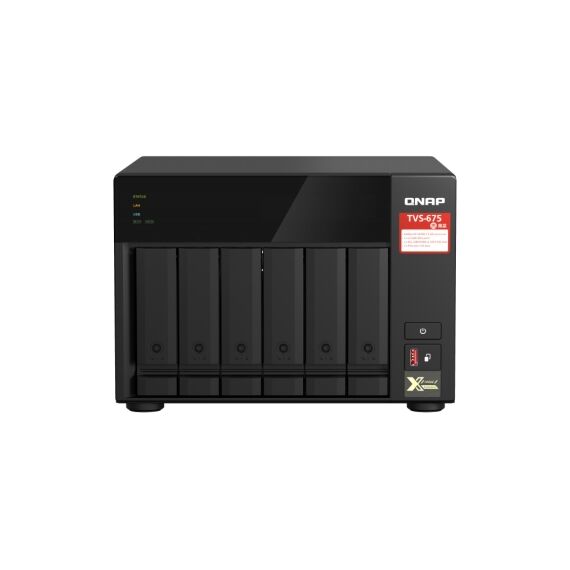

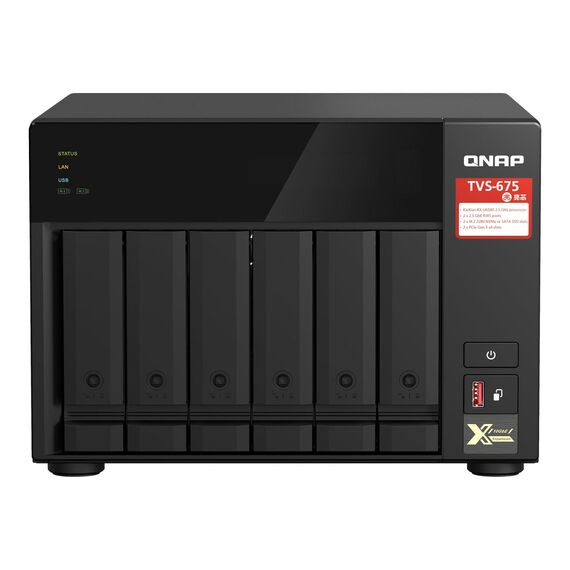

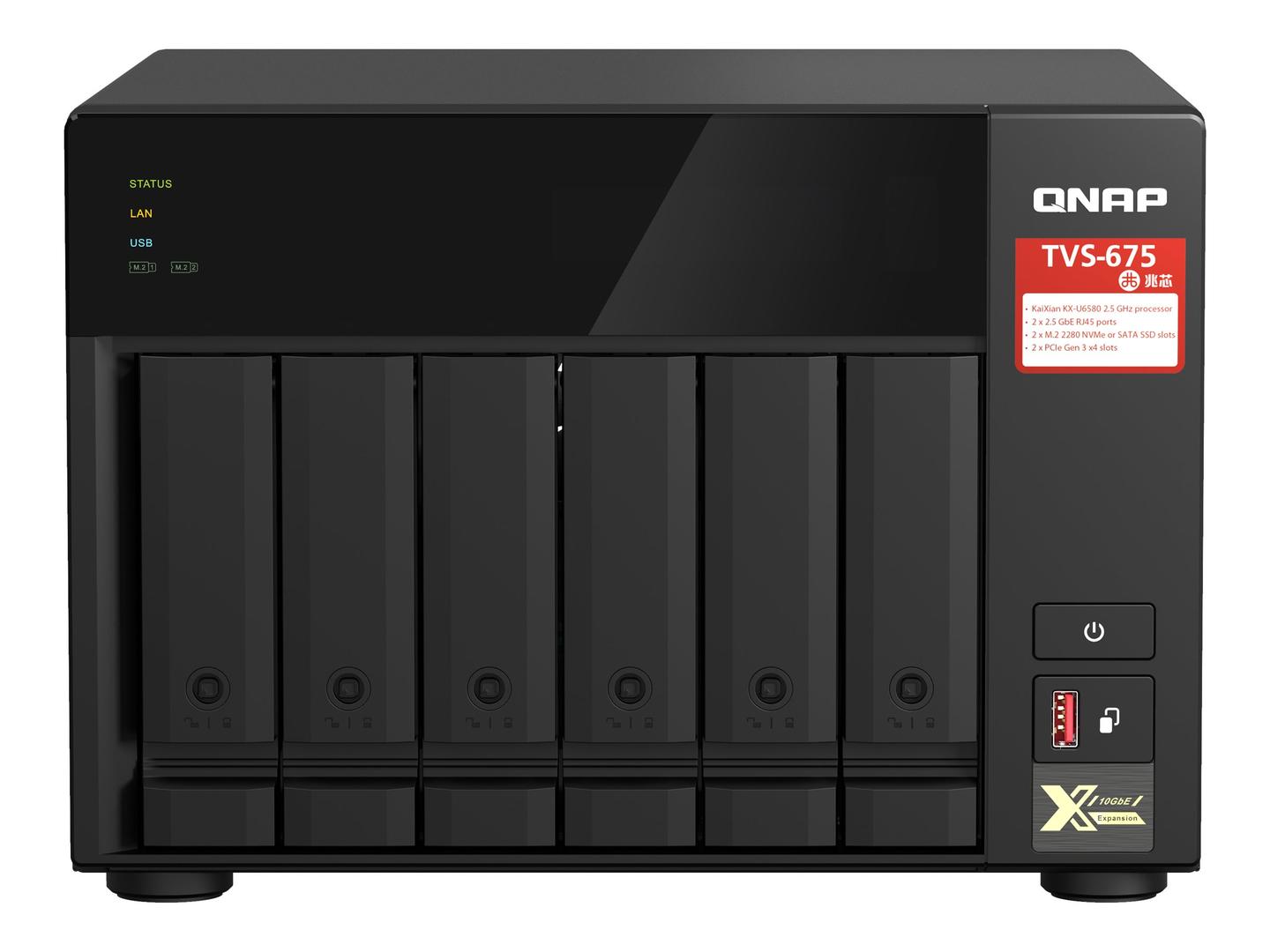

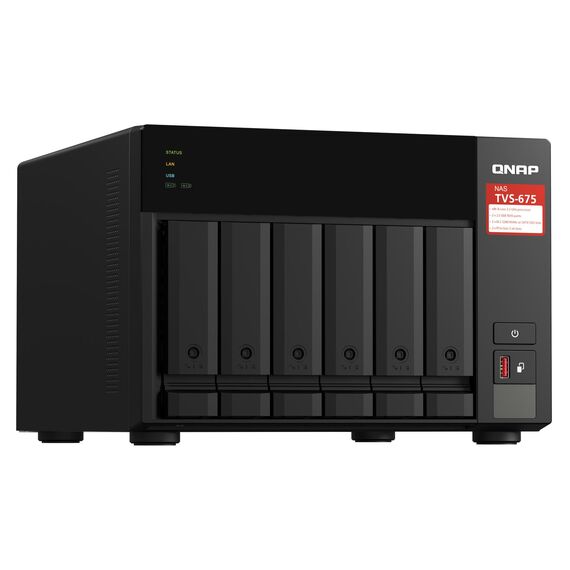

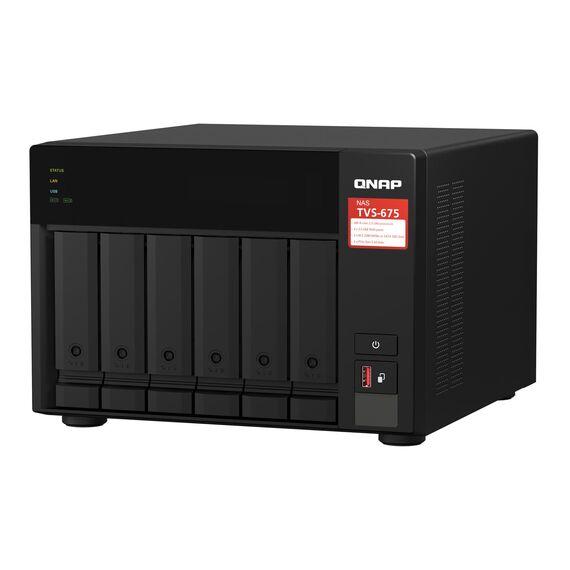

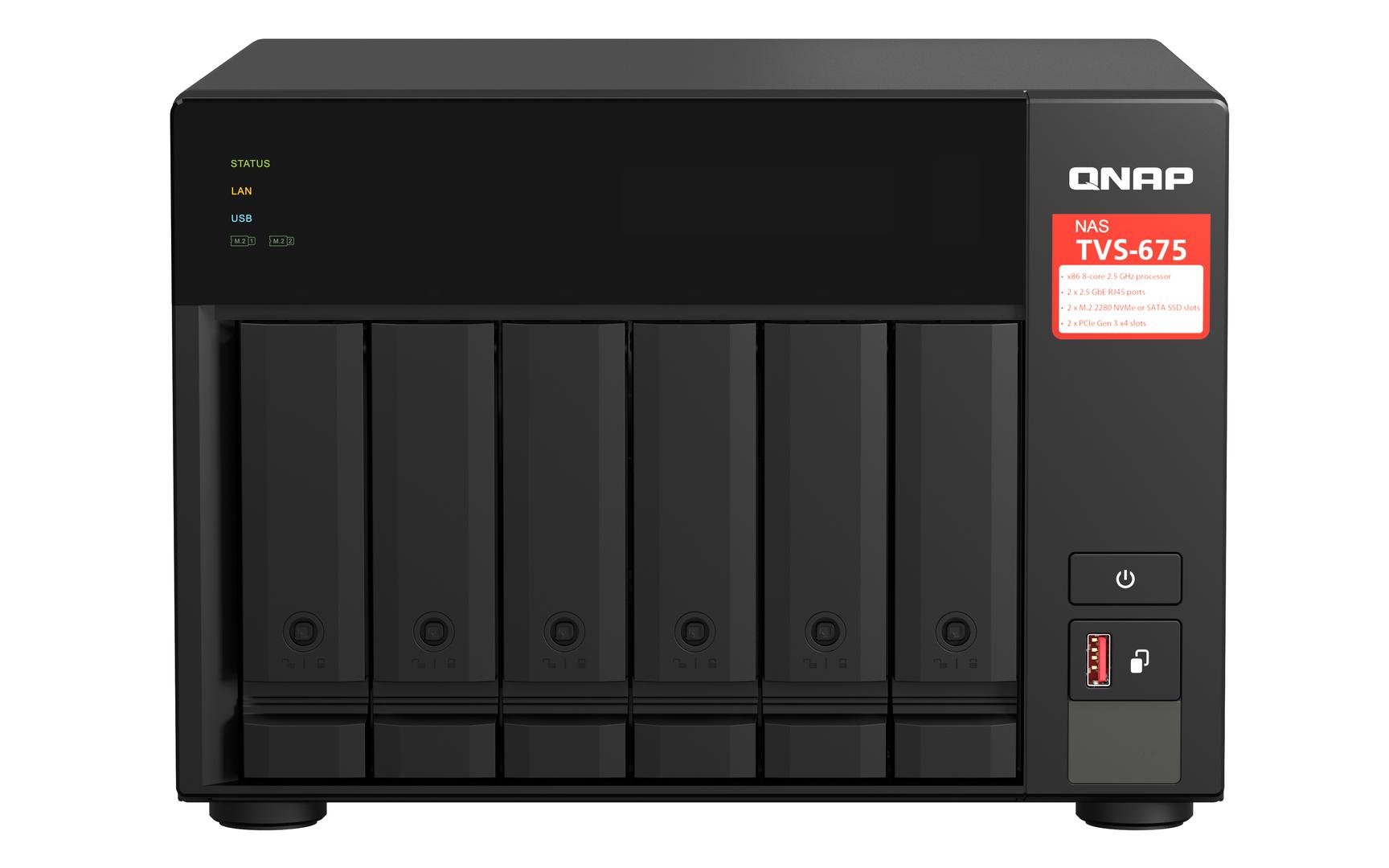

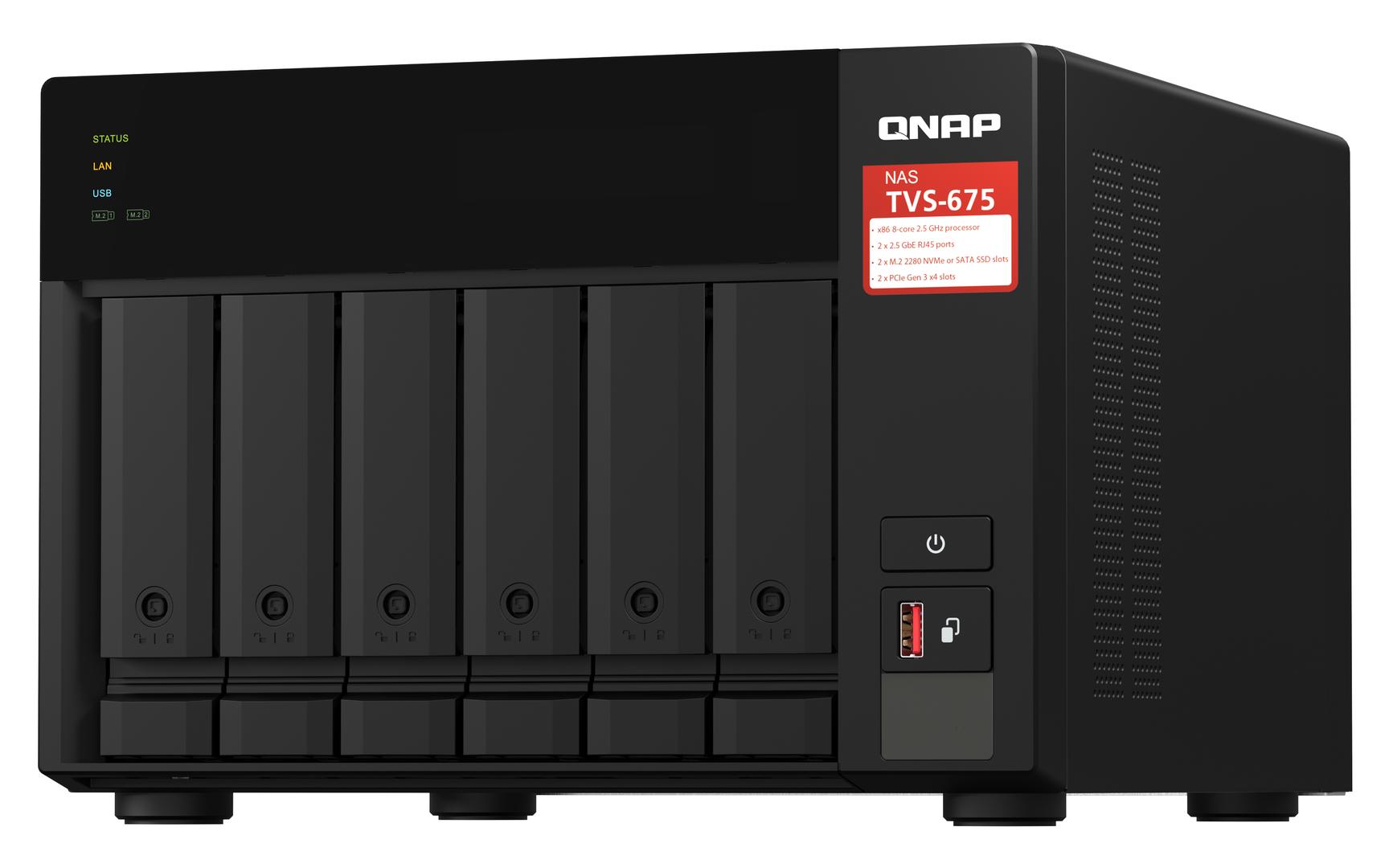

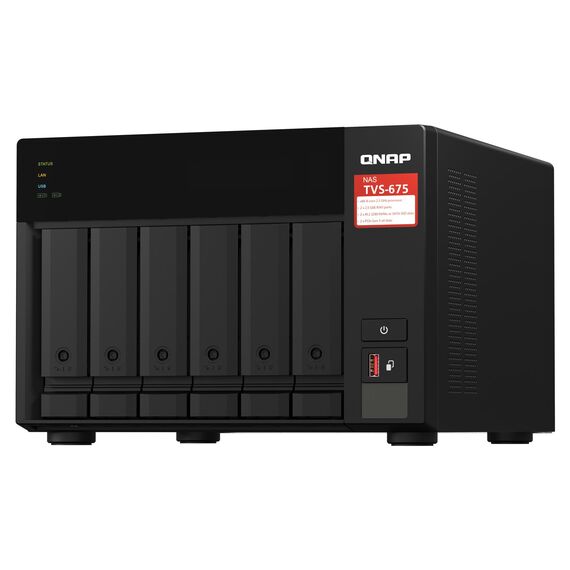

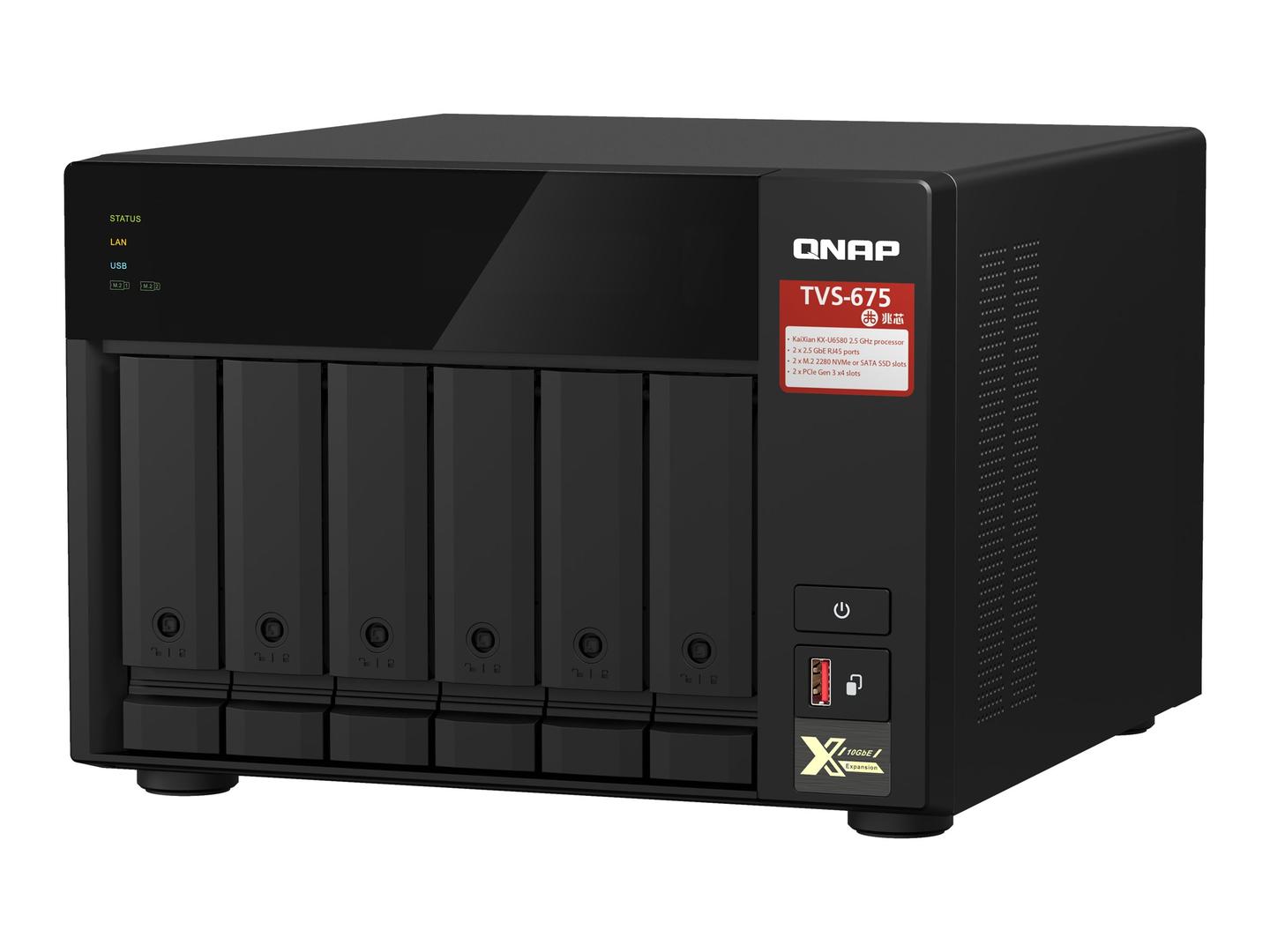

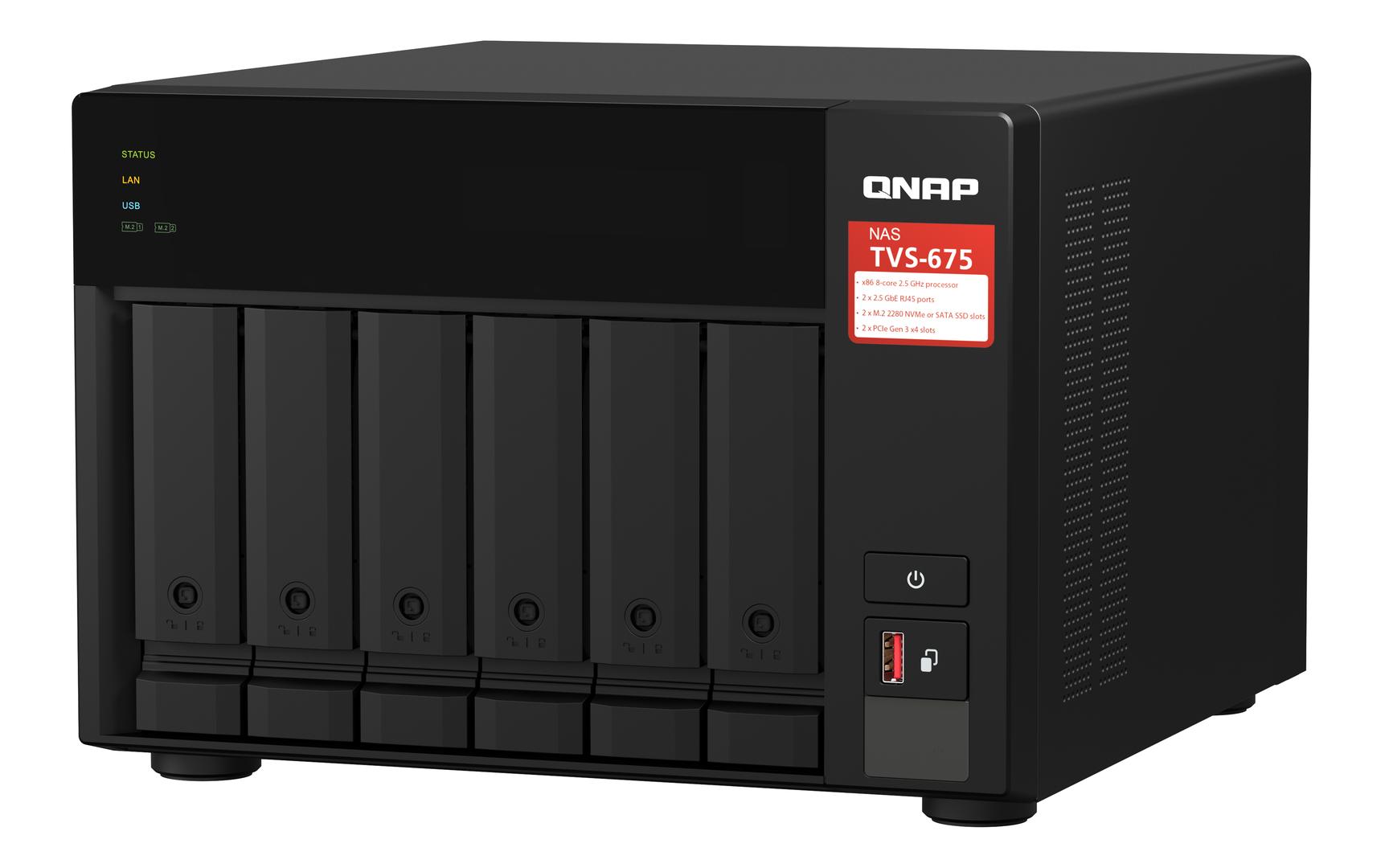

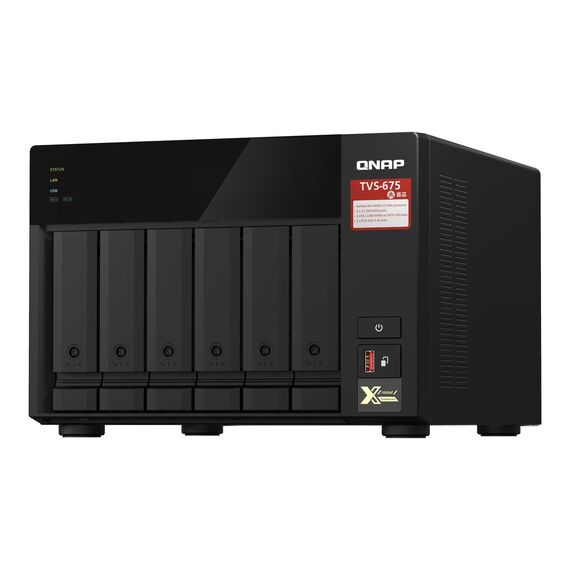

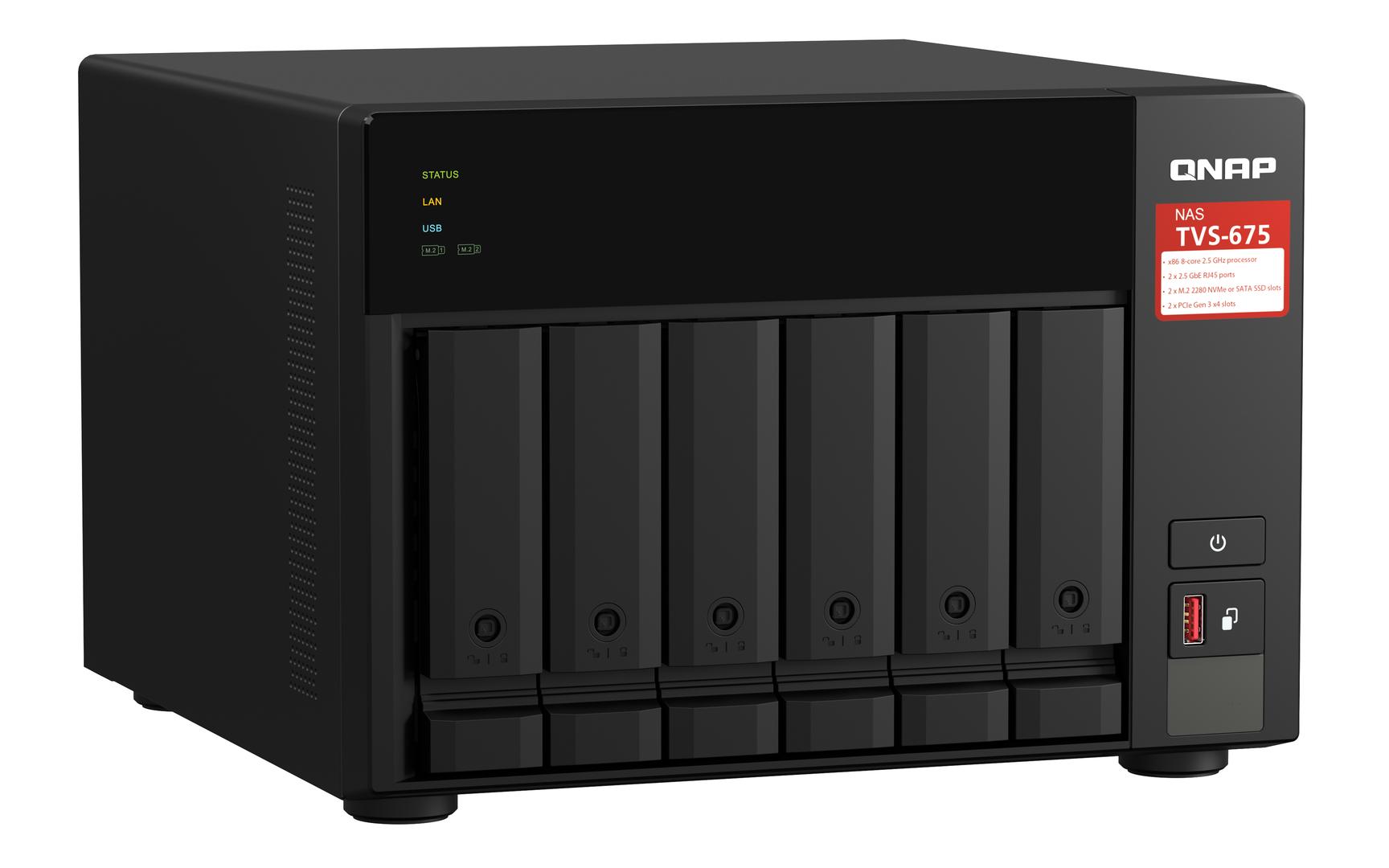

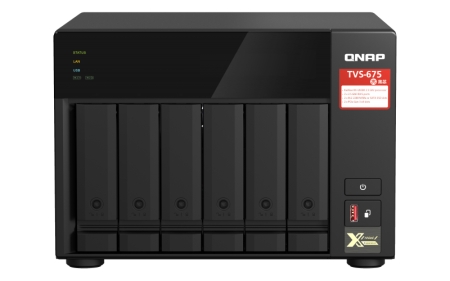

QNAP TVS-675 - NAS server - 6 bays - SATA 6Gb/s - RAID 5, 6, 10 - RAM 8 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support | TVS-675-8G
Please sign in so that we can notify you about a reply
Product Features
- High-performance multi-tasking with an 8 core 2.5GHz processor and up to 64 GB RAM
Powered by an x86 architecture Zhaoxin KaiXian KX-U6580 8 cores/8 threads 2.5GHz processor and 8 GB DDR4 memory (expandable up to 64 GB - 2x 32GB, dual channel support), the TVS-675 has enormous processing power to drive virtual machine performance and tackle complex multitasking workloads. AES-NI encryption support boosts encryption performance while also maintaining the security of your NAS data. - Streamline large file transfers and video editing with 2.5GbE
The TVS-675 comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT 5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the business efficiency of bandwidth-hungry applications such as large file transfers, fast backup/restoration, and multimedia transfer and editing. - Faster USB transfers
Featuring two USB 3.2 Gen 2 (10Gbps) and two USB 3.2 Gen 1 (5Gbps) ports, the TVS-675 allows compatibility with faster USB external drives/enclosures for transferring large media files. The TVS-675 also supports USB devices such as mobile phones, uninterruptible power supplies, and printers for greater all-round functionality. - Abundant I/O capabilities with PCIe expansion
The TVS-675 has two PCIe Gen 3 x4 slots that allow for installing various expansion cards for expanding application potential.
Special Fetures
- Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports
- Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools
- Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards
- 4K media playback and real-time transcoding; directly output videos to an HDMI 2.0 display (up to 4K @60Hz)
- Supports storage for virtualization; hosts multiple virtual machines and containers to run a wide range of applications on one NAS device
- Flexibly scale the total storage capacity to match business growth by connecting QNAP expansion enclosures
Product Specification
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 6 (max) |
| Width | 26.39 cm |
| Depth | 28.08 cm |
| Height | 18.82 cm |
| Weight | 6.2 kg () |
| Built-in Devices | Led panel |
| Processor / Memory | |
| Processors Installed | 1 x ZhaoXin Kaixian KX-U6580 2.5 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| RAM | 8 GB (installed) / 64 GB (supported) - DDR4 |
| Flash Memory Installed | 5 GB |
| Storage Controller | |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 5, RAID 6, RAID 10 |
| Networking | |
| Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, DHCP, DDNS, RTSP, SMSC, HTTP, HTTPs, IPv4, IPv6, Telnet |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, LDAP |
| Network Services Compatibility | Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Features | Network monitoring, NAT support, LDAP support, wake on LAN (WOL), Syslog support, Spanning Tree Protocol (STP) support, file sharing, SMS alert, BitTorrent Client, online RAID capacity expansion, online RAID level migration, Apple Time Machine compatible, e-mail notification, ONVIF support, Dropbox support, built-in hardware transcoding, push notification, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, Chromecast support, iSCSI Extensions over RDMA (iSER), file station, hubiC support, OpenStack Swift-compatible, WebDAV server support, IFTTT agent, EXT4 file system, SSD trim, iSCSI LUN clone/snapshot, Amazon S3 support, Amazon Glacier suport, Performance Monitoring, HiDrive support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, WebRTC, snapshot (folder and LUN), Alibaba Cloud OSS support, Backblaze B2 support, OpenVPN pass-through, VJBOD Cloud, myQNAPcloud, Qsync, QuMagie, Qmiix agent, iSCSI initiator |
| Encryption Algorithm | SSL, TLS, FIPS 140-2, 256-bit AES |
| Compliant Standards | DLNA CERTIFIED, UPnP |
| Expansion / Connectivity | |
| Expansion Bays | 6 (total) / 6 (free) x hot-swap - 2.5" / 3.5" |
| Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4 |

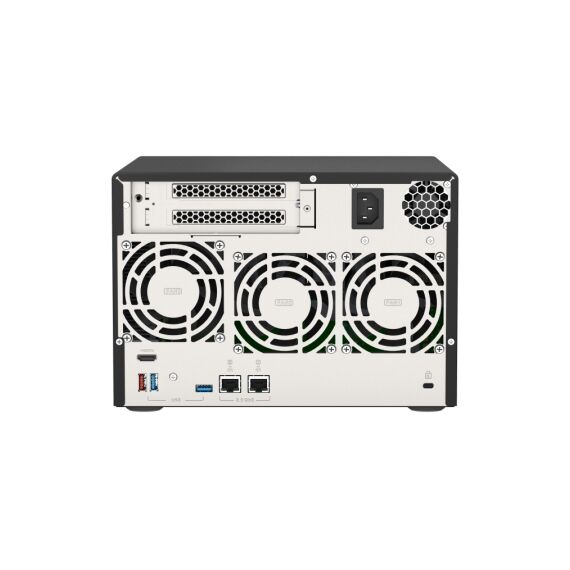

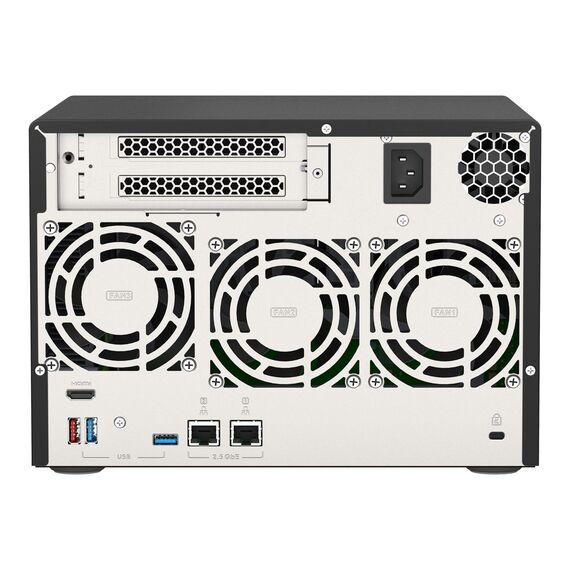

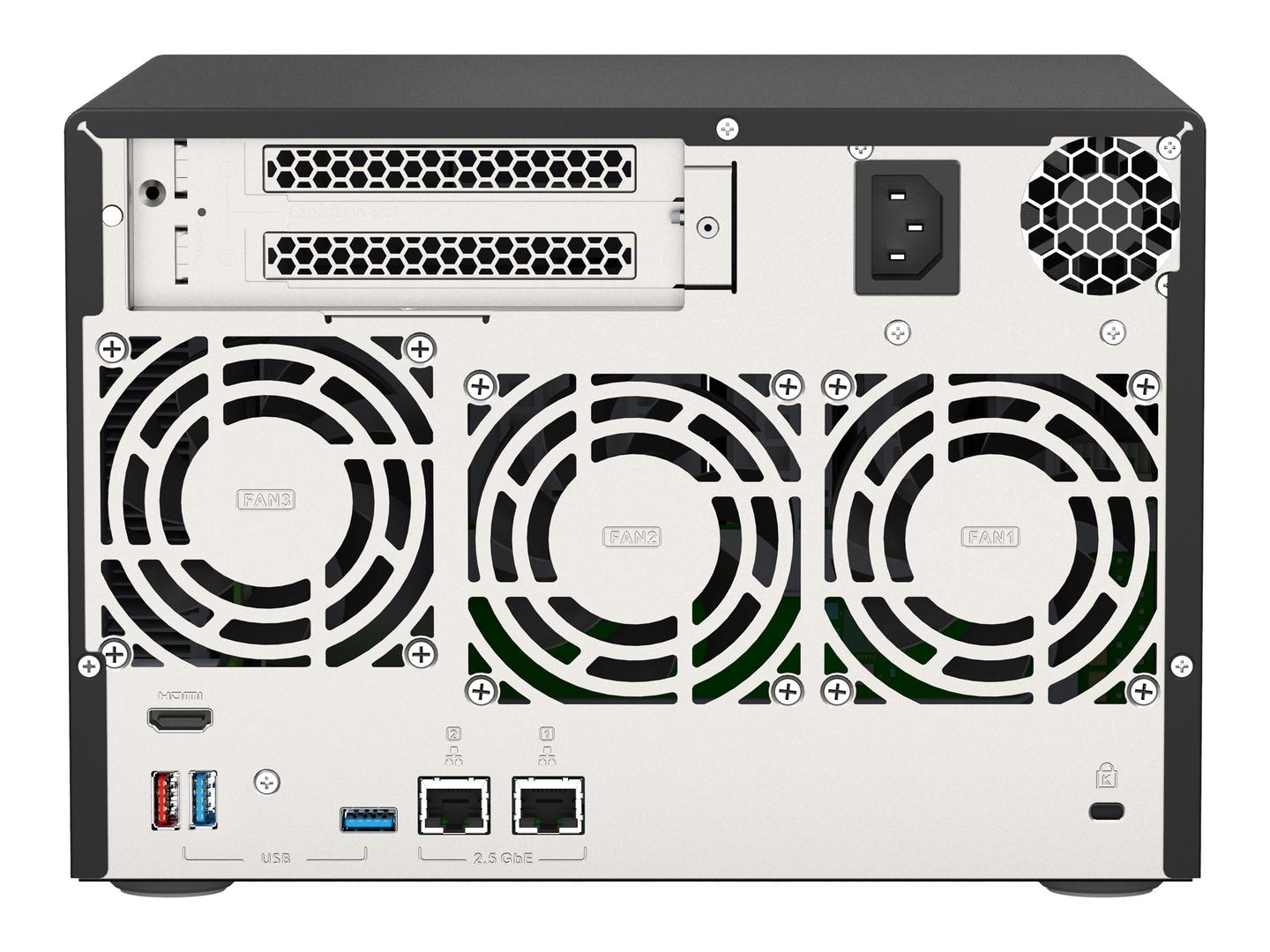

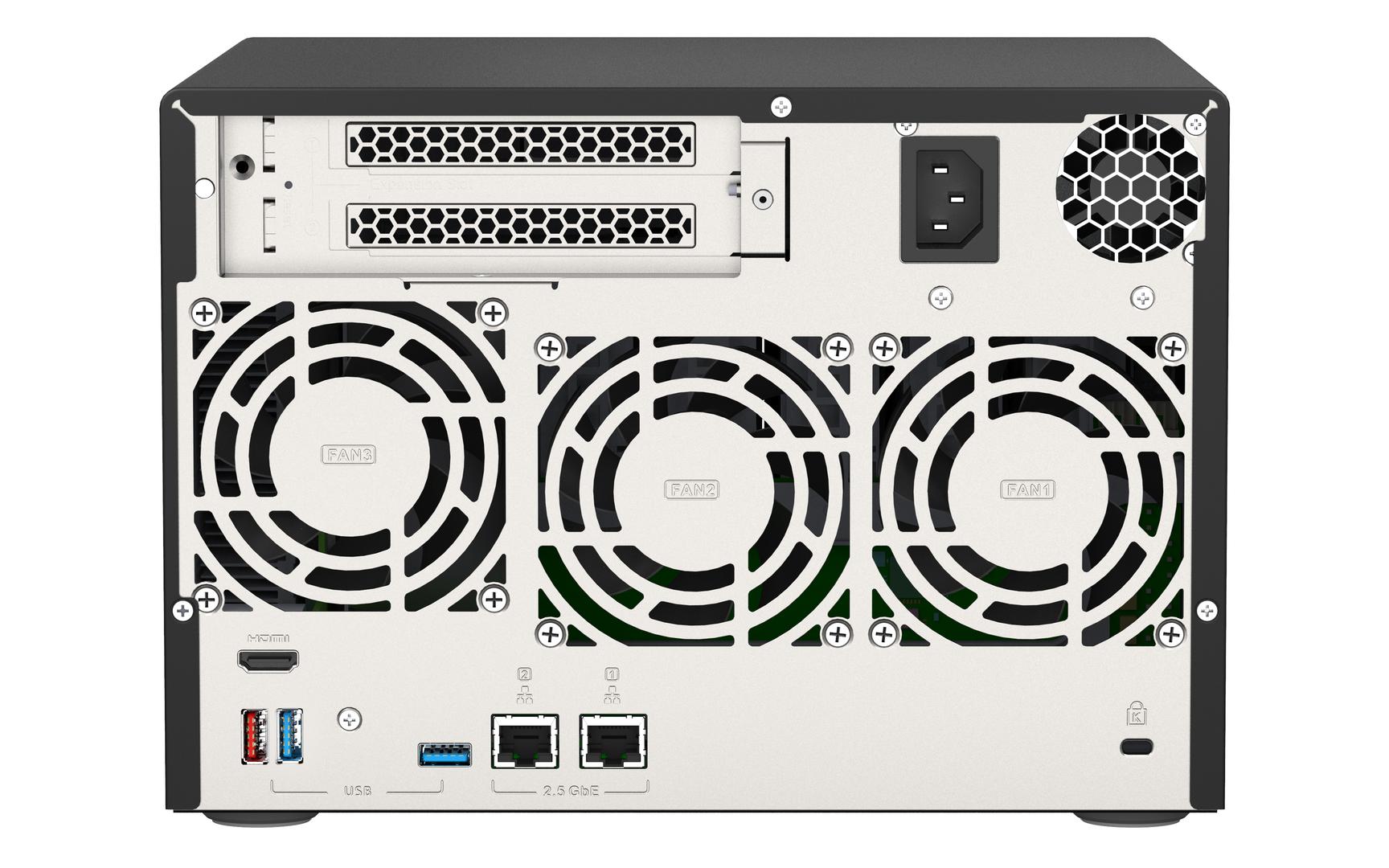

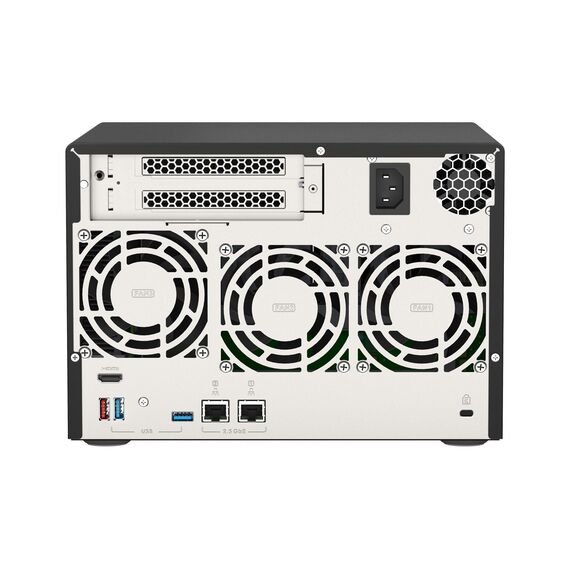

| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 3.2 Gen 1 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output - Type A |
| Miscellaneous | |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FIPS 140-2, TLS v1.2, TLS v1.0, TLS v1.1, SSL |
| Included Accessories | 2 x hard drive security key, 2 x M.2 SSD heatsink, 18 x flat head screws (for 2.5" HDD), 18 x flat head screws (for 3.5" HDD), power cable |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 60.794 Watt |
| Power Consumption Stand by | 41.897 Watt |
| Power Provided | 250 Watt |
| Software / System Requirements | |
| Storage Operating System | QNAP QTS hero |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 7.67 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 20.2 dBA |
Features - QNAP - TVS-675-8G
More Details
Product Code
04:377537
EAN Code
4713213519387
Manufacturer
QNAP
