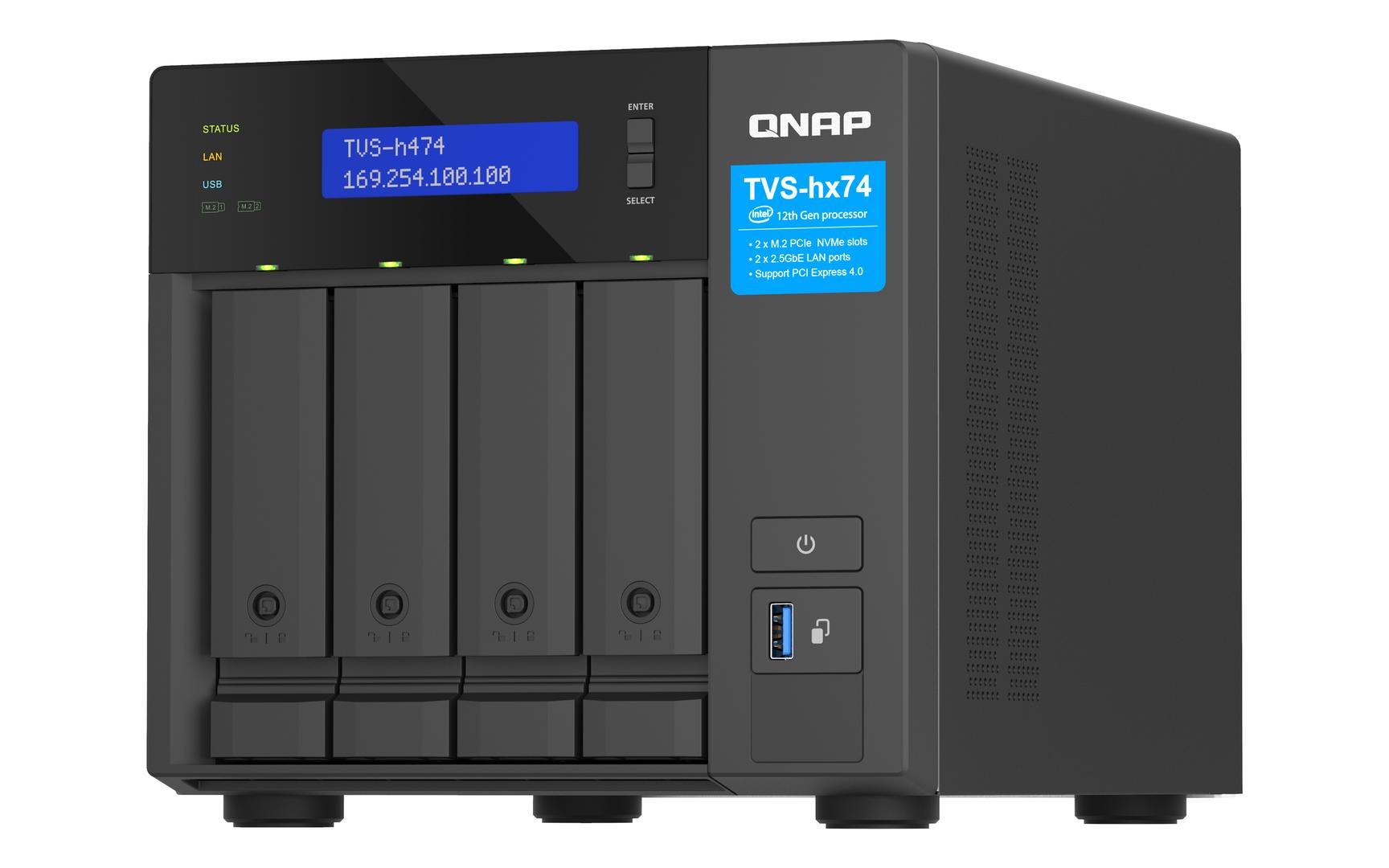

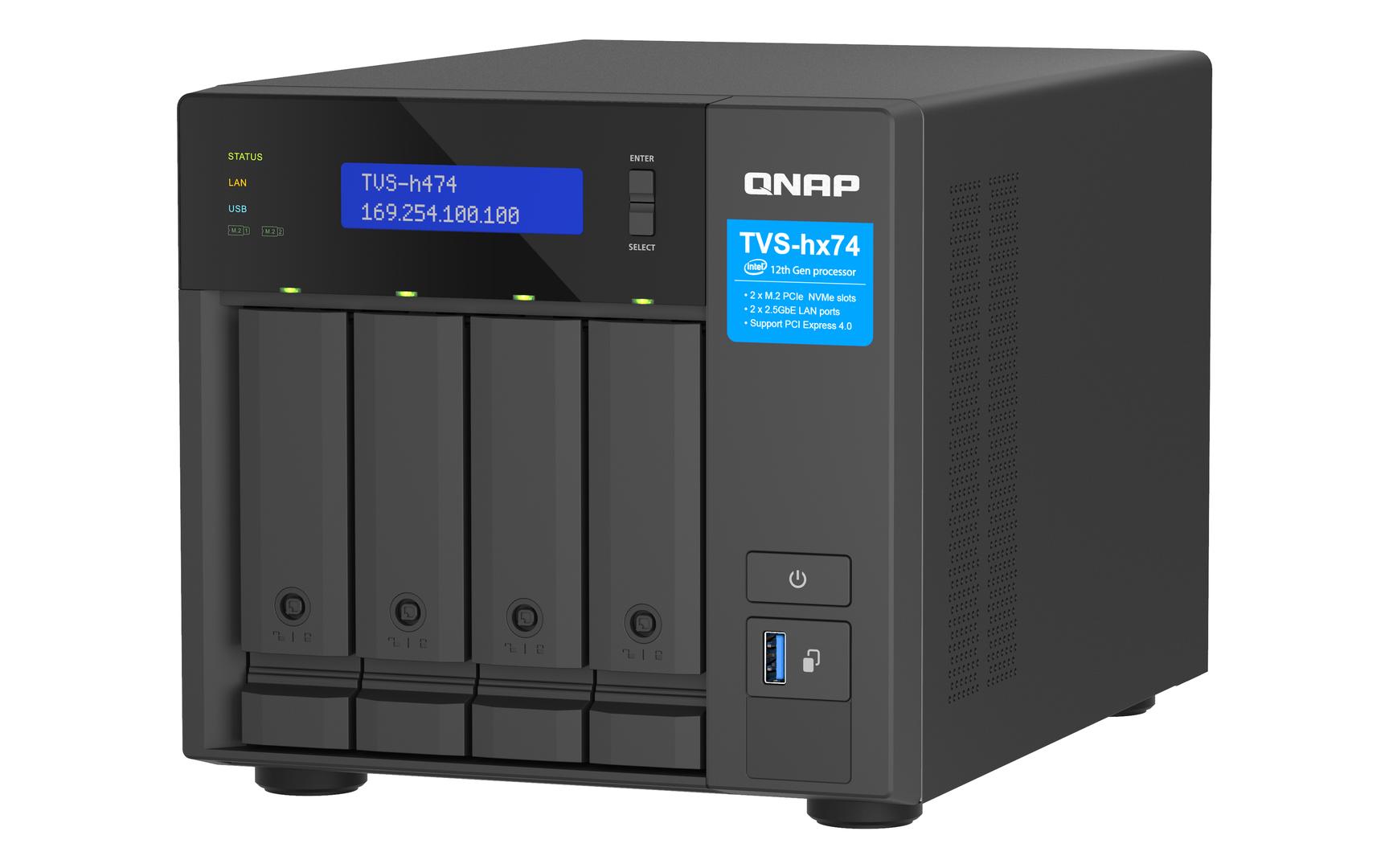

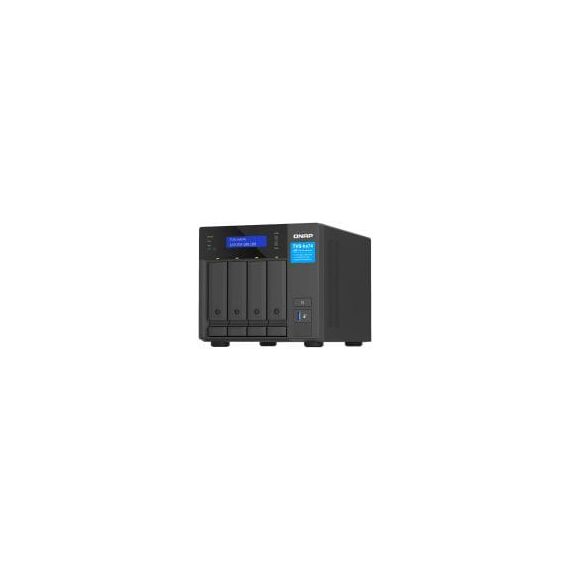

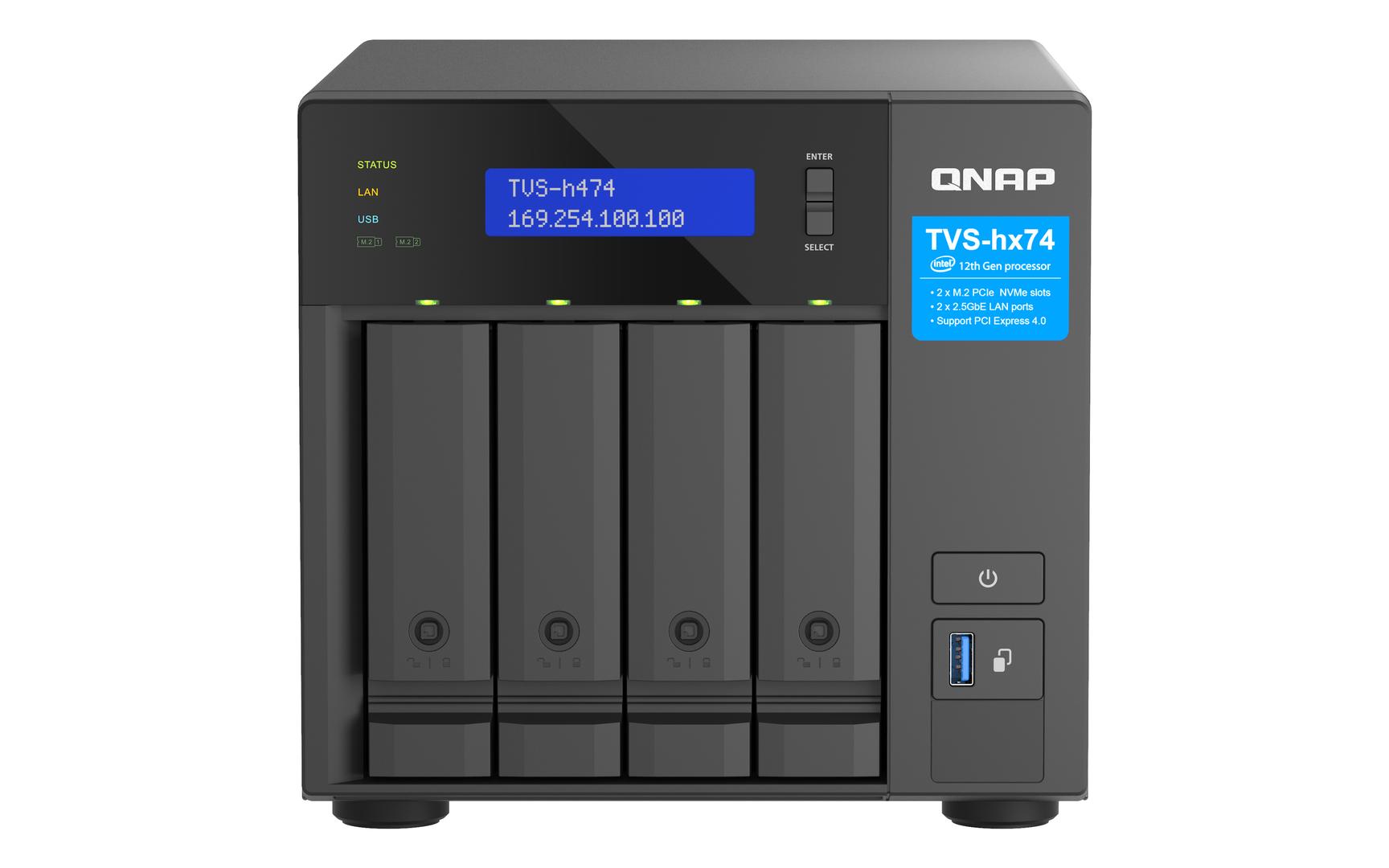

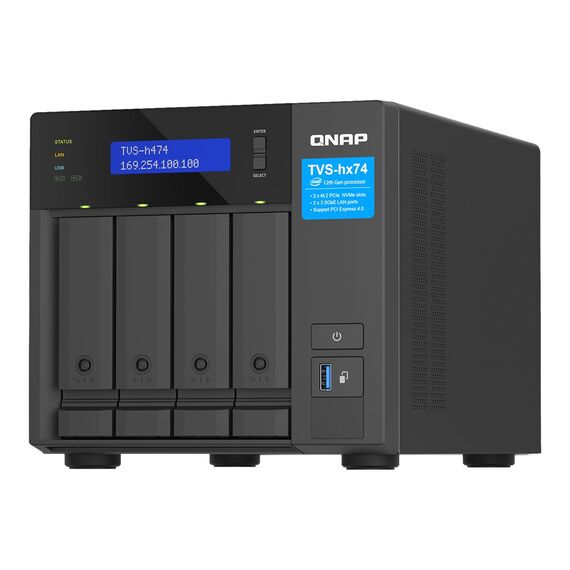

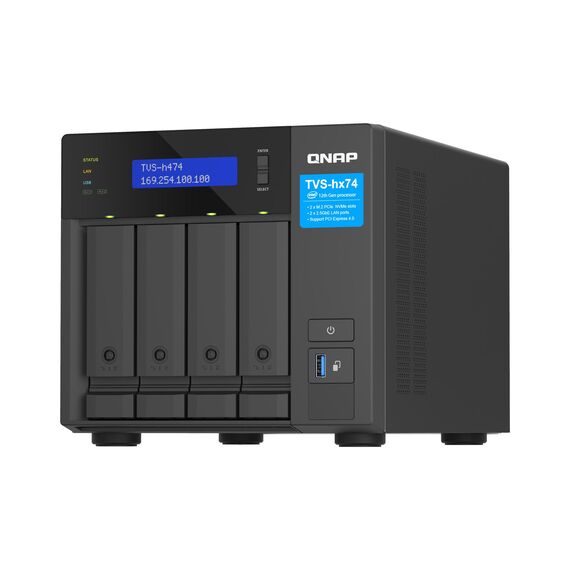

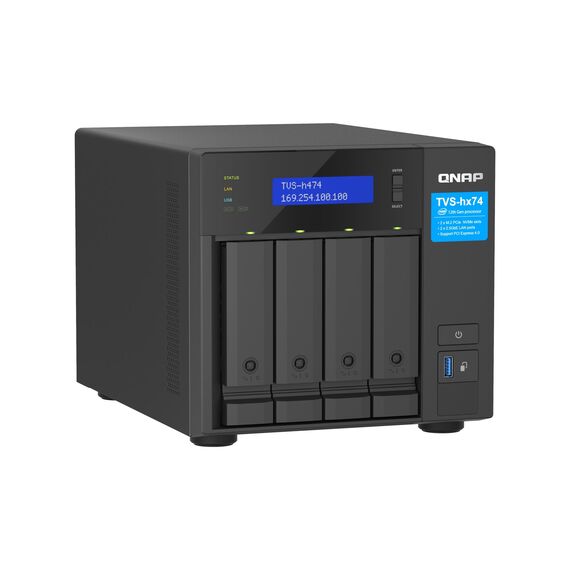

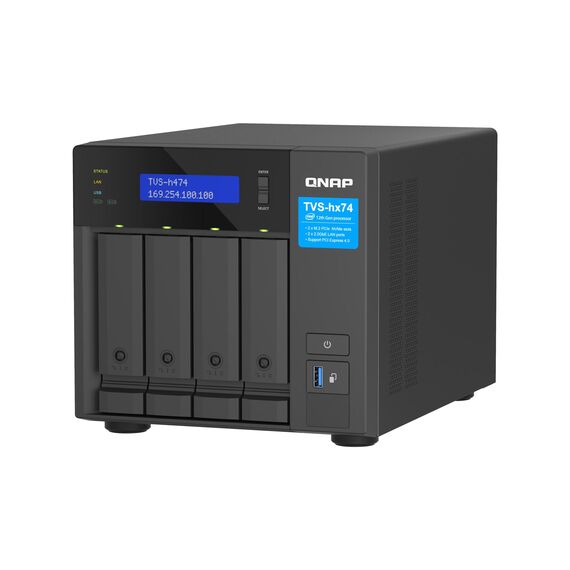

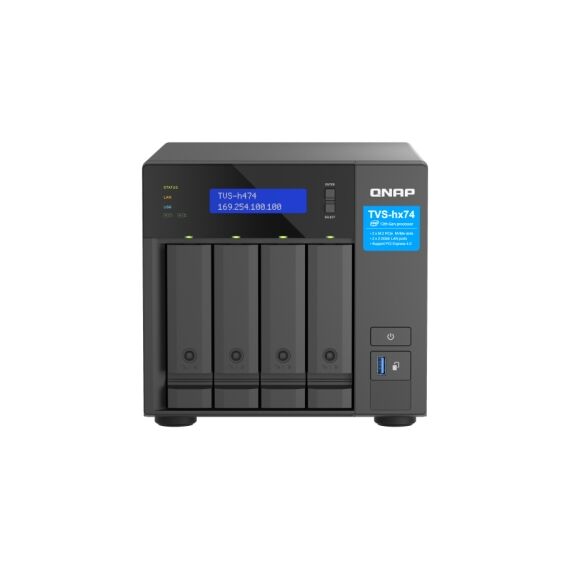

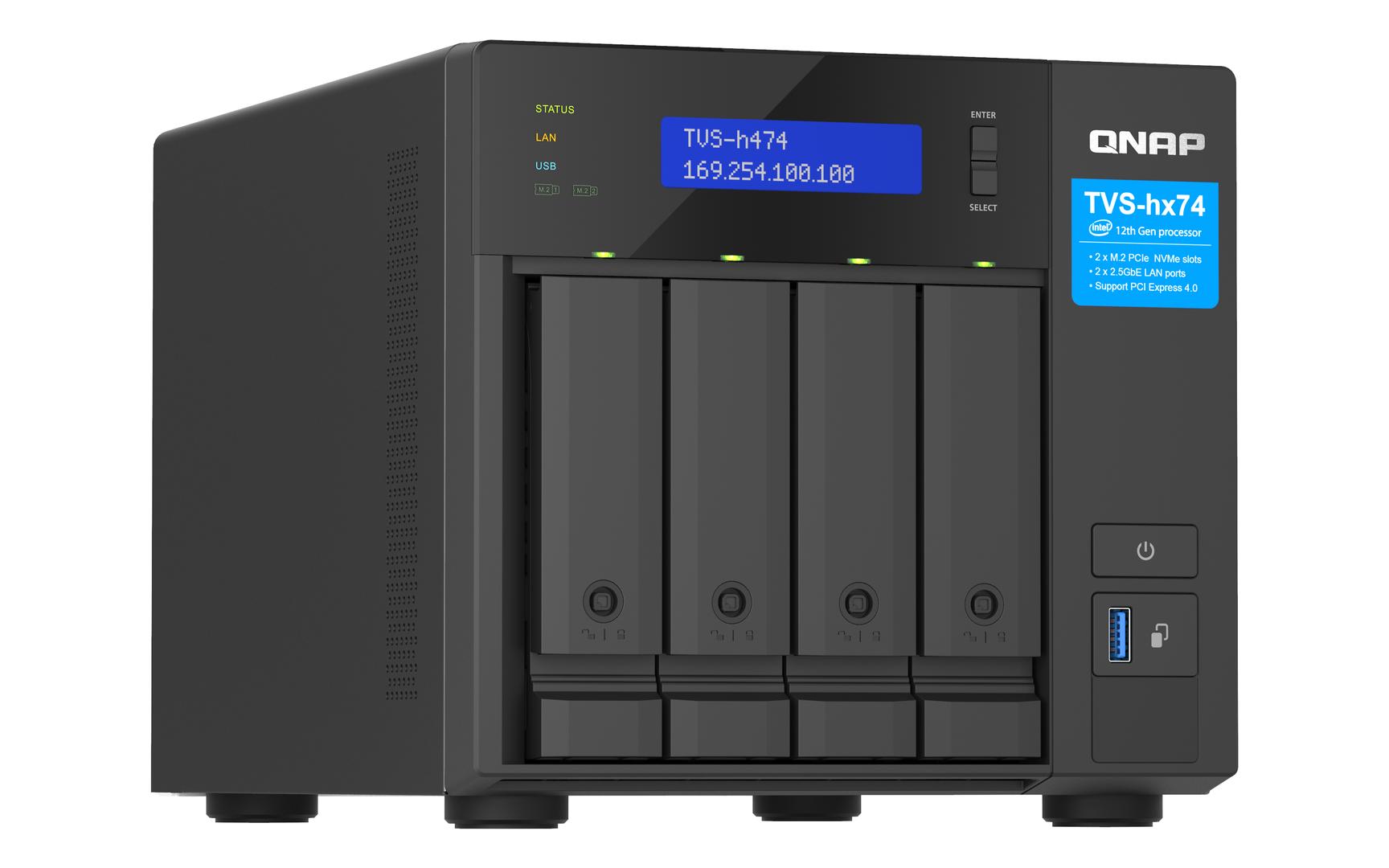

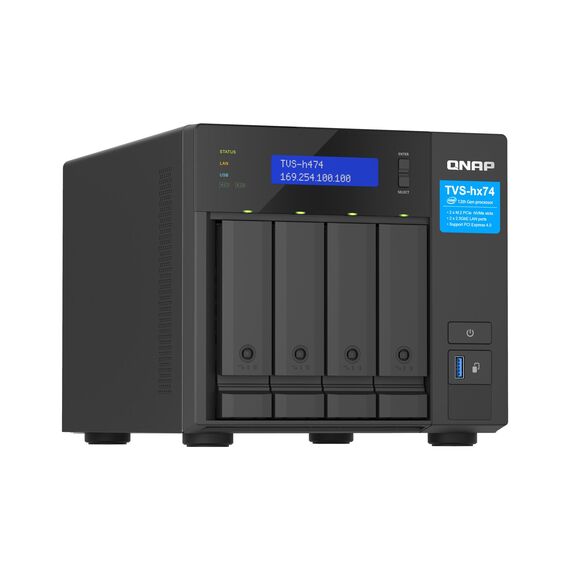

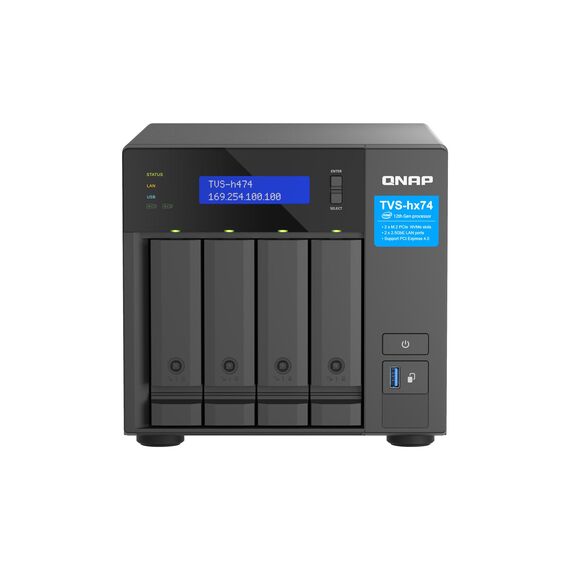

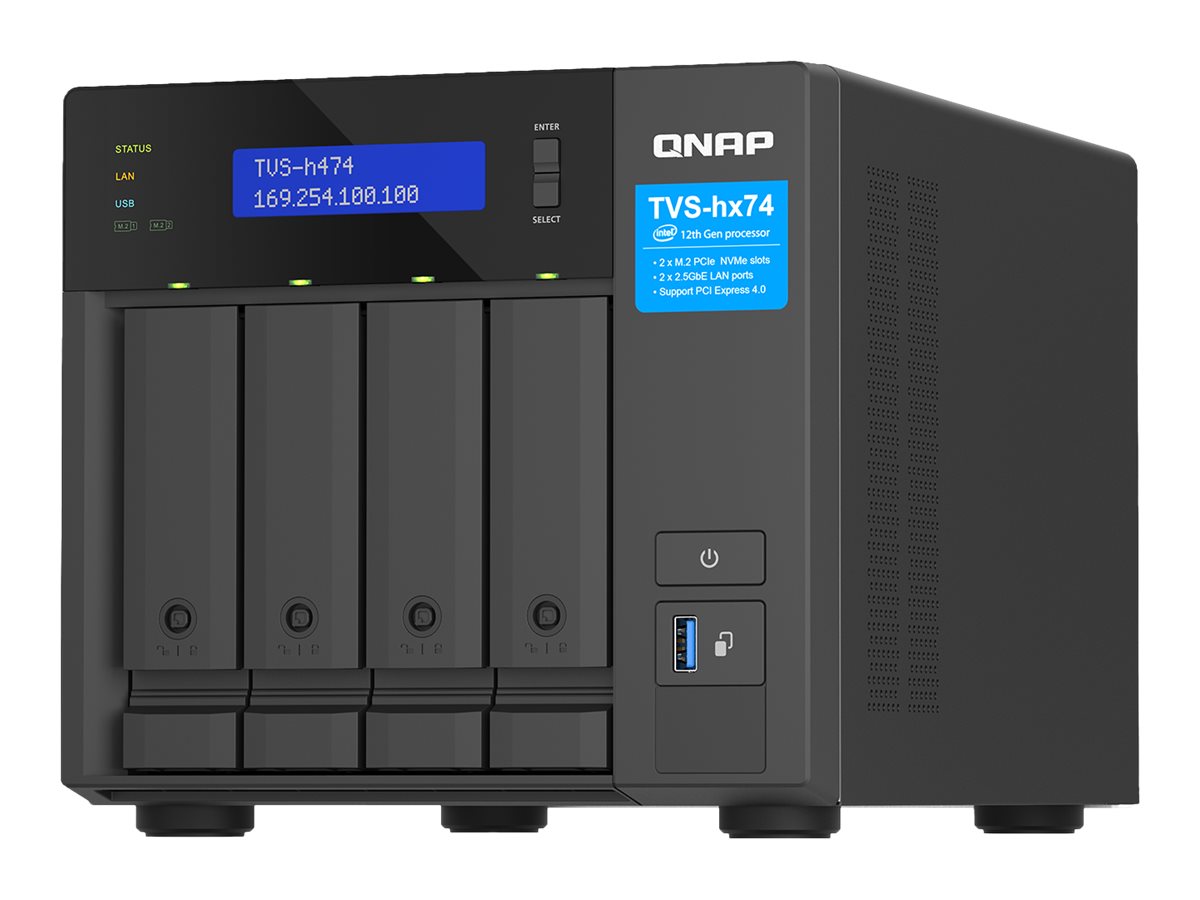

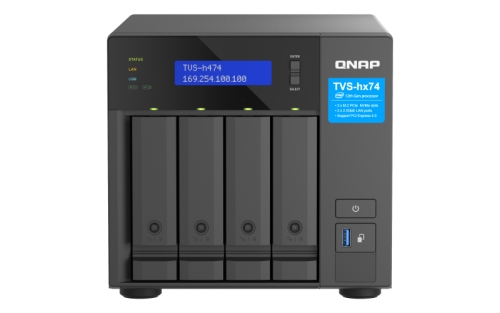

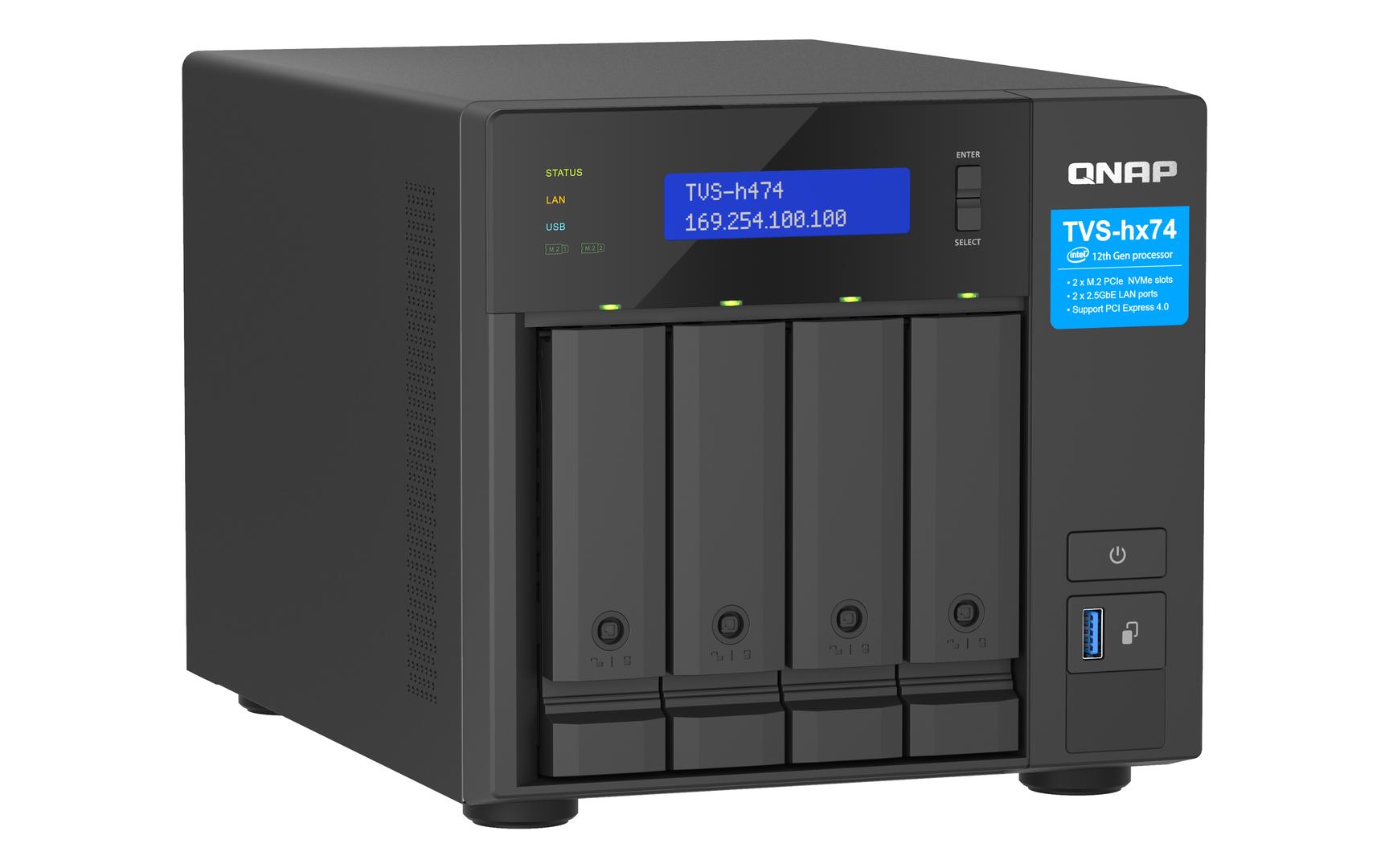

QNAP TVS-H474 - NAS server - 4 bays - SATA 6Gb/s - RAID RAID 0, 1, 5, 6, 10, JBOD, RAID TP, TM - RAM 8 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support | TVS-H474-PT-8G
Product Features
- High-performance Intel Pentium 3.7 GHz processor
The TVS-H474 adopts an Intel Pentium Gold dual-core Processor and Intel UHD Graphics 710 to increase multi-tasking capabilities, offering SMBs a secure, reliable, and high-performance NAS solution. - Boost NAS performance with M.2 SSDs or TPU
The TVS-H474 has two M.2 PCIe slots, enabling SSD caching or SSD storage pools for improved performance, or other applications. - Build a high-speed 2.5GbE network environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications. - Abundant I/O capabilities with PCIe expansion
The TVS-H474 has two PCIe slots that allow for installing various expansion cards for expanding application potential. - Comprehensive backup and disaster recovery solution
The TVS-H474 supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed. - Multi-version snapshots mitigate ransomware threats
The TVS-H474 supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware. - All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TVS-H474, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network and Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment. - Comprehensive security and privilege settings
The TVS-H474 is loaded with flexible privilege settings and security measures. Besides IP blocking, QNAP Authenticator, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers. - The best file storage and collaboration center
The TVS-H474 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files. - Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TVS-H474 storage as needed to accommodate data and business growth.
Special Fetures
- High-performance Intel Pentium 3.7 GHz processor
- Boost NAS performance with M.2 SSDs or TPU
- Build a high-speed 2.5GbE network environment
- Abundant I/O capabilities with PCIe expansion
- Comprehensive backup and disaster recovery solution
- Multi-version snapshots mitigate ransomware threats
- All-in-one solution for hosting virtual machines and containers
- Comprehensive security and privilege settings
- The best file storage and collaboration center
- Flexible and economical storage expansion
Product Specification
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 19.93 cm |
Depth | 27.96 cm |
Height | 18.82 cm |
Weight | ) |
Built-in Devices | Display, 1 x 120 mm fan, 1 x 60 mm CPU fan |
Processor / Memory | |
Processors Installed | 1 x Intel Pentium Gold G7400 3.7 GHz |
Number of Cores | Dual-Core |
Max Supported Qty | 1 |
RAM | 8 GB (installed) / 128 GB (supported) - DDR4 |
Flash Memory Installed | 5 GB |
Storage Controller | |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID TP, RAID TM |
Networking | |
Data Link Protocol | 100Mb LAN, 1GbE, 2.5GbE |
Network / Transport Protocol | PPTP, L2TP, IPSec, FTP, IPv4, IPv6, Telnet, TFTP, QBelt, OpenVPN |
Remote Management Protocol | SNMP 2, SNMP 3, RADIUS |
Network Services Compatibility | Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, SFTP |
Performance | Maximum LUN size: 1024 TB ¦ Maximum number of targets LUN: 256 ¦ Maximum shared folder size: 1024 TB ¦ Maximum number of shared folder: 256 ¦ Maximum pool size: 1024 TB ¦ Maximum number of storage pool: 128 ¦ Minimum snapshot interval: 1 minute ¦ Maximum FTP connection: 1024 ¦ Local user account: 16000 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Virtual hosts: 32 ¦ Maximum number of version control: 64 |
Features | VLAN support, wake on LAN (WOL), SSH support, Jumbo Frames support, DHCP server, FTP server, Domain Controller, system log, built-in hardware transcoding, file station, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, WORM (Write Once Read Many protection), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, Shared Folder Snapshot, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, External Device Management, Mount Smart Phone (MTP), Object Storage, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, block-based iSCSI LUN, LUN snapshot, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, SSD Cache RAID, GPU pass-through, Secure Erase, QVPN Service, End-to-End Data Integrity, silent error detection and self-healing, Snapshot Instant Clone, SSD read & write log cache, SSD dedicated ZIL cache, External RAID Device Management, Shared Folder Data Compression, Shared Folder WORM, user quota, DDNS (Dynamic Domain Name Service) |
Encryption Algorithm | TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
Expansion / Connectivity | |
Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x16 ¦ 1 (total) / 1 (free) x PCI Express 4.0 x4 |

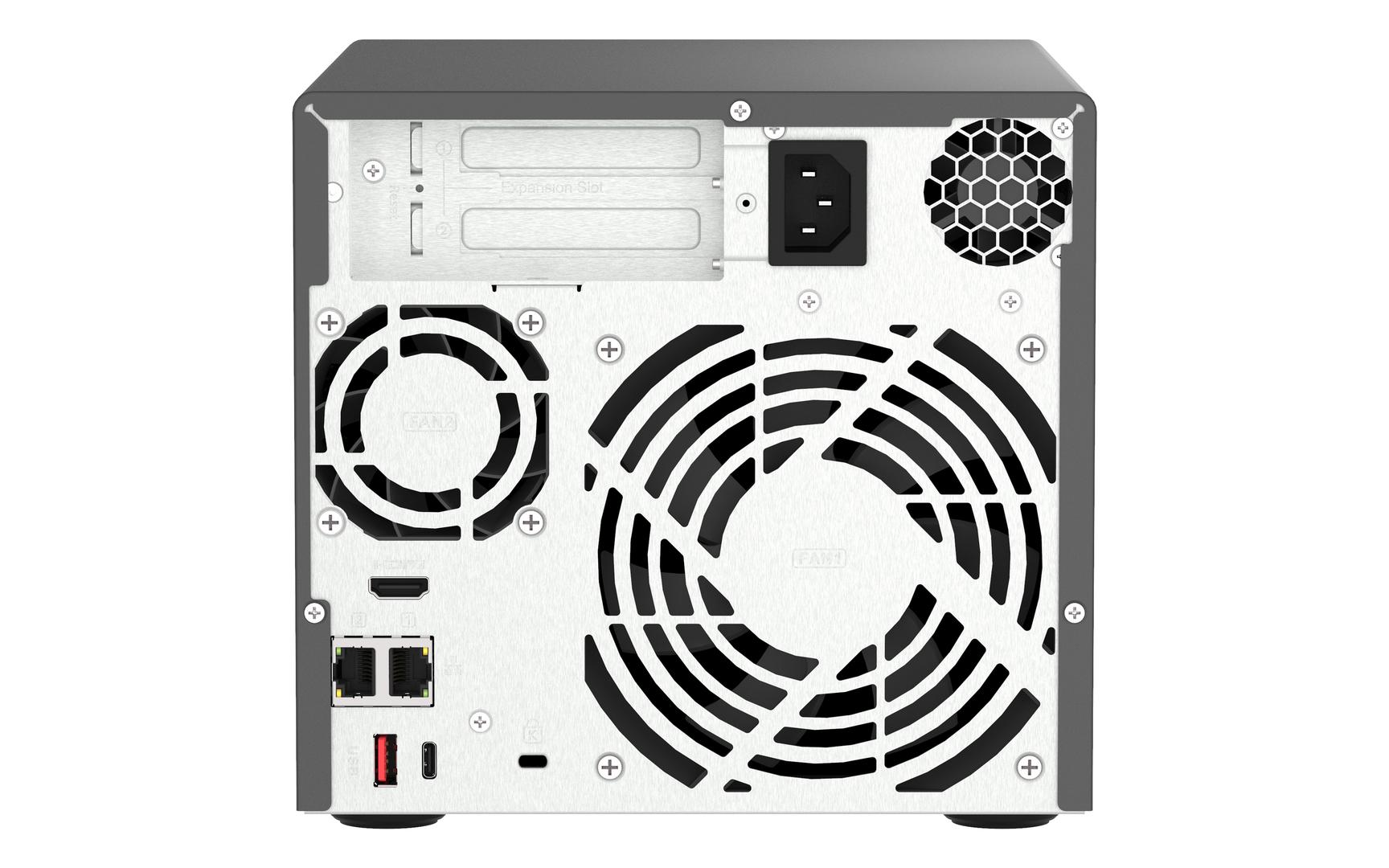

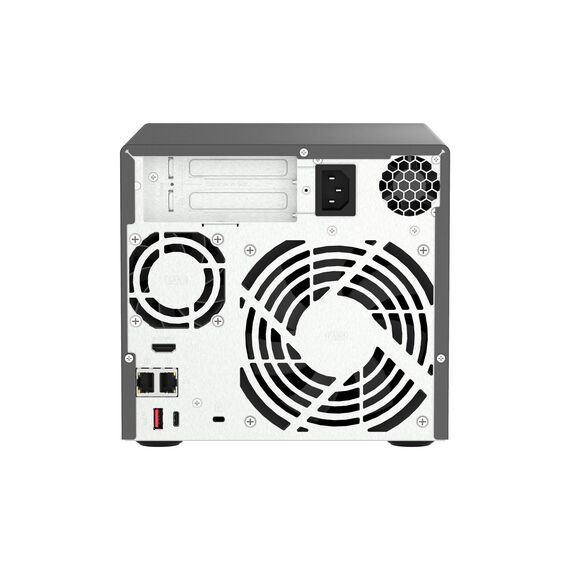

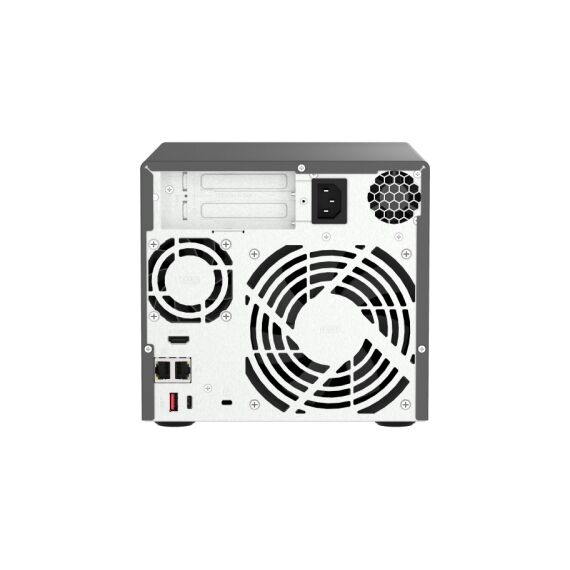

Interfaces | 2 x USB 3.2 Gen 2 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x USB 3.2 Gen 2 - Type C ¦ 1 x HDMI output |
Miscellaneous | |
Cables Included | 1 x network cable |
Features | Security lock slot (cable lock sold separately) |
Security Slot Type | Kensington security slot |
Included Accessories | 2 x M.2 SSD heatsink, 12 x flat head screws (for 2.5" HDD), 16 x flat head screws (for 3.5" HDD), 2 x drive tray keys |
Power | |
Power Device | Internal power supply |
Installed Qty | 1 |
Voltage Required | AC 100-240 V |
Power Consumption Operational | 78.574 Watt |
Power Provided | 250 Watt |
Software / System Requirements | |
Storage Operating System | QNAP QuTS hero h5.0.0 |
OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Features - QNAP - TVS-h474-PT-8G
